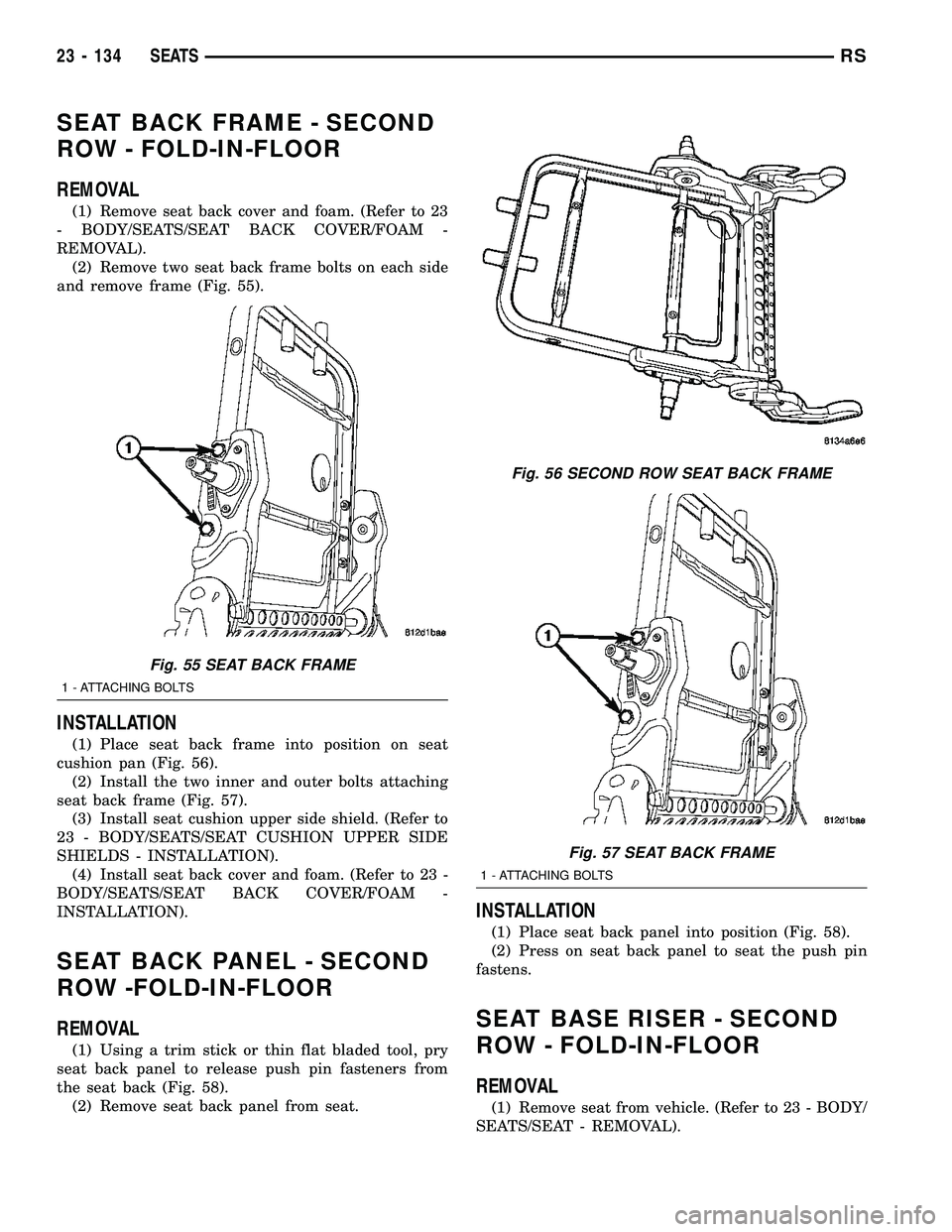

Page 1913 of 2339

SEAT BACK FRAME - SECOND
ROW - FOLD-IN-FLOOR
REMOVAL
(1) Remove seat back cover and foam. (Refer to 23
- BODY/SEATS/SEAT BACK COVER/FOAM -
REMOVAL).
(2) Remove two seat back frame bolts on each side
and remove frame (Fig. 55).
INSTALLATION
(1) Place seat back frame into position on seat
cushion pan (Fig. 56).
(2) Install the two inner and outer bolts attaching
seat back frame (Fig. 57).
(3) Install seat cushion upper side shield. (Refer to
23 - BODY/SEATS/SEAT CUSHION UPPER SIDE
SHIELDS - INSTALLATION).
(4) Install seat back cover and foam. (Refer to 23 -
BODY/SEATS/SEAT BACK COVER/FOAM -
INSTALLATION).
SEAT BACK PANEL - SECOND
ROW -FOLD-IN-FLOOR
REMOVAL
(1) Using a trim stick or thin flat bladed tool, pry
seat back panel to release push pin fasteners from
the seat back (Fig. 58).
(2) Remove seat back panel from seat.
INSTALLATION
(1) Place seat back panel into position (Fig. 58).
(2) Press on seat back panel to seat the push pin
fastens.
SEAT BASE RISER - SECOND
ROW - FOLD-IN-FLOOR
REMOVAL
(1) Remove seat from vehicle. (Refer to 23 - BODY/
SEATS/SEAT - REMOVAL).
Fig. 55 SEAT BACK FRAME
1 - ATTACHING BOLTS
Fig. 56 SECOND ROW SEAT BACK FRAME
Fig. 57 SEAT BACK FRAME
1 - ATTACHING BOLTS
23 - 134 SEATSRS

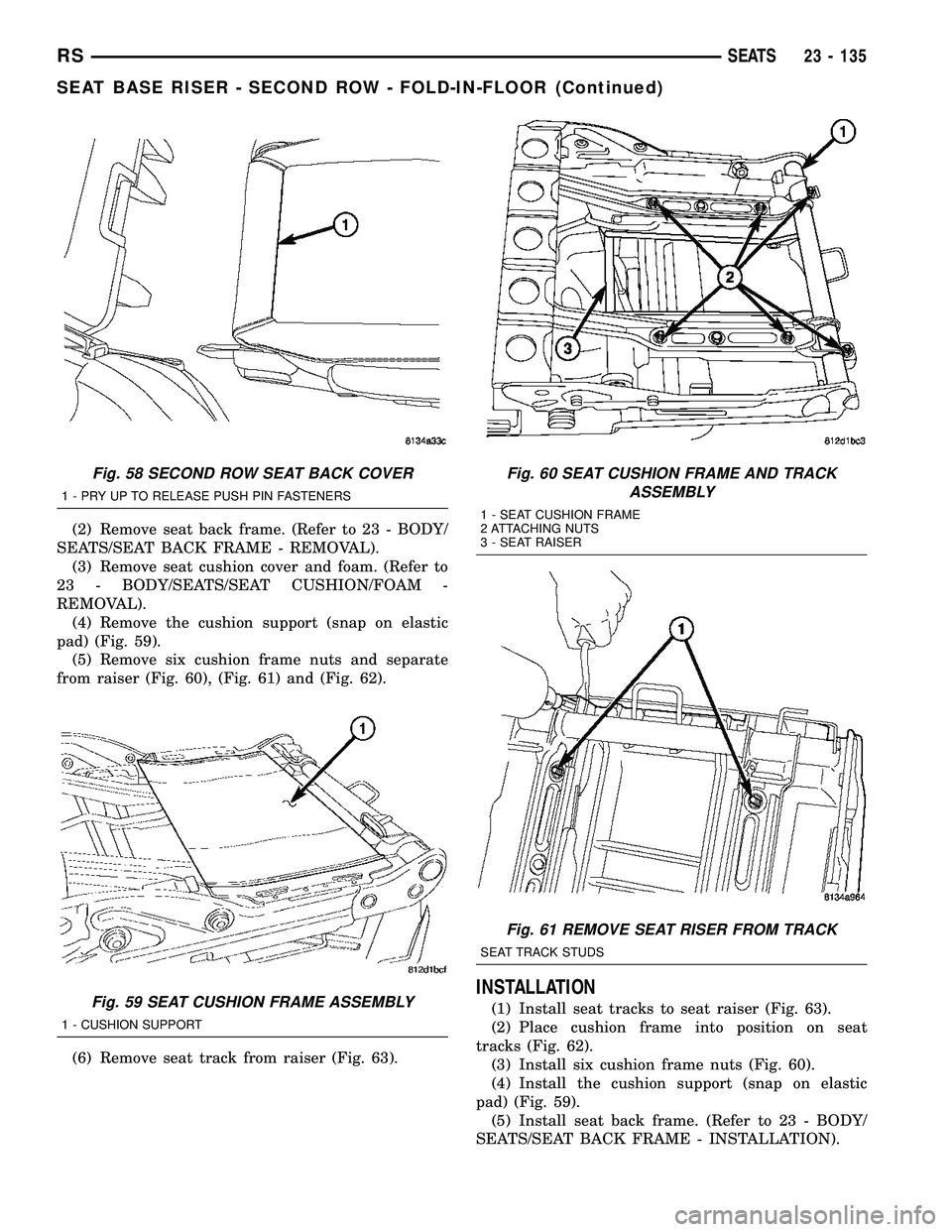

Page 1914 of 2339

(2) Remove seat back frame. (Refer to 23 - BODY/
SEATS/SEAT BACK FRAME - REMOVAL).
(3) Remove seat cushion cover and foam. (Refer to
23 - BODY/SEATS/SEAT CUSHION/FOAM -
REMOVAL).
(4) Remove the cushion support (snap on elastic
pad) (Fig. 59).
(5) Remove six cushion frame nuts and separate
from raiser (Fig. 60), (Fig. 61) and (Fig. 62).
(6) Remove seat track from raiser (Fig. 63).
INSTALLATION
(1) Install seat tracks to seat raiser (Fig. 63).
(2) Place cushion frame into position on seat
tracks (Fig. 62).
(3) Install six cushion frame nuts (Fig. 60).
(4) Install the cushion support (snap on elastic
pad) (Fig. 59).
(5) Install seat back frame. (Refer to 23 - BODY/
SEATS/SEAT BACK FRAME - INSTALLATION).
Fig. 58 SECOND ROW SEAT BACK COVER
1 - PRY UP TO RELEASE PUSH PIN FASTENERS
Fig. 59 SEAT CUSHION FRAME ASSEMBLY
1 - CUSHION SUPPORT
Fig. 60 SEAT CUSHION FRAME AND TRACK
ASSEMBLY
1 - SEAT CUSHION FRAME
2 ATTACHING NUTS
3 - SEAT RAISER
Fig. 61 REMOVE SEAT RISER FROM TRACK
SEAT TRACK STUDS
RSSEATS23 - 135
SEAT BASE RISER - SECOND ROW - FOLD-IN-FLOOR (Continued)

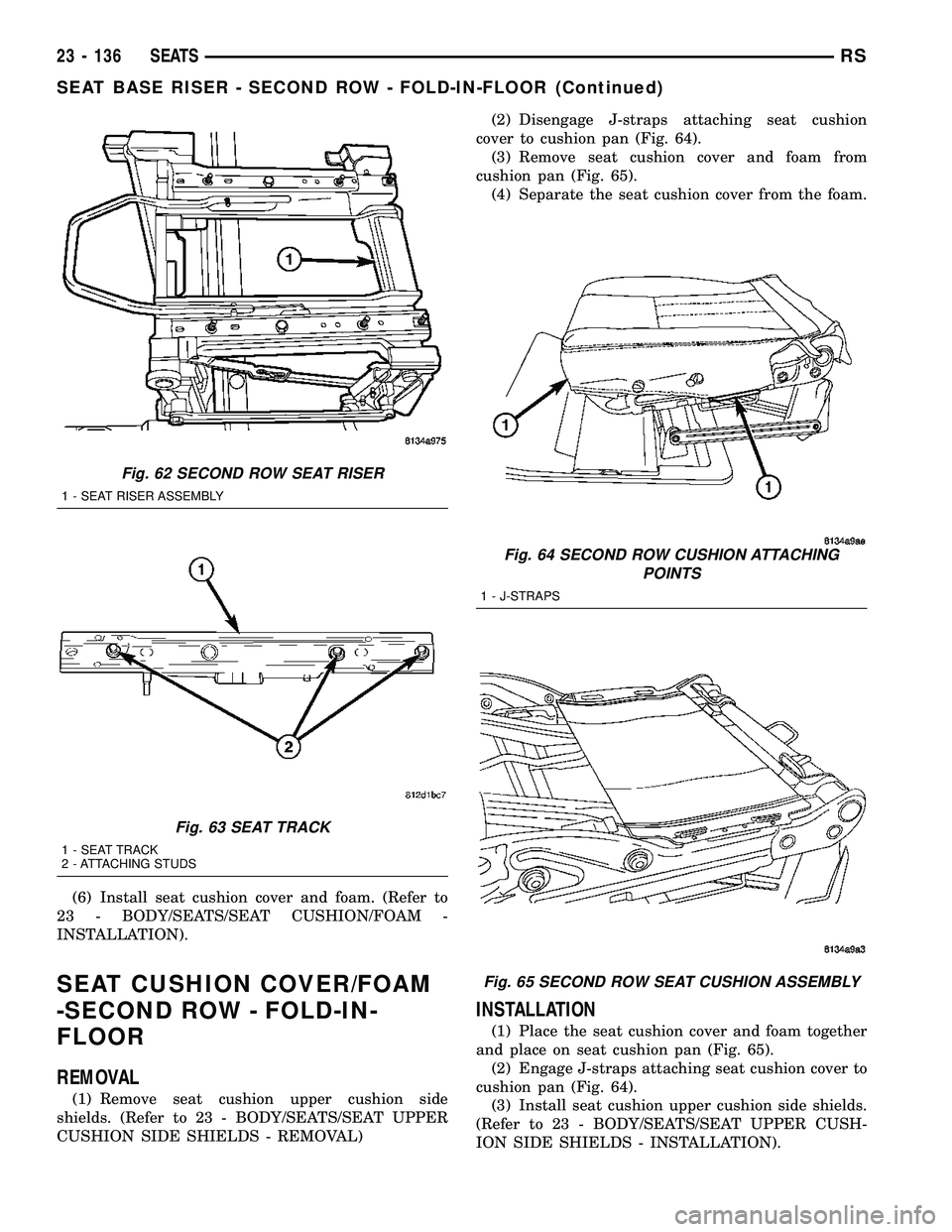

Page 1915 of 2339

(6) Install seat cushion cover and foam. (Refer to
23 - BODY/SEATS/SEAT CUSHION/FOAM -
INSTALLATION).
SEAT CUSHION COVER/FOAM
-SECOND ROW - FOLD-IN-
FLOOR
REMOVAL
(1) Remove seat cushion upper cushion side
shields. (Refer to 23 - BODY/SEATS/SEAT UPPER
CUSHION SIDE SHIELDS - REMOVAL)(2) Disengage J-straps attaching seat cushion
cover to cushion pan (Fig. 64).
(3) Remove seat cushion cover and foam from
cushion pan (Fig. 65).
(4) Separate the seat cushion cover from the foam.
INSTALLATION
(1) Place the seat cushion cover and foam together
and place on seat cushion pan (Fig. 65).
(2) Engage J-straps attaching seat cushion cover to
cushion pan (Fig. 64).
(3) Install seat cushion upper cushion side shields.
(Refer to 23 - BODY/SEATS/SEAT UPPER CUSH-
ION SIDE SHIELDS - INSTALLATION).
Fig. 62 SECOND ROW SEAT RISER
1 - SEAT RISER ASSEMBLY
Fig. 63 SEAT TRACK
1 - SEAT TRACK
2 - ATTACHING STUDS
Fig. 64 SECOND ROW CUSHION ATTACHING
POINTS
1 - J-STRAPS
Fig. 65 SECOND ROW SEAT CUSHION ASSEMBLY
23 - 136 SEATSRS
SEAT BASE RISER - SECOND ROW - FOLD-IN-FLOOR (Continued)

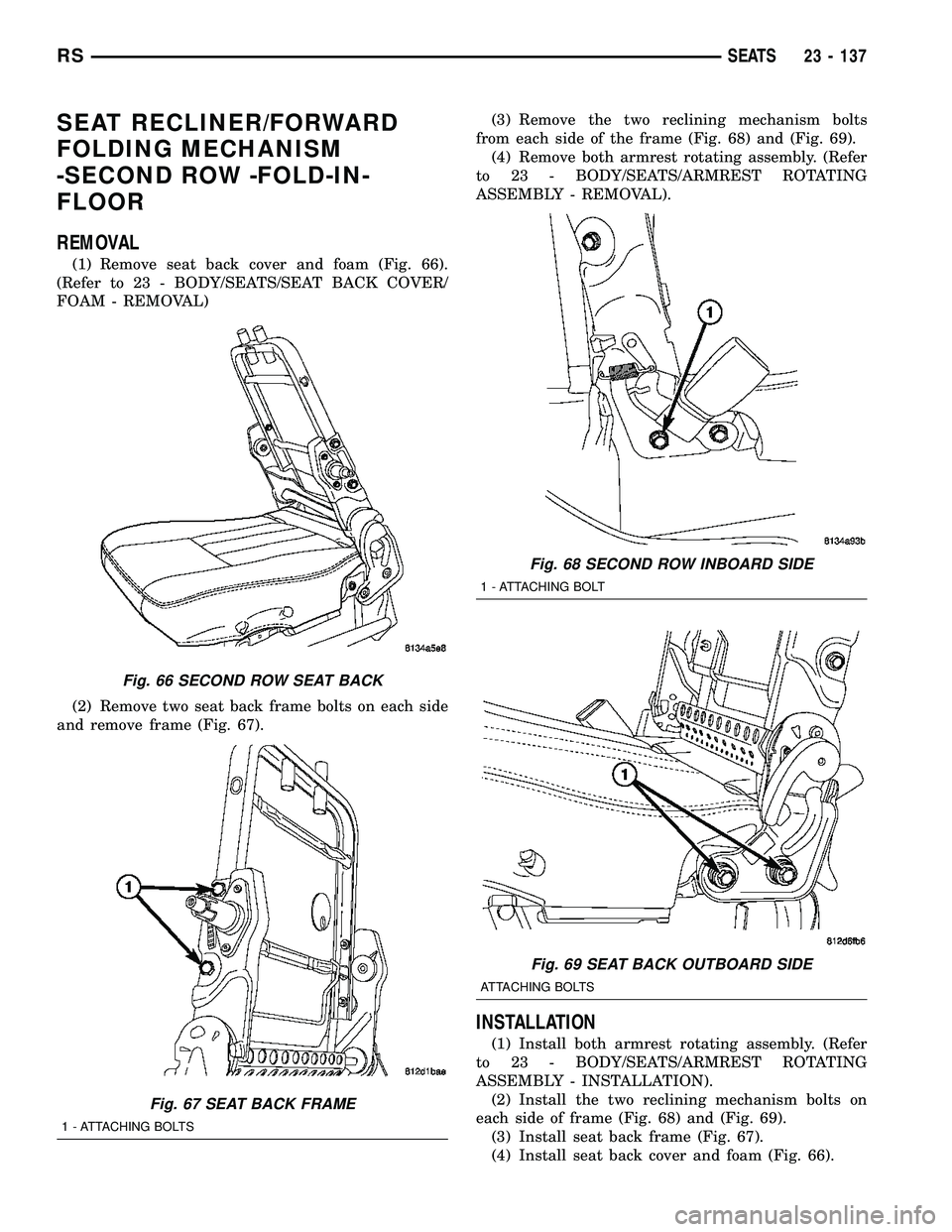

Page 1916 of 2339
SEAT RECLINER/FORWARD
FOLDING MECHANISM
-SECOND ROW -FOLD-IN-
FLOOR
REMOVAL
(1) Remove seat back cover and foam (Fig. 66).
(Refer to 23 - BODY/SEATS/SEAT BACK COVER/
FOAM - REMOVAL)
(2) Remove two seat back frame bolts on each side
and remove frame (Fig. 67).(3) Remove the two reclining mechanism bolts
from each side of the frame (Fig. 68) and (Fig. 69).
(4) Remove both armrest rotating assembly. (Refer
to 23 - BODY/SEATS/ARMREST ROTATING
ASSEMBLY - REMOVAL).
INSTALLATION
(1) Install both armrest rotating assembly. (Refer
to 23 - BODY/SEATS/ARMREST ROTATING
ASSEMBLY - INSTALLATION).
(2) Install the two reclining mechanism bolts on
each side of frame (Fig. 68) and (Fig. 69).
(3) Install seat back frame (Fig. 67).
(4) Install seat back cover and foam (Fig. 66).
Fig. 66 SECOND ROW SEAT BACK
Fig. 67 SEAT BACK FRAME
1 - ATTACHING BOLTS
Fig. 68 SECOND ROW INBOARD SIDE
1 - ATTACHING BOLT
Fig. 69 SEAT BACK OUTBOARD SIDE
ATTACHING BOLTS
RSSEATS23 - 137

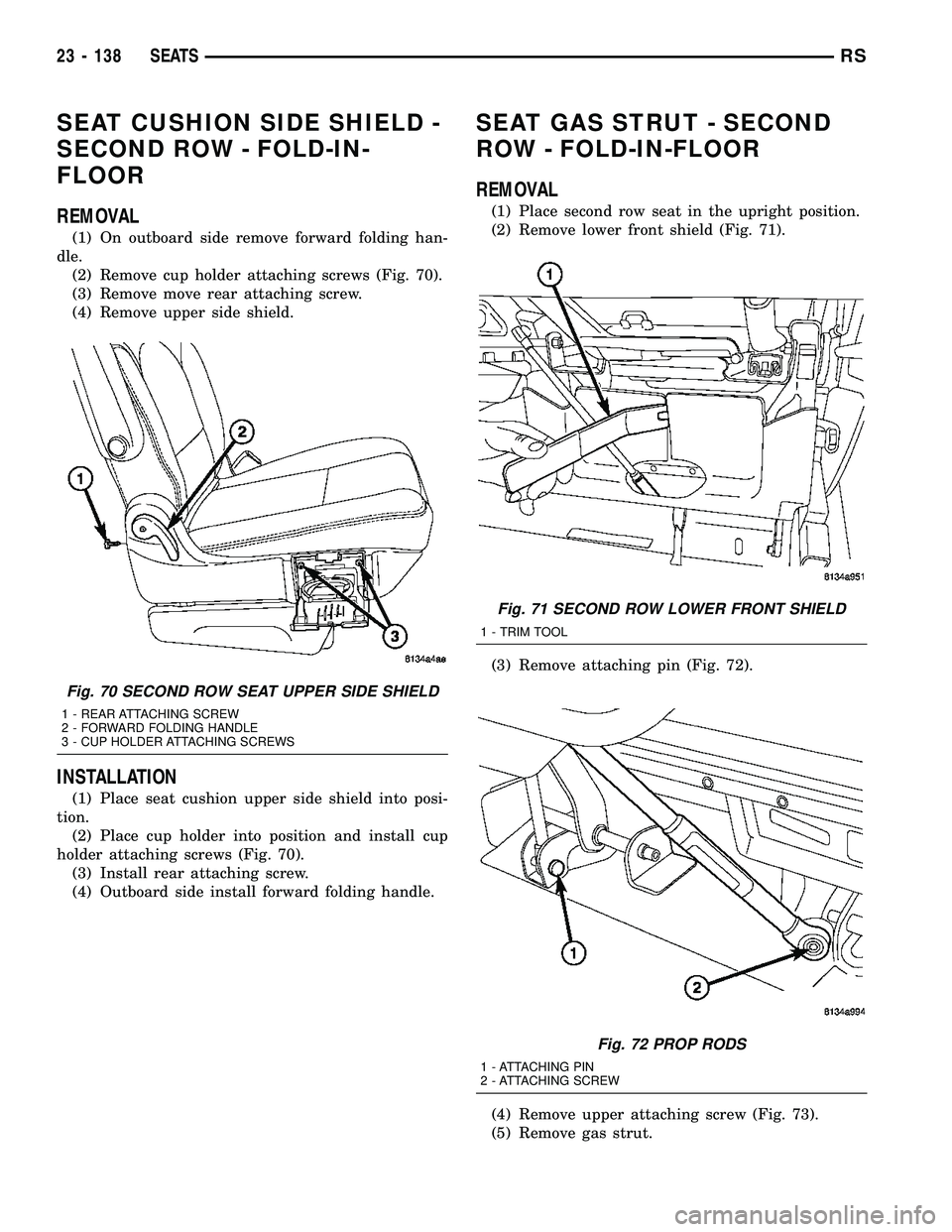

Page 1917 of 2339
SEAT CUSHION SIDE SHIELD -
SECOND ROW - FOLD-IN-
FLOOR
REMOVAL
(1) On outboard side remove forward folding han-
dle.
(2) Remove cup holder attaching screws (Fig. 70).
(3) Remove move rear attaching screw.
(4) Remove upper side shield.
INSTALLATION
(1) Place seat cushion upper side shield into posi-
tion.
(2) Place cup holder into position and install cup
holder attaching screws (Fig. 70).
(3) Install rear attaching screw.
(4) Outboard side install forward folding handle.
SEAT GAS STRUT - SECOND
ROW - FOLD-IN-FLOOR
REMOVAL
(1) Place second row seat in the upright position.
(2) Remove lower front shield (Fig. 71).
(3) Remove attaching pin (Fig. 72).
(4) Remove upper attaching screw (Fig. 73).
(5) Remove gas strut.
Fig. 70 SECOND ROW SEAT UPPER SIDE SHIELD
1 - REAR ATTACHING SCREW
2 - FORWARD FOLDING HANDLE
3 - CUP HOLDER ATTACHING SCREWS
Fig. 71 SECOND ROW LOWER FRONT SHIELD
1 - TRIM TOOL
Fig. 72 PROP RODS
1 - ATTACHING PIN
2 - ATTACHING SCREW
23 - 138 SEATSRS

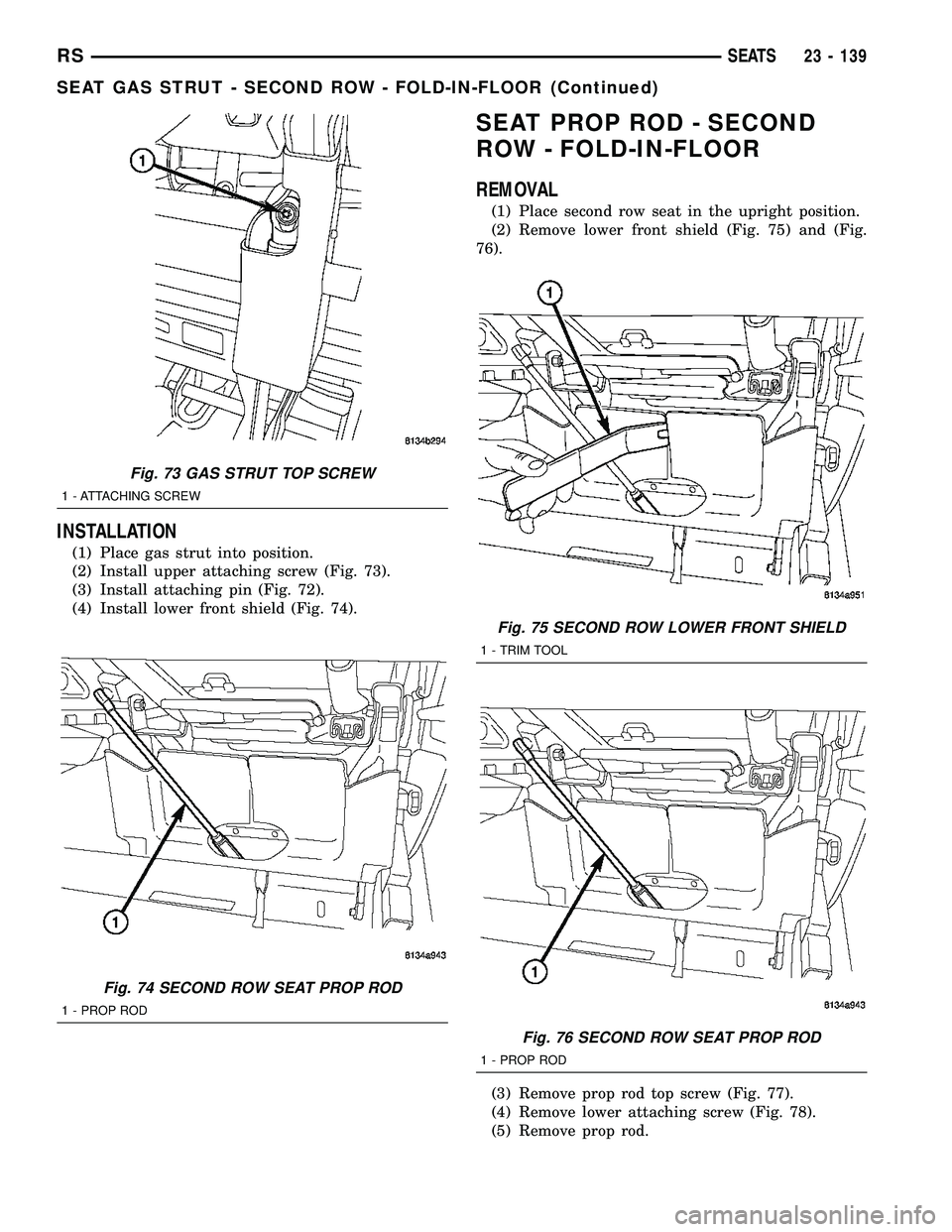

Page 1918 of 2339
INSTALLATION
(1) Place gas strut into position.
(2) Install upper attaching screw (Fig. 73).
(3) Install attaching pin (Fig. 72).
(4) Install lower front shield (Fig. 74).
SEAT PROP ROD - SECOND
ROW - FOLD-IN-FLOOR
REMOVAL
(1) Place second row seat in the upright position.
(2) Remove lower front shield (Fig. 75) and (Fig.
76).
(3) Remove prop rod top screw (Fig. 77).
(4) Remove lower attaching screw (Fig. 78).
(5) Remove prop rod.
Fig. 73 GAS STRUT TOP SCREW
1 - ATTACHING SCREW
Fig. 74 SECOND ROW SEAT PROP ROD
1 - PROP ROD
Fig. 75 SECOND ROW LOWER FRONT SHIELD
1 - TRIM TOOL
Fig. 76 SECOND ROW SEAT PROP ROD
1 - PROP ROD
RSSEATS23 - 139
SEAT GAS STRUT - SECOND ROW - FOLD-IN-FLOOR (Continued)
Page 1919 of 2339

INSTALLATION
(1) Place prop rod into position.
(2) Install lower attaching screw (Fig. 78).
(3) Install prop rod top screw (Fig. 77).
(4) Install lower front shield (Fig. 76).
BUCKET SEAT BACK - QUAD
BUCKET
REMOVAL
NOTE: Quad seats equipped with child restraint
seats have an interlock feature that will not allow
the seat back to fold forward with the child seat
open.
(1) Remove the headrests. (Refer to 23 - BODY/
SEATS/HEADREST - REMOVAL)
(2) Remove the armrests, if equipped. (Refer to 23
- BODY/SEATS/ARMREST - REMOVAL)
(3) Remove the seat back hinge covers. (Refer to
23 - BODY/SEATS/SEAT BACK HINGE COVERS -
QUAD BUCKET, 50/50 SPLIT, BENCH - REMOVAL)
(4) Disconnect the child seat synchronizer cable, if
equipped. (Fig. 79)
(5) Remove the seat back frame bolts and remove
the seat back. (Fig. 80)
Fig. 77 PROP ROD TOP SCREW
1 - ATTACHING SCREW
Fig. 78 PROP RODS
1 - ATTACHING PIN
2 - ATTACHING SCREW
Fig. 79 QUAD SEAT SYNCHRONIZER CABLE
1 - CABLE END CONNECTOR
2 - SYNCHRONIZER CABLE
3 - SEATBACK HINGE
23 - 140 SEATSRS
SEAT PROP ROD - SECOND ROW - FOLD-IN-FLOOR (Continued)
Page 1920 of 2339

INSTALLATION
(1) Install the seat back.
(2) Install the shoulder bolts attaching the seat
back hinge to the seat back frame and tighten to 48
N´m (35 ft. lbs.) torque.
(3) Connect the child seat synchronizer cable, if
equipped.
(4) Install the seat back hinge covers. (Refer to 23
- BODY/SEATS/SEAT BACK HINGE COVERS -
QUAD BUCKET, 50/50 SPLIT, BENCH - INSTALLA-
TION)
(5) Install the armrests. (Refer to 23 - BODY/
SEATS/ARMREST - INSTALLATION)
(6) Install the headrest. (Refer to 23 - BODY/
SEATS/HEADREST - INSTALLATION)
(7) Verify seat back operation.
QUAD SEAT CUSHION
REMOVAL
(1) Remove the quad bucket seat side shields and
cup holder. (Refer to 23 - BODY/SEATS/SEAT SIDE
SHIELD/QUAD BUCKET SEAT SIDE SHIELD/CUP
HOLDER - REMOVAL) and (Refer to 23 - BODY/
SEATS/QUAD BUCKET SEAT SIDE SHIELD - NO
CUP HOLDER - REMOVAL)
(2) Remove seat track front and rear covers if
equipped. (Refer to 23 - BODY/SEATS/SEAT TRACK
REAR COVER - REMOVAL) and (Refer to 23 -
BODY/SEATS/SEAT TRACK FRONT COVER -
REMOVAL)(3) If equipped, open storage bin to access front
pan bolts.
(4) Remove bolts attaching seat cushion pan to
seat riser.
(5) Disconnect wire connectors, if equipment.
(6) Remove seat cushion from seat.
(7) Disengage J-strap retainers holding seat cover
to cushion.
(8) Remove seat cushion pan from cover and pad.
INSTALLATION
(1) Place seat cushion cover in position on seat
cushion.
(2) Engage J-strap retainers to hold seat cover to
cushion.
(3) Place seat cushion in position on seat.
(4) Connect wire connectors, if equipment.
(5) Install bolts attaching seat cushion to seat
riser. Tighten bolts to 40 N´m (29.5 ft. lbs.) torque.
(6) If equipped, close storage bin.
(7) Install seat track front and rear covers, if
equipped. (Refer to 23 - BODY/SEATS/SEAT TRACK
REAR COVER - INSTALLATION) and (Refer to 23 -
BODY/SEATS/SEAT TRACK FRONT COVER -
INSTALLATION)
(8) Install the quad seat side shield and cup holder
if equipped. (Refer to 23 - BODY/SEATS/QUAD
BUCKET SEAT SIDE SHIELD/CUP HOLDER -
INSTALLATION) and (Refer to 23 - BODY/SEATS/
QUAD BUCKET SEAT SIDE SHIELD - NO CUP
HOLDER - INSTALLATION)
(9) Install seat cushion side covers. (Refer to 23 -
BODY/SEATS/FRONT SEAT CUSHION SIDE
COVER - INSTALLATION)
QUAD BUCKET SEAT SIDE
SHIELD/CUP HOLDER
REMOVAL
(1) Remove the seat from the vehicle. Refer to
Owner's Manual for proper procedures.
(2) Remove the two screws and remove the hinge
cover (Fig. 81)
(3) Remove the dump latch handle.
(4) Remove the three screws (Fig. 82).
(5) Depress the tab on the cup holder assembly
(Fig. 83).
(6) Using a deep well socket or equivalent, depress
the push pin tabs and remove the cup holder assem-
bly (Fig. 84).
Fig. 80 SEAT BACK HINGE - TYPICAL
1 - SEATBACK FRAME SHOULDER BOLTS
2 - SEAT CUSHION FRAME BOLTS
3 - SEATBACK HINGE
RSSEATS23 - 141
BUCKET SEAT BACK - QUAD BUCKET (Continued)
