Page 1929 of 2339

UNDER SEAT STORAGE BIN
GUIDE
REMOVAL
(1) Remove under seat storage bin. (Refer to 23 -
BODY/SEATS/UNDER SEAT STORAGE BIN -
REMOVAL)
(2) Remove screws attaching storage bin track
guide to seat riser (Fig. 99).
(3) Remove track guide from vehicle.
INSTALLATION
(1) Place track guide in position on seat riser.
(2) Install screws attaching storage bin track guide
to seat riser (Fig. 99). Tighten screws to 3.6 N´m
(31.8 in lbs.) torque.
(3) Install under seat storage bin. (Refer to 23 -
BODY/SEATS/UNDER SEAT STORAGE BIN -
INSTALLATION)
UNDER SEAT STORAGE BIN
LOCK/LATCH
REMOVAL
(1) Open under seat storage bin.
(2) Remove screws holding under seat storage bin
lock/latch to storage bin (Fig. 100).
(3) Remove lock/latch from bin.
INSTALLATION
(1) Place lock/latch in position on storage bin.
(2) Install screws to hold lock/latch to storage bin
(Fig. 100).
(3) Verify under seat storage bin latch operation.
LUMBAR SUPPORT
REMOVAL
(1) Remove screw attaching lumbar handle to seat
back (Fig. 101).
(2) Remove seat back assembly from cushion.
(3) Detrim the seat back assembly.
(4) Remove frame and replace.
INSTALLATION
(1) Trim the seat back frame.
(2) Install seat back assembly to cushion.
(3) Install attaching screw to lumbar handle. The
handle is to be installed, between two and three
O'clock position. Tighten screw to 1 N´m (11 ft. lbs.)
torque.
(4) Test lumbar operation.

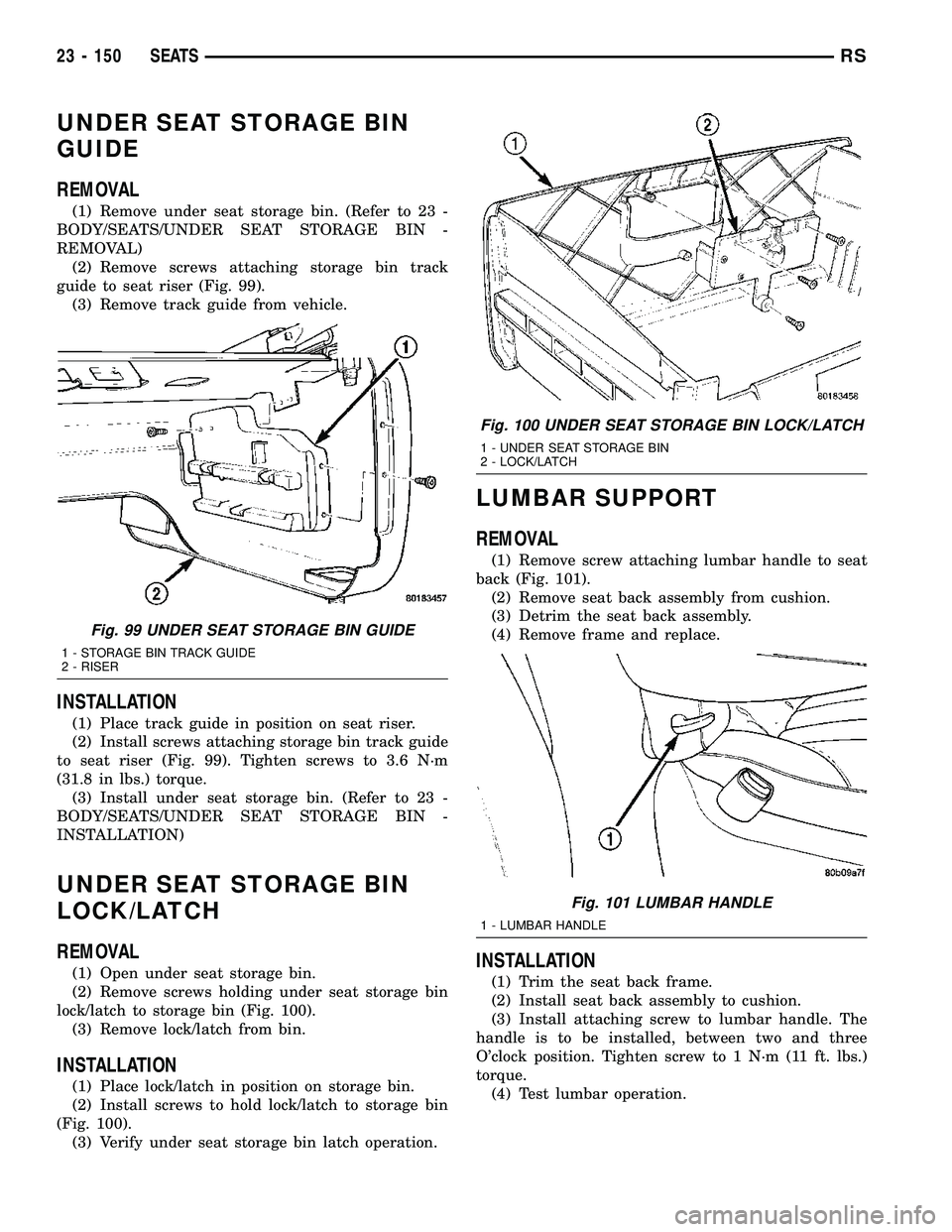

Fig. 99 UNDER SEAT STORAGE BIN GUIDE
1 - STORAGE BIN TRACK GUIDE
2 - RISER
Fig. 100 UNDER SEAT STORAGE BIN LOCK/LATCH
1 - UNDER SEAT STORAGE BIN
2 - LOCK/LATCH
Fig. 101 LUMBAR HANDLE
1 - LUMBAR HANDLE
23 - 150 SEATSRS
Page 1930 of 2339

SEAT RISER LATCH LOCKING
LINK
REMOVAL
(1) Remove seat as necessary to access latch lock-
ing link.
NOTE: If the seat is locked in the seated position
and cannot be tilted forward, it can be released by
reaching into the escutcheons with a hook tool or a
finger from the rear. Pulling the latch toward the
rear of the vehicle will unlock the seat latch allow-
ing the seat to tilt forward.
(2) Using a flat bladed tool pry plastic latch lock-
ing link free from both pins (Fig. 102).
(3) Remove link from seat.
INSTALLATION
(1) Place latch locking link into position (Fig. 102).
(2) Press latch locking link onto pins lock and seat
fully.
(3) Place seat into position and verify proper oper-
ation.
QUAD BUCKET SEAT SIDE
SHIELD/CUP HOLDER - FLAP
AND SPRING ASSEMBLY
REMOVAL
(1) Inspect the flap retaining tabs on cup holder
for damage (Fig. 103).(2) If cracked or broken, replace quad bucket seat
side shield with cup holder. (Refer to 23 - BODY/
SEATS/SEAT SIDE SHIELD - REMOVAL).
(3) If flap retaining tabs are not damaged replace
flap and spring assembly.
INSTALLATION
(1) Ensure the spring is position into mounting tab
(Fig. 104).
(2)
Hold flap and spring assembly in the horizontal
position and snap into cup holder flap retaining tabs.
(3) Verify cup holder flap operation several times
to ensure proper operation. Flap should fold down-
ward with little effort and spring back to a horizontal
position when released.

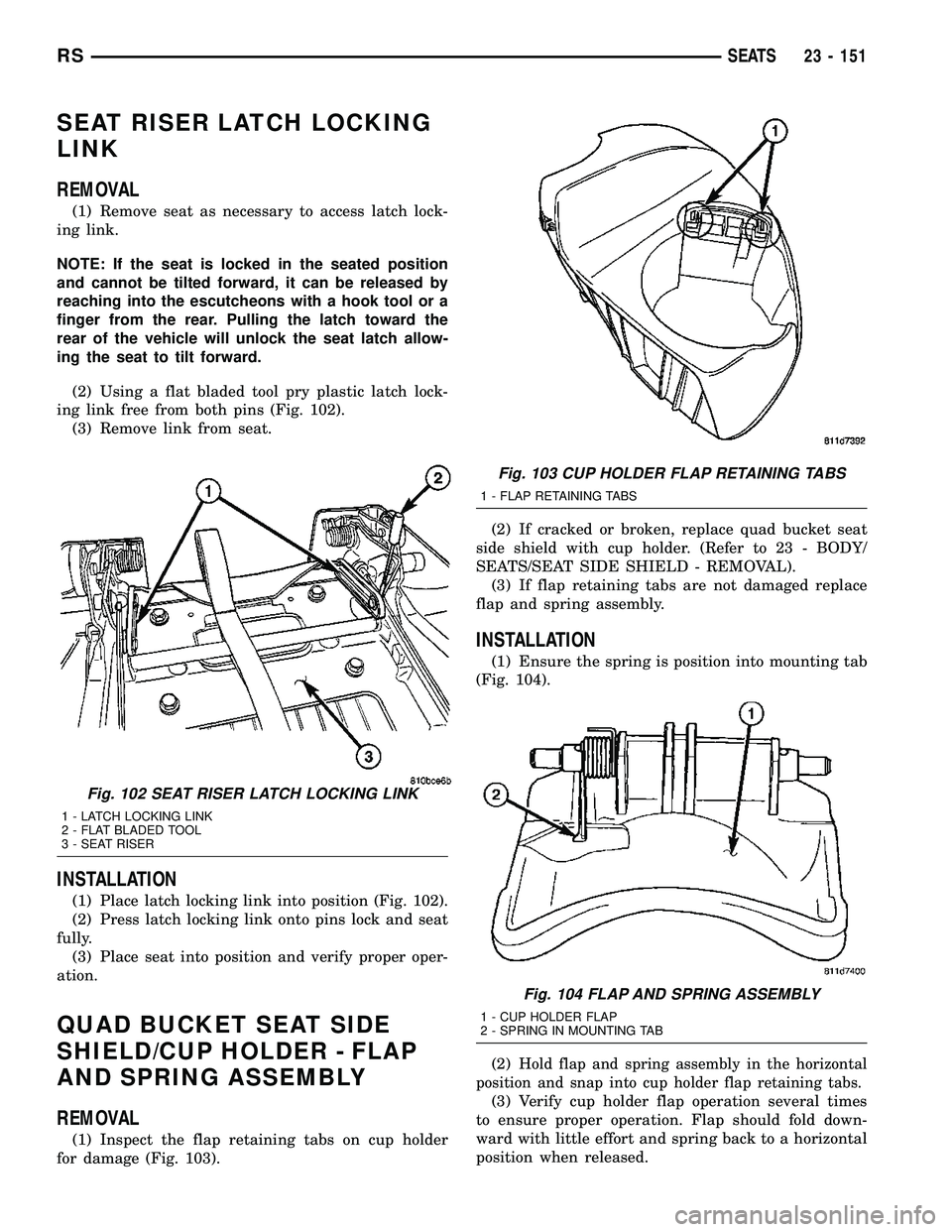

Fig. 102 SEAT RISER LATCH LOCKING LINK
1 - LATCH LOCKING LINK
2 - FLAT BLADED TOOL
3 - SEAT RISER
Fig. 103 CUP HOLDER FLAP RETAINING TABS
1 - FLAP RETAINING TABS
Fig. 104 FLAP AND SPRING ASSEMBLY
1 - CUP HOLDER FLAP
2 - SPRING IN MOUNTING TAB
RSSEATS23 - 151
Page 1931 of 2339
BOTTOM OF SEAT CUSHION
PAN PANEL-THIRD ROW -
FOLD-IN-FLOOR
REMOVAL
(1) Fold the third row seat with back down.
(2) Remove handle from cushion.
(3) Using a trim tool, remove bottom side of the
cushion pan panel (Fig. 105).
INSTALLATION
(1) Place bottom side of the cushion pan panel into
position (Fig. 106).
(2) Press on back of cushion pan panel to seat the
fasteners.
(3) Install handle on cushion.
(4) Place seat in the up right position.
HEADREST SLEEVE - THIRD
ROW - FOLD-IN-FLOOR
REMOVAL
(1) Remove headrest (Fig. 107).
(2) Using a trim tool remove sleeve by prying
sleeve away from the seat back frame to unlock it
(Fig. 108)
(3) Pull headrest sleeve upward and out the top of
the seat back frame and remove from seat.
Fig. 105 THIRD ROW CUSHION PAN & COVER
Fig. 106 THIRD ROW CUSHION PAN & COVER
Fig. 107 HEADREST
1 - HEADREST
2 - DEPRESS TAB
Fig. 108 REMOVING HEADREST SLEEVES
1 - HEADREST SLEEVES
2 - TRIM TOOL
23 - 152 SEATSRS
Page 1932 of 2339
INSTALLATION
(1) Place headrest sleeve into position and push
downward until sleeve locks into position (Fig. 109).
(2) Install headrest (Fig. 107).
SEAT - THIRD ROW - FOLD-IN-
FLOOR
REMOVAL
(1) Fold third row seat into floor well.
(2) Using a trim stick, unclip anchor molding (Fig.
110).
(3) Remove third row seat attaching bolts (Fig.
111).
(4) Raise seats to the upright position.
(5) Remove the rear seat lower trim cover (Fig.
112).
(6) Remove rear attaching bolts (Fig. 113).
(7) Remove rear seat from vehicle.
Fig. 109 HEADREST SLEEVES
1 - SLEEVES
Fig. 110 ANCHOR MOLDING
1 - 2-WAY CLIPS INTO SEAT FRAME
2 - 4-WAY LOCATING PINS (2)
3 - FRONT SEAT ANCHOR MOLDING
Fig. 111 THIRD ROW SEATS
1 - ATTACHING BOLTS
RSSEATS23 - 153
HEADREST SLEEVE - THIRD ROW - FOLD-IN-FLOOR (Continued)
Page 1933 of 2339
INSTALLATION
(1) Place rear seat into position (Fig. 114).
(2) Install rear attaching bolts to seat (Fig. 115).
Tighten bolts to 54 N´m (40 ft. lbs.) torque and follow
tightening sequence.

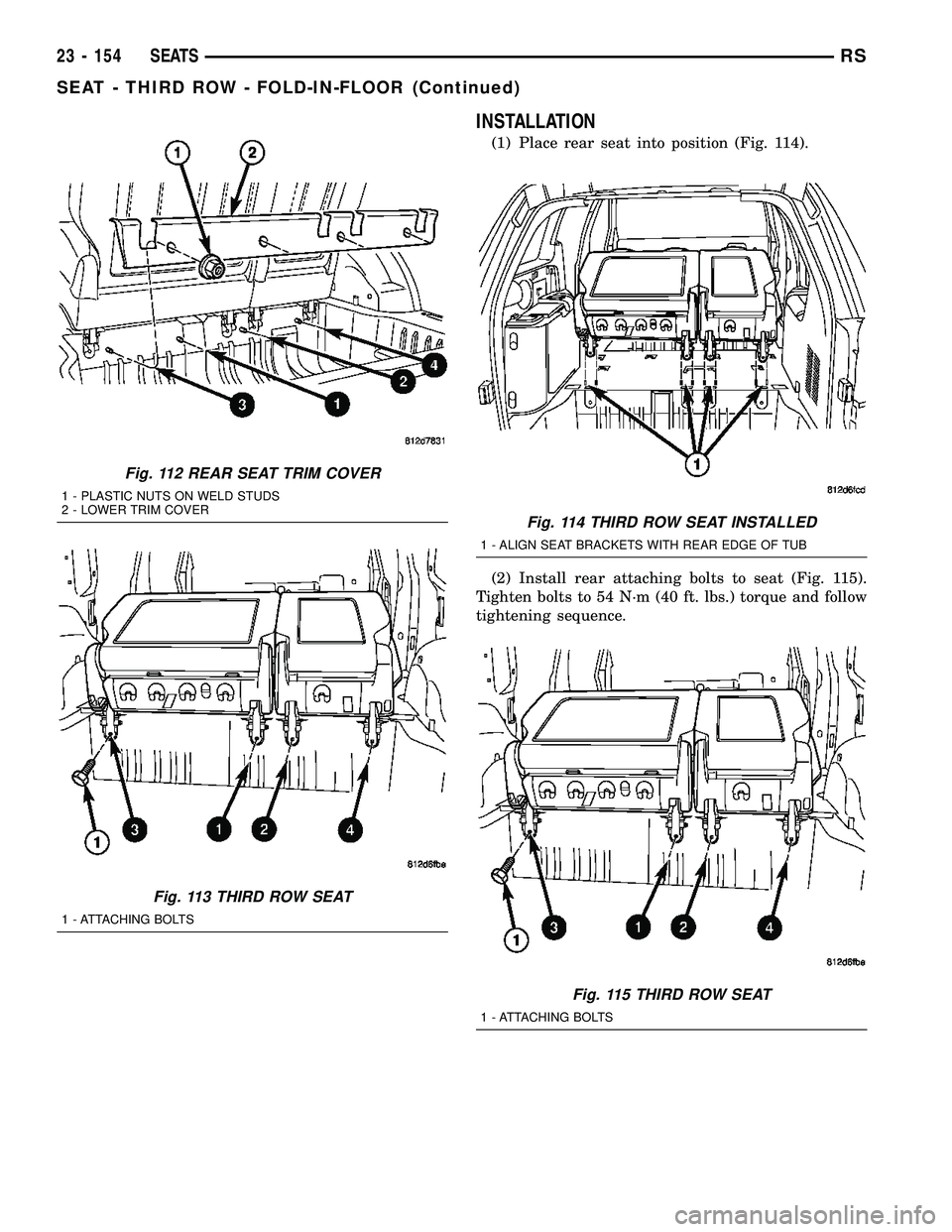

Fig. 112 REAR SEAT TRIM COVER
1 - PLASTIC NUTS ON WELD STUDS
2 - LOWER TRIM COVER
Fig. 113 THIRD ROW SEAT
1 - ATTACHING BOLTS
Fig. 114 THIRD ROW SEAT INSTALLED
1 - ALIGN SEAT BRACKETS WITH REAR EDGE OF TUB
Fig. 115 THIRD ROW SEAT
1 - ATTACHING BOLTS
23 - 154 SEATSRS
SEAT - THIRD ROW - FOLD-IN-FLOOR (Continued)
Page 1934 of 2339
(3) Fold the rear seat into the floor well.
(4) Install attaching bolts (Fig. 116). Tighten bolts
to 54 N´m (40 ft. lbs.) torque.
(5) Place the rear seat lower trim cover into posi-
tion and press clips into the lock position (Fig. 117).
(6) Raise third row seat into upright position.
(7) Install lower trim cover with plastic nuts and
tighten them in sequence (Fig. 118).
SEAT BACK COVER/FOAM -
THIRD ROW - FOLD-IN-FLOOR
REMOVAL
(1) Remove seat back panel.
(2) Disengage J-straps (Fig. 119).
(3) Remove seat cover and foam from seat back
frame (Fig. 120).
(4) Separate cover and foam.
Fig. 116 THIRD ROW SEATS
1 - ATTACHING BOLTS
Fig. 117 ANCHOR MOLDING
1 - 2-WAY CLIPS INTO SEAT FRAME
2 - 4-WAY LOCATING PINS (2)
3 - FRONT SEAT ANCHOR MOLDING
Fig. 118 REAR SEAT TRIM COVER
1 - PLASTIC NUTS ON WELD STUDS
2 - LOWER TRIM COVER
Fig. 119 THIRD ROW SEAT BACK
1 - J-STRAPS
RSSEATS23 - 155
SEAT - THIRD ROW - FOLD-IN-FLOOR (Continued)
Page 1935 of 2339
INSTALLATION
(1) Place seat back foam into cover.
(2) Install seat cover and foam onto seat back
frame (Fig. 121).
(3) Engage J-straps (Fig. 122).
(4) Install seat back panel. (Refer to 23 - BODY/
SEATS/SEAT BACK - INSTALLATION).
SEAT BACK FRAME - THIRD
ROW - FOLD-IN-FLOOR
REMOVAL
(1) Remove seat back cover and foam. (Refer to 23
- BODY/SEATS/SEAT BACK COVER/FOAM -
REMOVAL).
(2) Remove strap at top of frame (Fig. 123).
(3) Remove two bolts on each side of frame.
(4) Remove seat back frame from seat.

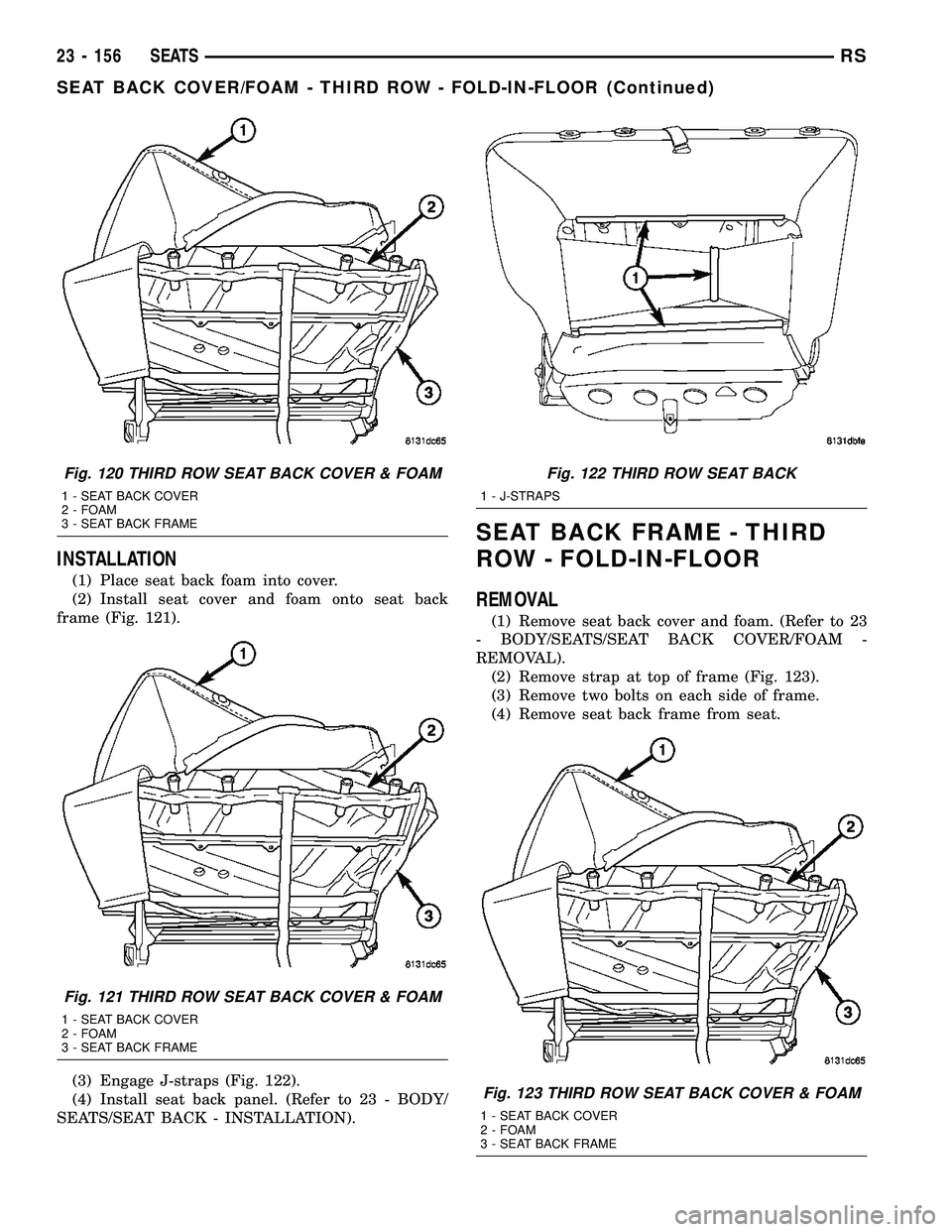

Fig. 120 THIRD ROW SEAT BACK COVER & FOAM
1 - SEAT BACK COVER
2 - FOAM
3 - SEAT BACK FRAME
Fig. 121 THIRD ROW SEAT BACK COVER & FOAM
1 - SEAT BACK COVER
2 - FOAM
3 - SEAT BACK FRAME
Fig. 122 THIRD ROW SEAT BACK
1 - J-STRAPS
Fig. 123 THIRD ROW SEAT BACK COVER & FOAM
1 - SEAT BACK COVER
2 - FOAM
3 - SEAT BACK FRAME
23 - 156 SEATSRS
SEAT BACK COVER/FOAM - THIRD ROW - FOLD-IN-FLOOR (Continued)
Page 1936 of 2339

INSTALLATION
(1) Place seat back frame into position.
(2) Install two bolts on each side of seat back
frame.
(3) Install strap at top of frame (Fig. 123).
(4) Install seat back cover and foam. (Refer to 23 -
BODY/SEATS/SEAT BACK COVER - INSTALLA-
TION).
SEAT BELT CENTER LAP BELT
- FOLD-IN-FLOOR
REMOVAL
(1) Set third row seat in the upright position.
(2) Remove the third row cushion back cover (Fig.
124).
(3) Fold the third row seat into floor well.
(4) Remove seat cushion pan carpet to floor panel
using a trim tool (Fig. 125).
(5) Using a trim tool, remove seat cushion pan bot-
tom side panel (Fig. 126).
(6) Remove handle from cushion.
(7) Remove seat cushion cover and foam from
cushion pan. (Refer to 23 - BODY/SEATS/SEAT
CUSHION COVER/FOAM - REMOVAL).(8) Remove nut attaching center tip half and
buckle together.
(9) Remove center tip half and buckle from seat
(Fig. 127).
INSTALLATION
(1) Place seat with seat cushion in the upright
position.
(2) Place center tip half and buckle into position.
(3) Install nut attaching center tip and buckle
(Fig. 127).

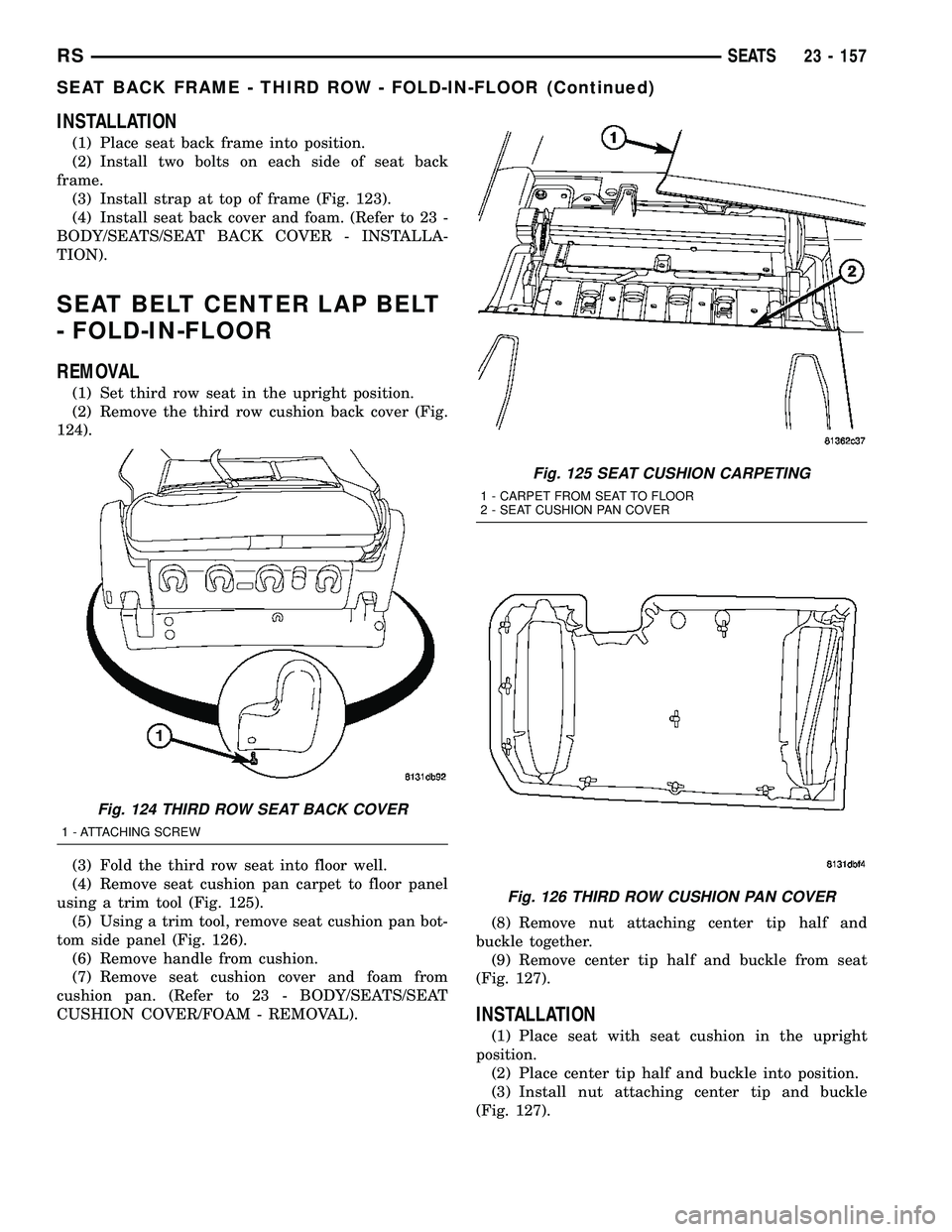

Fig. 124 THIRD ROW SEAT BACK COVER
1 - ATTACHING SCREW
Fig. 125 SEAT CUSHION CARPETING
1 - CARPET FROM SEAT TO FLOOR
2 - SEAT CUSHION PAN COVER
Fig. 126 THIRD ROW CUSHION PAN COVER
RSSEATS23 - 157
SEAT BACK FRAME - THIRD ROW - FOLD-IN-FLOOR (Continued)
