Page 1033 of 2339

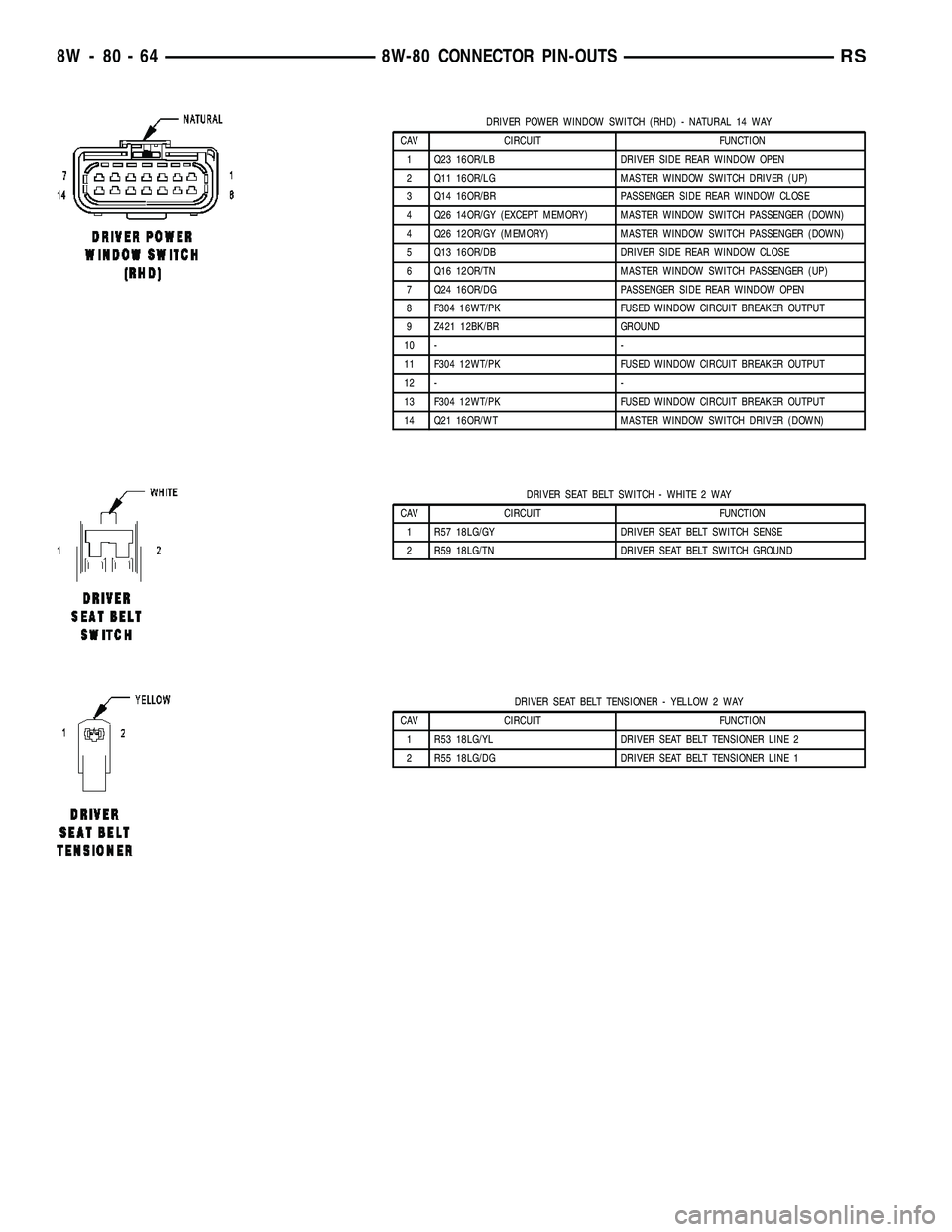

CHRYSLER CARAVAN 2005 Service Manual DRIVER POWER WINDOW SWITCH (RHD) - NATURAL 14 WAY CAV CIRCUIT FUNCTION 1 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN 2 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER (UP) 3 Q14 16OR/BR PASSENGER SIDE REAR WINDO

Page 1034 of 2339

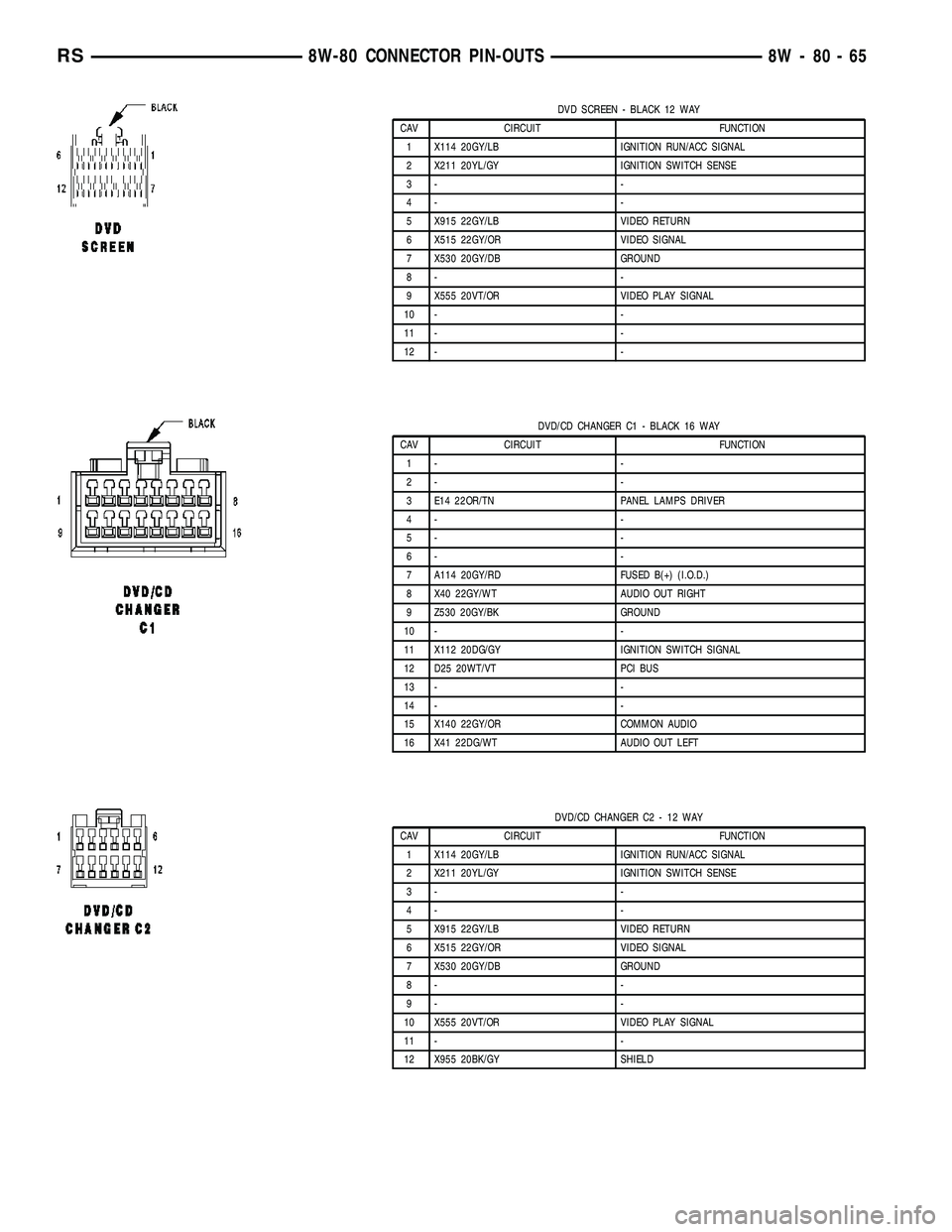

CHRYSLER CARAVAN 2005 Service Manual DVD SCREEN - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 X114 20GY/LB IGNITION RUN/ACC SIGNAL 2 X211 20YL/GY IGNITION SWITCH SENSE 3- - 4- - 5 X915 22GY/LB VIDEO RETURN 6 X515 22GY/OR VIDEO SIGNAL 7 X530 20GY

Page 1035 of 2339

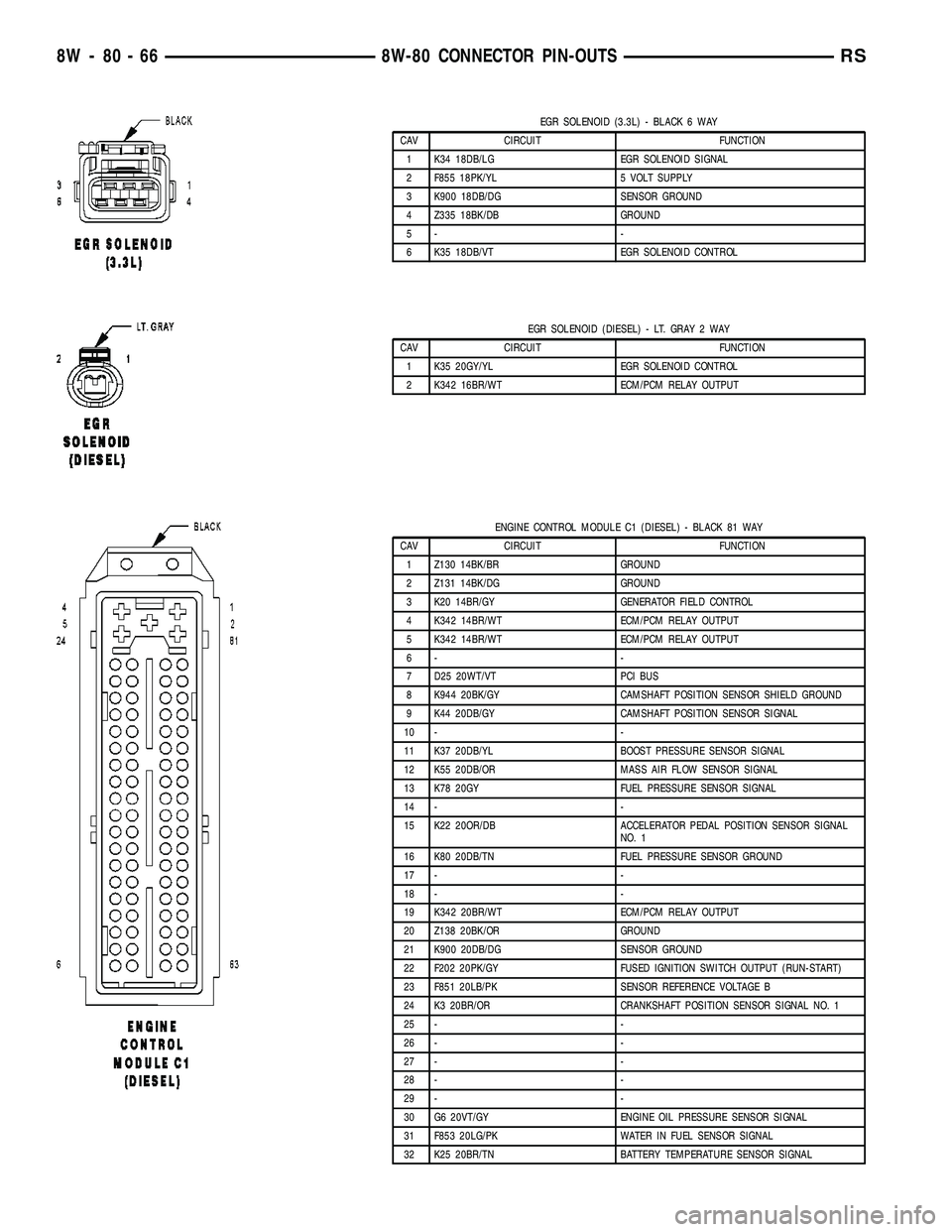

CHRYSLER CARAVAN 2005 Service Manual EGR SOLENOID (3.3L) - BLACK 6 WAY CAV CIRCUIT FUNCTION 1 K34 18DB/LG EGR SOLENOID SIGNAL 2 F855 18PK/YL 5 VOLT SUPPLY 3 K900 18DB/DG SENSOR GROUND 4 Z335 18BK/DB GROUND 5- - 6 K35 18DB/VT EGR SOLENOID

Page 1036 of 2339

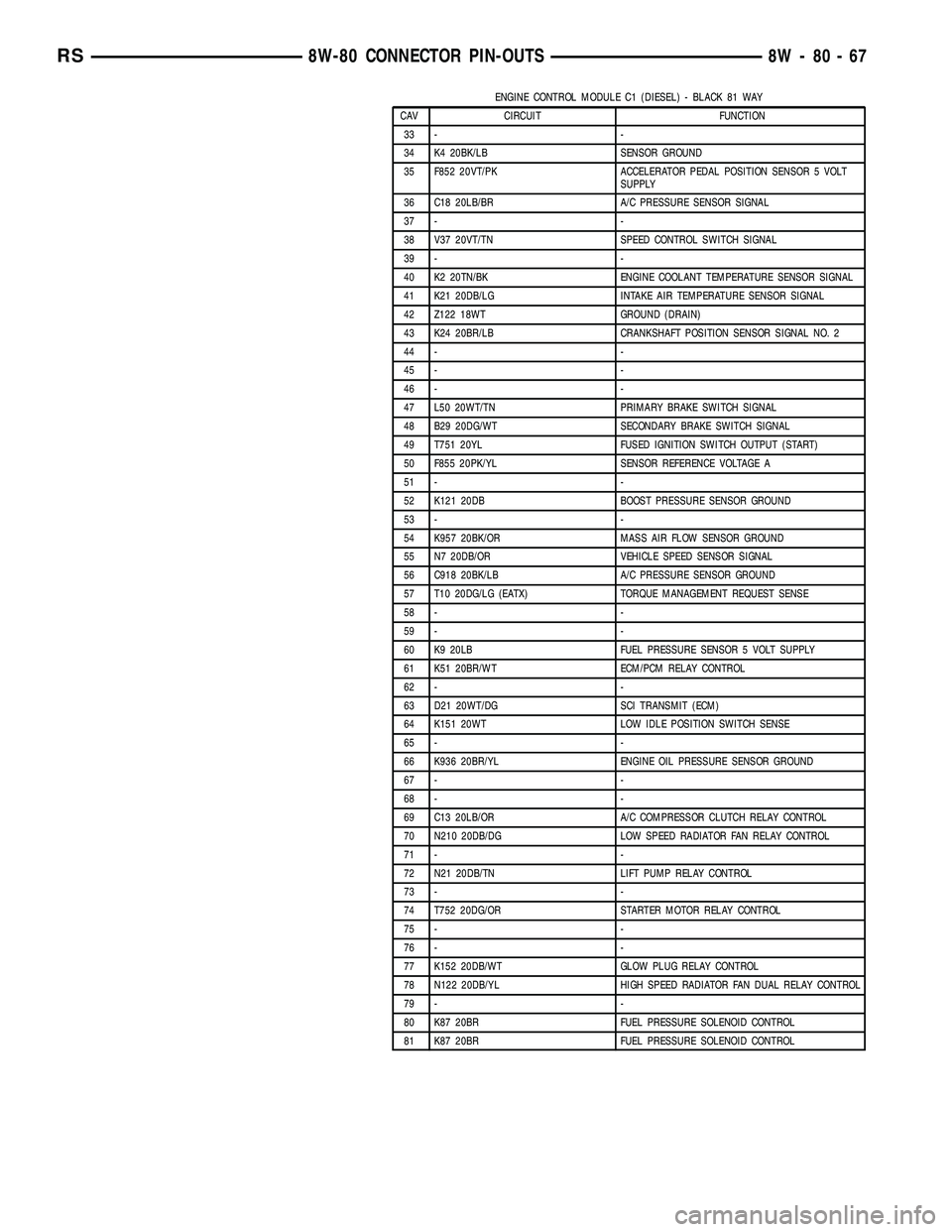

CHRYSLER CARAVAN 2005 Service Manual ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY CAV CIRCUIT FUNCTION 33 - - 34 K4 20BK/LB SENSOR GROUND 35 F852 20VT/PK ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY 36 C18 20LB/BR A/C PRESSURE SEN

Page 1037 of 2339

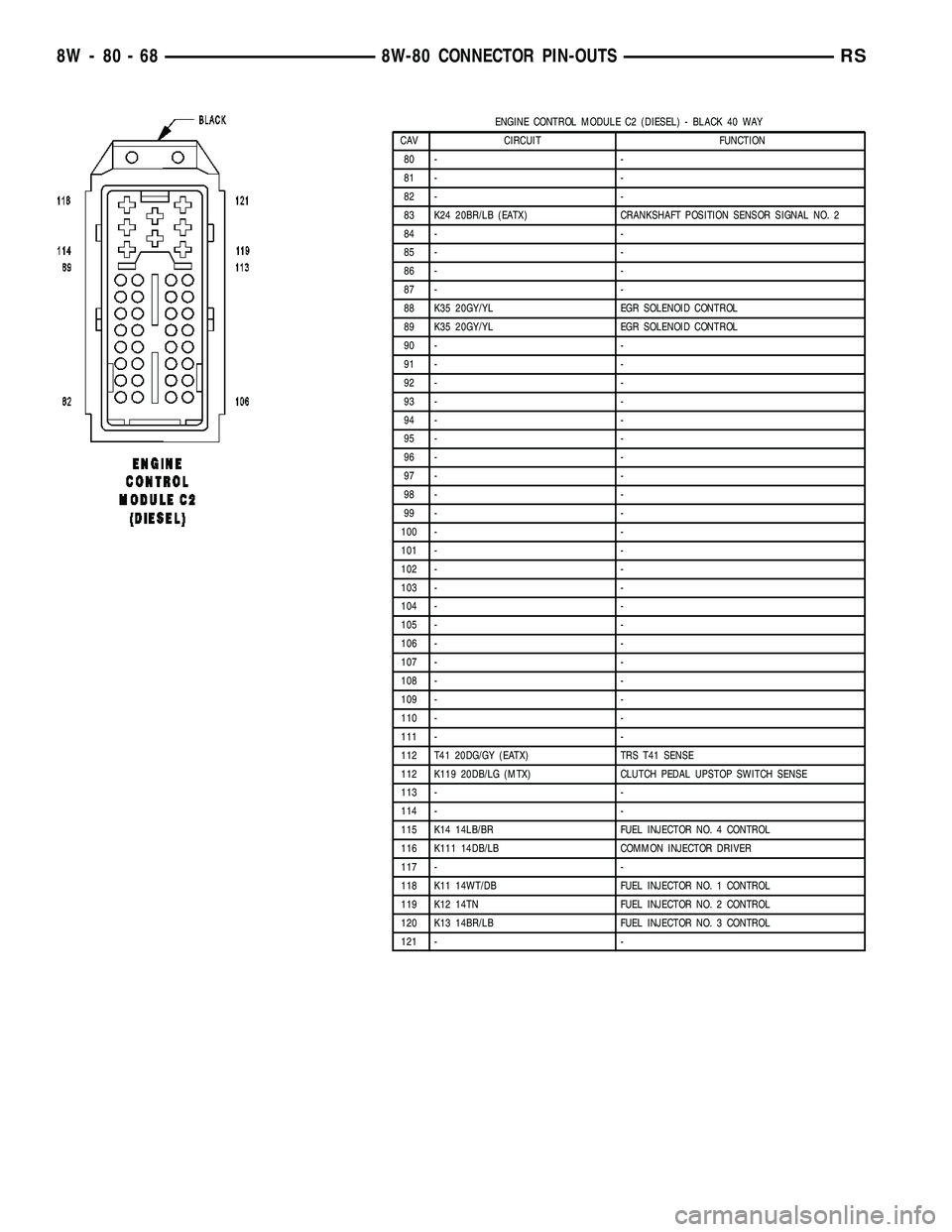

CHRYSLER CARAVAN 2005 Service Manual ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAY CAV CIRCUIT FUNCTION 80 - - 81 - - 82 - - 83 K24 20BR/LB (EATX) CRANKSHAFT POSITION SENSOR SIGNAL NO. 2 84 - - 85 - - 86 - - 87 - - 88 K35 20GY/YL EGR

Page 1038 of 2339

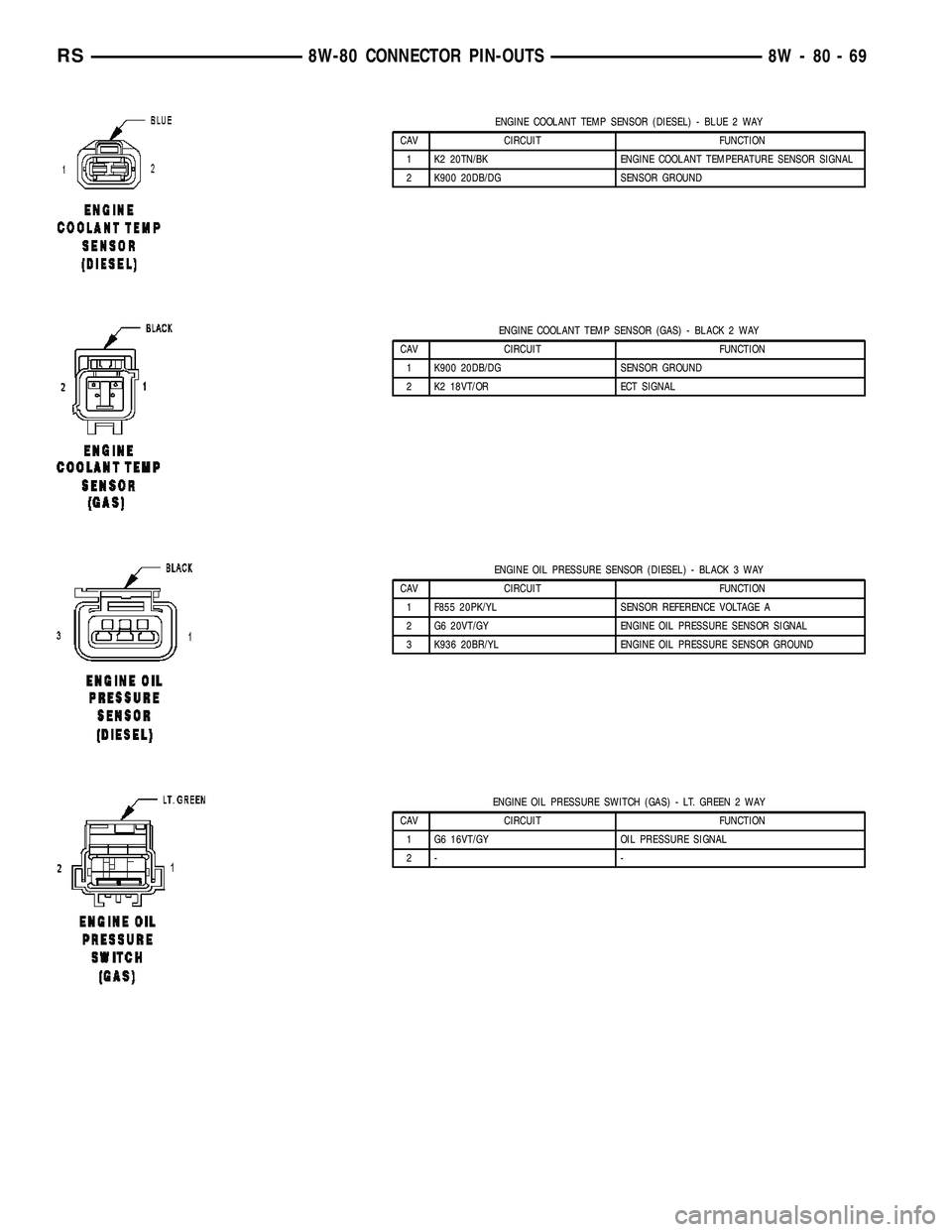

CHRYSLER CARAVAN 2005 Service Manual ENGINE COOLANT TEMP SENSOR (DIESEL) - BLUE 2 WAY CAV CIRCUIT FUNCTION 1 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL 2 K900 20DB/DG SENSOR GROUND ENGINE COOLANT TEMP SENSOR (GAS) - BLACK 2 WAY

Page 1039 of 2339

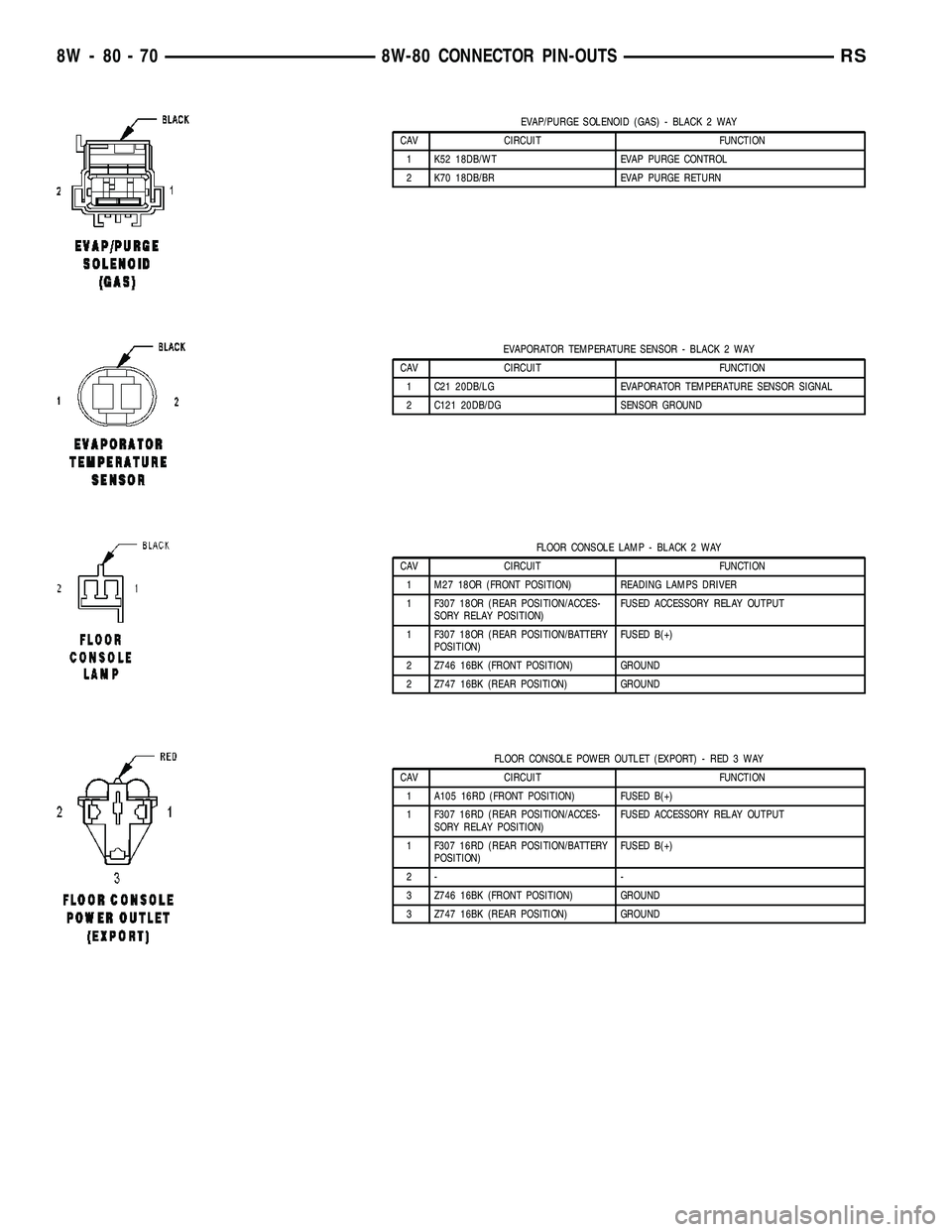

CHRYSLER CARAVAN 2005 Service Manual EVAP/PURGE SOLENOID (GAS) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K52 18DB/WT EVAP PURGE CONTROL 2 K70 18DB/BR EVAP PURGE RETURN EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 C21 20D

Page 1040 of 2339

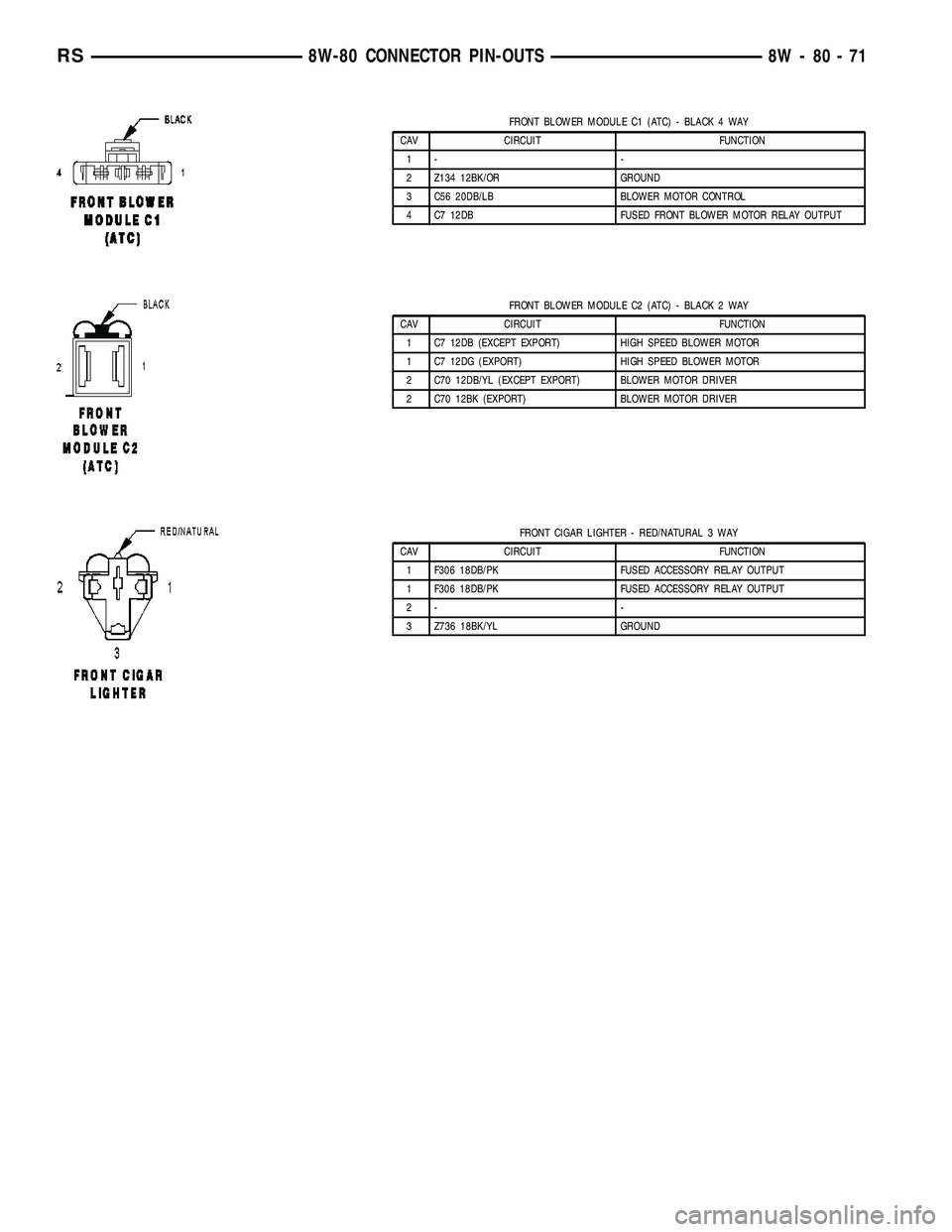

CHRYSLER CARAVAN 2005 Service Manual FRONT BLOWER MODULE C1 (ATC) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1- - 2 Z134 12BK/OR GROUND 3 C56 20DB/LB BLOWER MOTOR CONTROL 4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT FRONT BLOWER MODULE C2 (AT
