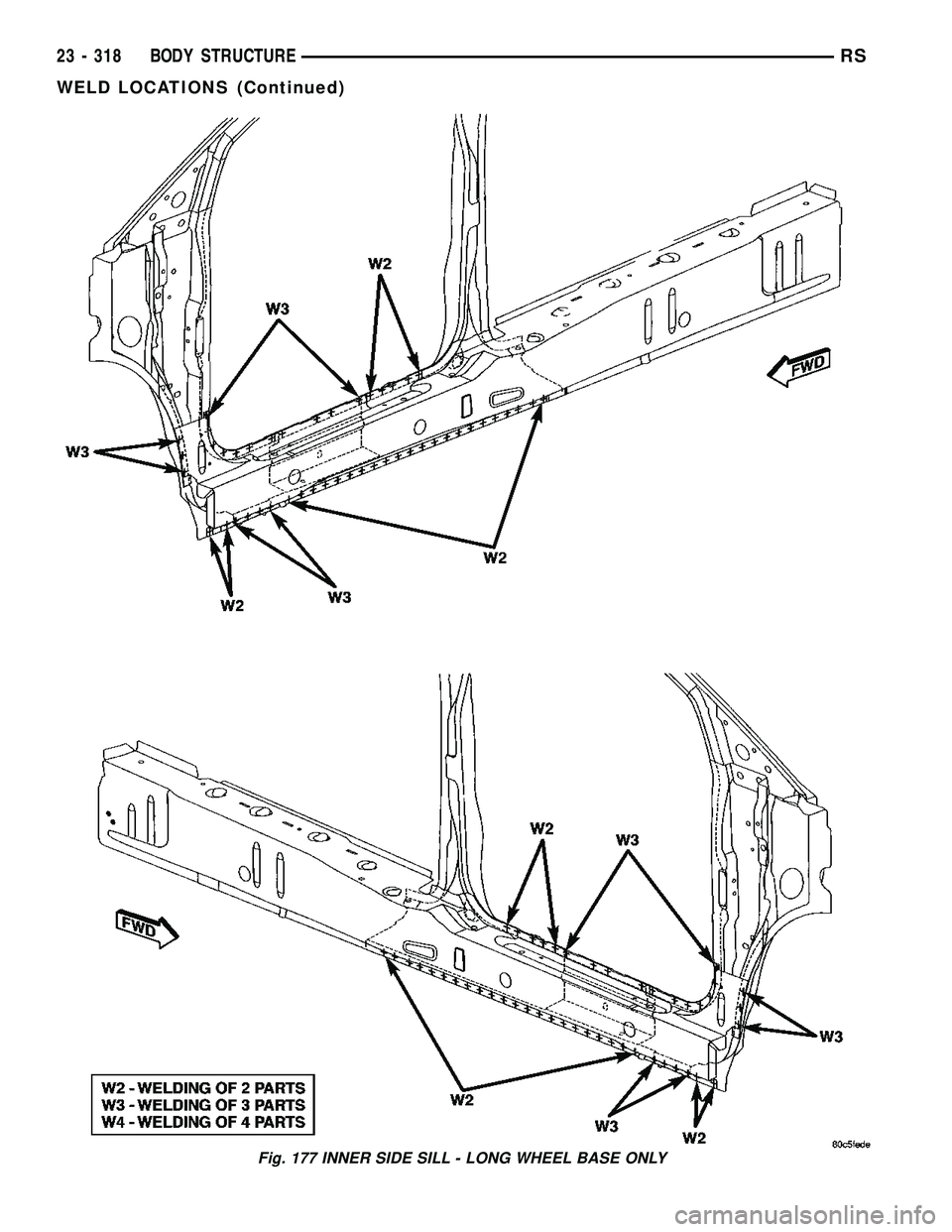

CHRYSLER CARAVAN 2005 Service Manual Fig. 177 INNER SIDE SILL - LONG WHEEL BASE ONLY 23 - 318 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2098 of 2339

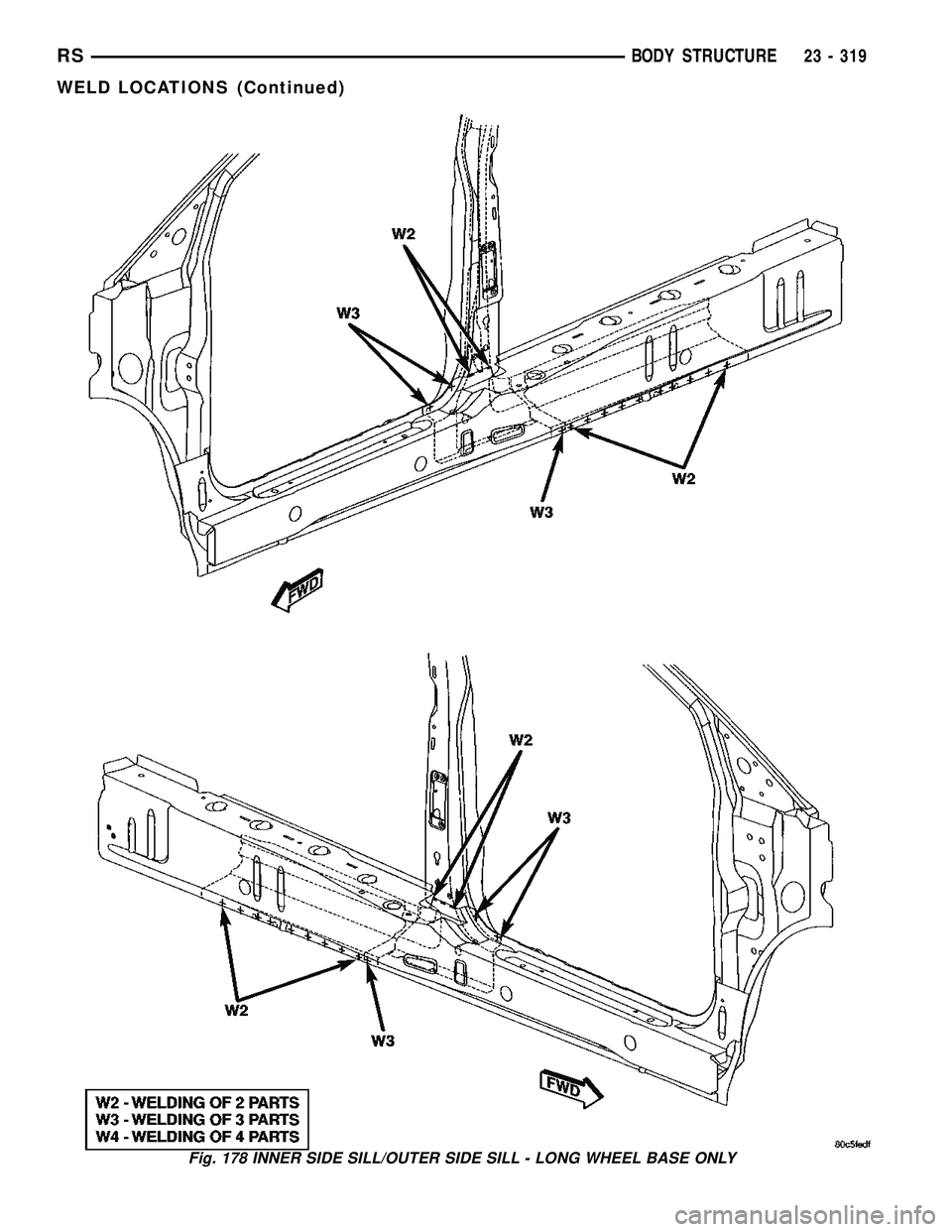

CHRYSLER CARAVAN 2005 Service Manual Fig. 178 INNER SIDE SILL/OUTER SIDE SILL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 319 WELD LOCATIONS (Continued)

Page 2099 of 2339

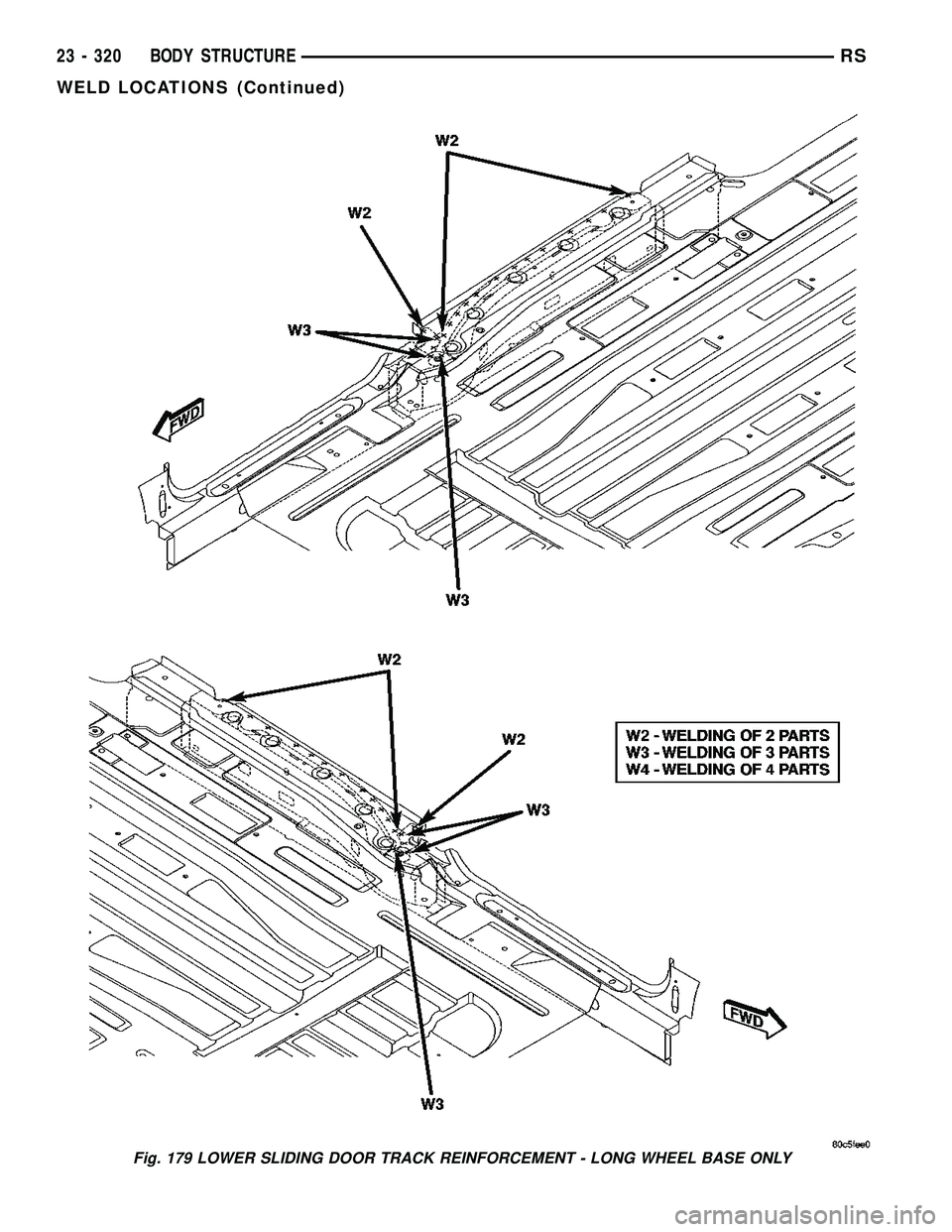

CHRYSLER CARAVAN 2005 Service Manual Fig. 179 LOWER SLIDING DOOR TRACK REINFORCEMENT - LONG WHEEL BASE ONLY 23 - 320 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2100 of 2339

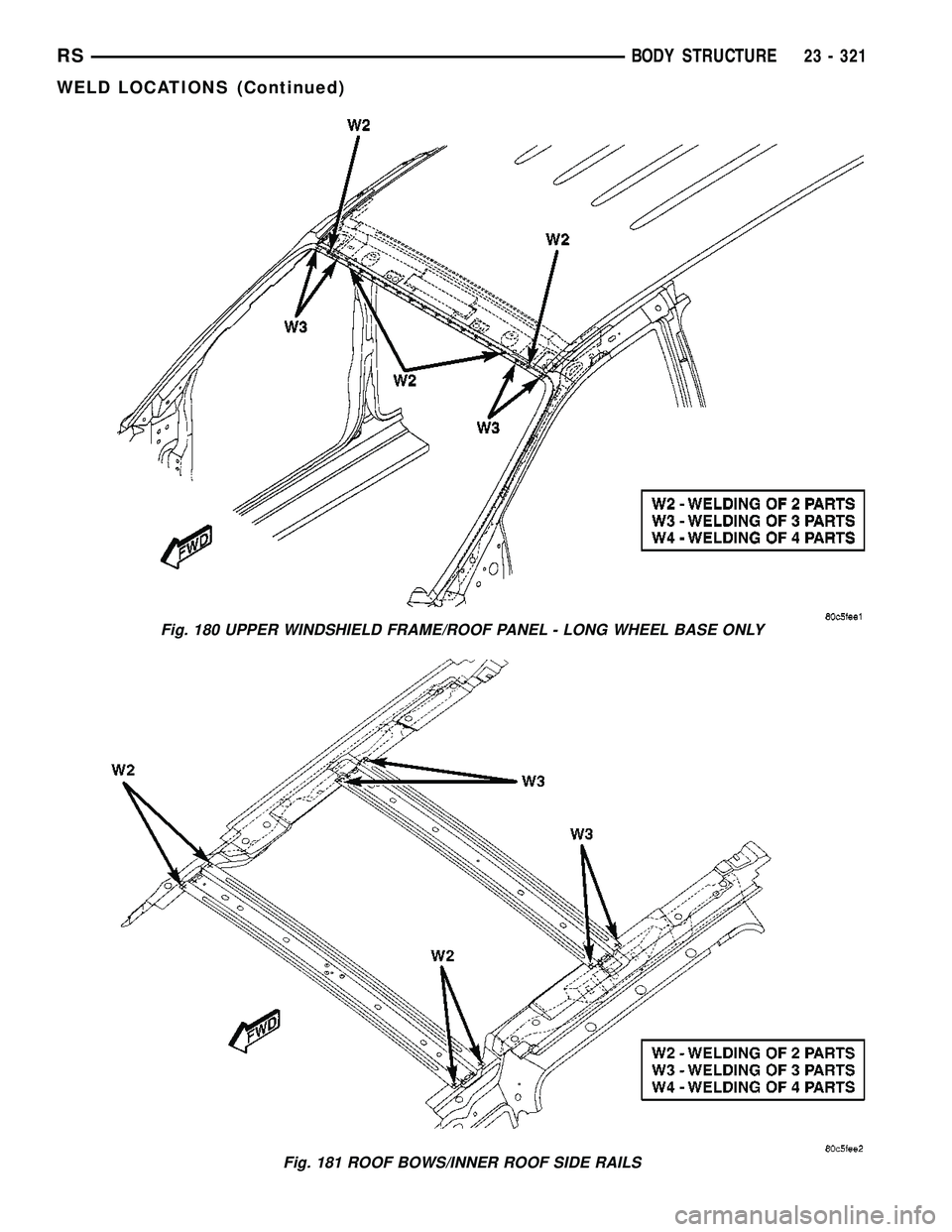

CHRYSLER CARAVAN 2005 Service Manual Fig. 180 UPPER WINDSHIELD FRAME/ROOF PANEL - LONG WHEEL BASE ONLY Fig. 181 ROOF BOWS/INNER ROOF SIDE RAILS RSBODY STRUCTURE23 - 321 WELD LOCATIONS (Continued)

Page 2101 of 2339

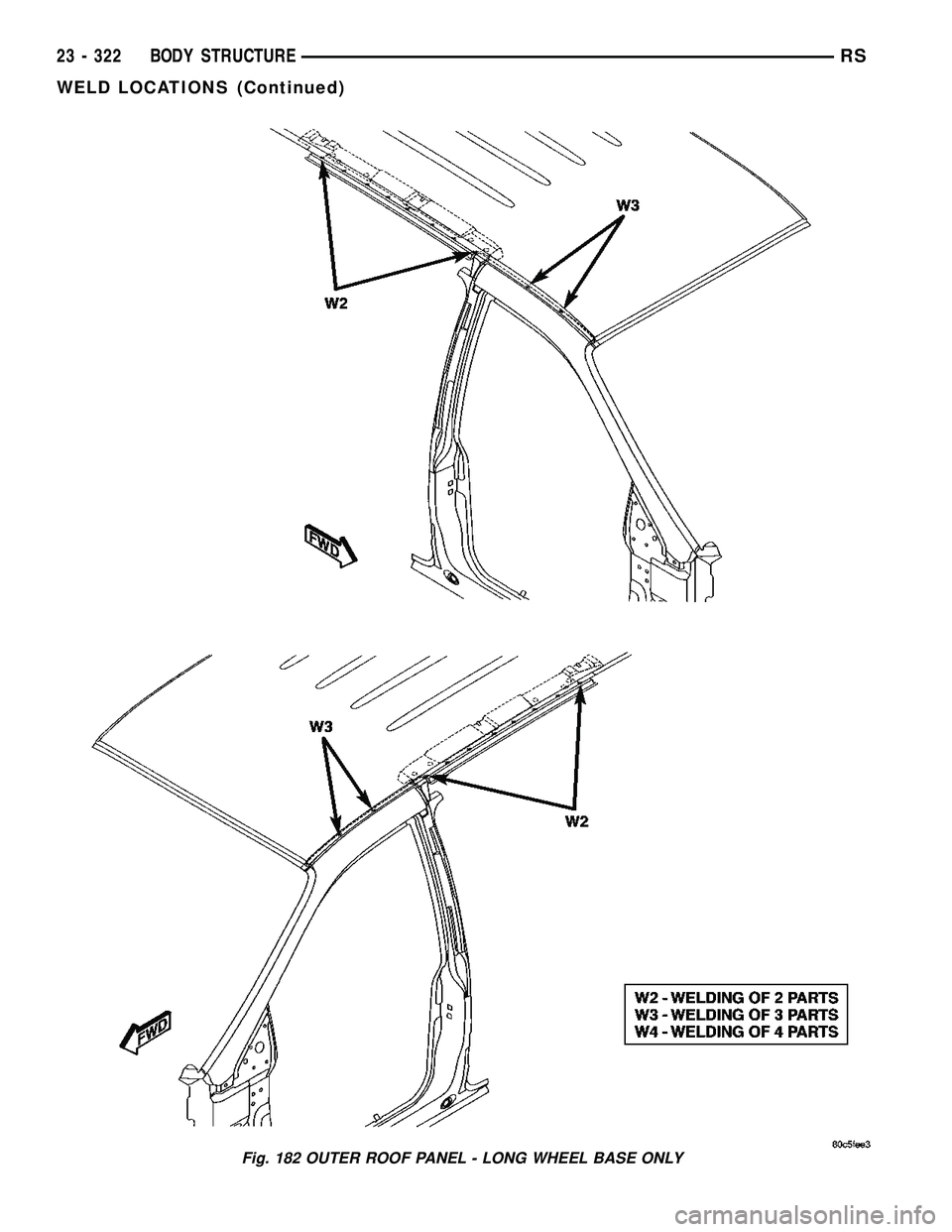

CHRYSLER CARAVAN 2005 Service Manual Fig. 182 OUTER ROOF PANEL - LONG WHEEL BASE ONLY 23 - 322 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2102 of 2339

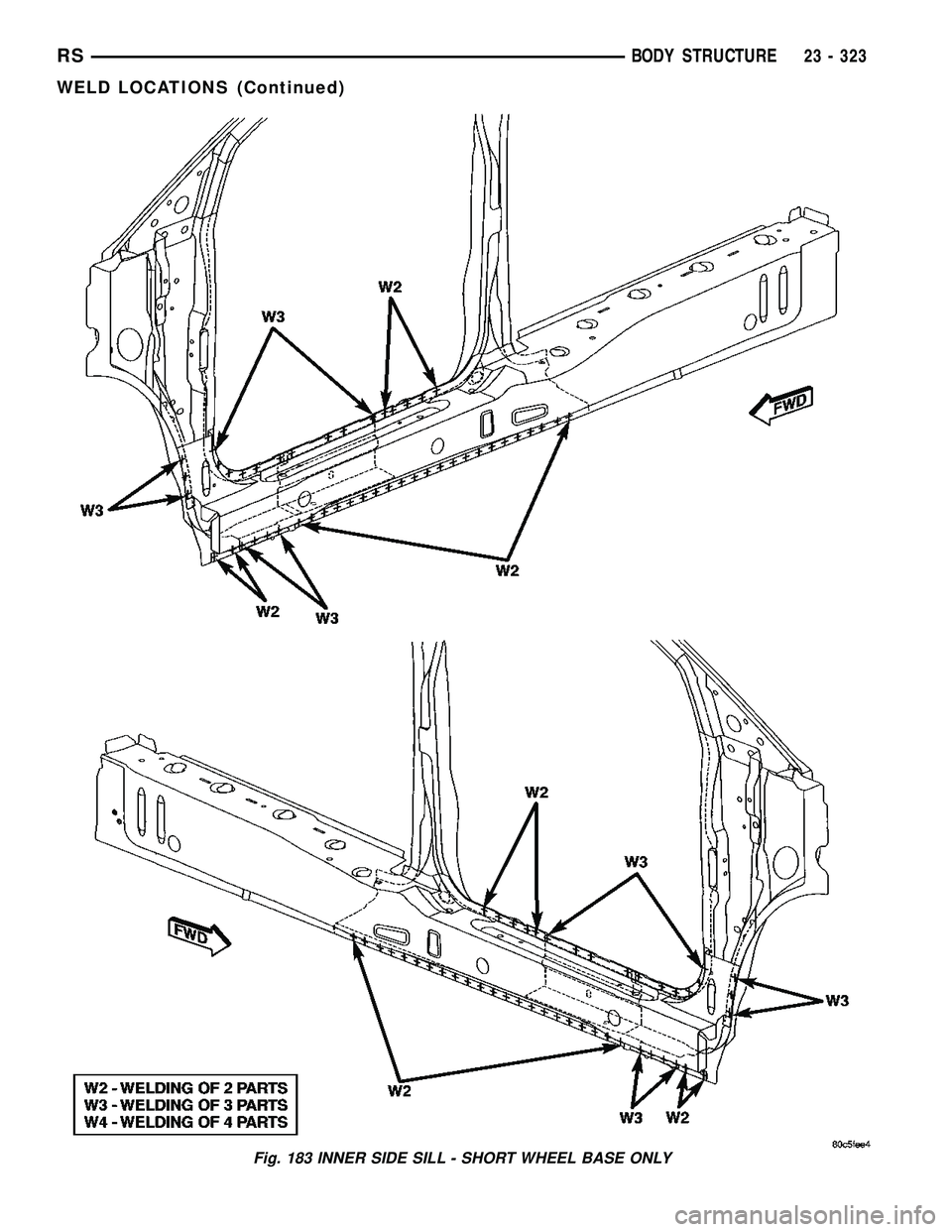

CHRYSLER CARAVAN 2005 Service Manual Fig. 183 INNER SIDE SILL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 323 WELD LOCATIONS (Continued)

Page 2103 of 2339

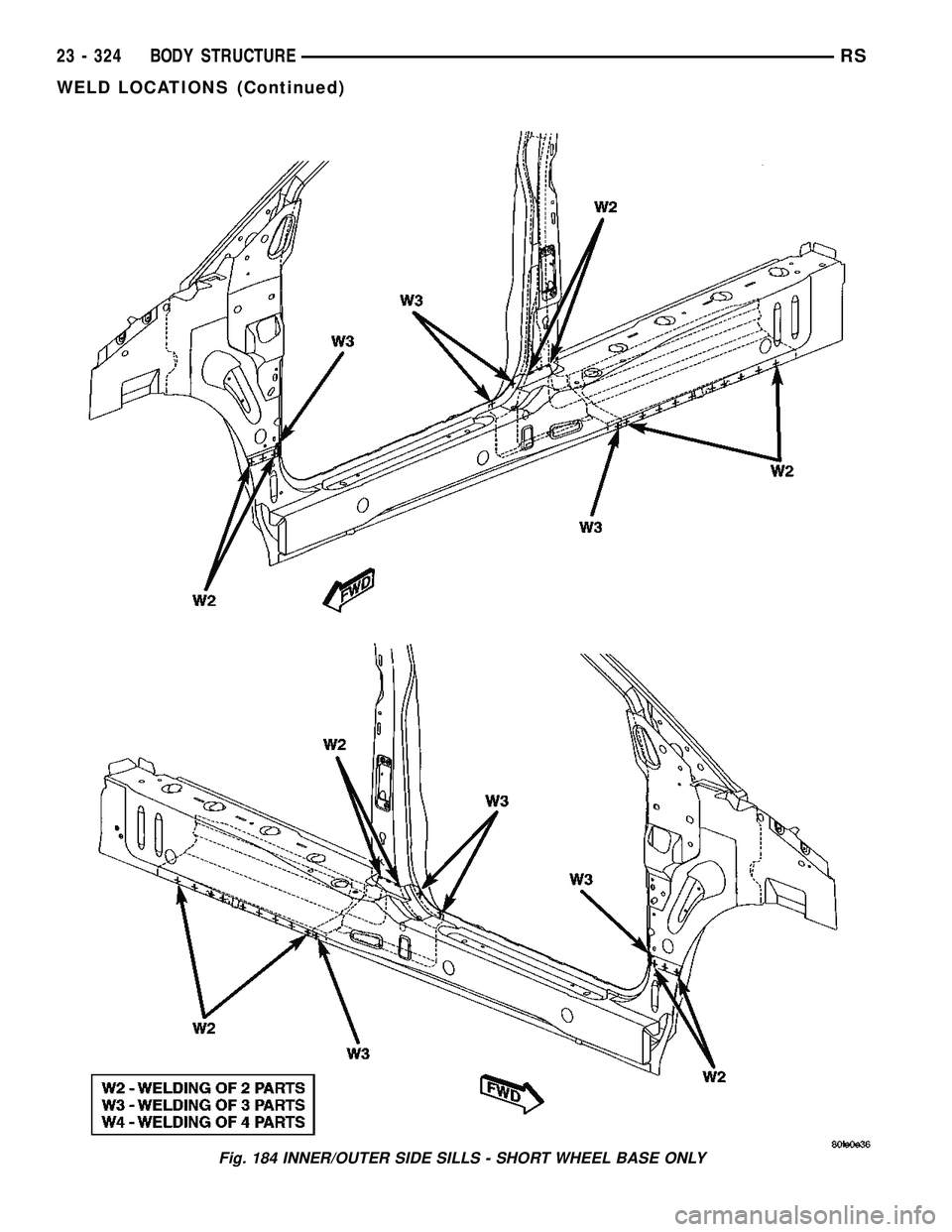

CHRYSLER CARAVAN 2005 Service Manual Fig. 184 INNER/OUTER SIDE SILLS - SHORT WHEEL BASE ONLY 23 - 324 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2104 of 2339

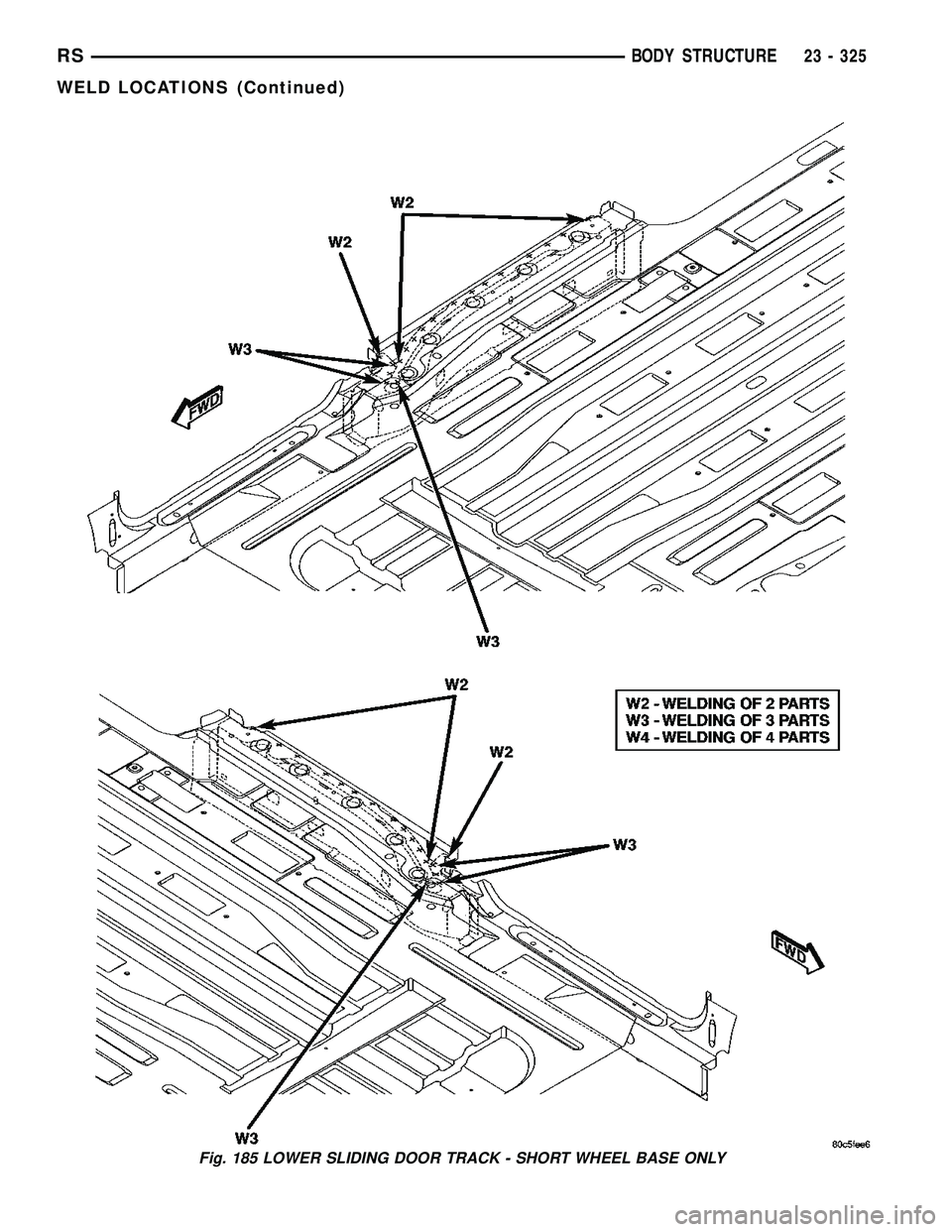

CHRYSLER CARAVAN 2005 Service Manual Fig. 185 LOWER SLIDING DOOR TRACK - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 325 WELD LOCATIONS (Continued)
