Page 1105 of 2339

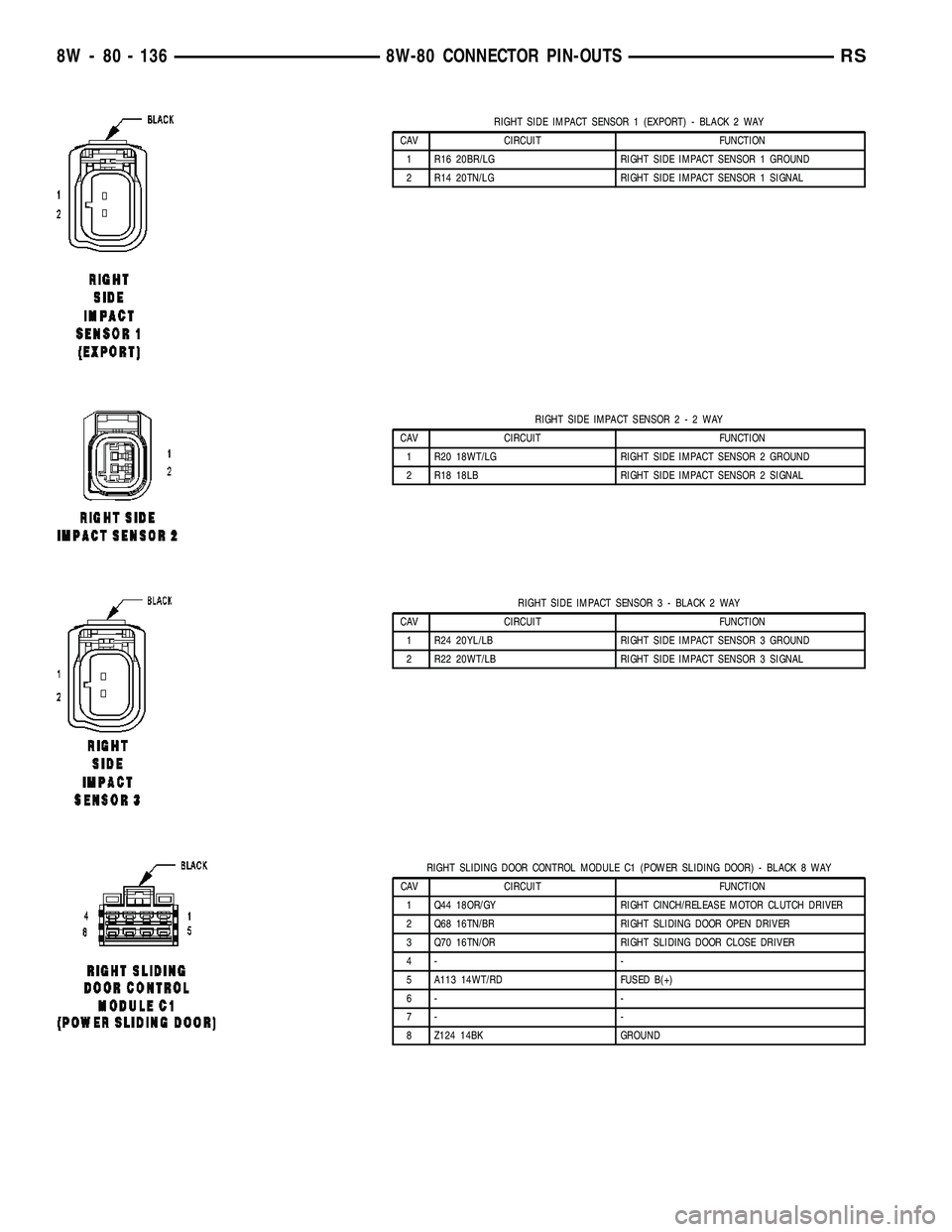

CHRYSLER CARAVAN 2005 Service Manual RIGHT SIDE IMPACT SENSOR 1 (EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND 2 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL RIGHT SIDE IMPACT SENSOR2-2WAY CA

Page 1106 of 2339

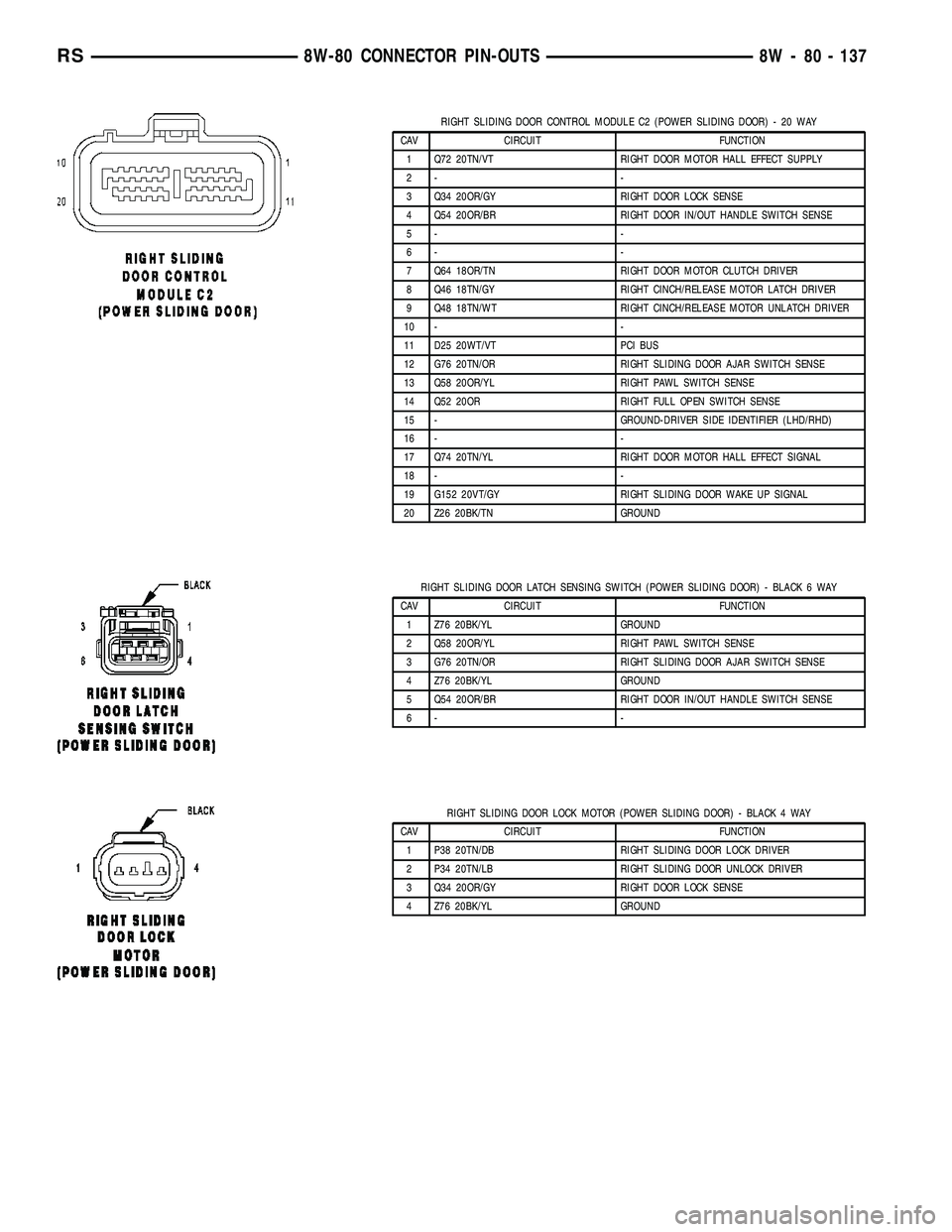

CHRYSLER CARAVAN 2005 Service Manual RIGHT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - 20 WAY CAV CIRCUIT FUNCTION 1 Q72 20TN/VT RIGHT DOOR MOTOR HALL EFFECT SUPPLY 2- - 3 Q34 20OR/GY RIGHT DOOR LOCK SENSE 4 Q54 20OR/BR RIGHT D

Page 1107 of 2339

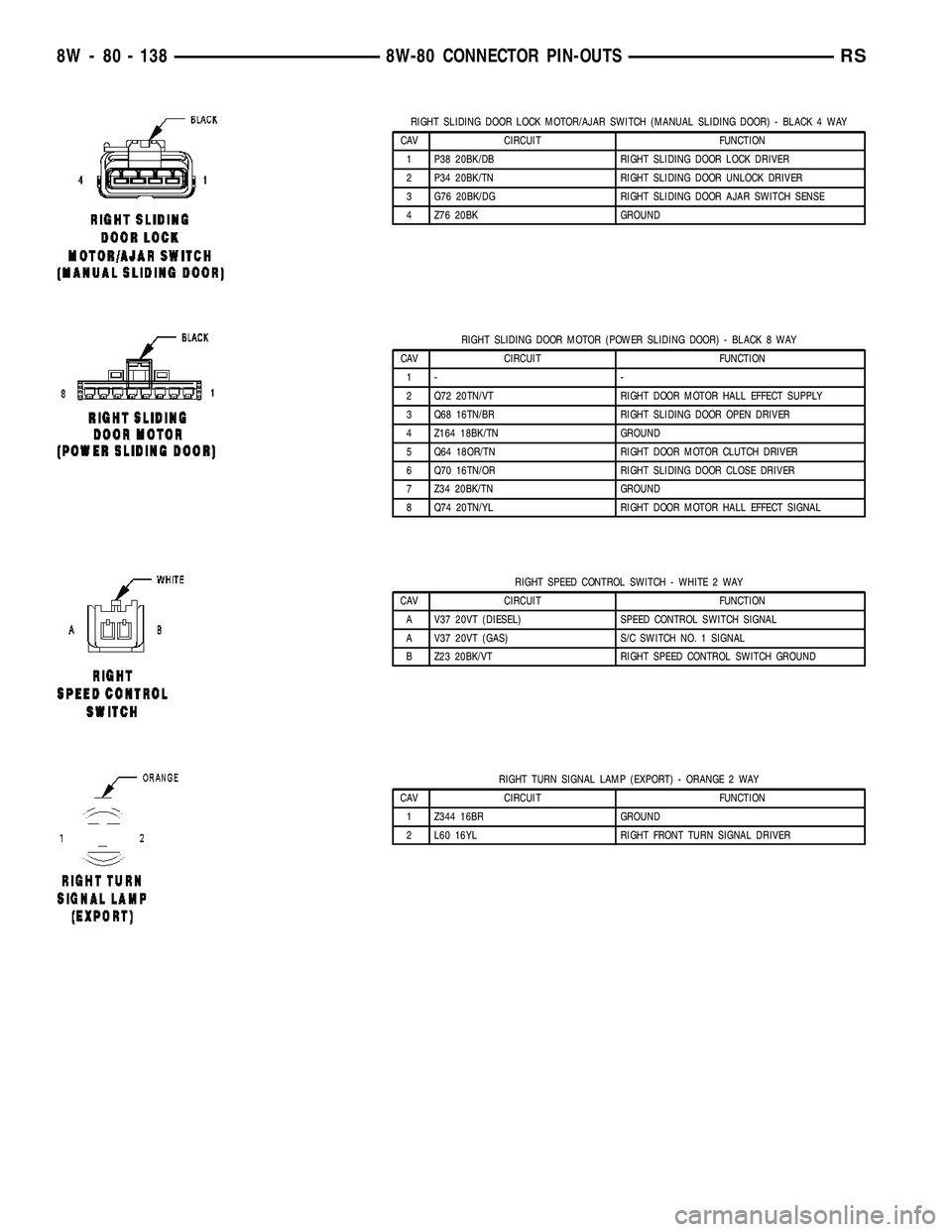

CHRYSLER CARAVAN 2005 Service Manual RIGHT SLIDING DOOR LOCK MOTOR/AJAR SWITCH (MANUAL SLIDING DOOR) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 P38 20BK/DB RIGHT SLIDING DOOR LOCK DRIVER 2 P34 20BK/TN RIGHT SLIDING DOOR UNLOCK DRIVER 3 G76 20B

Page 1108 of 2339

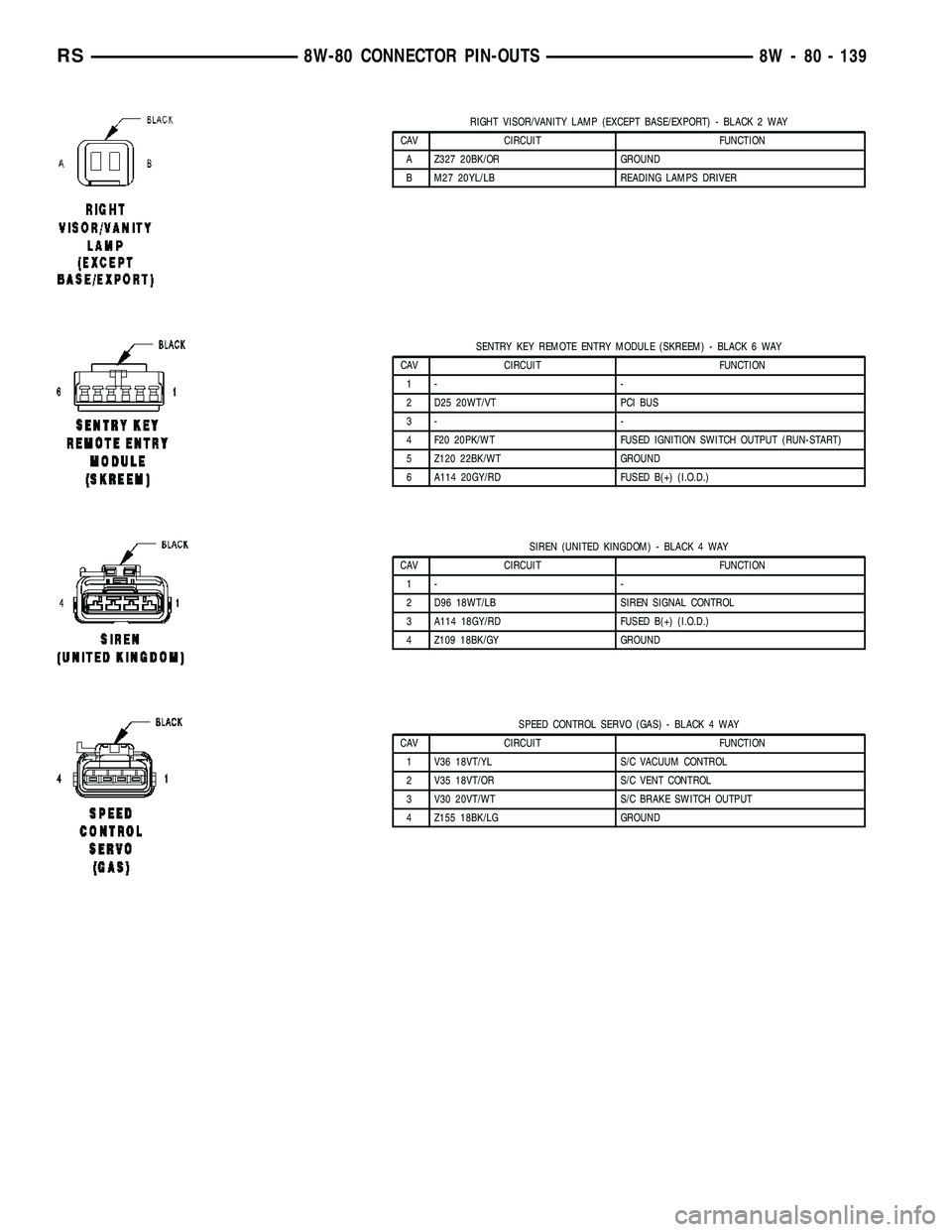

CHRYSLER CARAVAN 2005 Service Manual RIGHT VISOR/VANITY LAMP (EXCEPT BASE/EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION A Z327 20BK/OR GROUND B M27 20YL/LB READING LAMPS DRIVER SENTRY KEY REMOTE ENTRY MODULE (SKREEM) - BLACK 6 WAY CAV CIRCU

Page 1109 of 2339

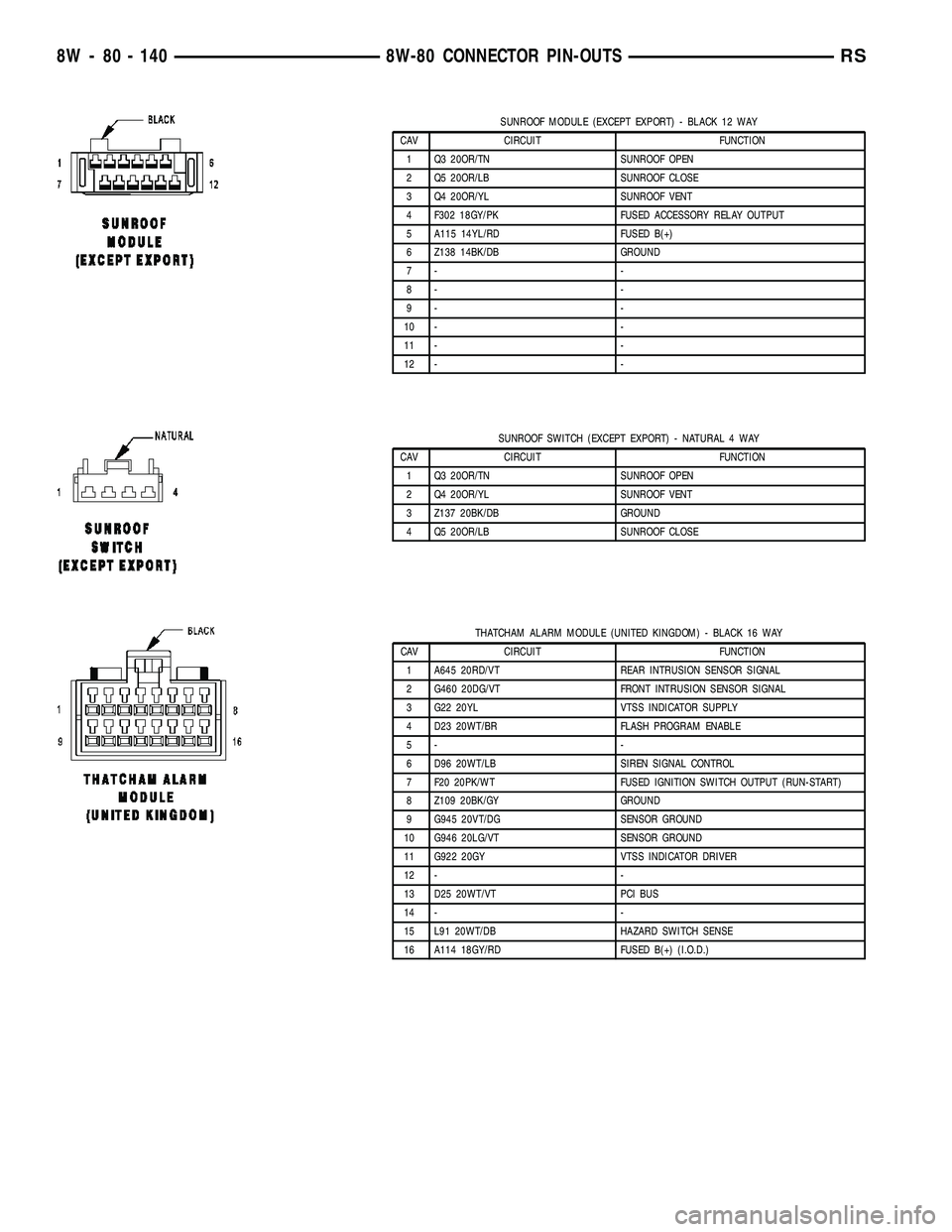

CHRYSLER CARAVAN 2005 Service Manual SUNROOF MODULE (EXCEPT EXPORT) - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 Q3 20OR/TN SUNROOF OPEN 2 Q5 20OR/LB SUNROOF CLOSE 3 Q4 20OR/YL SUNROOF VENT 4 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT 5 A115 14Y

Page 1110 of 2339

CHRYSLER CARAVAN 2005 Service Manual THROTTLE POSITION SENSOR (GAS) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 K900 18DB/DG SENSOR GROUND 2 K22 18BR/OR TP SIGNAL 3 F855 20PK/YL 5 VOLT SUPPLY TRACTION CONTROL SWITCH - BLACK 2 WAY CAV CIRCUIT FUN

Page 1111 of 2339

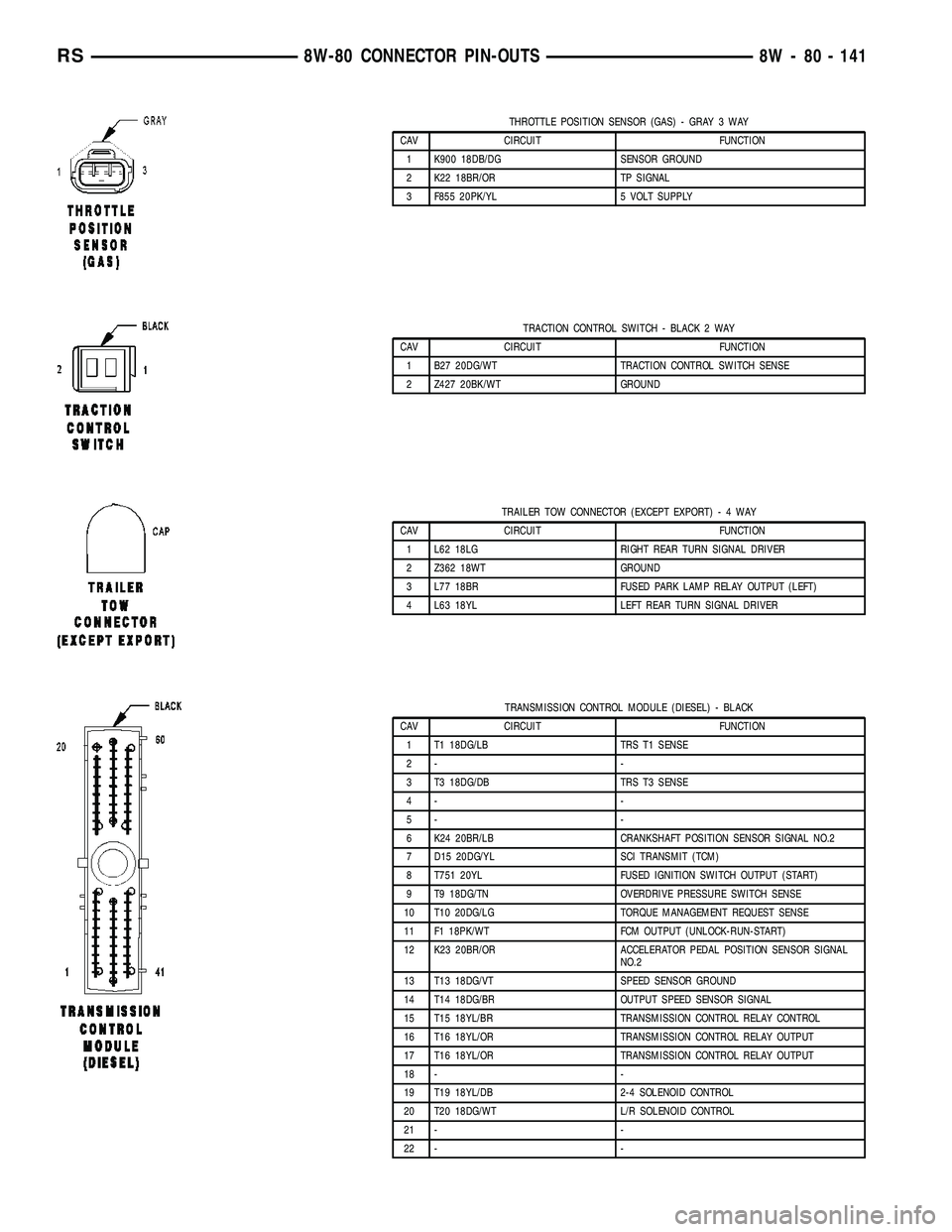

CHRYSLER CARAVAN 2005 Service Manual TRANSMISSION CONTROL MODULE (DIESEL) - BLACK CAV CIRCUIT FUNCTION 23 - - 24 - - 25 - - 26 - - 27 - - 28 - - 29 - - 30 - - 31 - - 32 - - 33 - - 34 - - 35 - - 36 - - 37 - - 38 - - 39 - - 40 - - 41 T41 1

Page 1112 of 2339

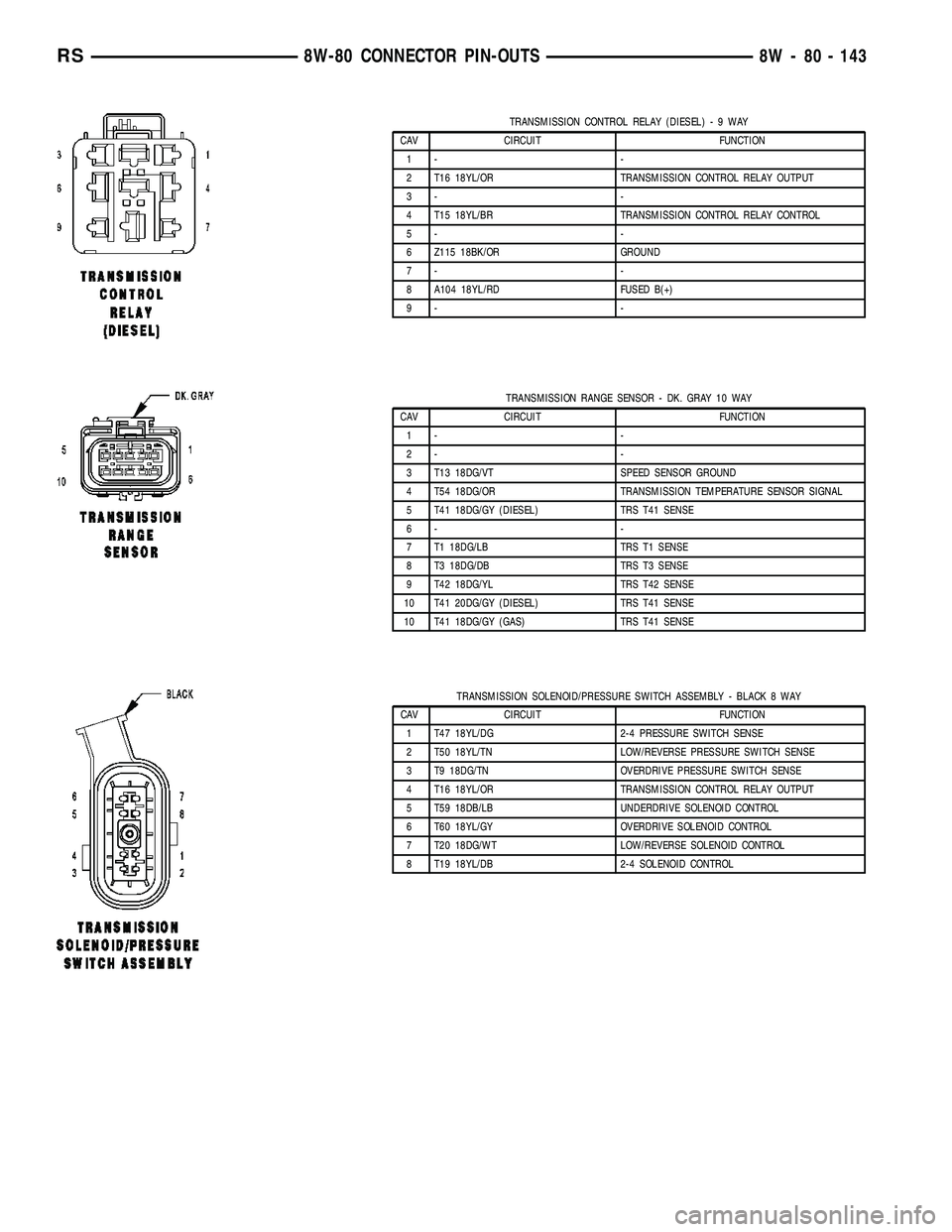

CHRYSLER CARAVAN 2005 Service Manual TRANSMISSION CONTROL RELAY (DIESEL)-9WAY CAV CIRCUIT FUNCTION 1- - 2 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT 3- - 4 T15 18YL/BR TRANSMISSION CONTROL RELAY CONTROL 5- - 6 Z115 18BK/OR GROUND 7- -
