Page 2081 of 2339

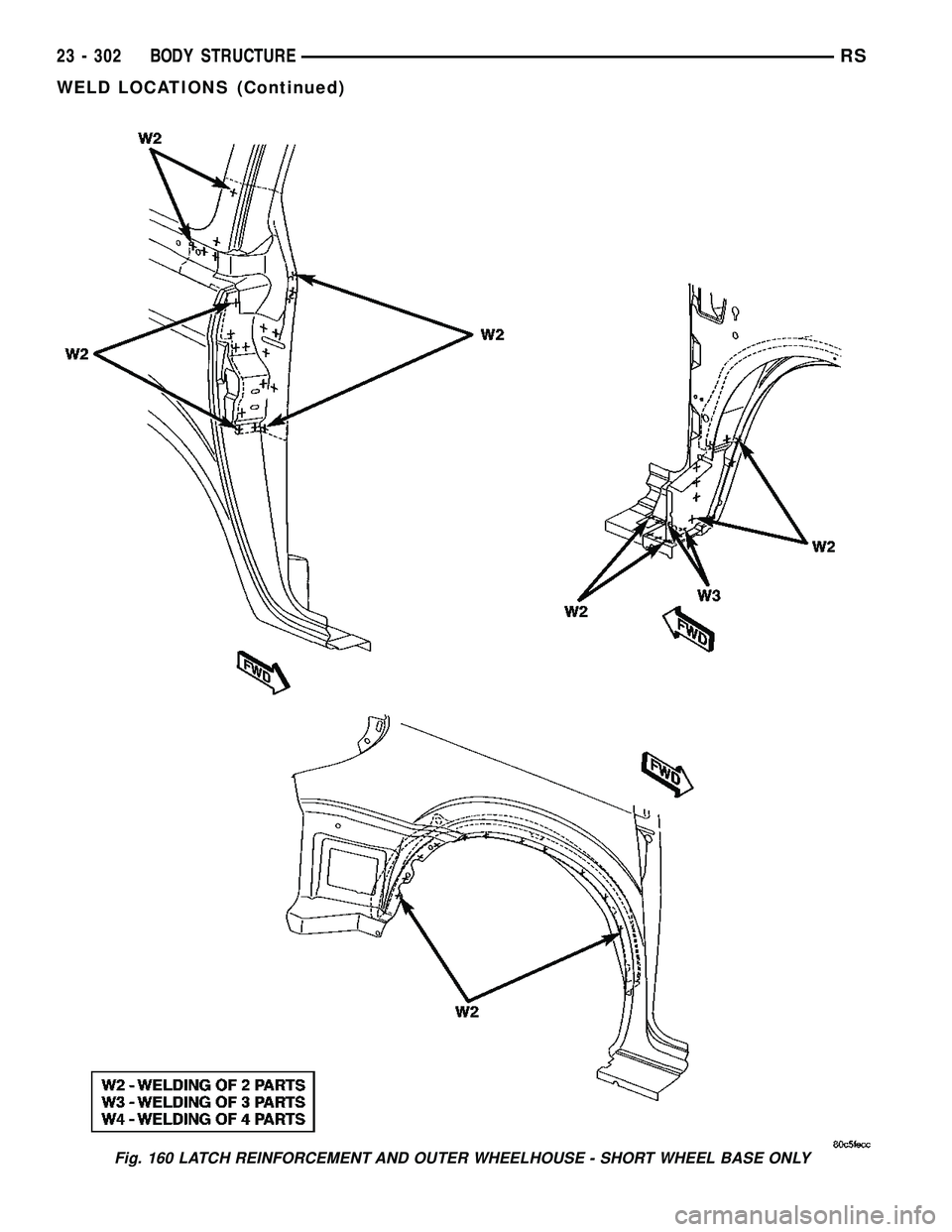

CHRYSLER CARAVAN 2005 Service Manual Fig. 160 LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 23 - 302 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2082 of 2339

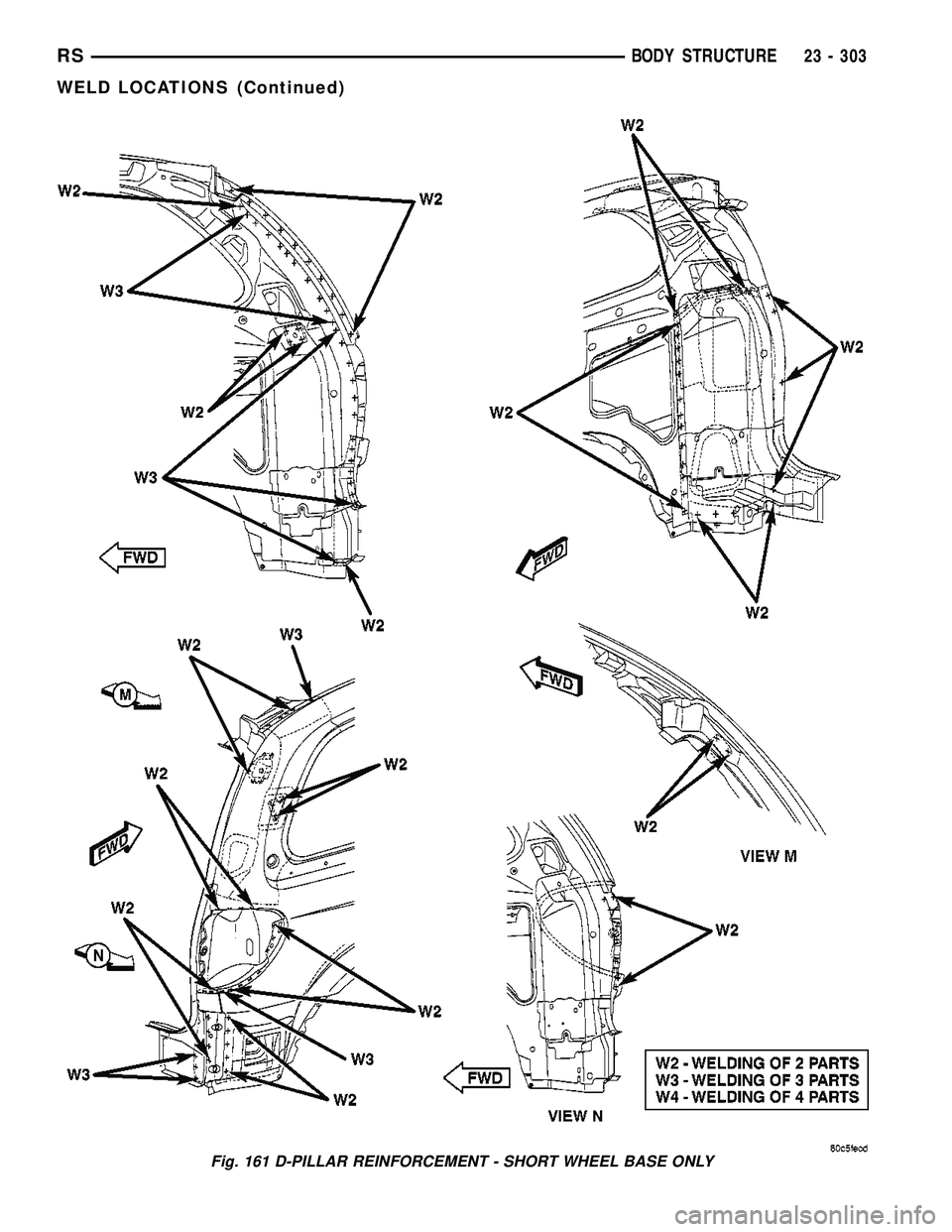

CHRYSLER CARAVAN 2005 Service Manual Fig. 161 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 303 WELD LOCATIONS (Continued)

Page 2083 of 2339

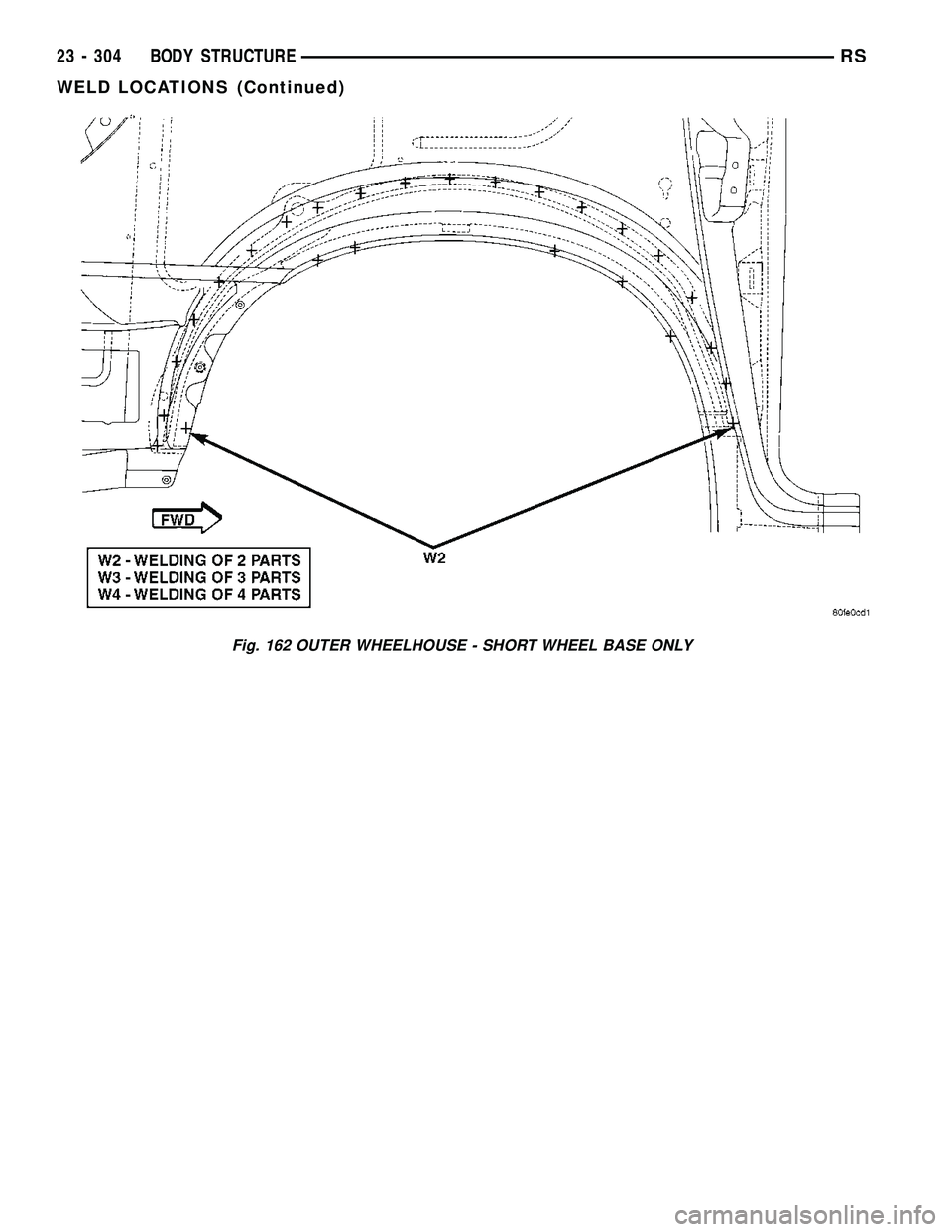

CHRYSLER CARAVAN 2005 Service Manual Fig. 162 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 23 - 304 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2084 of 2339

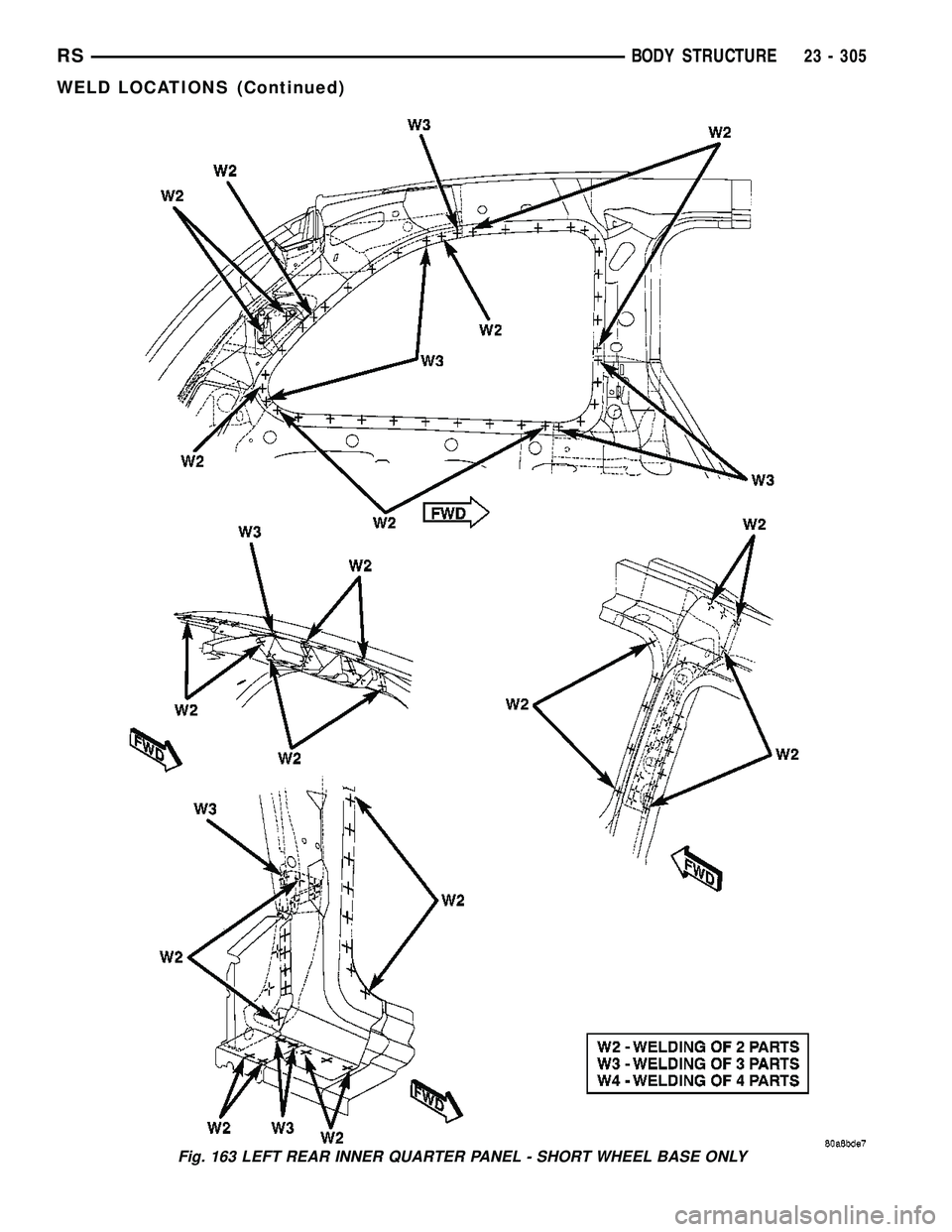

CHRYSLER CARAVAN 2005 Service Manual Fig. 163 LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 305 WELD LOCATIONS (Continued)

Page 2085 of 2339

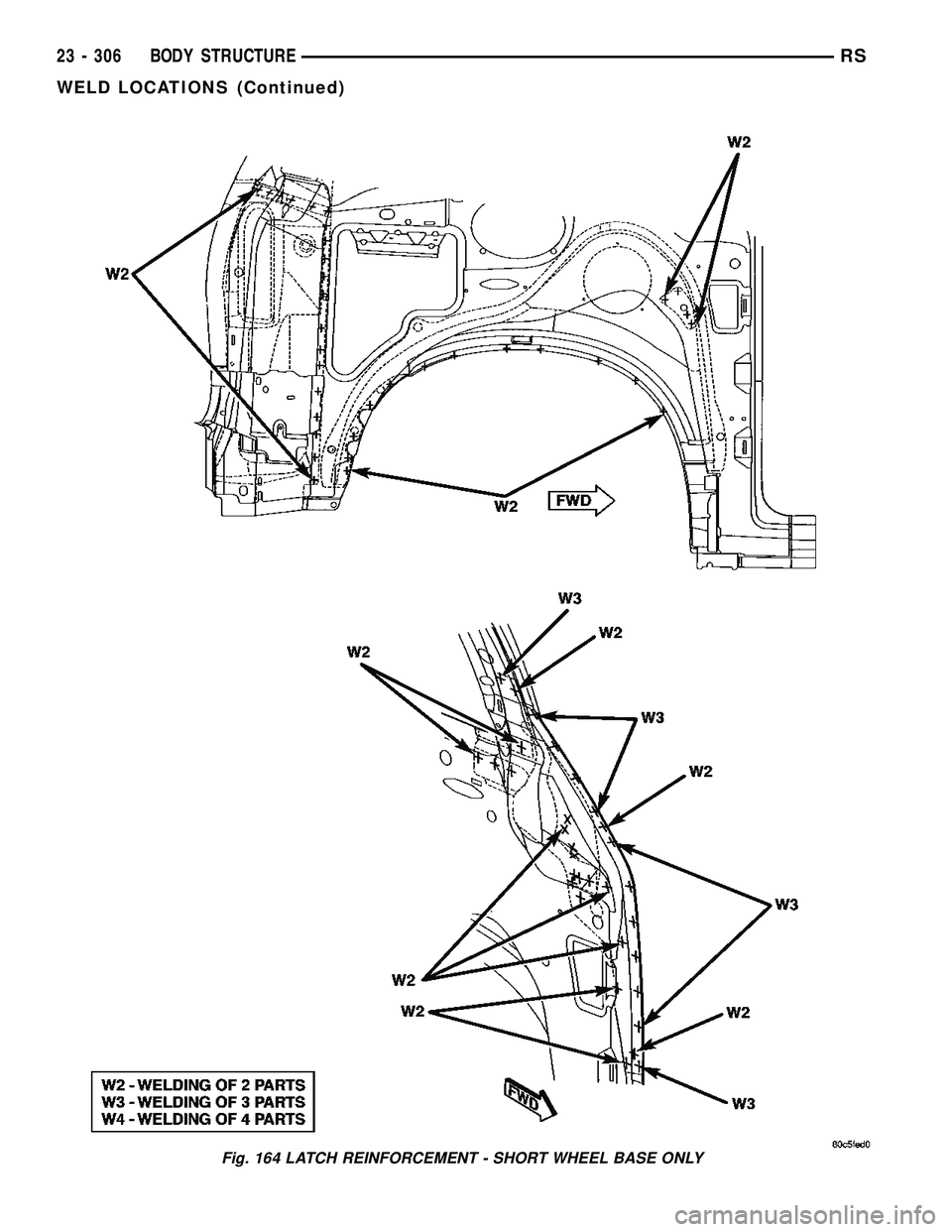

CHRYSLER CARAVAN 2005 Service Manual Fig. 164 LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 306 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2086 of 2339

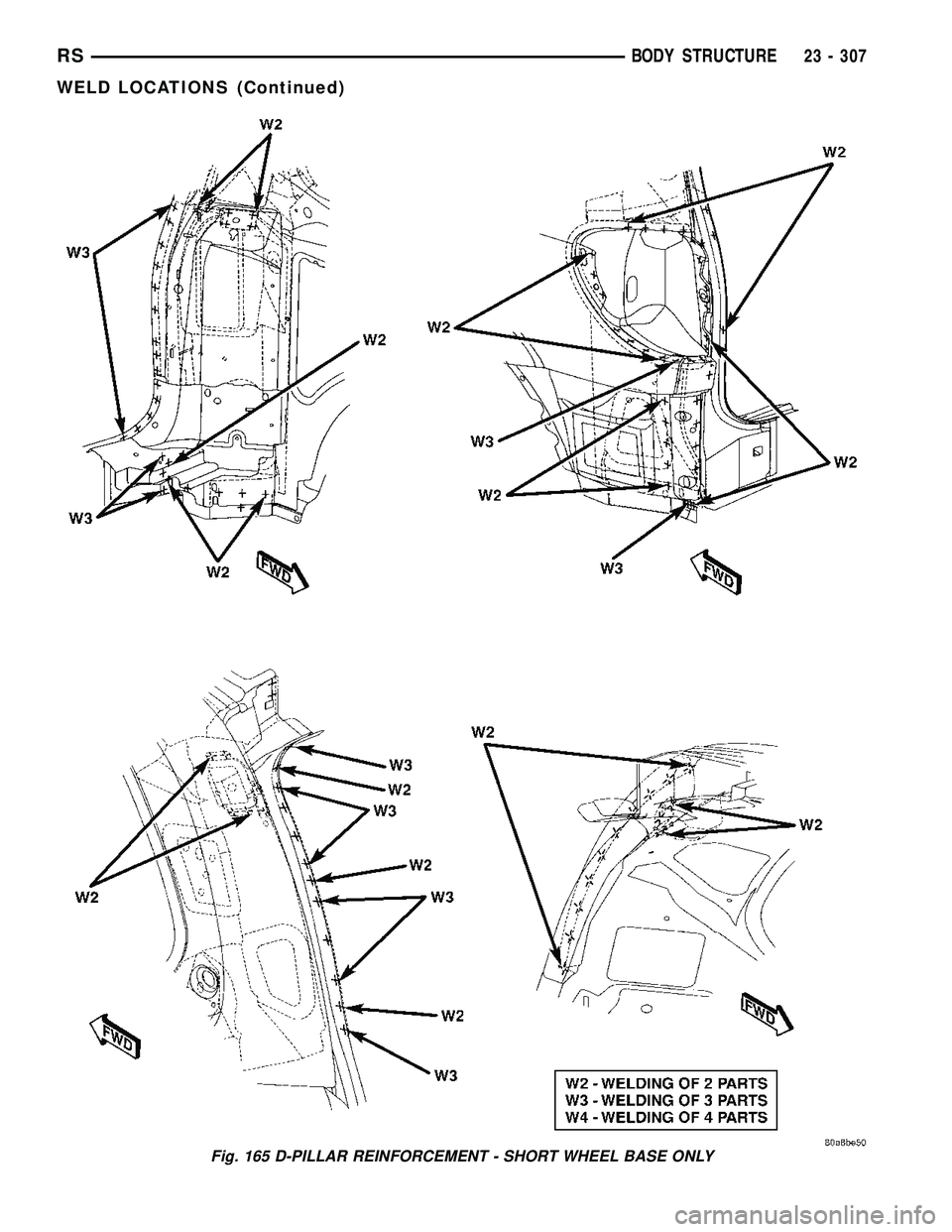

CHRYSLER CARAVAN 2005 Service Manual Fig. 165 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 307 WELD LOCATIONS (Continued)

Page 2087 of 2339

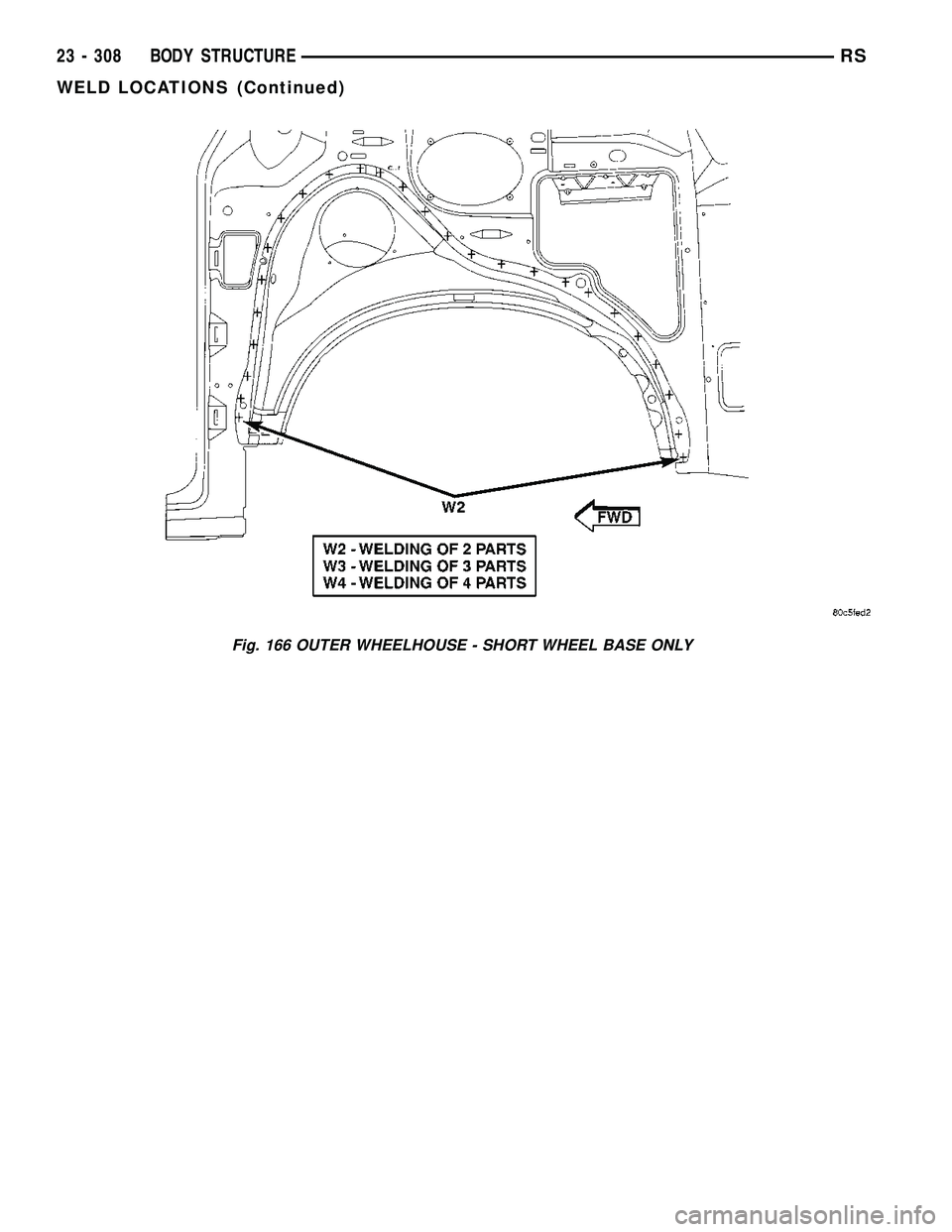

CHRYSLER CARAVAN 2005 Service Manual Fig. 166 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY 23 - 308 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2088 of 2339

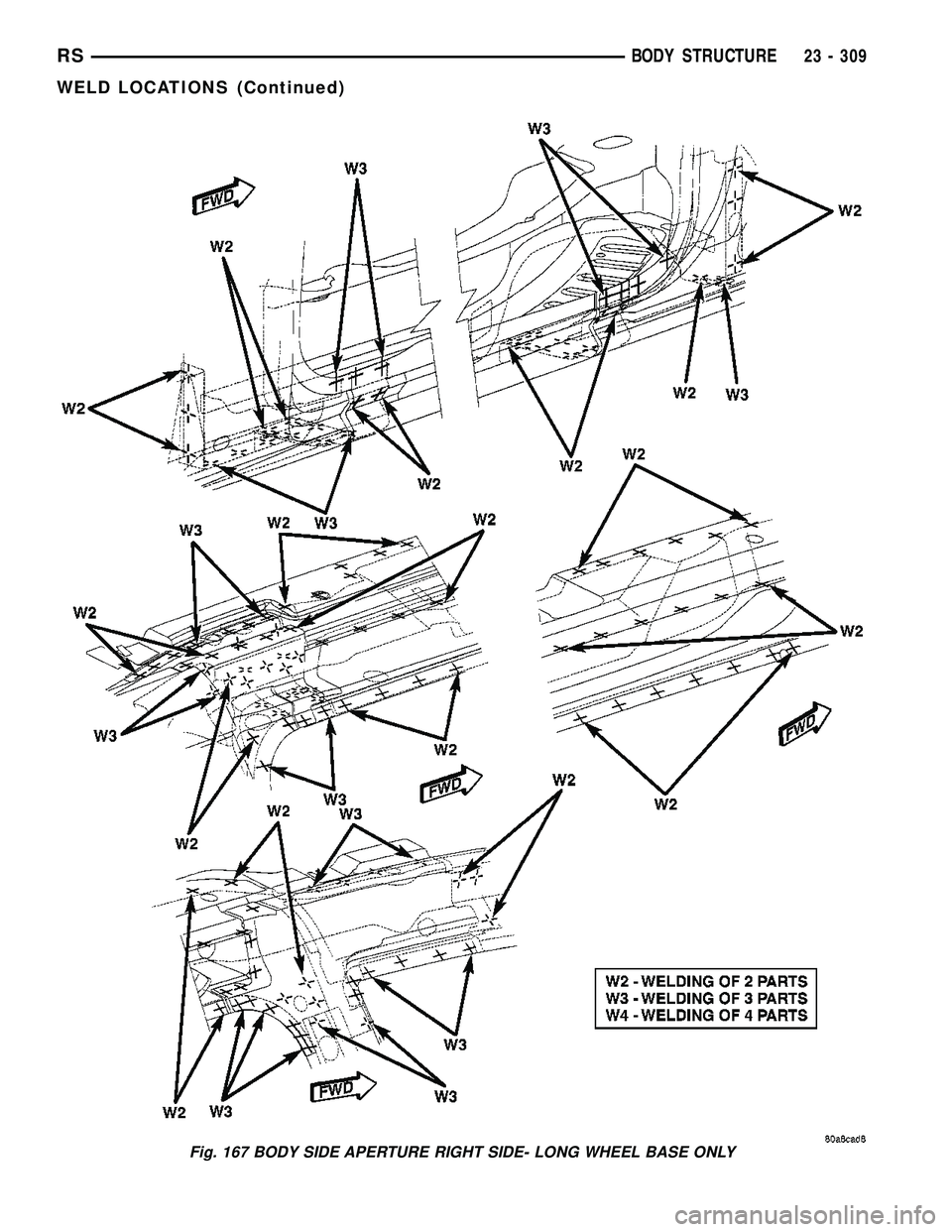

CHRYSLER CARAVAN 2005 Service Manual Fig. 167 BODY SIDE APERTURE RIGHT SIDE- LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 309 WELD LOCATIONS (Continued)
