Page 1025 of 2339

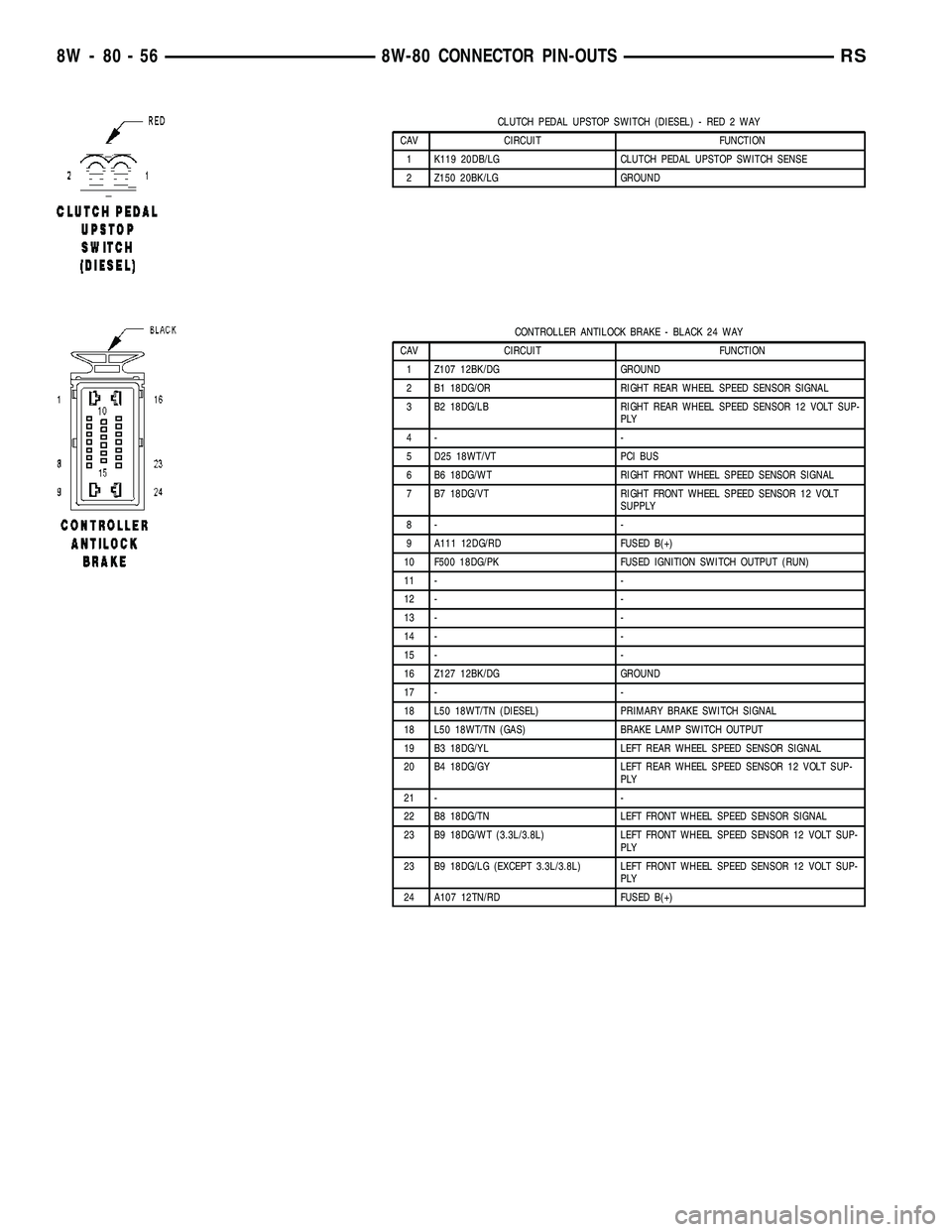

CHRYSLER CARAVAN 2005 Service Manual CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY
CAV CIRCUIT FUNCTION
1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
2 Z150 20BK/LG GROUND
CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION

Page 1026 of 2339

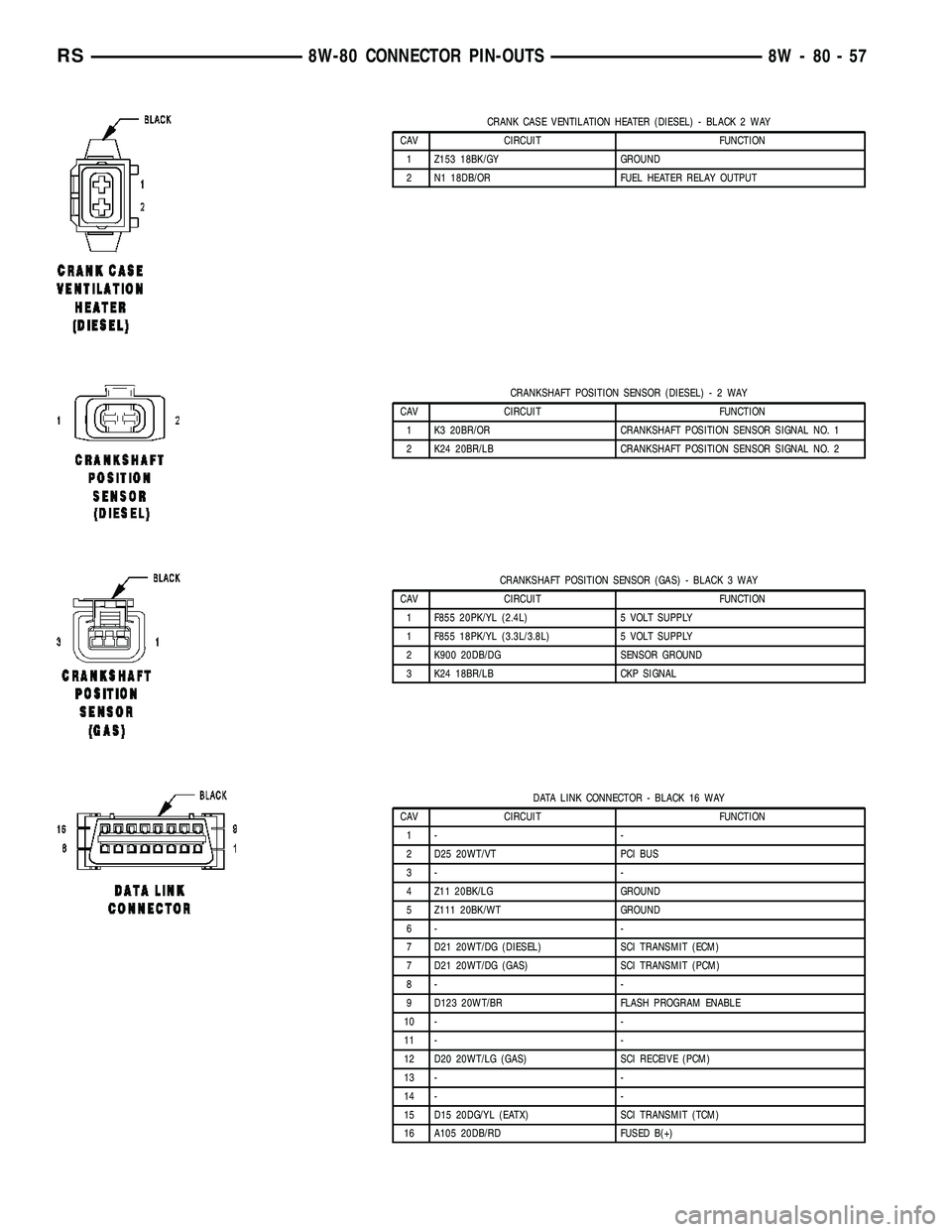

CHRYSLER CARAVAN 2005 Service Manual CRANK CASE VENTILATION HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z153 18BK/GY GROUND
2 N1 18DB/OR FUEL HEATER RELAY OUTPUT
CRANKSHAFT POSITION SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K3

Page 1027 of 2339

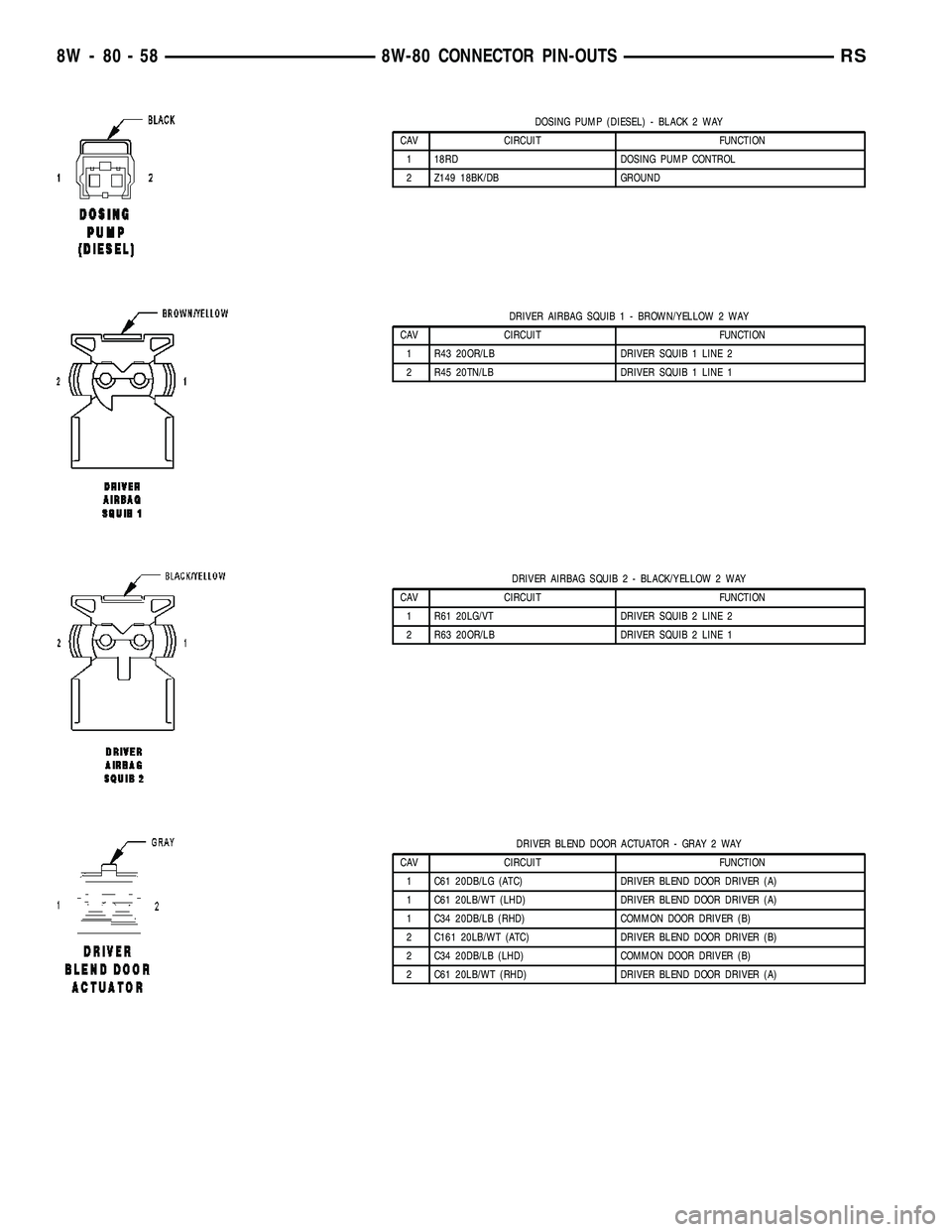

CHRYSLER CARAVAN 2005 Service Manual DOSING PUMP (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 18RD DOSING PUMP CONTROL
2 Z149 18BK/DB GROUND
DRIVER AIRBAG SQUIB 1 - BROWN/YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R43 20OR/LB DRIVER SQUIB 1 LI

Page 1028 of 2339

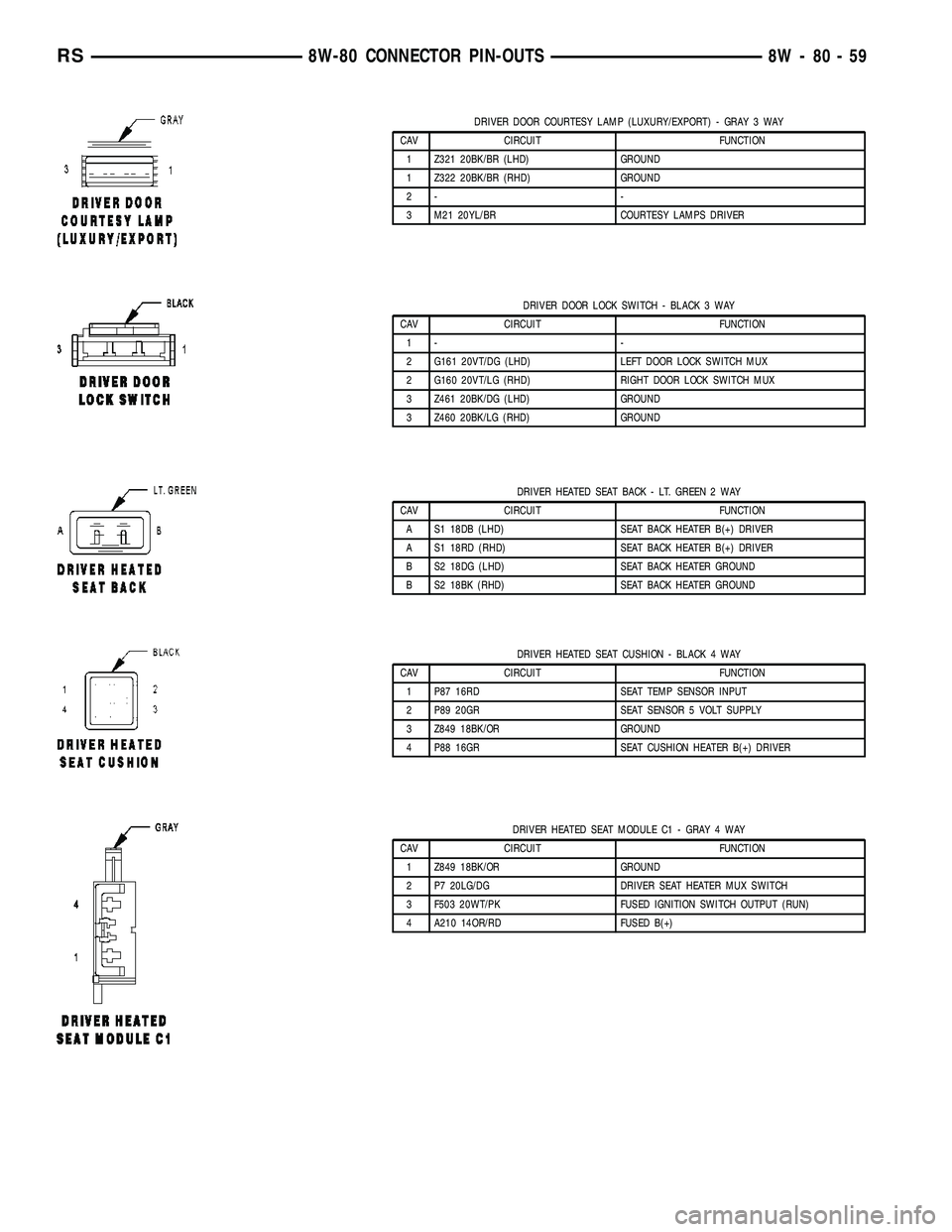

CHRYSLER CARAVAN 2005 Service Manual DRIVER DOOR COURTESY LAMP (LUXURY/EXPORT) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z321 20BK/BR (LHD) GROUND
1 Z322 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - B

Page 1029 of 2339

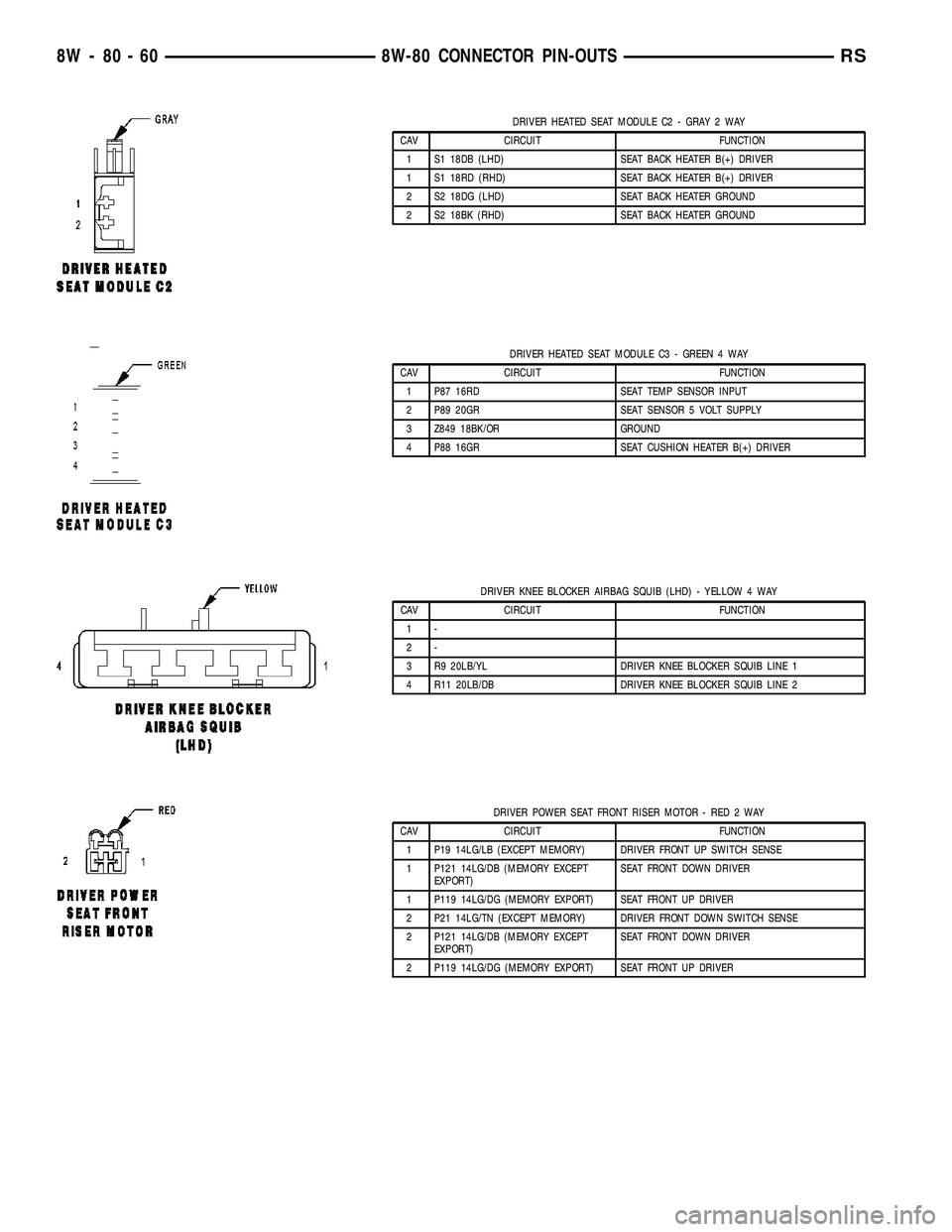

CHRYSLER CARAVAN 2005 Service Manual DRIVER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18DB (LHD) SEAT BACK HEATER B(+) DRIVER
1 S1 18RD (RHD) SEAT BACK HEATER B(+) DRIVER
2 S2 18DG (LHD) SEAT BACK HEATER GROUND
2 S2 18

Page 1030 of 2339

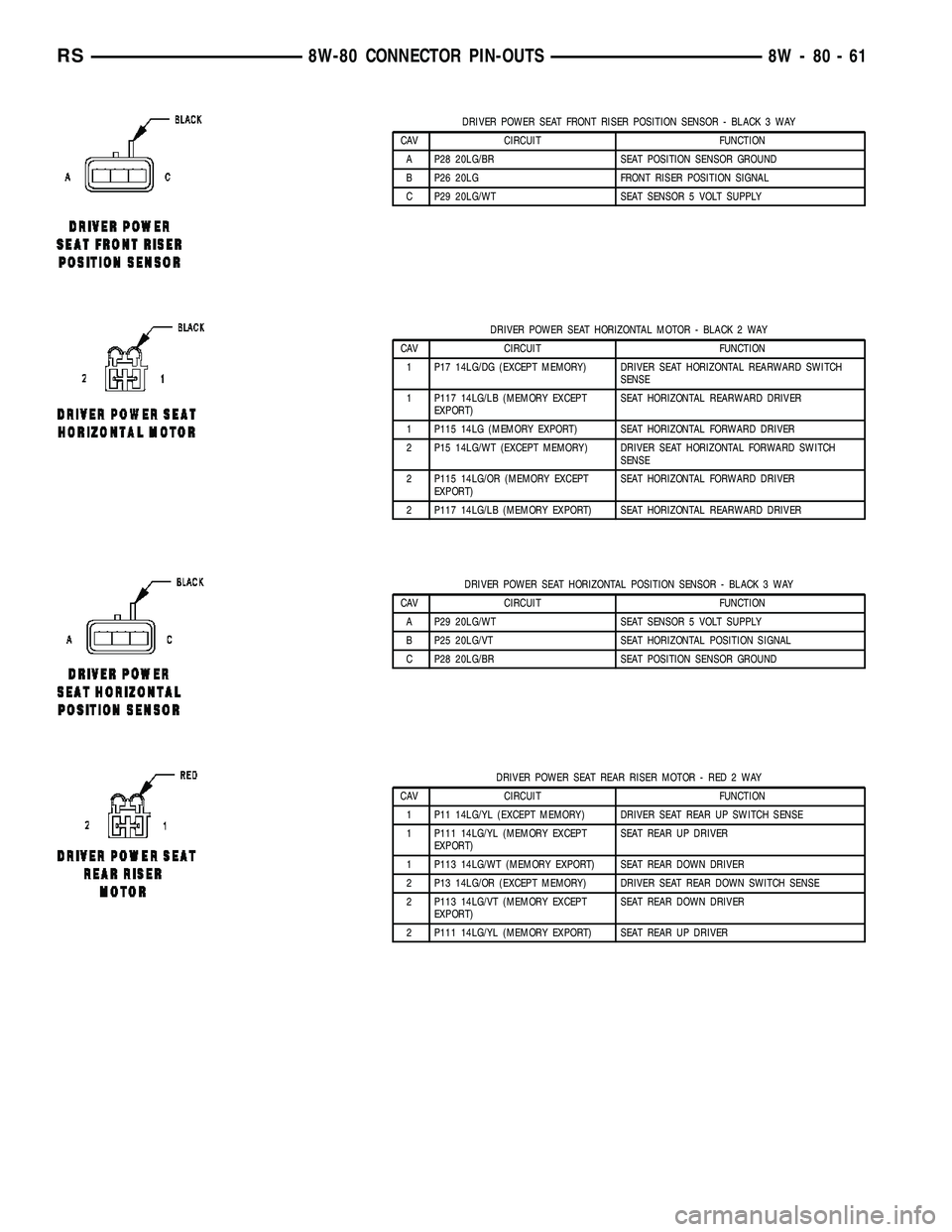

CHRYSLER CARAVAN 2005 Service Manual DRIVER POWER SEAT FRONT RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPL

Page 1031 of 2339

CHRYSLER CARAVAN 2005 Service Manual DRIVER POWER SEAT REAR RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPP

DRIVER POWER SEAT REAR RISER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20LG/BR SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
DRIVER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P41 14LG/GY (EXCEPT MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
1 P141 14LG/BR (MEMORY EXCEPT
EXPORT)SEAT RECLINER DOWN DRIVER
1 P143 14LG/GY (MEMORY EXPORT) SEAT RECLINER UP DRIVER
2 P43 14LG/VT (EXCEPT MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
2 P143 14LG/GY (MEMORY EXCEPT
EXPORT)SEAT RECLINER UP DRIVER
2 P141 14LG/BR (MEMORY EXPORT) SEAT RECLINER DOWN DRIVER
DRIVER POWER SEAT RECLINER POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20LG/WT SEAT SENSOR 5 VOLT SUPPLY
B P47 20LG/LB RECLINER POSITION SIGNAL
C P28 20LG/BR SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z849 14BK/OR (EXCEPT MEMORY) GROUND
1 Z849 20BK/OR (MEMORY) GROUND
2 P43 14LG/VT (EXCEPT MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
2 P43 14LG/VT (MEMORY) DRIVER SEAT RECLINER UP SWITCH SENSE
3 P17 14LG/DG (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
3 P17 20LG/DG (MEMORY) DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
4 P41 14LG/GY (EXCEPT MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
4 P41 14LG/GY (MEMORY) DRIVER SEAT RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD (EXCEPT MEMORY) FUSED SEAT SWITCH DRIVER
5 P9 20LG/OR (MEMORY) SEAT SWITCH B(+) SUPPLY
6 P15 14LG/WT (EXCEPT MEMORY) DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
6 P15 20LG/WT (MEMORY) DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
7 P19 14LG/LB (EXCEPT MEMORY) DRIVER SEAT FRONT UP SWITCH SENSE
7 P19 20LG/LB (MEMORY) DRIVER SEAT FRONT UP SWITCH SENSE
8 P11 14LG/YL (EXCEPT MEMORY) DRIVER SEAT REAR UP SWITCH SENSE
8 P11 20LG/YL (MEMORY) DRIVER SEAT REAR UP SWITCH SENSE
9 P13 14LG/OR (EXCEPT MEMORY) DRIVER SEAT REAR DOWN SWITCH SENSE
9 P13 20LG/OR (MEMORY) DRIVER SEAT REAR DOWN SWITCH SENSE
10 P21 14LG/TN (EXCEPT MEMORY) DRIVER SEAT FRONT DOWN SWITCH SENSE
10 P21 20LG/TN (MEMORY) DRIVER SEAT FRONT DOWN SWITCH SENSE
8W - 80 - 62 8W-80 CONNECTOR PIN-OUTSRS

Page 1032 of 2339

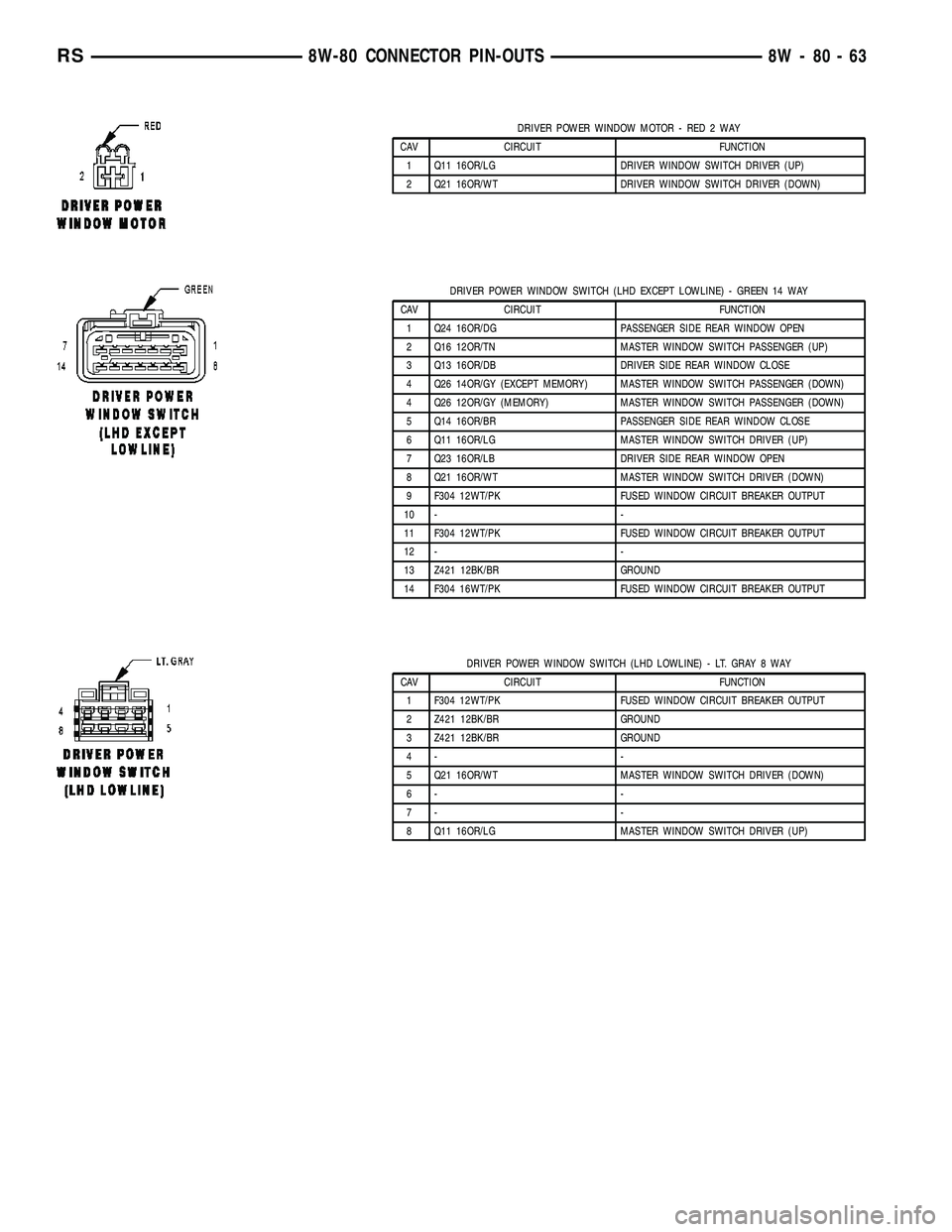

CHRYSLER CARAVAN 2005 Service Manual DRIVER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q11 16OR/LG DRIVER WINDOW SWITCH DRIVER (UP)
2 Q21 16OR/WT DRIVER WINDOW SWITCH DRIVER (DOWN)
DRIVER POWER WINDOW SWITCH (LHD EXCEPT LOWLIN
