Page 1985 of 2339

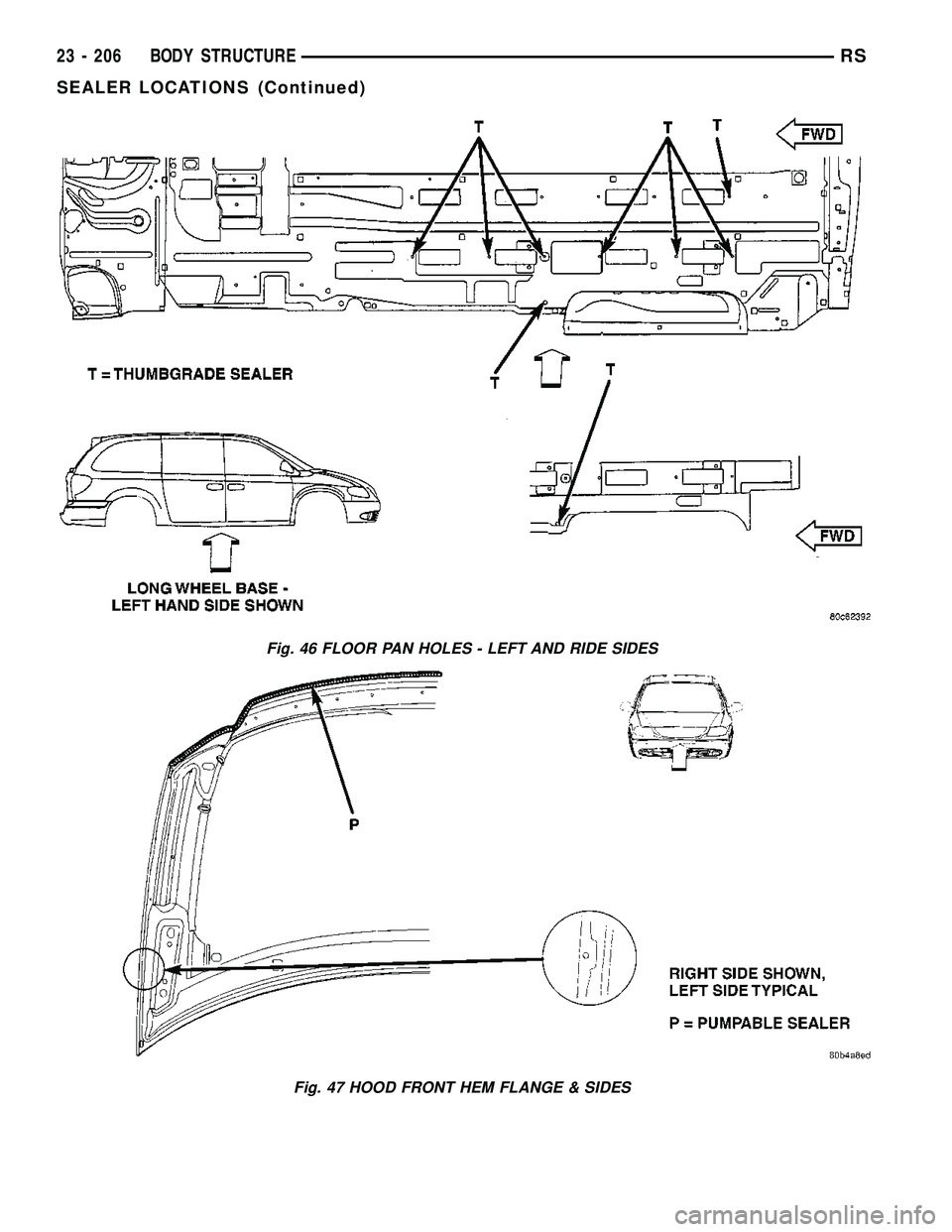

CHRYSLER CARAVAN 2005 Service Manual Fig. 46 FLOOR PAN HOLES - LEFT AND RIDE SIDES Fig. 47 HOOD FRONT HEM FLANGE & SIDES 23 - 206 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1986 of 2339

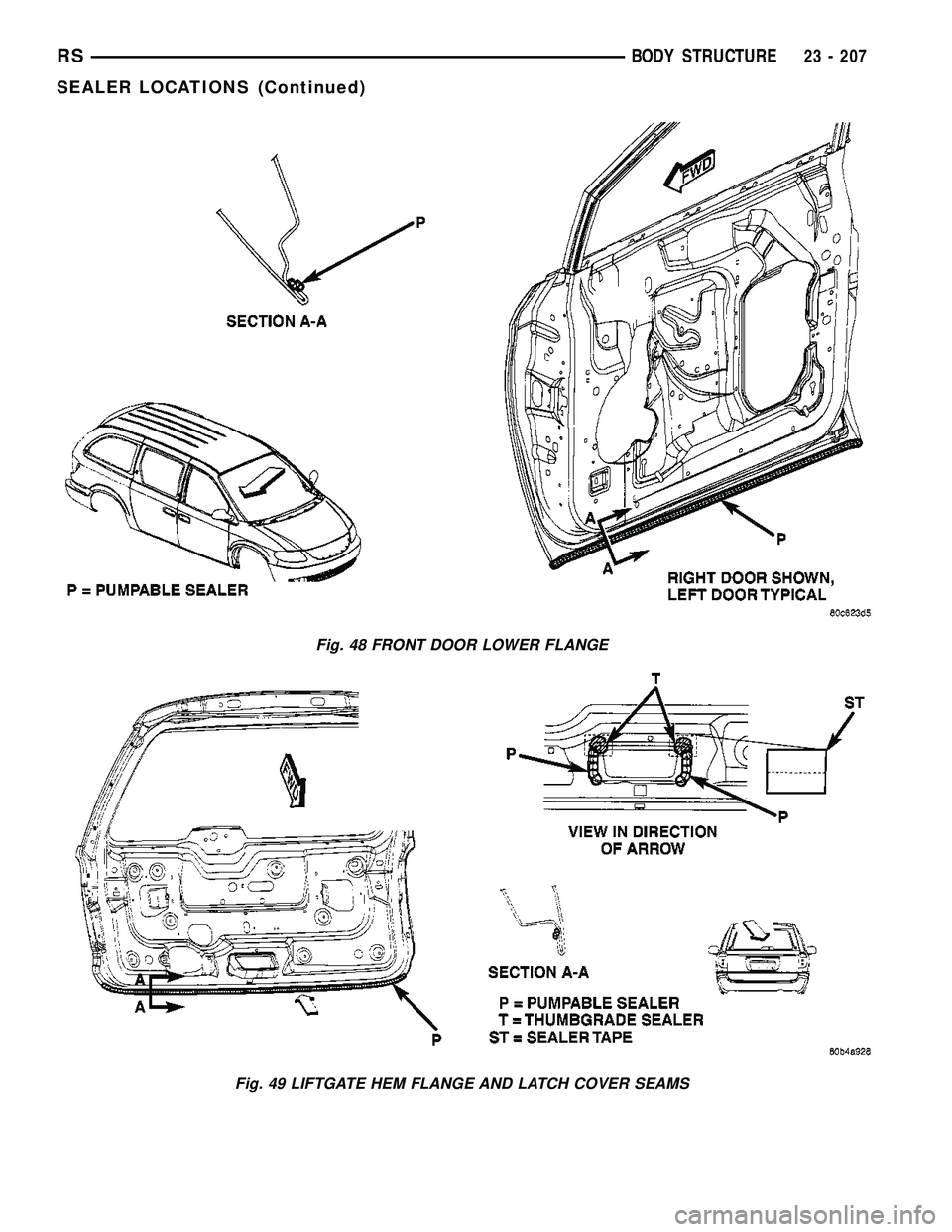

CHRYSLER CARAVAN 2005 Service Manual Fig. 48 FRONT DOOR LOWER FLANGE Fig. 49 LIFTGATE HEM FLANGE AND LATCH COVER SEAMS RSBODY STRUCTURE23 - 207 SEALER LOCATIONS (Continued)

Page 1987 of 2339

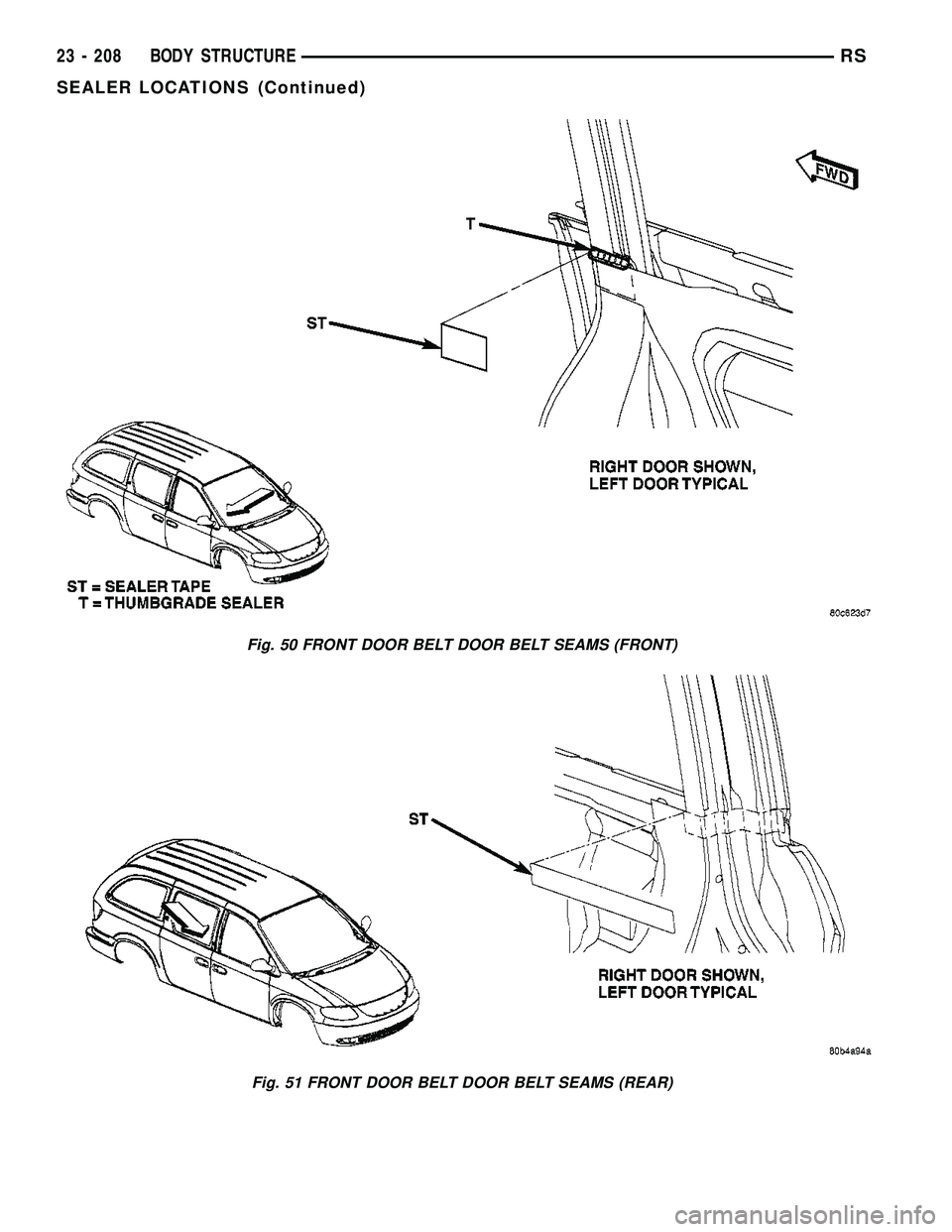

CHRYSLER CARAVAN 2005 Service Manual Fig. 50 FRONT DOOR BELT DOOR BELT SEAMS (FRONT) Fig. 51 FRONT DOOR BELT DOOR BELT SEAMS (REAR) 23 - 208 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1988 of 2339

CHRYSLER CARAVAN 2005 Service Manual SPECIFICATIONS - BODY SEALING LOCATIONS - FOLD-IN-FLOOR ONLY INDEX DESCRIPTION FIGURE FLOOR PAN SEAMS 52 CENTER FLOOR PAN ENDS 53 REAR SEAT FLOOR PAN ENDS 54 REAR TUB FRONT SEAMS 55 LEFT REAR WHEELHOU

Page 1989 of 2339

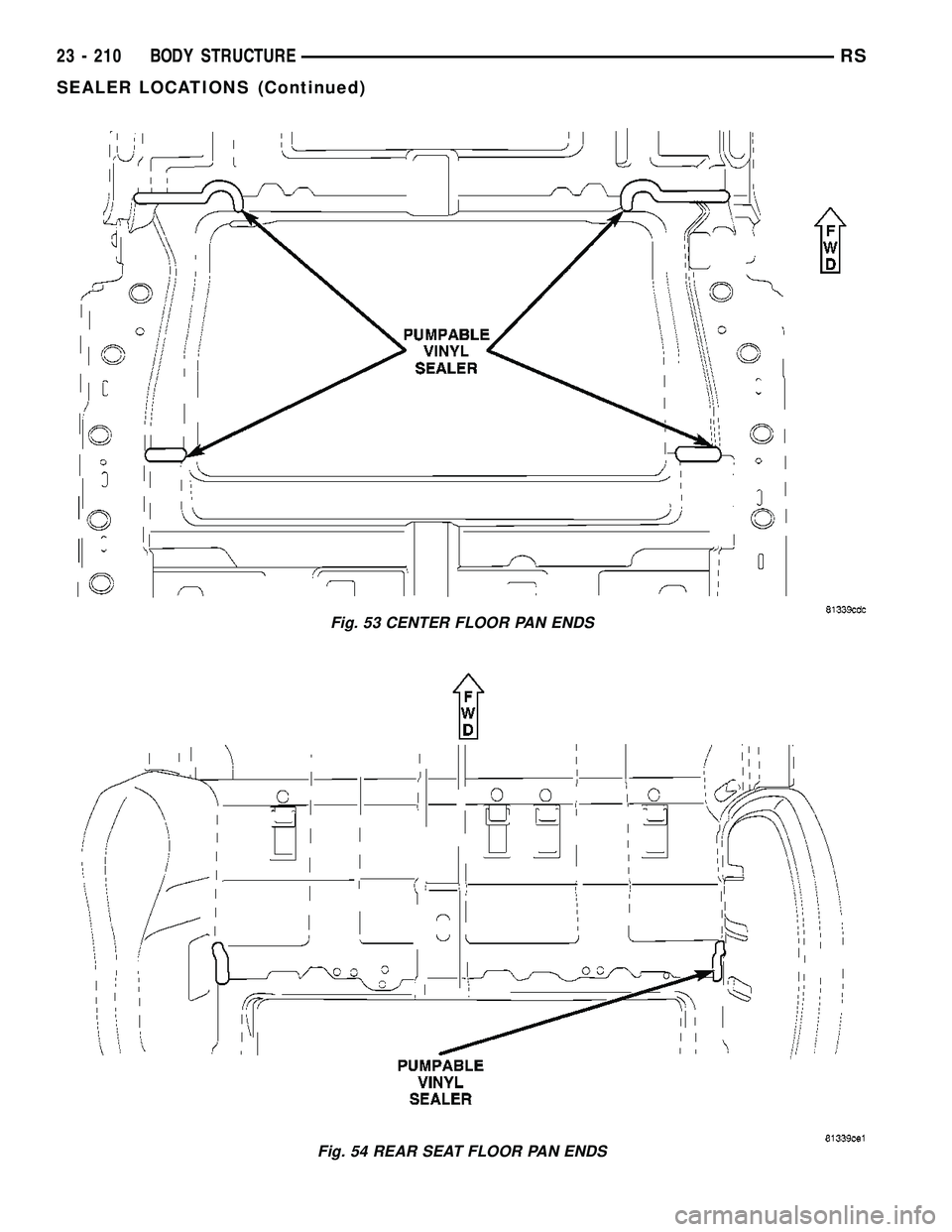

CHRYSLER CARAVAN 2005 Service Manual Fig. 53 CENTER FLOOR PAN ENDS Fig. 54 REAR SEAT FLOOR PAN ENDS 23 - 210 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1990 of 2339

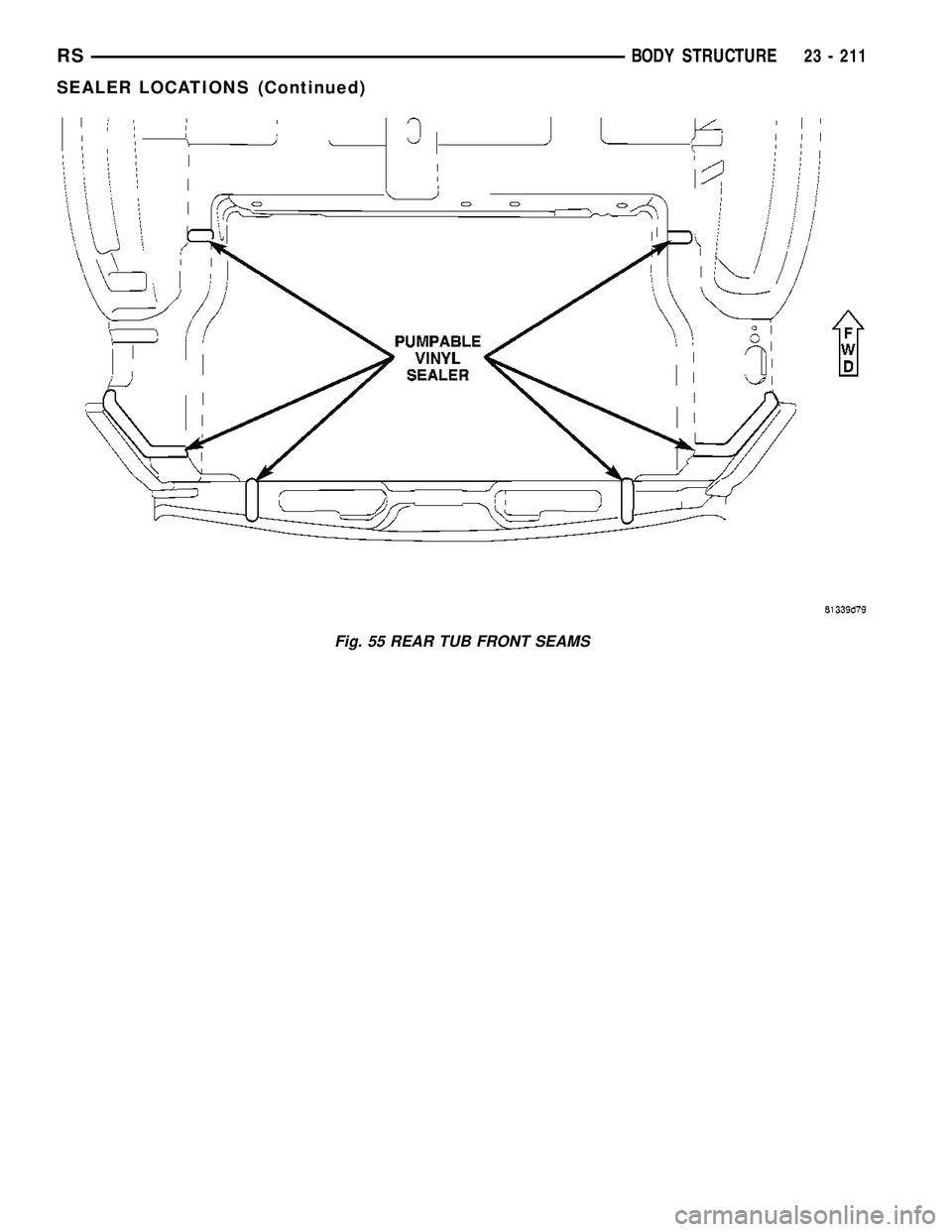

CHRYSLER CARAVAN 2005 Service Manual Fig. 55 REAR TUB FRONT SEAMS RSBODY STRUCTURE23 - 211 SEALER LOCATIONS (Continued)

Page 1991 of 2339

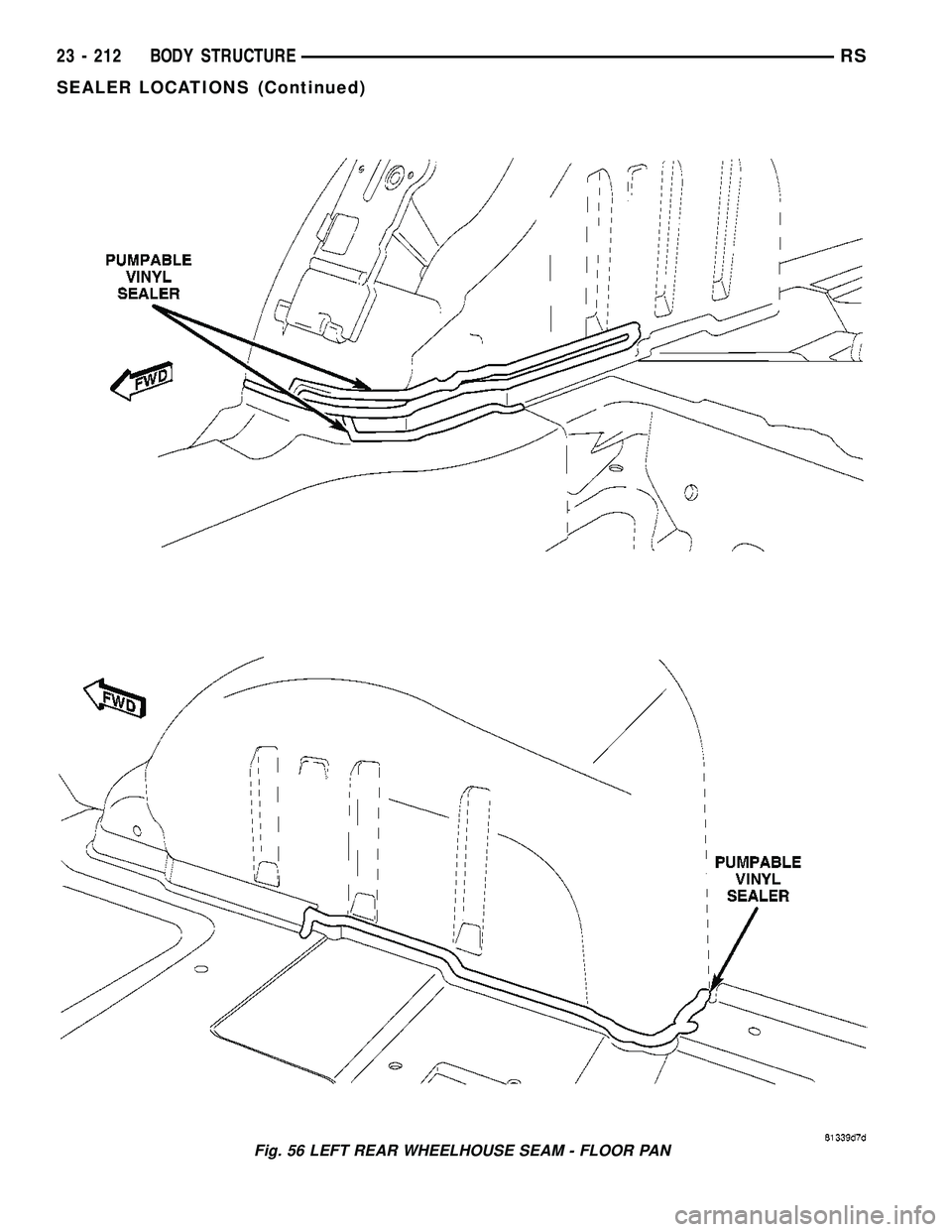

CHRYSLER CARAVAN 2005 Service Manual Fig. 56 LEFT REAR WHEELHOUSE SEAM - FLOOR PAN 23 - 212 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1992 of 2339

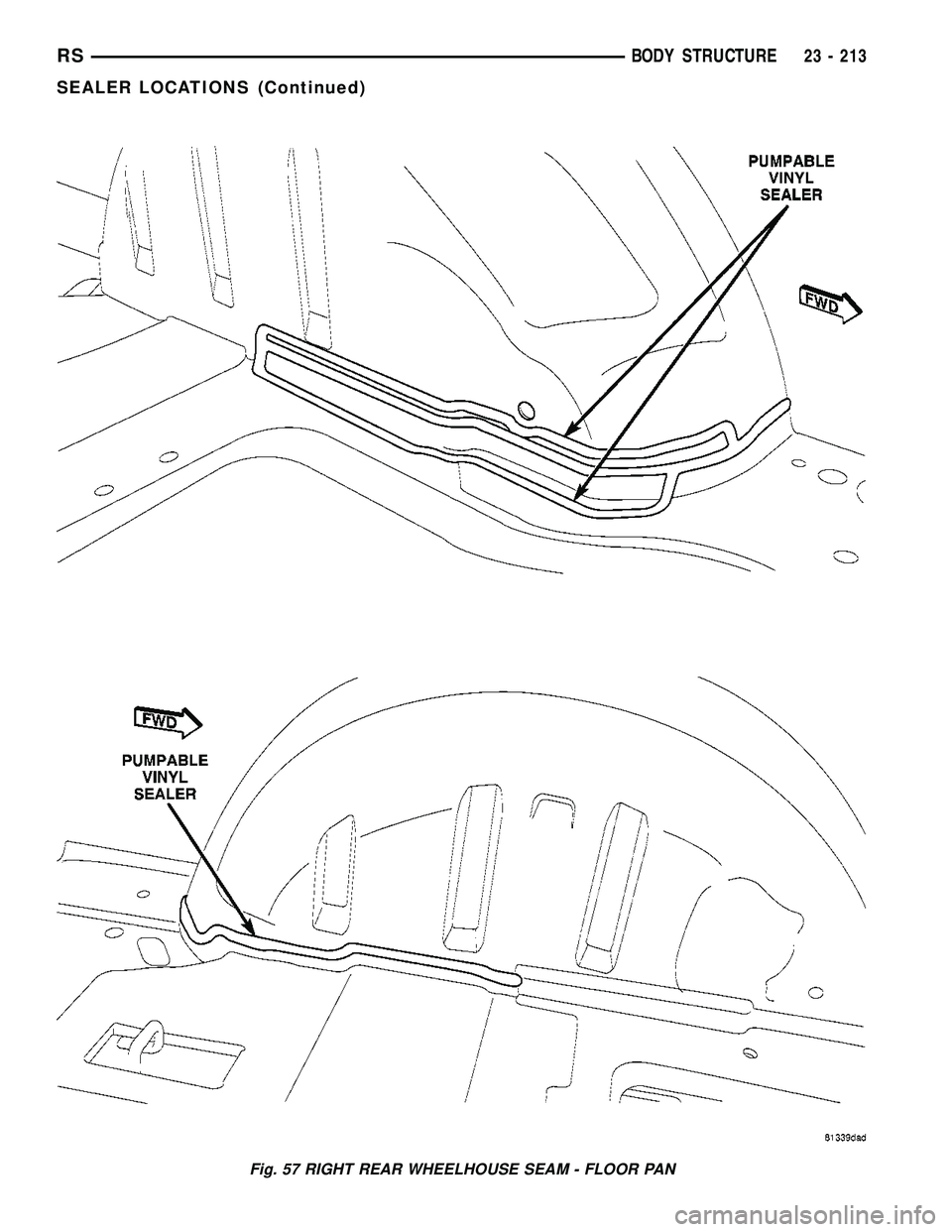

CHRYSLER CARAVAN 2005 Service Manual Fig. 57 RIGHT REAR WHEELHOUSE SEAM - FLOOR PAN RSBODY STRUCTURE23 - 213 SEALER LOCATIONS (Continued)
