Page 1089 of 2339

CHRYSLER CARAVAN 2005 Service Manual RADIATOR FAN NO. 1 (DIESEL) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT 2 N202 12DB/OR RADIATOR FAN NO. 1 CONTROL RADIATOR FAN NO. 1 (GAS) - BLACK 2 WAY CAV CIRCUI

Page 1090 of 2339

CHRYSLER CARAVAN 2005 Service Manual RADIATOR FAN RELAY (GAS)-4WAY CAV CIRCUIT FUNCTION 1 A112 12OR/RD FUSED B(+) 2 N23 12DB/DG RADIATOR FAN RELAY OUTPUT 3 Z723 18BK/DG GROUND 4 N173 18DB/VT RAD FAN RELAY CONTROL RADIATOR FAN RELAY NO. 1

Page 1091 of 2339

CHRYSLER CARAVAN 2005 Service Manual RADIATOR FAN RELAY NO. 3 (DIESEL) - BLUE 9 WAY CAV CIRCUIT FUNCTION 1- - 2 Z823 12BK/DG GROUND 3- - 4 K342 16BR/WT ECM/PCM RELAY OUTPUT 5 N112 12DB/OR RADIATOR FAN RELAY NO. 2 AND NO. 3 COMMON OUTPUT

Page 1092 of 2339

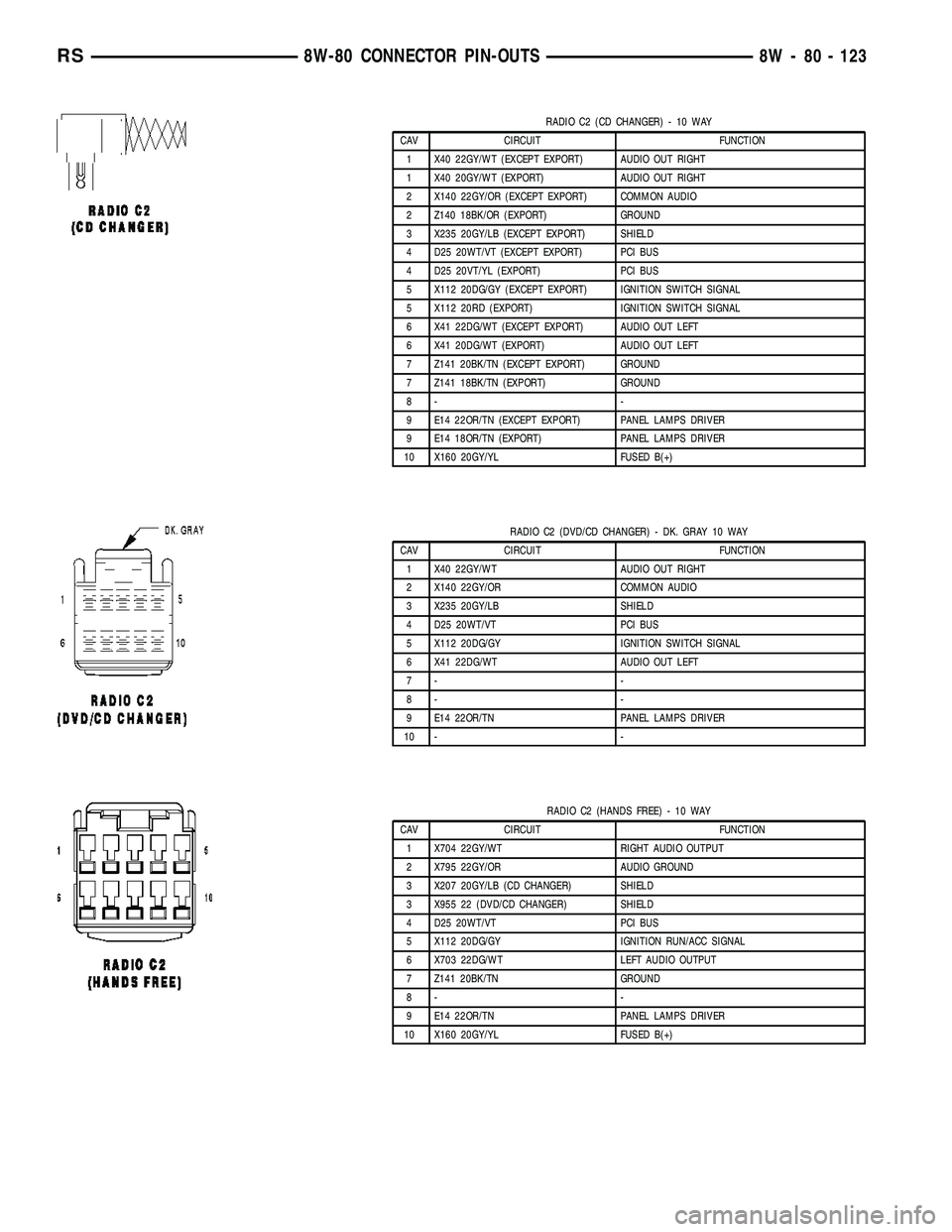

CHRYSLER CARAVAN 2005 Service Manual RADIO C2 (CD CHANGER) - 10 WAY CAV CIRCUIT FUNCTION 1 X40 22GY/WT (EXCEPT EXPORT) AUDIO OUT RIGHT 1 X40 20GY/WT (EXPORT) AUDIO OUT RIGHT 2 X140 22GY/OR (EXCEPT EXPORT) COMMON AUDIO 2 Z140 18BK/OR (EXP

Page 1093 of 2339

CHRYSLER CARAVAN 2005 Service Manual REAR A/C-HEATER UNIT (3 ZONE MTC) - LT. GREEN 10 WAY CAV CIRCUIT FUNCTION 1 C53 20LB REAR MODE DOOR DRIVER 2 C154 20LB/OR REAR COMMON DOOR DRIVER 3 C51 12LB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT 4 C

Page 1094 of 2339

CHRYSLER CARAVAN 2005 Service Manual REAR BLOWER MOTOR POWER MODULE C1 (3 ZONE ATC) - RED/BLACK 4 WAY CAV CIRCUIT FUNCTION 1 C51 12DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT 2 C59 18DB/LB BLOWER MOTOR CONTROL 3 Z135 12BK/LB GROUND 4- - R

Page 1095 of 2339

CHRYSLER CARAVAN 2005 Service Manual REAR DOME LAMP (EXCEPT LUXURY) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 M22 20YL/OR COURTESY LAMPS DRIVER 2 Z327 20BK/OR GROUND 3- - REAR INTRUSION SENSOR (UNITED KINGDOM)-3WAY CAV CIRCUIT FUNCTION 1 A645

Page 1096 of 2339

CHRYSLER CARAVAN 2005 Service Manual REAR TEMPERATURE MOTOR (3 ZONE ATC) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 C54 18LB/YL REAR BLEND DOOR DRIVER (A) 2 C169 18LB/TN REAR BLEND DOOR DRIVER (B) REAR VIEW MIRROR C1 (LUXURY) - BLACK 7 WAY CAV
