Page 2217 of 2399

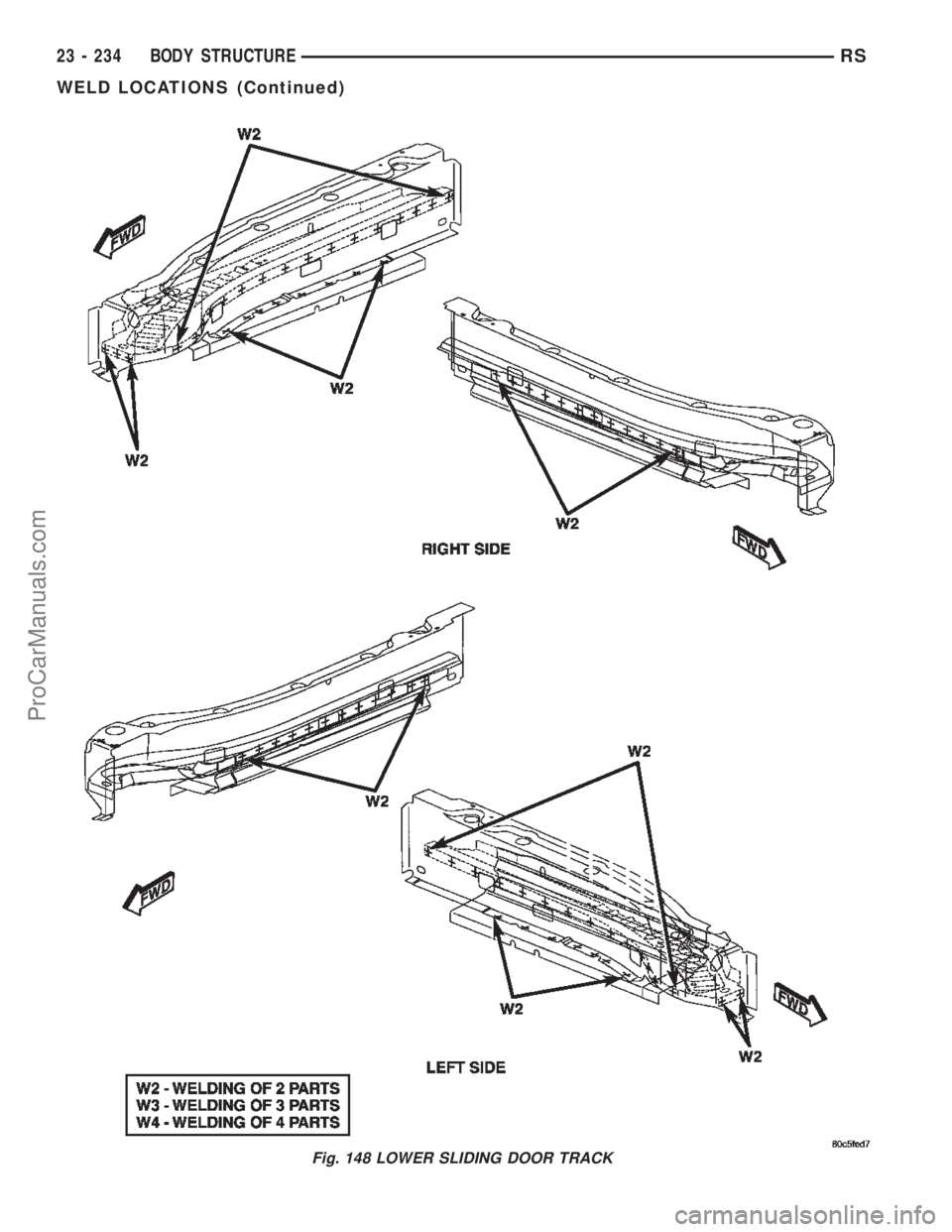

CHRYSLER CARAVAN 2002 Service Manual Fig. 148 LOWER SLIDING DOOR TRACK 23 - 234 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2218 of 2399

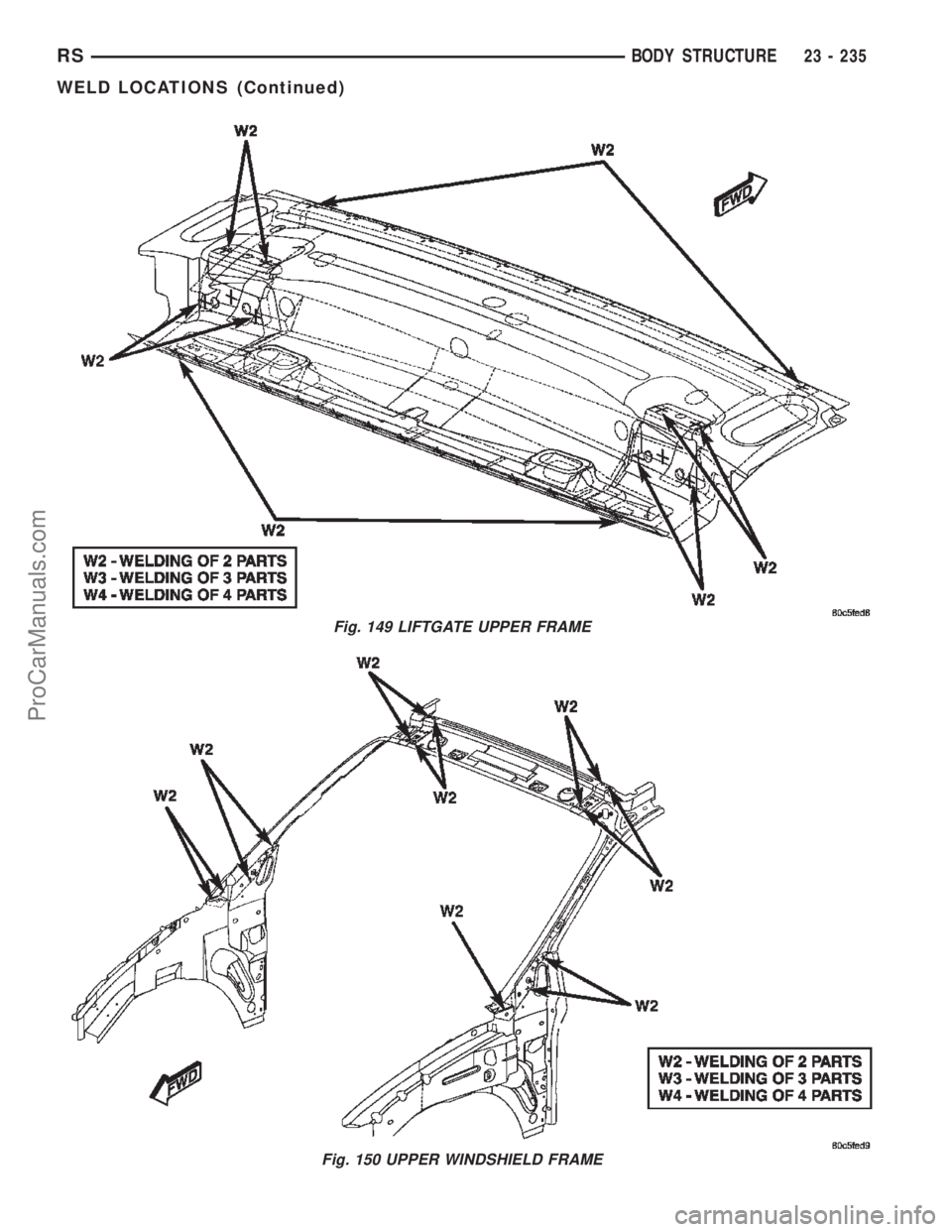

CHRYSLER CARAVAN 2002 Service Manual Fig. 149 LIFTGATE UPPER FRAME Fig. 150 UPPER WINDSHIELD FRAME RSBODY STRUCTURE23 - 235 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2219 of 2399

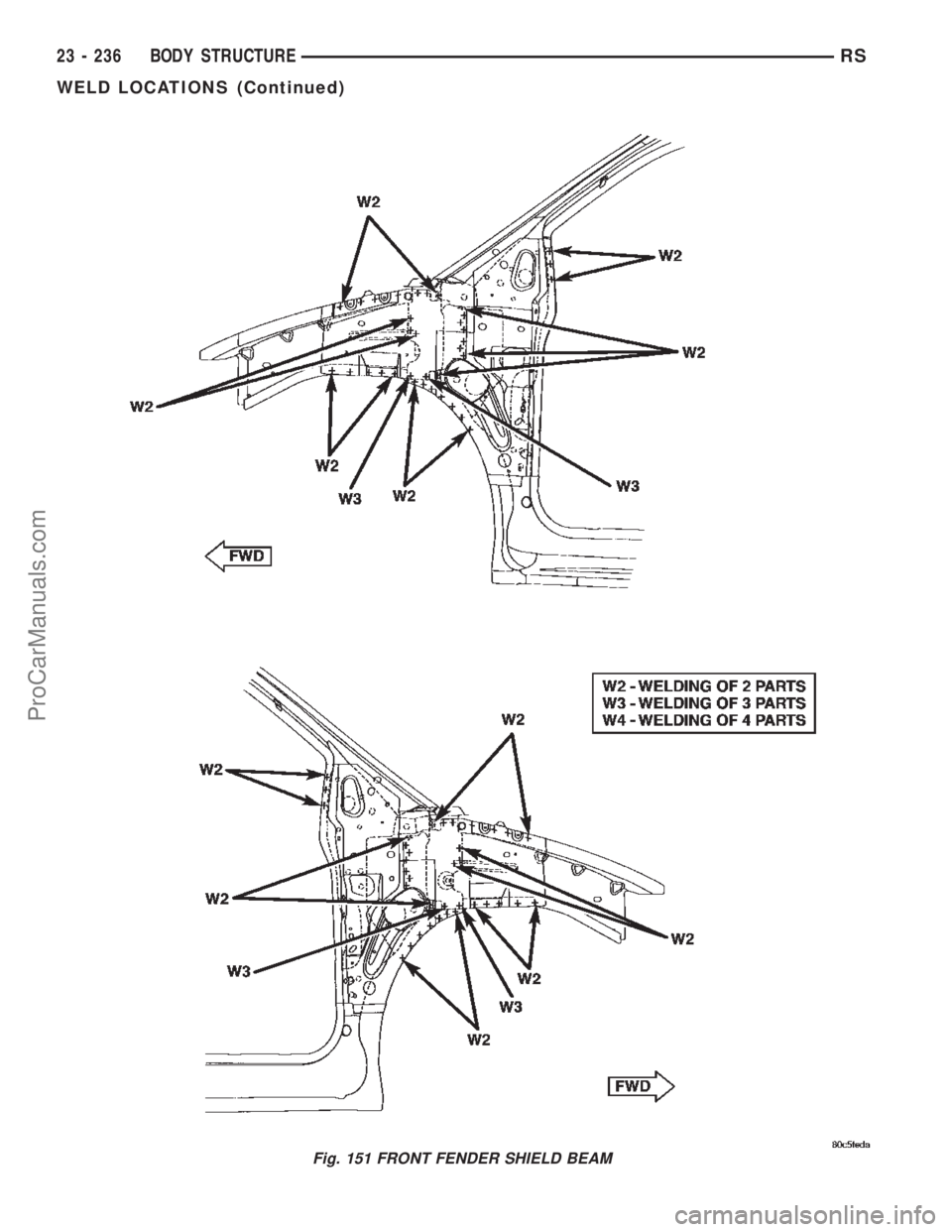

CHRYSLER CARAVAN 2002 Service Manual Fig. 151 FRONT FENDER SHIELD BEAM 23 - 236 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2220 of 2399

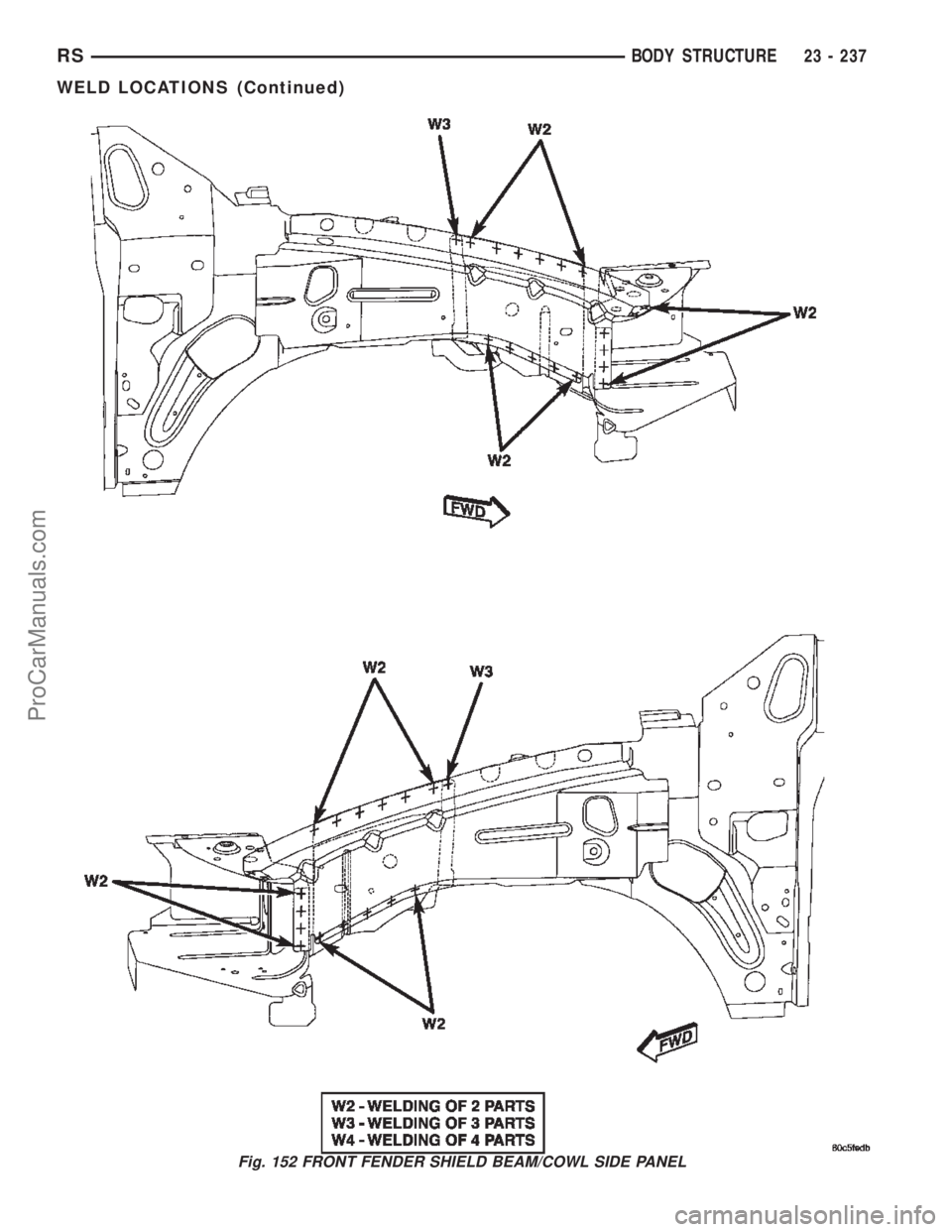

CHRYSLER CARAVAN 2002 Service Manual Fig. 152 FRONT FENDER SHIELD BEAM/COWL SIDE PANEL RSBODY STRUCTURE23 - 237 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2221 of 2399

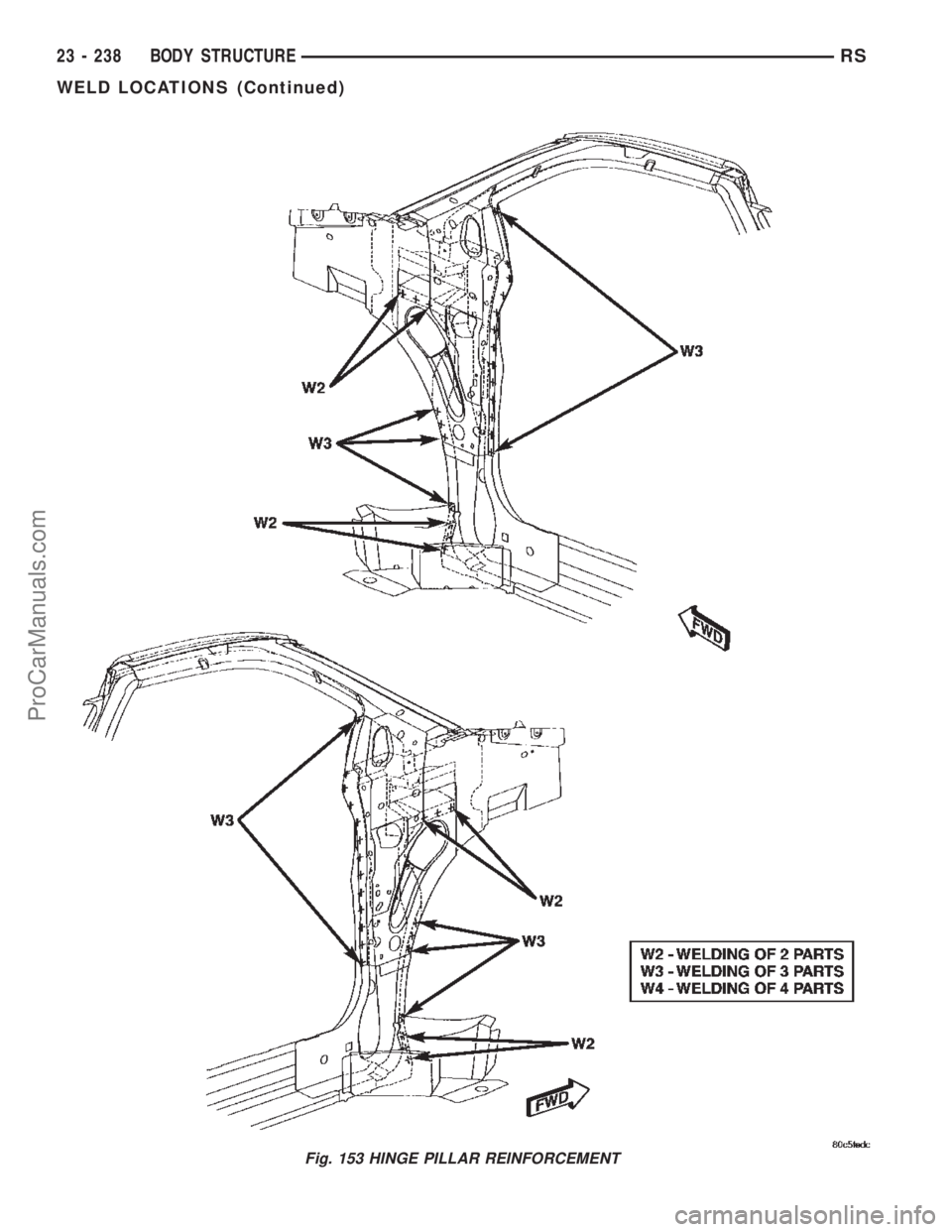

CHRYSLER CARAVAN 2002 Service Manual Fig. 153 HINGE PILLAR REINFORCEMENT 23 - 238 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2222 of 2399

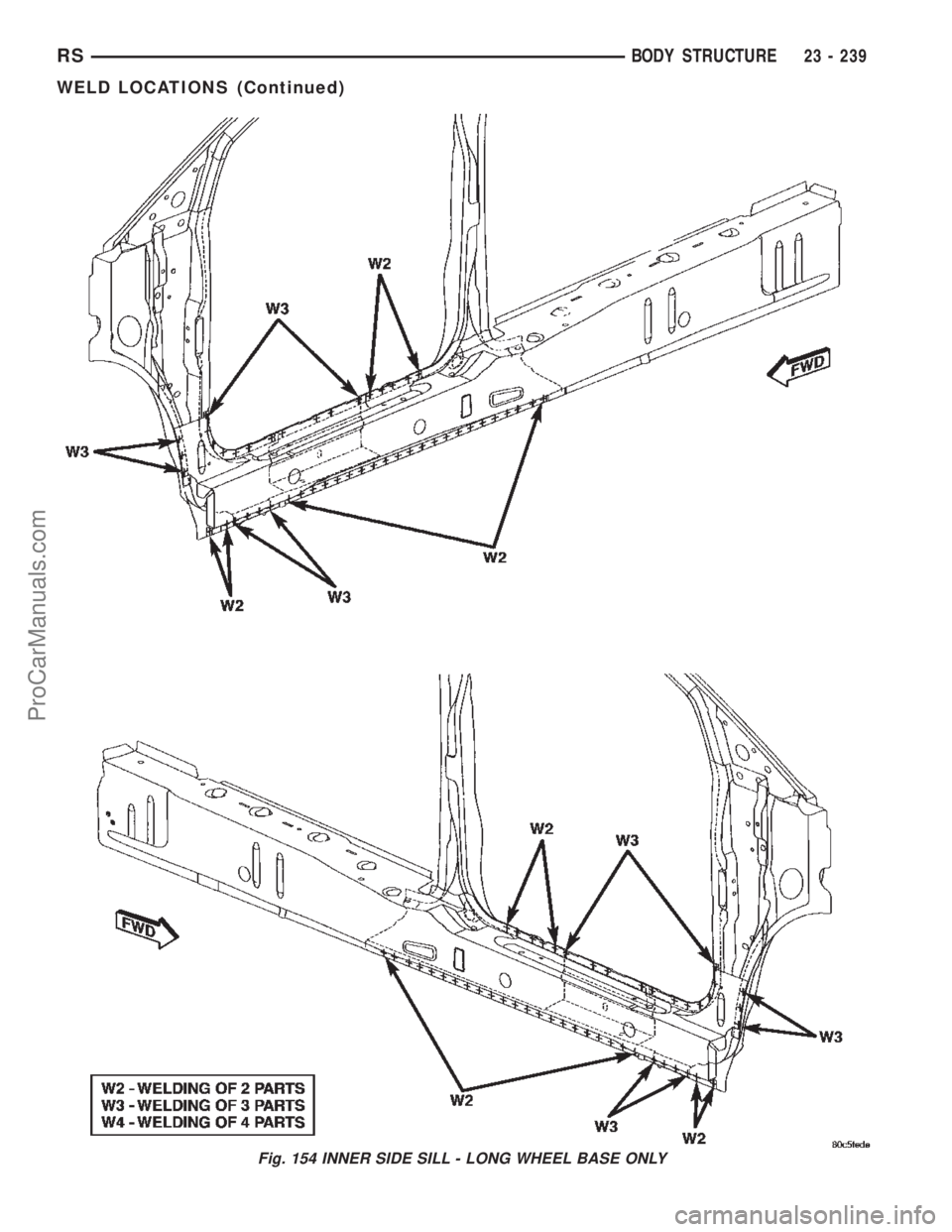

CHRYSLER CARAVAN 2002 Service Manual Fig. 154 INNER SIDE SILL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 239 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2223 of 2399

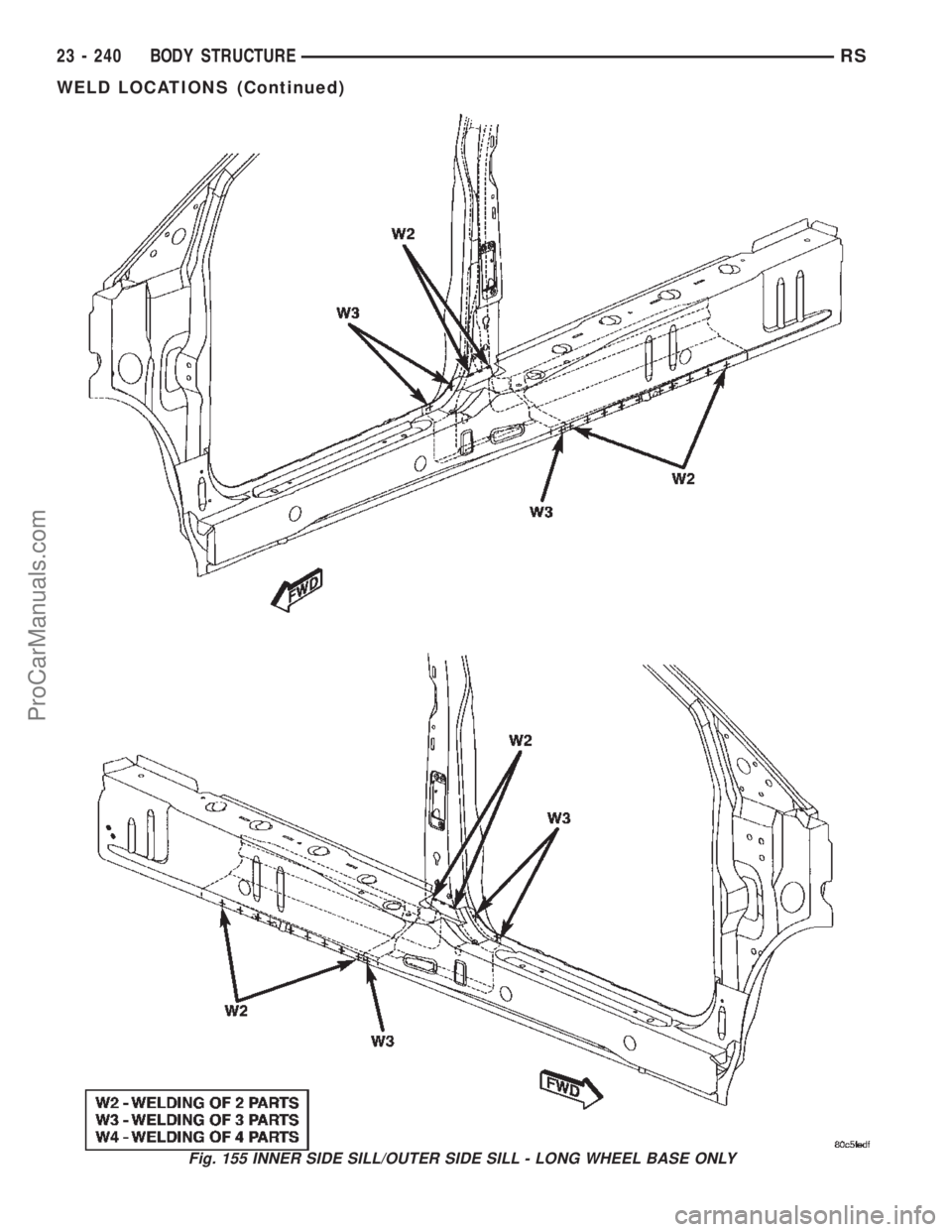

CHRYSLER CARAVAN 2002 Service Manual Fig. 155 INNER SIDE SILL/OUTER SIDE SILL - LONG WHEEL BASE ONLY 23 - 240 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2224 of 2399

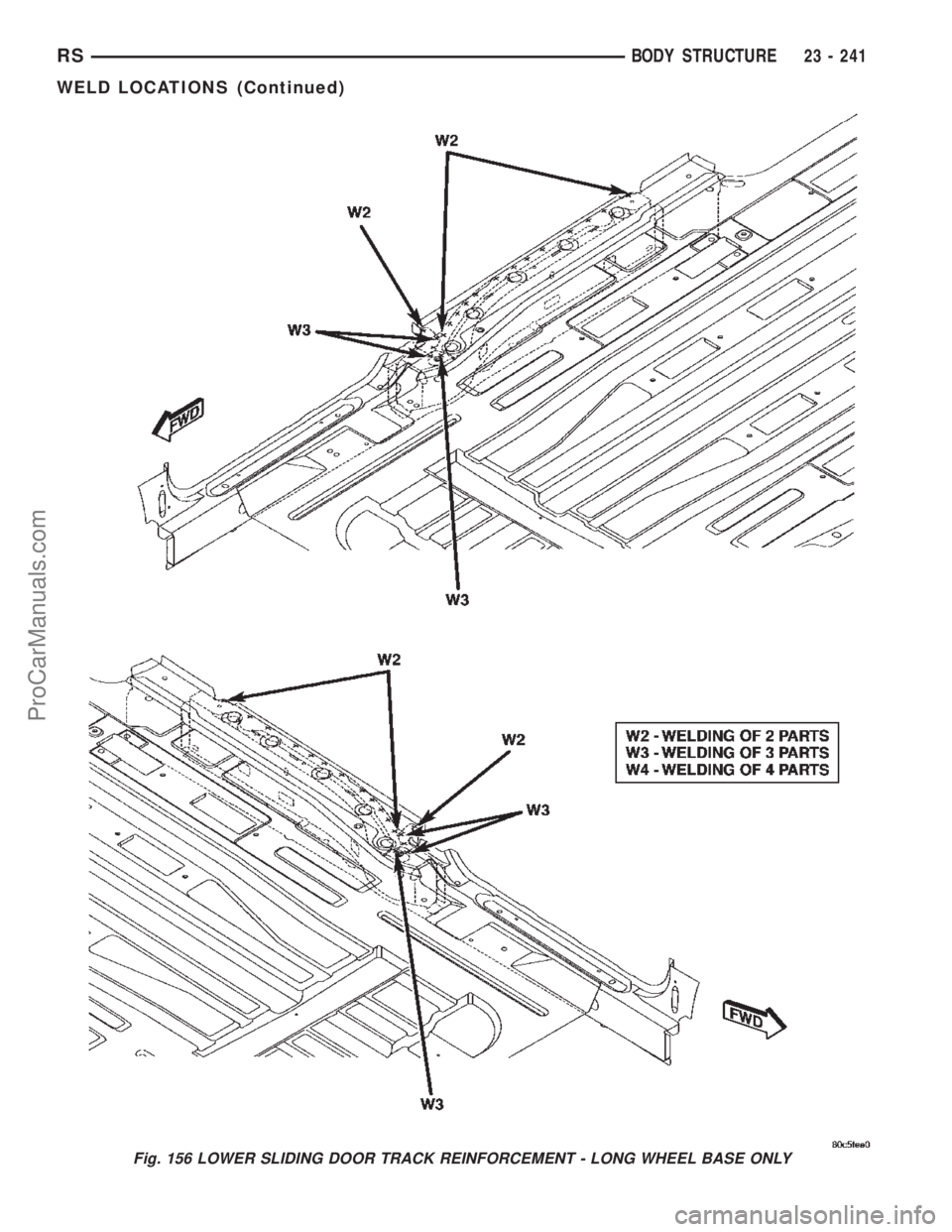

CHRYSLER CARAVAN 2002 Service Manual Fig. 156 LOWER SLIDING DOOR TRACK REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 241 WELD LOCATIONS (Continued) ProCarManuals.com
