Page 2233 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 167 INNER WHEELHOUSE - LONG WHEEL BASE ONLY 23 - 250 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2234 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 168 SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 251 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2235 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 169 LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY 23 - 252 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2236 of 2399

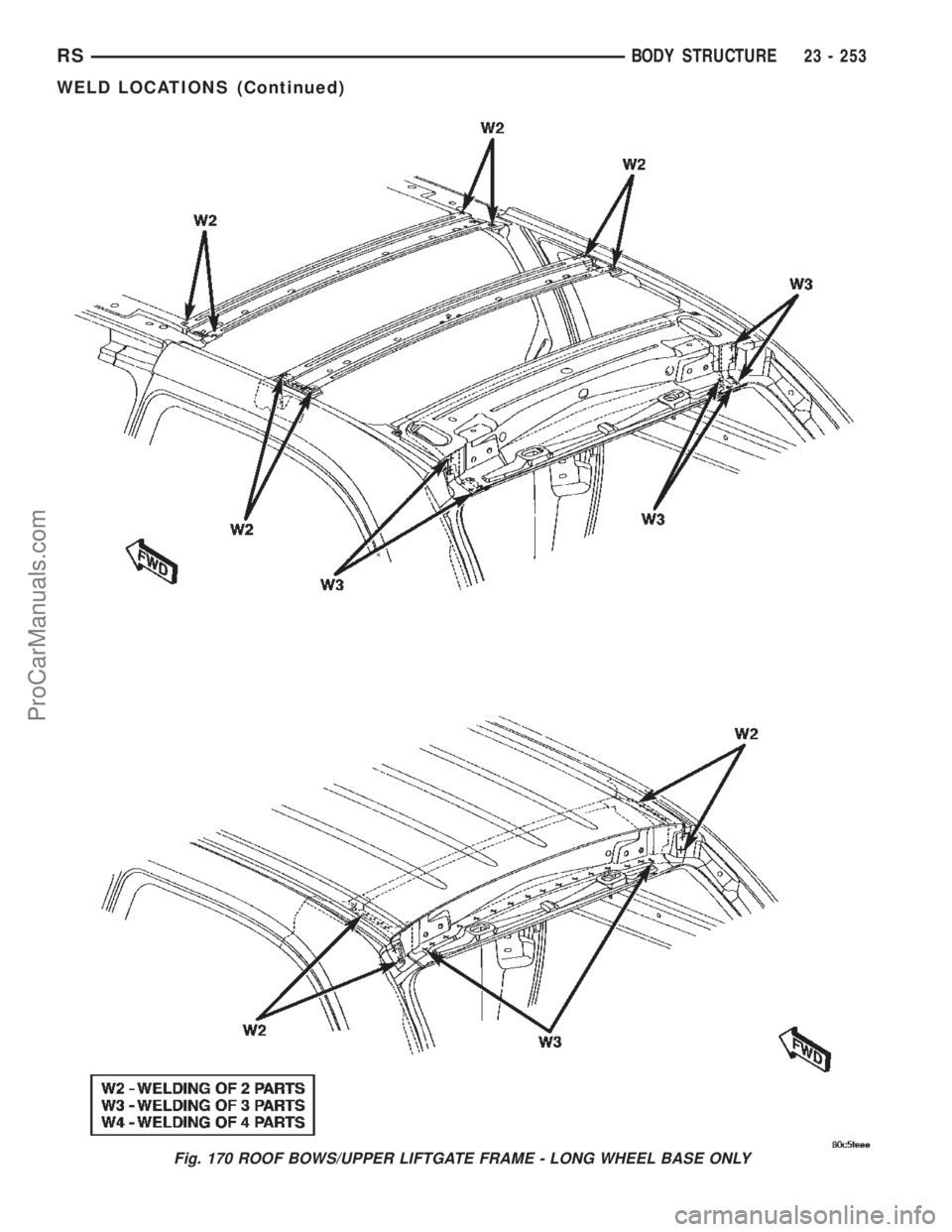

CHRYSLER CARAVAN 2002 Service Manual Fig. 170 ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 253 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2237 of 2399

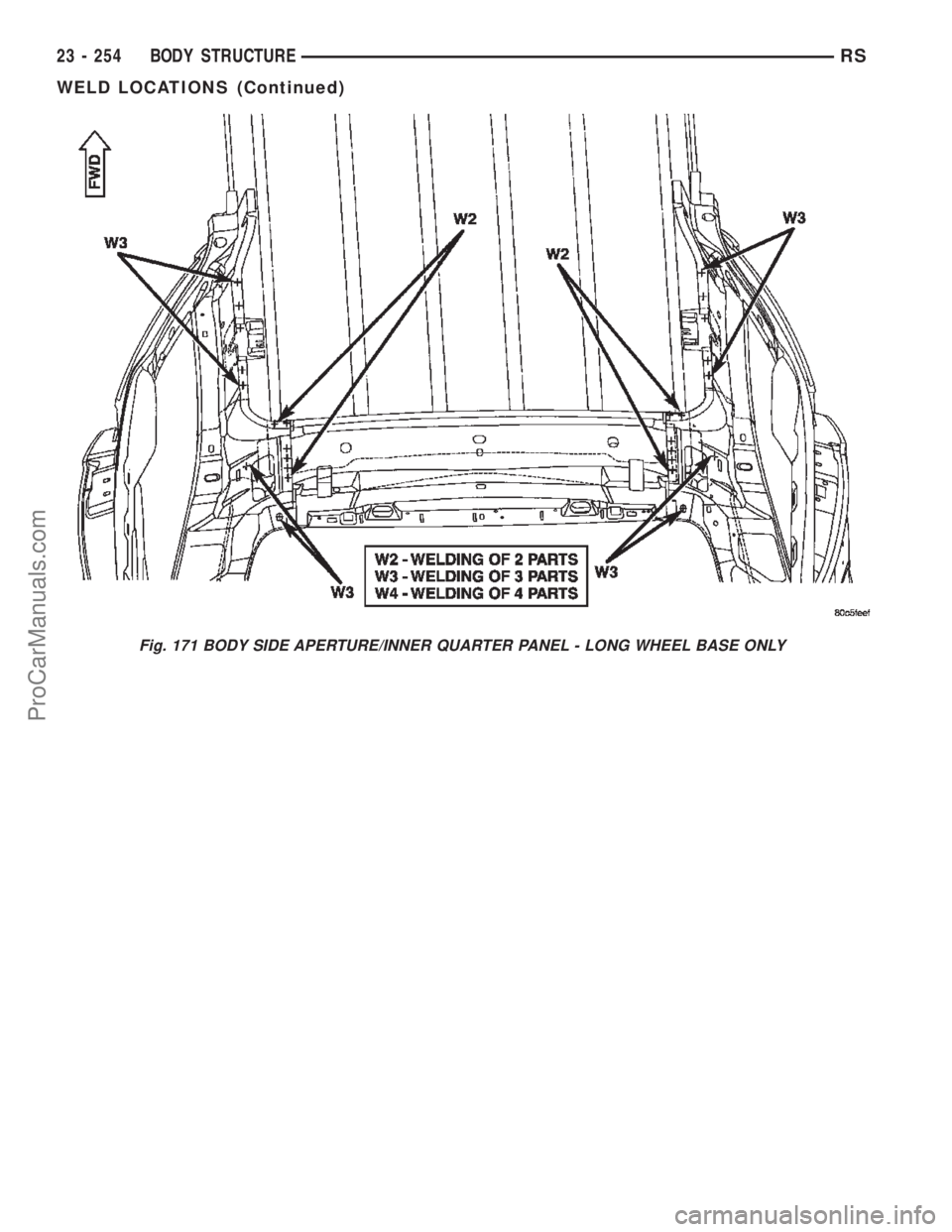

CHRYSLER CARAVAN 2002 Service Manual Fig. 171 BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY 23 - 254 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2238 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 172 REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 255 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2239 of 2399

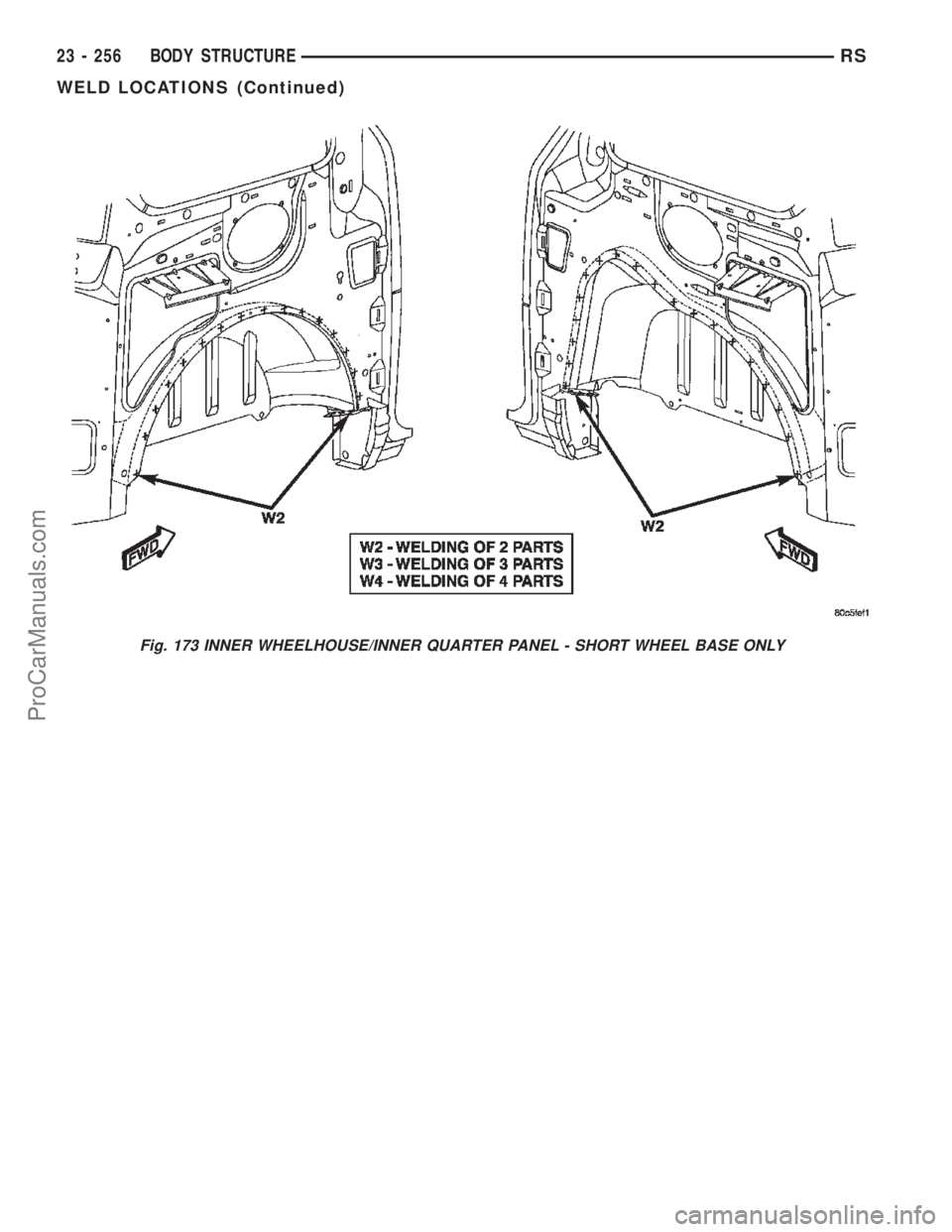

CHRYSLER CARAVAN 2002 Service Manual Fig. 173 INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 23 - 256 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2240 of 2399

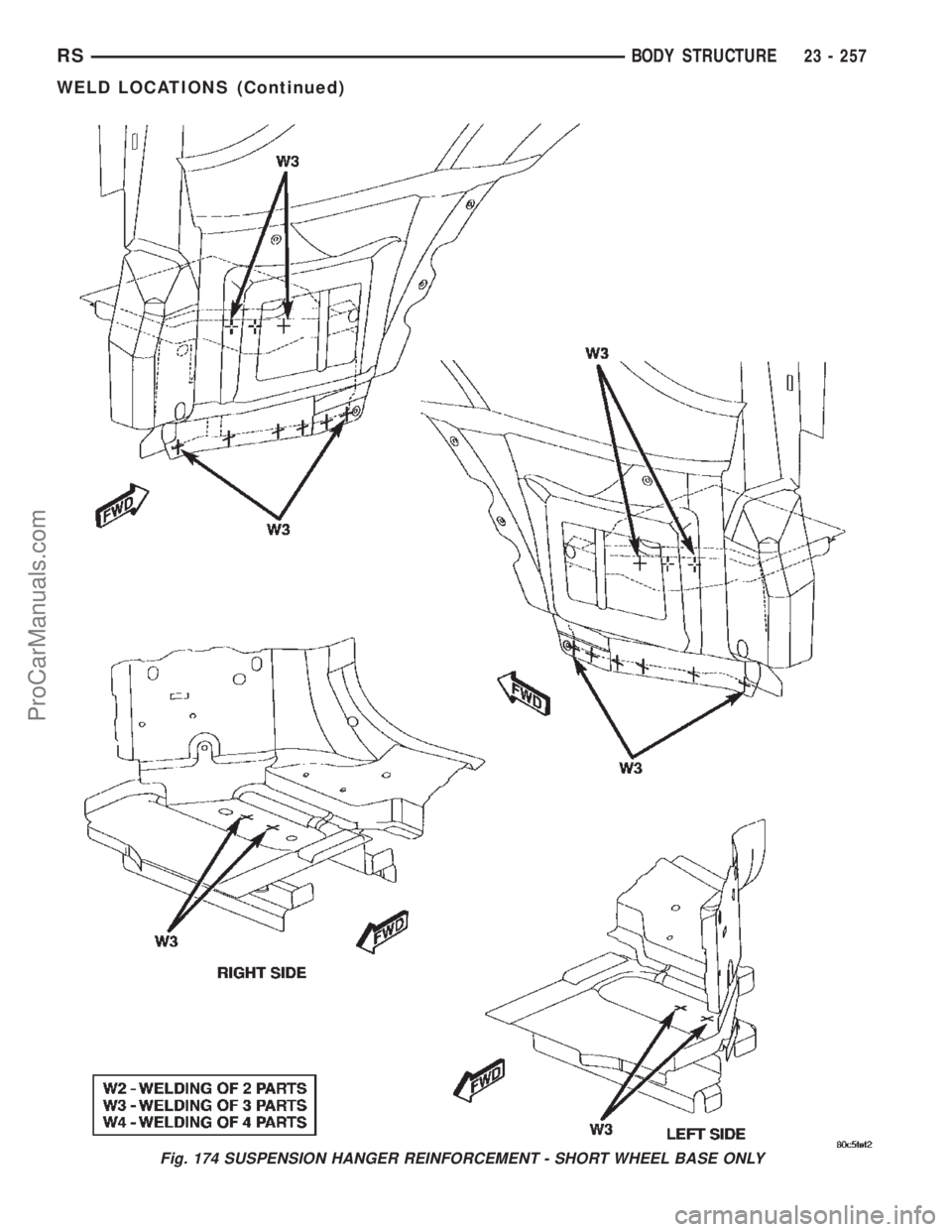

CHRYSLER CARAVAN 2002 Service Manual Fig. 174 SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 257 WELD LOCATIONS (Continued) ProCarManuals.com
