Page 1105 of 2399

CHRYSLER CARAVAN 2002 Service Manual LEFT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY 1 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 V

Page 1106 of 2399

CHRYSLER CARAVAN 2002 Service Manual LEFT INSTRUMENT PANEL SPEAKER - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X153 20DG/YL LEFT FRONT I/P SPEAKER (+) 2 X155 20DG/LB LEFT FRONT I/P SPEAKER (-) LEFT LIFTGATE FLOOD LAMP - GRAY 3 WAY CAV CIRCUIT F

Page 1107 of 2399

CHRYSLER CARAVAN 2002 Service Manual LEFT POWER MIRROR - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 P171 20TN/YL (BUILT-UP-EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER 2 P112 20TN/OR (EXCEPT BUILT-UP-EXPORT/MEMORY)MIRROR B(+) 3 P114 20TN/WT (EXCEP

Page 1108 of 2399

CHRYSLER CARAVAN 2002 Service Manual LEFT REAR SPEAKER - BLACK/RED 6 WAY CAV CIRCUIT FUNCTION 1 X151 20DG/WT (HIGH LINE) LEFT REAR PILLAR SPEAKER (-) 2 X15 16GY/DG (HIGH LINE) AMPLIFIED SPEAKER GROUND 3 X157 20DG (HIGH LINE) LEFT REAR PI

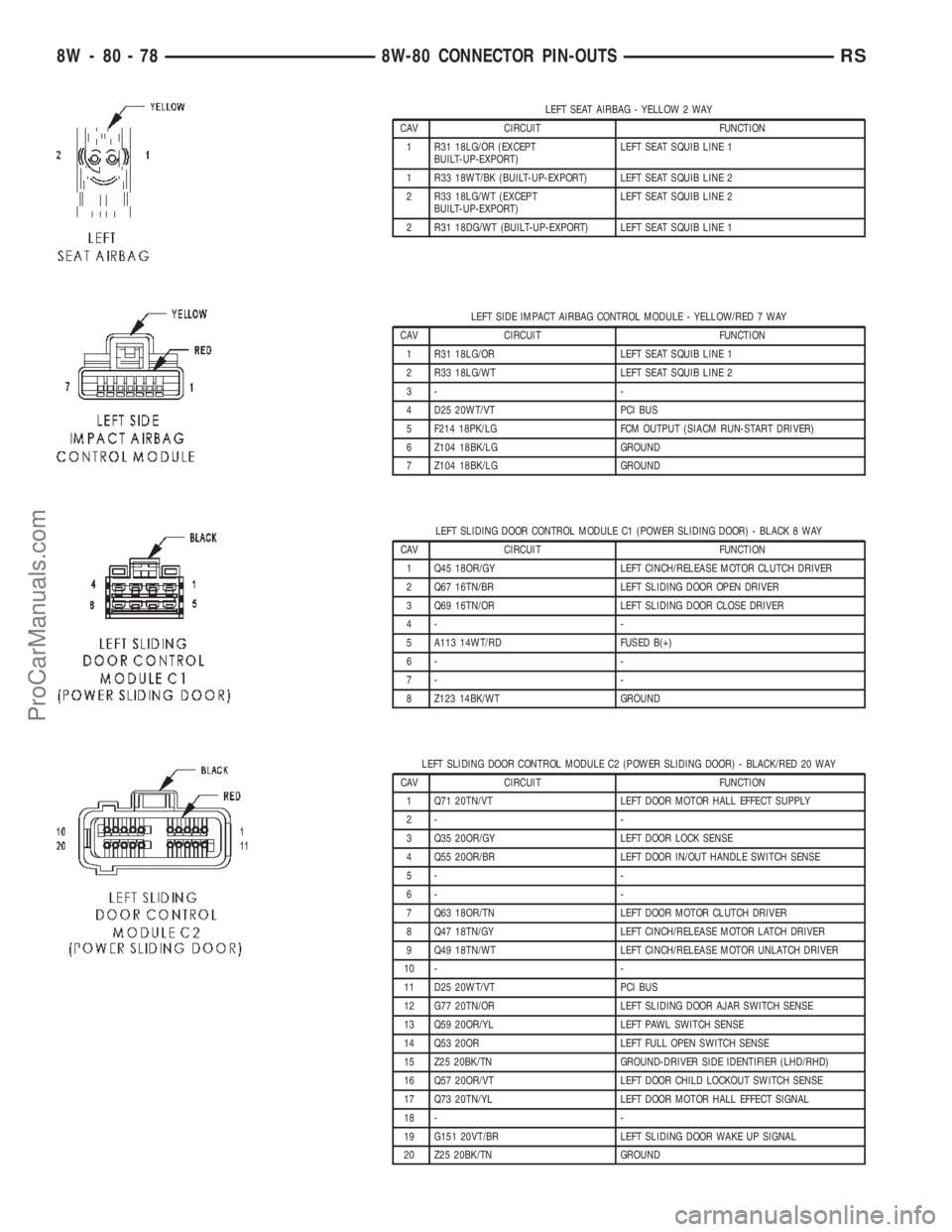

Page 1109 of 2399

CHRYSLER CARAVAN 2002 Service Manual LEFT SEAT AIRBAG - YELLOW 2 WAY CAV CIRCUIT FUNCTION 1 R31 18LG/OR (EXCEPT BUILT-UP-EXPORT)LEFT SEAT SQUIB LINE 1 1 R33 18WT/BK (BUILT-UP-EXPORT) LEFT SEAT SQUIB LINE 2 2 R33 18LG/WT (EXCEPT BUILT-UP-

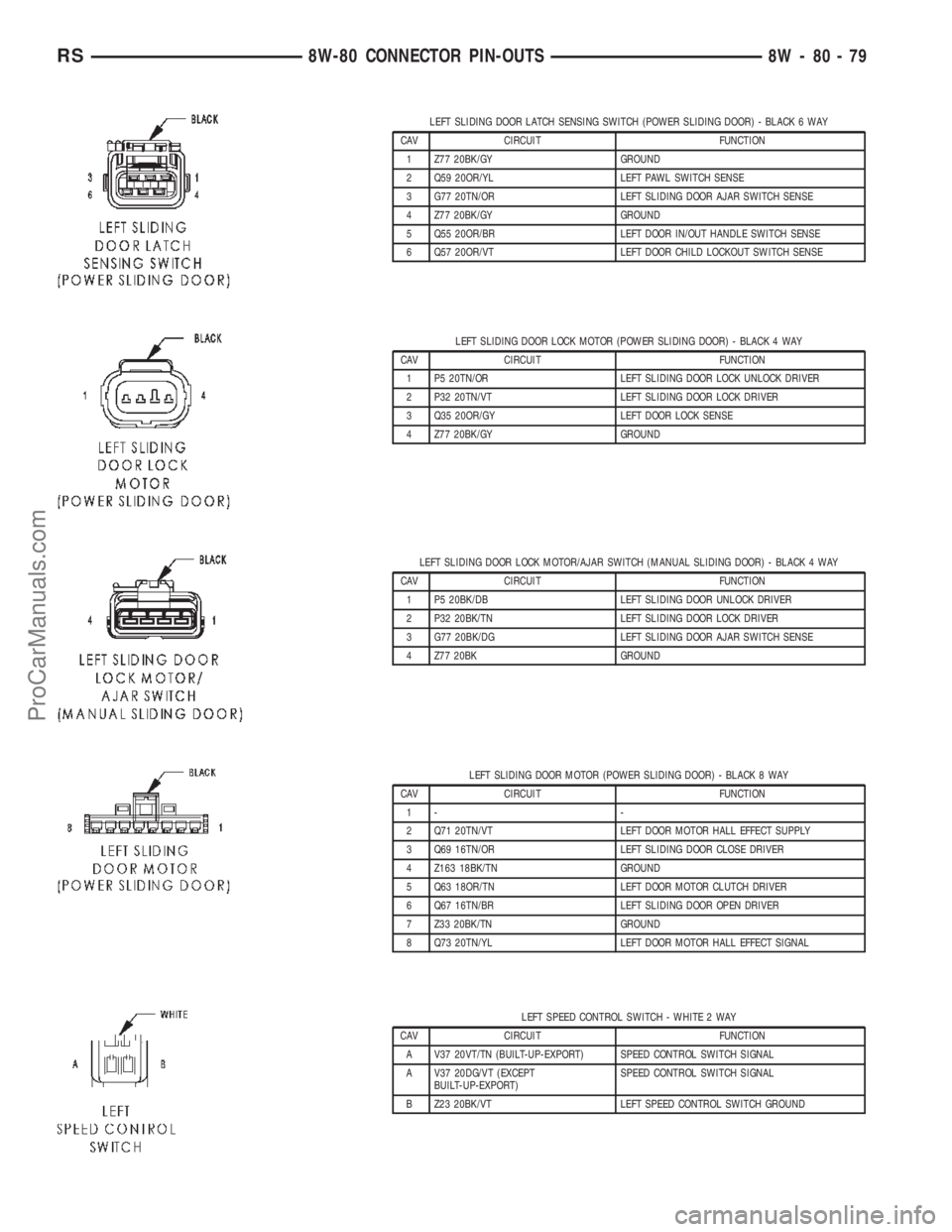

Page 1110 of 2399

CHRYSLER CARAVAN 2002 Service Manual LEFT SLIDING DOOR LATCH SENSING SWITCH (POWER SLIDING DOOR) - BLACK 6 WAY CAV CIRCUIT FUNCTION 1 Z77 20BK/GY GROUND 2 Q59 20OR/YL LEFT PAWL SWITCH SENSE 3 G77 20TN/OR LEFT SLIDING DOOR AJAR SWITCH SEN

Page 1111 of 2399

CHRYSLER CARAVAN 2002 Service Manual LEFT STOP/TURN SIGNAL RELAY (TRAILER TOW) - BLACK 5 WAY CAV CIRCUIT FUNCTION 1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT 1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT 2 Z1 18BK/DG GROUND 2 Z1 18BK/DG GROUND 3 L73

Page 1112 of 2399

CHRYSLER CARAVAN 2002 Service Manual LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY CAV CIRCUIT FUNCTION 1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT) 2 Z367 20BK/BR GROUND 3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE 4 Z430 20BK/LG GRO
