Page 2177 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 100 WHEELHOUSES - SHORT WHEEL BASE ONLY Fig. 101 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY 23 - 194 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2178 of 2399

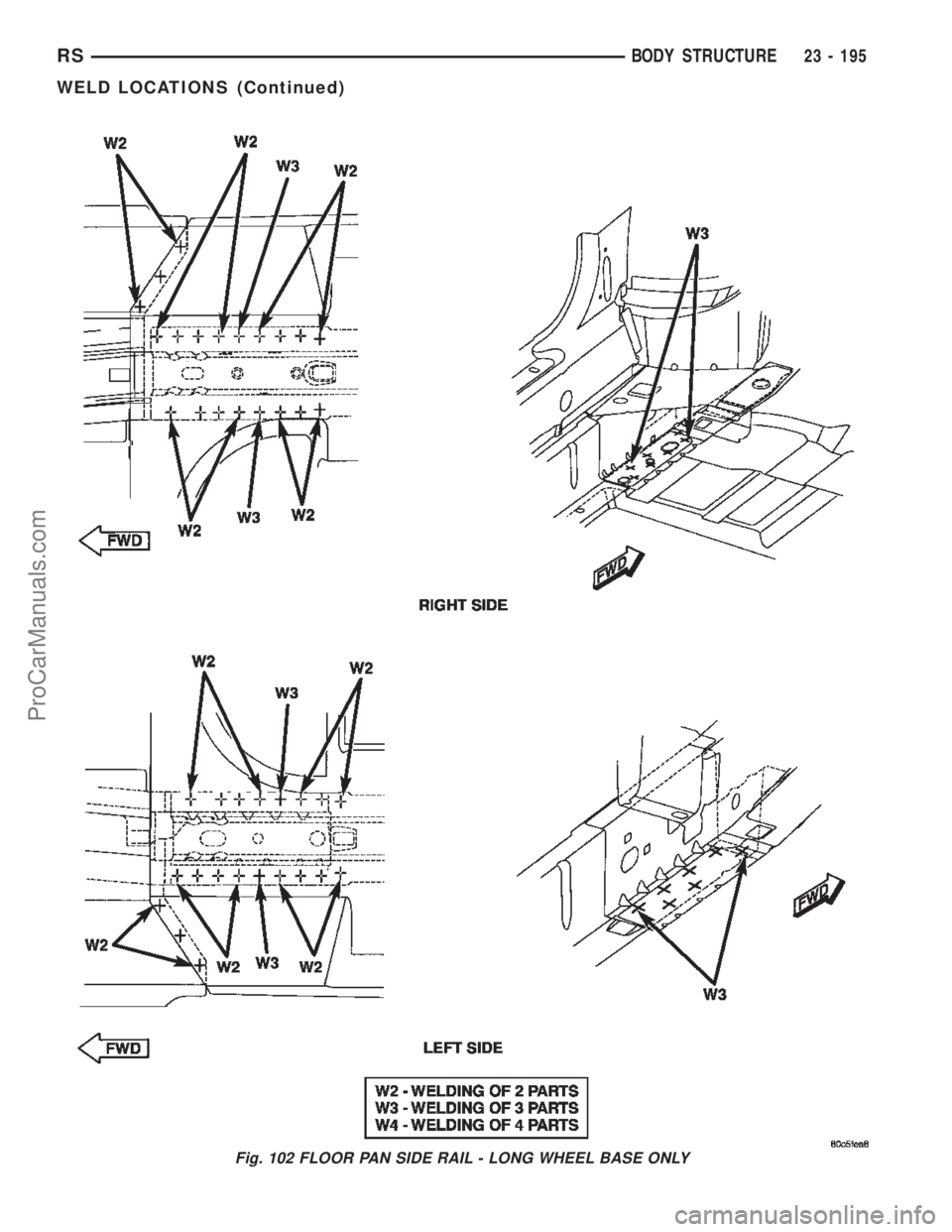

CHRYSLER CARAVAN 2002 Service Manual Fig. 102 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 195 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2179 of 2399

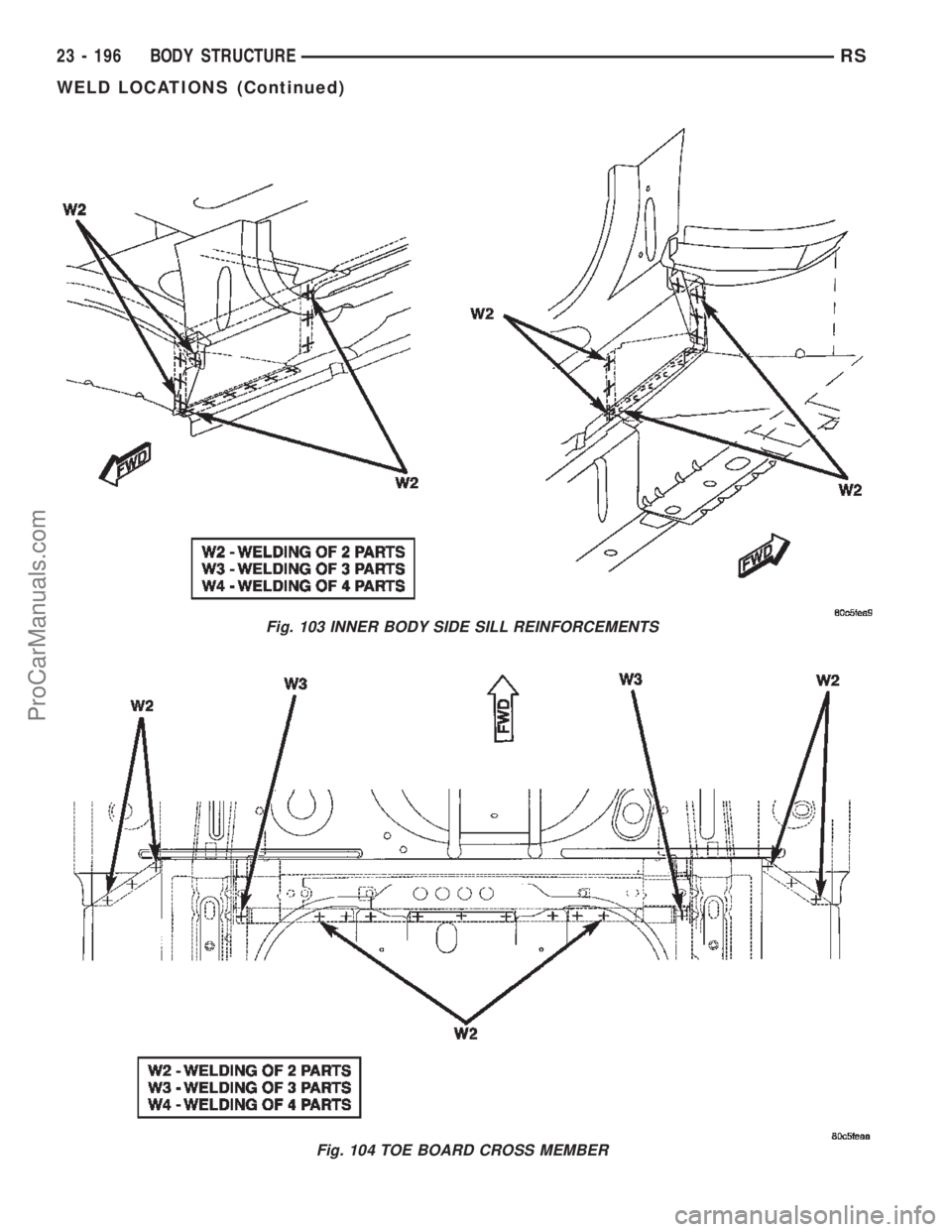

CHRYSLER CARAVAN 2002 Service Manual Fig. 103 INNER BODY SIDE SILL REINFORCEMENTS Fig. 104 TOE BOARD CROSS MEMBER 23 - 196 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2180 of 2399

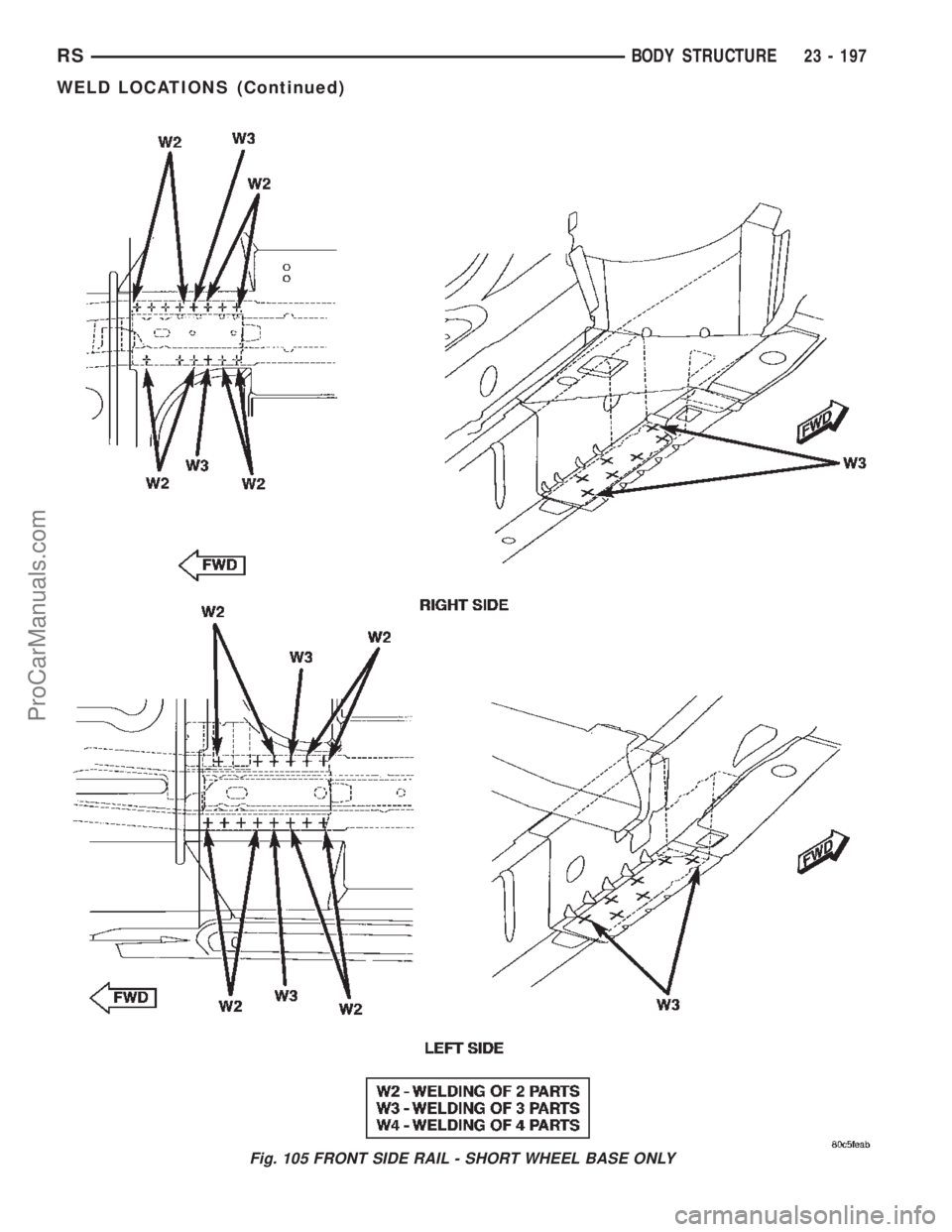

CHRYSLER CARAVAN 2002 Service Manual Fig. 105 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 197 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2181 of 2399

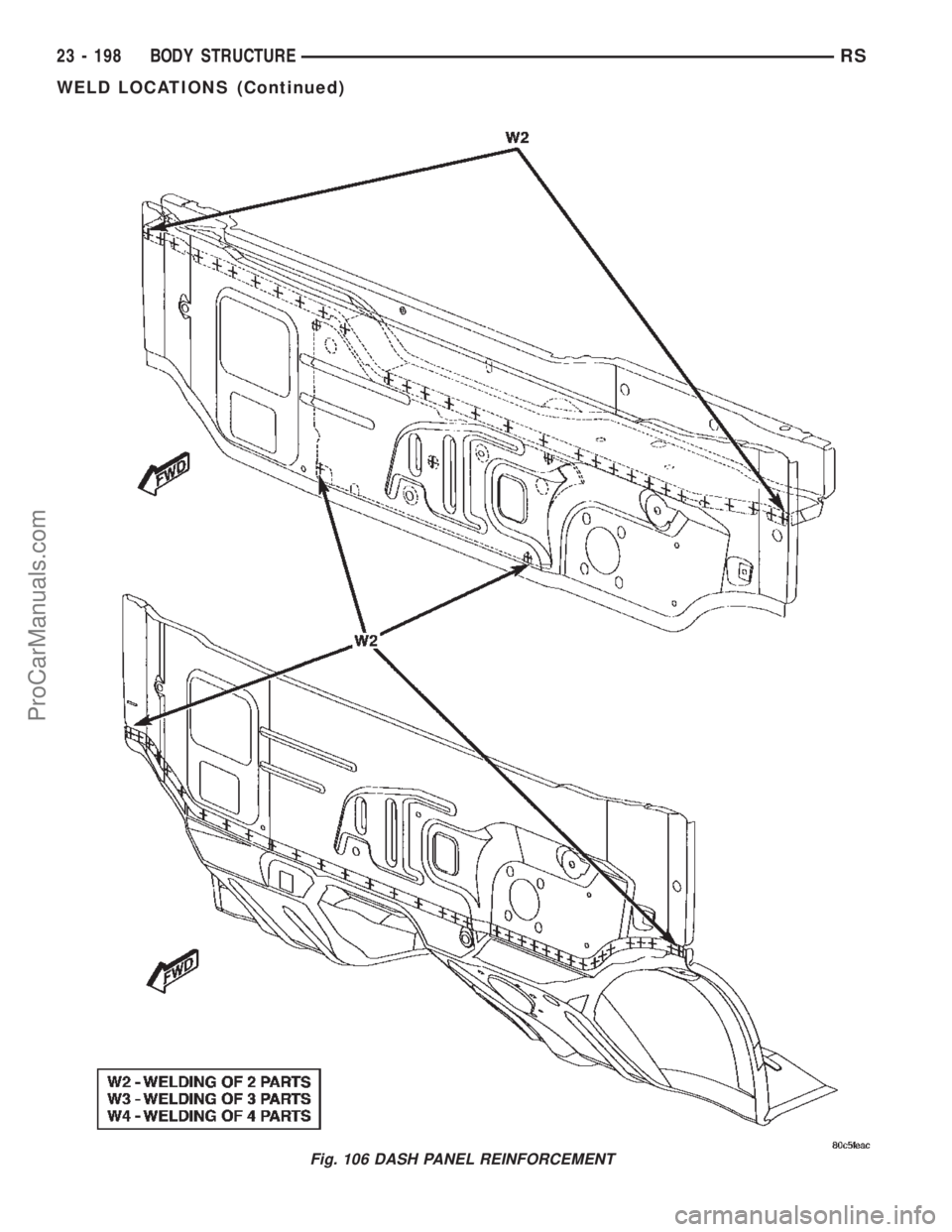

CHRYSLER CARAVAN 2002 Service Manual Fig. 106 DASH PANEL REINFORCEMENT 23 - 198 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2182 of 2399

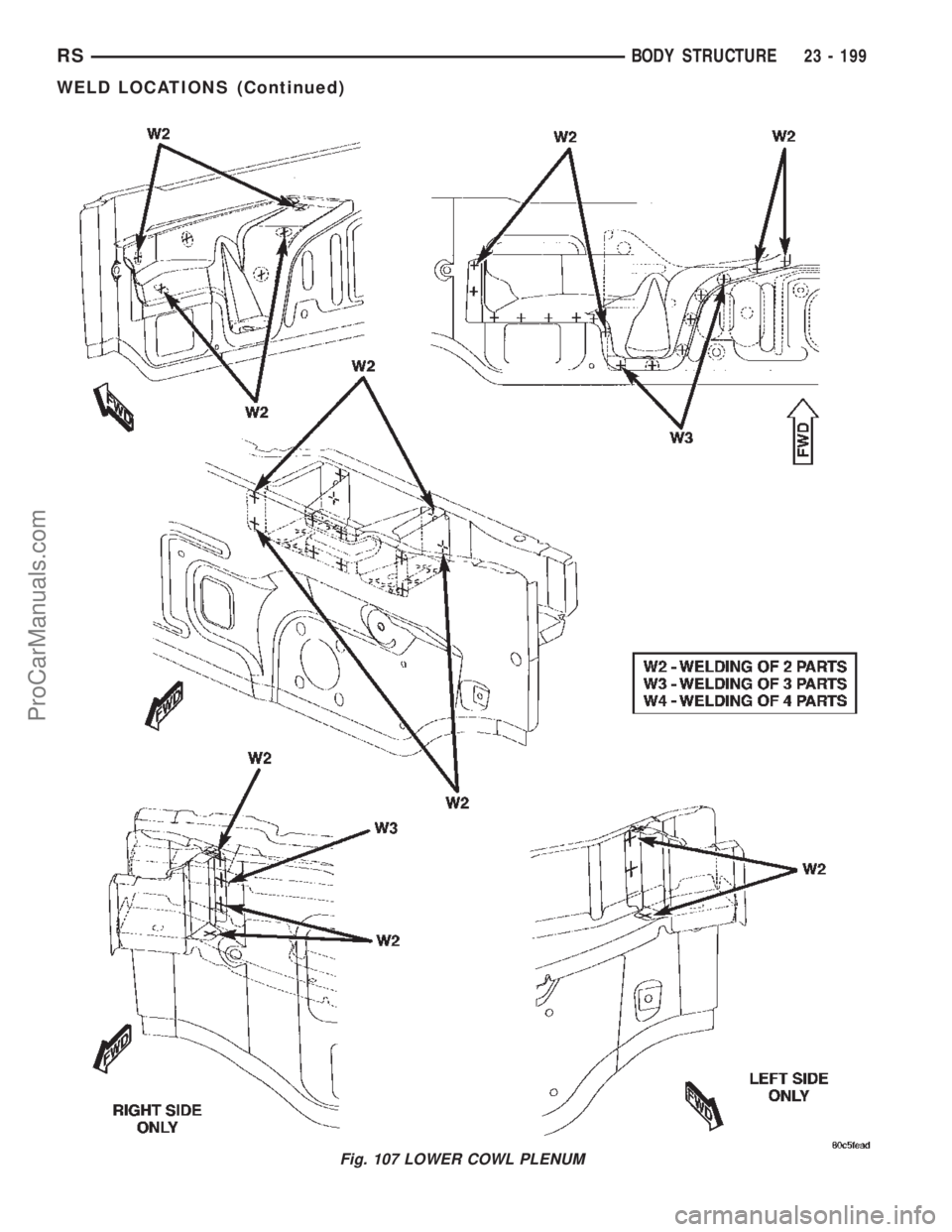

CHRYSLER CARAVAN 2002 Service Manual Fig. 107 LOWER COWL PLENUM RSBODY STRUCTURE23 - 199 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2183 of 2399

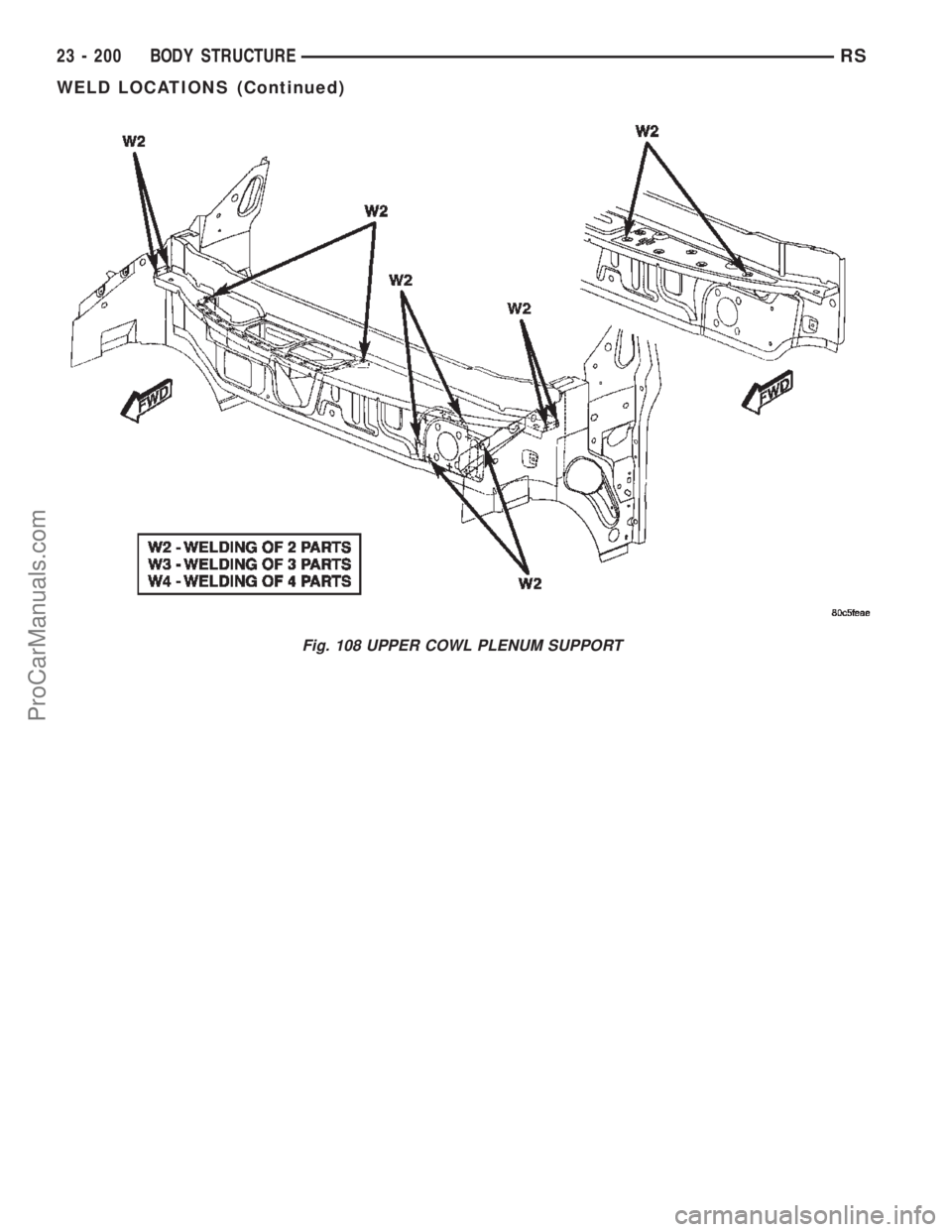

CHRYSLER CARAVAN 2002 Service Manual Fig. 108 UPPER COWL PLENUM SUPPORT 23 - 200 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2184 of 2399

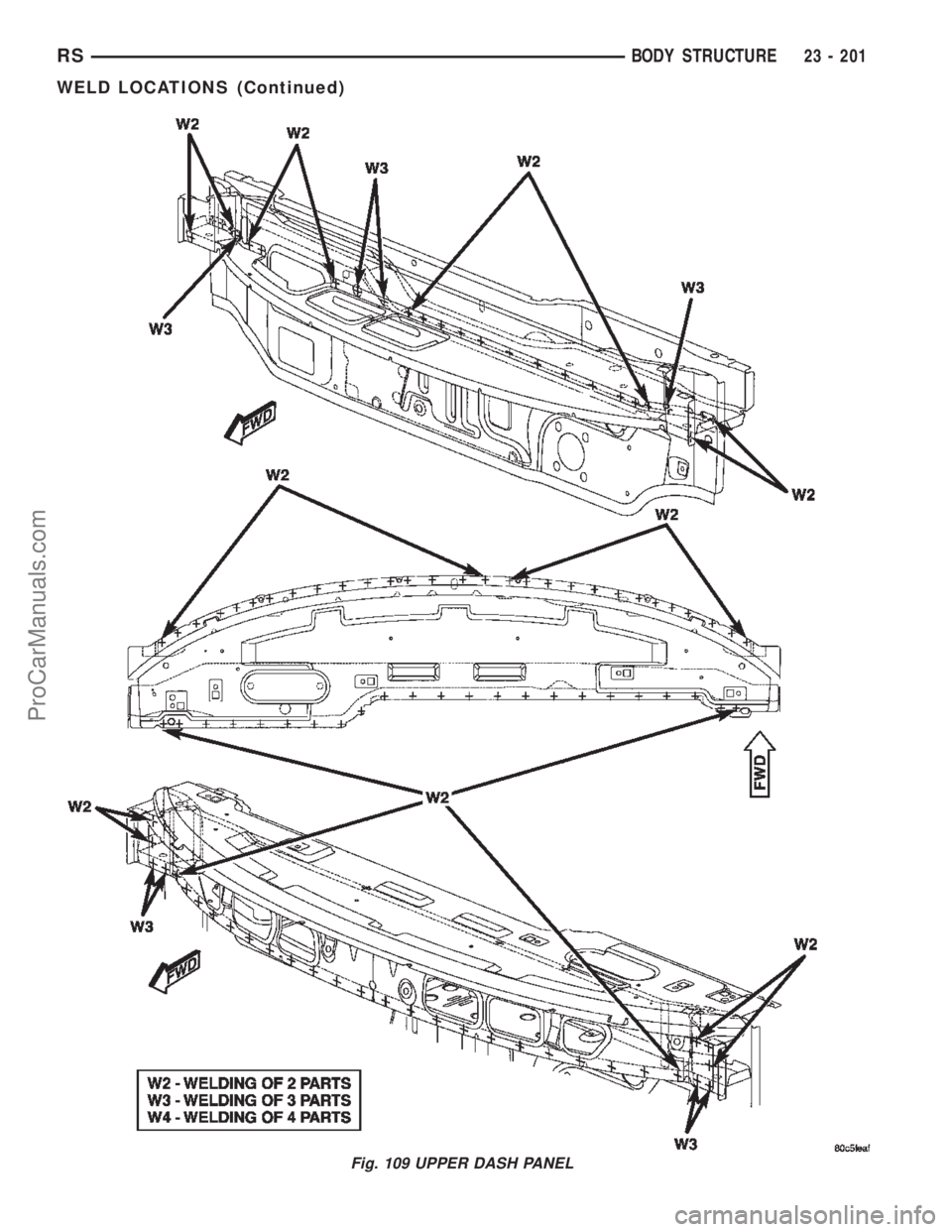

CHRYSLER CARAVAN 2002 Service Manual Fig. 109 UPPER DASH PANEL RSBODY STRUCTURE23 - 201 WELD LOCATIONS (Continued) ProCarManuals.com
