Page 2225 of 2399

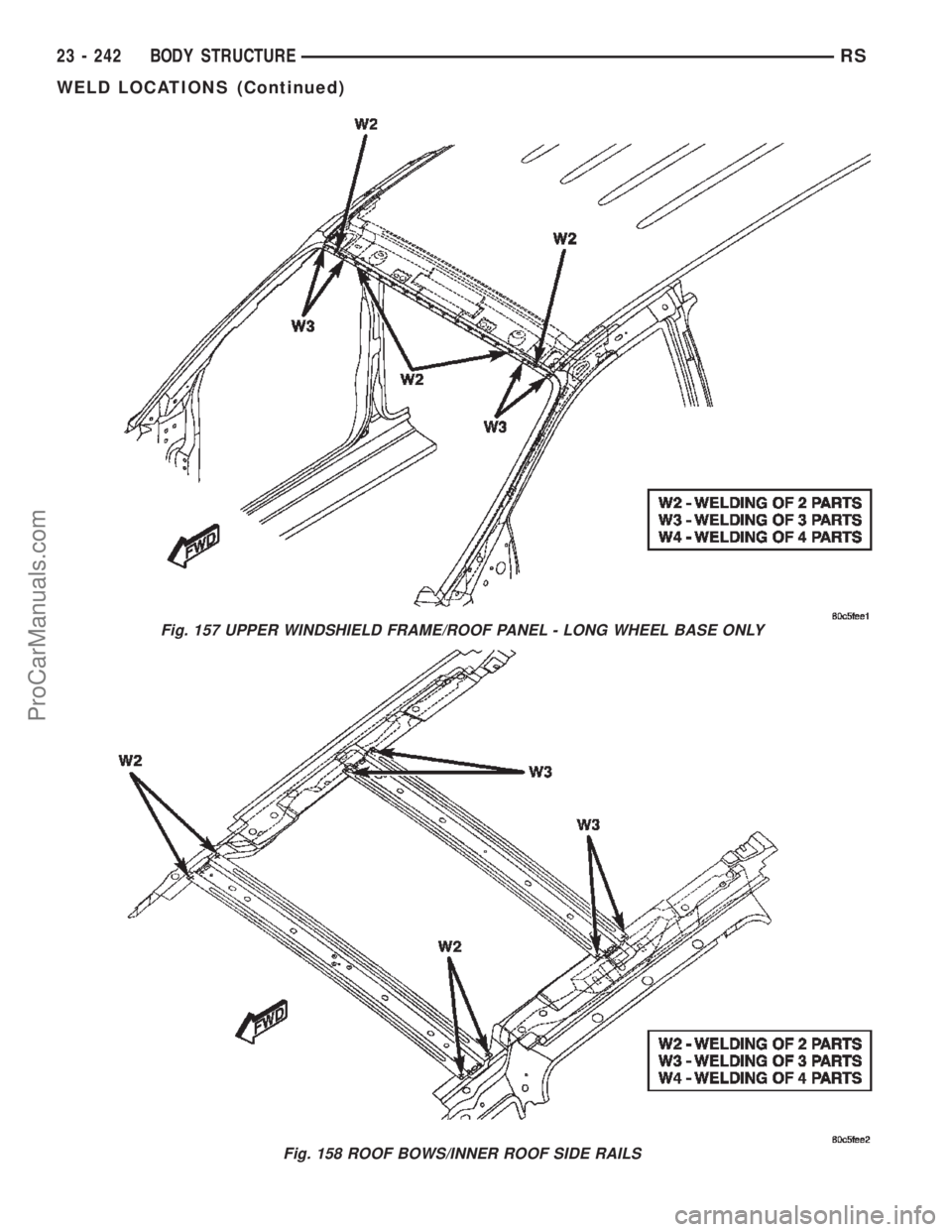

CHRYSLER CARAVAN 2002 Service Manual Fig. 157 UPPER WINDSHIELD FRAME/ROOF PANEL - LONG WHEEL BASE ONLY Fig. 158 ROOF BOWS/INNER ROOF SIDE RAILS 23 - 242 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2226 of 2399

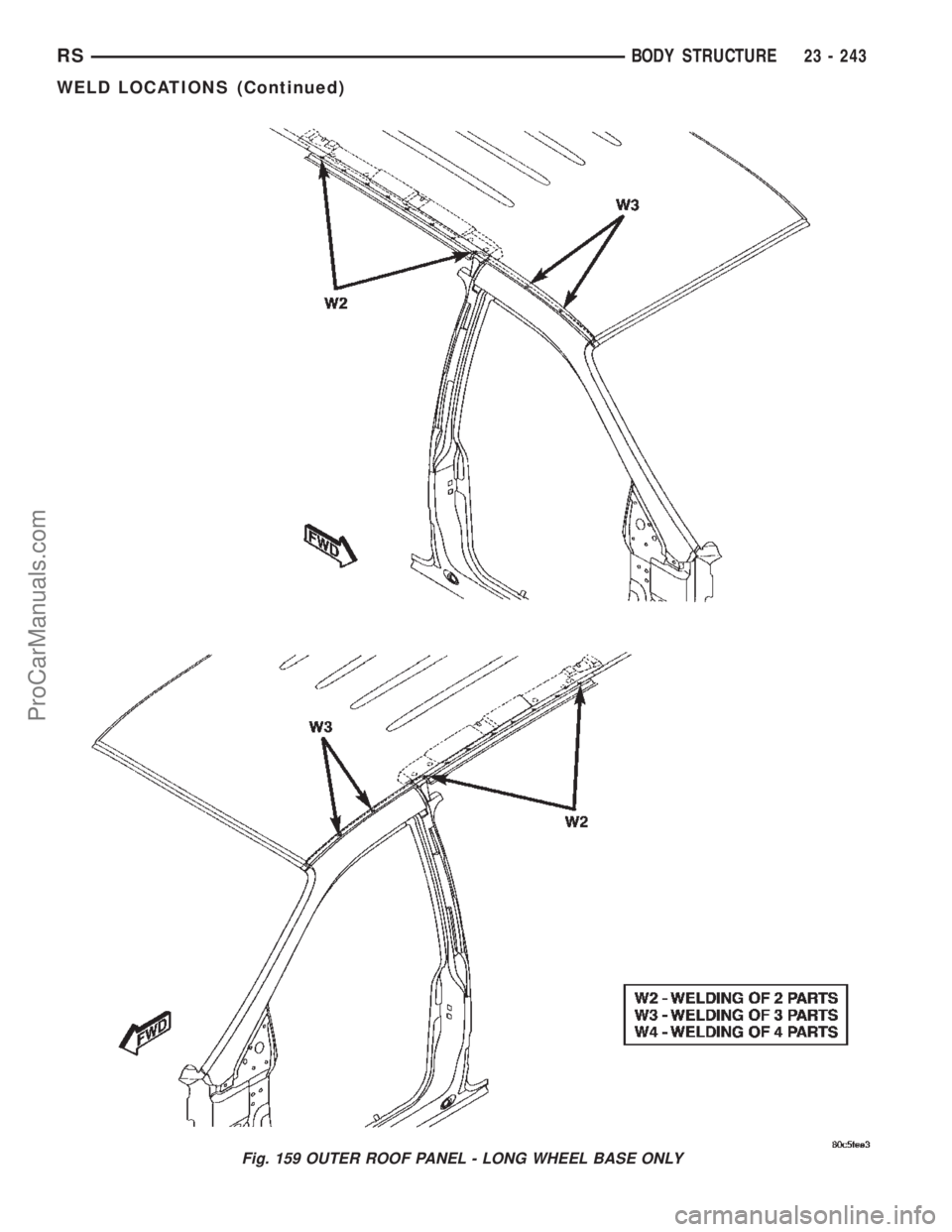

CHRYSLER CARAVAN 2002 Service Manual Fig. 159 OUTER ROOF PANEL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 243 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2227 of 2399

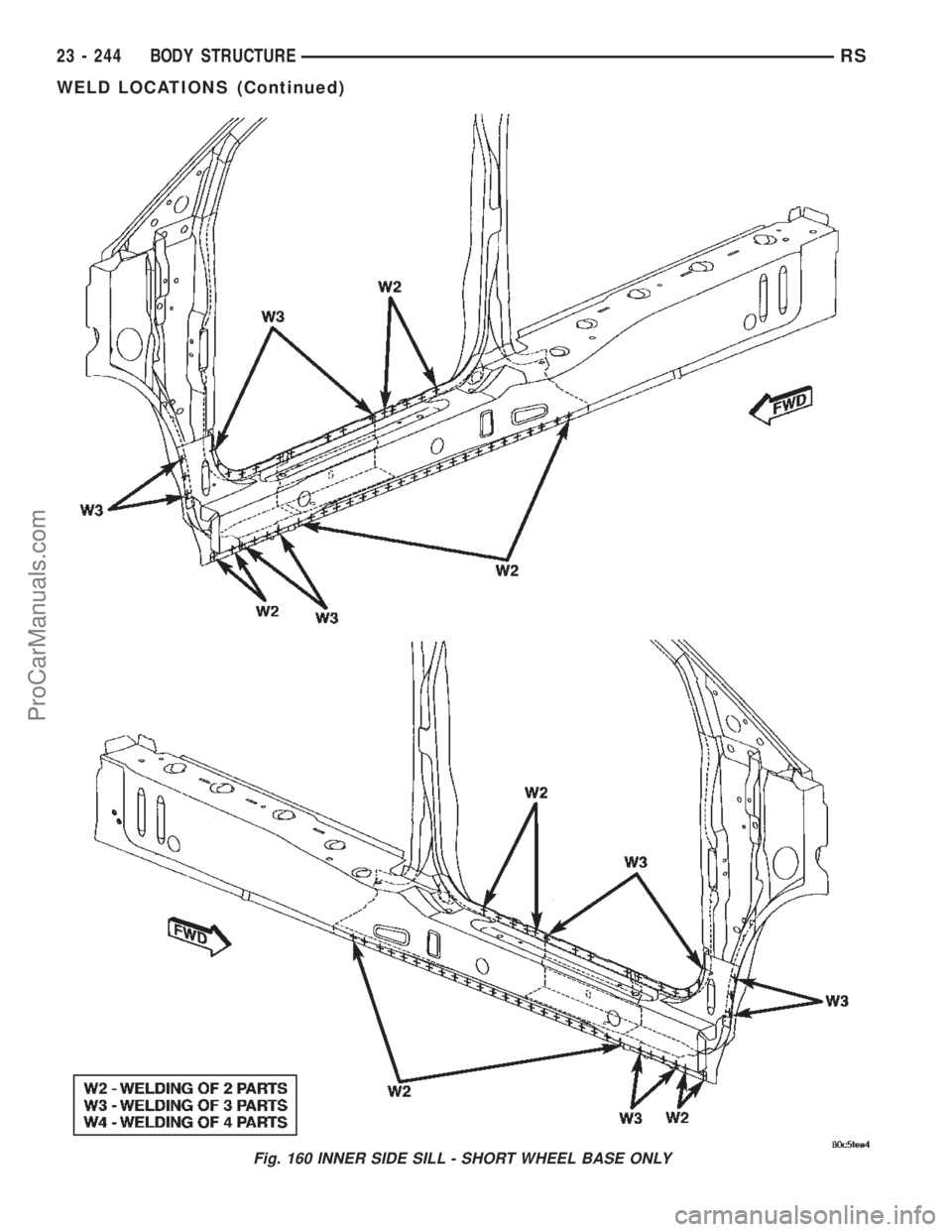

CHRYSLER CARAVAN 2002 Service Manual Fig. 160 INNER SIDE SILL - SHORT WHEEL BASE ONLY 23 - 244 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2228 of 2399

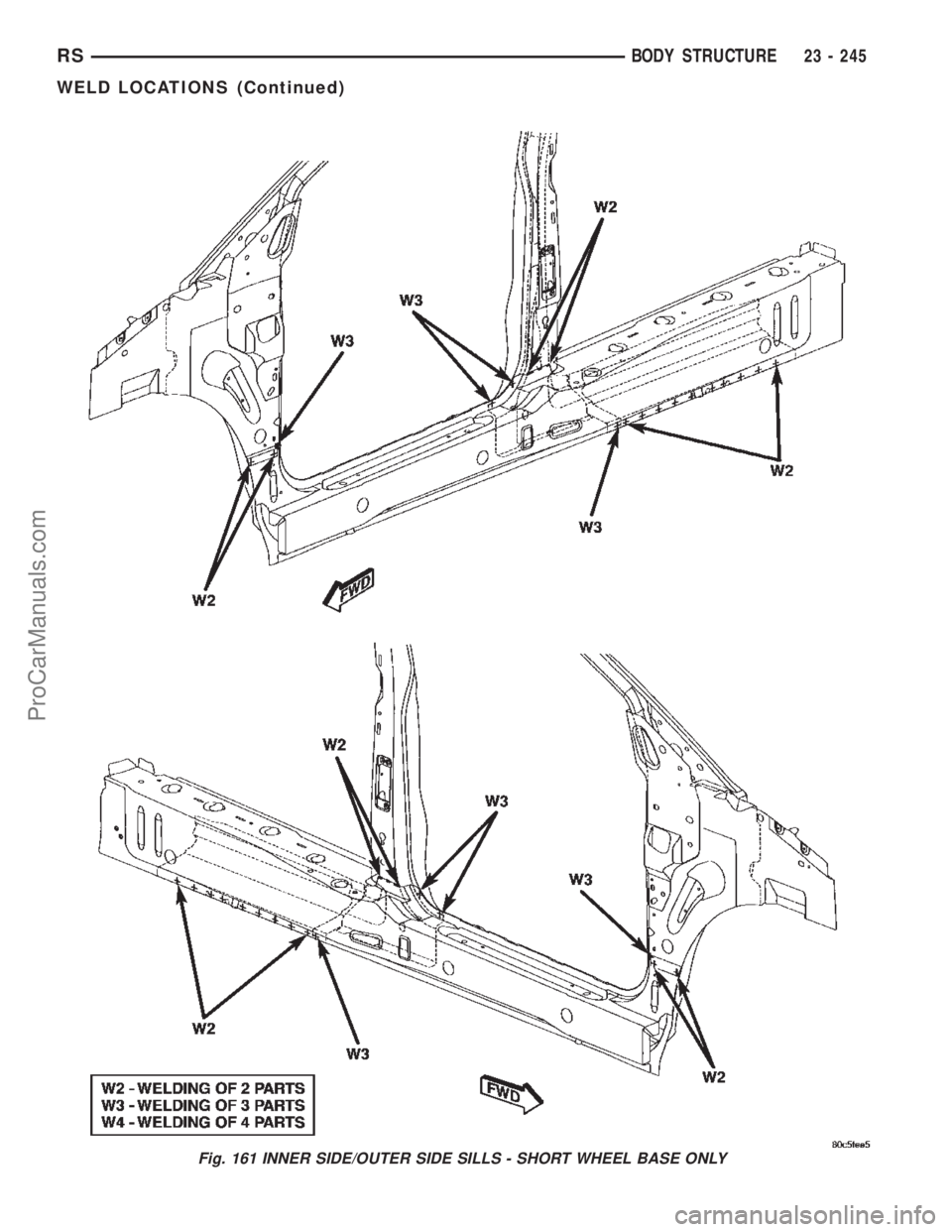

CHRYSLER CARAVAN 2002 Service Manual Fig. 161 INNER SIDE/OUTER SIDE SILLS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 245 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2229 of 2399

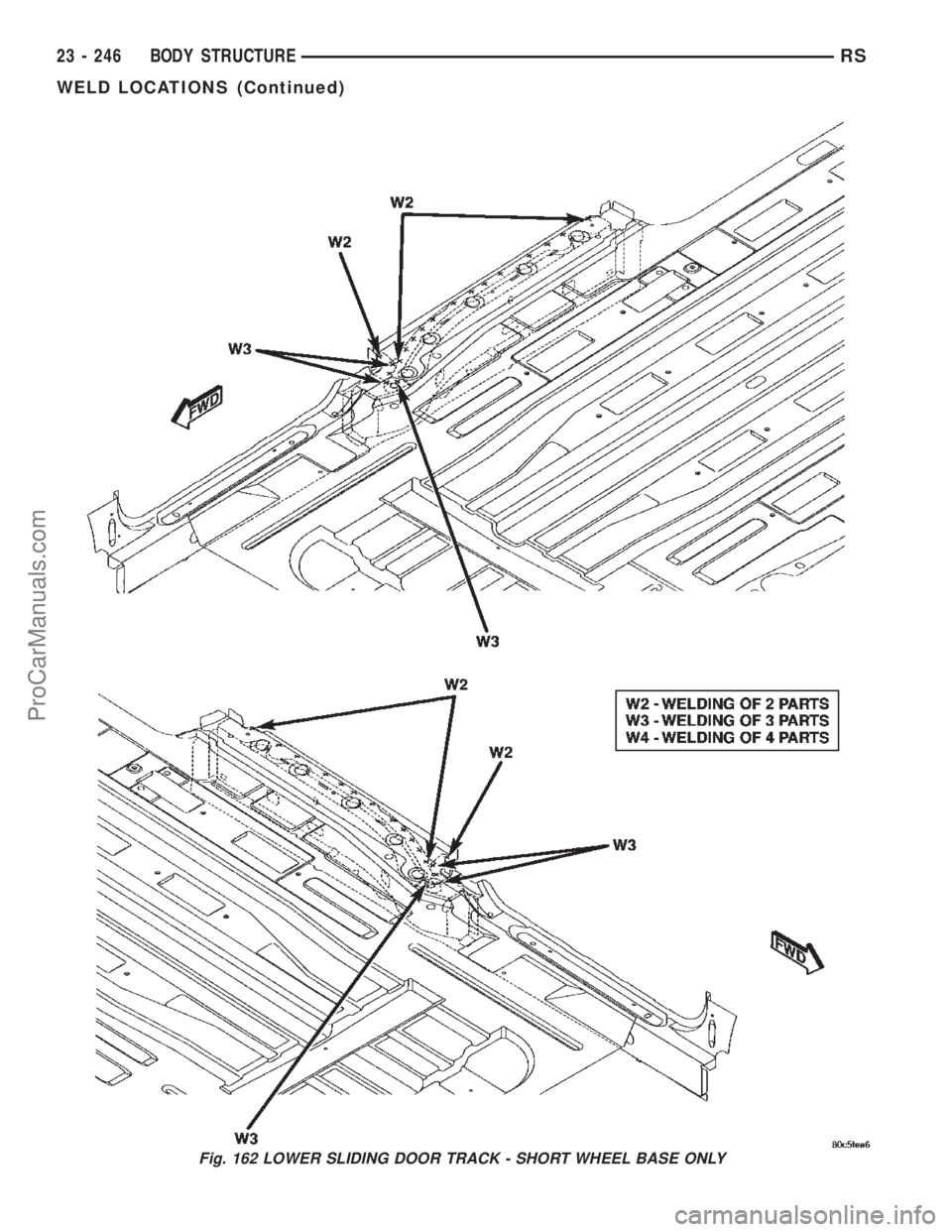

CHRYSLER CARAVAN 2002 Service Manual Fig. 162 LOWER SLIDING DOOR TRACK - SHORT WHEEL BASE ONLY 23 - 246 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2230 of 2399

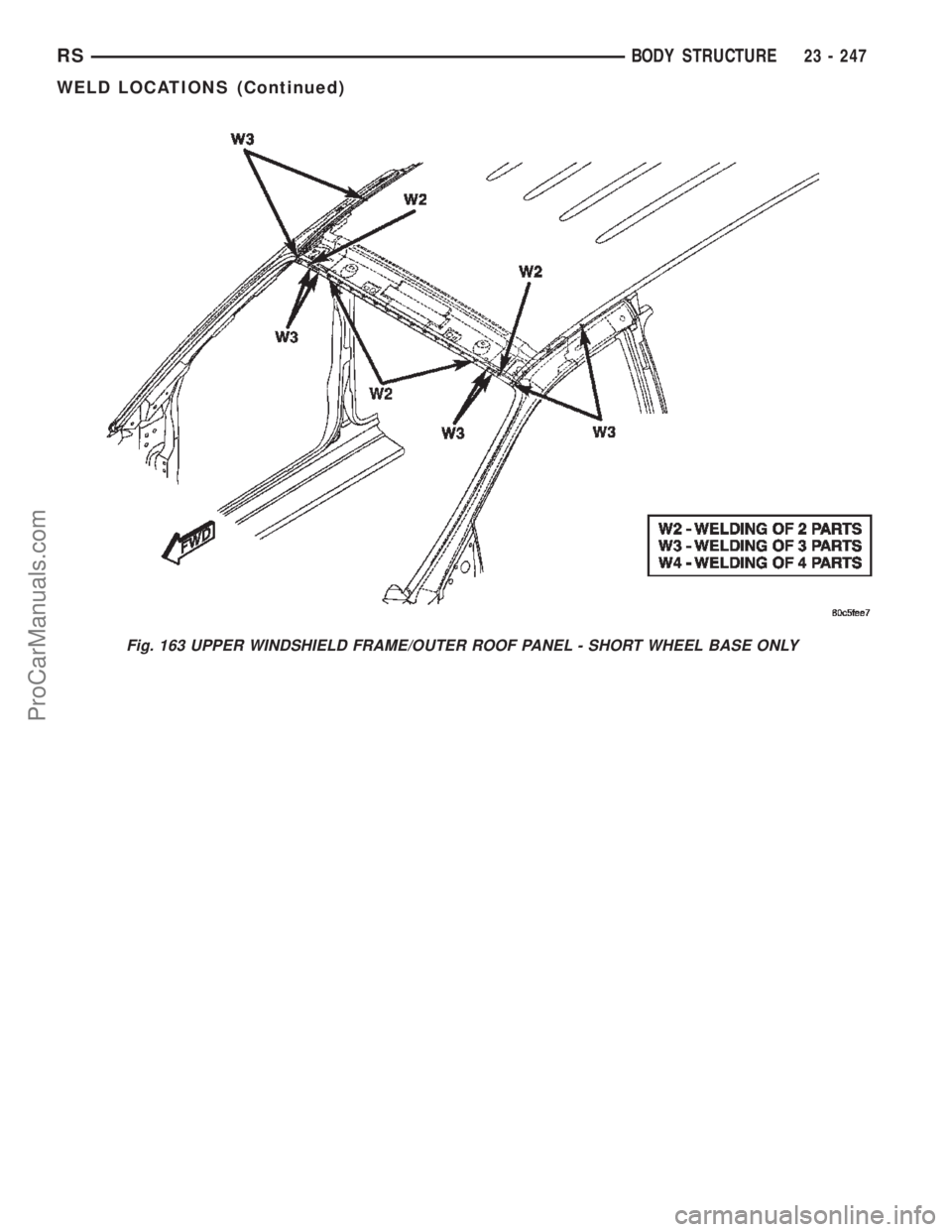

CHRYSLER CARAVAN 2002 Service Manual Fig. 163 UPPER WINDSHIELD FRAME/OUTER ROOF PANEL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 247 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2231 of 2399

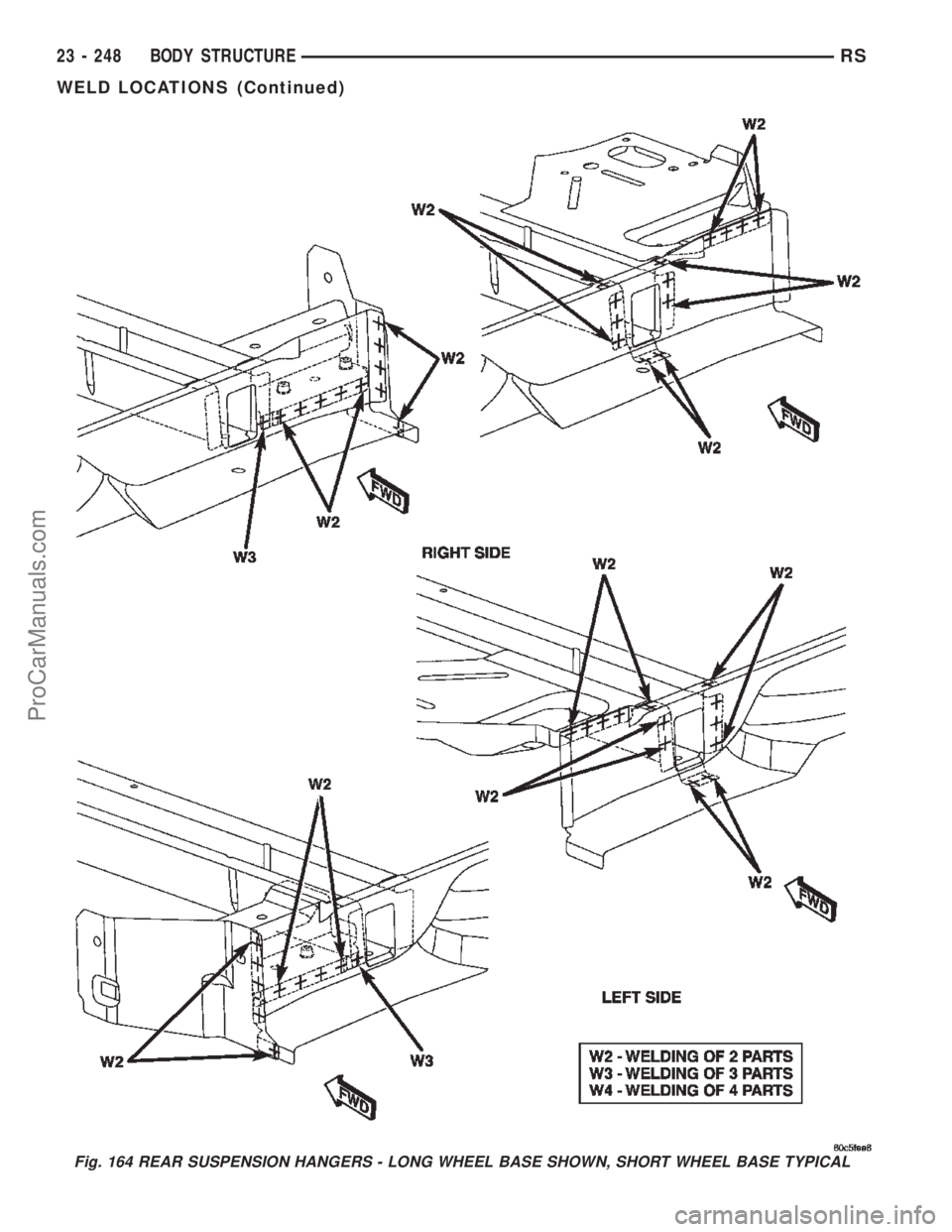

CHRYSLER CARAVAN 2002 Service Manual Fig. 164 REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE TYPICAL 23 - 248 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2232 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 165 FRONT LOWER LIFTGATE OPENING Fig. 166 REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 249 WELD LOCATIONS (Continued) ProCarManuals.com
