Page 2209 of 2399

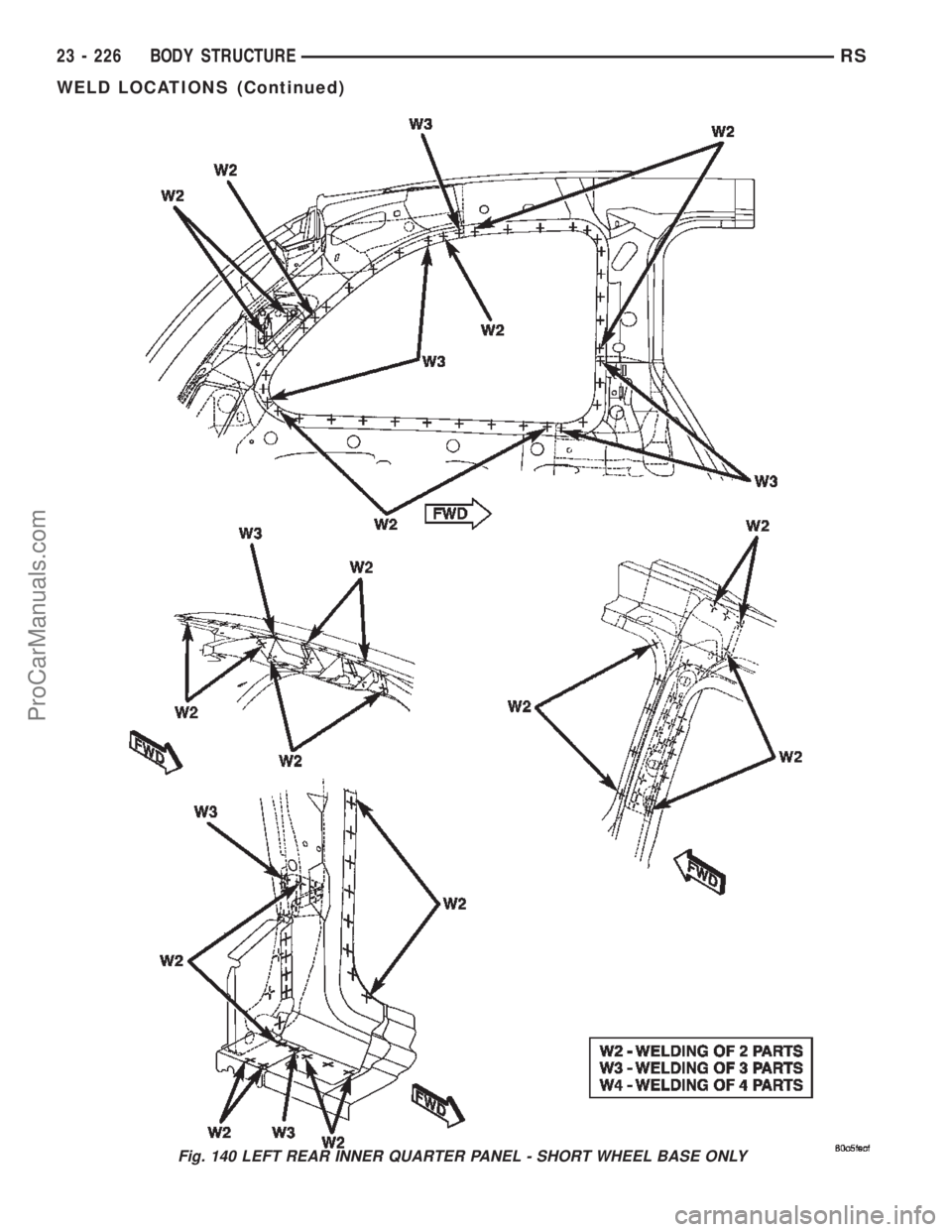

CHRYSLER CARAVAN 2002 Service Manual Fig. 140 LEFT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 23 - 226 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2210 of 2399

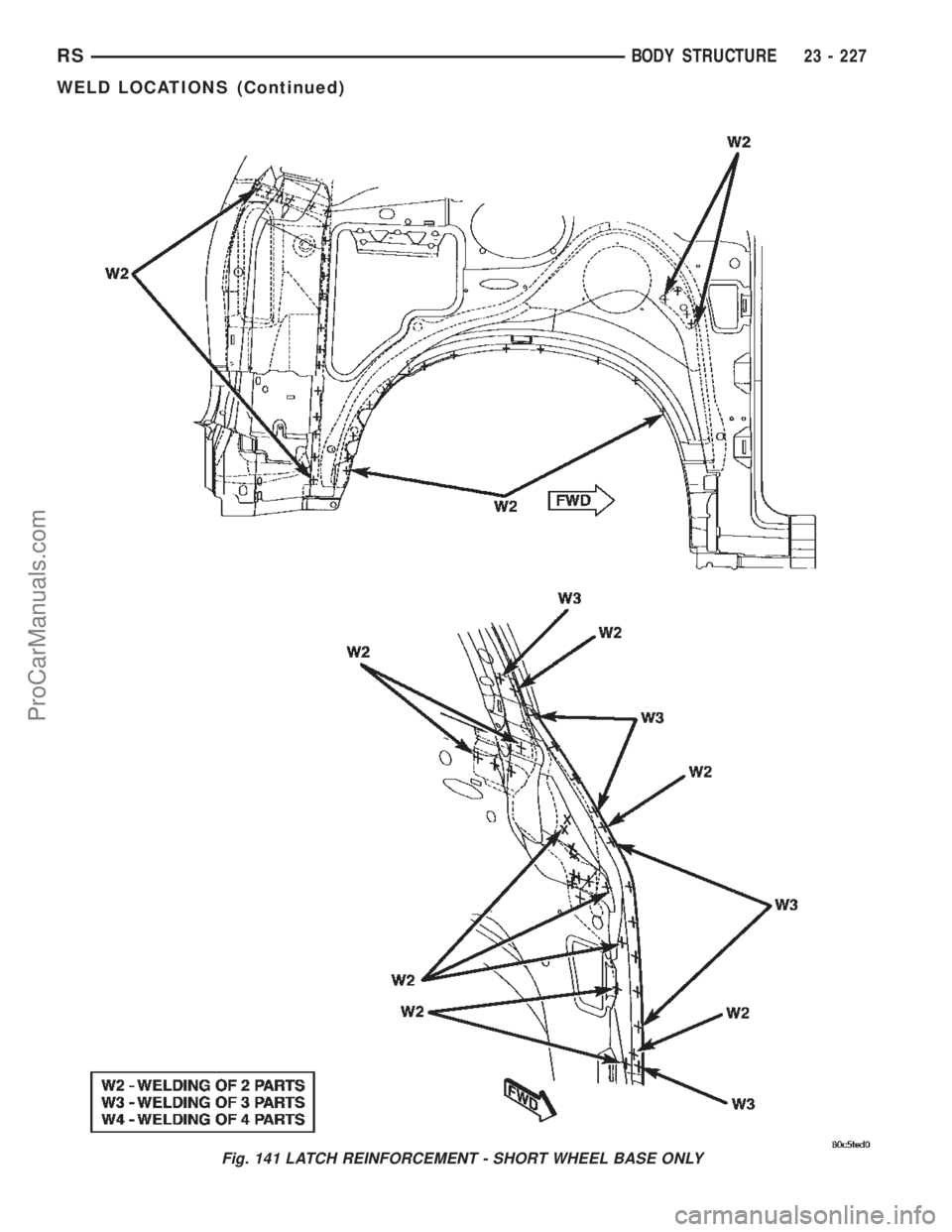

CHRYSLER CARAVAN 2002 Service Manual Fig. 141 LATCH REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 227 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2211 of 2399

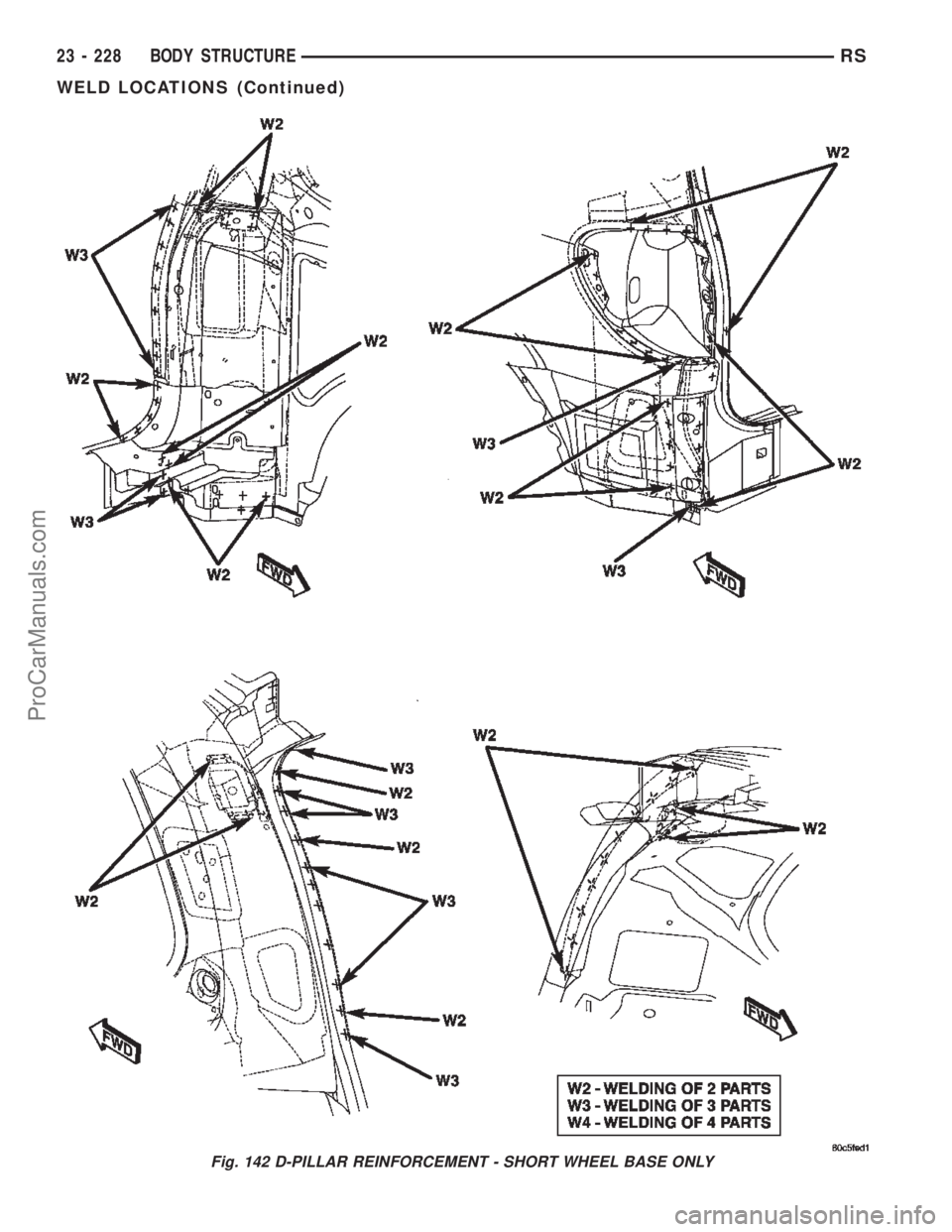

CHRYSLER CARAVAN 2002 Service Manual Fig. 142 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 228 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2212 of 2399

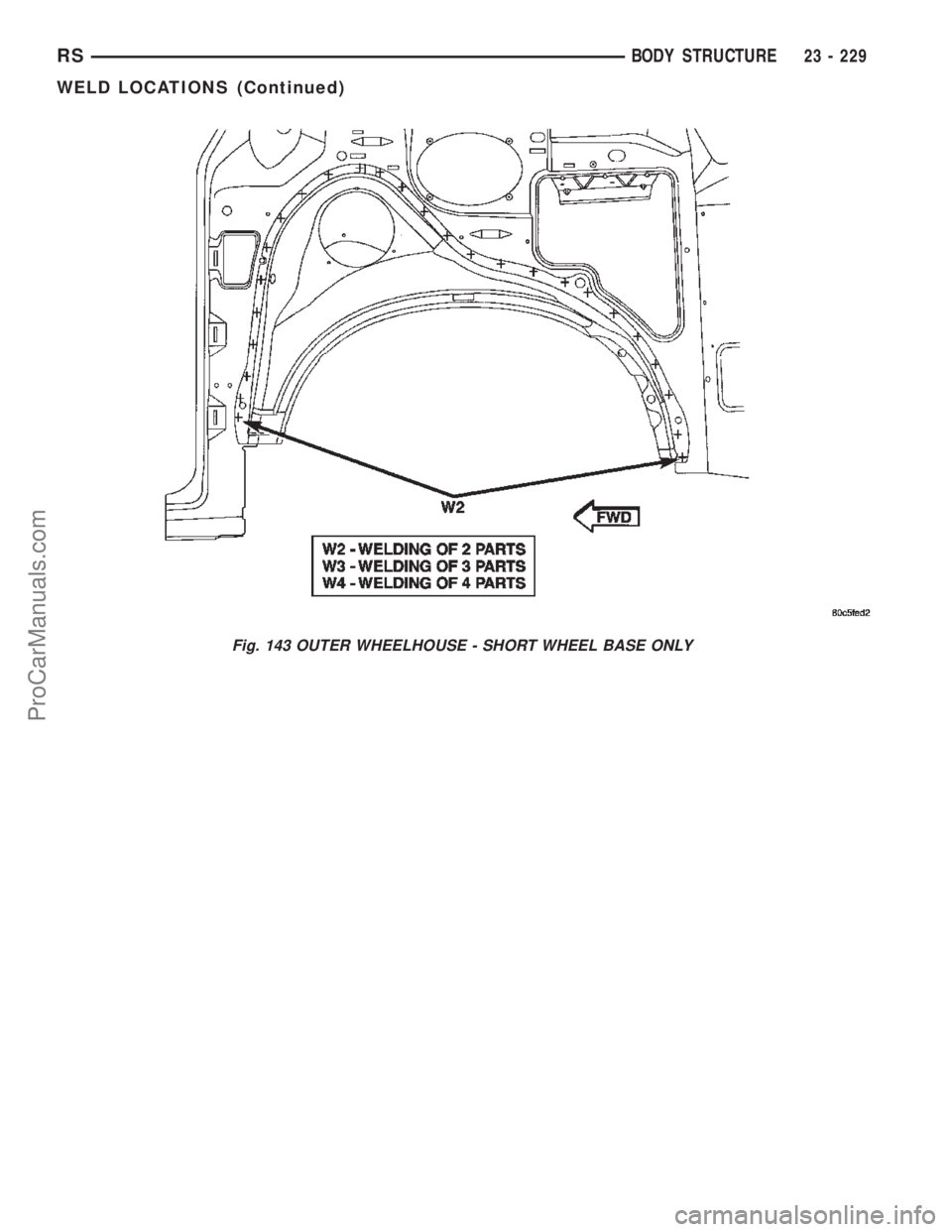

CHRYSLER CARAVAN 2002 Service Manual Fig. 143 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 229 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2213 of 2399

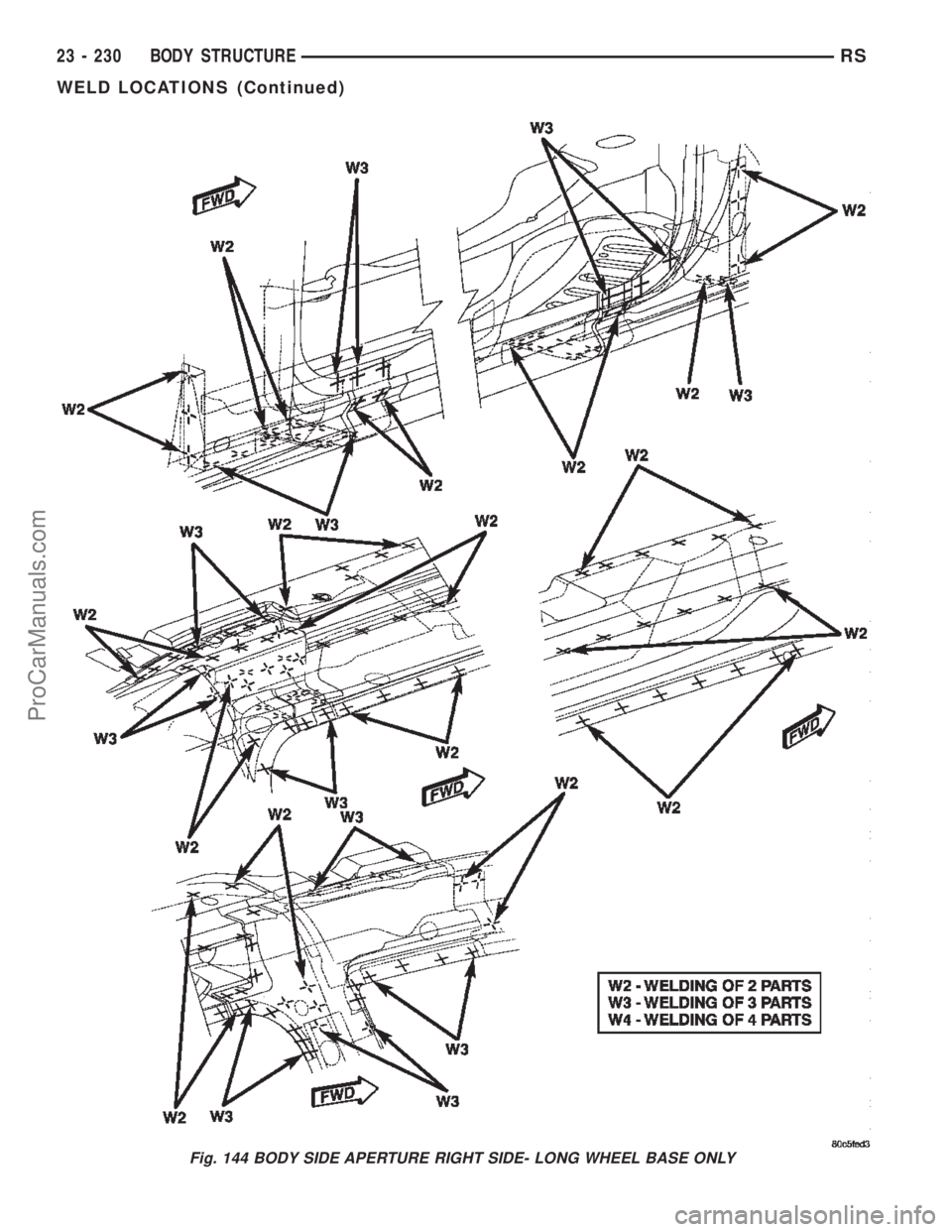

CHRYSLER CARAVAN 2002 Service Manual Fig. 144 BODY SIDE APERTURE RIGHT SIDE- LONG WHEEL BASE ONLY 23 - 230 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2214 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 145 BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 231 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2215 of 2399

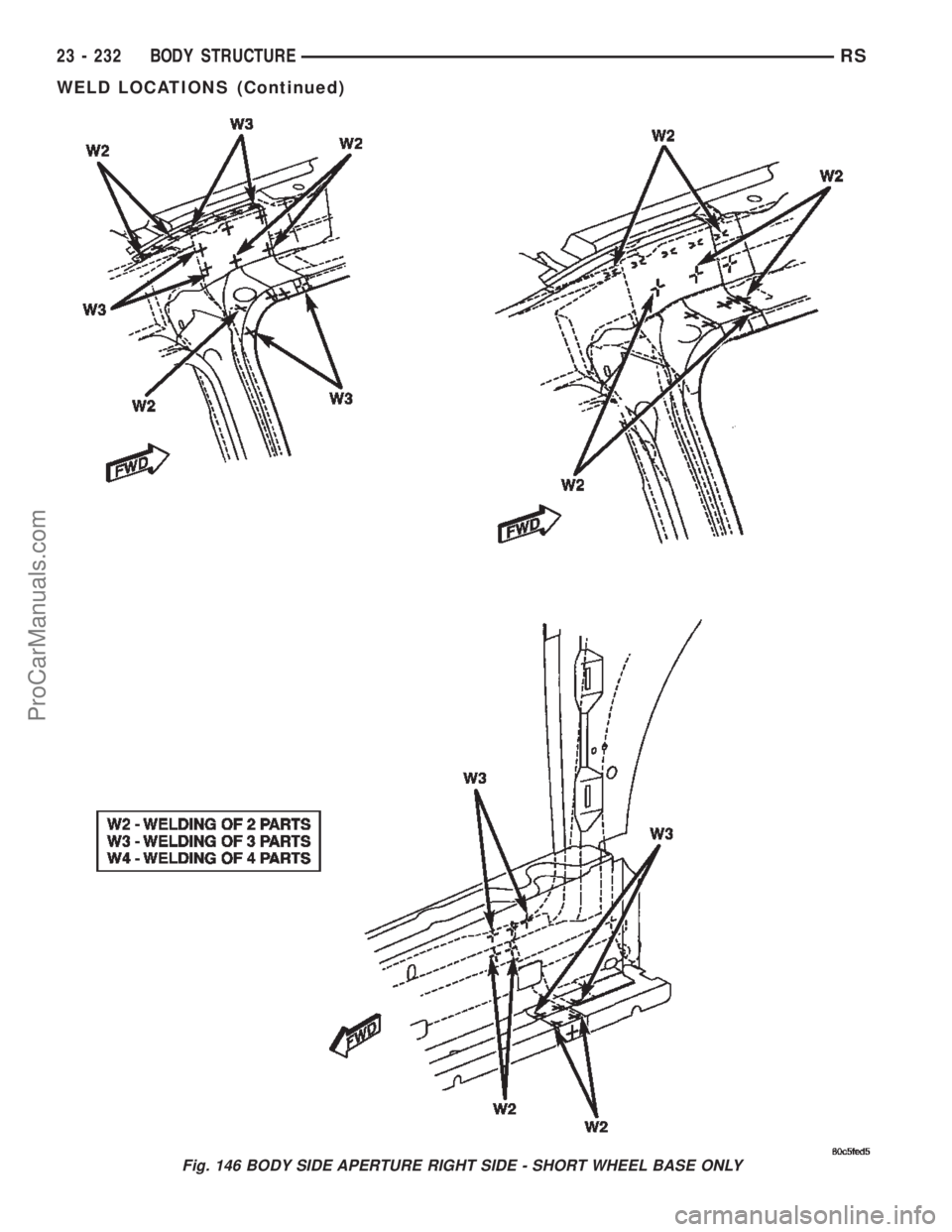

CHRYSLER CARAVAN 2002 Service Manual Fig. 146 BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY 23 - 232 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2216 of 2399

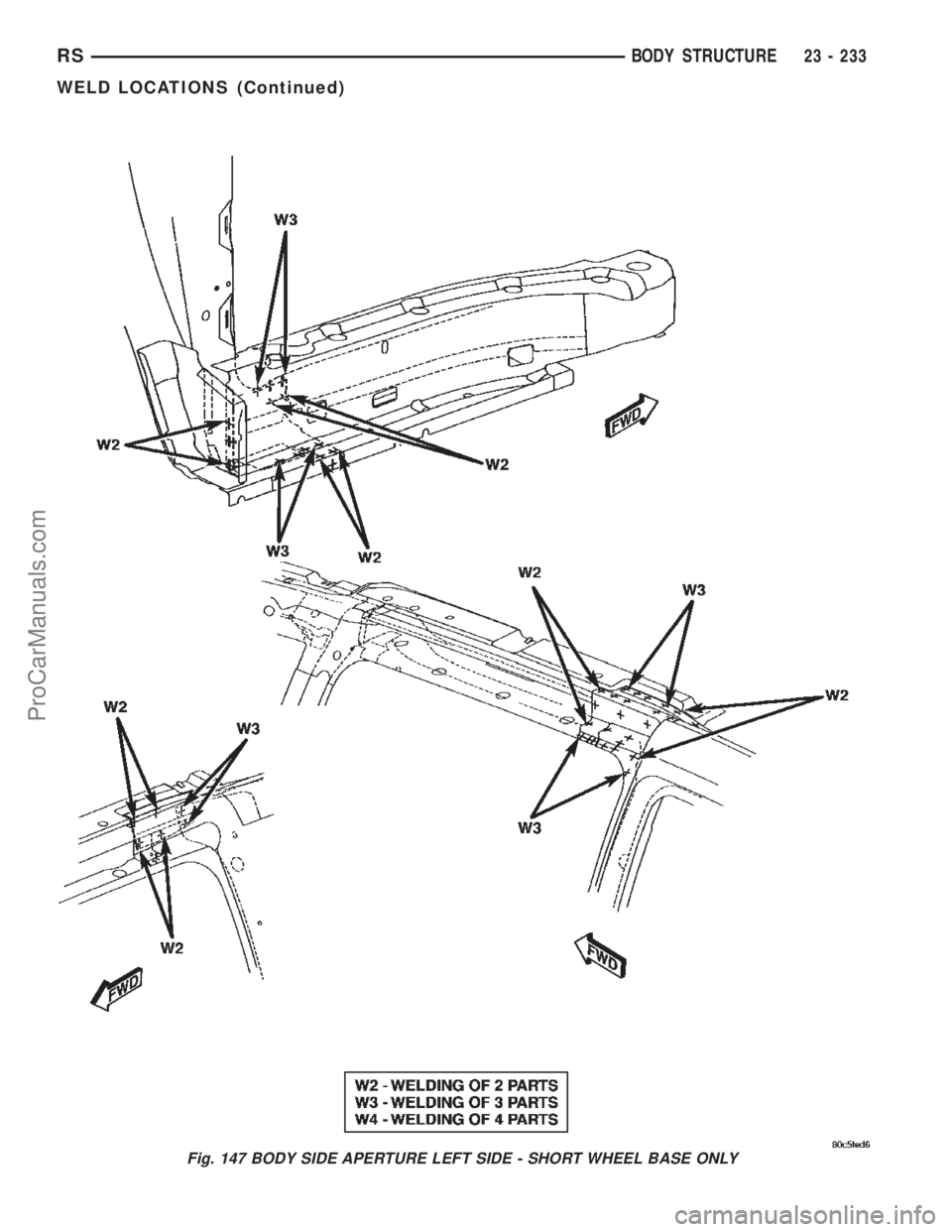

CHRYSLER CARAVAN 2002 Service Manual Fig. 147 BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 233 WELD LOCATIONS (Continued) ProCarManuals.com
