Page 1785 of 2399

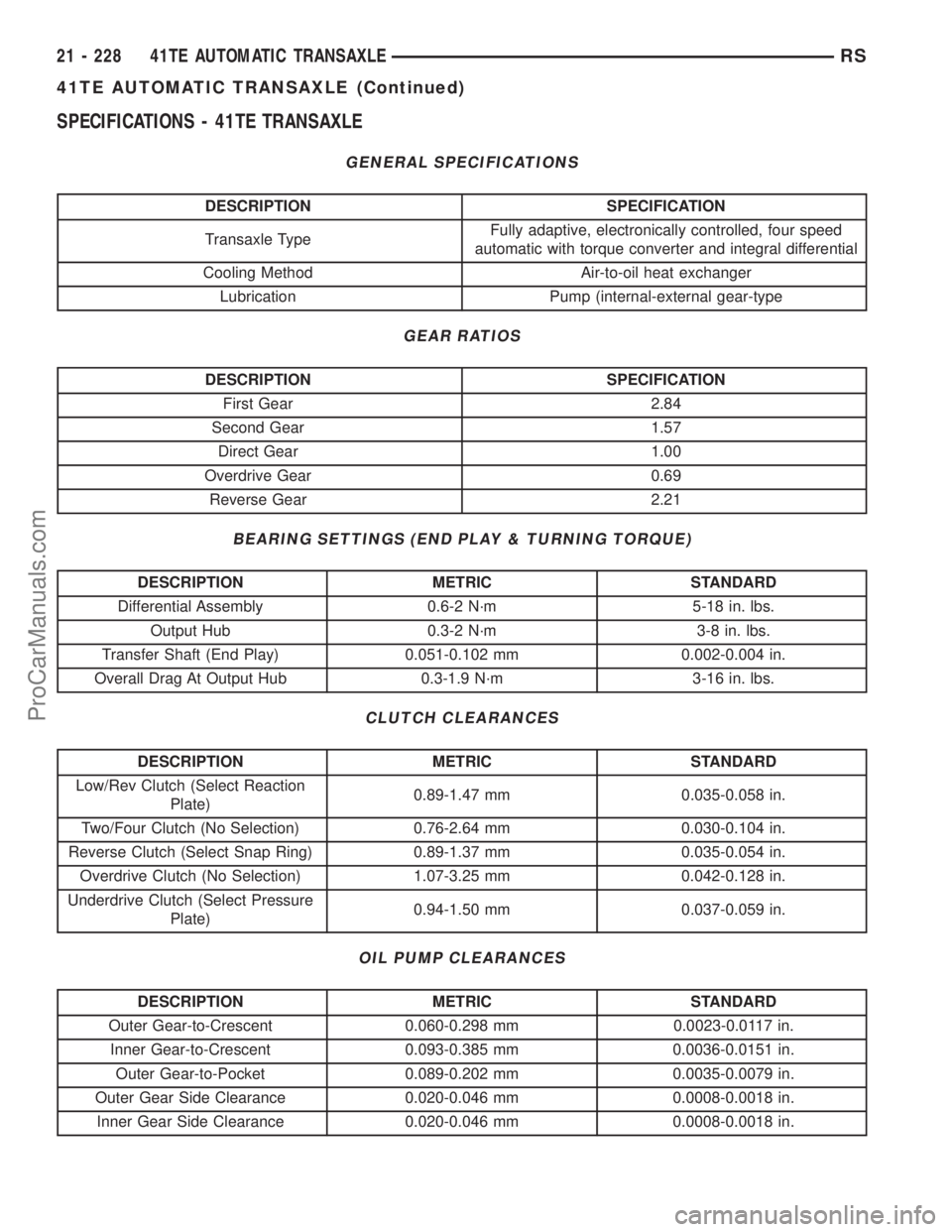

CHRYSLER CARAVAN 2002 Service Manual SPECIFICATIONS - 41TE TRANSAXLE GENERAL SPECIFICATIONS DESCRIPTION SPECIFICATION Transaxle TypeFully adaptive, electronically controlled, four speed automatic with torque converter and integral differ

Page 1786 of 2399

CHRYSLER CARAVAN 2002 Service Manual INPUT SHAFT DESCRIPTION METRIC SPECIFICATION End Play 0.127-0.635mm 0.005-0.025 in. TORQUE SPECIFICATIONS DESCRIPTION N´m Ft. Lbs. In. Lbs. Bolt, Differential Cover-to-Case19 Ð 165 Bolt, Differentia

Page 1787 of 2399

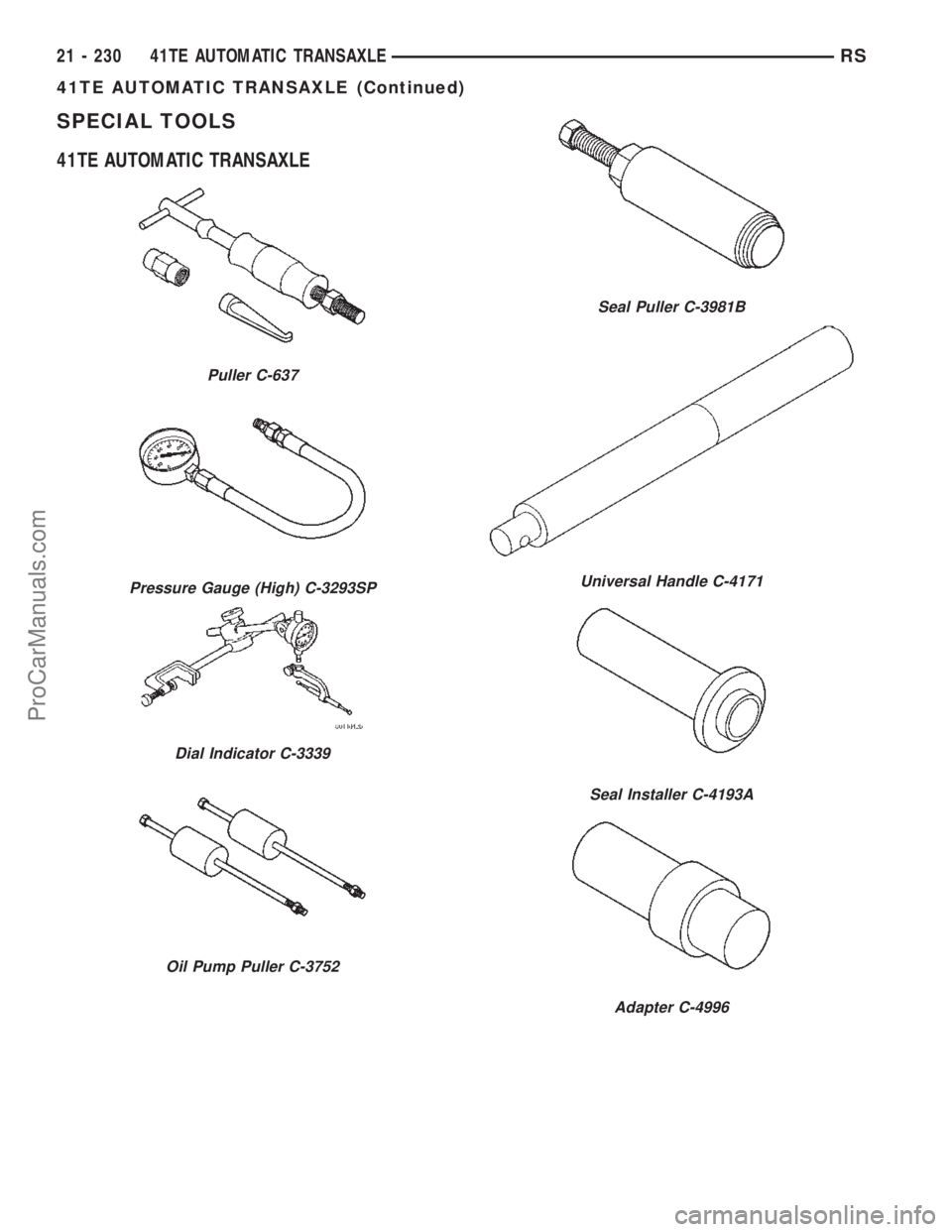

CHRYSLER CARAVAN 2002 Service Manual SPECIAL TOOLS 41TE AUTOMATIC TRANSAXLE Puller C-637 Pressure Gauge (High) C-3293SP Dial Indicator C-3339 Oil Pump Puller C-3752 Seal Puller C-3981B Universal Handle C-4171 Seal Installer C-4193A Adapt

Page 1788 of 2399

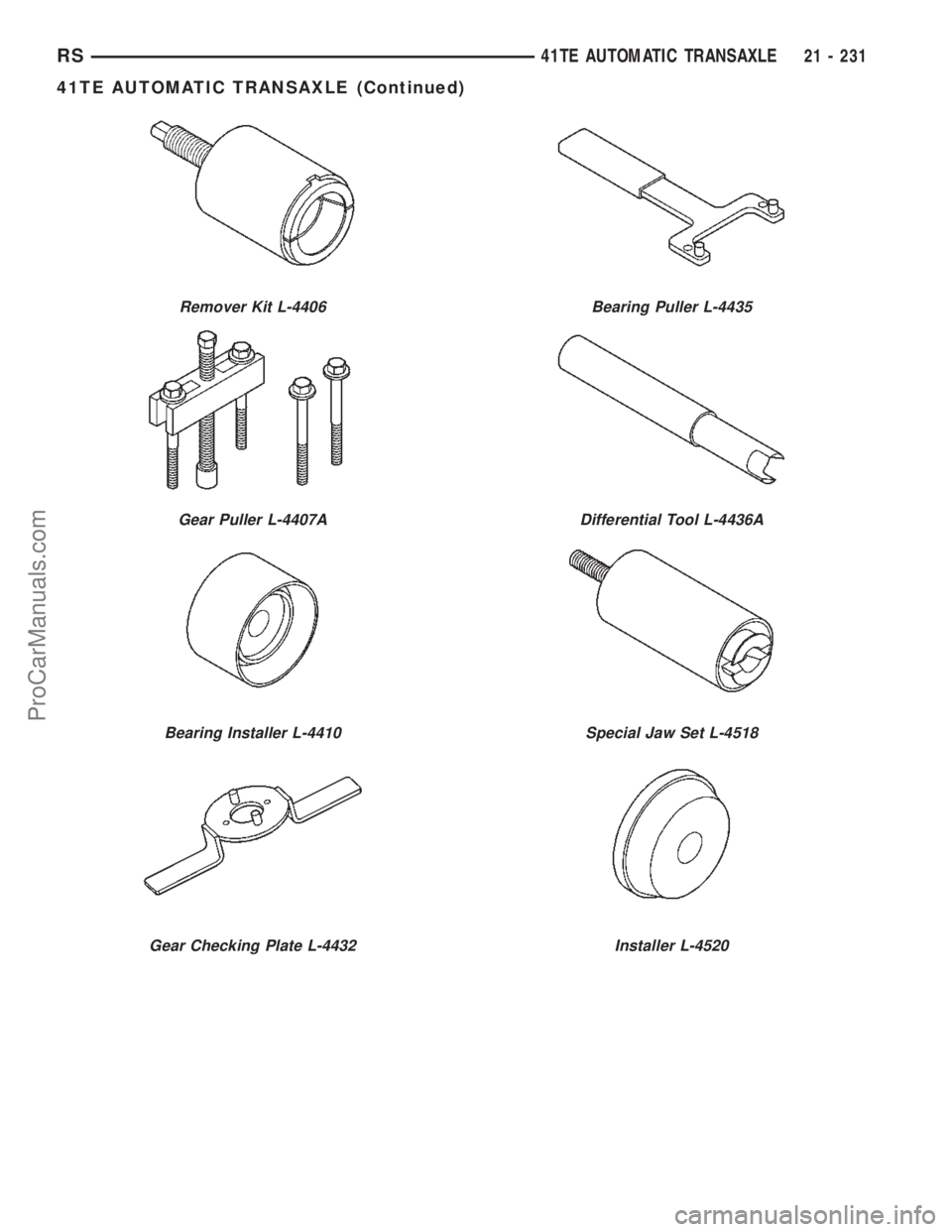

CHRYSLER CARAVAN 2002 Service Manual Remover Kit L-4406 Gear Puller L-4407A Bearing Installer L-4410 Gear Checking Plate L-4432 Bearing Puller L-4435 Differential Tool L-4436A Special Jaw Set L-4518 Installer L-4520 RS41TE AUTOMATIC TRAN

Page 1789 of 2399

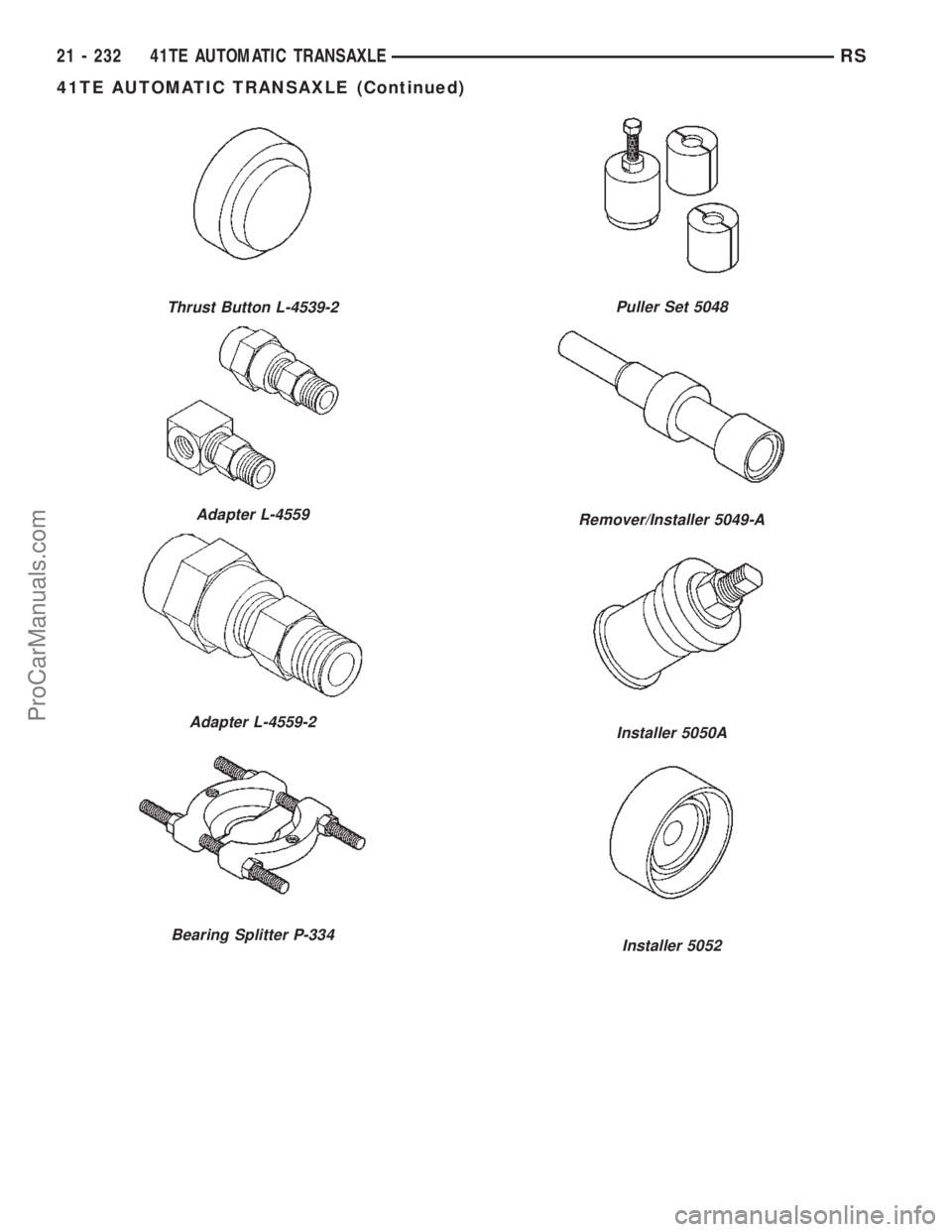

CHRYSLER CARAVAN 2002 Service Manual Thrust Button L-4539-2 Adapter L-4559 Adapter L-4559-2 Bearing Splitter P-334 Puller Set 5048 Remover/Installer 5049-A Installer 5050A Installer 5052 21 - 232 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC

Page 1790 of 2399

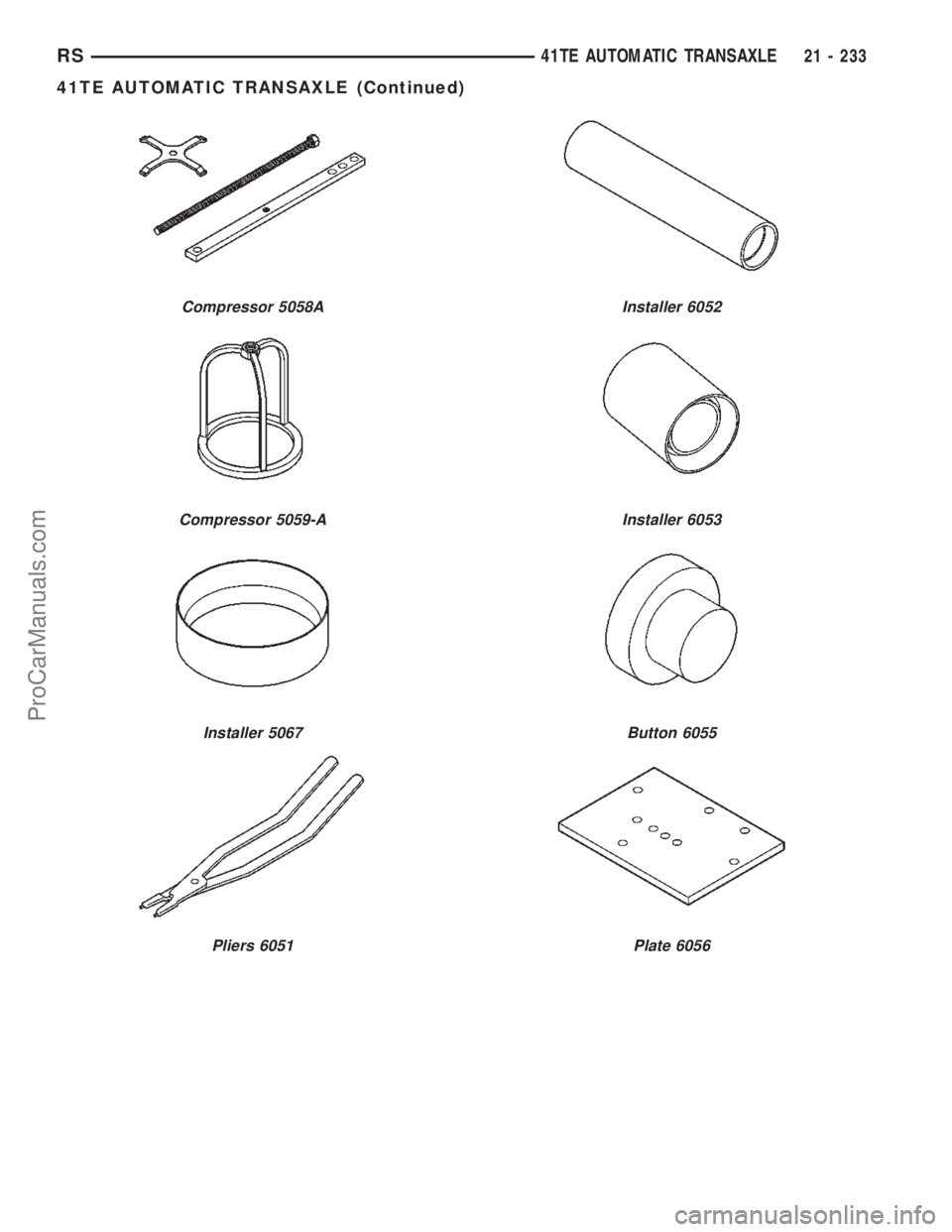

CHRYSLER CARAVAN 2002 Service Manual Compressor 5058A Compressor 5059-A Installer 5067 Pliers 6051 Installer 6052 Installer 6053 Button 6055 Plate 6056 RS41TE AUTOMATIC TRANSAXLE21 - 233 41TE AUTOMATIC TRANSAXLE (Continued) ProCarManuals

Page 1791 of 2399

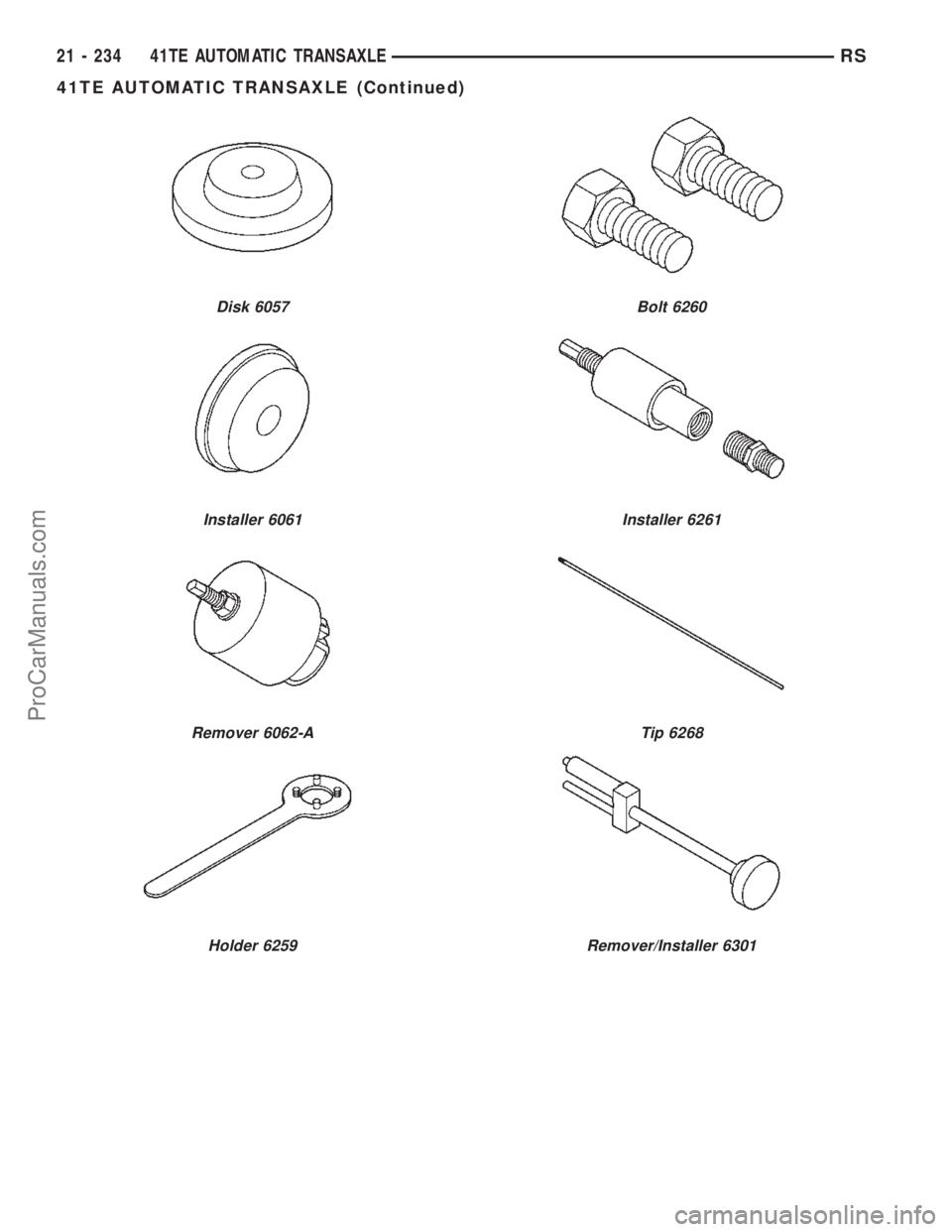

CHRYSLER CARAVAN 2002 Service Manual Disk 6057 Installer 6061 Remover 6062-A Holder 6259 Bolt 6260 Installer 6261 Tip 6268 Remover/Installer 6301 21 - 234 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued) ProCarManuals.com

Page 1792 of 2399

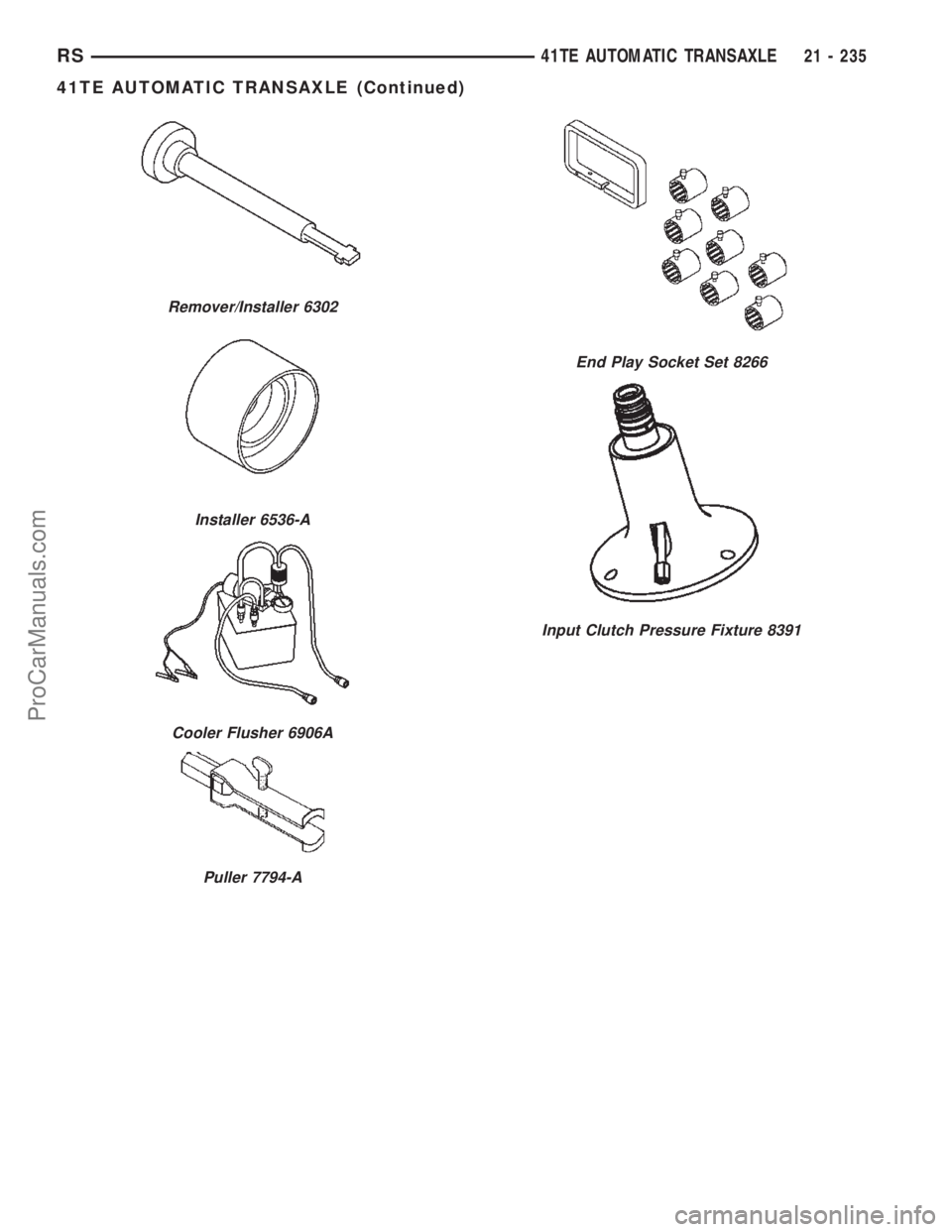

CHRYSLER CARAVAN 2002 Service Manual Remover/Installer 6302 Installer 6536-A Cooler Flusher 6906A Puller 7794-A End Play Socket Set 8266 Input Clutch Pressure Fixture 8391 RS41TE AUTOMATIC TRANSAXLE21 - 235 41TE AUTOMATIC TRANSAXLE (Cont
