Page 1161 of 2399

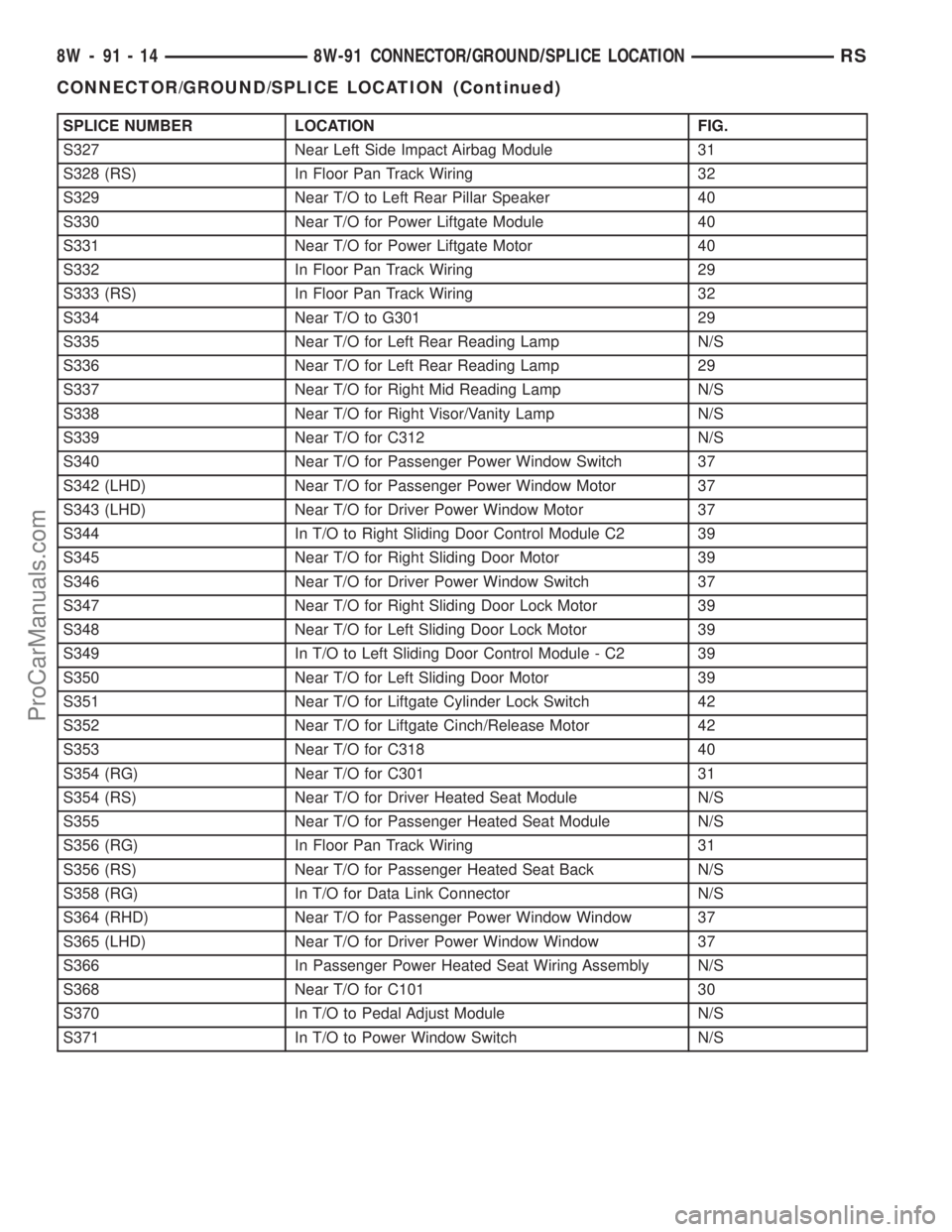

CHRYSLER CARAVAN 2002 Service Manual SPLICE NUMBER LOCATION FIG. S327 Near Left Side Impact Airbag Module 31 S328 (RS) In Floor Pan Track Wiring 32 S329 Near T/O to Left Rear Pillar Speaker 40 S330 Near T/O for Power Liftgate Module 40 S

Page 1162 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 1 HEADLAMP CONNECTORS RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-15 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1163 of 2399

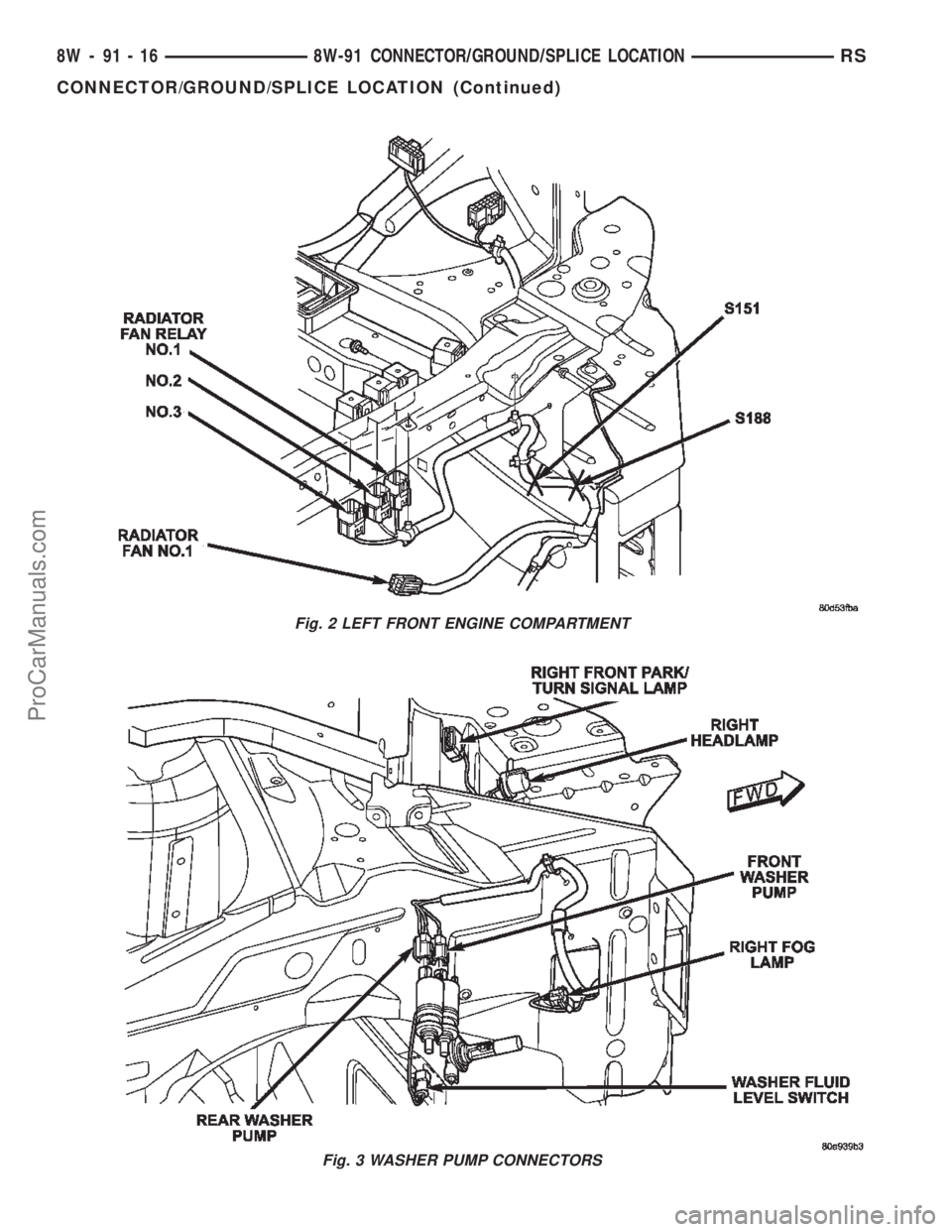

CHRYSLER CARAVAN 2002 Service Manual Fig. 2 LEFT FRONT ENGINE COMPARTMENT Fig. 3 WASHER PUMP CONNECTORS 8W - 91 - 16 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1164 of 2399

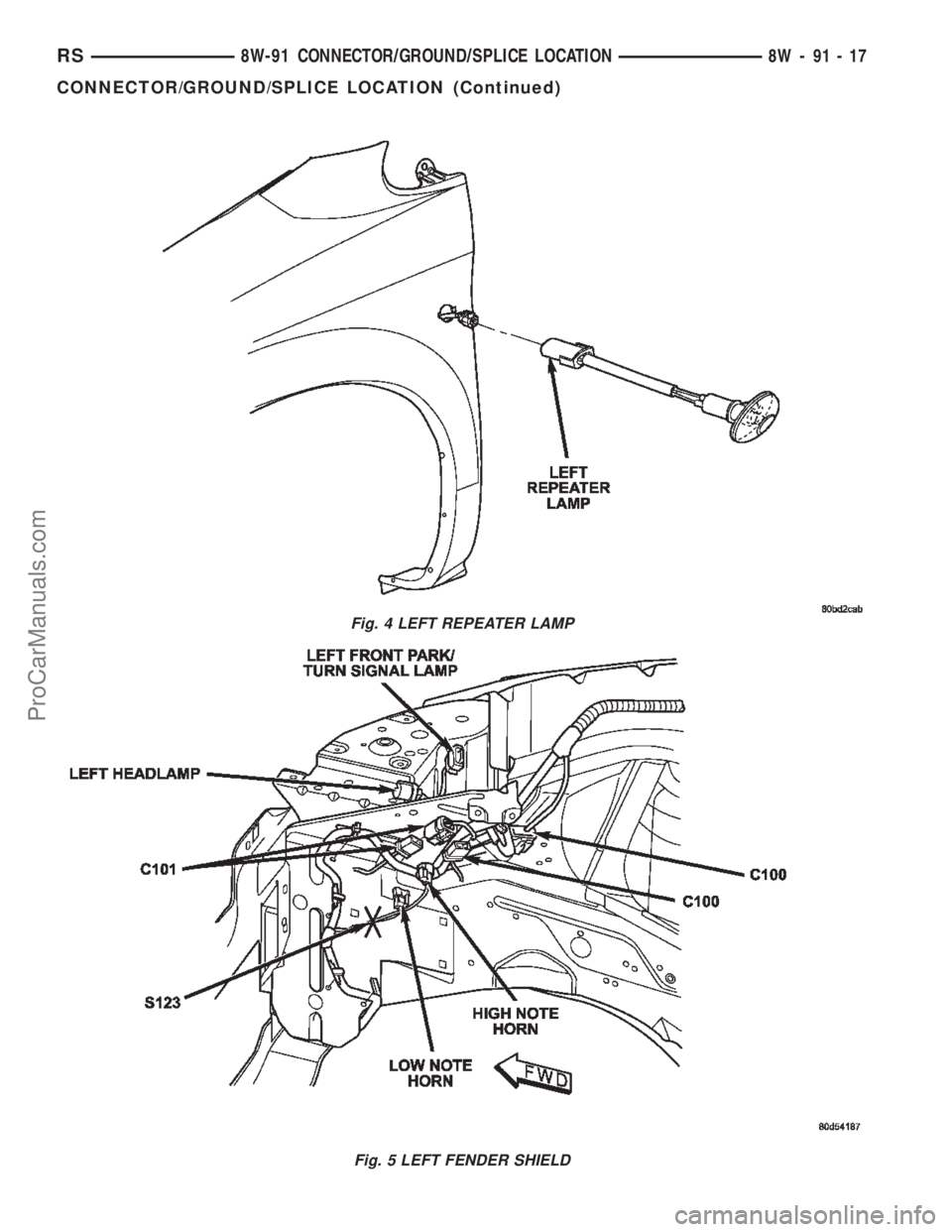

CHRYSLER CARAVAN 2002 Service Manual Fig. 4 LEFT REPEATER LAMP Fig. 5 LEFT FENDER SHIELD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-17 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1165 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 6 LEFT SIDE ENGINE COMPARTMENT 8W - 91 - 18 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1166 of 2399

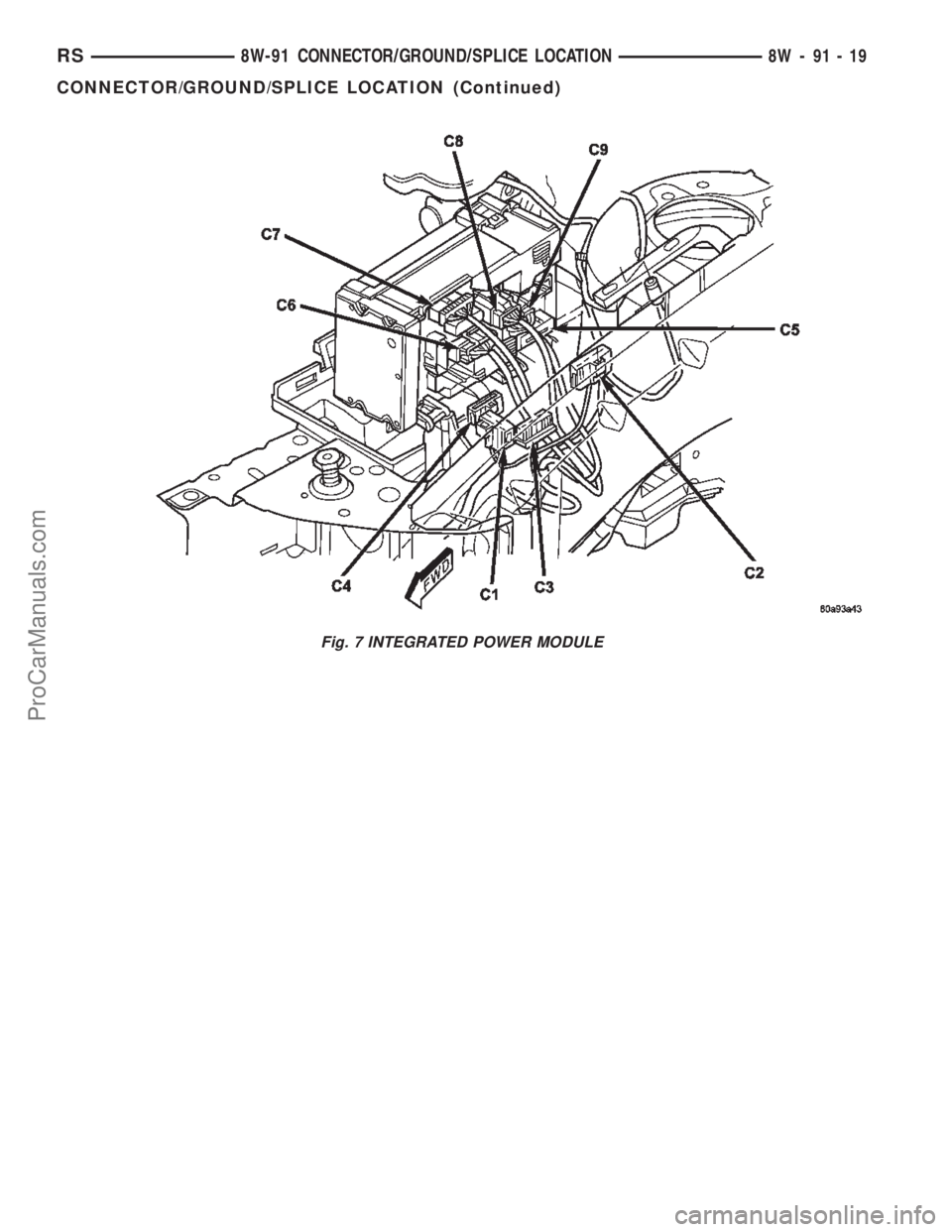

CHRYSLER CARAVAN 2002 Service Manual Fig. 7 INTEGRATED POWER MODULE RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-19 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1167 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 8 RIGHT FRONT WHEEL HOUSING 8W - 91 - 20 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1168 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 9 2.4 LITER ENGINE CONNECTORS REAR RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-21 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com
