Page 1137 of 2399

CHRYSLER CARAVAN 2002 Service Manual RIGHT LIFTGATE FLOOD LAMP - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 Z312 20BK/YL GROUND 2- - 3 M11 20YL/VT COURTESY LAMPS DRIVER RIGHT LOW BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z3

Page 1138 of 2399

CHRYSLER CARAVAN 2002 Service Manual RIGHT REAR LAMP ASSEMBLY - BLACK 6 WAY CAV CIRCUIT FUNCTION 1 L62 18WT/BR (EXCEPT BUILT-UP-EXPORT)RIGHT REAR TURN SIGNAL DRIVER 1 Z362 18BK/BR (BUILT-UP-EXPORT) GROUND 2 L62 18WT/BR (BUILT-UP-EXPORT)

Page 1139 of 2399

CHRYSLER CARAVAN 2002 Service Manual RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY 2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL RIGHT REMOTE RADIO SWITCH -

Page 1140 of 2399

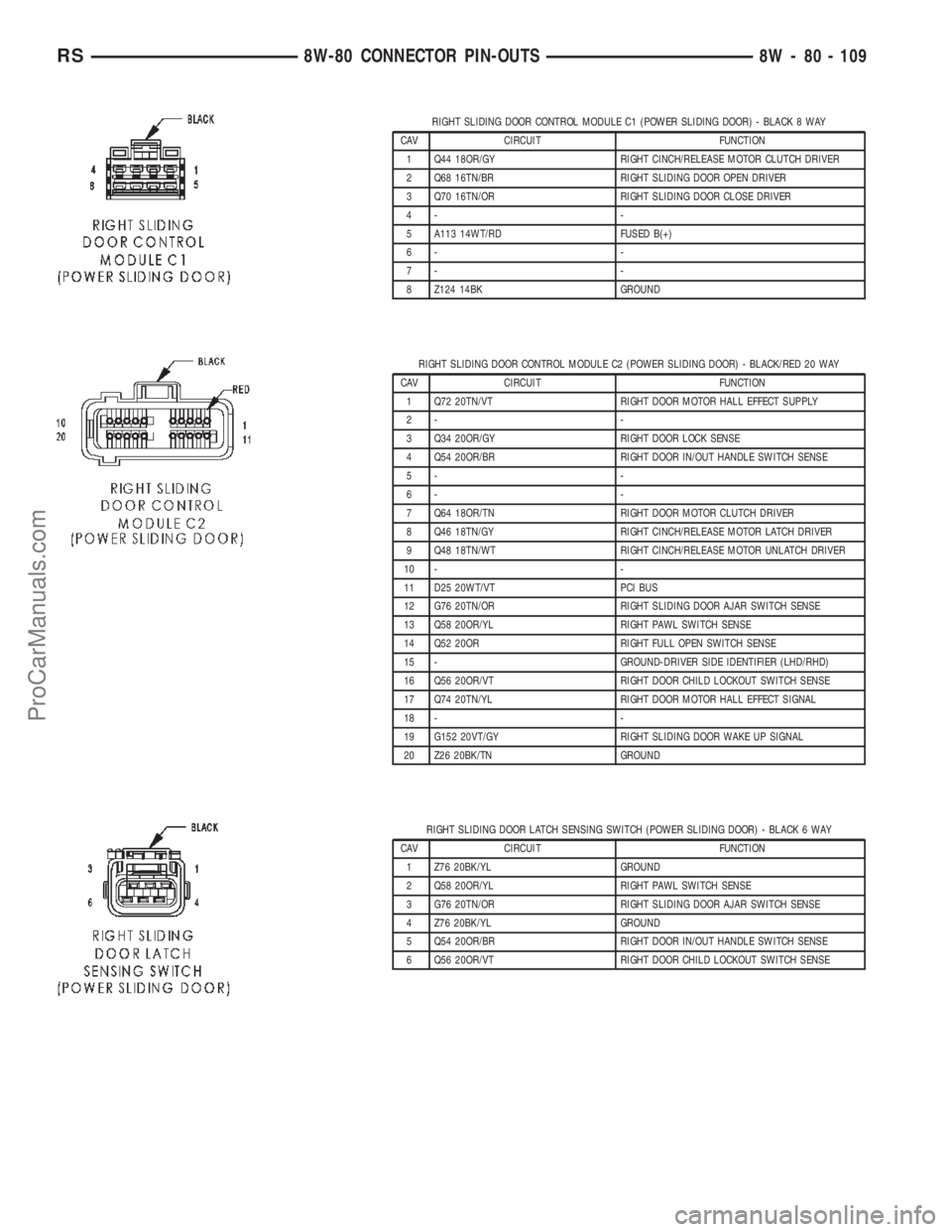

CHRYSLER CARAVAN 2002 Service Manual RIGHT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY CAV CIRCUIT FUNCTION 1 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER 2 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER 3 Q70 16

Page 1141 of 2399

CHRYSLER CARAVAN 2002 Service Manual RIGHT SLIDING DOOR LOCK MOTOR (POWER SLIDING DOOR) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER 2 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER 3 Q34 20OR/GY RIGHT DO

Page 1142 of 2399

CHRYSLER CARAVAN 2002 Service Manual RIGHT TURN SIGNAL LAMP (BUILT-UP-EXPORT) - ORANGE 2 WAY CAV CIRCUIT FUNCTION 1 Z344 16BR GROUND 2 L60 16YL RIGHT FRONT TURN SIGNAL DRIVER RIGHT VISOR/VANITY LAMP (PREMIUM/LUXURY) - BLACK 2 WAY CAV CIR

Page 1143 of 2399

CHRYSLER CARAVAN 2002 Service Manual SPEED CONTROL SERVO (GAS) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 V36 18VT/YL SPEED CONTROL VACUUM SOLENOID CONTROL 2 V35 18VT/OR SPEED CONTROL VENT SOLENOID CONTROL 3 V30 18VT/WT SPEED CONTROL BRAKE SWI

Page 1144 of 2399

CHRYSLER CARAVAN 2002 Service Manual TORQUE CONVERTER CLUTCH SOLENOID (ATX) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1- - 2 F202 18PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START) 3 K54 18DB/WT TORQUE CONVERTER CLUTCH SOLENOID CONTROL TRACTION C
