Page 2169 of 2399

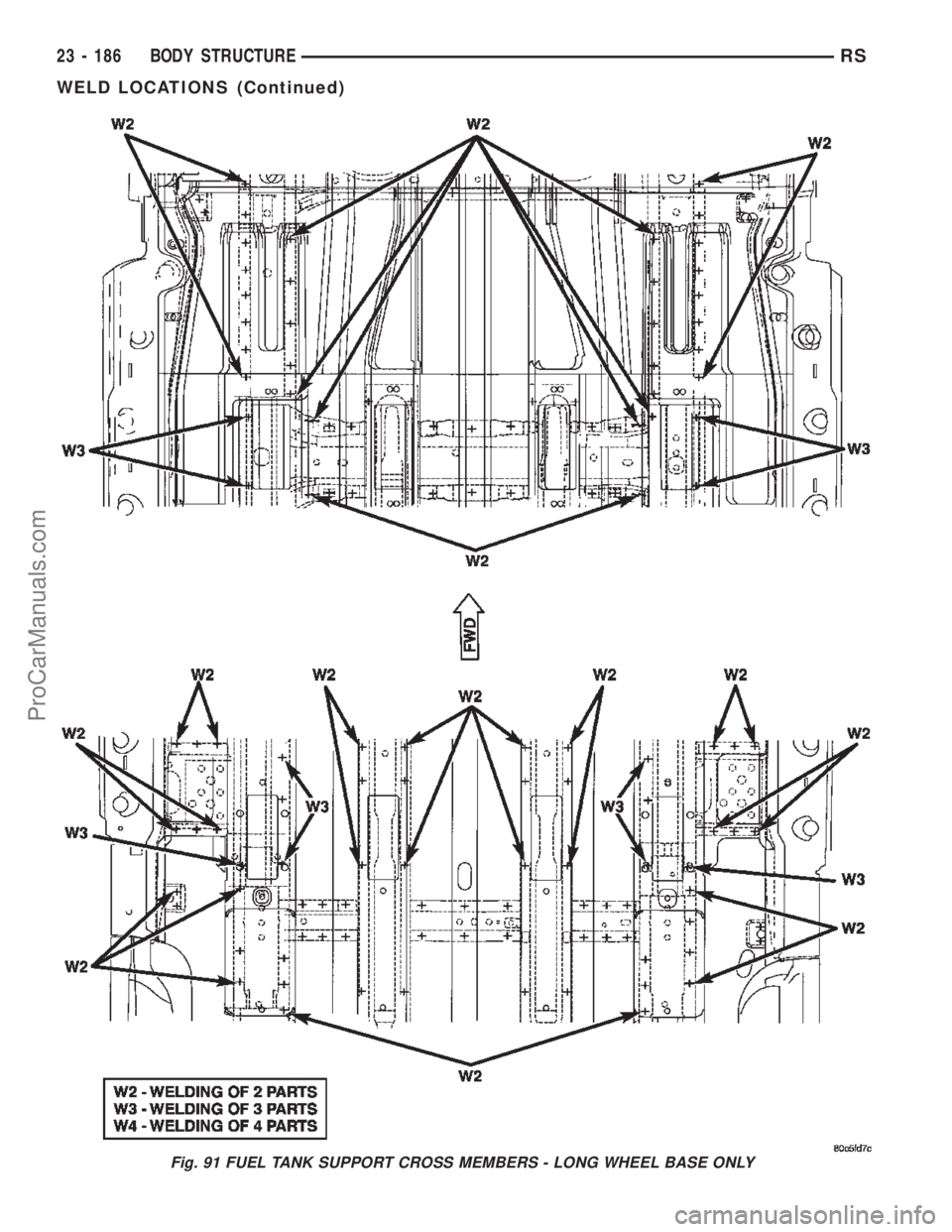

CHRYSLER CARAVAN 2002 Service Manual Fig. 91 FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY 23 - 186 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2170 of 2399

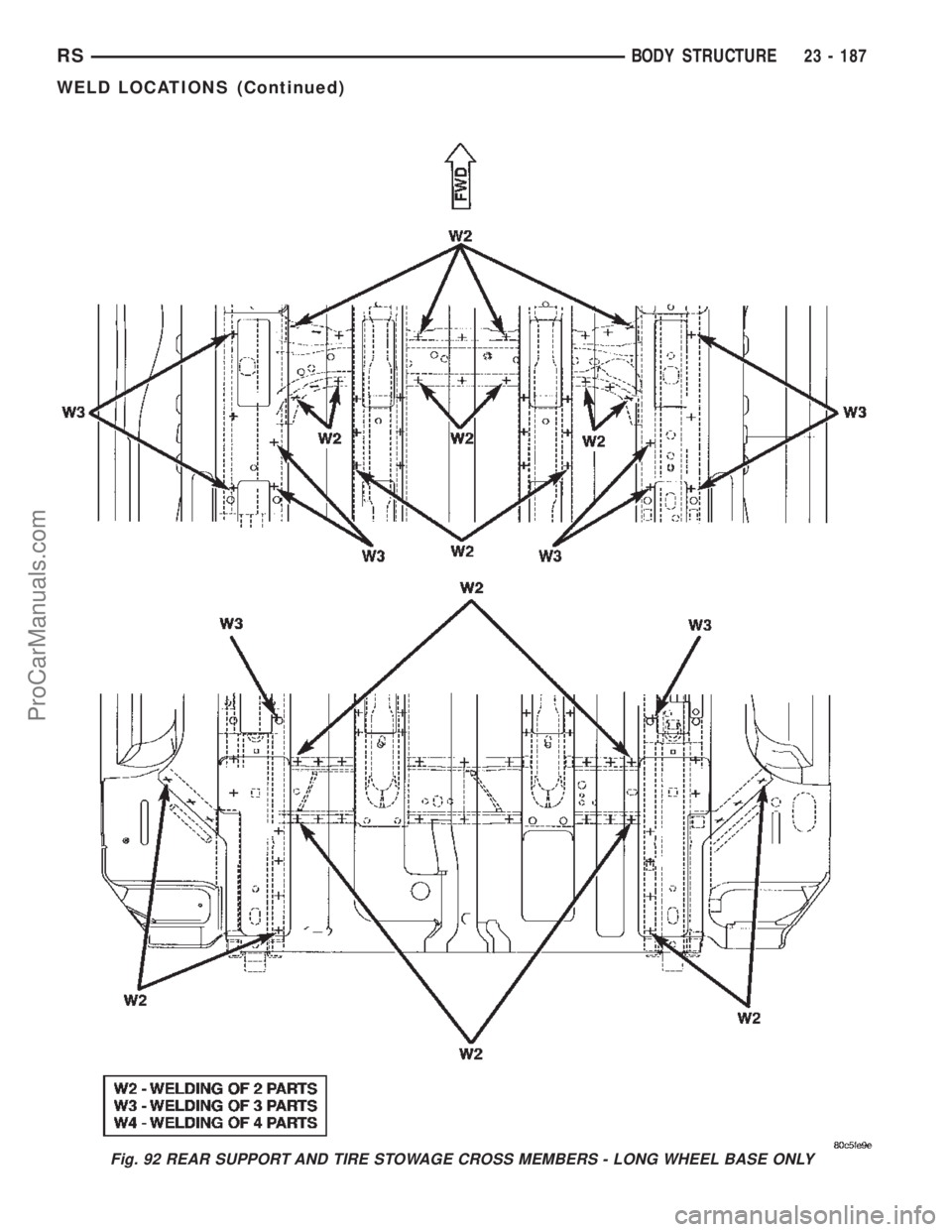

CHRYSLER CARAVAN 2002 Service Manual Fig. 92 REAR SUPPORT AND TIRE STOWAGE CROSS MEMBERS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 187 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2171 of 2399

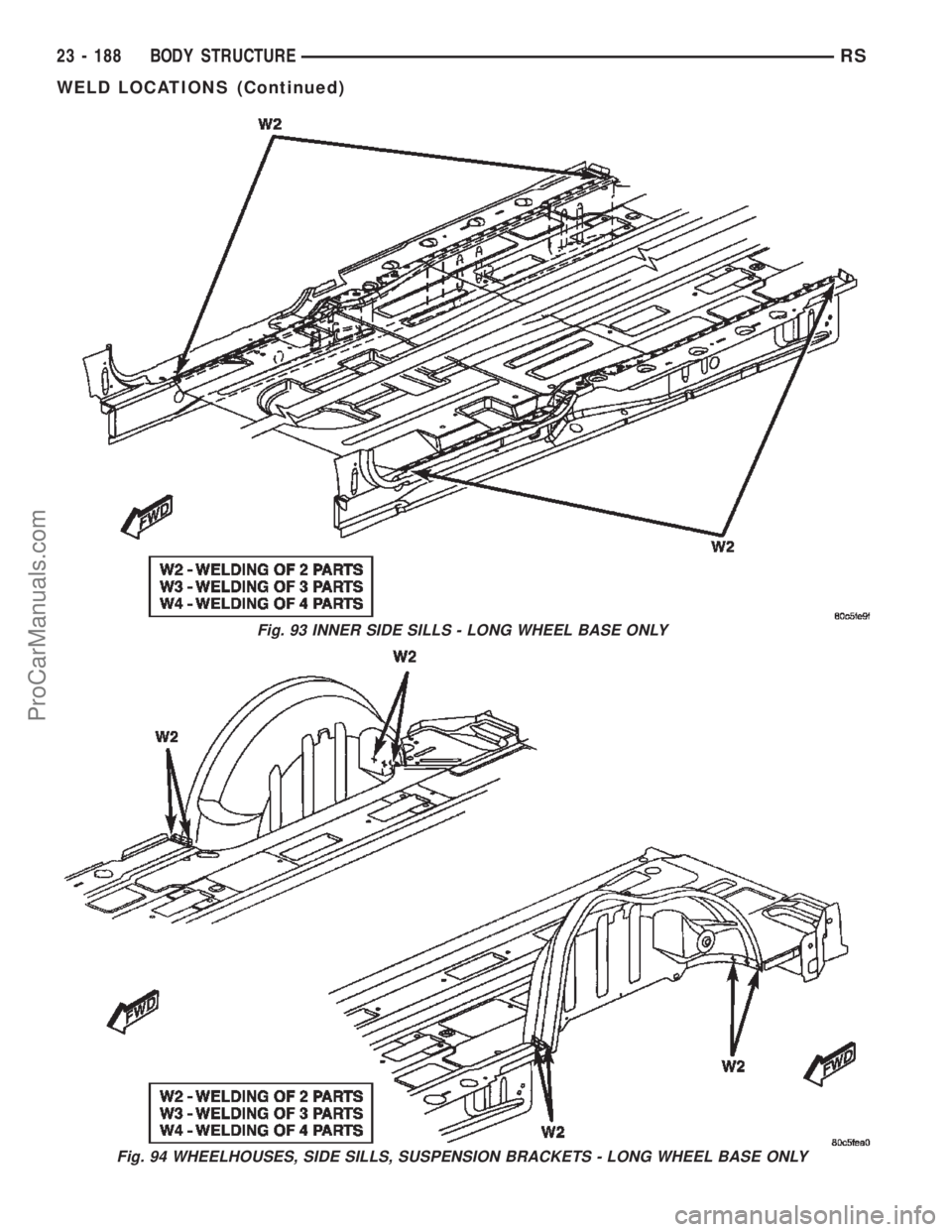

CHRYSLER CARAVAN 2002 Service Manual Fig. 93 INNER SIDE SILLS - LONG WHEEL BASE ONLY Fig. 94 WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY 23 - 188 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2172 of 2399

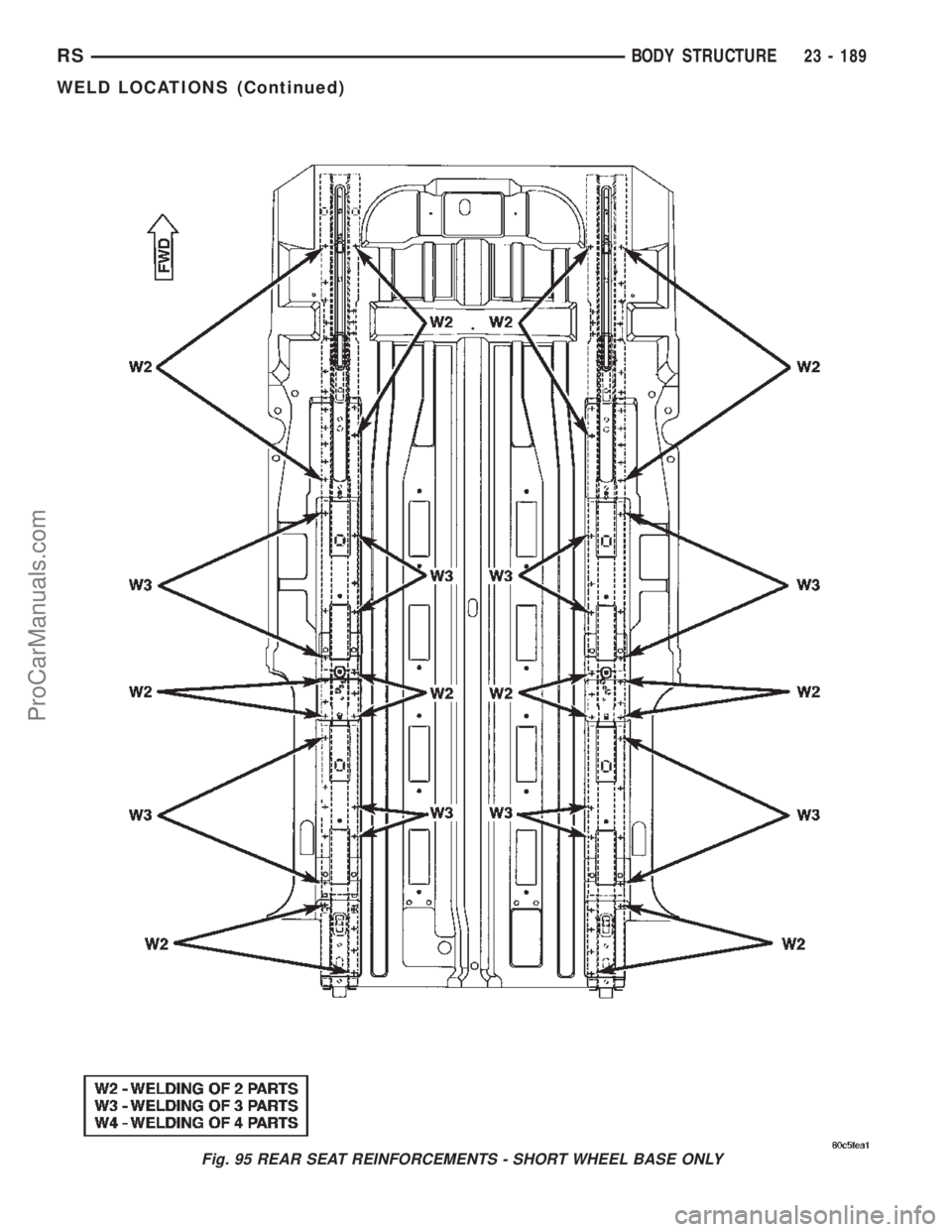

CHRYSLER CARAVAN 2002 Service Manual Fig. 95 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 189 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2173 of 2399

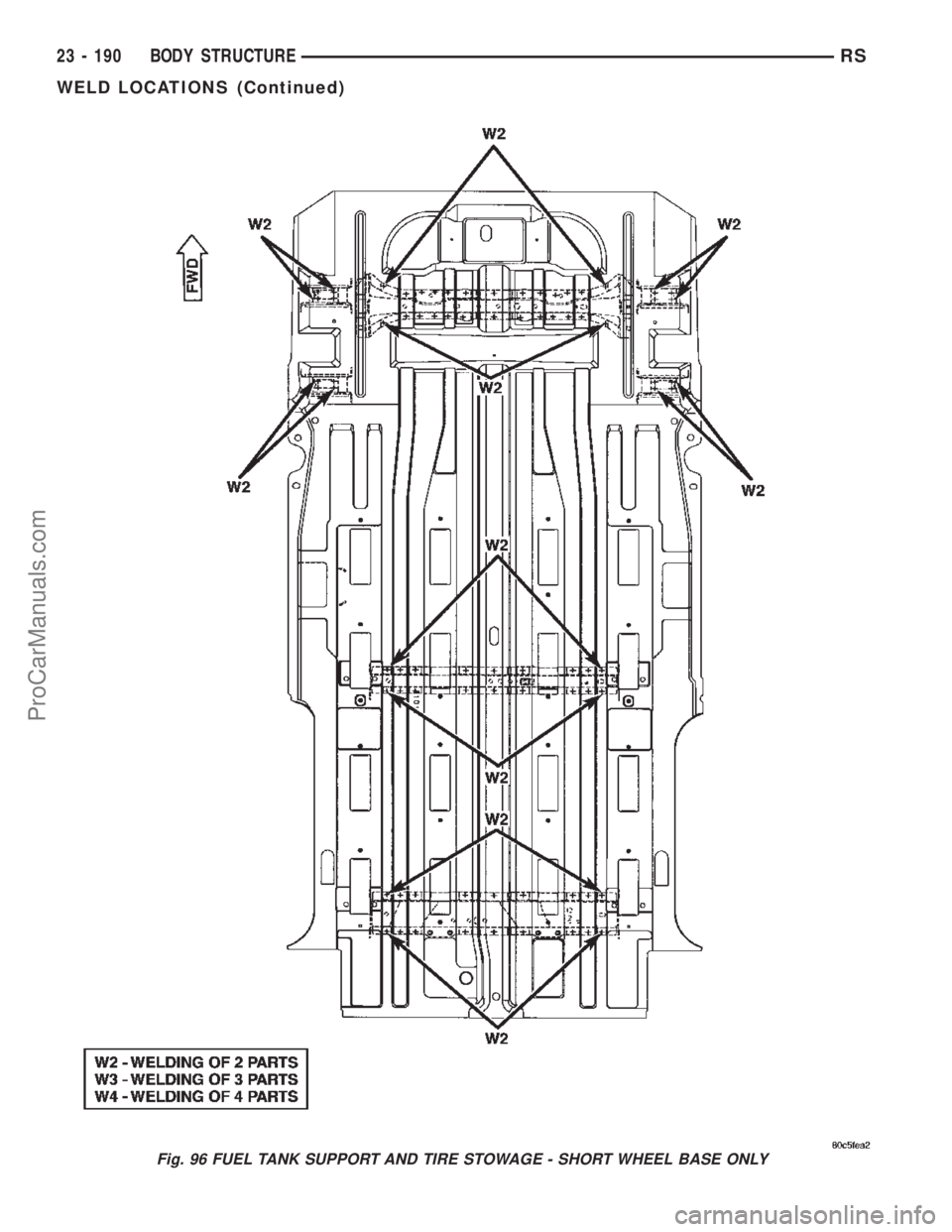

CHRYSLER CARAVAN 2002 Service Manual Fig. 96 FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY 23 - 190 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2174 of 2399

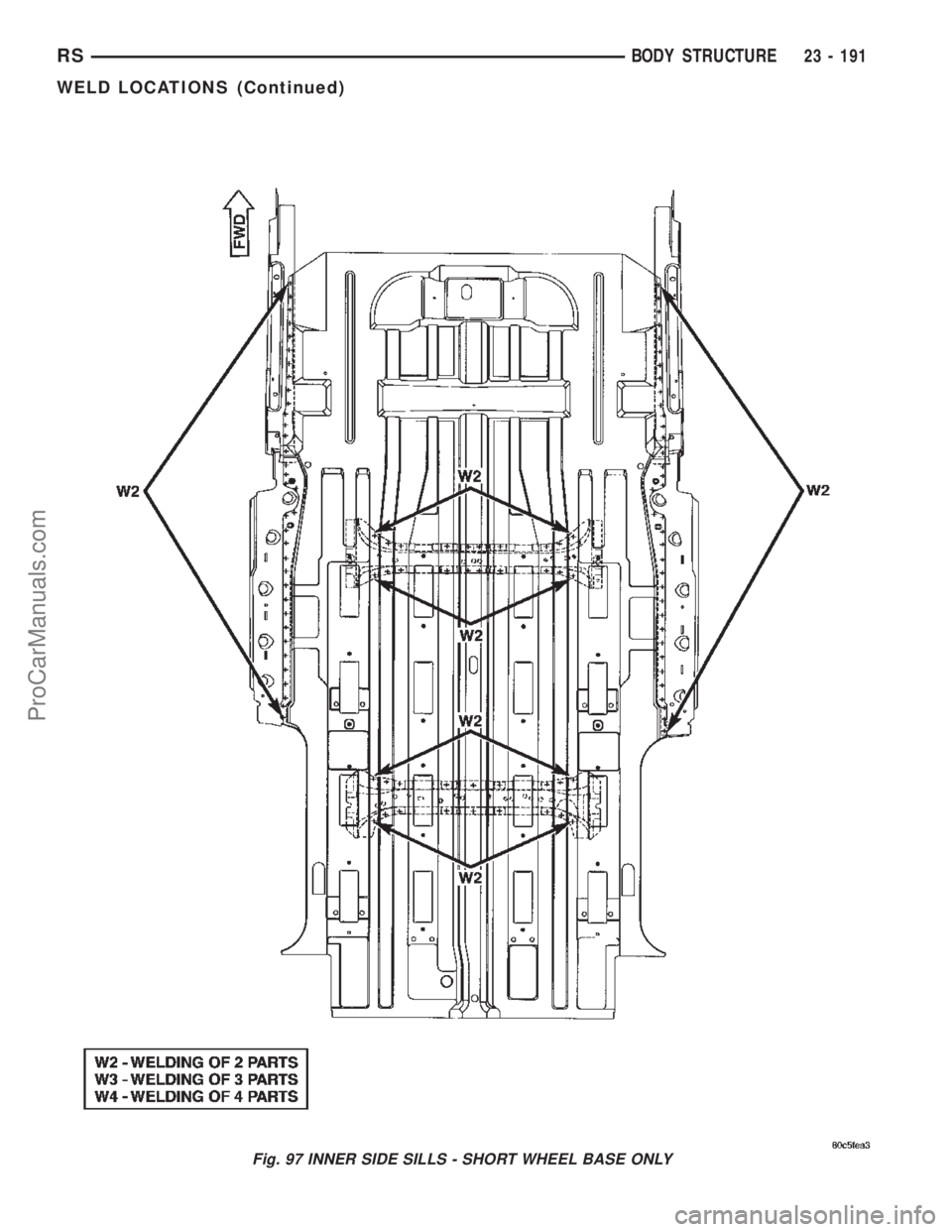

CHRYSLER CARAVAN 2002 Service Manual Fig. 97 INNER SIDE SILLS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 191 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2175 of 2399

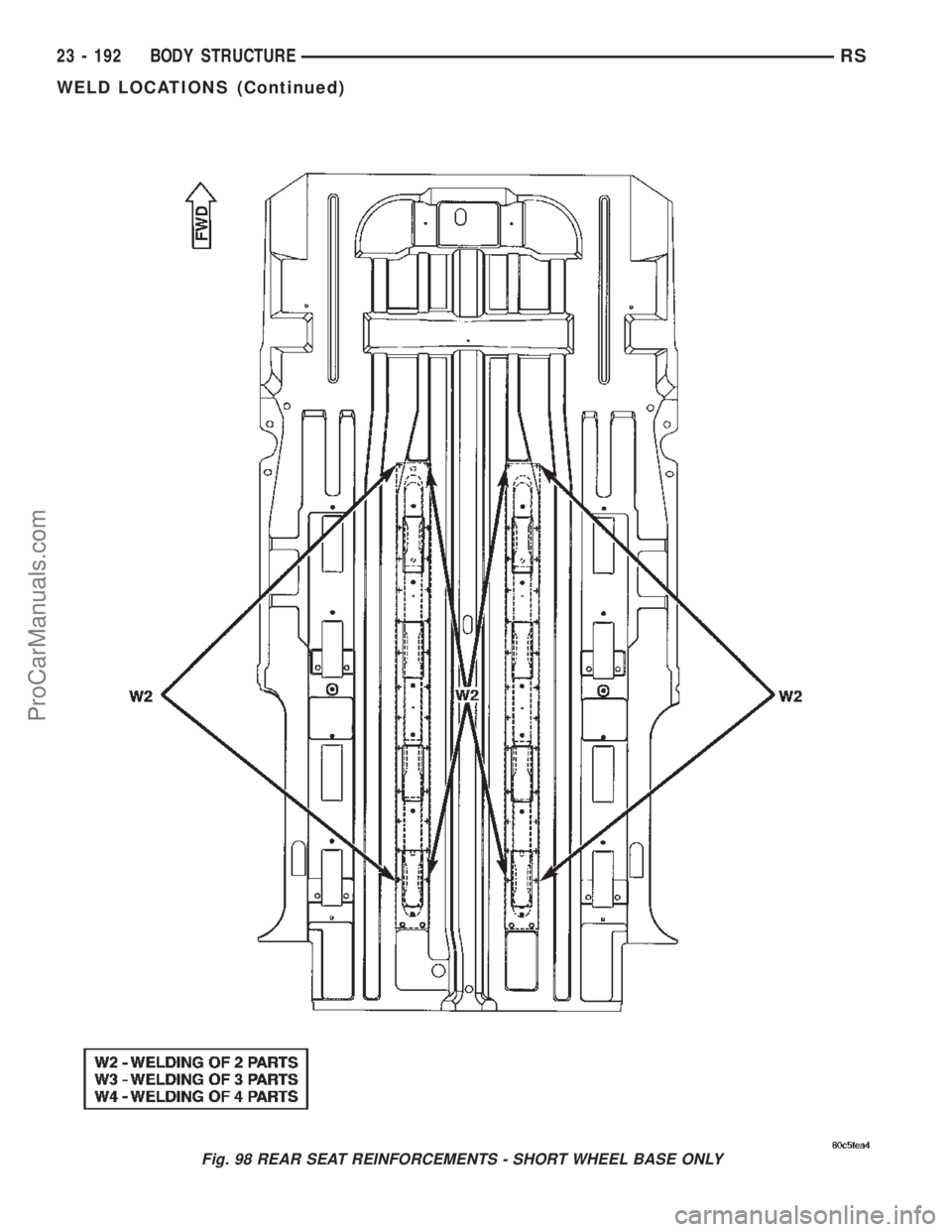

CHRYSLER CARAVAN 2002 Service Manual Fig. 98 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY 23 - 192 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2176 of 2399

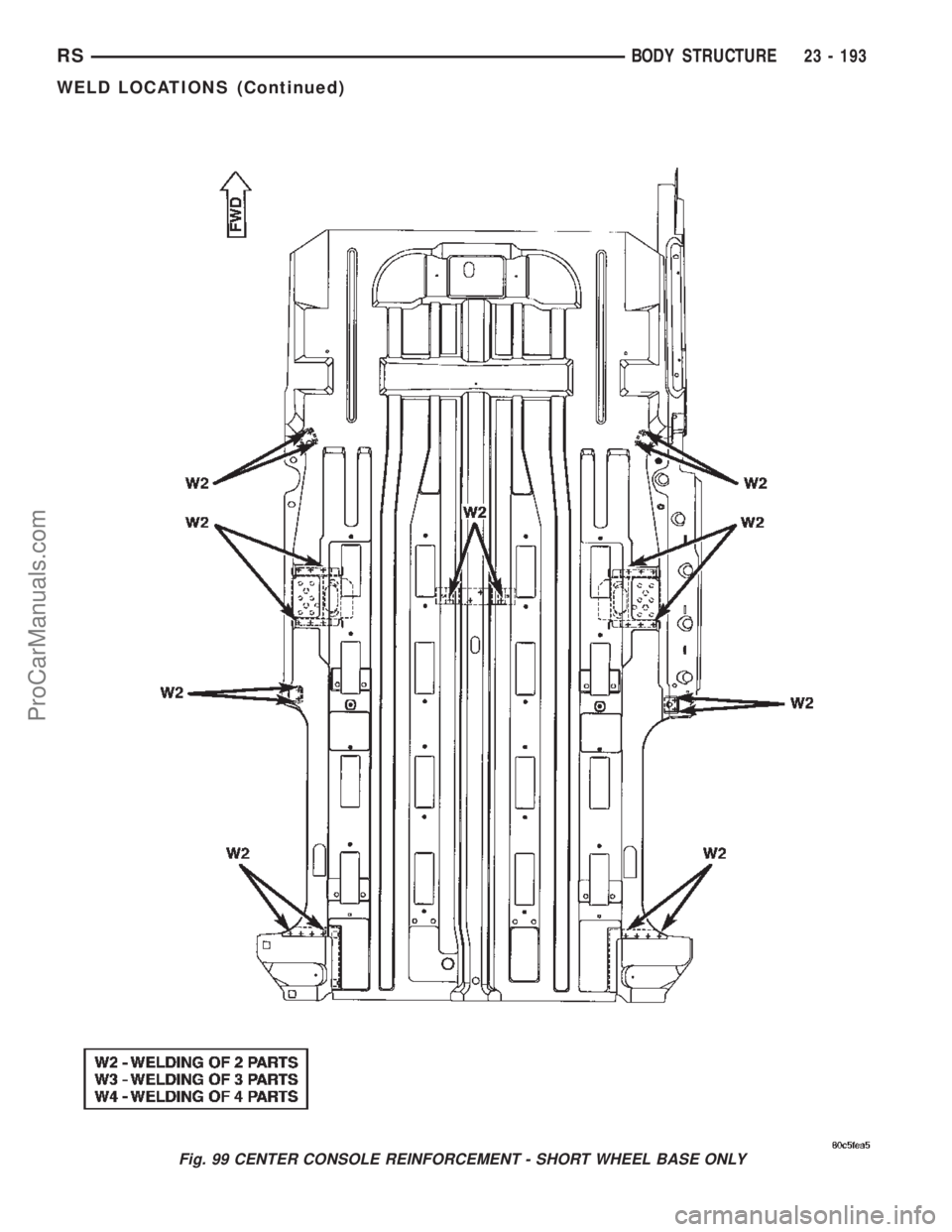

CHRYSLER CARAVAN 2002 Service Manual Fig. 99 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 193 WELD LOCATIONS (Continued) ProCarManuals.com
