CHRYSLER CARAVAN 2002 Service Manual DESCRIPTION FIGURE ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES 39 ROOF TOP JOINT & UPPER REAR SLIDING DOOR - LEFT AND RIGHT SIDES 40 ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND

Page 2106 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 5 METHODS OF APPLYING AUTO BODY SEALANT RSBODY STRUCTURE23 - 123 SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2107 of 2399

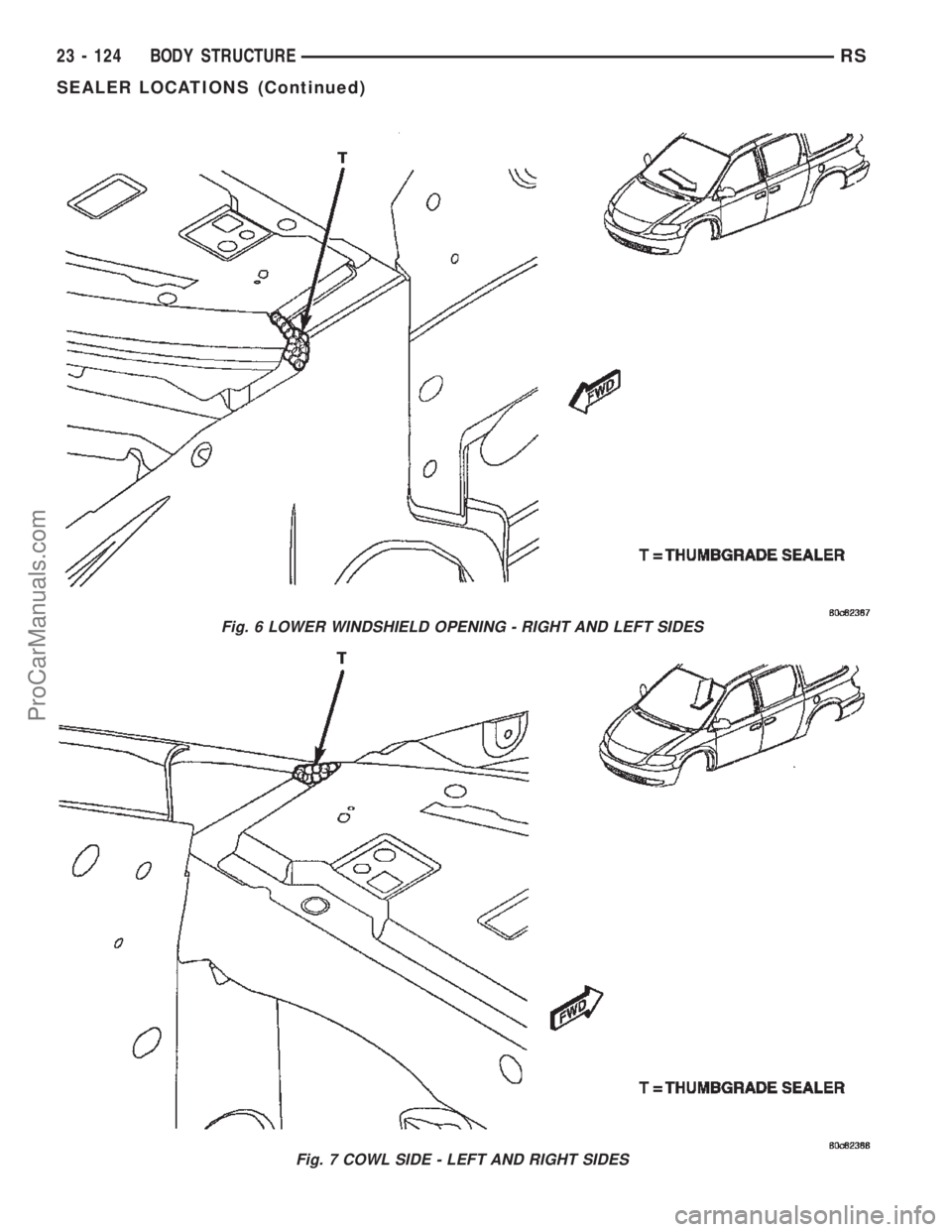

CHRYSLER CARAVAN 2002 Service Manual Fig. 6 LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES Fig. 7 COWL SIDE - LEFT AND RIGHT SIDES 23 - 124 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2108 of 2399

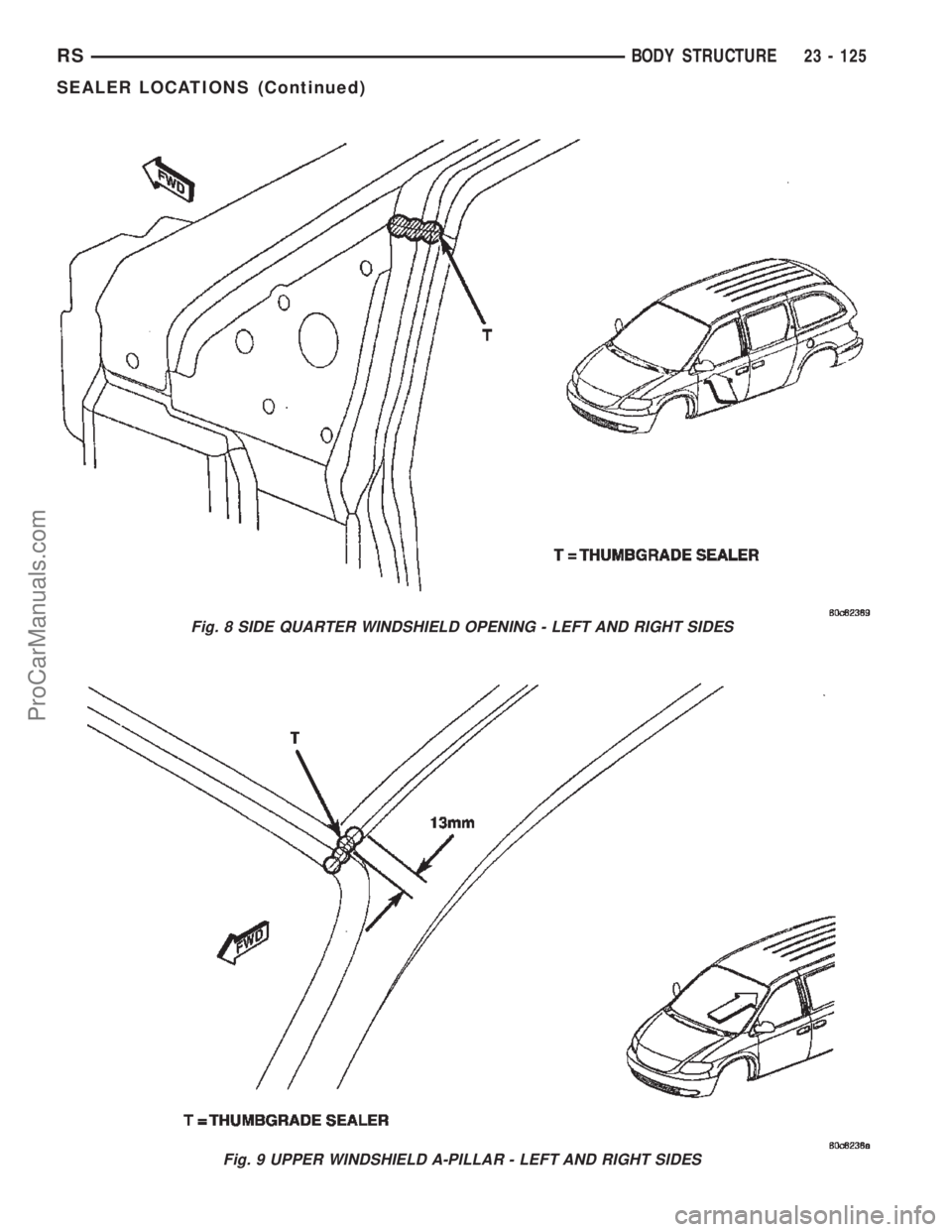

CHRYSLER CARAVAN 2002 Service Manual Fig. 8 SIDE QUARTER WINDSHIELD OPENING - LEFT AND RIGHT SIDES Fig. 9 UPPER WINDSHIELD A-PILLAR - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 125 SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2109 of 2399

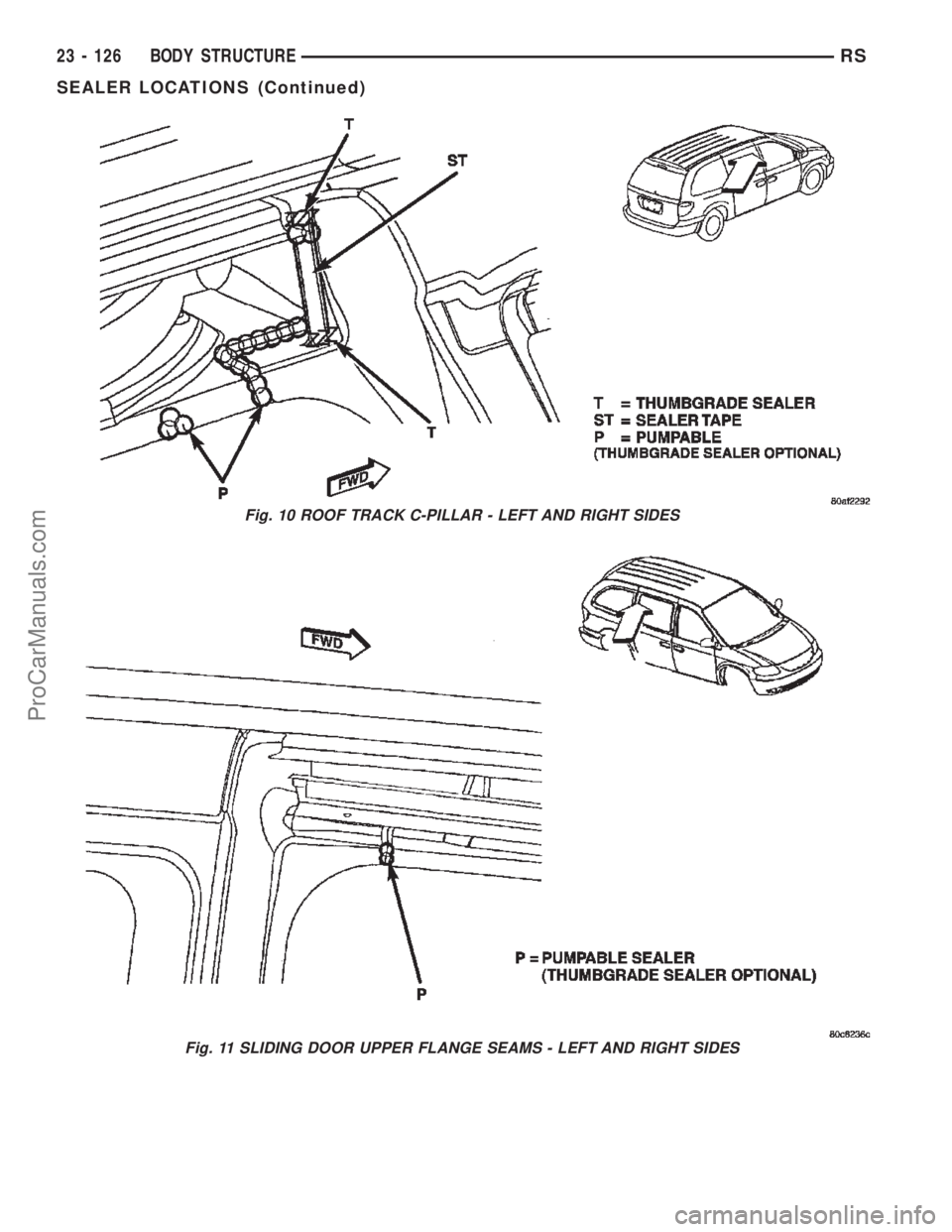

CHRYSLER CARAVAN 2002 Service Manual Fig. 10 ROOF TRACK C-PILLAR - LEFT AND RIGHT SIDES Fig. 11 SLIDING DOOR UPPER FLANGE SEAMS - LEFT AND RIGHT SIDES 23 - 126 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2110 of 2399

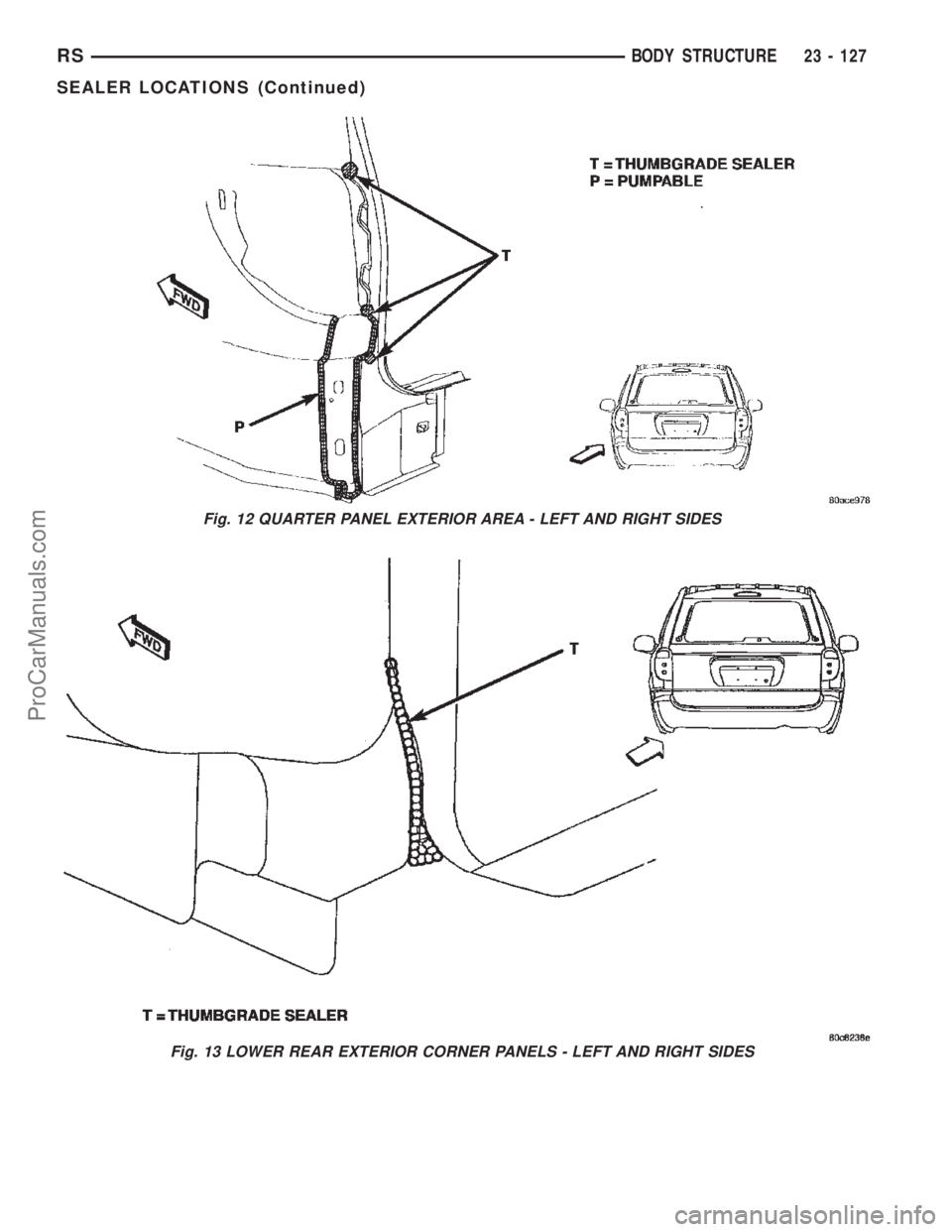

CHRYSLER CARAVAN 2002 Service Manual Fig. 12 QUARTER PANEL EXTERIOR AREA - LEFT AND RIGHT SIDES Fig. 13 LOWER REAR EXTERIOR CORNER PANELS - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 127 SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2111 of 2399

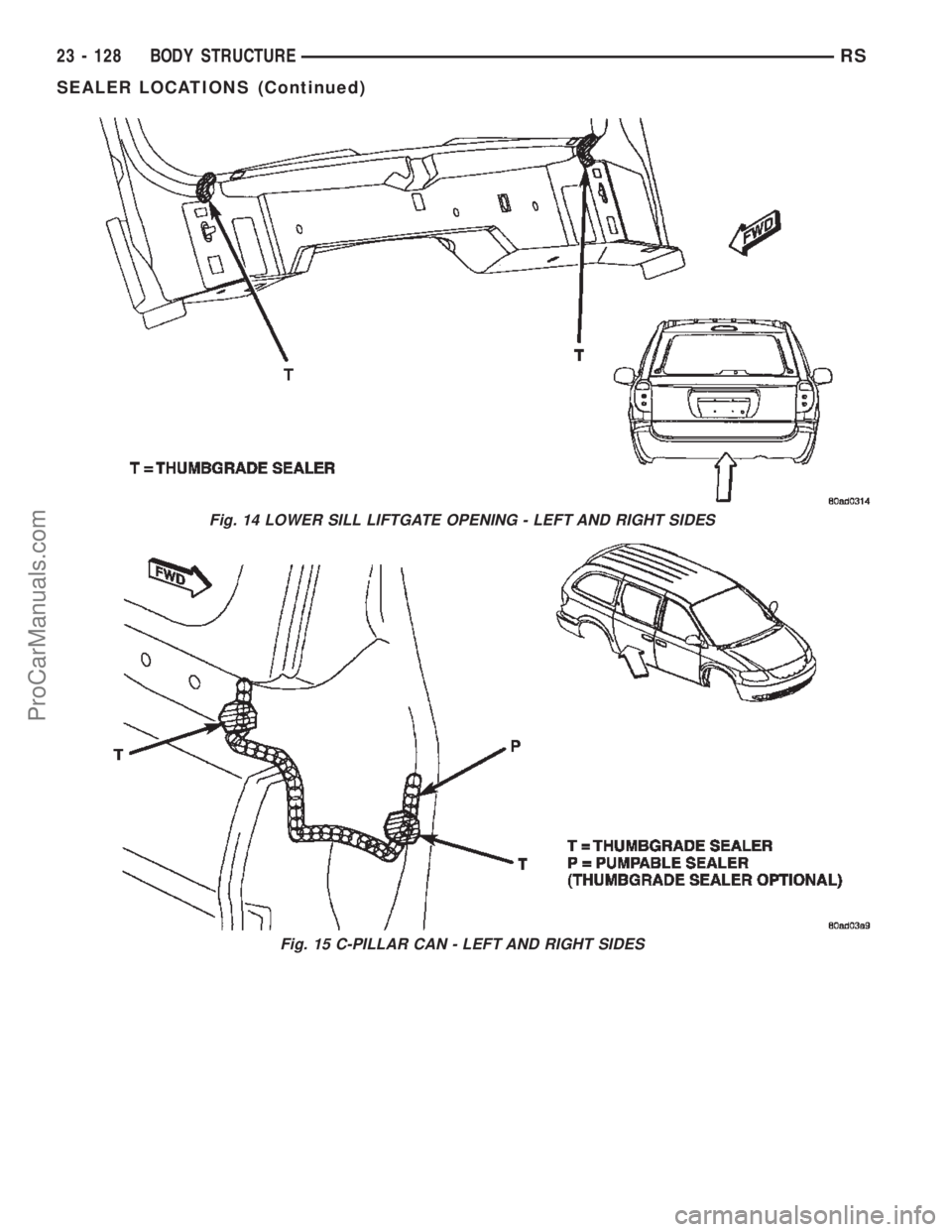

CHRYSLER CARAVAN 2002 Service Manual Fig. 14 LOWER SILL LIFTGATE OPENING - LEFT AND RIGHT SIDES Fig. 15 C-PILLAR CAN - LEFT AND RIGHT SIDES 23 - 128 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2112 of 2399

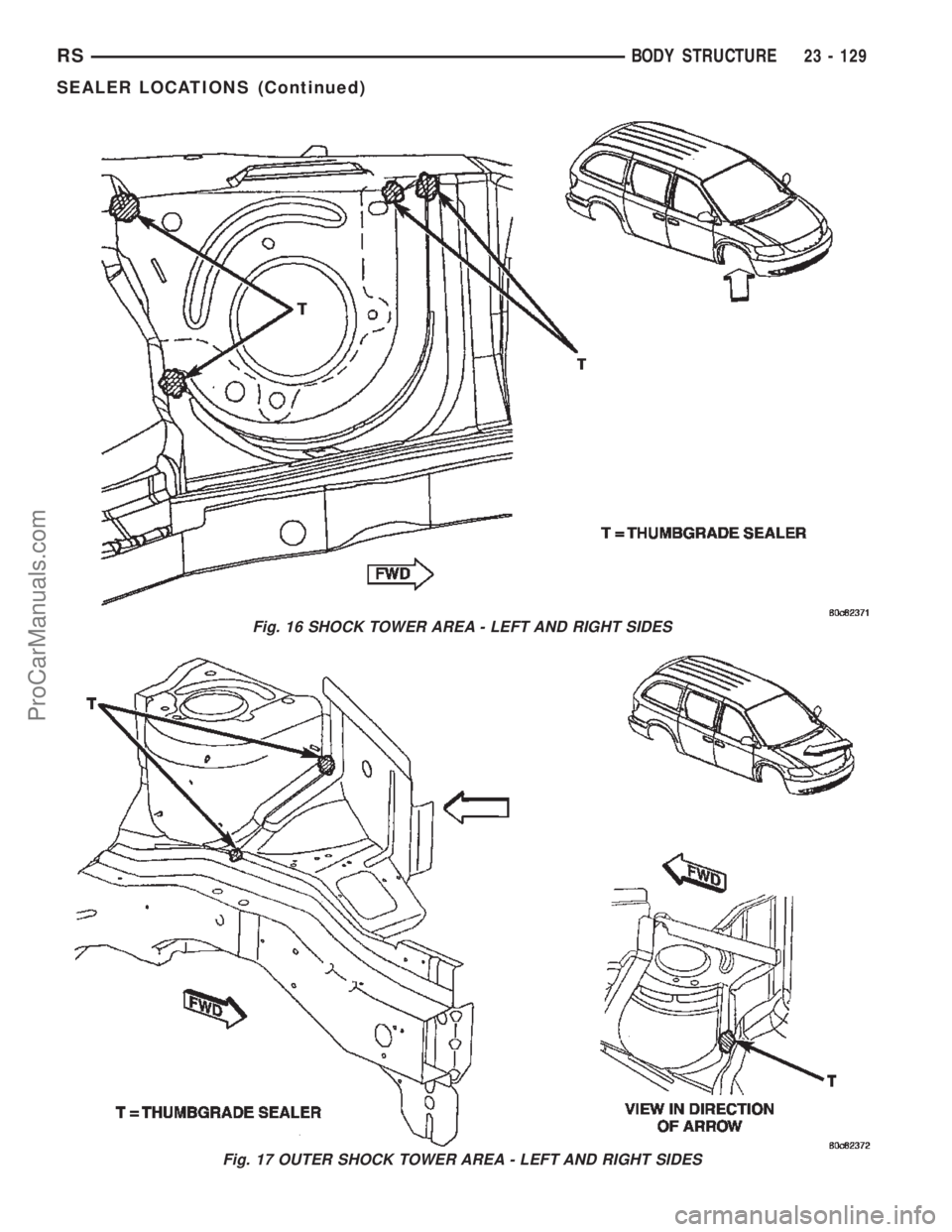

CHRYSLER CARAVAN 2002 Service Manual Fig. 16 SHOCK TOWER AREA - LEFT AND RIGHT SIDES Fig. 17 OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 129 SEALER LOCATIONS (Continued) ProCarManuals.com
