Page 1057 of 2399

CHRYSLER CARAVAN 2002 Service Manual C300 (RHD) - BLACK (LEFT DOOR SIDE) CAV CIRCUIT 1 G75 20VT 2 Z822 20BK/BR 3 X53 20DG 4 X55 20DG/BR 5 G161 20VT/DG 6 P1 20TN/LG 7 P3 20TN/WT 8 F304 12WT/PK 9- 10 - C300 (RHD) - BLACK (BODY SIDE) CAV CI

Page 1058 of 2399

CHRYSLER CARAVAN 2002 Service Manual C302 - LT. GRAY (RIGHT DOOR SIDE) CAV CIRCUIT 1 M21 20YL/BR 2 X13 16DG/GY 3 X15 16GY/DG 4 X154 20GY/YL 5 X156 20GY/LB 6 G162 20VT/WT (POWER LOCKS) 7 G200 20VT/BR (RHD) (MEMORY) 8 G920 20VT/YL (RHD) (M

Page 1059 of 2399

CHRYSLER CARAVAN 2002 Service Manual C303 (LHD) - BLACK (BODY SIDE) CAV CIRCUIT 1 G74 20VT/WT 2 Z822 20BK/BR 3 X54 20GY 4 X56 20GY/BR 5 G160 20VT/LG 6 P2 20TN/GY 7 P4 20TN/BR 8 F304 18GY/PK (EXCEPT POWER WINDOWS) 8 F304 12WT/PK (POWER WI

Page 1060 of 2399

CHRYSLER CARAVAN 2002 Service Manual C304 - YELLOW (BODY SIDE) CAV CIRCUIT 1 R54 18LB/YL (RHD) 1 R53 18LG/YL (LHD) 2 R56 18LB/DG (RHD) 2 R55 18LG/DG (LHD) 3 R31 18LG/OR 4 R33 18LG/WT C304 - YELLOW (SEAT SIDE) CAV CIRCUIT 1 R54 18LB/YL (R

Page 1061 of 2399

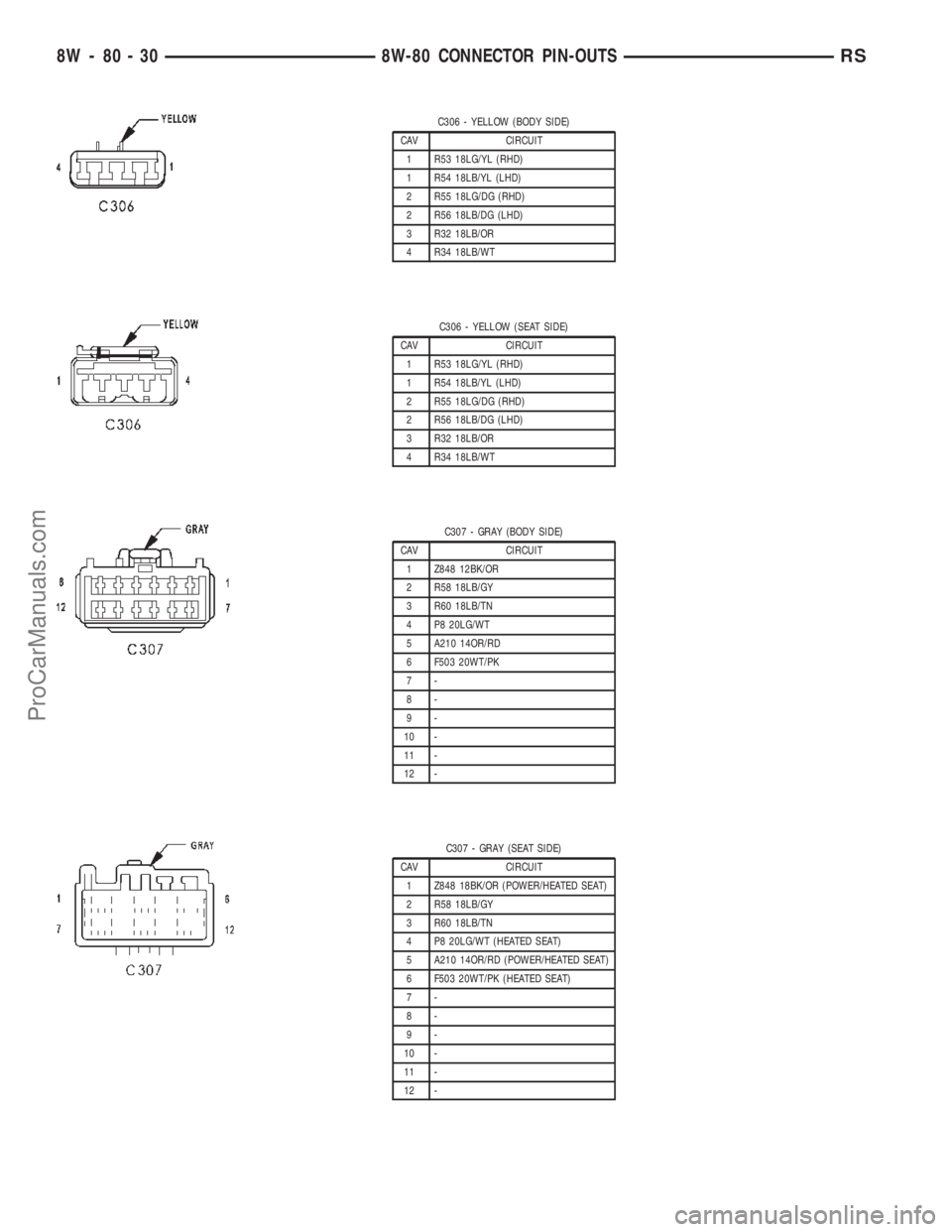

CHRYSLER CARAVAN 2002 Service Manual C306 - YELLOW (BODY SIDE) CAV CIRCUIT 1 R53 18LG/YL (RHD) 1 R54 18LB/YL (LHD) 2 R55 18LG/DG (RHD) 2 R56 18LB/DG (LHD) 3 R32 18LB/OR 4 R34 18LB/WT C306 - YELLOW (SEAT SIDE) CAV CIRCUIT 1 R53 18LG/YL (R

Page 1062 of 2399

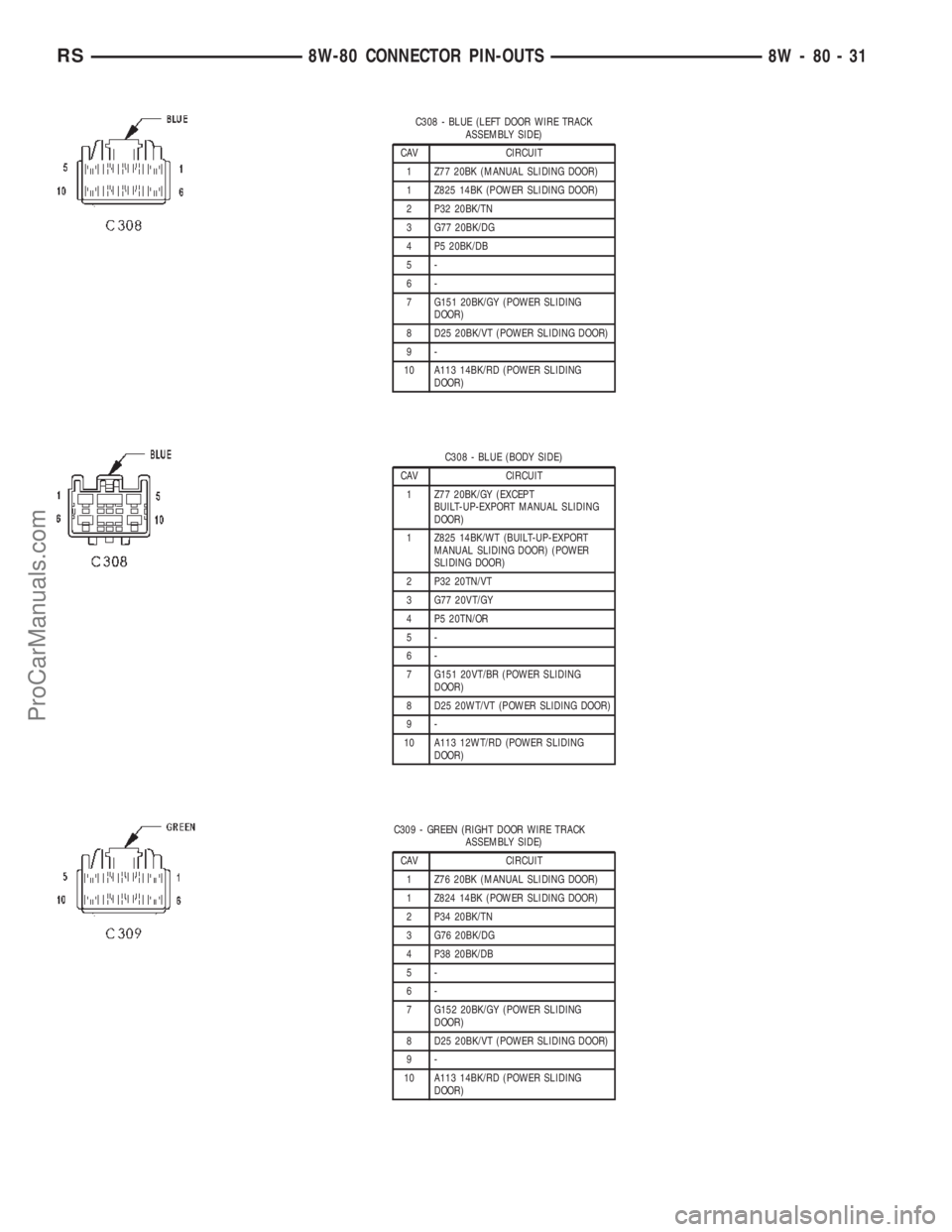

CHRYSLER CARAVAN 2002 Service Manual C308 - BLUE (LEFT DOOR WIRE TRACK ASSEMBLY SIDE) CAV CIRCUIT 1 Z77 20BK (MANUAL SLIDING DOOR) 1 Z825 14BK (POWER SLIDING DOOR) 2 P32 20BK/TN 3 G77 20BK/DG 4 P5 20BK/DB 5- 6- 7 G151 20BK/GY (POWER SLID

Page 1063 of 2399

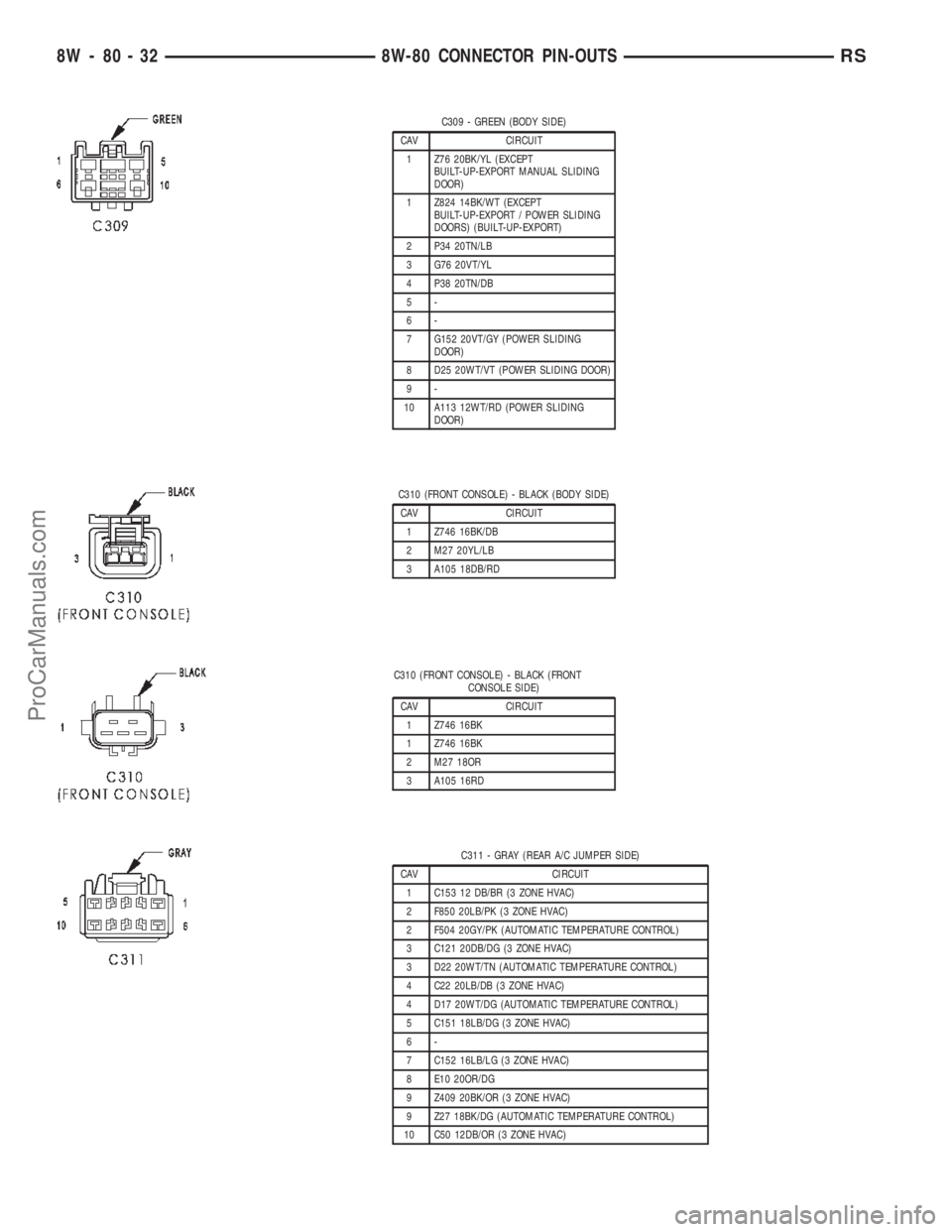

CHRYSLER CARAVAN 2002 Service Manual C309 - GREEN (BODY SIDE) CAV CIRCUIT 1 Z76 20BK/YL (EXCEPT BUILT-UP-EXPORT MANUAL SLIDING DOOR) 1 Z824 14BK/WT (EXCEPT BUILT-UP-EXPORT / POWER SLIDING DOORS) (BUILT-UP-EXPORT) 2 P34 20TN/LB 3 G76 20VT

Page 1064 of 2399

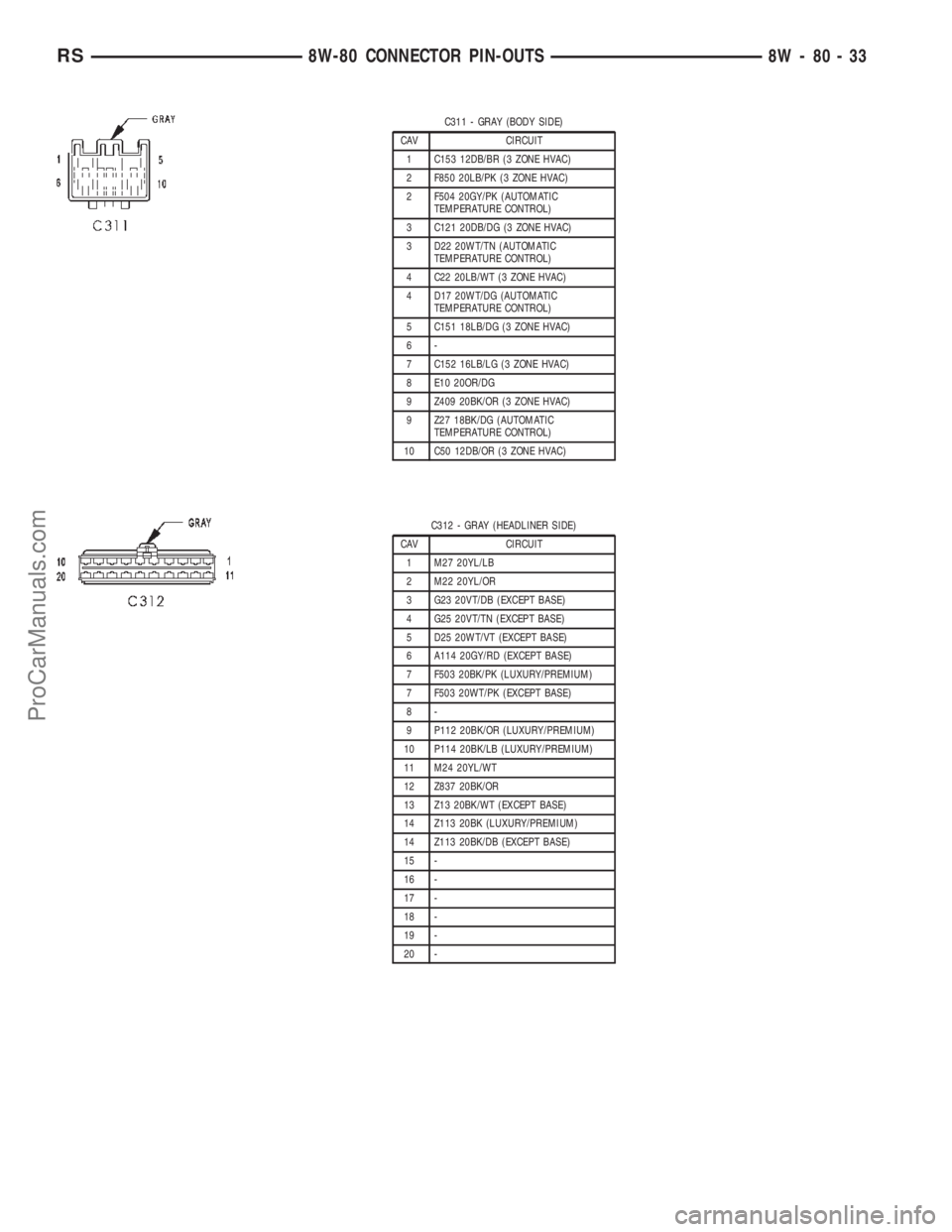

CHRYSLER CARAVAN 2002 Service Manual C311 - GRAY (BODY SIDE) CAV CIRCUIT 1 C153 12DB/BR (3 ZONE HVAC) 2 F850 20LB/PK (3 ZONE HVAC) 2 F504 20GY/PK (AUTOMATIC TEMPERATURE CONTROL) 3 C121 20DB/DG (3 ZONE HVAC) 3 D22 20WT/TN (AUTOMATIC TEMPE
