Page 2129 of 2399

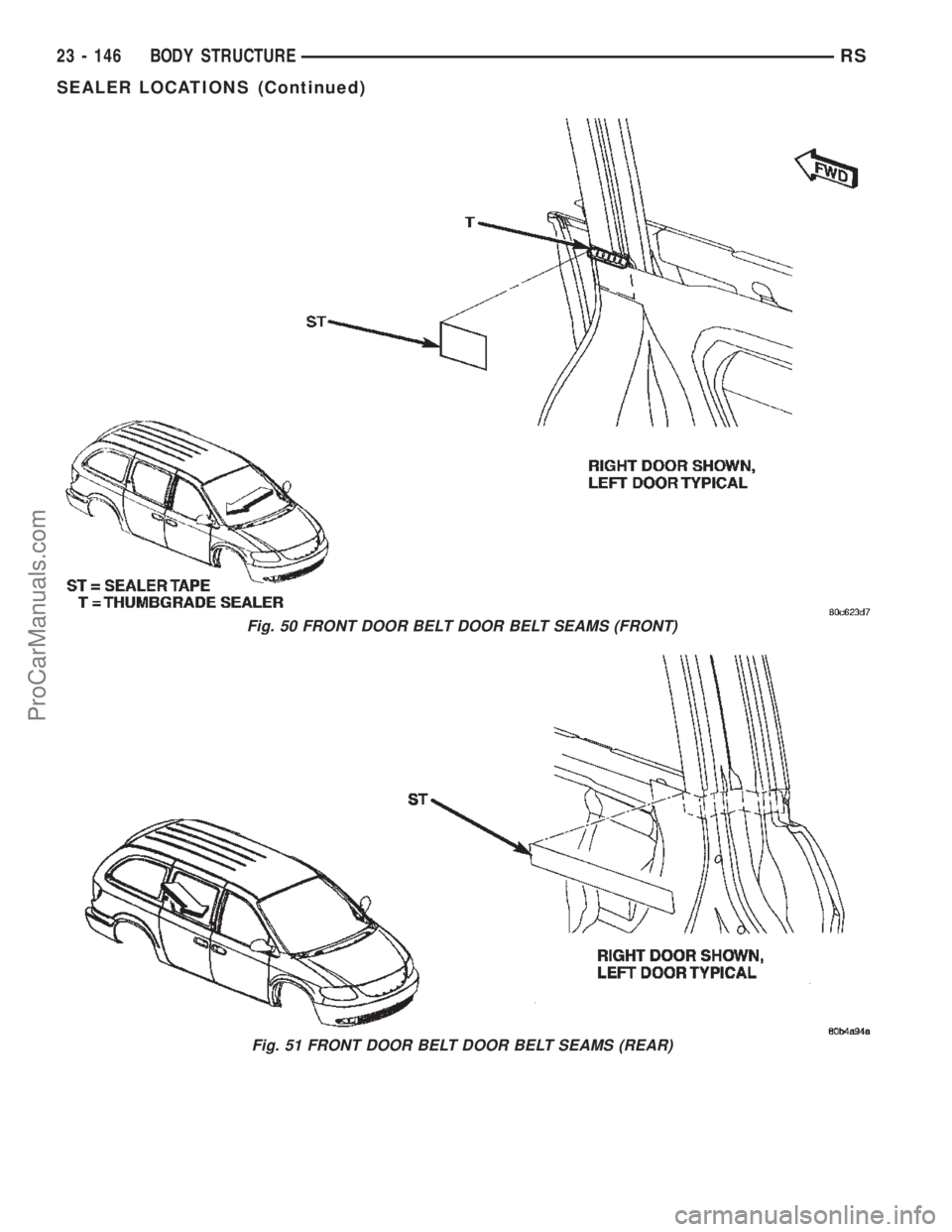

CHRYSLER CARAVAN 2002 Service Manual Fig. 50 FRONT DOOR BELT DOOR BELT SEAMS (FRONT) Fig. 51 FRONT DOOR BELT DOOR BELT SEAMS (REAR) 23 - 146 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2130 of 2399

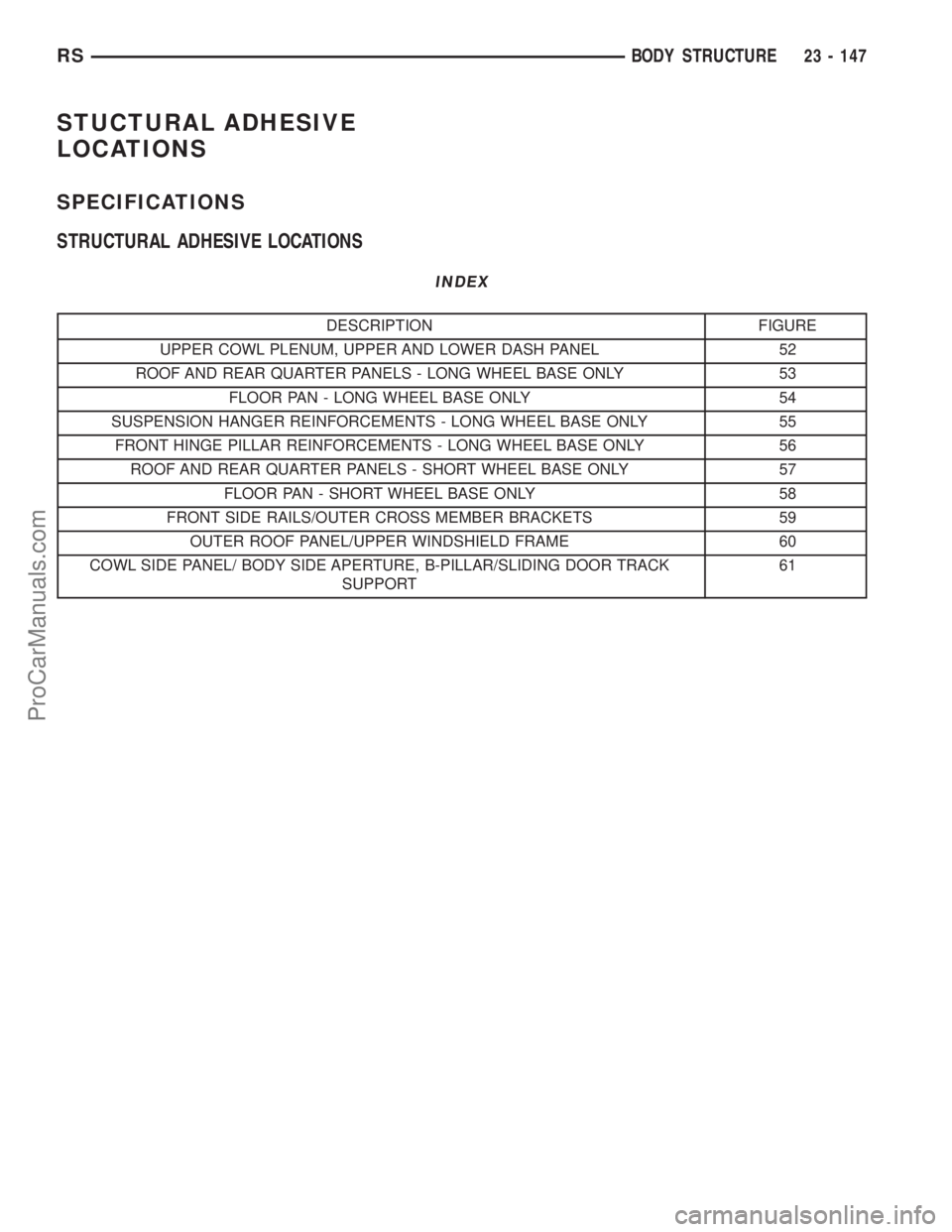

CHRYSLER CARAVAN 2002 Service Manual STUCTURAL ADHESIVE LOCATIONS SPECIFICATIONS STRUCTURAL ADHESIVE LOCATIONS INDEX DESCRIPTION FIGURE UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL 52 ROOF AND REAR QUARTER PANELS - LONG WHEEL BASE ONLY

Page 2131 of 2399

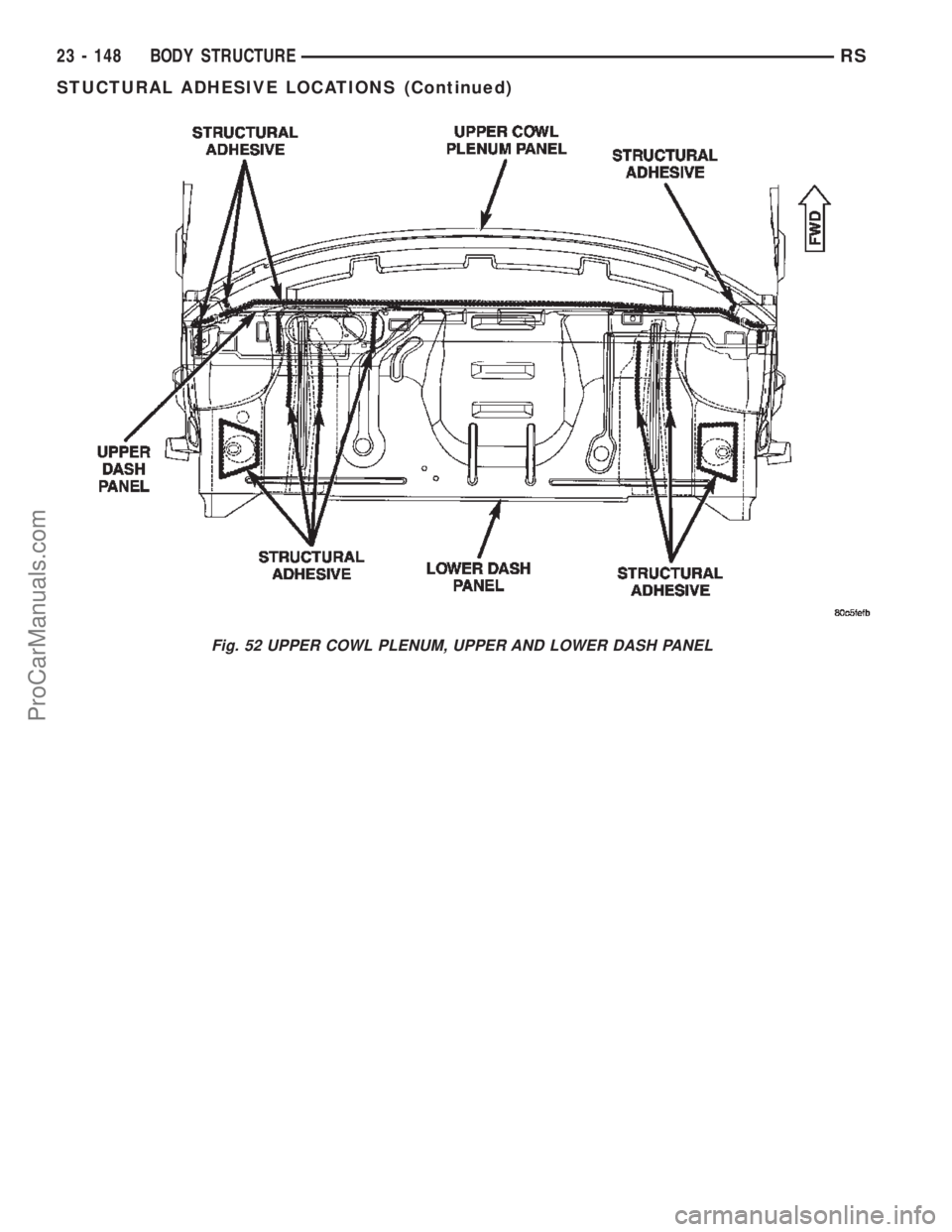

CHRYSLER CARAVAN 2002 Service Manual Fig. 52 UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL 23 - 148 BODY STRUCTURERS STUCTURAL ADHESIVE LOCATIONS (Continued) ProCarManuals.com

Page 2132 of 2399

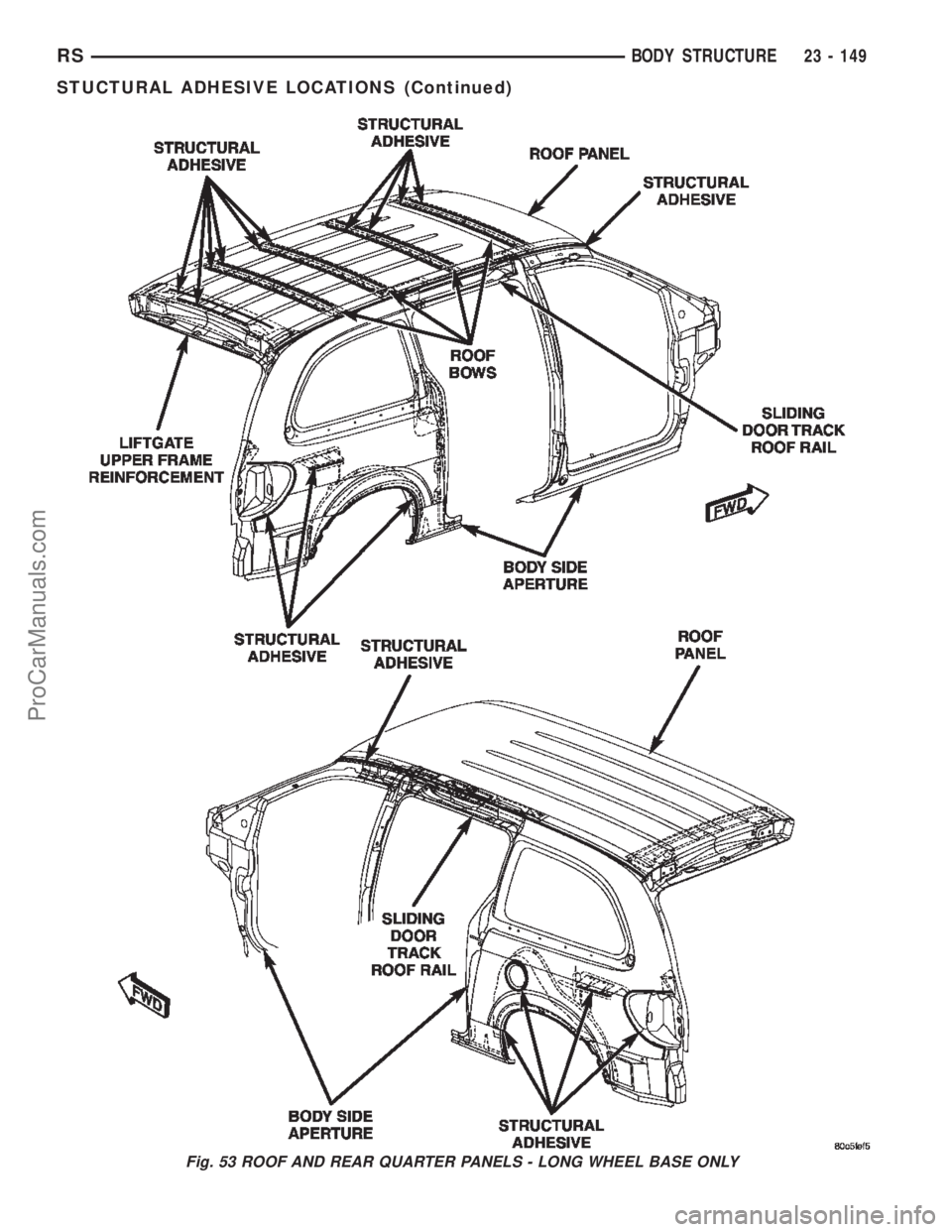

CHRYSLER CARAVAN 2002 Service Manual Fig. 53 ROOF AND REAR QUARTER PANELS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 149 STUCTURAL ADHESIVE LOCATIONS (Continued) ProCarManuals.com

Page 2133 of 2399

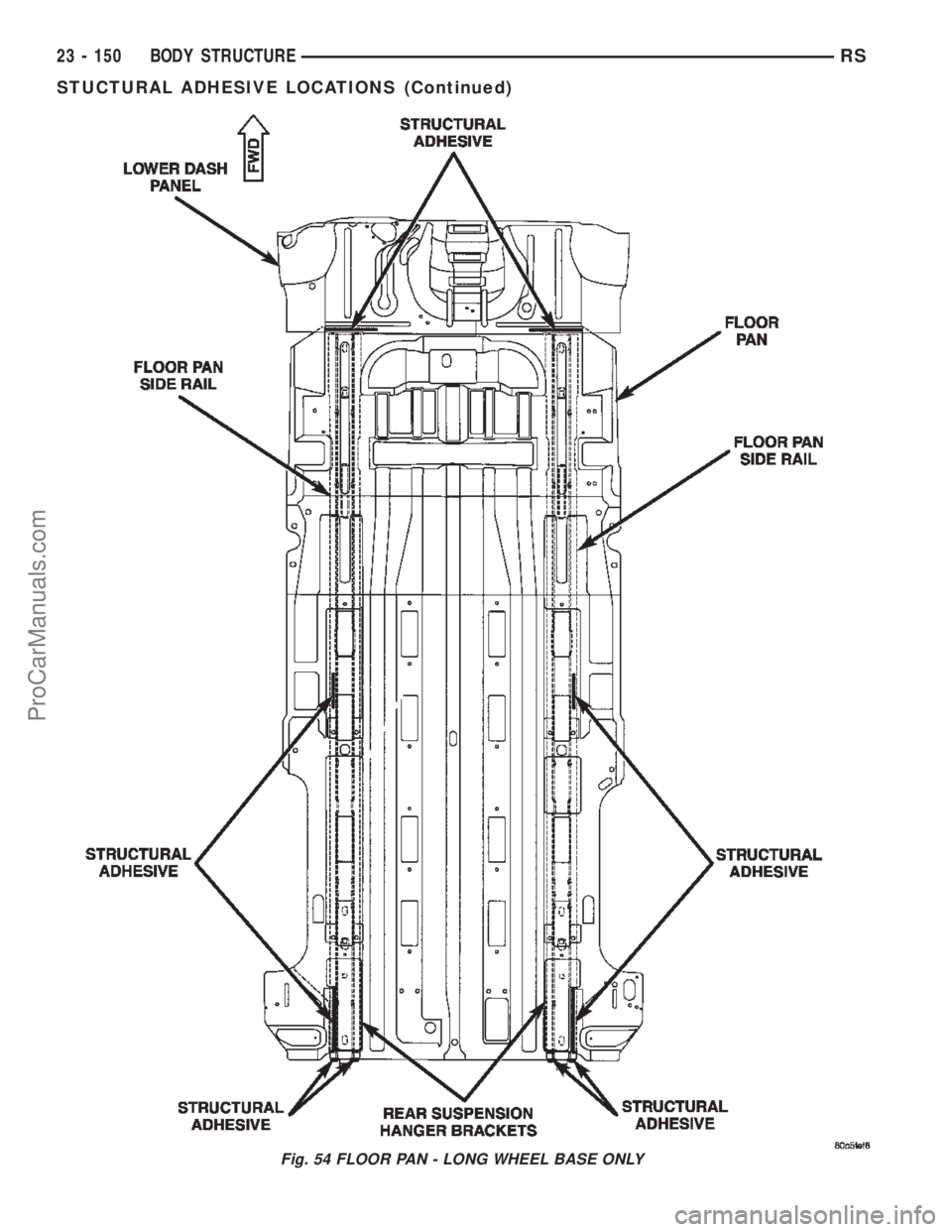

CHRYSLER CARAVAN 2002 Service Manual Fig. 54 FLOOR PAN - LONG WHEEL BASE ONLY 23 - 150 BODY STRUCTURERS STUCTURAL ADHESIVE LOCATIONS (Continued) ProCarManuals.com

Page 2134 of 2399

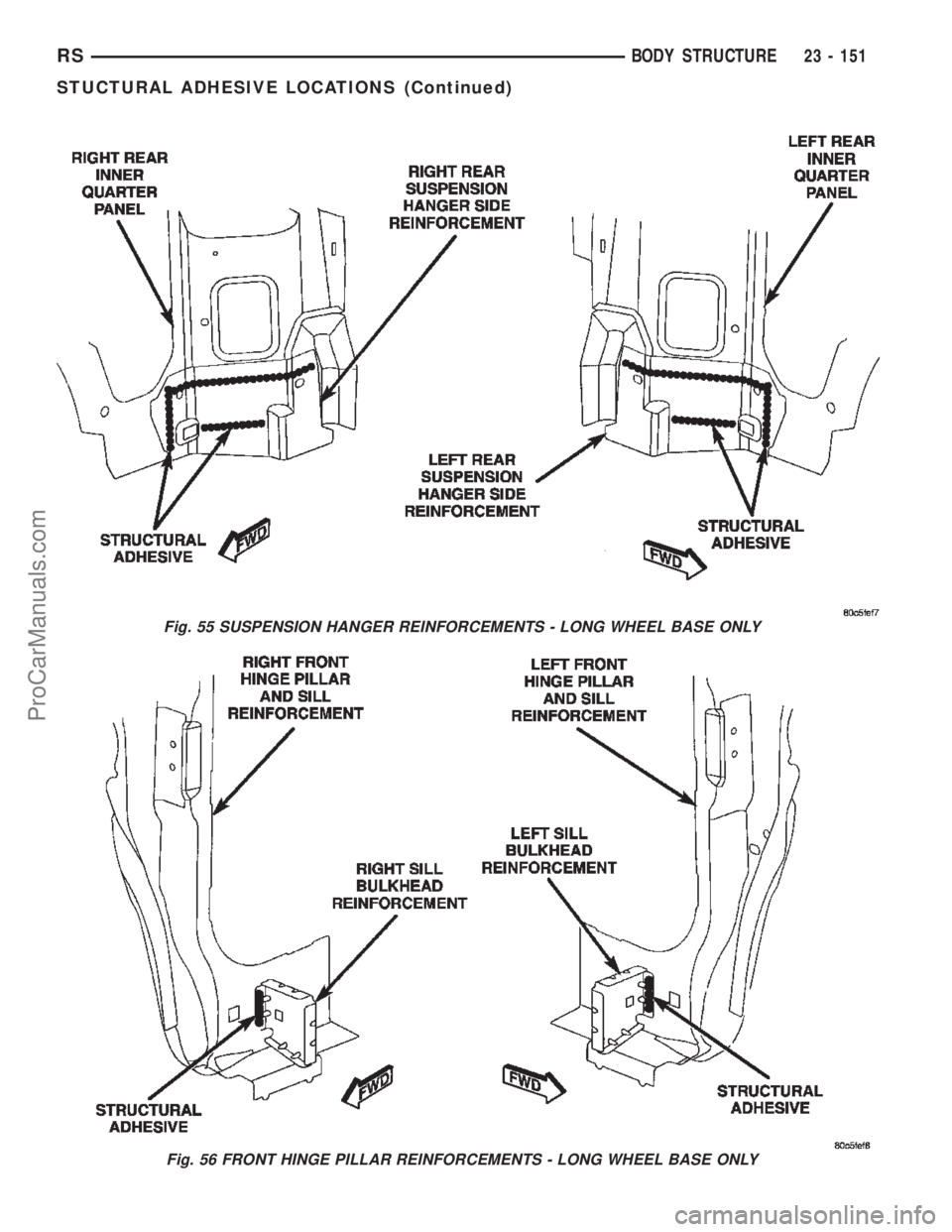

CHRYSLER CARAVAN 2002 Service Manual Fig. 55 SUSPENSION HANGER REINFORCEMENTS - LONG WHEEL BASE ONLY Fig. 56 FRONT HINGE PILLAR REINFORCEMENTS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 151 STUCTURAL ADHESIVE LOCATIONS (Continued) ProCa

Page 2135 of 2399

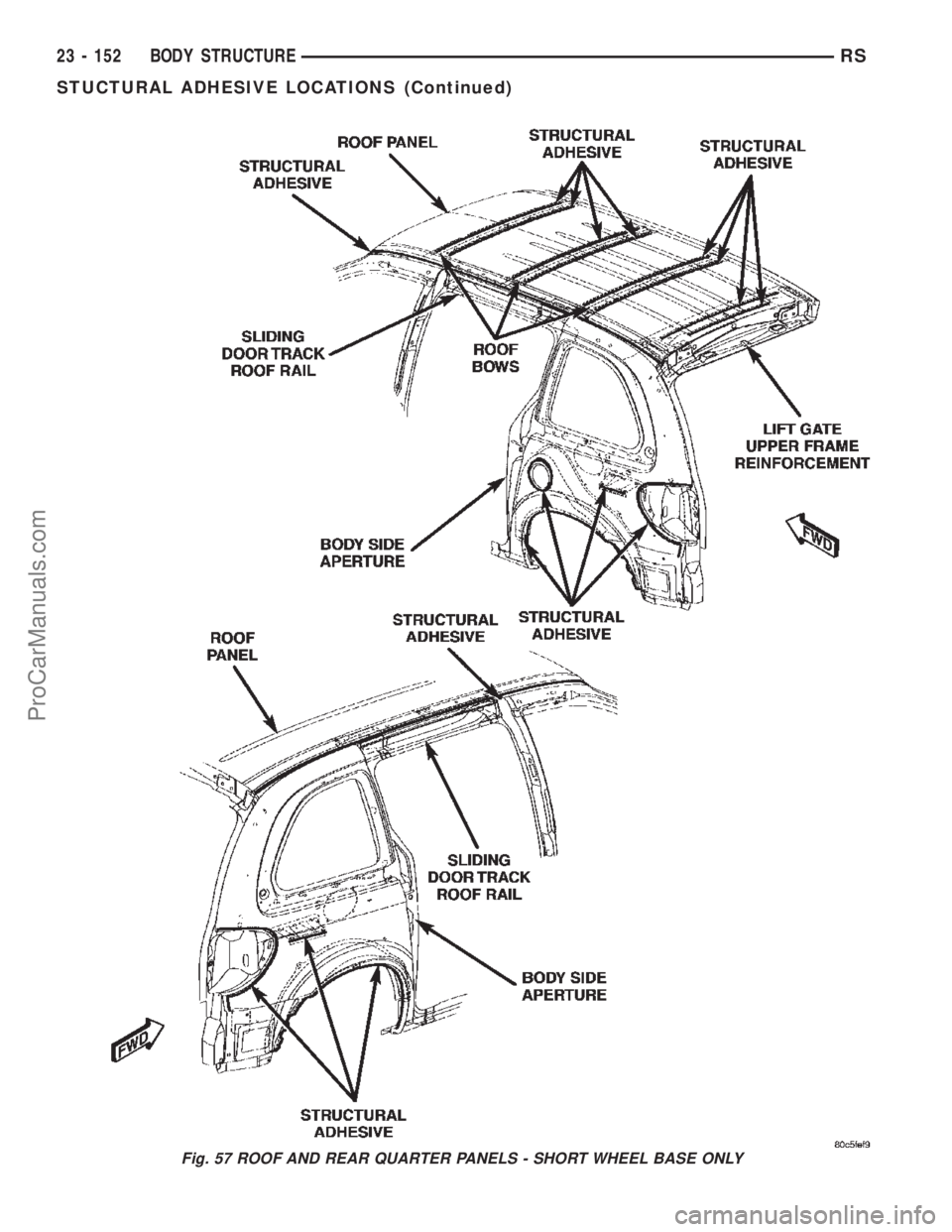

CHRYSLER CARAVAN 2002 Service Manual Fig. 57 ROOF AND REAR QUARTER PANELS - SHORT WHEEL BASE ONLY 23 - 152 BODY STRUCTURERS STUCTURAL ADHESIVE LOCATIONS (Continued) ProCarManuals.com

Page 2136 of 2399

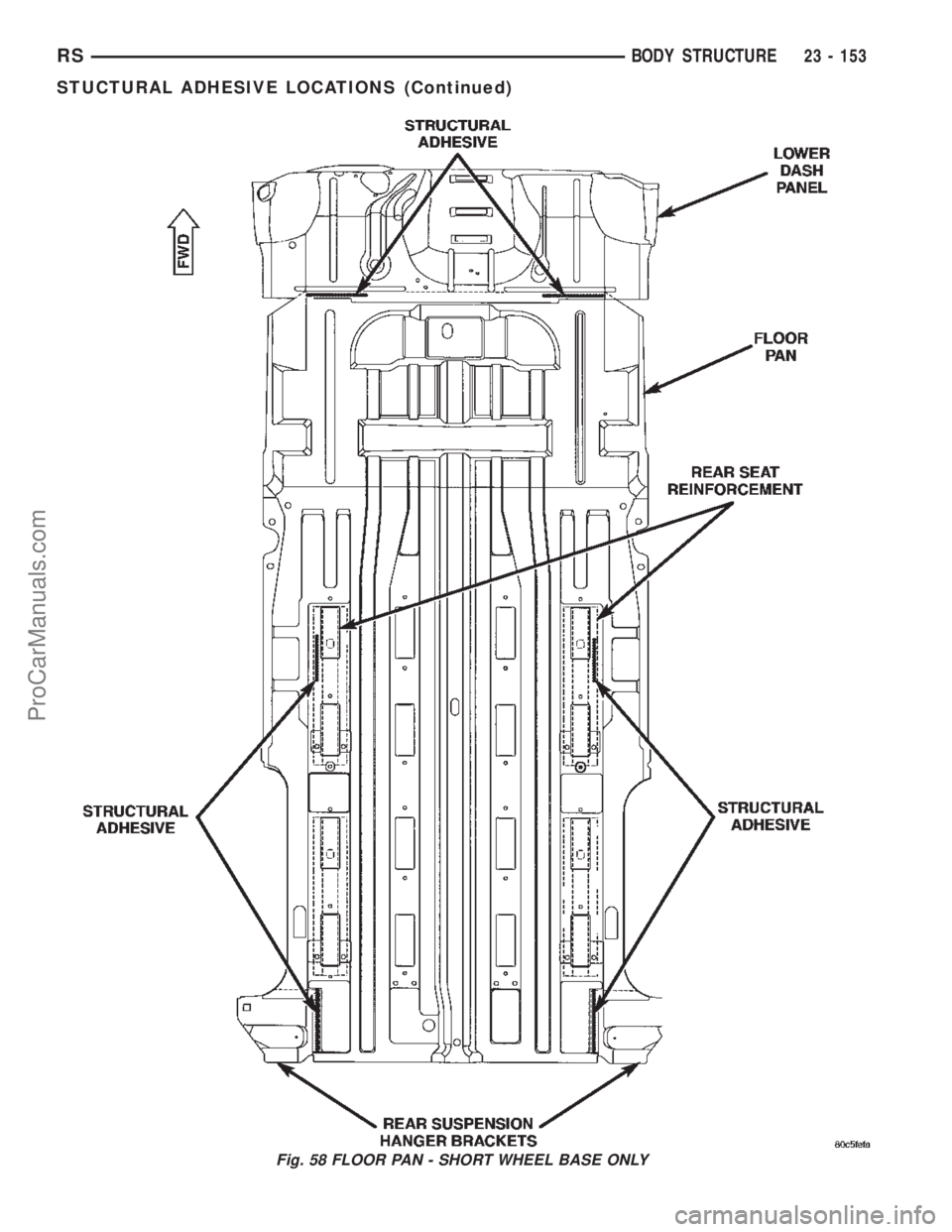

CHRYSLER CARAVAN 2002 Service Manual Fig. 58 FLOOR PAN - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 153 STUCTURAL ADHESIVE LOCATIONS (Continued) ProCarManuals.com
Load next 8 pages
