Page 2201 of 2399

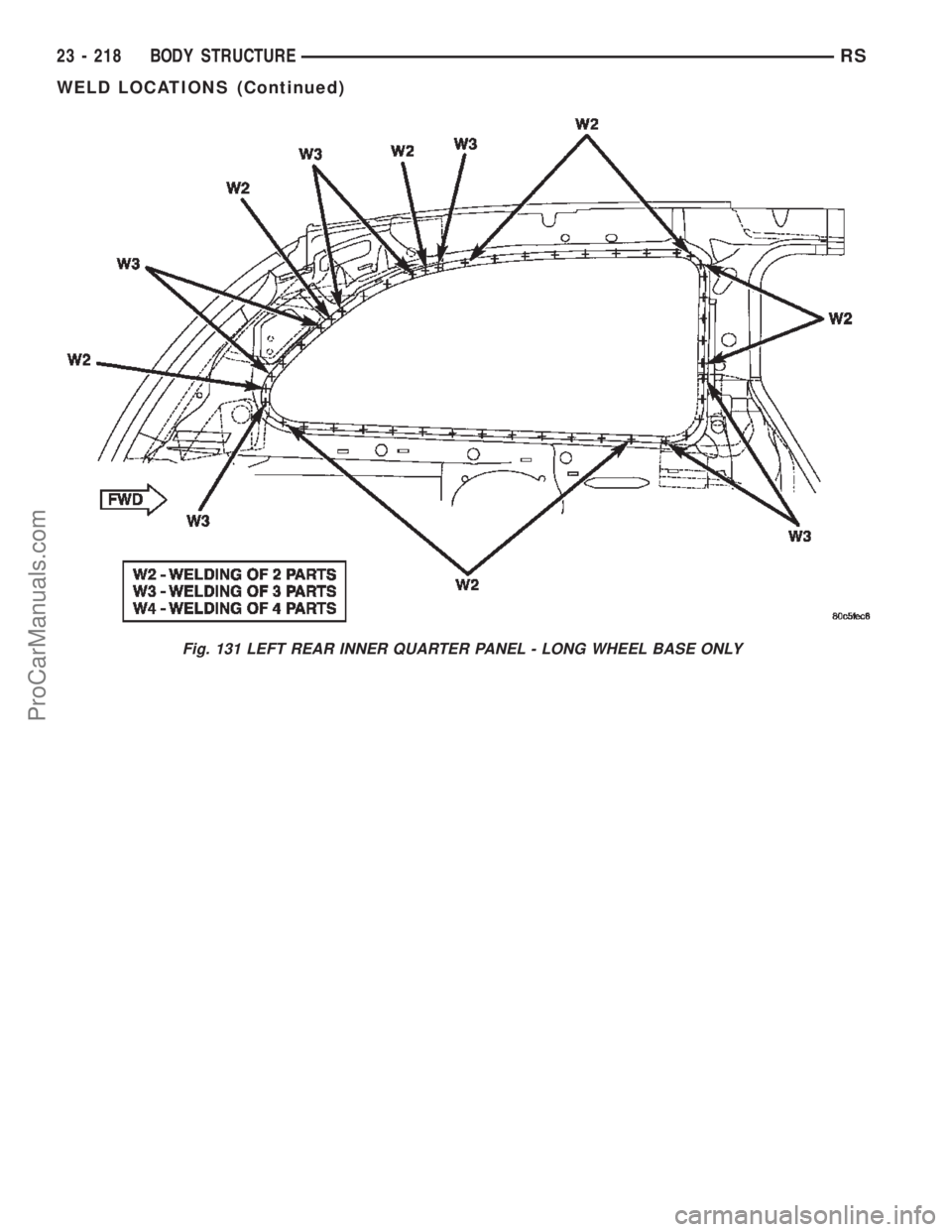

CHRYSLER CARAVAN 2002 Service Manual Fig. 131 LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY 23 - 218 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2202 of 2399

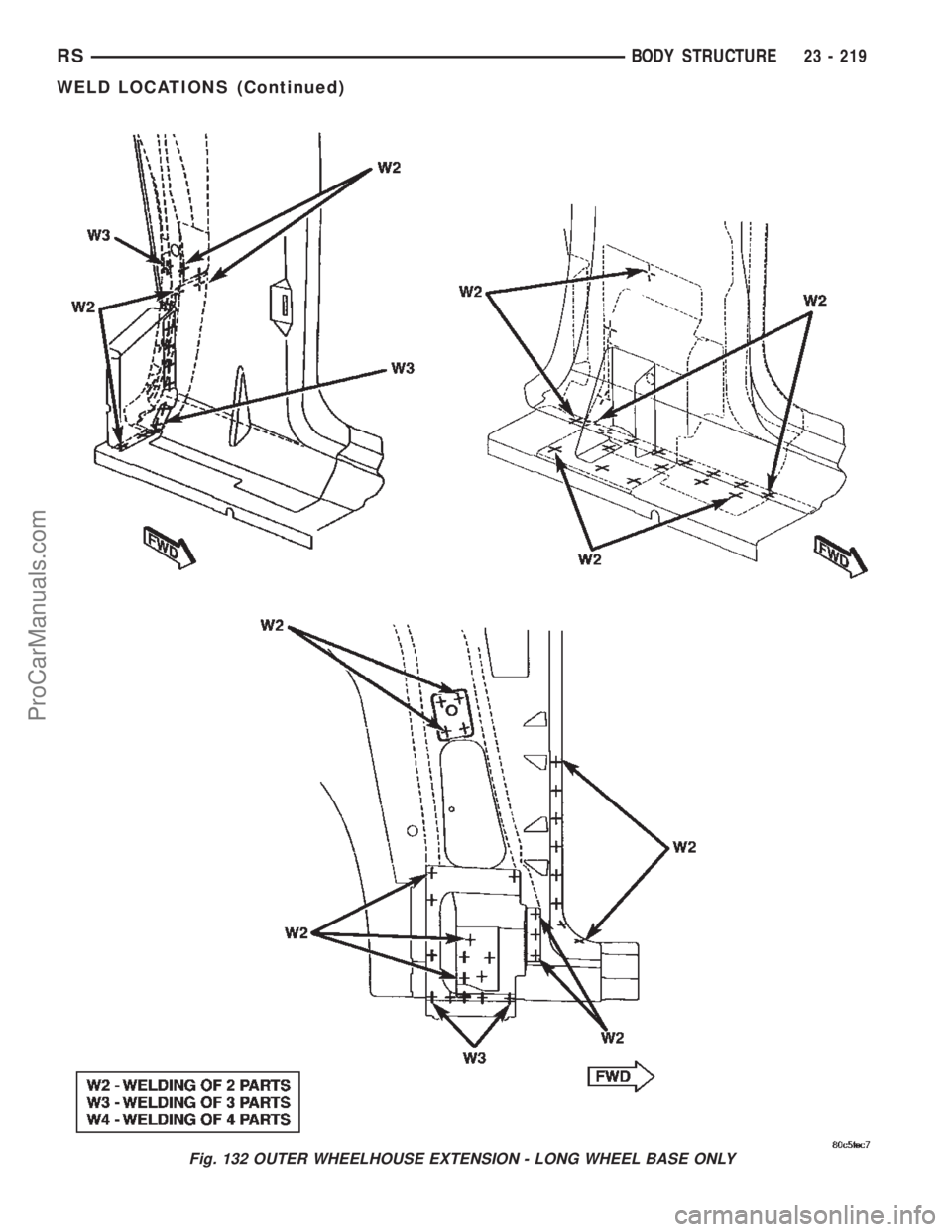

CHRYSLER CARAVAN 2002 Service Manual Fig. 132 OUTER WHEELHOUSE EXTENSION - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 219 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2203 of 2399

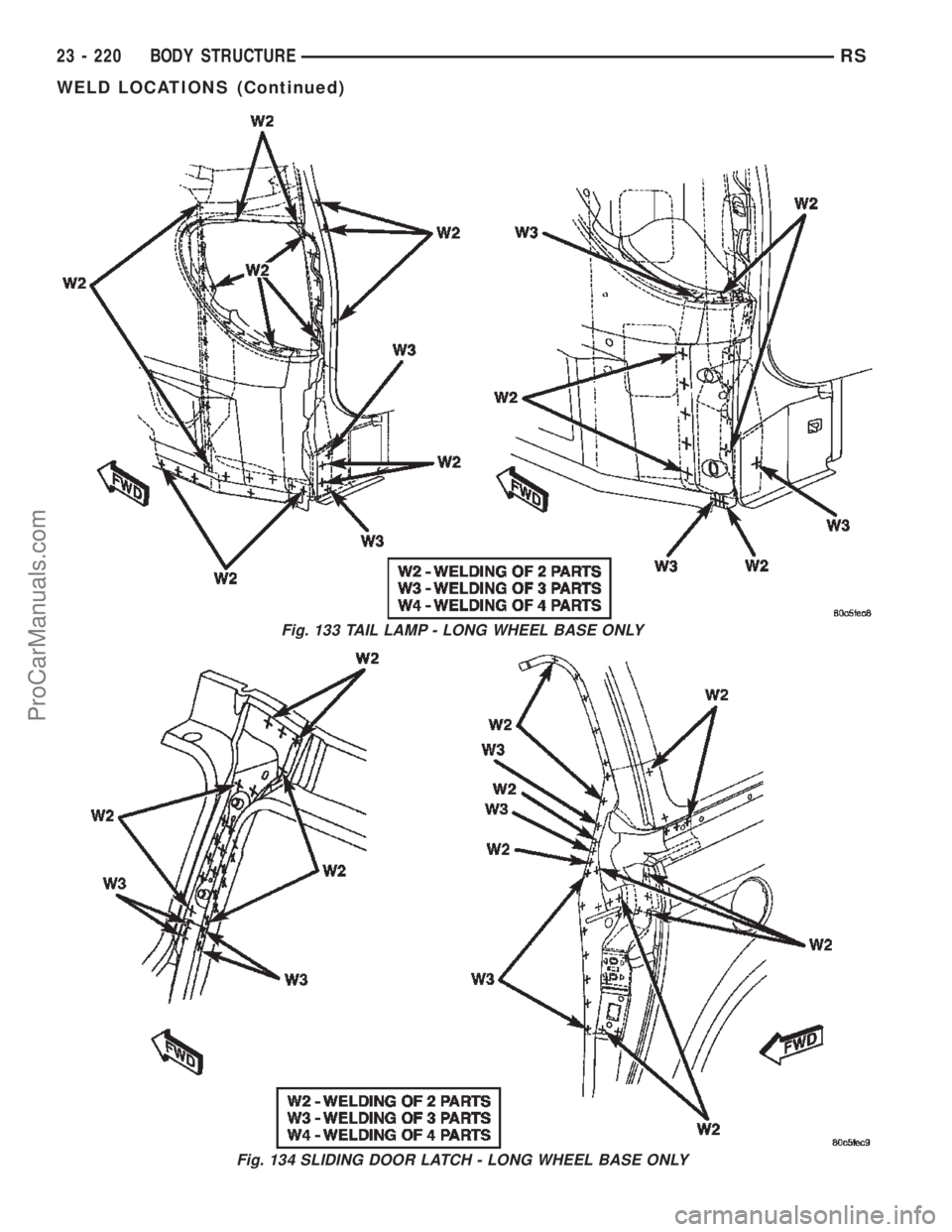

CHRYSLER CARAVAN 2002 Service Manual Fig. 133 TAIL LAMP - LONG WHEEL BASE ONLY Fig. 134 SLIDING DOOR LATCH - LONG WHEEL BASE ONLY 23 - 220 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2204 of 2399

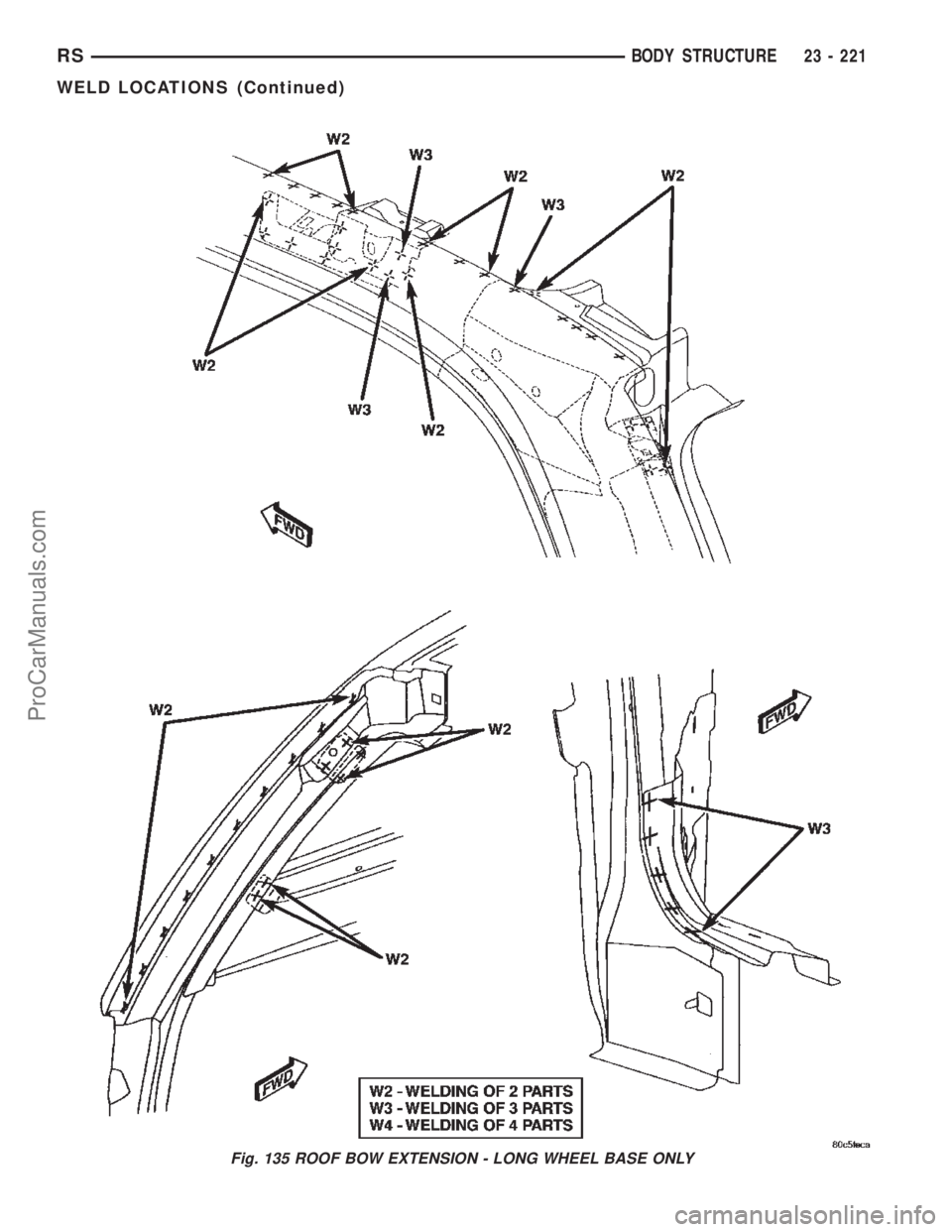

CHRYSLER CARAVAN 2002 Service Manual Fig. 135 ROOF BOW EXTENSION - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 221 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2205 of 2399

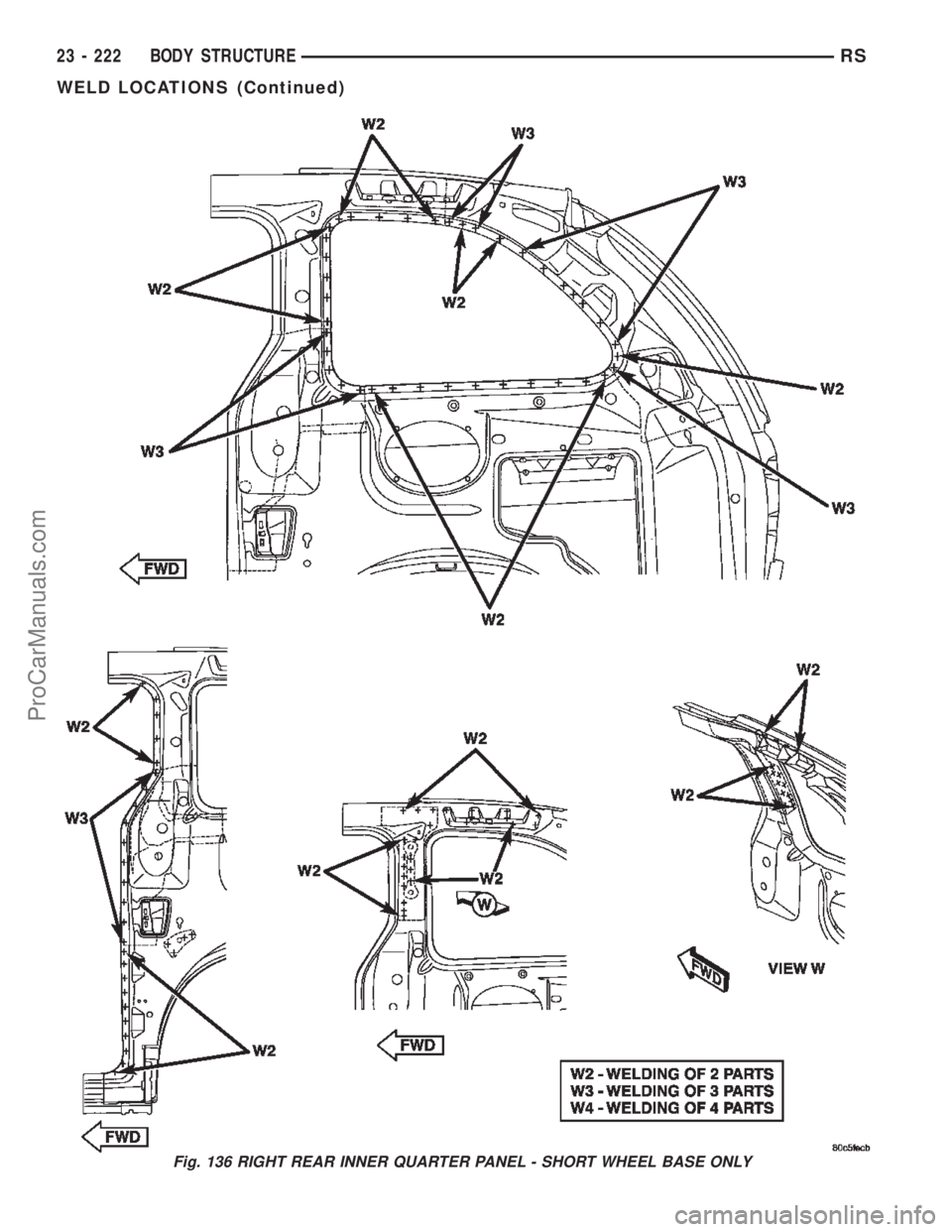

CHRYSLER CARAVAN 2002 Service Manual Fig. 136 RIGHT REAR INNER QUARTER PANEL - SHORT WHEEL BASE ONLY 23 - 222 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2206 of 2399

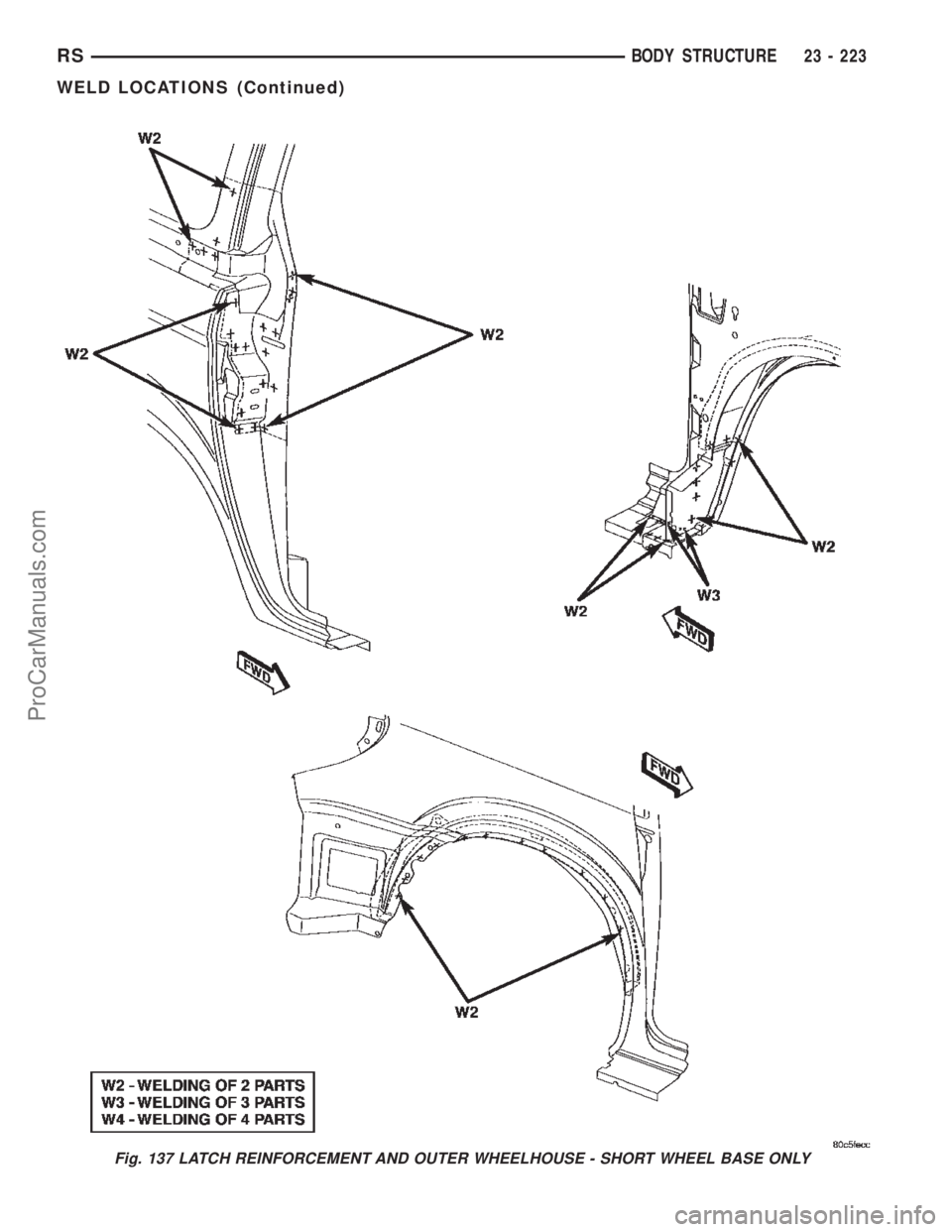

CHRYSLER CARAVAN 2002 Service Manual Fig. 137 LATCH REINFORCEMENT AND OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 223 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2207 of 2399

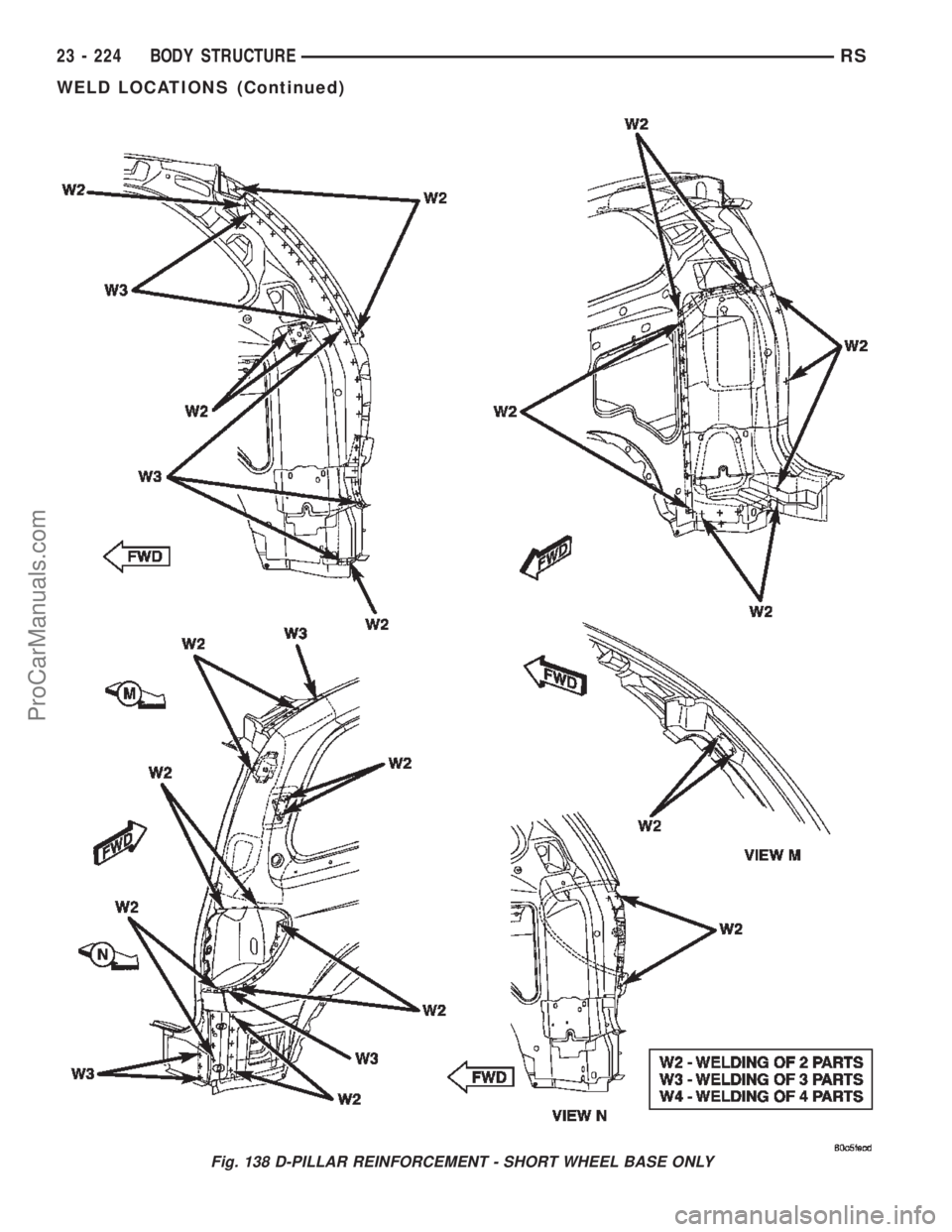

CHRYSLER CARAVAN 2002 Service Manual Fig. 138 D-PILLAR REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 224 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2208 of 2399

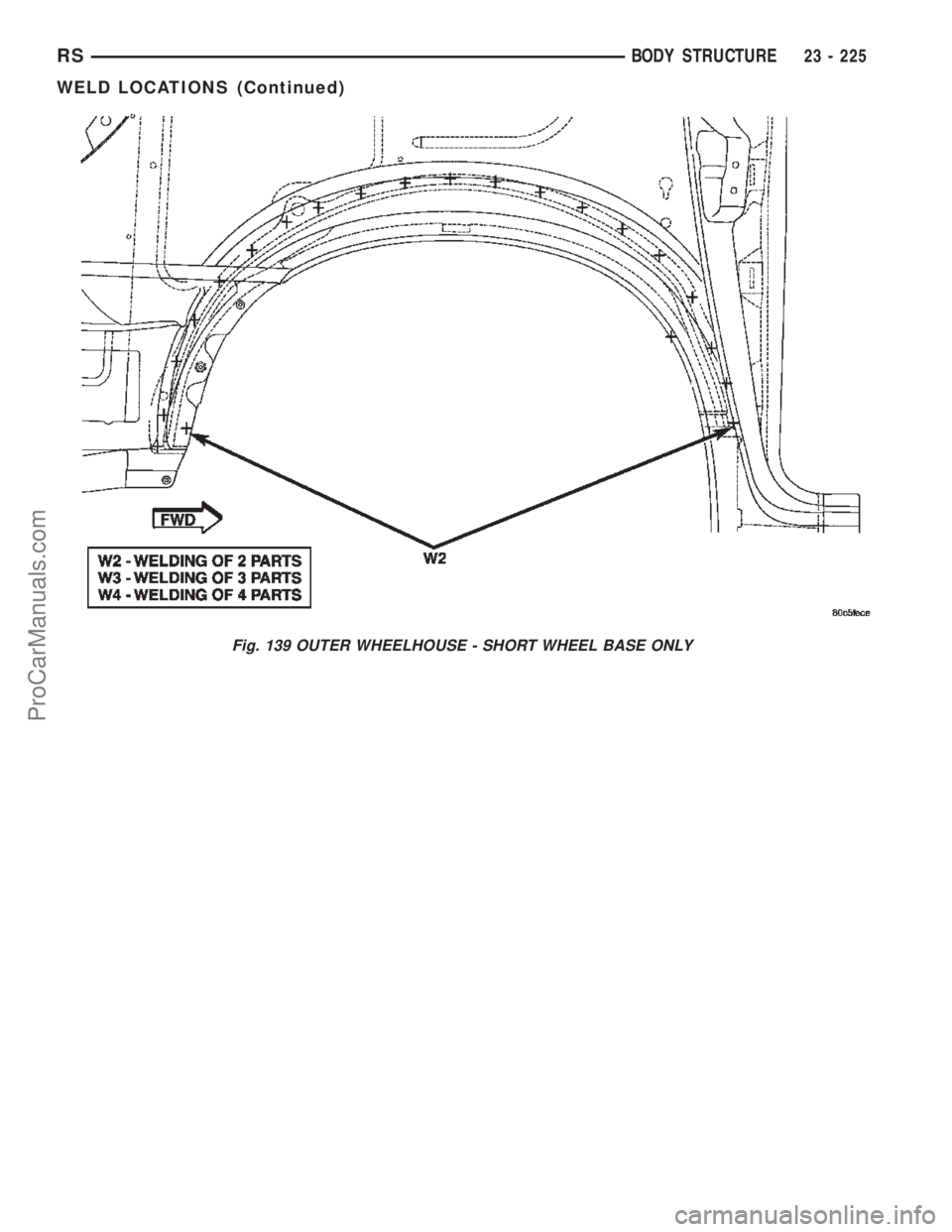

CHRYSLER CARAVAN 2002 Service Manual Fig. 139 OUTER WHEELHOUSE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 225 WELD LOCATIONS (Continued) ProCarManuals.com
