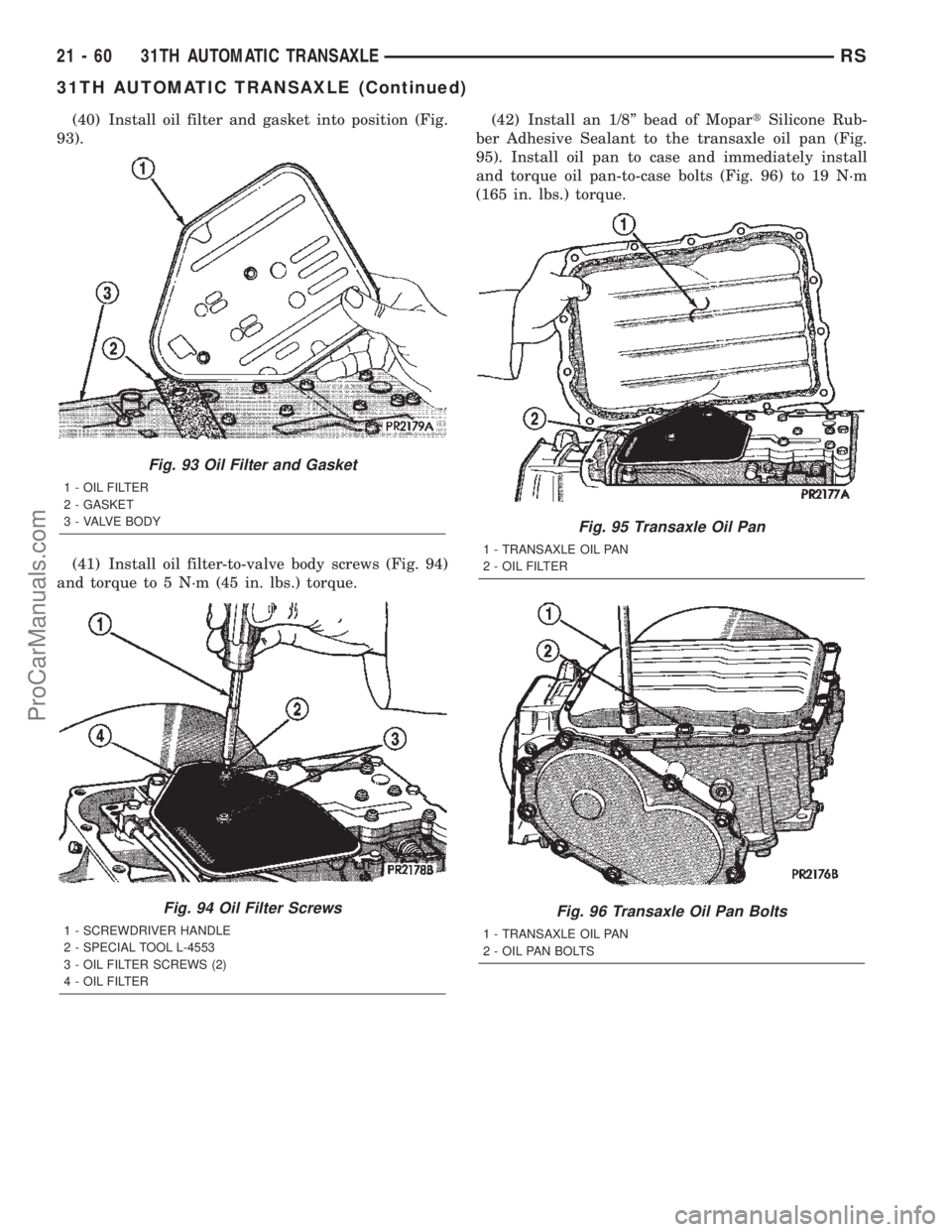

CHRYSLER CARAVAN 2002 Service Manual (40) Install oil filter and gasket into position (Fig. 93). (41) Install oil filter-to-valve body screws (Fig. 94) and torque to 5 N´m (45 in. lbs.) torque.(42) Install an 1/8º bead of MopartSilicon

Page 1618 of 2399

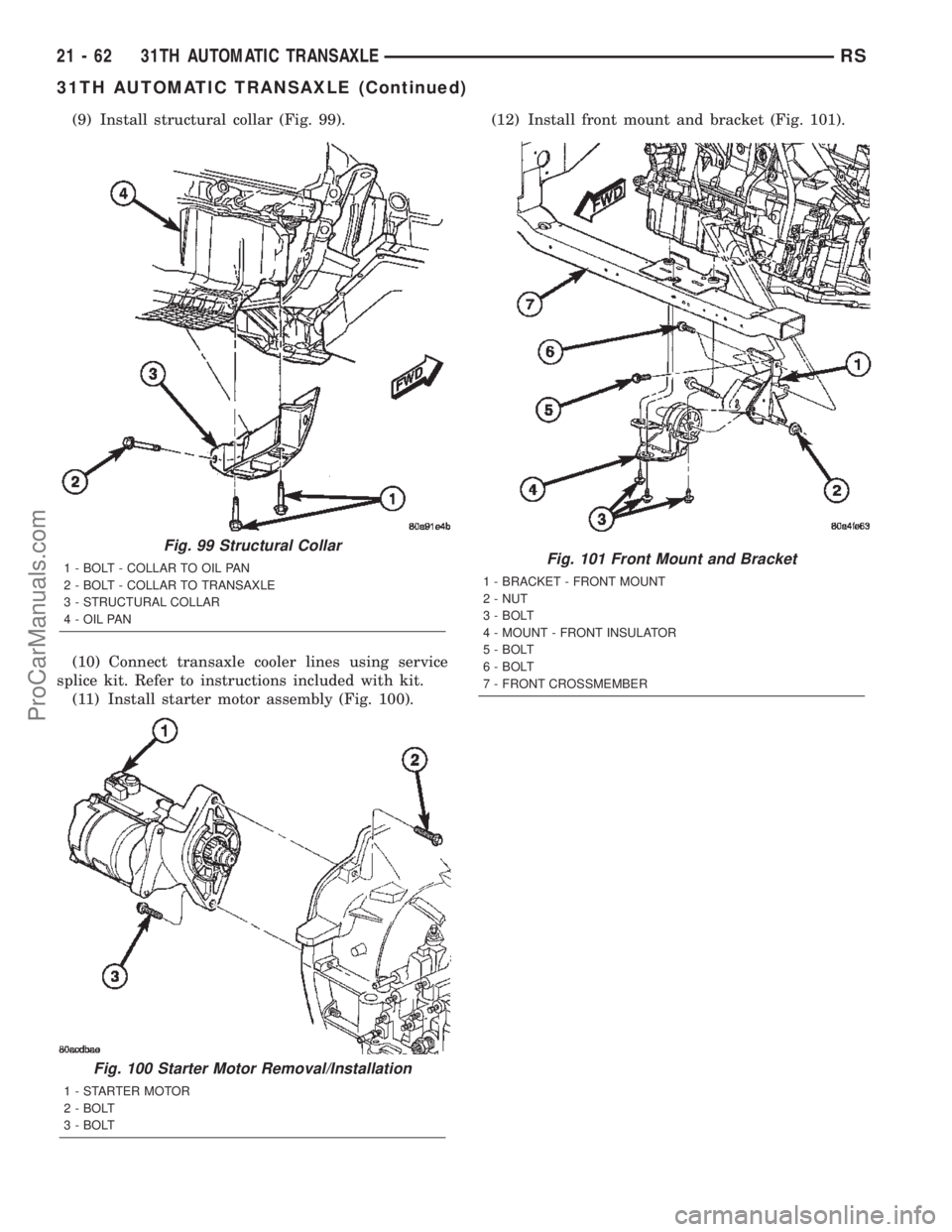

CHRYSLER CARAVAN 2002 Service Manual INSTALLATION (1) Install transaxle assembly to engine using a transmission jack and helper. (2) Install and torque transaxle-to-engine bolts to 95 N´m (70 ft. lbs.). (3) Using screw jack and wood blo

Page 1619 of 2399

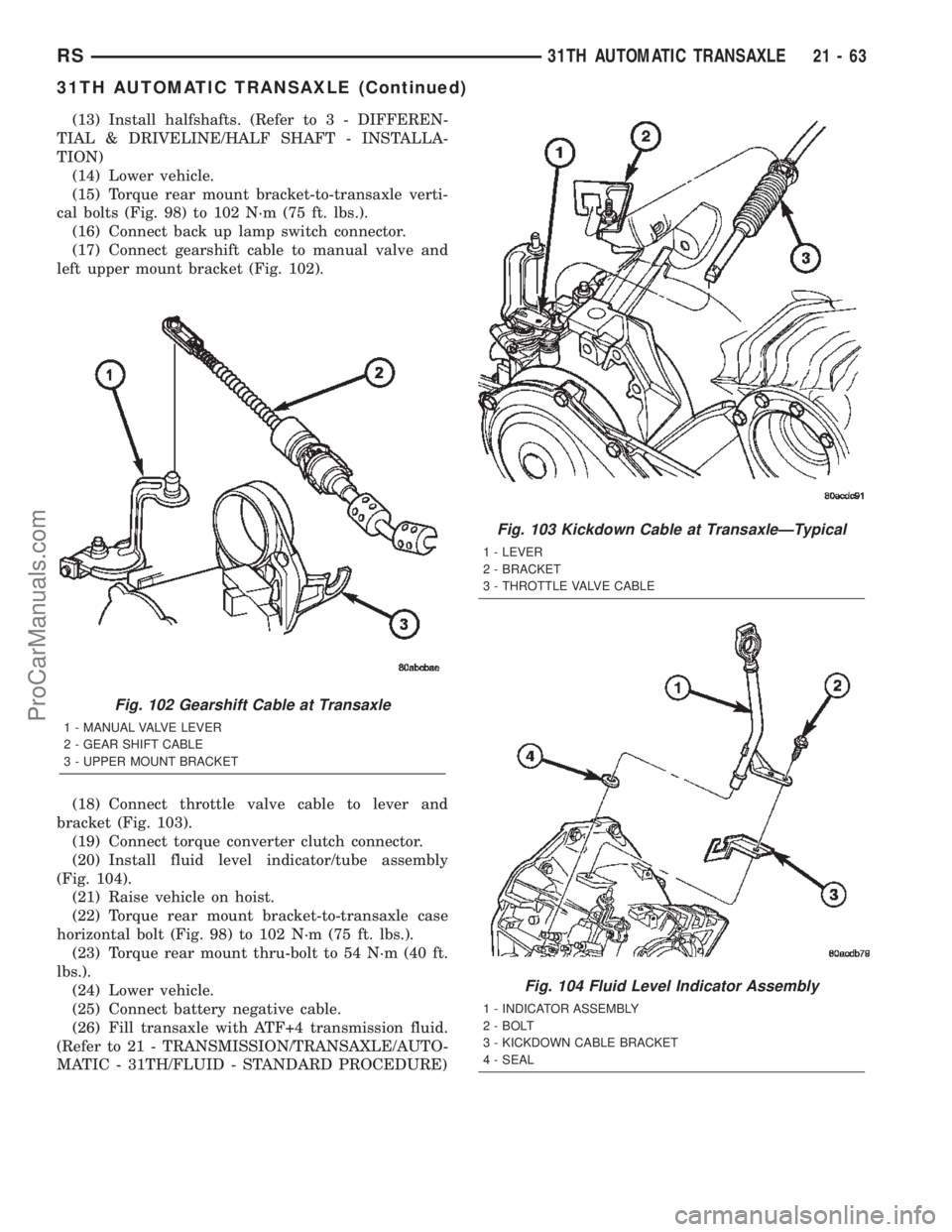

CHRYSLER CARAVAN 2002 Service Manual (9) Install structural collar (Fig. 99). (10) Connect transaxle cooler lines using service splice kit. Refer to instructions included with kit. (11) Install starter motor assembly (Fig. 100).(12) Inst

Page 1620 of 2399

CHRYSLER CARAVAN 2002 Service Manual (13) Install halfshafts. (Refer to 3 - DIFFEREN- TIAL & DRIVELINE/HALF SHAFT - INSTALLA- TION) (14) Lower vehicle. (15) Torque rear mount bracket-to-transaxle verti- cal bolts (Fig. 98) to 102 N´m (7

Page 1621 of 2399

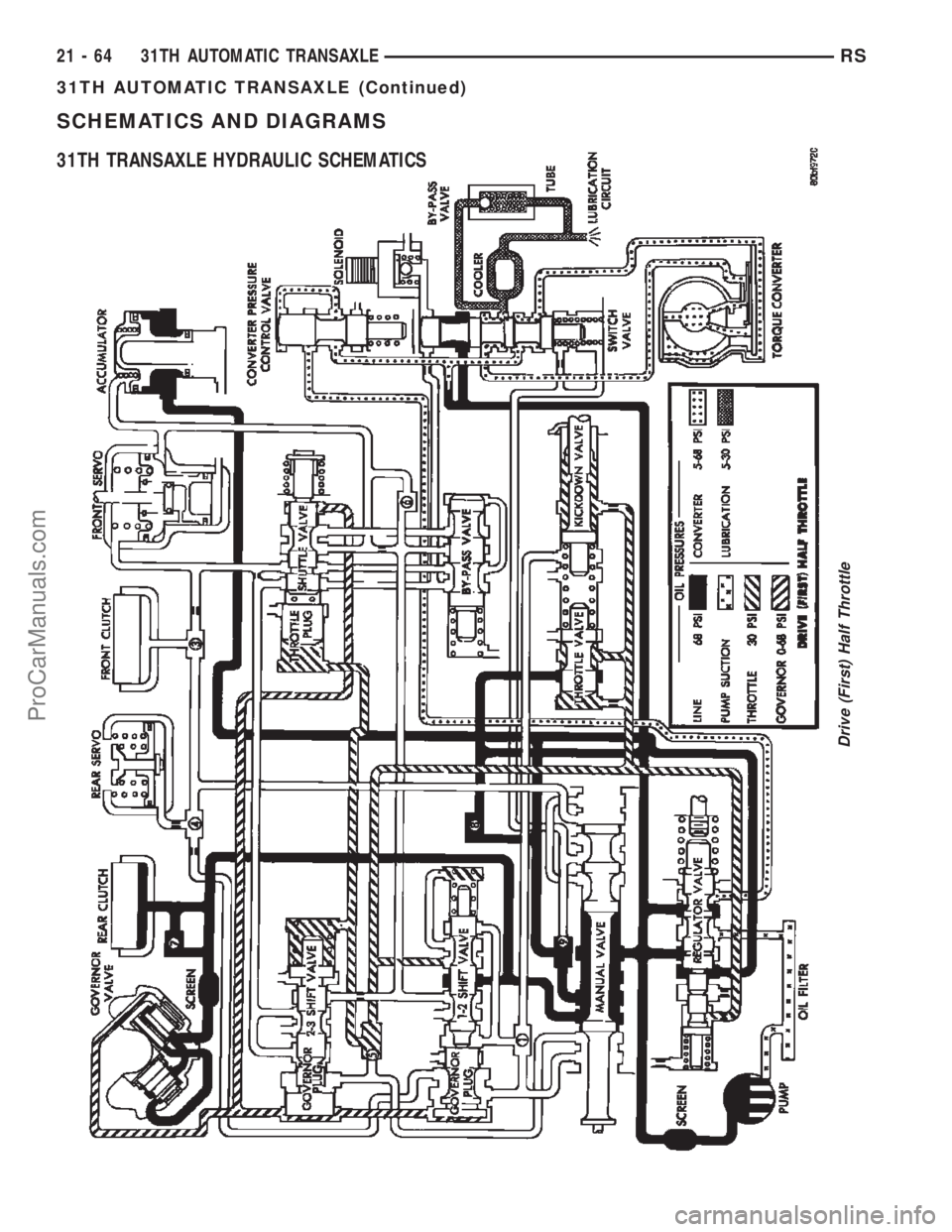

CHRYSLER CARAVAN 2002 Service Manual SCHEMATICS AND DIAGRAMS 31TH TRANSAXLE HYDRAULIC SCHEMATICS Drive (First) Half Throttle 21 - 64 31TH AUTOMATIC TRANSAXLERS 31TH AUTOMATIC TRANSAXLE (Continued) ProCarManuals.com

Page 1622 of 2399

CHRYSLER CARAVAN 2002 Service Manual Drive (Second) Half Throttle RS31TH AUTOMATIC TRANSAXLE21-65 31TH AUTOMATIC TRANSAXLE (Continued) ProCarManuals.com

Page 1623 of 2399

CHRYSLER CARAVAN 2002 Service Manual Drive (Third) Not Locked Up 21 - 66 31TH AUTOMATIC TRANSAXLERS 31TH AUTOMATIC TRANSAXLE (Continued) ProCarManuals.com

Page 1624 of 2399

CHRYSLER CARAVAN 2002 Service Manual Drive (Third) Lock-Up RS31TH AUTOMATIC TRANSAXLE21-67 31TH AUTOMATIC TRANSAXLE (Continued) ProCarManuals.com
