CHRYSLER CARAVAN 2002 Service Manual Fig. 29 BODY HARNESS SPLICES 8W - 91 - 38 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1186 of 2399

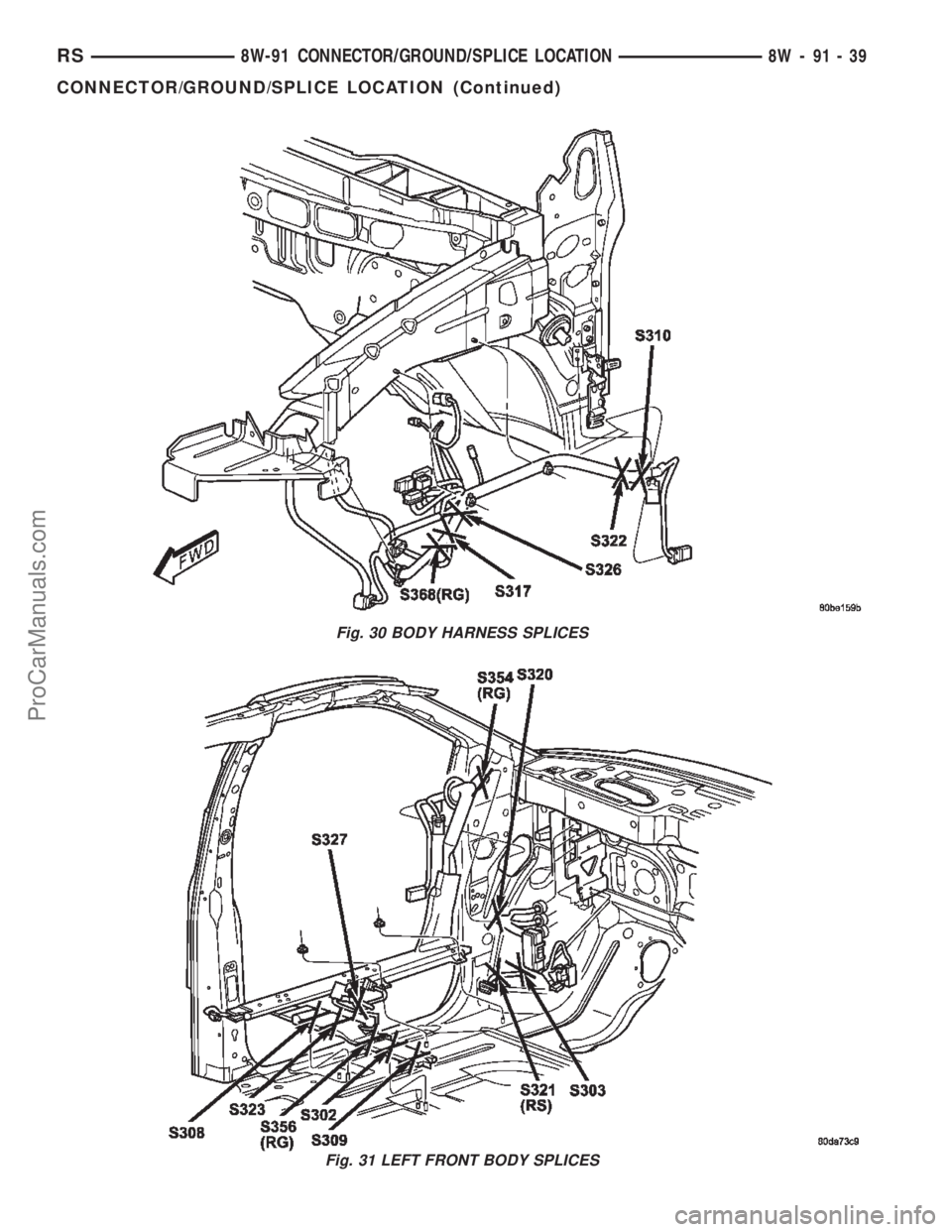

CHRYSLER CARAVAN 2002 Service Manual Fig. 30 BODY HARNESS SPLICES Fig. 31 LEFT FRONT BODY SPLICES RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-39 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1187 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 32 REAR BODY SPLICES 8W - 91 - 40 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1188 of 2399

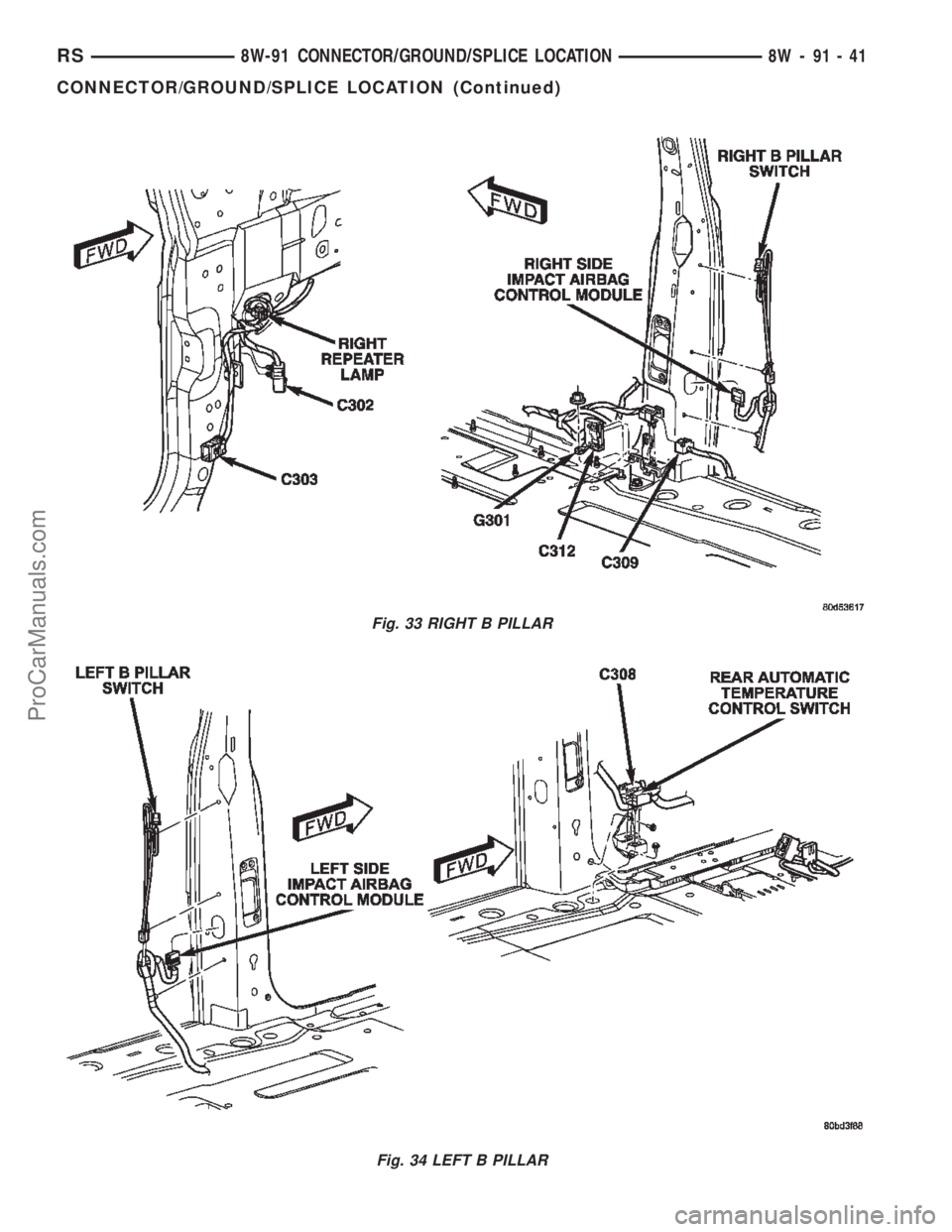

CHRYSLER CARAVAN 2002 Service Manual Fig. 33 RIGHT B PILLAR Fig. 34 LEFT B PILLAR RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-41 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1189 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 35 LEFT SIDE KICK PANEL LHD 8W - 91 - 42 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1190 of 2399

CHRYSLER CARAVAN 2002 Service Manual Fig. 36 RIGHT SIDE KICK PANEL RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-43 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1191 of 2399

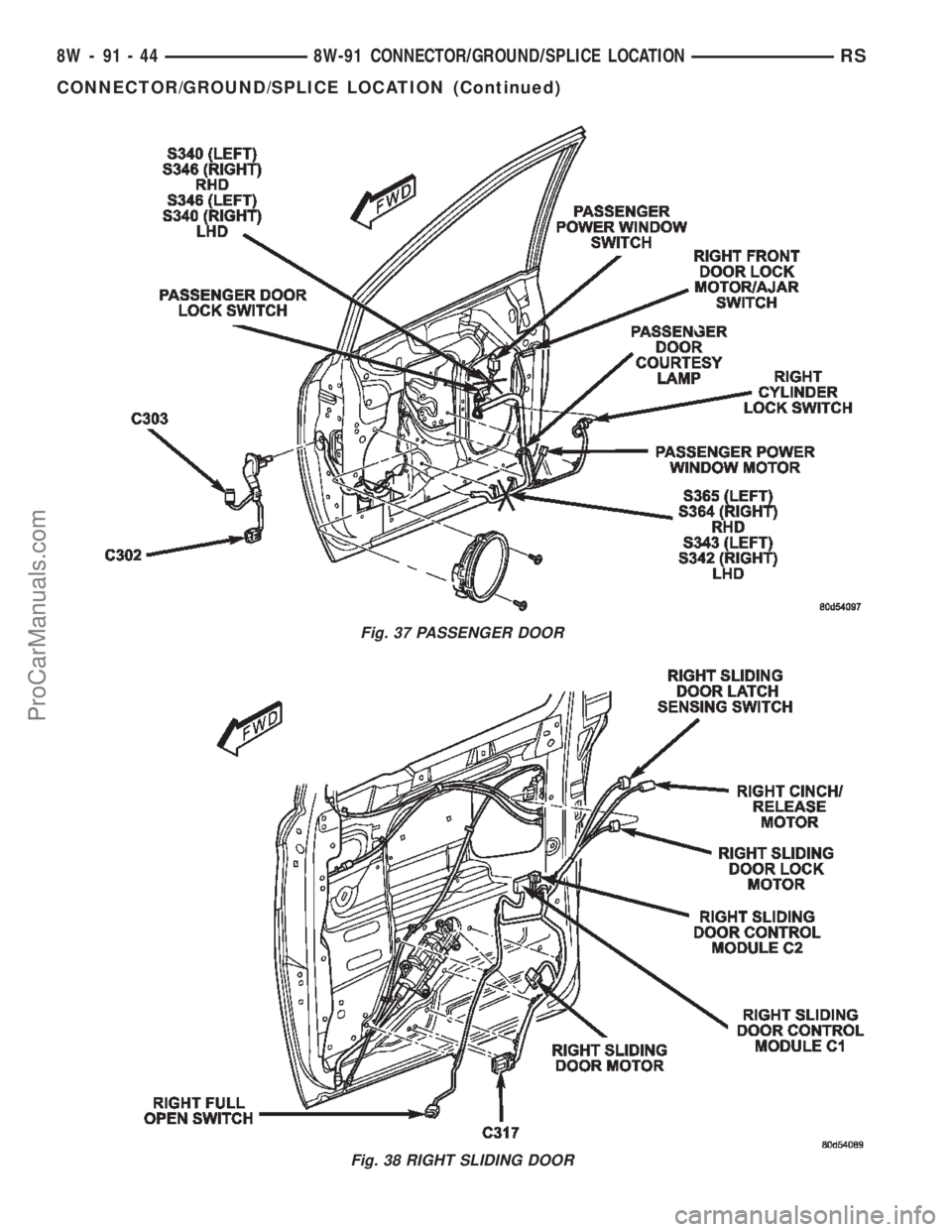

CHRYSLER CARAVAN 2002 Service Manual Fig. 37 PASSENGER DOOR Fig. 38 RIGHT SLIDING DOOR 8W - 91 - 44 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1192 of 2399

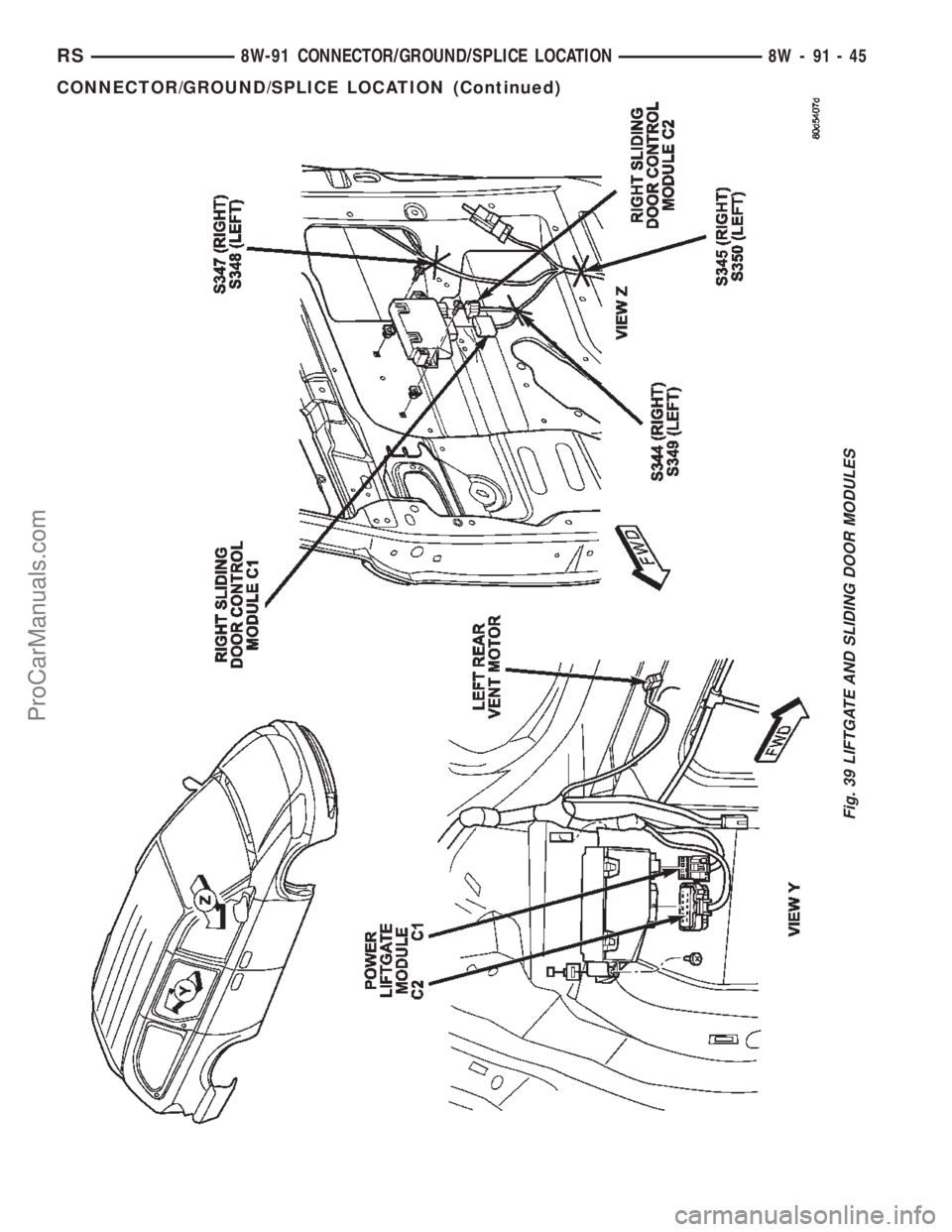

CHRYSLER CARAVAN 2002 Service Manual Fig. 39 LIFTGATE AND SLIDING DOOR MODULES RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-45 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com
