PGM-FI Syste m
Engine Contro l Modul e (ECM )
(From pag e 11-63 )
Chec k fo r a shor t i n th e A P sen -
sor:1. Tur n th e ignitio n switc h OFF .2. Connec t th e SC S servic e con -
nector .
3 . Disconnec t th e A P senso r 3 P
connector .
4. Tur n th e ignitio n switc h O N (II) .
Is DT C P124 6 and/o r P124 7
indicated ?
Chec k fo r a shor t i n th e wire s
(VC C lines) :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e EC M connec -tor D (22P ) an d F (26P) .3. Chec k fo r continuit y betwee nbody groun d an d EC M con -necto r terminal s D10 , F 1 an dF14 individually .
Is ther e continuity ?
I s ther e batter y voltage ?
Chec k fo r a n ope n i n th e wire s
(L G lines) :
1 . Reconnec t al l senso r connec -
tors.2. Reconnec t th e EC M connecto rD (22P ) F (26P) .3. Tur n th e ignitio n switc h O N (II) .4. Measur e voltag e betwee n
bod y groun d an d EC M connec -
tor terminal s A2 6 an d B 9 indi -vidually .
I s ther e les s tha n 1. 0 V ?
Substitut e a known-goo d EC M
an d recheck . I f symptom/indica -
tio n goe s away , replac e th e origi -
nal ECM .
Replac e th e A P sensor .
Repai r shor t t o bod y groun d
in th e wir e betwee n EC M(D10 ) an d throttl e angl e sen -
so r an d EG R valv e lif t sensor .
Repai r shor t t o bod y groun d in
th e wir e betwee n EC M (F1 )and MA P senso r o r Accelerato r
Positio n sensor .
Repai r shor t t o bod y groun d in
th e wir e betwee n EC M (F14 )
an d Accelerato r Positio n sen -
sor.
WIR E SID E O F FEMAL E TERMINAL S
Repai r ope n i n th e wire(s )
between EC M (A13 , C D an dPGM-F I mai n relay .
Chec k fo r poo r connection s
o r loos e wire s a t th e PGM-F I
mai n relay .
ECM CONNECTOR S
WIR E SID E O F FEMAL E TERMINAL S
Repai r ope n i n th e wire(s )
between EC M (A26 , B9 ) an dG10 1 tha t ha d mor e tha n 1. 0 V .
ProCarManuals.com

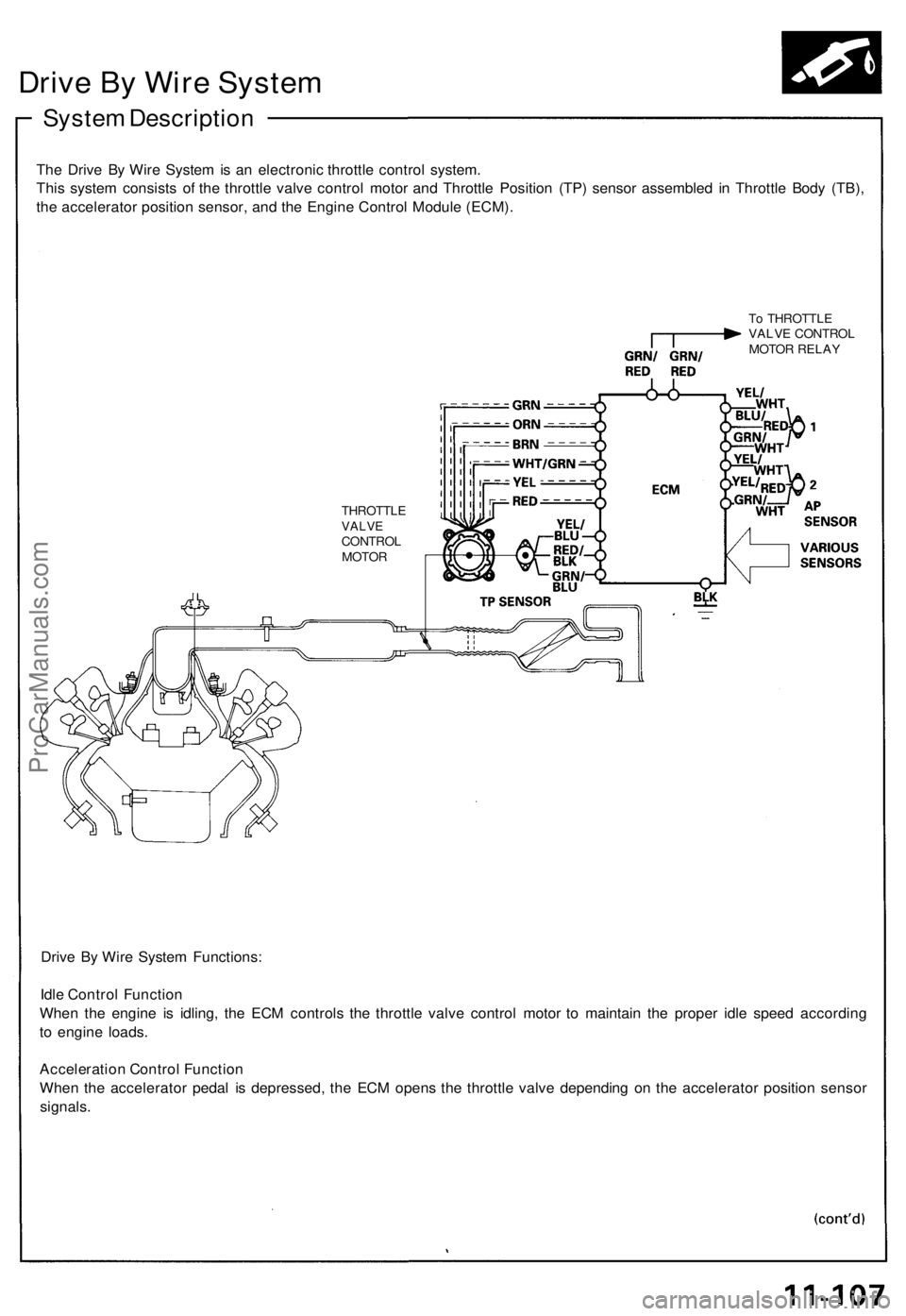

Drive By Wire System

System Description

The Drive By Wire System is an electronic throttle control system.

This system consists of the throttle valve control motor and Throttle Position (TP) sensor assembled in Throttle Body (TB),

the accelerator position sensor, and the Engine Control Module (ECM).

To THROTTLE

VALVE CONTROL

MOTOR RELAY

THROTTLE

VALVE

CONTROL

MOTOR

Drive By Wire System Functions:

Idle Control Function

When the engine is idling, the ECM controls the throttle valve control motor to maintain the proper idle speed according

to engine loads.

Acceleration Control Function

When the accelerator pedal is depressed, the ECM opens the throttle valve depending on the accelerator position sensor

signals.ProCarManuals.com

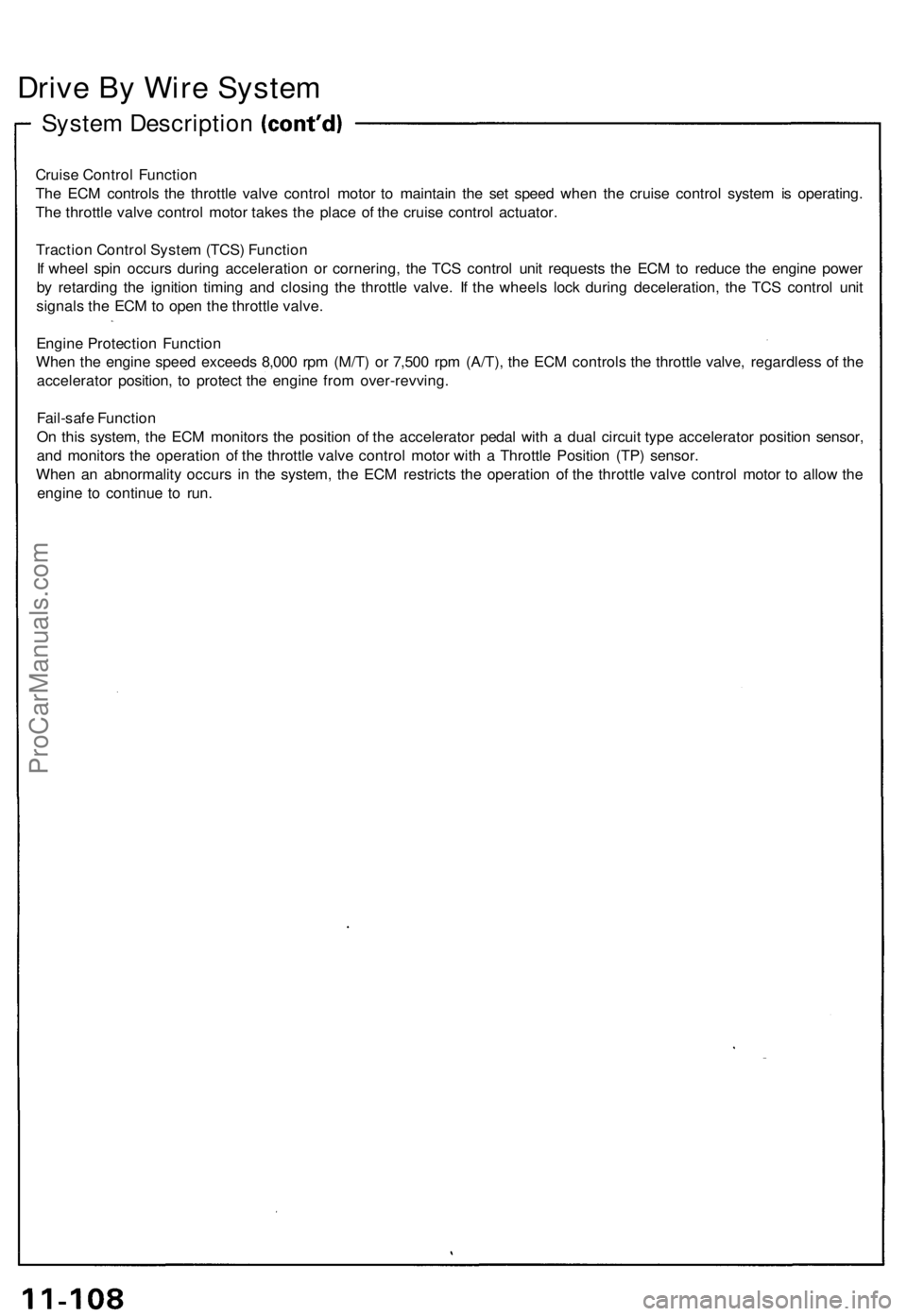

Drive B y Wir e Syste m
System Descriptio n
Cruise Contro l Functio n
Th e EC M control s th e throttl e valv e contro l moto r t o maintai n th e se t spee d whe n th e cruis e contro l syste m is operating .
Th e throttl e valv e contro l moto r take s th e plac e o f th e cruis e contro l actuator .
Tractio n Contro l Syste m (TCS ) Functio n
I f whee l spi n occur s durin g acceleratio n o r cornering , th e TC S contro l uni t request s th e EC M to reduc e th e engin e powe r
b y retardin g th e ignitio n timin g an d closin g th e throttl e valve . I f th e wheel s loc k during deceleration , th e TC S contro l uni t
signal s th e EC M to ope n th e throttl e valve .
Engin e Protectio n Functio n
Whe n th e engin e spee d exceed s 8,00 0 rp m (M/T ) o r 7,50 0 rp m (A/T) , th e EC M control s th e throttl e valve , regardles s o f th e
accelerato r position , t o protec t th e engin e fro m over-revving .
Fail-saf e Functio n
O n thi s system , th e EC M monitor s th e positio n o f th e accelerato r peda l wit h a dua l circui t typ e accelerato r positio n sensor ,
an d monitor s th e operatio n o f th e throttl e valv e contro l moto r wit h a Throttl e Positio n (TP ) sensor .
Whe n a n abnormalit y occur s i n th e system , th e EC M restrict s th e operatio n o f th e throttl e valv e contro l moto r t o allo w th e
engin e t o continu e t o run .
ProCarManuals.com

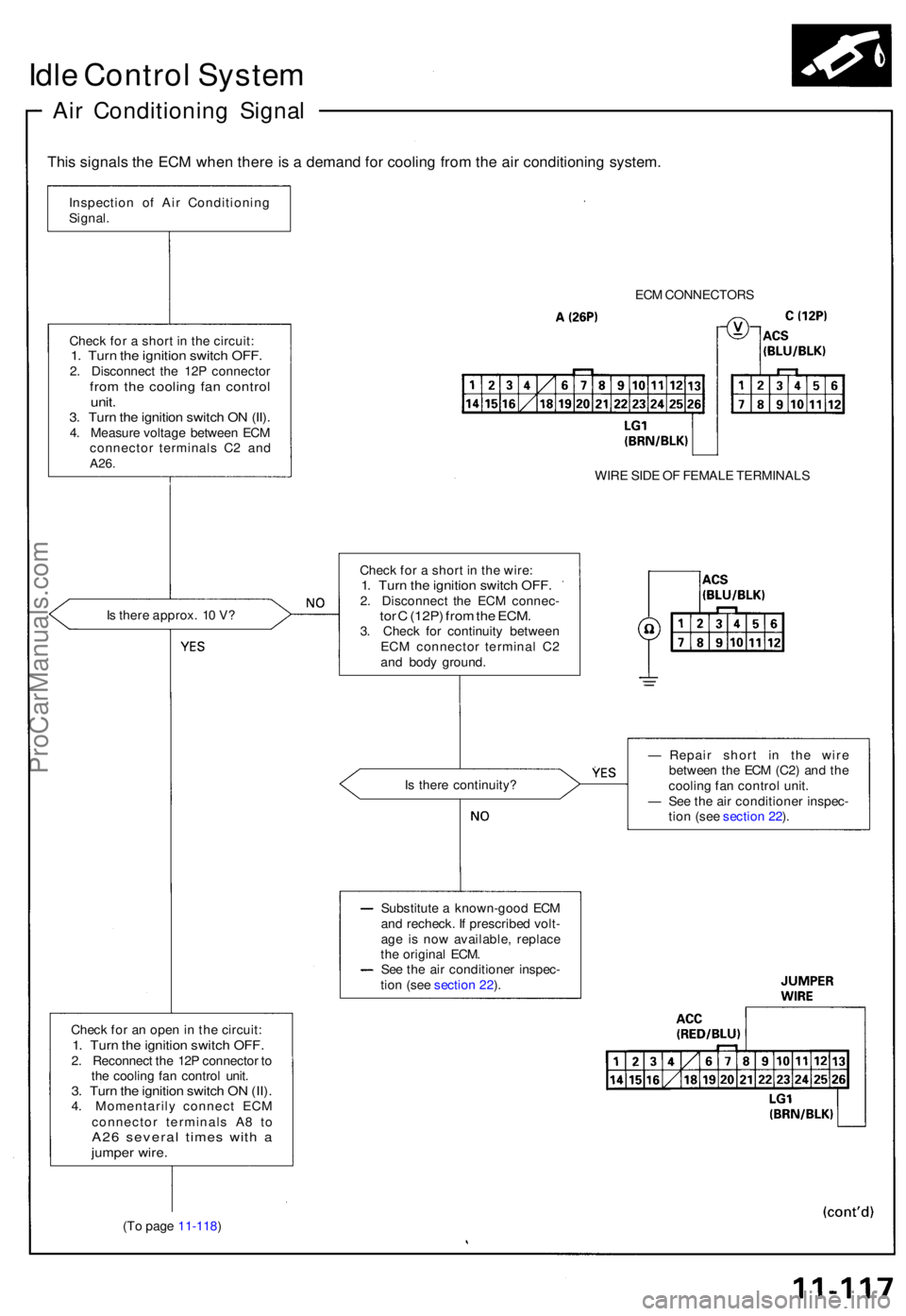

Idle Contro l Syste m
Air Conditionin g Signa l
This signal s th e EC M whe n ther e is a deman d fo r coolin g fro m th e ai r conditionin g system .
Inspectio n o f Ai r Conditionin g
Signal .
ECM CONNECTOR S
Chec k fo r a shor t i n th e circuit :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e 12 P connecto rfrom th e coolin g fa n contro lunit.3. Tur n th e ignitio n switc h O N (II) .4. Measur e voltag e betwee n EC M
connecto r terminal s C 2 an d
A26 .WIR E SID E O F FEMAL E TERMINAL S
I s ther e approx . 1 0 V ? Chec
k fo r a shor t i n th e wire :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e EC M connec -tor C (12P ) fro m th e ECM .3. Chec k fo r continuit y betwee n
EC M connecto r termina l C 2
an d bod y ground .
I s ther e continuity ? —
Repai r shor t i n th e wir e
betwee n th e EC M (C2 ) an d th e
coolin g fa n contro l unit .
— Se e th e ai r conditione r inspec -
tio n (se e sectio n 22 ).
Substitut e a known-goo d EC M
an d recheck . I f prescribe d volt -
ag e i s no w available , replac e
th e origina l ECM .
Se e th e ai r conditione r inspec -
tio n (se e sectio n 22 ).
Chec k fo r a n ope n in th e circuit :
1. Tur n th e ignitio n switc h OFF .2. Reconnec t th e 12 P connecto r t o
th e coolin g fa n contro l unit .
3. Tur n th e ignitio n switc h O N (II) .4. Momentaril y connec t EC M
connecto r terminal s A 8 t o
A2 6 severa l time s wit h ajumpe r wire .
(To pag e 11-118 )
ProCarManuals.com

Idle Contro l Syste m
Air Conditionin g Signa l
(From pag e 11-117 )
I s ther e a clickin g nois e fro m th e
A/ C compresso r clutch ?
Chec k fo r th e operatio n o f th e
A/C :1. Star t th e engine .
2 . Tur n th e blowe r switc h ON .
3 . Tur n th e A/ C switc h ON .
Doe s th e A/ C operate ?
Ai r conditionin g signa l i s OK . A/
C CLUTC H RELA Y 4P CONNECTO R
Chec k fo r a n ope n in th e wire :
Momentaril y connec t th e No . 4 ter -
mina l o f th e 4 P connecto r o n th e
A/ C clutc h rela y t o bod y groun d
severa l times .
WIRE SID E O F
FEMAL E TERMINAL S
I s ther e a clickin g nois e fro m th e
A/ C compresso r clutch ? Se
e ai r conditione r inspectio n (se e
sectio n 22 ).
Repai r ope n in th e wir e betwee n
th e EC M (AS ) an d th e A/ C clutc h
relay.
ECM CONNECTOR S
Chec k fo r a n ope n in th e wire :
Measur e voltag e betwee n EC M
connecto r terminal s C 2 an d A26 . WIR
E SID E O F FEMAL E TERMINAL S
I s voltag e les s tha n 1. 0 V ? Repai
r ope n in th e wir e betwee n
th e EC M (C2 ) an d th e A/ C switch .
Substitut e a known-goo d EC M
an d recheck . I f symptom/indi -
catio n goe s away , replac e th e
origina l ECM .
Se e th e ai r conditione r inspec -
tio n (se e sectio n 22 ).
ProCarManuals.com

Alternator (ALT ) F R Signa l
This signal s th e EC M whe n th e Alternato r (ALT ) i s charging .
Inspection o f AL T F R Signal .
ECM CONNECTOR S
WIR E SID E O F FEMAL E TERMINAL S
Chec k fo r a shor t i n th e wire :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e negativ e bat -
ter y cabl e fro m th e battery .
3 . Disconnec t th e EC M connec -
tor D (22P ) fro m th e ECM .4. Chec k fo r continuit y betwee n
EC M connecto r termina l D 5
an d bod y ground .
I
s ther e approx . 5 V ?
Chec
k fo r a shor t i n th e circuit :
1 . Disconnec t th e GR N 4 P con -
necto r fro m th e ALT .
2. Tur n th e ignitio n switc h O N (II) .3. Measur e voltag e betwee n EC M
connecto r terminal s D 5 an d
A26 .
Is ther e continuity ? Repai
r shor t i n th e wir e betwee nthe EC M (D5 ) and th e ALT .
Substitut e a known-goo d EC M
an d recheck . I f prescribe d voltag e
i s no w available , replac e th e origi -
nal ECM .Chec k th e operatio n o f th e ALT :1. Tur n th e ignitio n switc h OFF .2. Reconnec t th e AL T GR N 4 P
connecto r t o th e ALT .
3 . Star t th e engine . Hol d th e
engin e a t 3,00 0 rp m wit h n oloa d (A/ T in position ,M/T in neutral ) unti l th e radiato r
fa n come s on , the n le t i t idle .
4 . Measur e voltag e betwee n EC M
connecto r terminal s D 5 an d
A26.
Doe s th e voltag e decreas e whe nhead light s an d rea r defogge r ar eturne d on ? AL
T F R signa l i s OK .
(T o pag e 11-120 )
ProCarManuals.com

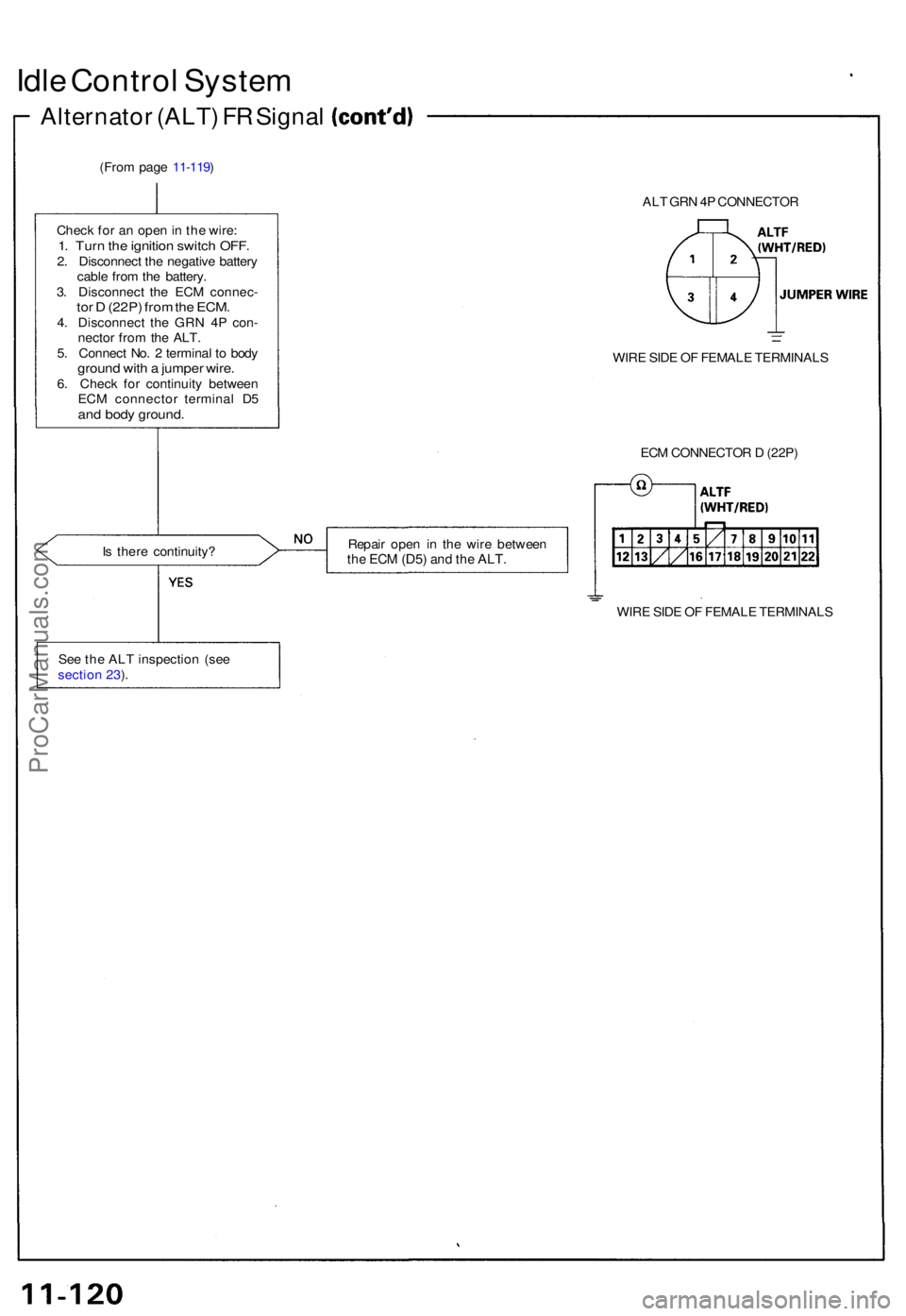

Idle Contro l Syste m
Alternato r (ALT ) F R Signa l
(From pag e 11-119 )
ALT GR N 4P CONNECTO R
Chec k fo r a n ope n in th e wire :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e negativ e batter y
cabl e fro m th e battery .
3 . Disconnec t th e EC M connec -
tor D (22P ) fro m th e ECM .4. Disconnec t th e GR N 4 P con -
necto r fro m th e ALT .
5 . Connec t No . 2 termina l t o bod y
groun d wit h a jumpe r wire .6. Chec k fo r continuit y betwee n
EC M connecto r termina l D 5
and bod y ground .
WIRE SID E O F FEMAL E TERMINAL S
EC M CONNECTO R D (22P )
I s ther e continuity ? Repai
r ope n i n th e wir e betwee n
the EC M (D5 ) and th e ALT .
WIRE SID E O F FEMAL E TERMINAL S
Se e th e AL T inspectio n (se e
sectio n 23 ).
ProCarManuals.com

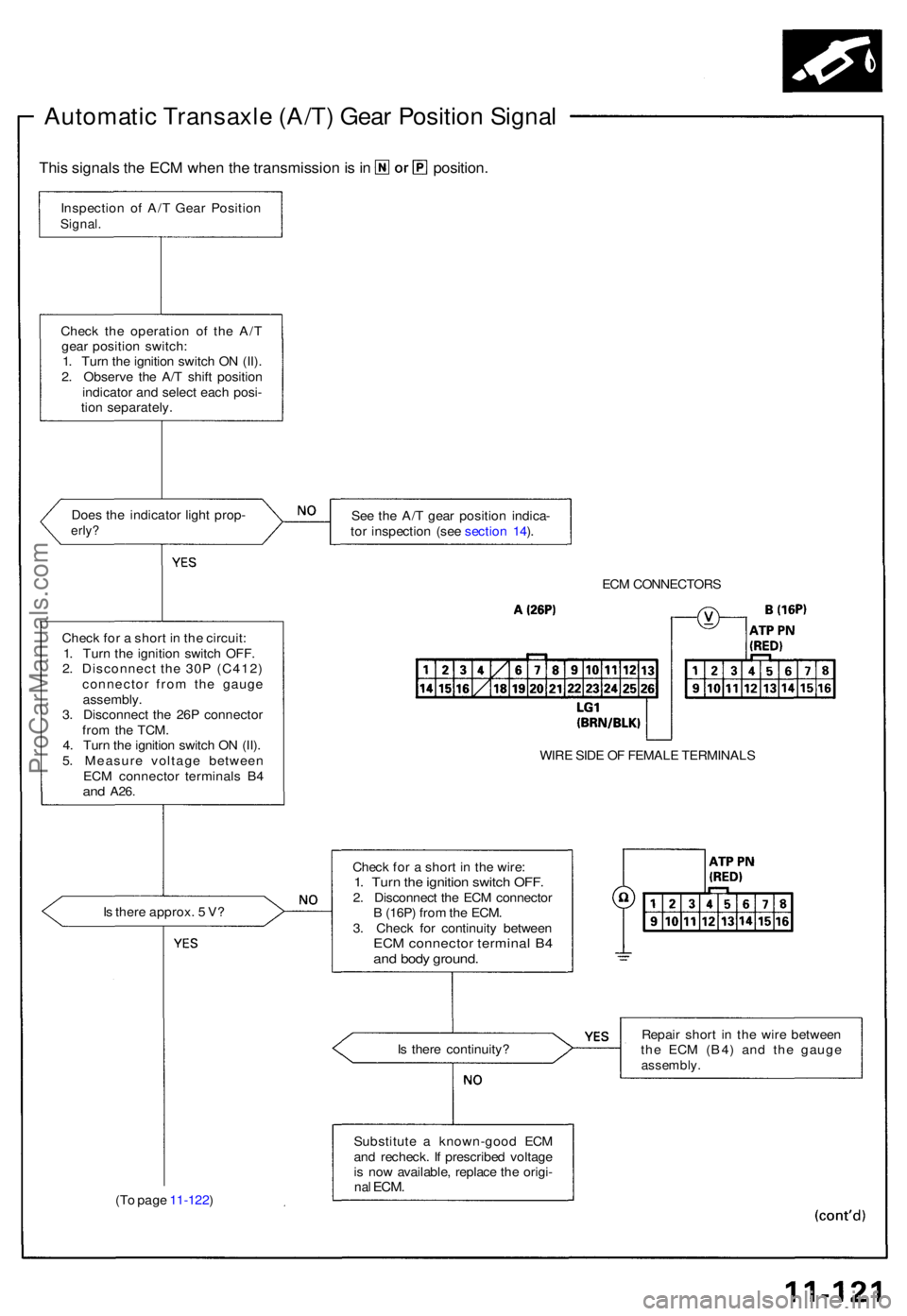

Inspection o f A/ T Gea r Positio nSignal.
This signal s th e EC M whe n th e transmissio n is in position.
Automati c Transaxl e (A/T ) Gea r Positio n Signa l
Check th e operatio n o f th e A/ T
gea r positio n switch :
1 . Tur n th e ignitio n switc h O N (II) .
2 . Observ e th e A/ T shif t positio n
indicato r an d selec t eac h posi -
tio n separately .
Doe s th e indicato r ligh t prop -
erly?See th e A/ T gea r positio n indica -
to r inspectio n (se e sectio n 14 ).
ECM CONNECTOR S
WIR E SID E O F FEMAL E TERMINAL S
Chec k fo r a shor t i n th e wire :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e EC M connecto r
B (16P ) fro m th e ECM .
3 . Chec k fo r continuit y betwee n
ECM connecto r termina l B 4an d bod y ground .
Is ther e approx . 5 V ?
Chec
k fo r a shor t i n th e circuit :
1 . Tur n th e ignitio n switc h OFF .
2 . Disconnec t th e 30 P (C412 )
connecto r fro m th e gaug e
assembly .
3 . Disconnec t th e 26 P connecto r
fro m th e TCM .
4 . Tur n th e ignitio n switc h O N (II) .
5 . Measur e voltag e betwee n
EC M connecto r terminal s B 4
and A26 .
Is ther e continuity ? Repai
r shor t i n th e wir e betwee n
th e EC M (B4 ) an d th e gaug eassembly .
Substitute a known-goo d EC M
an d recheck . I f prescribe d voltag e
i s no w available , replac e th e origi -
nal ECM .(To pag e 11-122 )
