1991 ACURA NSX Service Repair Manual

Engine Removal/Installation

Removal

20. Disconnect the engine wire harness connectors.

21. Remove the battery cable from the main fuse box.

ENGINE WIRE

HARNESS CONNECTORS

BATTERY

CABLE

6 x 1.0 mm

10 N-m
(1.0 kg-m,

7 Ib-ft)

22. Disconnect the throttle body 6P connector, and

remove the ground cable and starter cable.

STARTER CABLE
THROTTLE BODY

6P CONNECTOR

GROUND CABLE

CORROSION RESISTANT BOLT
23. Disconnect the two connectors from the emission

control box, then remove the control box.

• Do not disconnect the vacuum hoses.

6 x 1.0 mm

10 N-m (1.0 kg-m, 7 Ib-ft)

CONNECTORS

CONTROL BOX

24. Remove the radiator hoses and heater hose.

HEATER HOSE

RADIATOR

HOSESProCarManuals.com

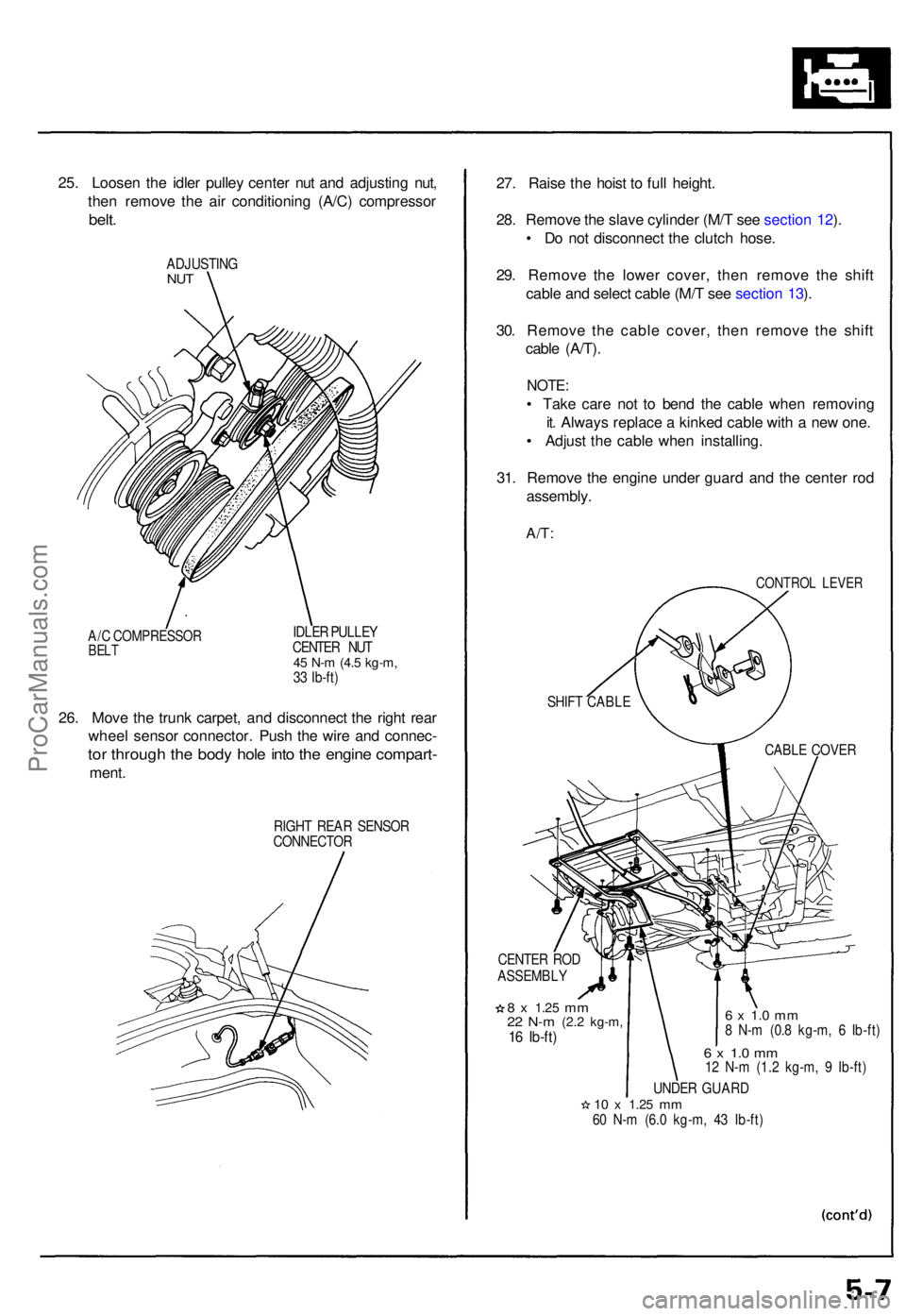

25. Loose n th e idle r pulle y cente r nu t an d adjustin g nut ,
the n remov e th e ai r conditionin g (A/C ) compresso r
belt.
ADJUSTIN GNUT
A/C COMPRESSO RBELT
IDLE R PULLE Y
CENTE R NU T
45 N- m (4. 5 kg-m ,33 Ib-ft )
26. Mov e th e trun k carpet , an d disconnec t th e righ t rea r
whee l senso r connector . Pus h th e wir e an d connec -
tor throug h th e bod y hol e int o th e engin e compart -
ment.
RIGH T REA R SENSO R
CONNECTO R
27. Rais e th e hois t t o ful l height .
28 . Remov e th e slav e cylinde r (M/ T se e sectio n 12 ).
• D o no t disconnec t th e clutc h hose .
29 . Remov e th e lowe r cover , the n remov e th e shif t
cabl e an d selec t cabl e (M/ T se e sectio n 13 ).
30 . Remov e th e cabl e cover , the n remov e th e shif t
cabl e (A/T) .
NOTE :
• Tak e car e no t t o ben d th e cabl e whe n removin g
it . Alway s replac e a kinke d cabl e wit h a ne w one .
• Adjus t th e cabl e whe n installing .
31 . Remov e th e engin e unde r guar d an d th e cente r ro d
assembly .
A/T:
CONTRO L LEVE R
CENTE R RO D
ASSEMBL Y
8 x 1.2 5 mm22 N- m (2. 2 kg-m ,16 Ib-ft )
6 x 1. 0 m m8 N- m (0. 8 kg-m , 6 Ib-ft )
6 x 1. 0 m m12 N- m (1. 2 kg-m , 9 Ib-ft )
UNDE R GUAR D
10 x 1.2 5 mm60 N- m (6. 0 kg-m , 4 3 Ib-ft )
SHIF
T CABL E
CABLE COVE R
ProCarManuals.com

Engine Removal/Installatio n
Removal
32. Remov e th e lef t an d righ t parkin g brak e cable s (se e
sectio n 19 ).
33 . Remov e th e rea r bea m ro d assembl y an d parkin g
brak e cabl e clamps . '
1 0 x 1.2 5 mm60 N- m (6. 0 kg-m ,43 Ib-ft )
12 x 1.2 5 mm95 N- m (9. 5 kg-m ,69 Ib-ft )
34. Remov e th e fron t engin e mount , the n remov e th e
fron t beam .
12 x 1.2 5 mm77 N- m (7. 7 kg-m , 5 6 Ib-ft )
Replace .
12 x 1.2 5 mm -95 N- m (9. 5 kg-m ,69 Ib-ft )
CORROSIO N RESISTAN T BOLT/NU T
35. Remov e th e A/ C compresso r (se e sectio n 22 ), the n
suspen d it fro m th e body .
NOTE :
• D o no t remov e th e compresso r hoses .
• D o no t le t th e compresso r han g b y it s hoses .
36 . Reinstal l th e fron t bea m an d fron t engin e mount .
Han g wit h wir e
or rope .
A/C COMPRESSO R
37. Remov e th e rea r brak e hoses , the n plu g th e brak e
pipe s wit h rubbe r cap s (se e sectio n 19 ).
38 . Disconnec t th e lef t rea r whee l senso r connector ,
then remov e th e whee l senso r wir e clamp s an d sta -
bilize r link .
6 x 1. 0 m m10 N- m (1. 0 kg-m ,7 Ib-ft )
LEFT REA R
WHEE L SENSO R
CONNECTO R
SELF-LOCKIN G NU T
12 x 1.2 5 mm95 N- m (9. 5 kg-m ,69 Ib-ft )Replace .
STABILIZE R
LIN K SELF-LOCKIN
G NU T
12 x 1.2 5 mm85 N- m (8. 5 kg-m , 6 2 Ib-ft )Replace .
REAR BEA M
RO D ASSEMBL Y
ProCarManuals.com

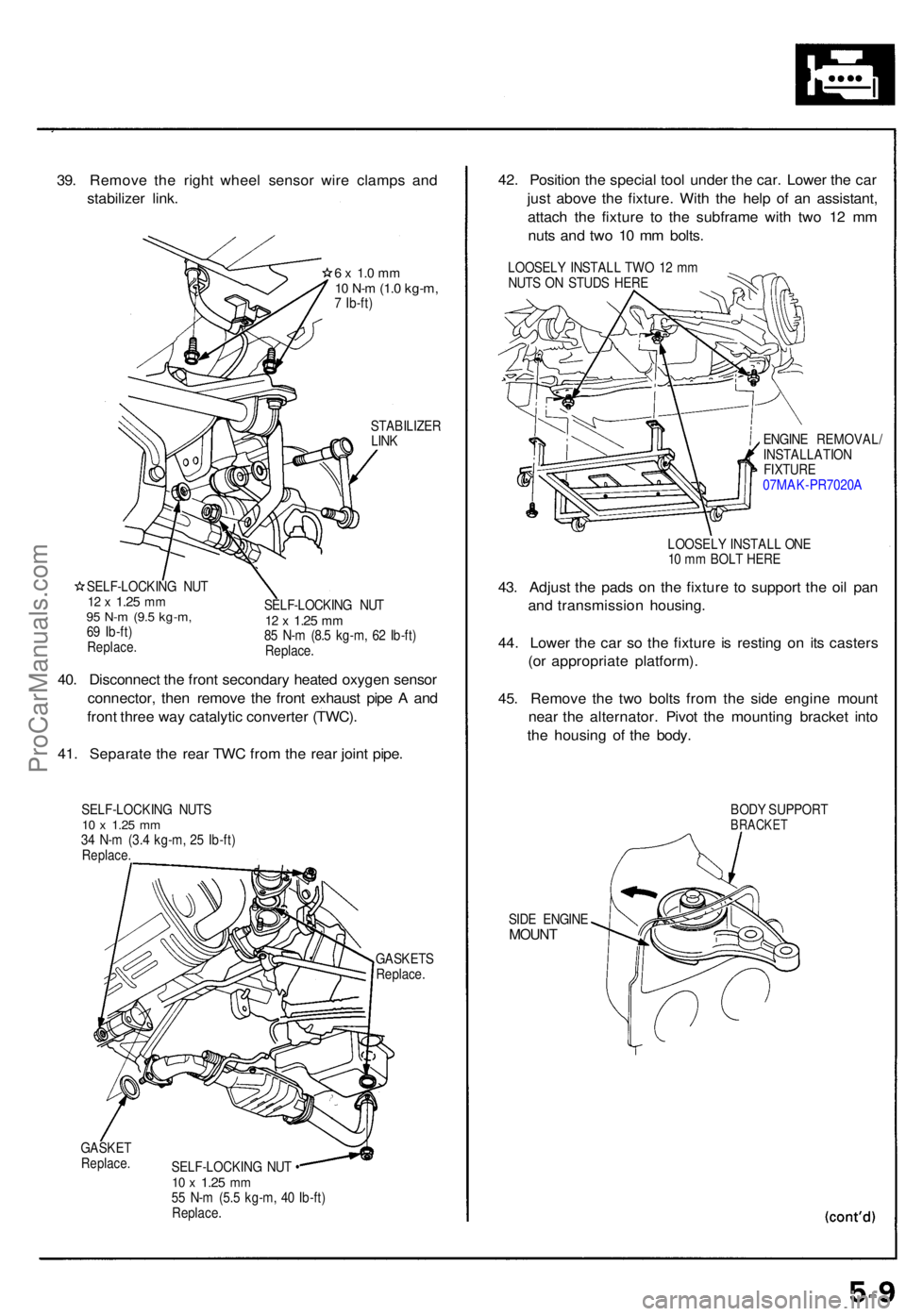

39. Remov e th e righ t whee l senso r wir e clamp s an d
stabilize r link .
6 x 1. 0 m m10 N- m (1. 0 kg-m ,7 Ib-ft )
STABILIZE RLINK
SELF-LOCKIN G NU T
12 x 1.2 5 mm95 N- m (9. 5 kg-m ,69 Ib-ft )Replace .
SELF-LOCKIN G NU T12 x 1.2 5 mm85 N- m (8. 5 kg-m , 6 2 Ib-ft )
Replace .
40. Disconnec t th e fron t secondar y heate d oxyge n senso r
connector , the n remov e th e fron t exhaus t pip e A an d
fron t thre e wa y catalyti c converte r (TWC) .
41 . Separat e th e rea r TW C fro m th e rea r join t pipe .
SELF-LOCKIN G NUT S10 x 1.2 5 mm34 N- m (3. 4 kg-m , 2 5 Ib-ft )Replace .
GASKET SReplace.
GASKETReplace .SELF-LOCKIN G NU T •10 x 1.2 5 mm55 N- m (5. 5 kg-m , 4 0 Ib-ft )Replace .
42. Positio n th e specia l too l unde r th e car . Lowe r th e ca r
jus t abov e th e fixture . Wit h th e hel p o f a n assistant ,
attac h th e fixtur e t o th e subfram e wit h tw o 1 2 m m
nut s an d tw o 1 0 m m bolts .
LOOSEL Y INSTAL L TW O 1 2 m m
NUT S O N STUD S HER E
ENGINE REMOVAL /
INSTALLATIO N
FIXTURE07MAK-PR7020 A
LOOSEL Y INSTAL L ON E
1 0 m m BOL T HER E
43. Adjus t th e pad s o n th e fixtur e t o suppor t th e oi l pa n
an d transmissio n housing .
44 . Lowe r th e ca r s o th e fixtur e i s restin g o n it s caster s
(o r appropriat e platform) .
45 . Remov e th e tw o bolt s fro m th e sid e engin e moun t
nea r th e alternator . Pivo t th e mountin g bracke t int o
th e housin g o f th e body .
BODY SUPPOR TBRACKET
SIDE ENGIN EMOUNT
ProCarManuals.com

Engine Removal/Installatio n
Removal

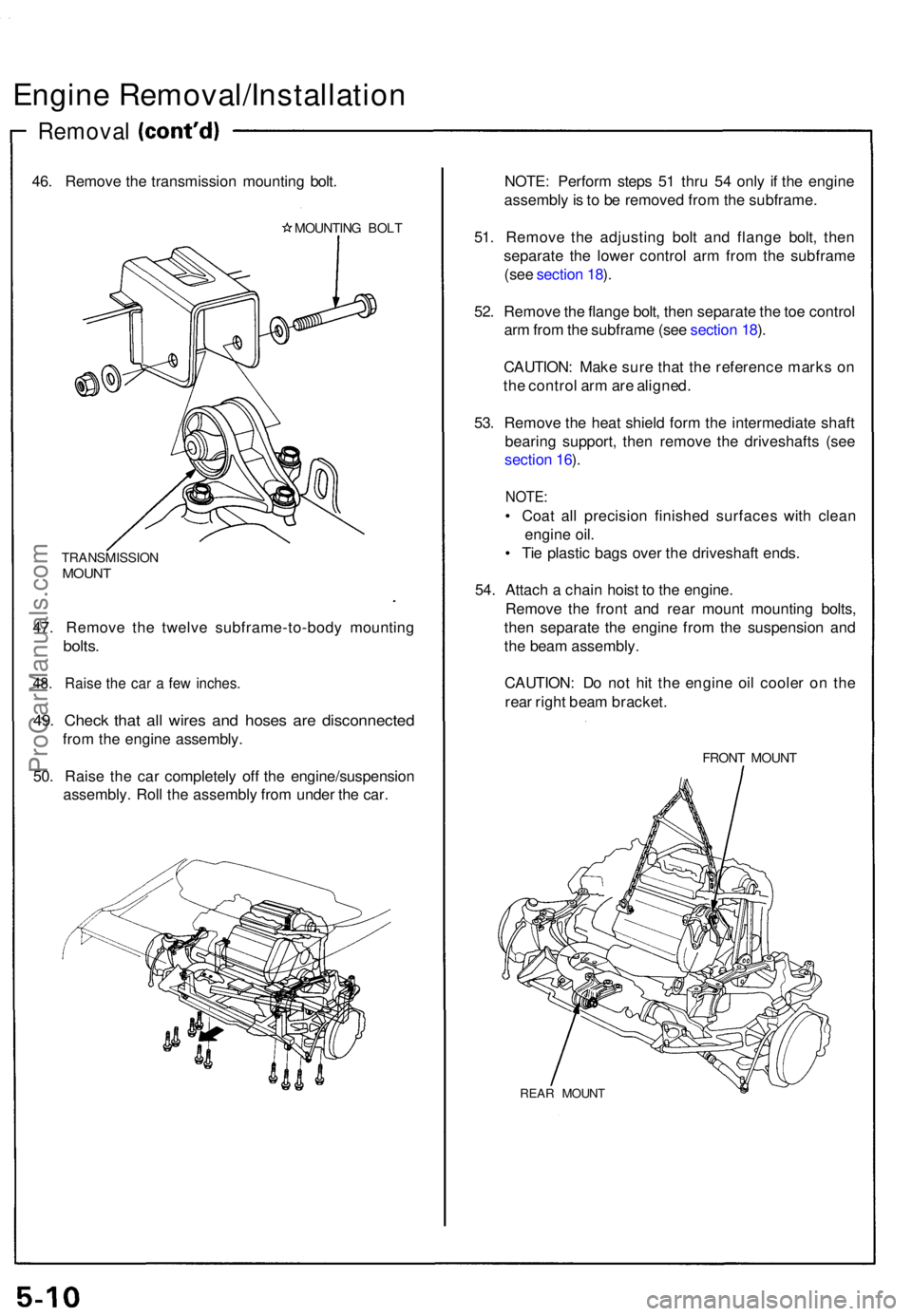

46. Remov e th e transmissio n mountin g bolt .
MOUNTIN G BOL T
TRANSMISSIO NMOUNT
47. Remov e th e twelv e subframe-to-bod y mountin g
bolts.
48. Rais e th e ca r a fe w inches .
49. Chec k tha t al l wire s an d hose s ar e disconnecte d
from th e engin e assembly .
50 . Rais e th e ca r completel y of f th e engine/suspensio n
assembly . Rol l th e assembl y fro m unde r th e car . NOTE
: Perfor m step s 5 1 thr u 5 4 onl y i f th e engin e
assembl y is t o b e remove d fro m th e subframe .
51 . Remov e th e adjustin g bol t an d flang e bolt , the n
separat e th e lowe r contro l ar m fro m th e subfram e
(se e sectio n 18 ).
52 . Remov e th e flang e bolt , the n separat e th e to e contro l
ar m fro m th e subfram e (se e sectio n 18 ).
CAUTION : Mak e sur e tha t th e referenc e mark s o n
th e contro l ar m ar e aligned .
53 . Remov e th e hea t shiel d for m th e intermediat e shaf t
bearin g support , the n remov e th e driveshaft s (se e
sectio n 16 ).
NOTE :
• Coa t al l precisio n finishe d surface s wit h clea n
engin e oil .
• Ti e plasti c bag s ove r th e driveshaf t ends .
54 . Attac h a chai n hois t t o th e engine .
Remov e th e fron t an d rea r moun t mountin g bolts ,
the n separat e th e engine from th e suspensio n an d
th e bea m assembly .
CAUTION : D o no t hi t th e engin e oi l coole r o n th e
rea r righ t bea m bracket .
FRONT MOUN T
REAR MOUN T
ProCarManuals.com

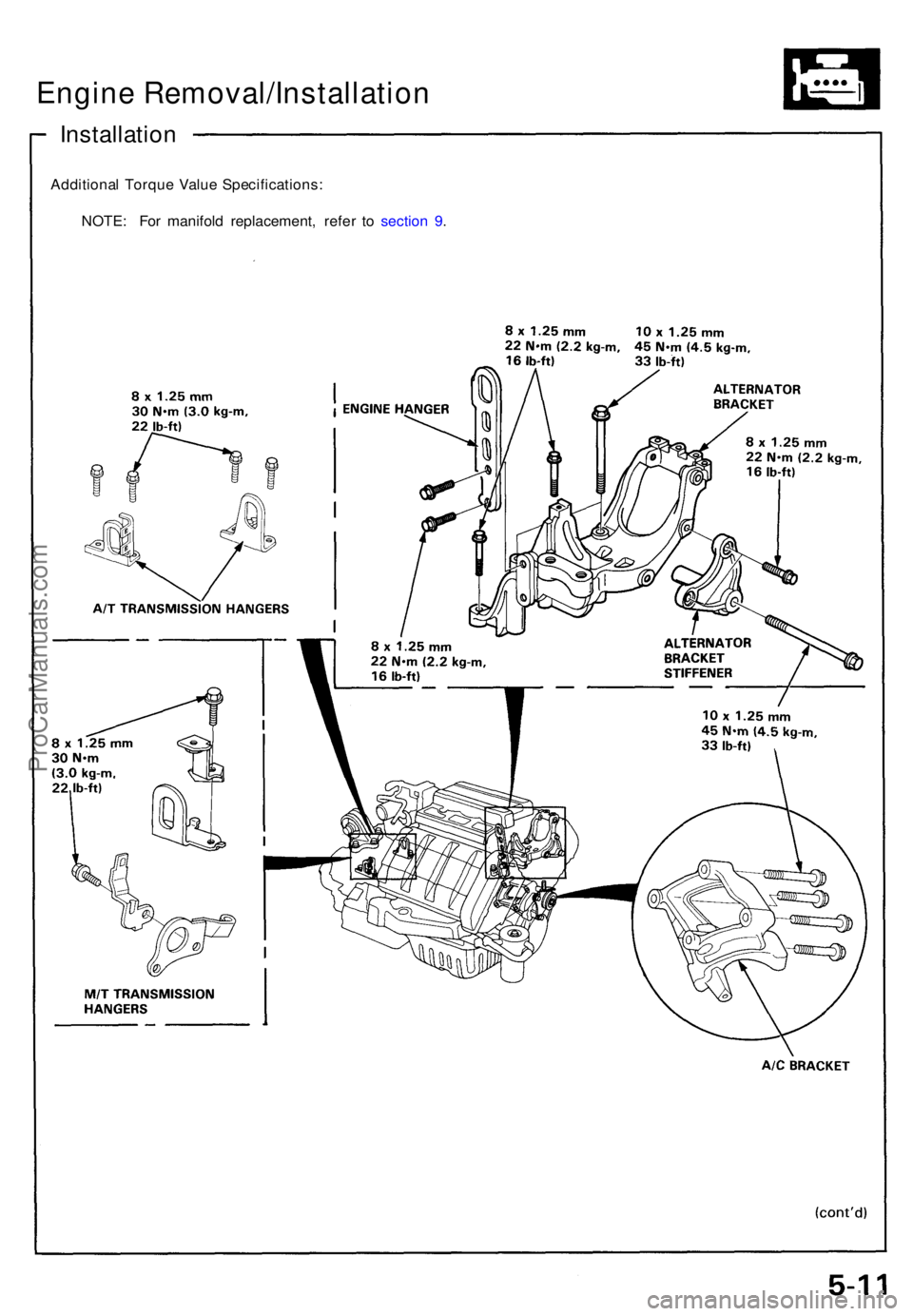

Installation
Additional Torqu e Valu e Specifications :
NOTE : Fo r manifol d replacement , refe r t o sectio n 9 .
Engine Removal/Installation
ProCarManuals.com

Engine Removal/Installatio n
Installation
Engine Installation :
Instal l th e engin e in th e revers e orde r o f removal . Reinstal l
th e moun t bolts/nut s i n th e followin g sequence , failur e t o
follo w thes e procedure s ma y caus e excessiv e nois e an d
vibration , an d reduc e bushin g life .
1 . Instal l th e rea r mount , the n tighte n th e bolt s o n th e
transmissio n side .
NOTE : D o no t tighte n th e mountin g bolt .
MOUNTIN G BOL T
Replace .
REA R MOUN T
M/T: 1 2 x 1.2 5 mm105 N- m (10. 5 kg-m , 7 6 Ib-ft )A/T: 1 0 x 1.2 5 mm60 N- m (6. 0 kg-m , 4 3 Ib-ft )
2. Instal l th e fron t mount , the n tighte n th e bolt s i n th e
numbere d sequenc e a s show n
FRONT MOUN T
12 x 1.2 5 mm77 N- m (7. 7 kg-m ,56 Ib-ft )Replace .
10 x 1.2 5 mm60 N- m (6. 0 kg-m , 4 3 Ib-ft )
CORROSIO N RESISTAN T BOLT/NU T
3. Instal l th e subframe , the n tighte n th e subframe-to -
bod y mountin g bolt s (se e sectio n 20 ).
NOTE : Alig n th e bol t hole s o f th e bea m bracket s
an d bod y wit h a tapere d punch .
GUIDE HOL E(BODY )
GUIDE HOL E
(SID E BEAM )
TAPERED PUNC H
4. Instal l th e transmissio n mount , the n tighte n th e bolt s
o n th e transmissio n side .
NOTE : D o no t tighte n th e mountin g bolt .
10 x 1.2 5 mm60 N- m (6. 0 kg-m ,43 Ib-ft )
MOUNTIN GBOLT
TRANSMISSIO NMOUNT
ProCarManuals.com

5. Install the side engine mount, then tighten the bolts
in the numbered sequence as shown ( - ),

12 x
1.26
mm

73 N·m
(7.3 kg-m,
53 Ib-ft)

Replace.
12 x
1.25
mm

95 N·m
(9.5 kg-m,
69 Ib-ft)

SIDE ENGINE

MOUNT

6. Tighten the transmission mount mounting bolt.

MOUNTING BOLT
12 x
1.25
mm

95 N·m (9.5 kg-m, 69 Ib-ft)
7. Tighten the rear mount mounting bolt.
MOUNTING BOLT

12 x
1.25
mm

77 N·m (7.7 kg-m, 56 Ib-ft)
Replace.

Check that the spring clip on the end of each
driveshaft clicks into place.
CAUTION: Use new spring clips.
Bleed air from the cooling system (see page 10-5).
Bleed air from the brake lines {see section 19).
Check the clutch pedal free play (see section 12).

Adjust the clutch guide assemblies when disas-

sembling clutch (see section 12).

Check that the transmission shifts into gear

smoothly.

Adjust the alternator belt (see section 23).
Adjust the A/C compressor belt (see section 22).
Clean battery posts and cable terminals with
sandpaper, assemble, then apply grease to pre-
vent corrosion.
Inspect for fuel leakage (see section 11). After assembling the fuel line parts, turn on
the ignition switch (do not operate the starter) so that the fuel pump operates for approxi-
mately two seconds and the fuel line pressu-
rizes. Repeat this operation two or three times
and check for fuel leakage at any point in the

fuel line.

Check and adjust wheel alignment (see section 18).

Refill the engine with engine oil (see page 8-4 ('91-'92
Models), ('93-Model),or ('94-'96 Models).

Refill the transmission with oil/fluid (see section

13 or
14).ProCarManuals.com
