Page 1057 of 1640

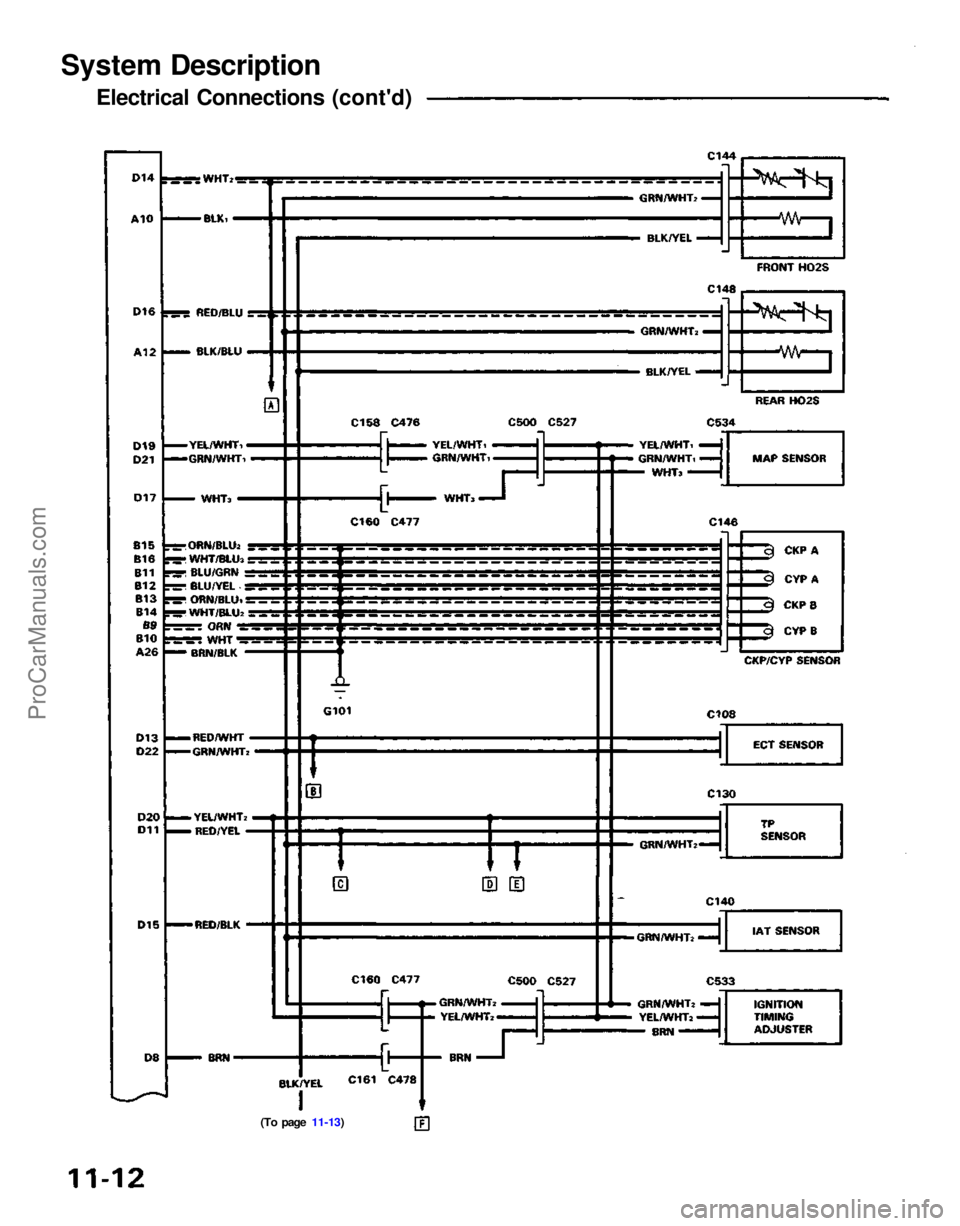

ACURA NSX 1991 Service Repair Manual System Description Electrical Connections (cont'd) (To page 11-13)ProCarManuals.com

Page 1058 of 1640

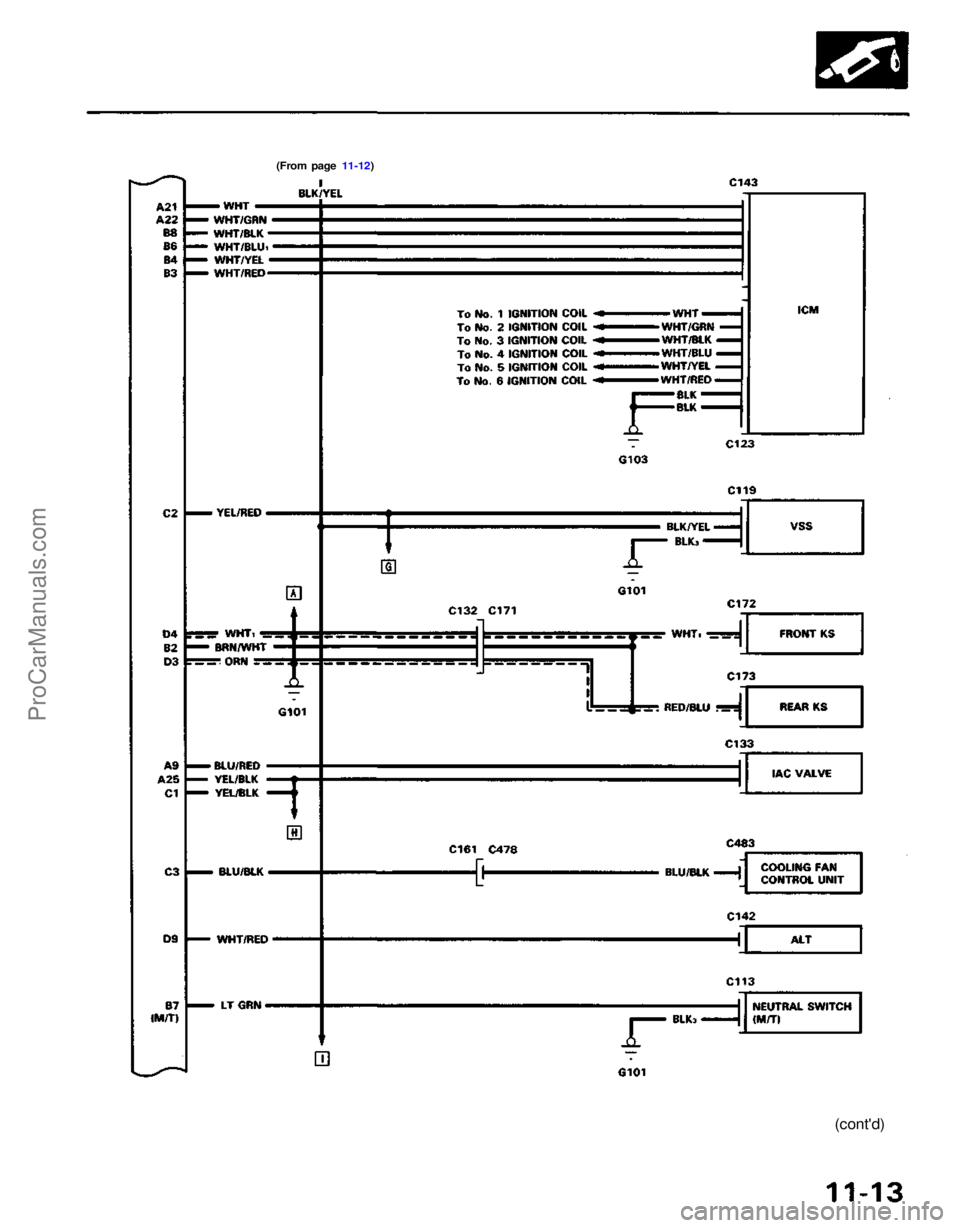

ACURA NSX 1991 Service Repair Manual (From page 11-12) (cont'd)ProCarManuals.com

Page 1059 of 1640

ACURA NSX 1991 Service Repair Manual System Description Electrical Connections (cont'd)ProCarManuals.com

Page 1060 of 1640

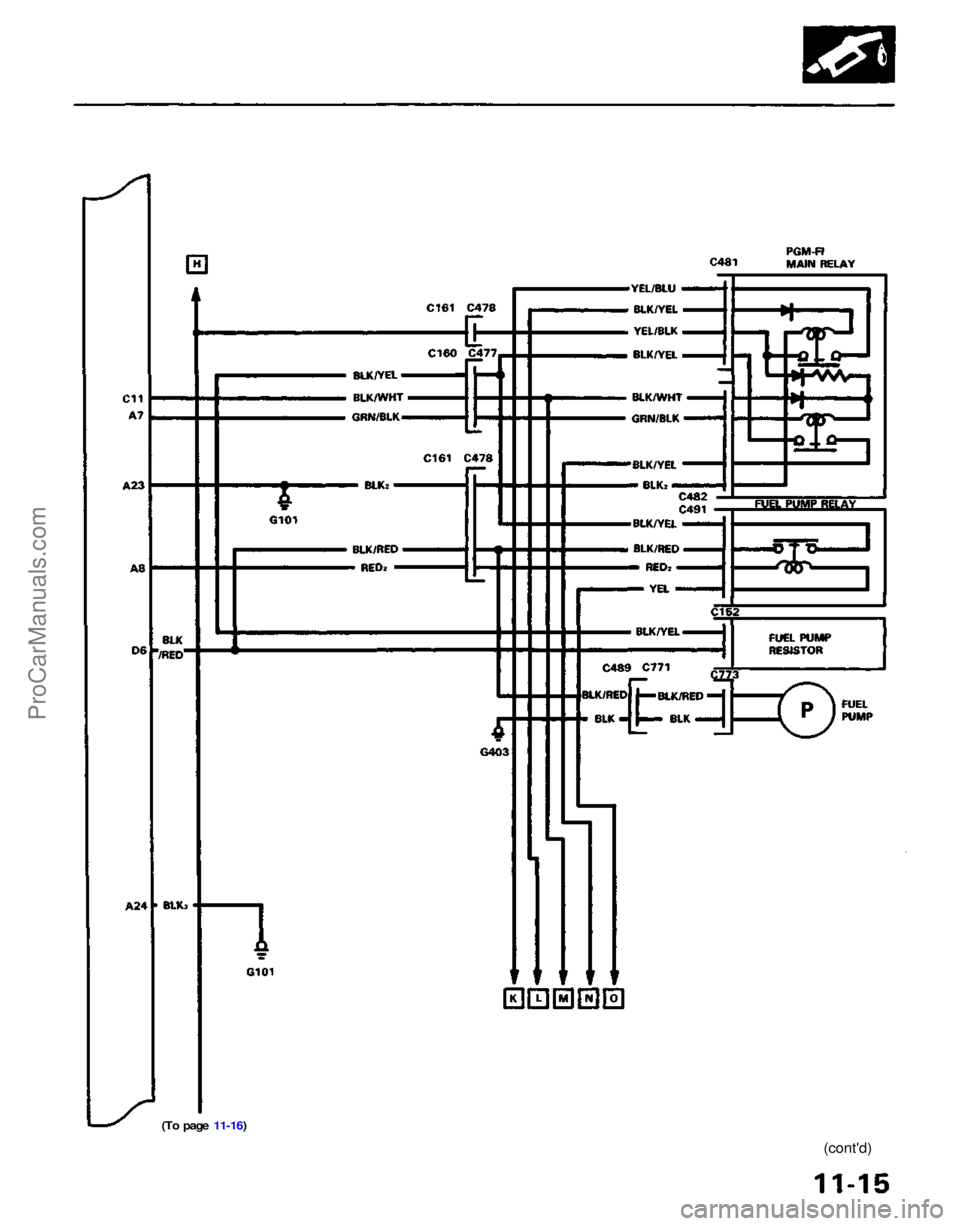

ACURA NSX 1991 Service Repair Manual (cont'd) (To page 11-16)ProCarManuals.com

Page 1061 of 1640

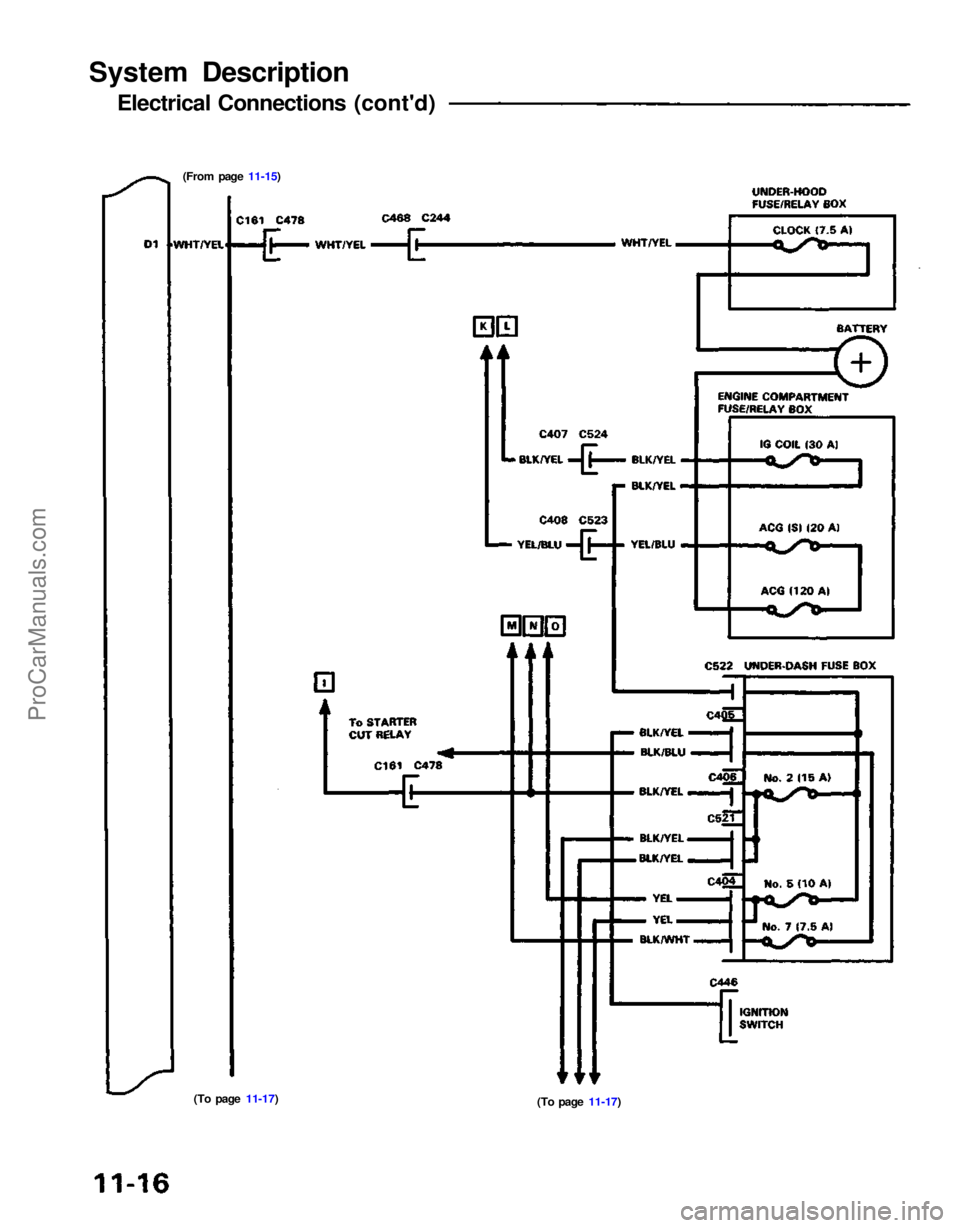

ACURA NSX 1991 Service Repair Manual System Description Electrical Connections (cont'd) (From page 11-15) (To page 11-17) (To page 11-17)ProCarManuals.com

Page 1062 of 1640

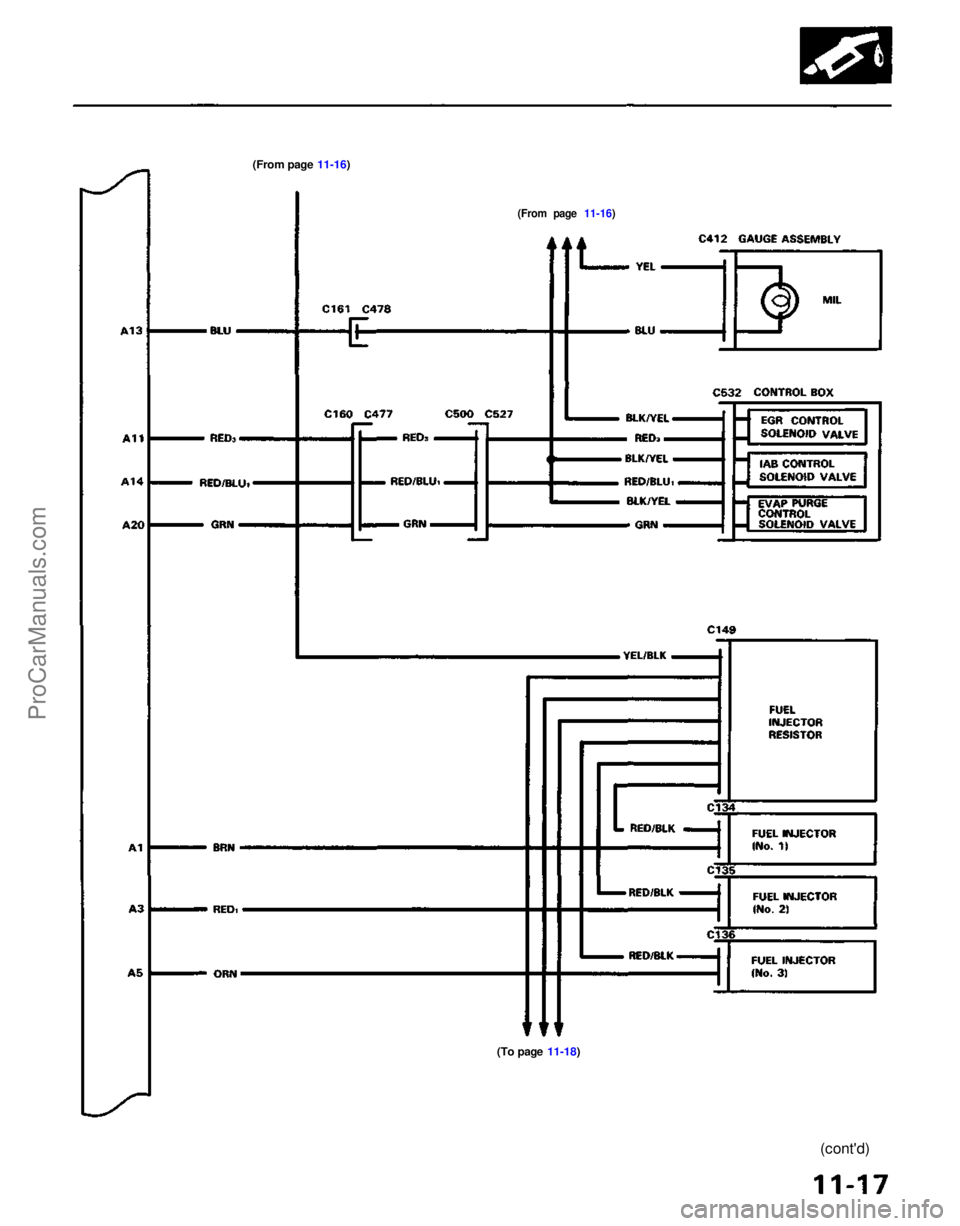

ACURA NSX 1991 Service Repair Manual (From page 11-16) (From page 11-16) (To page 11-18) (cont'd)ProCarManuals.com

Page 1063 of 1640

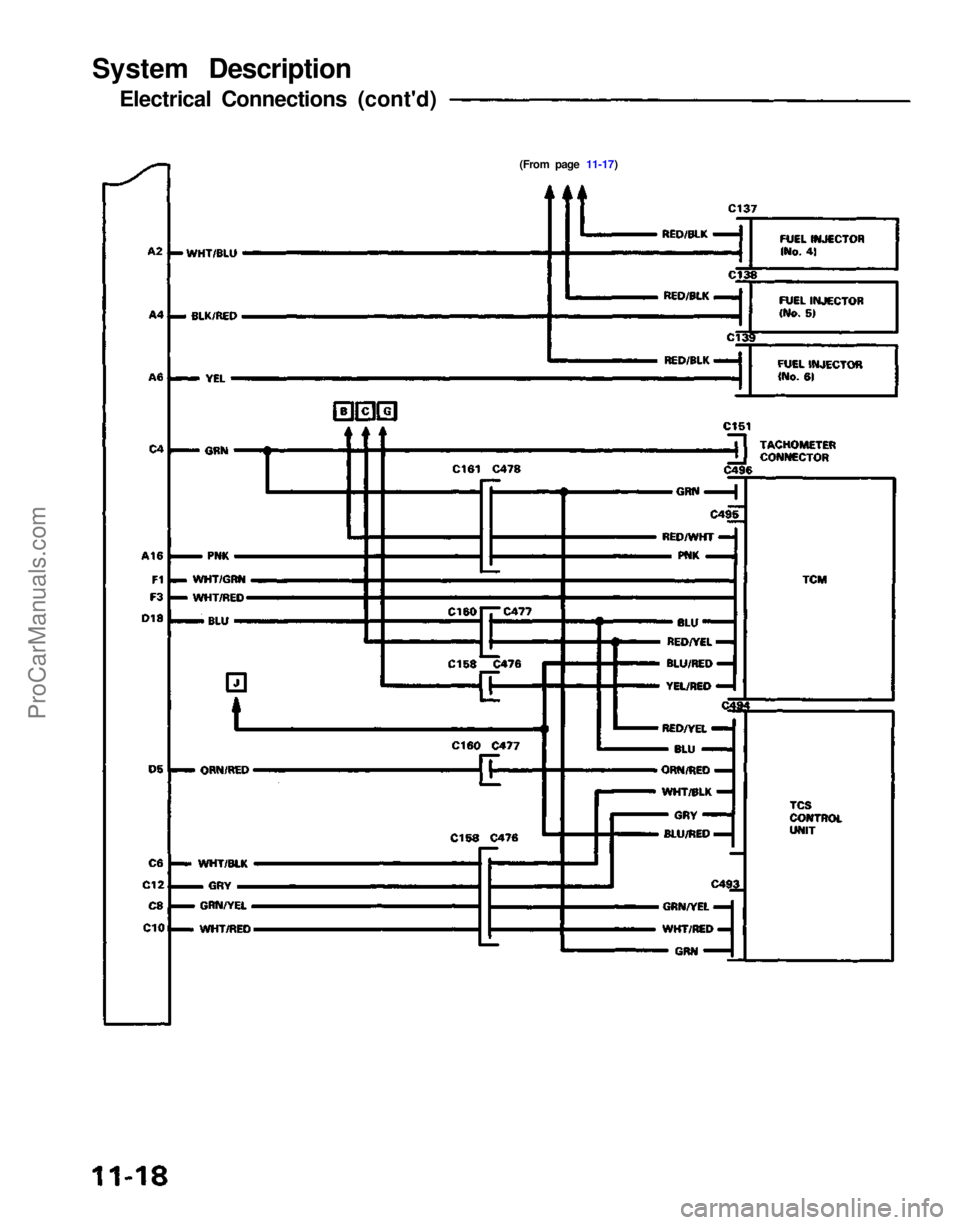

ACURA NSX 1991 Service Repair Manual System Description Electrical Connections (cont'd) (From page 11-17)ProCarManuals.com

Page 1064 of 1640

ACURA NSX 1991 Service Repair Manual System Description System Connectors [Engine Compartment (Left Side)] ENGINE WIREHARNESS C123 G103 C107 C106 ENGINE COMPARTMENT FUSE/RELAY BOX C108 C113 SIDE WIRE HARNESS C11 6 C532 C533
