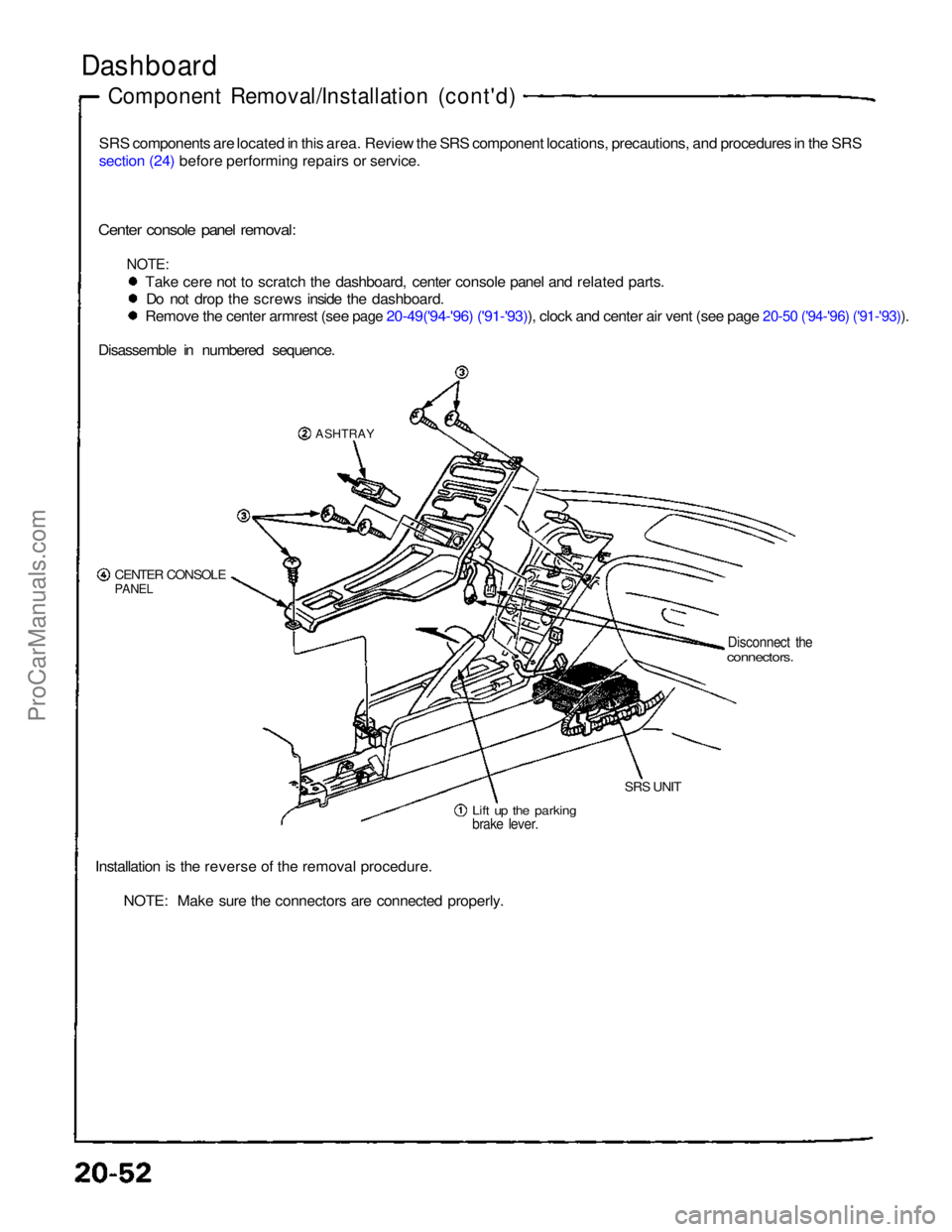

Dashboard

Component Removal/Installation (cont'd)

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS
section (24) before performing repairs or service.

Center console panel removal:
NOTE:
Take cere not to scratch the dashboard, center console panel and related parts.Do not drop the screws inside the dashboard.
Remove the center armrest (see page 20-49('94-'96) ('91-'93)), clock and center air vent (see page 20-50 ('94-'96) ('91-'93)).

Disassemble in numbered sequence.

ASHTRAY

CENTER CONSOLE

PANEL
Disconnect the

connectors.

Lift up the parking

brake lever.
SRS UNIT
Installation is the reverse of the removal procedure. NOTE: Make sure the connectors are connected properly.ProCarManuals.com

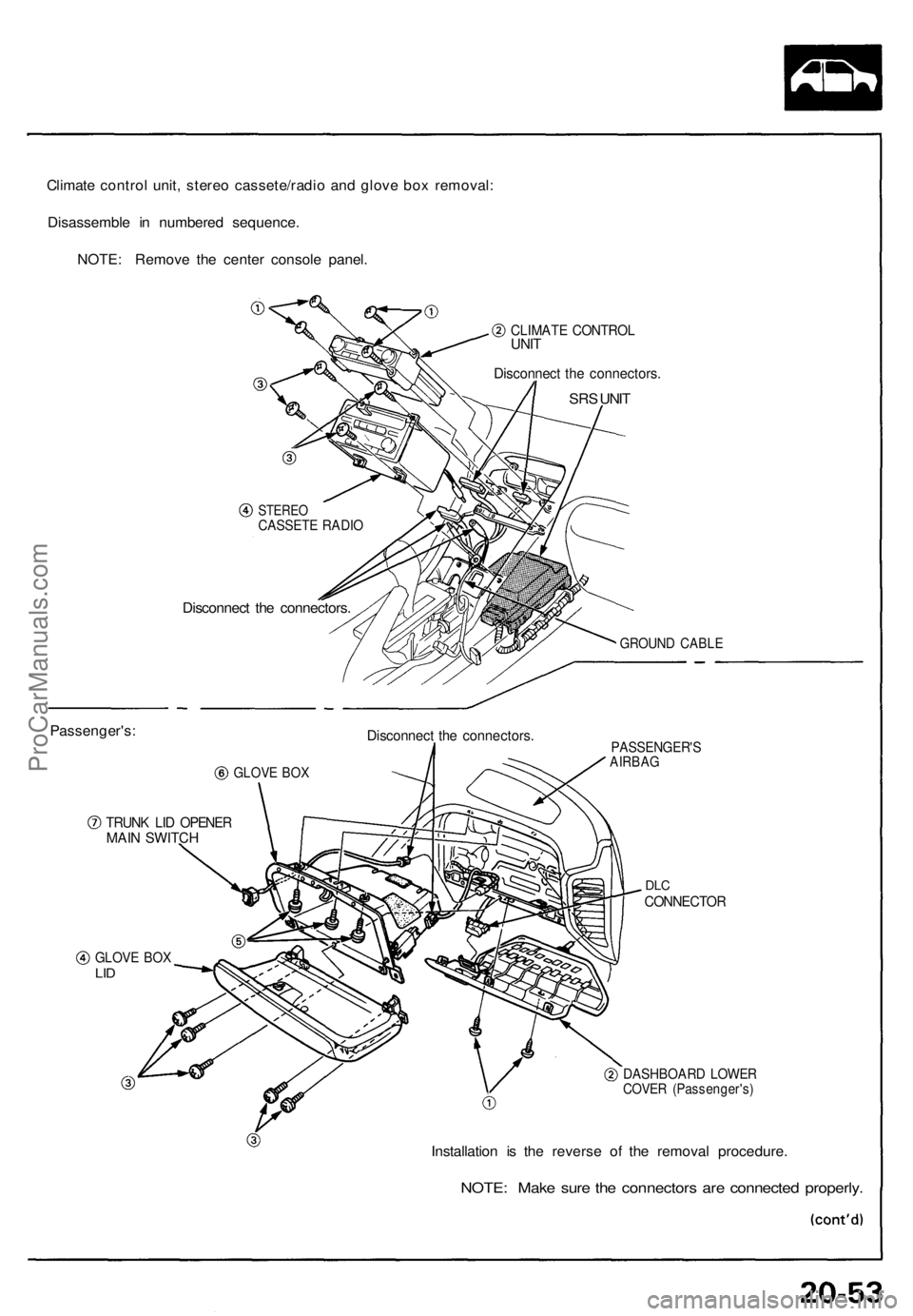

Climate control unit, stereo cassete/radio and glove box removal:

Disassemble in numbered sequence.

NOTE: Remove the center console panel.

CLIMATE CONTROL

UNIT

Disconnect the connectors.

SRS UNIT

Passenger's:
STEREO

CASSETE RADIO

Disconnect the connectors.

GROUND CABLE

GLOVE BOX
Disconnect the connectors.

TRUNK LID OPENER

MAIN SWITCH
PASSENGER'S

AIRBAG

DLC

CONNECTOR

GLOVE BOX

LID

DASHBOARD LOWER

COVER (Passenger's)

Installation is the reverse of the removal procedure.

NOTE: Make sure the connectors are connected properly.ProCarManuals.com

Dashboard
Componen t Removal/Installatio n
SRS component s ar e locate d in thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s in th e SR S
sectio n 24 befor e performin g repair s o r service .
NOTE : Tak e car e no t t o scratc h th e dashboard ,
steerin g colum n an d relate d parts .
CAUTION : Whe n pryin g wit h a fla t ti p screw -
driver , wra p it wit h protectiv e tap e o r a sho p towe l
t o preven t damage .
Drivers :
RETRACTO R SWITCH /
DAS H BRIGHTNES S
CONTROLLER
Disconnect th e
connectors ?
DASHBOAR D LOWE R
COVE R (Driver's )
Installation i s th e revers e o f th e remova l procedure .
NOTE : Mak e sur e th e connector s ar e connecte d properly .
Disconnec t th e connectors .
DASHBOAR D
LOWE R PA D
INSTRUMEN
T
PANEL
TCS SWITC H
DASHBOAR DBRACE
DASHBOAR D
LOWE R PA D
INSTRUMEN TPANEL
CLIP
ProCarManuals.com

Replacement

NOTE:
Remove the access panel, then remove the
short connector (RED). Disconnect the connec-
tor between the airbag and cable reel, then con-
nect the short connector (RED) to the airbag
connector.

AIRBAG

CONNECTOR
CABLE REEL

CONNECTOR

ACCESS PANEL
SHORT CONNECTOR
(RED)

Connect the special tool to the cable reel
connector.

CABLE REEL

CONNECTOR

SHORT

CONNECTOR

(RED)
SHS

SERVICE CONNECTOR

07MAZ–SP00200

(cont'd)

SRS components are located in this area. Review the SRS
component locations, precautions, and procedures in the
SRS section (24) before performing repairs or service.
1. To remove the dashboard, first remove the: Seats (see page 20-39 ('93-'96), 38)
Dashboard lower cover (Driver's) (see page
20-54('94-'96) ('91-'93))
Dashboard lower pad (see page 20-54('94-'96) ('91-'93))

Dashboard brace (see page 20-54('94-'96)('91-'93))

Cente
r
armrest (see page 20-49('94-'96)('91-'93))


Clock, center air vent and console panel (see
pages 20-50('94-'96) ('91-'93), 51('94-'96) ('91-'93)

52('94-'96) ('91-'93))

Climate control unit and stereo elassette/ratio (see
page 20-53('94-'96)('91-'93))
Dashboard lower cover (Passenger's) (see page
20-53('94-'96) ('91-'93))

Glove box lid and glove box (see page 20-53('94-'96)('91-'93))

2. Lower the Steering column (see section 17).
To avoid accidental deployment and
possible injury always install the short connector on the airbag connector when the SRS wire
harness is disconnected.ProCarManuals.com

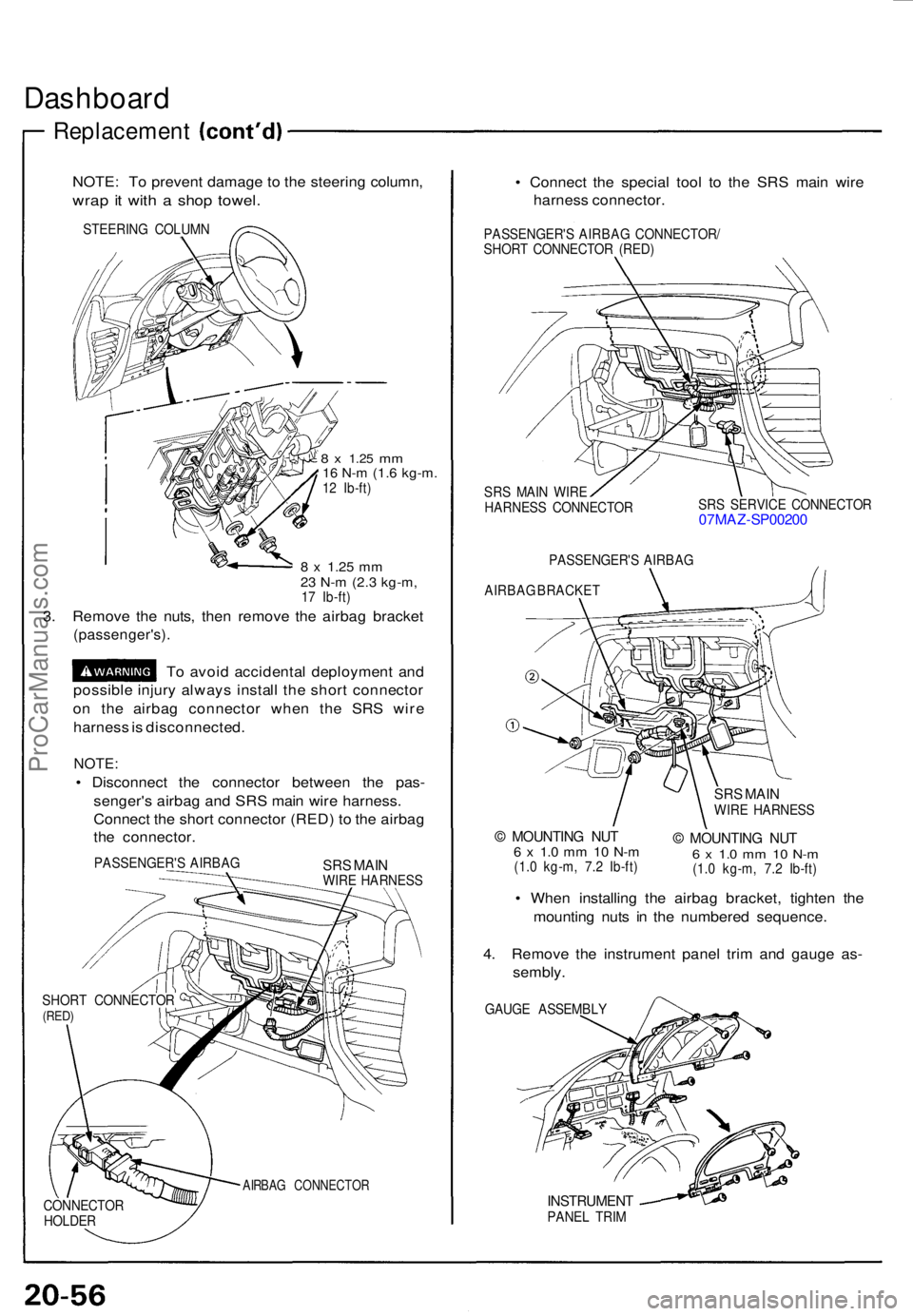

Dashboard
Replacemen t
NOTE: T o preven t damag e t o th e steerin g column ,
wrap it wit h a sho p towel .
STEERIN G COLUM N
8 x 1.2 5 mm16 N- m (1. 6 kg-m .12 Ib-ft )
8 x 1.2 5 mm23 N- m (2. 3 kg-m ,17 Ib-ft )
3. Remov e th e nuts , the n remov e th e airba g bracke t
(passenger's) .
To avoi d accidenta l deploymen t an d
possibl e injur y alway s instal l th e shor t connecto r
o n th e airba g connecto r whe n th e SR S wir e
harnes s is disconnected .
NOTE:
• Disconnec t th e connecto r betwee n th e pas -
senger' s airba g an d SR S mai n wir e harness .
Connec t th e shor t connecto r (RED ) t o th e airba g
th e connector .
PASSENGER' S AIRBA GSRS MAI NWIR E HARNES S
SHOR T CONNECTO R
(RED)
AIRBA G CONNECTO R
• Connec t th e specia l too l t o th e SR S mai n wir e
harnes s connector .
PASSENGER' S AIRBA G CONNECTOR /
SHOR T CONNECTO R (RED )
SR S MAI N WIR E
HARNES S CONNECTO RSR
S SERVIC E CONNECTO R
07MAZ-SP0020 0
PASSENGER' S AIRBA G
AIRBA G BRACKE T
© MOUNTIN G NU T6 x 1. 0 m m 1 0 N- m(1.0 kg-m , 7. 2 Ib-ft )
SRS MAI NWIR E HARNES S
© MOUNTIN G NU T6 x 1. 0 m m 1 0 N- m(1.0 kg-m , 7. 2 Ib-ft )
• Whe n installin g th e airba g bracket , tighte n th e
mountin g nut s i n th e numbere d sequence .
4 . Remov e th e instrumen t pane l tri m an d gaug e as -
sembly .
GAUGE ASSEMBL Y
INSTRUMEN TPANEL TRI M
CONNECTO
RHOLDER
ProCarManuals.com

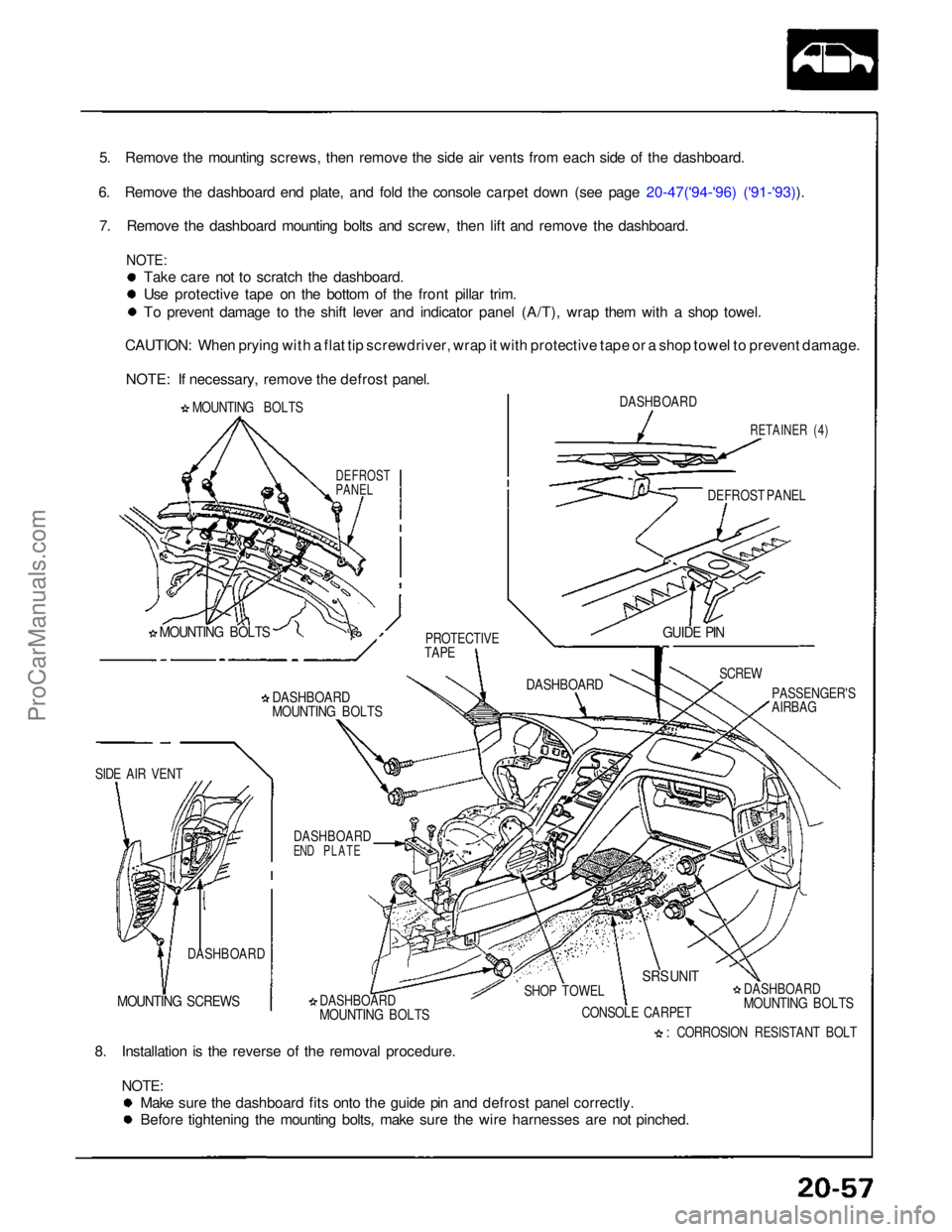

5. Remove the mounting screws, then remove the side air vents from each side of the dashboard.
6. Remove the dashboard end plate, and fold the console carpet down (see page 20-47('94-'96) ('91-'93)). 7. Remove the dashboard mounting bolts and screw, then lift and remove the dashboard.

NOTE:
Take care not to scratch the dashboard.
Use protective tape on the bottom of the front pillar trim. To prevent damage to the shift lever and indicator panel (A/T), wrap them with a shop towel.
CAUTION: When prying with a flat tip screwdriver, wrap it with protective tape or a shop towel to prevent damage.
NOTE: If necessary, remove the defrost panel.
MOUNTING BOLTS

DEFROST

PANEL

MOUNTING BOLTS
DASHBOARD

MOUNTING BOLTS
PROTECTIVE
TAPE

DASHBOARD
GUIDE PIN

SCREWPASSENGER'S
AIRBAG
DASHBOARD

END PLATE

SIDE AIR VENT
DASHBOARD

MOUNTING SCREWS
DASHBOARD

MOUNTING BOLTS
SHOP TOWEL
CONSOLE CARPET
SRS UNIT

DASHBOARD

MOUNTING BOLTS

: CORROSION RESISTANT BOLT

8. Installation is the reverse of the removal procedure.

NOTE:
Make sure the dashboard fits onto the guide pin and defrost panel correctly. Before tightening the mounting bolts, make sure the wire harnesses are not pinched.
DASHBOARD

RETAINER (4)

DEFROST PANELProCarManuals.com

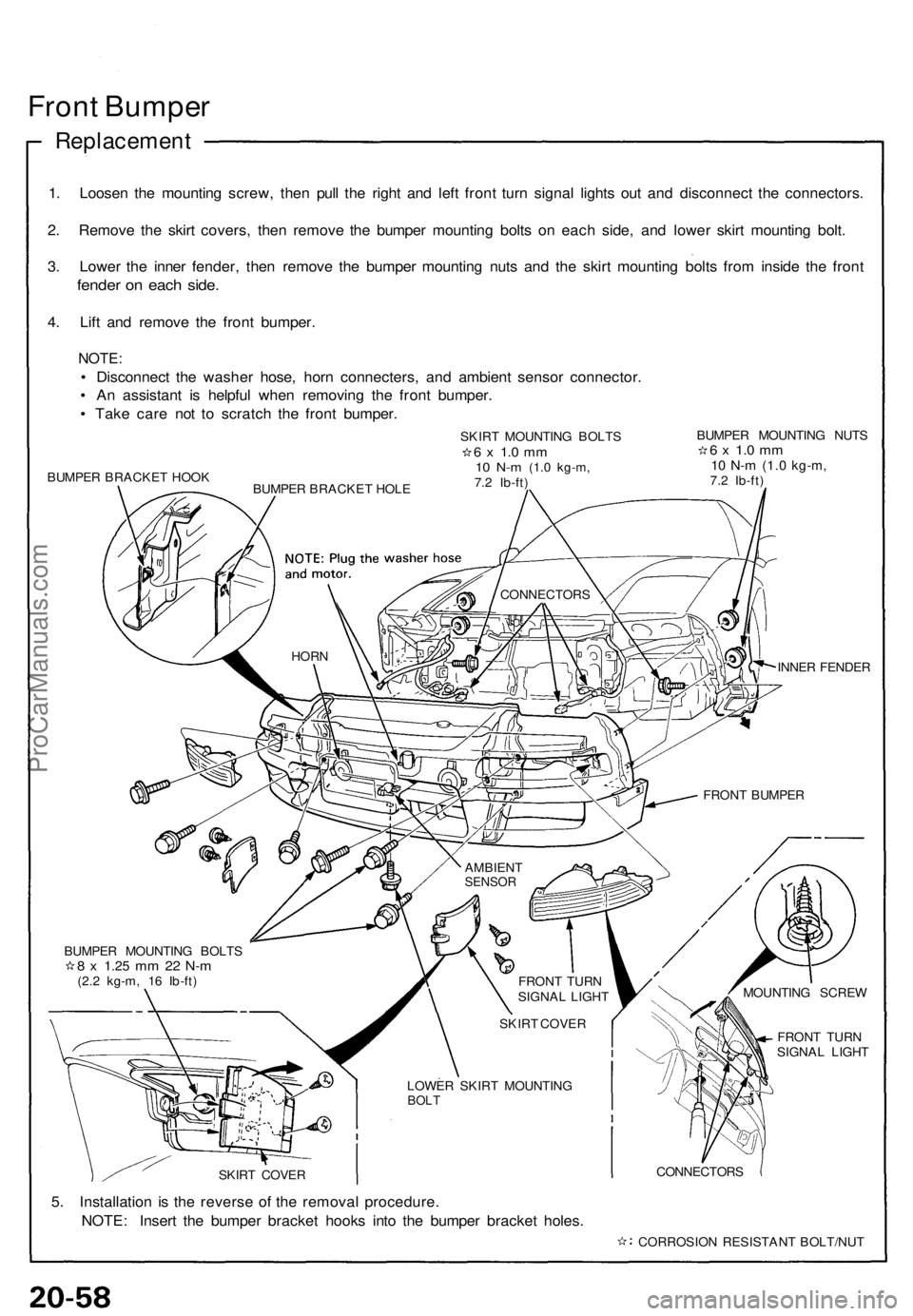

Front Bumpe r
Replacemen t
1. Loose n th e mountin g screw , the n pul l th e righ t an d lef t fron t tur n signa l light s ou t an d disconnec t th e connectors .
2 . Remov e th e skir t covers , the n remov e th e bumpe r mountin g bolt s o n eac h side , an d lowe r skir t mountin g bolt .
3 . Lowe r th e inne r fender , the n remov e th e bumpe r mountin g nut s an d th e skir t mountin g bolt s fro m insid e th e fron t
fende r o n eac h side .
4. Lif t an d remov e th e fron t bumper .
NOTE:
• Disconnec t th e washe r hose , hor n connecters , an d ambien t senso r connector .
• A n assistan t i s helpfu l whe n removin g th e fron t bumper .
• Tak e car e no t t o scratc h th e fron t bumper .
BUMPER BRACKE T HOO K
INNER FENDE R
FRON T TUR N
SIGNA L LIGH T
5. Installatio n i s th e revers e o f th e remova l procedure .
NOTE : Inser t th e bumpe r bracke t hook s int o th e bumpe r bracke t holes .
CONNECTOR S
CORROSIO N RESISTAN T BOLT/NU T
BUMPE
R MOUNTIN G BOLT S
8 x 1.2 5 mm 2 2 N- m(2.2 kg-m , 1 6 Ib-ft ) AMBIEN
T
SENSOR
FRONT BUMPE R
HORN
CONNECTOR S
FRONT TUR N
SIGNA L LIGH T
SKIR T COVE R
LOWE R SKIR T MOUNTIN G
BOLT
MOUNTIN G SCRE W
SKIR T COVE R SKIR
T MOUNTIN G BOLT S
6 x 1. 0 m m10 N- m (1. 0 kg-m ,7.2 Ib-ft ) BUMPE
R MOUNTIN G NUT S
6 x 1. 0 m m10 N- m (1. 0 kg-m ,7.2 Ib-ft )
BUMPE R BRACKE T HOL E
ProCarManuals.com

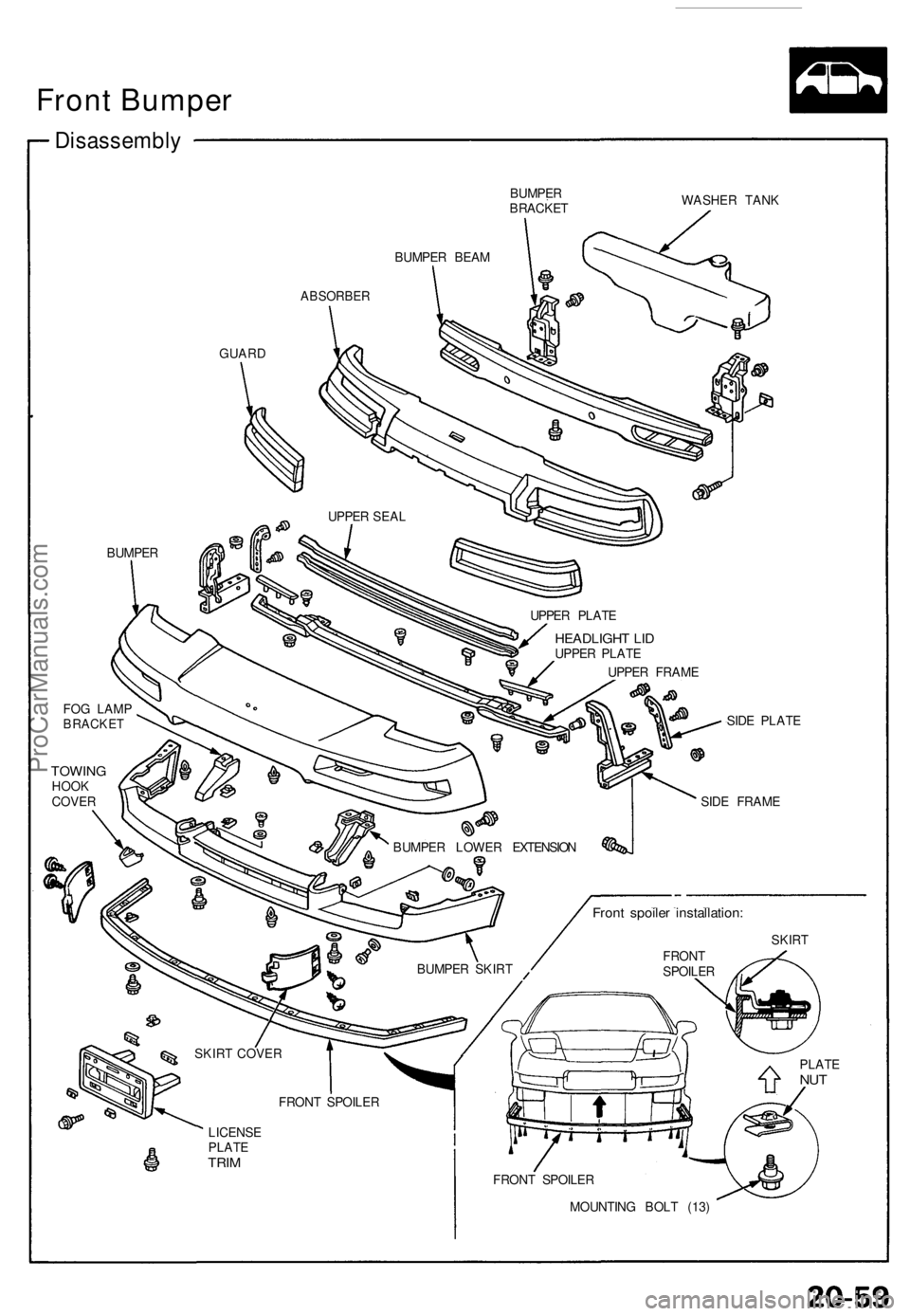

Disassembly
BUMPER
BRACKE T WASHE
R TAN K
ABSORBE R
GUARD
BUMPE R
FRONT SPOILE R
MOUNTIN G BOL T (13)
BUMPE
R BEA M
UPPE R SEA L
FO G LAM P
BRACKE T
TOWINGHOOK
COVE R
BUMPER LOWE R EXTENSIO N SID
E FRAM E
SID
E PLAT E
UPPE
R PLAT E
HEADLIGH T LI DUPPE R PLAT E
UPPE R FRAM E
BUMPE R SKIR T
Front spoile r installation :
SKIRT
FRON T
SPOILE R
PLATE
NUT
LICENS E
PLAT E
TRIM
FRON T SPOILE R
SKIR
T COVE R
Front Bumper
