1991 ACURA NSX Service Repair Manual

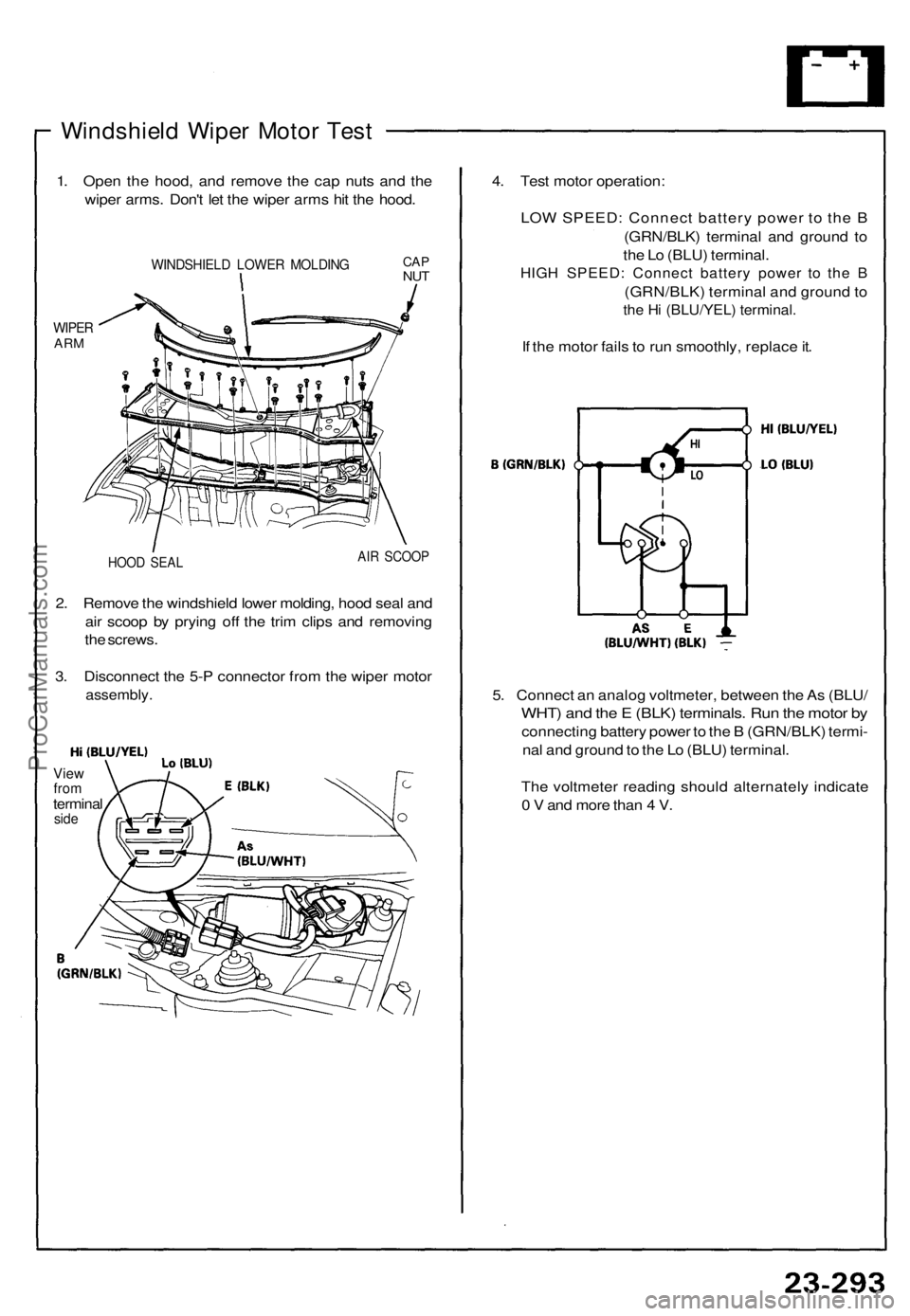

Windshield Wiper Motor Test

1. Open the hood, and remove the cap nuts and the

wiper arms. Don't let the wiper arms hit the hood.

WIPER

ARM
WINDSHIELD LOWER MOLDING

HOOD SEAL
AIR SCOOP

2. Remove the windshield lower molding, hood seal and

air scoop by prying off the trim clips and removing

the screws.

3. Disconnect the 5-P connector from the wiper motor

assembly.

View

from

terminal

side
4. Test motor operation:

LOW SPEED: Connect battery power to the B

(GRN/BLK) terminal and ground to

the Lo (BLU) terminal.

HIGH SPEED: Connect battery power to the B

(GRN/BLK) terminal and ground to

the Hi (BLU/YEL) terminal.

If the motor fails to run smoothly, replace it.

5. Connect an analog voltmeter, between the As (BLU/

WHT) and the E (BLK) terminals. Run the motor by

connecting battery power to the B (GRN/BLK) termi-

nal and ground to the Lo (BLU) terminal.

The voltmeter reading should alternately indicate

0 V and more than 4 V.
CAP

NUTProCarManuals.com

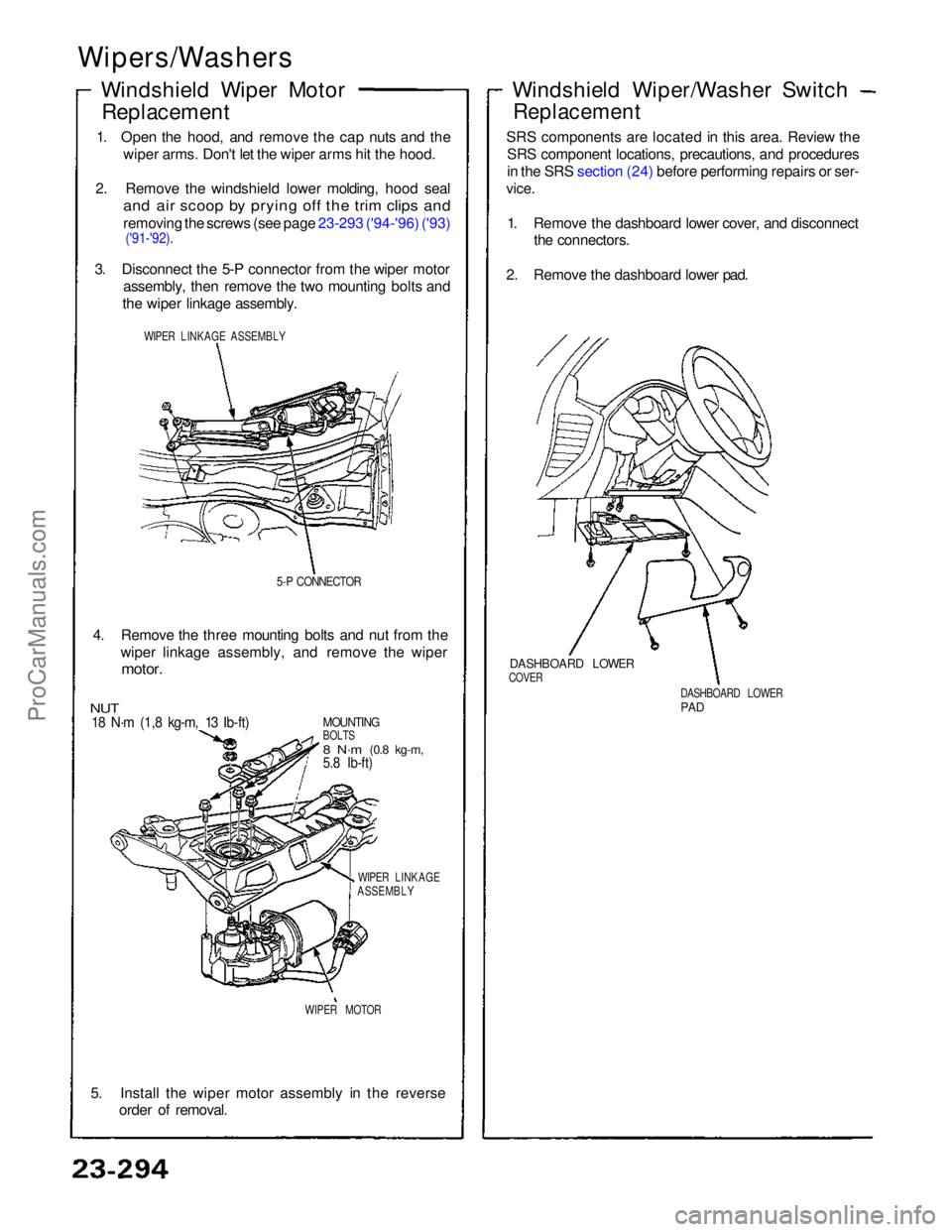

Wipers/Washers

Windshield Wiper MotorReplacement
1. Open the hood, and remove the cap nuts and the wiper arms. Don't let the wiper arms hit the hood.
2. Remove the windshield lower molding, hood seal
and air scoop by prying off the trim clips and

removing the screws (see page 23-293 ('94-'96) ('93)
('91-'92).

3. Disconnect the 5-P connector from the wiper motor assembly, then remove the two mounting bolts and
the wiper linkage assembly.

WIPER LINKAGE ASSEMBLY

5-P CONNECTOR

4. Remove the three mounting bolts and nut from the wiper linkage assembly, and remove the wiper
motor.

MOUNTING

BOLTS

8 N·m
(0.8 kg-m,

5.8 Ib-ft)

NUT

18 N·m (1,8 kg-m, 13 Ib-ft)

WIPER LINKAGE

ASSEMBLY

WIPER MOTOR

5. Install the wiper motor assembly in the reverse order of removal.
DASHBOARD LOWER

PAD
DASHBOARD LOWER
COVER

Windshield Wiper/Washer Switch

Replacement

SRS components are located in this area. Review the SRS component locations, precautions, and procedures
in the SRS section (24) before performing repairs or ser-

vice.

1. Remove the dashboard lower cover, and disconnect the connectors.
2. Remove the dashboard lower pad.ProCarManuals.com

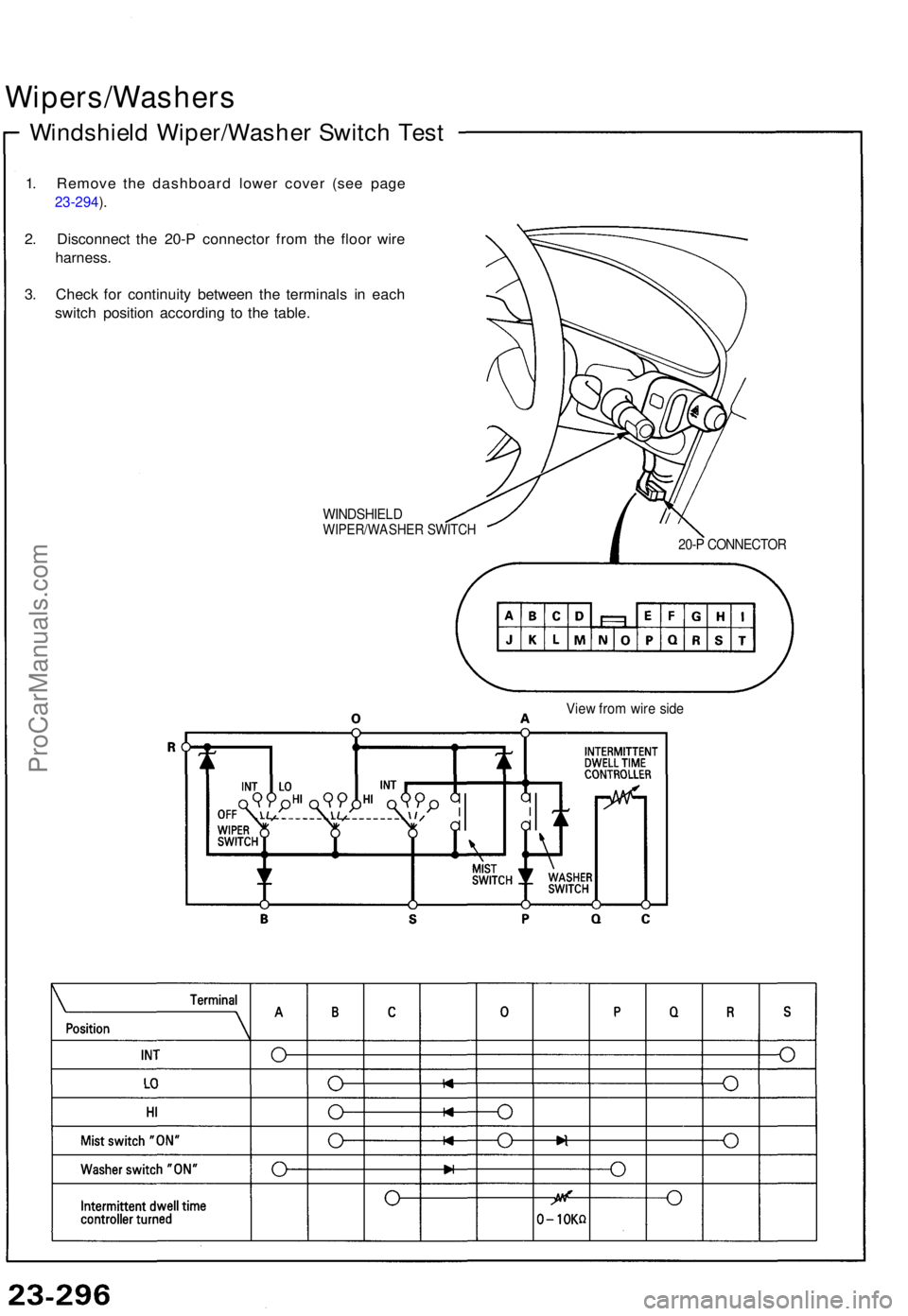

Wipers/Washers
Windshield Wiper/Washe r Switc h Tes t
1. Remov e th e dashboar d lowe r cove r (se e pag e
23-294 ).
2 . Disconnec t th e 20- P connecto r fro m th e floo r wir e
harness .
3. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table .
WINDSHIEL DWIPER/WASHE R SWITC H20-P CONNECTO R
View fro m wir e sid e
ProCarManuals.com

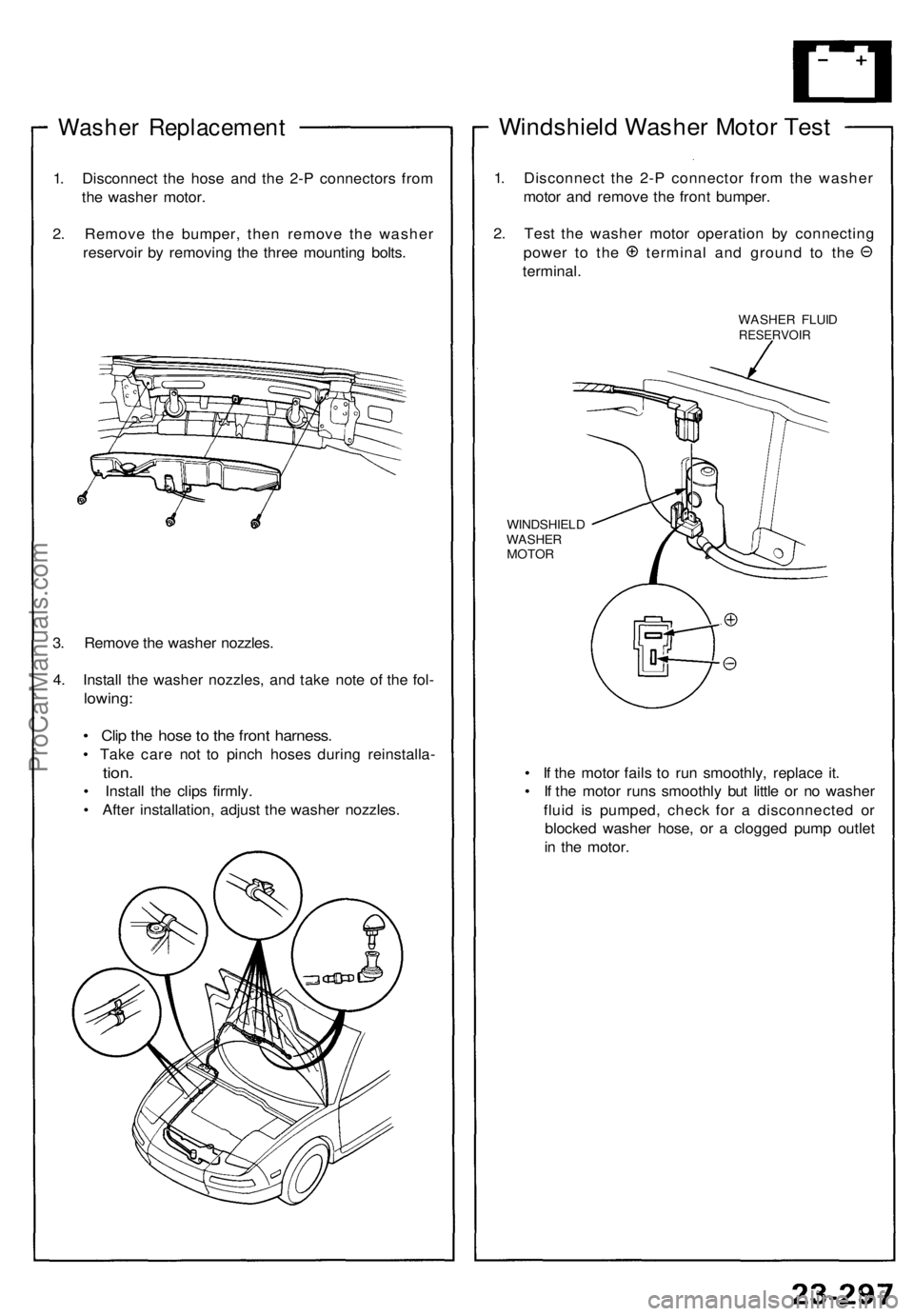

Washer Replacement

1. Disconnect the hose and the 2-P connectors from

the washer motor.

2. Remove the bumper, then remove the washer

reservoir by removing the three mounting bolts.

3. Remove the washer nozzles.

4. Install the washer nozzles, and take note of the fol-

lowing:

• Clip the hose to the front harness.

• Take care not to pinch hoses during reinstalla-

tion.

• Install the clips firmly.

• After installation, adjust the washer nozzles.
Windshield Washer Motor Test

1. Disconnect the 2-P connector from the washer

motor and remove the front bumper.

2. Test the washer motor operation by connecting

power to the terminal and ground to the

terminal.

WASHER FLUID

RESERVOIR

WINDSHIELD

WASHER

MOTOR

• If the motor fails to run smoothly, replace it.

• If the motor runs smoothly but little or no washer

fluid is pumped, check for a disconnected or

blocked washer hose, or a clogged pump outlet

in the motor.ProCarManuals.com

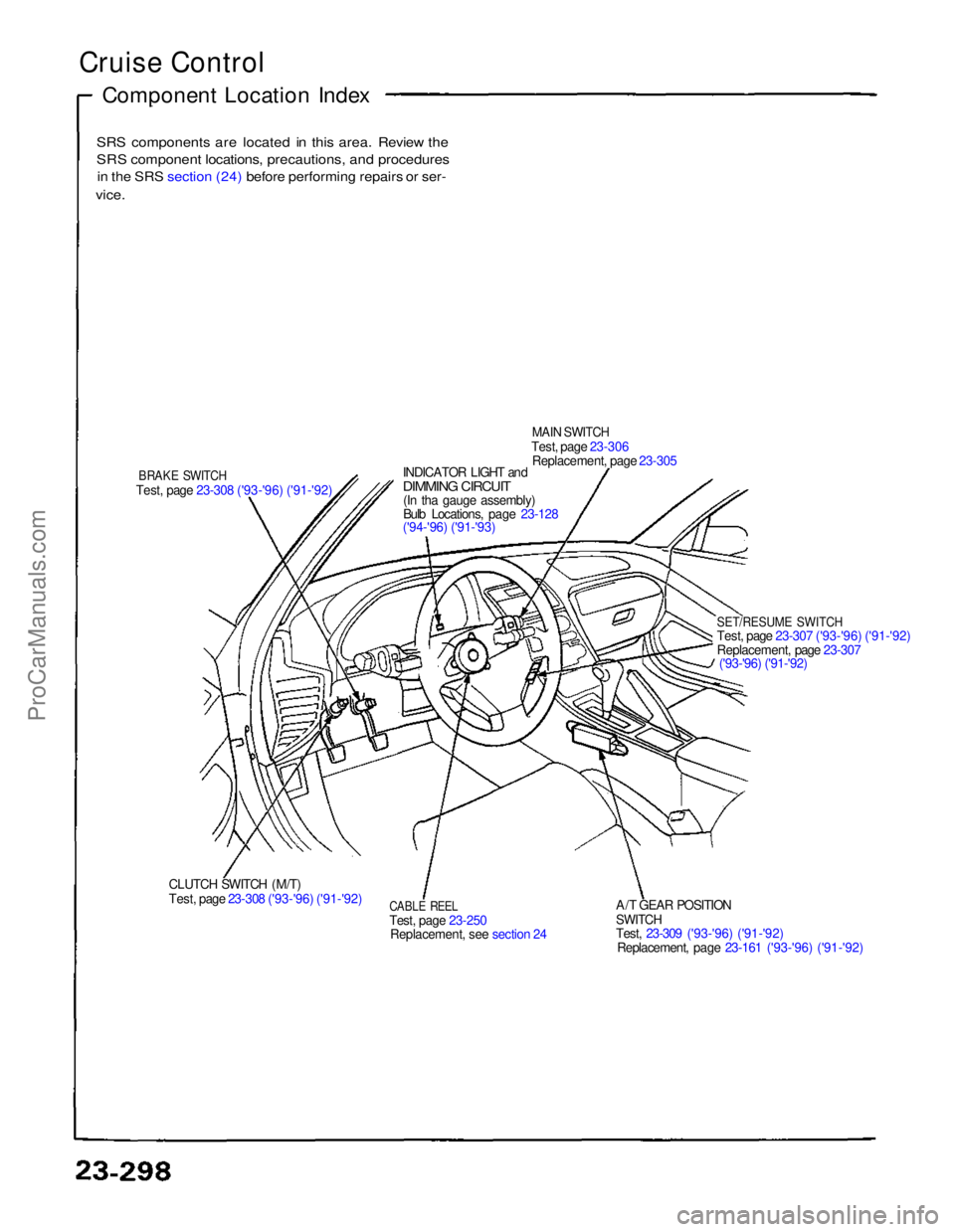

Cruise Control

Component Location Index

SRS components are located in this area. Review the

SRS component locations, precautions, and procedures
in the SRS section (24) before performing repairs or ser-

vice.

BRAKE SWITCH

Test, page 23-308 ('93-'96) ('91-'92) INDICATOR LIGHT and
DIMMIN
G
CIRCUIT

(In tha gauge assembly)
Bulb Locations, page 23-128
('94-'96) ('91-'93)
MAIN SWITCH

Test, page 23-306 Replacement, page 23-305

SET/RESUME SWITCH

Test, page 23-307 ('93-'96) ('91-'92)
Replacement, page 23-307('93-'96) ('91-'92)
A/T GEAR POSITION

SWITCH

Test, 23-309 ('93-'96) ('91-'92) Replacement, page 23-161 ('93-'96) ('91-'92)

CABLE REEL

Test, page 23-250
Replacement, see section 24
CLUTCH SWITCH (M/T)
Test, page 23-308 ('93-'96) ('91-'92)ProCarManuals.com

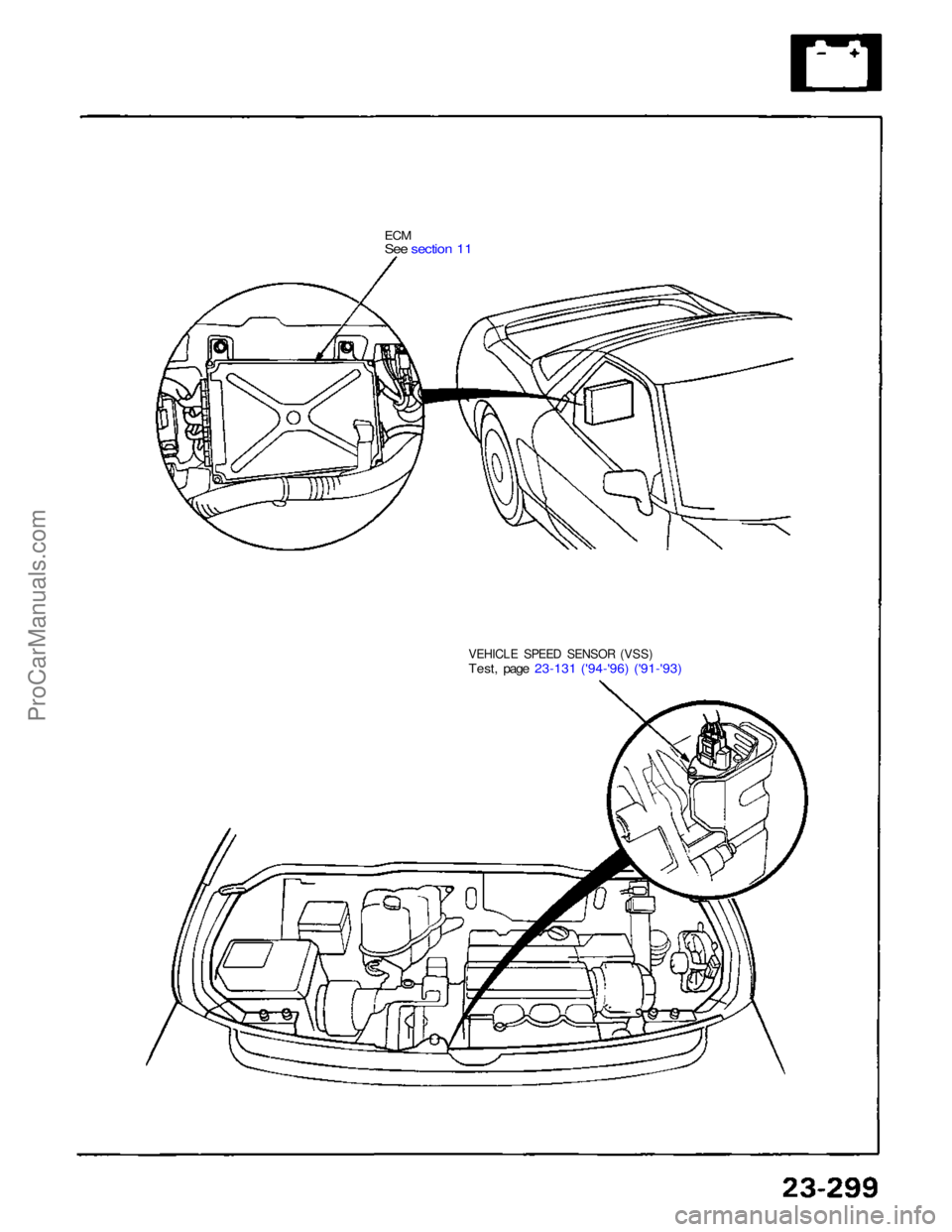

ECM

See section 11

VEHICLE SPEED SENSOR (VSS)

Test, page 23-131 ('94-'96) ('91-'93)ProCarManuals.com

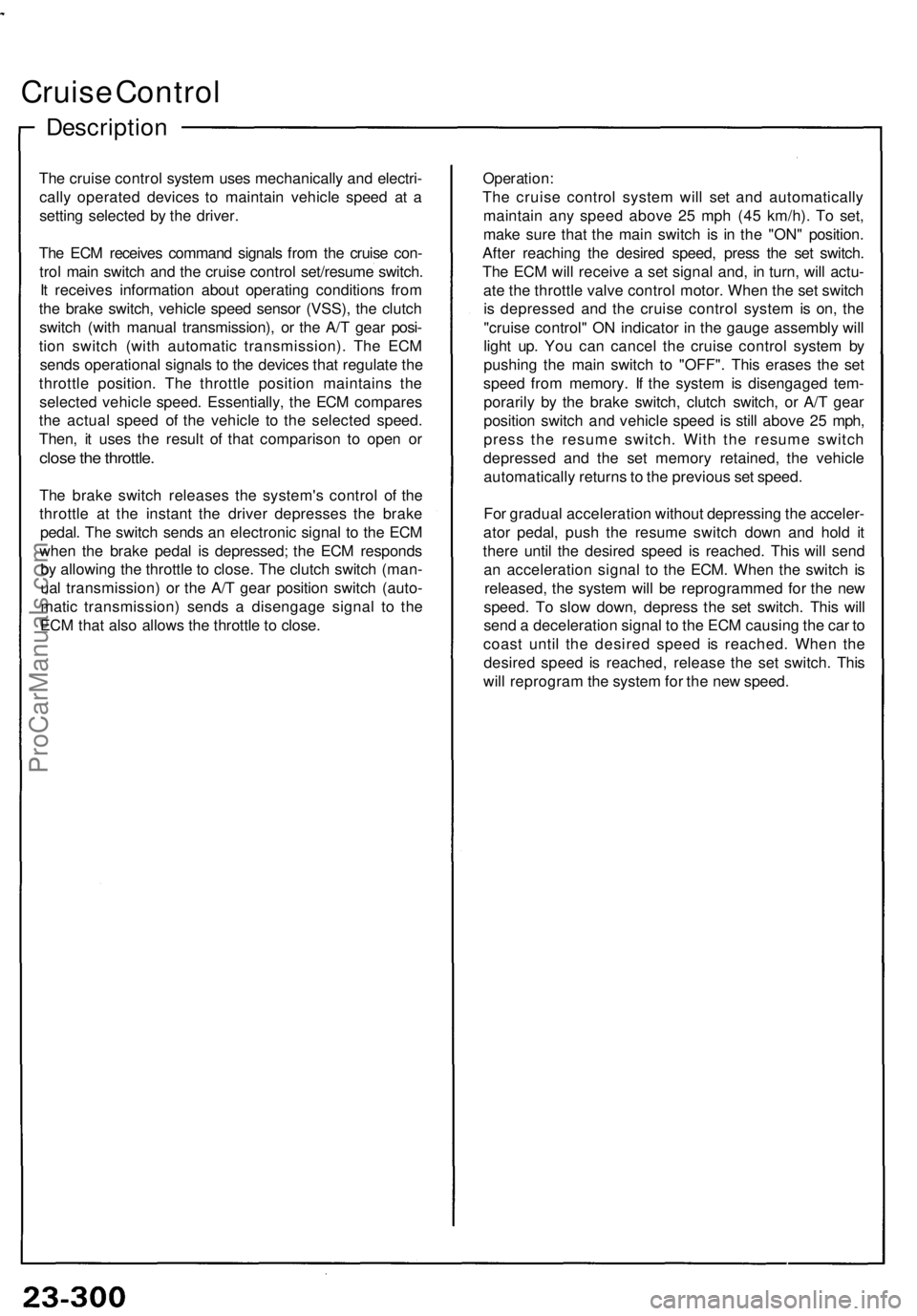

Cruise Control

Description

The cruise control system uses mechanically and electri-

cally operated devices to maintain vehicle speed at a

setting selected by the driver.

The ECM receives command signals from the cruise con-

trol main switch and the cruise control set/resume switch.

It receives information about operating conditions from

the brake switch, vehicle speed sensor (VSS), the clutch

switch (with manual transmission), or the A/T gear posi-

tion switch (with automatic transmission). The ECM

sends operational signals to the devices that regulate the

throttle position. The throttle position maintains the

selected vehicle speed. Essentially, the ECM compares

the actual speed of the vehicle to the selected speed.

Then, it uses the result of that comparison to open or

close the throttle.

The brake switch releases the system's control of the

throttle at the instant the driver depresses the brake

pedal. The switch sends an electronic signal to the ECM

when the brake pedal is depressed; the ECM responds

by allowing the throttle to close. The clutch switch (man-

ual transmission) or the A/T gear position switch (auto-

matic transmission) sends a disengage signal to the

ECM that also allows the throttle to close.
Operation:

The cruise control system will set and automatically

maintain any speed above 25 mph (45 km/h). To set,

make sure that the main switch is in the "ON" position.

After reaching the desired speed, press the set switch.

The ECM will receive a set signal and, in turn, will actu-

ate the throttle valve control motor. When the set switch

is depressed and the cruise control system is on, the

"cruise control" ON indicator in the gauge assembly will

light up. You can cancel the cruise control system by

pushing the main switch to "OFF". This erases the set

speed from memory. If the system is disengaged tem-

porarily by the brake switch, clutch switch, or A/T gear

position switch and vehicle speed is still above 25 mph,

press the resume switch. With the resume switch

depressed and the set memory retained, the vehicle

automatically returns to the previous set speed.

For gradual acceleration without depressing the acceler-

ator pedal, push the resume switch down and hold it

there until the desired speed is reached. This will send

an acceleration signal to the ECM. When the switch is

released, the system will be reprogrammed for the new

speed. To slow down, depress the set switch. This will

send a deceleration signal to the ECM causing the car to

coast until the desired speed is reached. When the

desired speed is reached, release the set switch. This

will reprogram the system for the new speed.ProCarManuals.com

Troubleshooting
Cruise Control

NOTE:

• The numbers in the table show the troubleshooting sequence.

• Before troubleshooting:

— Check the No. 5 (15 A) fuse in the under-dash fuse box, and the No. 29 (50 A) and No. 45 (20 A) fuses in the under-

hood fuse/relay box.

— Check that the horns sound.

— Make sure that the headlights go off.ProCarManuals.com
