1991 ACURA NSX check engine

5. Install the side engine mount, then tighten the bolts
in the numbered sequence as shown ( - ),

12 x
1.26
mm

73 N·m
(7.3 kg-m,
53 Ib-ft)

Replace.
12 x
1.25
mm

95 N·m
(9.5 kg-m,
69 Ib-ft)

SIDE ENGINE

MOUNT

6. Tighten the transmission mount mounting bolt.

MOUNTING BOLT
12 x
1.25
mm

95 N·m (9.5 kg-m, 69 Ib-ft)
7. Tighten the rear mount mounting bolt.
MOUNTING BOLT

12 x
1.25
mm

77 N·m (7.7 kg-m, 56 Ib-ft)
Replace.

Check that the spring clip on the end of each
driveshaft clicks into place.
CAUTION: Use new spring clips.
Bleed air from the cooling system (see page 10-5).
Bleed air from the brake lines {see section 19).
Check the clutch pedal free play (see section 12).

Adjust the clutch guide assemblies when disas-

sembling clutch (see section 12).

Check that the transmission shifts into gear

smoothly.

Adjust the alternator belt (see section 23).
Adjust the A/C compressor belt (see section 22).
Clean battery posts and cable terminals with
sandpaper, assemble, then apply grease to pre-
vent corrosion.
Inspect for fuel leakage (see section 11). After assembling the fuel line parts, turn on
the ignition switch (do not operate the starter) so that the fuel pump operates for approxi-
mately two seconds and the fuel line pressu-
rizes. Repeat this operation two or three times
and check for fuel leakage at any point in the

fuel line.

Check and adjust wheel alignment (see section 18).

Refill the engine with engine oil (see page 8-4 ('91-'92
Models), ('93-Model),or ('94-'96 Models).

Refill the transmission with oil/fluid (see section

13 or
14).ProCarManuals.com

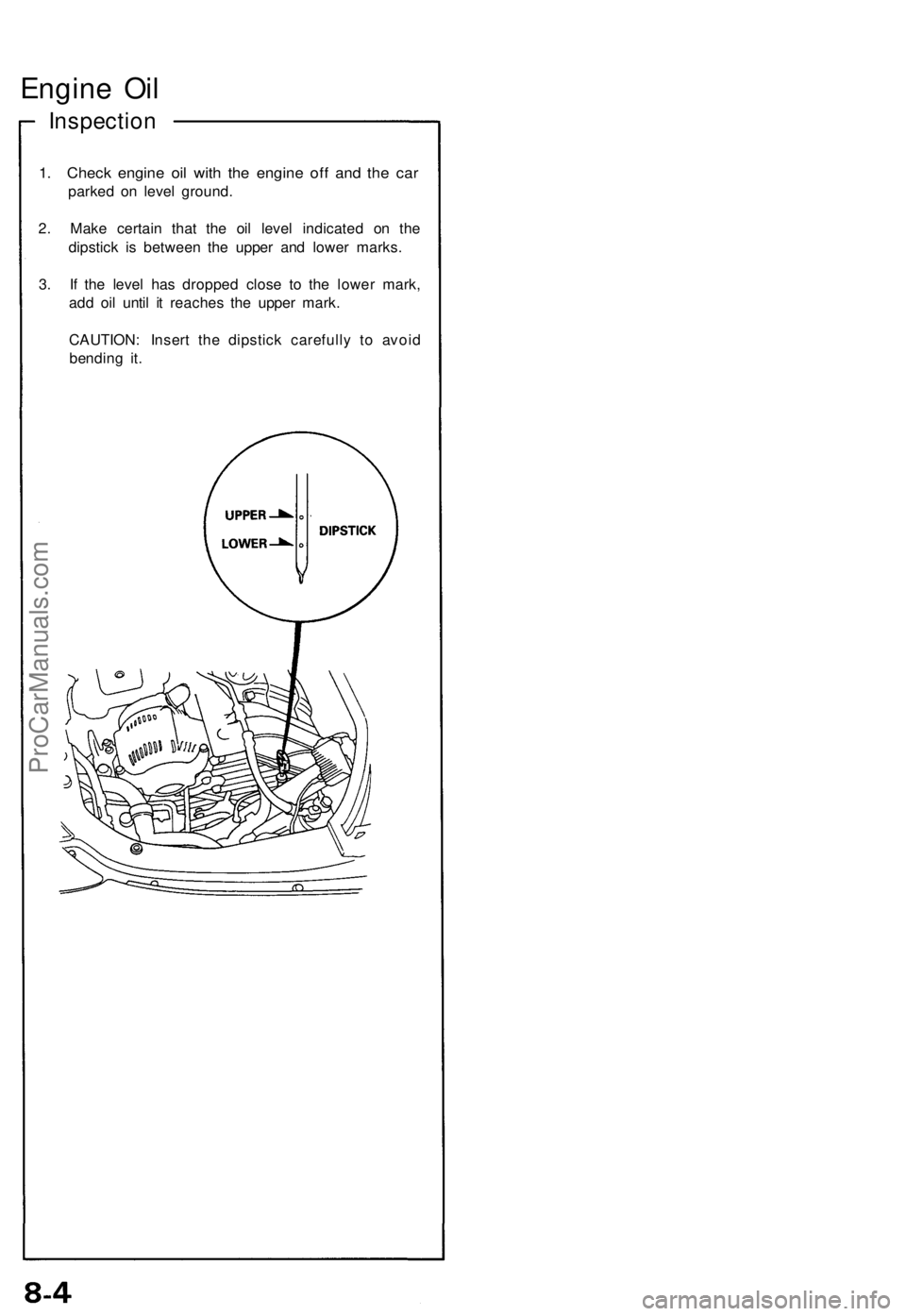

Engine Oil

Inspection

1. Check engine oil with the engine off and the car

parked on level ground.

2. Make certain that the oil level indicated on the

dipstick is between the upper and lower marks.

3. If the level has dropped close to the lower mark,

add oil until it reaches the upper mark.

CAUTION: Insert the dipstick carefully to avoid

bending it.ProCarManuals.com

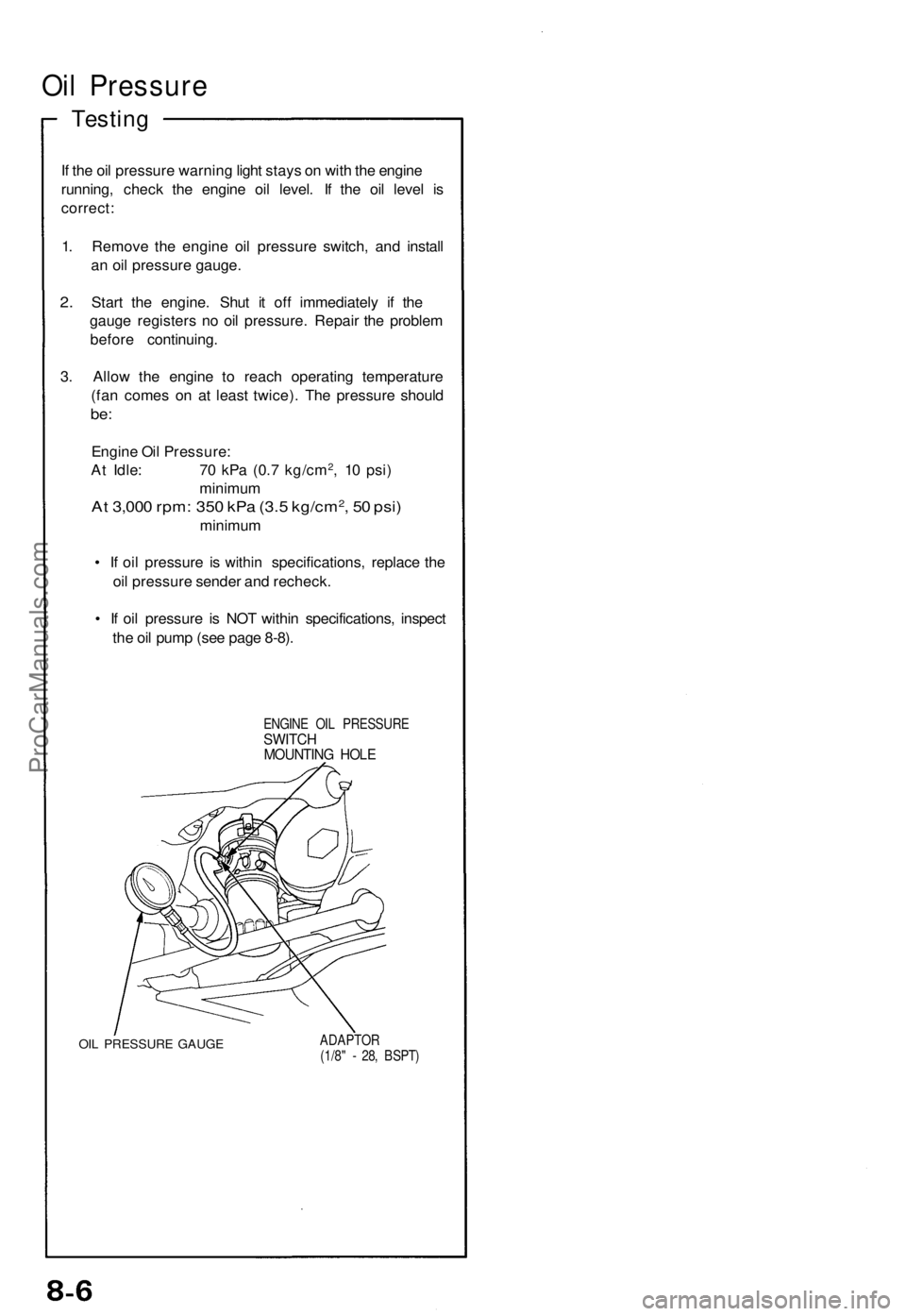

Oil Pressur e
Testing
If th e oi l pressur e warnin g ligh t stay s o n wit h th e engin e
running , chec k th e engin e oi l level . I f th e oi l leve l i s
correct :
1 . Remov e th e engin e oi l pressur e switch , an d instal l
a n oi l pressur e gauge .
2. Star t th e engine . Shu t i t of f immediatel y i f th e
gaug e register s n o oi l pressure . Repai r th e proble m
befor e continuing .
3 . Allo w th e engin e t o reac h operatin g temperatur e
(fa n come s o n a t leas t twice) . Th e pressur e shoul d
be:
Engin e Oi l Pressure :
A t Idle : 7 0 kP a (0. 7 kg/cm2, 1 0 psi )
minimu m
At 3,00 0 rpm : 35 0 kP a (3. 5 kg/cm2, 5 0 psi )
minimu m
• I f oi l pressur e i s
within specifications , replac e th e
oi l pressur e sende r an d recheck .
• I f oi l pressur e i s NO T withi n specifications , inspec t
th e oi l pum p (se e pag e 8-8) .
ENGIN E OI L PRESSUR ESWITCHMOUNTIN G HOL E
OIL PRESSUR E GAUG E ADAPTO R
(1/8 " - 28 , BSPT )
ProCarManuals.com

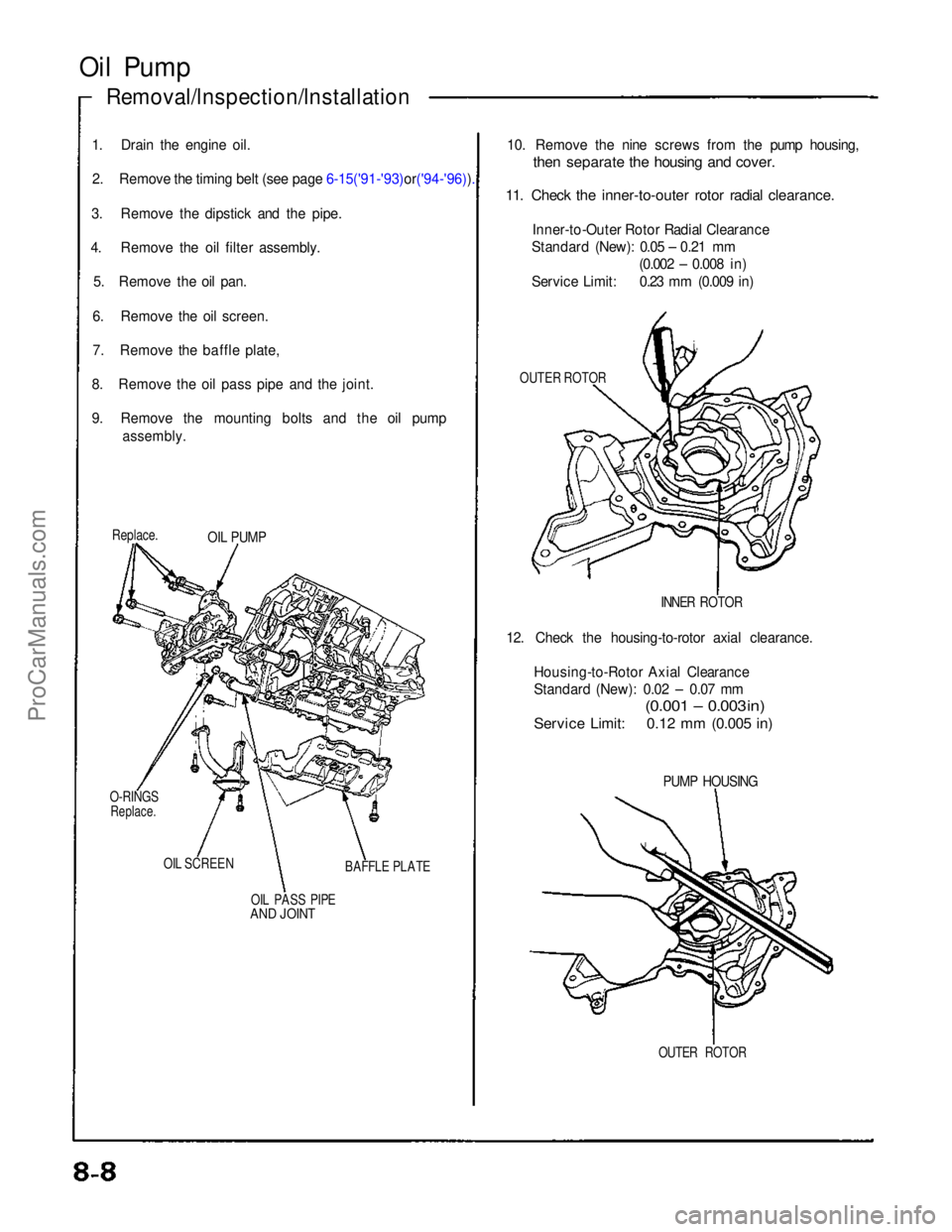

Oil Pump
Removal/lnspection/lnstallation
1. Drain the engine oil. 2. Remove the timing belt (see page 6-15('91-'93)or('94-'96)).
3. Remove the dipstick and the pipe.
4. Remove the oil filter assembly.
5. Remove the oil pan.
6. Remove the oil screen.
7. Remove the baffle plate,
8. Remove the oil pass
pipe and the joint.
9. Remove the mounting bolts and the oil pump

assembly.

Replace.
O-RINGS
Replace.

OIL SCREEN OIL PASS PIPE

AND JOINT
BAFFLE PLATE

OIL PUMP
10. Remove the nine screws from the pump housing,

then separate the housing and cover.

11. Check the inner-to-outer rotor radial clearance.

Inner-to-Outer Rotor Radial Clearance
Standard (New): 0.05 – 0.21 mm (0.002 – 0.008 in)
Service Limit: 0.23 mm (0.009 in)

OUTER ROTOR

INNER ROTOR

12. Check the housing-to-rotor axial clearance. Housing-to-Rotor Axial Clearance
Standard (New): 0.02 – 0.07 mm
(0.001 – 0.003 in)

Service Limit: 0.12 mm (0.005 in)

PUMP HOUSING

OUTER ROTORProCarManuals.com

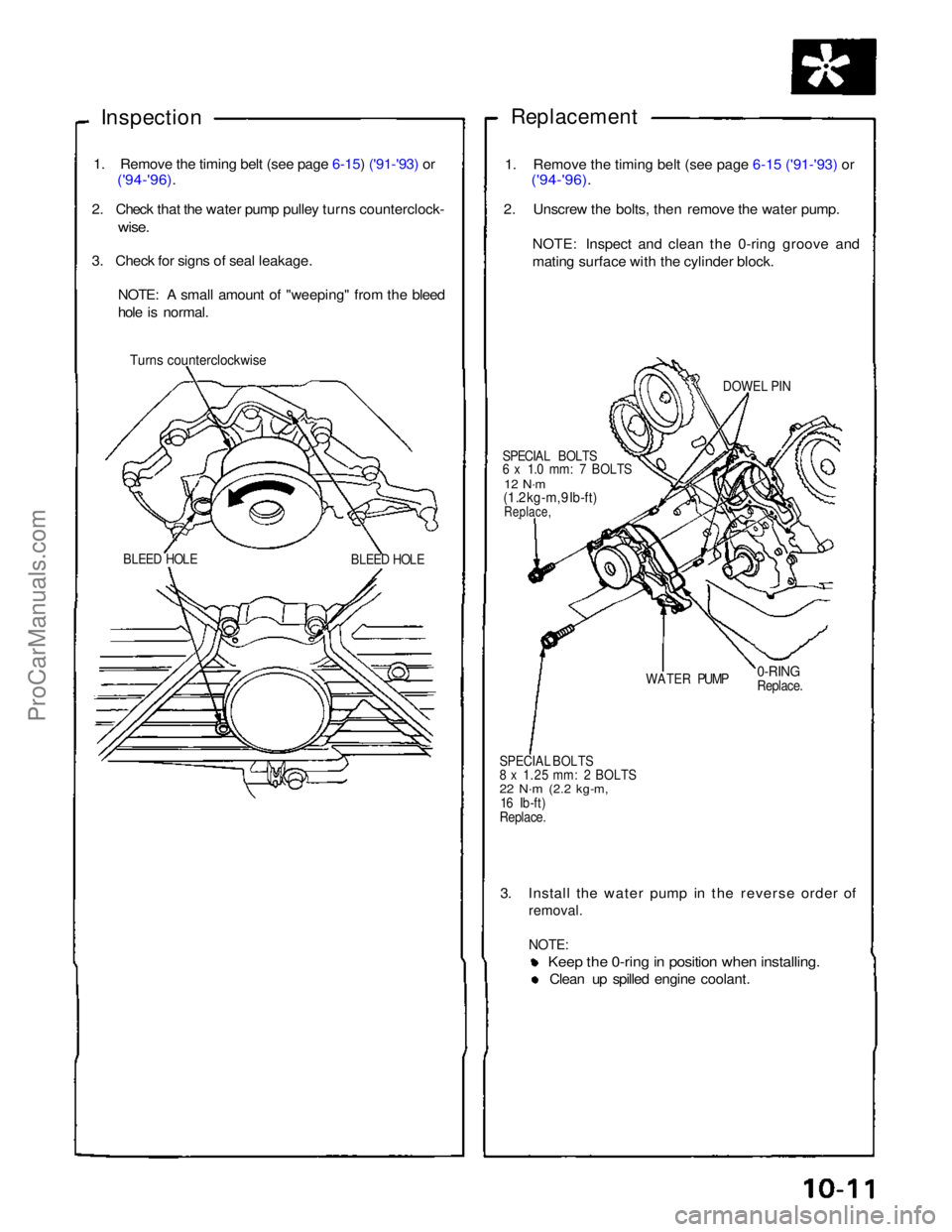

Inspection


Replacement
1. Remove the timing belt (see page 6-15) ('91-'93) or

('94-'96).

2. Check that the water pump pulley turns counterclock-

wise.

3. Check for signs of seal leakage.
NOTE: A small amount of "weeping" from the bleed
hole is normal.

Turns
counterclockwise

BLEED HOLE
BLEED HOLE

1. Remove the timing belt (see page 6-15 ('91-'93) or
('94-'96).

2. Unscrew the bolts, then remove the water pump.
NOTE: Inspect and clean the 0-ring groove and
mating surface with the cylinder block.

DOWEL PIN
SPECIAL BOLTS
6 x 1.0 mm: 7 BOLTS
12 N·m

(1 .2 kg-m, 9 Ib-ft)

Replace,

WATER PUMP
0-RING

Replace.
SPECIAL BOLTS
8 x 1.25 mm: 2 BOLTS

22 N·m
(2.2 kg-m,
16 Ib-ft)
Replace.

3. Install the water pump in the reverse order of
removal.

NOTE:
Keep the 0-ring in position when installing.
Clean up spilled engine coolant.ProCarManuals.com

Engine Control Module (ECM)

NOTE: If this symptom is intermittent, check for a loose No. 5 BACK-UP LIGHTS, ALTERNATOR,

TURN SIGNALS (15 A) fuse in the under-dash fuse/relay box, a poor connection at ECM terminal

A7, or an intermittent open in the BLU wire between the ECM (A7) and the gauge assembly.

Is the low oil pressure light on?

Try to start the engine.

Does the engine start?

Check for an open in the wire or

bulb:

1. Turn the ignition switch OFF.

2. Connect the ECM connector ter-

minal A7 to body ground with a

jumper wire.

3. Turn the ignition switch ON (II).

Is the MIL on?

Substitute a known-good ECM,

and recheck. If symptom/indica-

tion goes away, replace the origi-

nal
ECM.
— Repair short in the wire

between No. 5 BACK-UP

LIGHTS, ALTERNATOR, TURN

SIGNALS (15 A) fuse and

gauge assembly.

— Replace No. 5 BACK-UP

LIGHTS, ALTERNATOR, TURN

SIGNALS (15 A) fuse.

ECM CONNECTOR A (26P)

Check for an open in the wires

(PG line):

1. Turn the ignition switch ON (II).

2. Measure voltage between

body ground and ECM connec-

tor terminals A12 and A25 indi-

vidually.
WIRE SIDE OF FEMALE TERMINALS

Is there less than 1.0 V?
Repair open in the wire(s)

between ECM and G101 (located

at intake manifold) that had

more than 1.0V.

— Repair open in the wires

between ECM (A7) and gauge

assembly.

— Replace the MIL bulb.
WIRE SIDE OF FEMALE TERMINALS
ECM CONNECTOR A (26P)
Substitute a known-good ECM

and recheck. If symptom/indica-

tion goes away, replace the origi-

nal
ECM.
Turn the ignition switch ON (II).
The Malfunction Indicator Lamp

(MIL) never comes on (even for

two seconds) after ignition is

turned ON (II).ProCarManuals.com

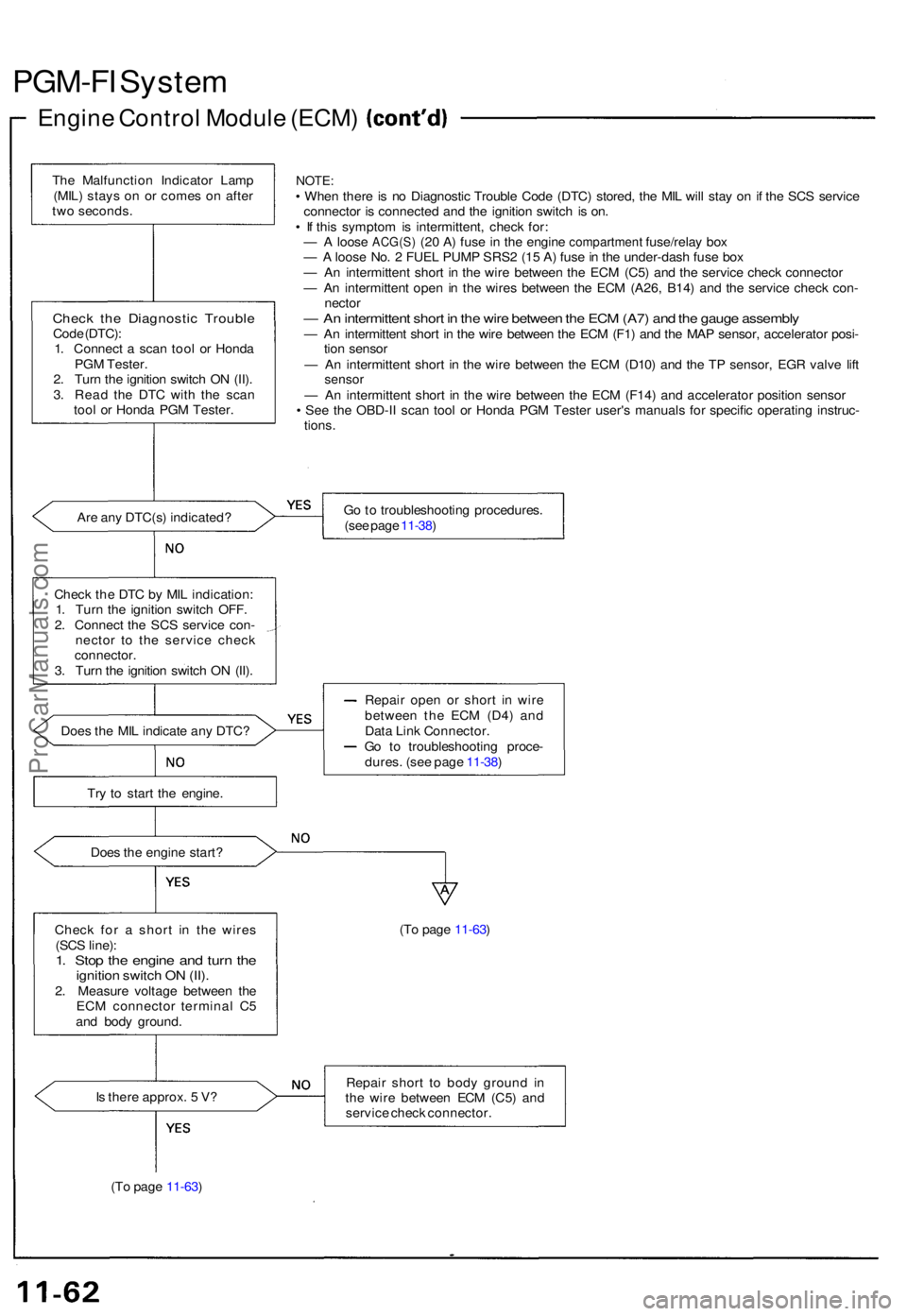

PGM-FI Syste m
Engine Contro l Modul e (ECM )
The Malfunctio n Indicato r Lam p
(MIL ) stay s o n o r come s o n afte r
tw o seconds .
Check th e Diagnosti c Troubl eCode (DTC) :
1 . Connec t a sca n too l o r Hond a
PG M Tester .
2 . Tur n th e ignitio n switc h O N (II) .
3 . Rea d th e DT C wit h th e sca n
too l o r Hond a PG M Tester .
NOTE:• Whe n ther e is n o Diagnosti c Troubl e Cod e (DTC ) stored , th e MI L wil l sta y o n i f th e SC S servic e
connecto r i s connecte d an d th e ignitio n switc h i s on .
• I f thi s sympto m is intermittent , chec k for :
— A loos e ACG(S ) (20 A ) fus e in th e engin e compartment fuse/rela y box— A loos e No . 2 FUE L PUM P SRS 2 (1 5 A ) fus e in th e under-das h fus e bo x
— A n intermitten t shor t i n th e wir e betwee n th e EC M (C5 ) an d th e servic e chec k connecto r
— A n intermitten t ope n i n th e wire s betwee n th e EC M (A26 , B14 ) an d th e servic e chec k con -
necto r
— A n intermitten t shor t i n th e wir e betwee n th e EC M (A7 ) an d th e gaug e assembl y— A n intermitten t shor t i n th e wir e betwee n th e EC M (F1 ) an d th e MA P sensor , accelerato r posi -
tio n senso r
— A n intermitten t shor t i n th e wir e betwee n th e EC M (D10 ) an d th e T P sensor , EG R valv e lif t
senso r— A n intermitten t shor t i n th e wir e betwee n th e EC M (F14 ) an d accelerato r positio n senso r
• Se e th e OBD-I I sca n too l o r Hond a PG M Teste r user' s manual s fo r specifi c operatin g instruc -
tions .
Ar e an y DTC(s ) indicated ? G
o to troubleshootin g procedures .
(se e pag e 11-38 )
Chec k th e DT C b y MI L indication :
1 . Tur n th e ignitio n switc h OFF .
2 . Connec t th e SC S servic e con -
necto r t o th e servic e chec k
connector .
3 . Tur n th e ignitio n switc h O N (II) .
Doe s th e MI L indicat e an y DTC ? Repai
r ope n o r shor t i n wir e
betwee n th e EC M (D4 ) an d
Dat a Lin k Connector .
G o t o troubleshootin g proce -
dures . (se e pag e 11-38 )
Tr y t o star t th e engine .
Doe s th e engin e start ?
Chec k fo r a shor t i n th e wire s
(SC S line) :
1. Sto p th e engin e an d tur n th eignitio n switc h O N (II) .2. Measur e voltag e betwee n th e
EC M connecto r termina l C 5
an d bod y ground . (T
o pag e 11-63 )
I s ther e approx . 5 V ?
(T o pag e 11-63 ) Repai
r shor t t o bod y groun d i n
th e wir e betwee n EC M (C5 ) an d
servic e chec k connector .
ProCarManuals.com

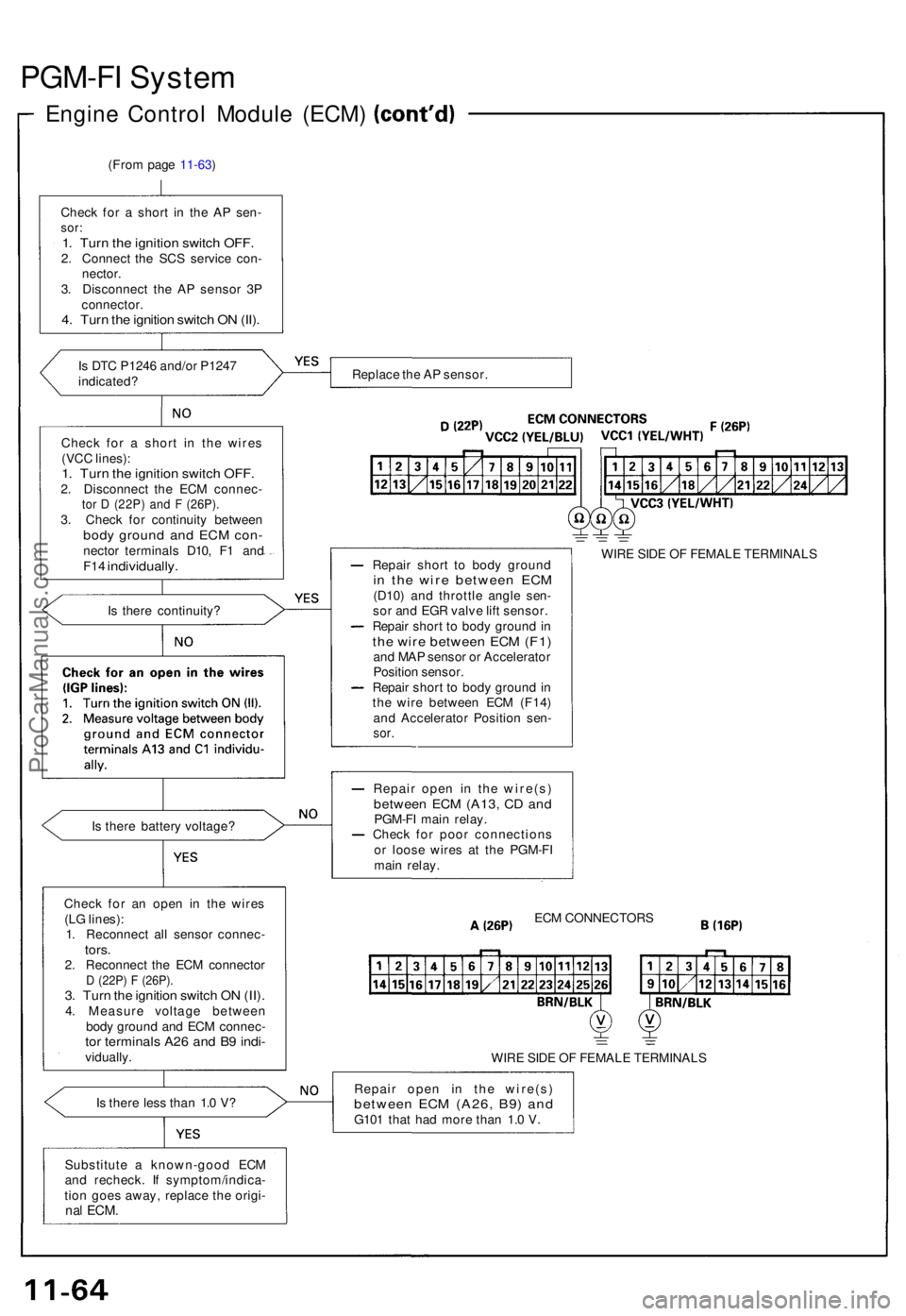

PGM-FI Syste m
Engine Contro l Modul e (ECM )
(From pag e 11-63 )
Chec k fo r a shor t i n th e A P sen -
sor:1. Tur n th e ignitio n switc h OFF .2. Connec t th e SC S servic e con -
nector .
3 . Disconnec t th e A P senso r 3 P
connector .
4. Tur n th e ignitio n switc h O N (II) .
Is DT C P124 6 and/o r P124 7
indicated ?
Chec k fo r a shor t i n th e wire s
(VC C lines) :
1. Tur n th e ignitio n switc h OFF .2. Disconnec t th e EC M connec -tor D (22P ) an d F (26P) .3. Chec k fo r continuit y betwee nbody groun d an d EC M con -necto r terminal s D10 , F 1 an dF14 individually .
Is ther e continuity ?
I s ther e batter y voltage ?
Chec k fo r a n ope n i n th e wire s
(L G lines) :
1 . Reconnec t al l senso r connec -
tors.2. Reconnec t th e EC M connecto rD (22P ) F (26P) .3. Tur n th e ignitio n switc h O N (II) .4. Measur e voltag e betwee n
bod y groun d an d EC M connec -
tor terminal s A2 6 an d B 9 indi -vidually .
I s ther e les s tha n 1. 0 V ?
Substitut e a known-goo d EC M
an d recheck . I f symptom/indica -
tio n goe s away , replac e th e origi -
nal ECM .
Replac e th e A P sensor .
Repai r shor t t o bod y groun d
in th e wir e betwee n EC M(D10 ) an d throttl e angl e sen -
so r an d EG R valv e lif t sensor .
Repai r shor t t o bod y groun d in
th e wir e betwee n EC M (F1 )and MA P senso r o r Accelerato r
Positio n sensor .
Repai r shor t t o bod y groun d in
th e wir e betwee n EC M (F14 )
an d Accelerato r Positio n sen -
sor.
WIR E SID E O F FEMAL E TERMINAL S
Repai r ope n i n th e wire(s )
between EC M (A13 , C D an dPGM-F I mai n relay .
Chec k fo r poo r connection s
o r loos e wire s a t th e PGM-F I
mai n relay .
ECM CONNECTOR S
WIR E SID E O F FEMAL E TERMINAL S
Repai r ope n i n th e wire(s )
between EC M (A26 , B9 ) an dG10 1 tha t ha d mor e tha n 1. 0 V .
