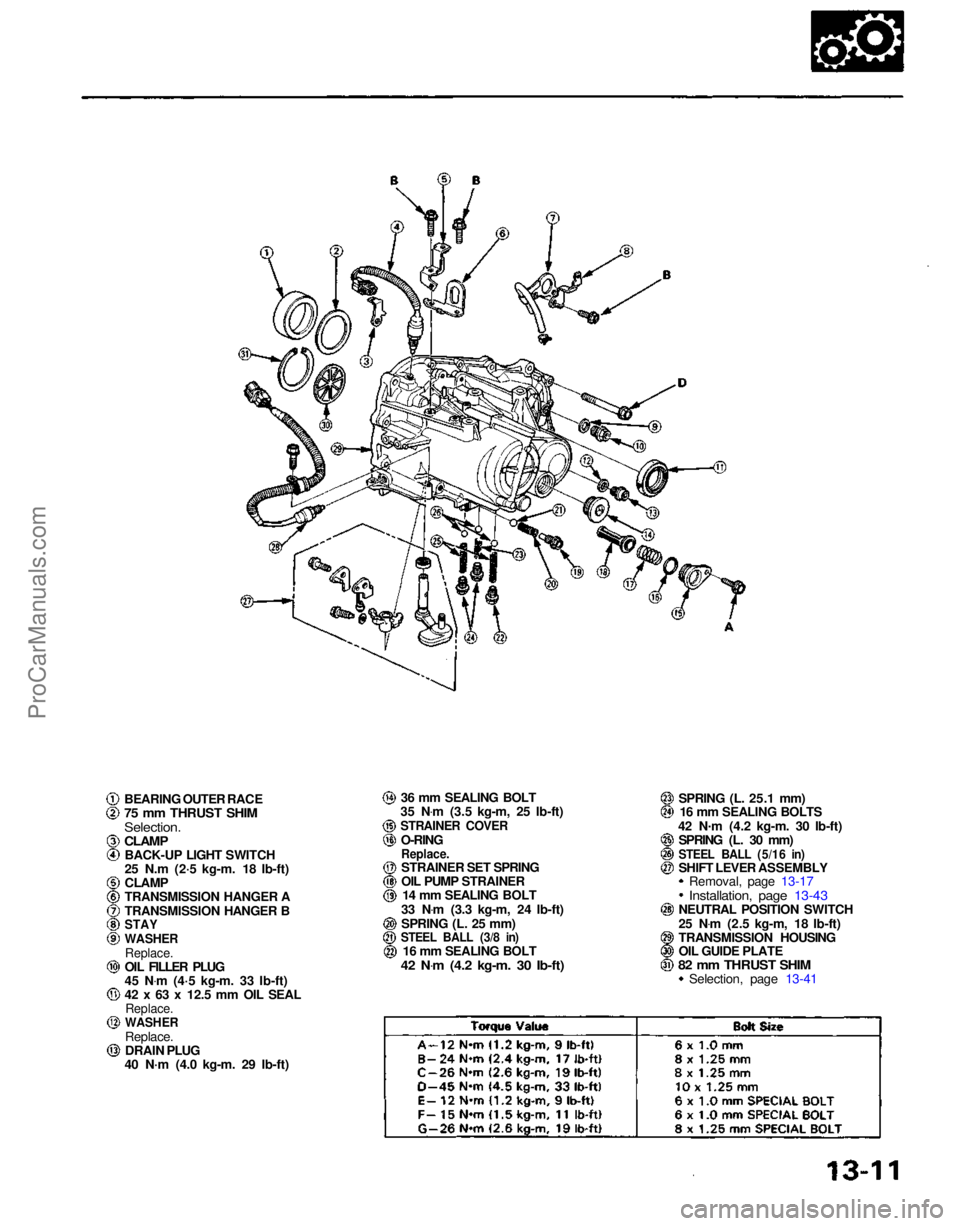

BEARING OUTER RACE

75 mm THRUST SHIM

Selection.

CLAMP

BACK-UP LIGHT SWITCH
25 N.m (2·5 kg-m. 18 Ib-ft)
CLAMP
TRANSMISSION HANGER A
TRANSMISSION HANGER B

STAY

WASHER

Replace.

OIL FILLER PLUG
45 N .
m (4·5 kg-m. 33 Ib-ft)
42 x 63 x 12.5 mm OIL SEAL
Replace.

WASHER

Replace.

DRAIN PLUG
40 N·m (4.0 kg-m. 29 Ib-ft) 36 mm SEALING BOLT
35 N .
m (3.5 kg-m, 25 Ib-ft)

STRAINER COVER
O-RING
Replace.

STRAINER SET SPRING
OIL PUMP STRAINER 14 mm SEALING BOLT
33 N .
m (3.3 kg-m, 24 Ib-ft)
SPRING (L. 25 mm)

STEEL BALL (3/8 in)

16 mm SEALING BOLT

42 N .
m (4.2 kg-m. 30 Ib-ft)
SPRING (L. 25.1 mm)
16 mm SEALING BOLTS
42 N .
m (4.2 kg-m. 30 Ib-ft)
SPRING (L. 30 mm)

STEEL BALL (5/16 in)

SHIFT LEVER ASSEMBLY Removal, page 13-17

Installation, page 13-43

NEUTRAL POSITION SWITCH
25 N .
m (2.5 kg-m, 18 Ib-ft)
TRANSMISSION HOUSING
OIL GUIDE PLATE

82 mm THRUST SHIM
Selection, page 13-41ProCarManuals.com

SEALING

BOLT

STEEL

BALLS (5/16 in)

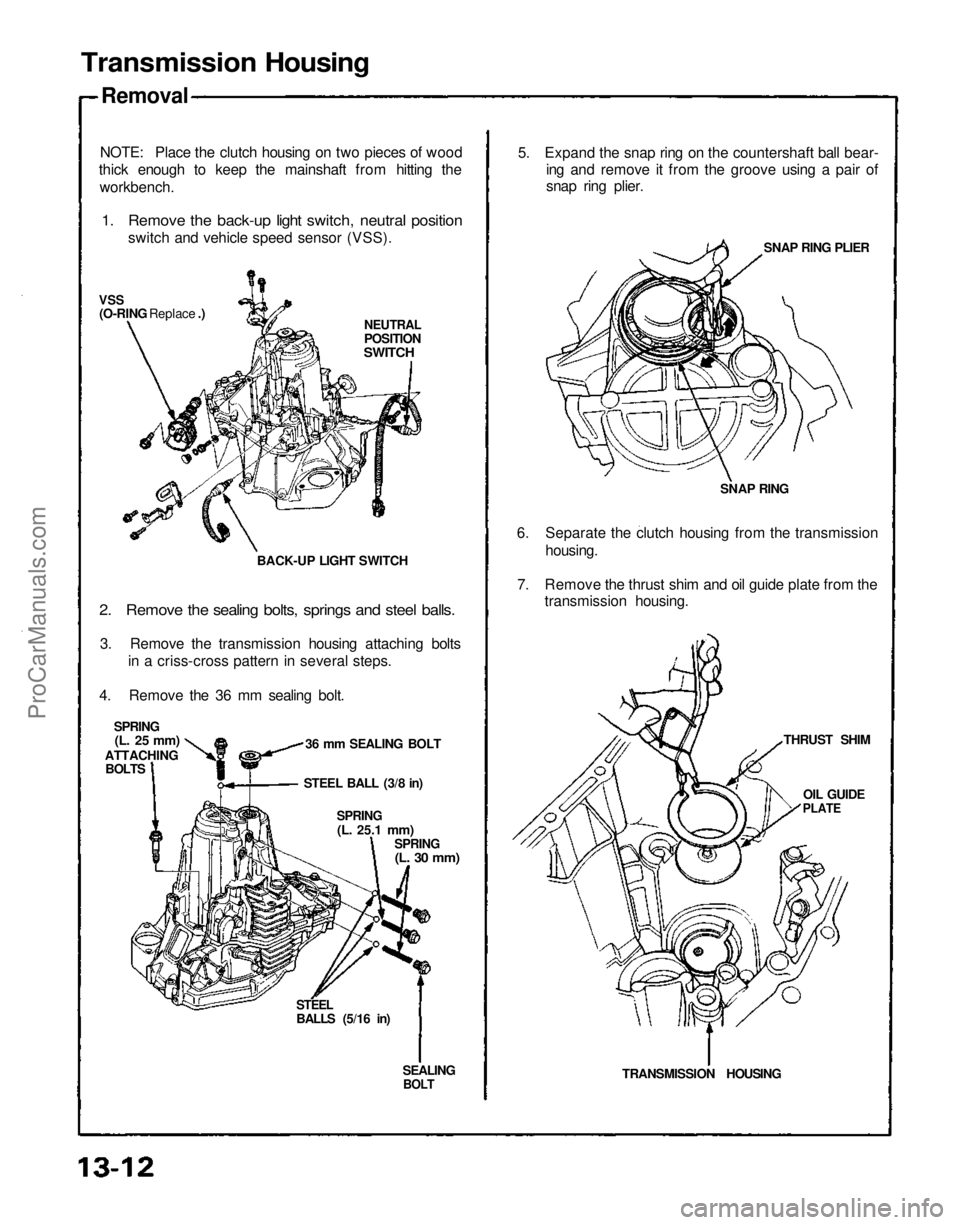

Transmission Housing

Removal

NOTE: Place the clutch housing on two pieces of wood
thick enough to keep the mainshaft from hitting the
workbench.

1. Remove the back-up light switch, neutral position
switch and vehicle speed sensor (VSS).

NEUTRAL

POSITION

SWITCH

VSS

(O-RING Replace .)
BACK-UP LIGHT SWITCH36 mm SEALING BOLT
SPRING

(L. 25 mm)

ATTACHING BOLTS

2. Remove the sealing bolts, springs and steel balls.

3. Remove the transmission housing attaching bolts in a criss-cross pattern in several steps.
4. Remove the 36 mm sealing bolt.
STEEL BALL (3/8 in)
SPRING
(L.
25.1
mm)
SPRING
(L. 30 mm)

TRANSMISSION HOUSINGTHRUST SHIM
OIL GUIDE

PLATE

6. Separate the clutch housing from the transmission
housing. SNAP RINGSNAP RING PLIER
5. Expand the snap ring on the countershaft ball bear-
ing and remove it from the groove using a pair of
snap ring plier.
7. Remove the thrust shim and oil guide plate from the transmission housing.ProCarManuals.com

Transmission

Reassembly

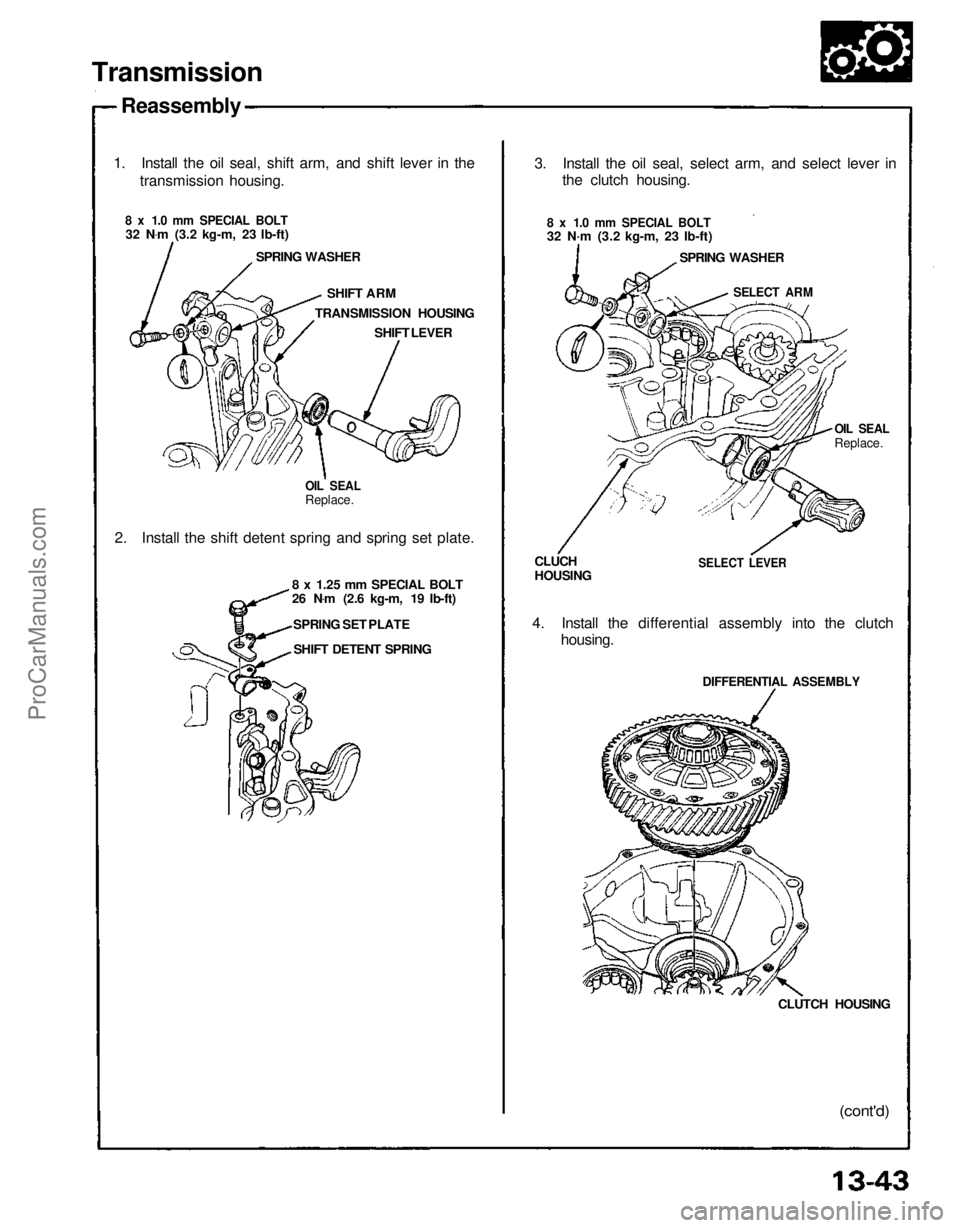

1. Install the oil seal, shift arm, and shift lever in the transmission housing.

8 x 1.0 mm SPECIAL BOLT
32 N .
m (3.2 kg-m, 23 Ib-ft)
SPRING WASHER
SHIFT ARM
TRANSMISSION HOUSING SHIFT LEVER

OIL SEAL

Replace.

2. Install the shift detent spring and spring set plate.
8 x 1.25 mm SPECIAL BOLT
26 N.
m (2.6 kg-m, 19 Ib-ft)
SPRING SET PLATE SHIFT DETENT SPRING 3. Install the oil seal, select arm, and select lever in
the clutch housing.

8 x 1.0 mm SPECIAL BOLT

32 N·m (3.2 kg-m, 23 Ib-ft) SPRING WASHER

SELECT ARM

OIL SEAL

Replace.

SELECT LEVER

CLUCH
HOUSING
4. Install the differential assembly into the clutch housing.

DIFFERENTIAL ASSEMBLY

CLUTCH HOUSING
(cont'd)ProCarManuals.com

Transmission
Reassembly (cont'd)

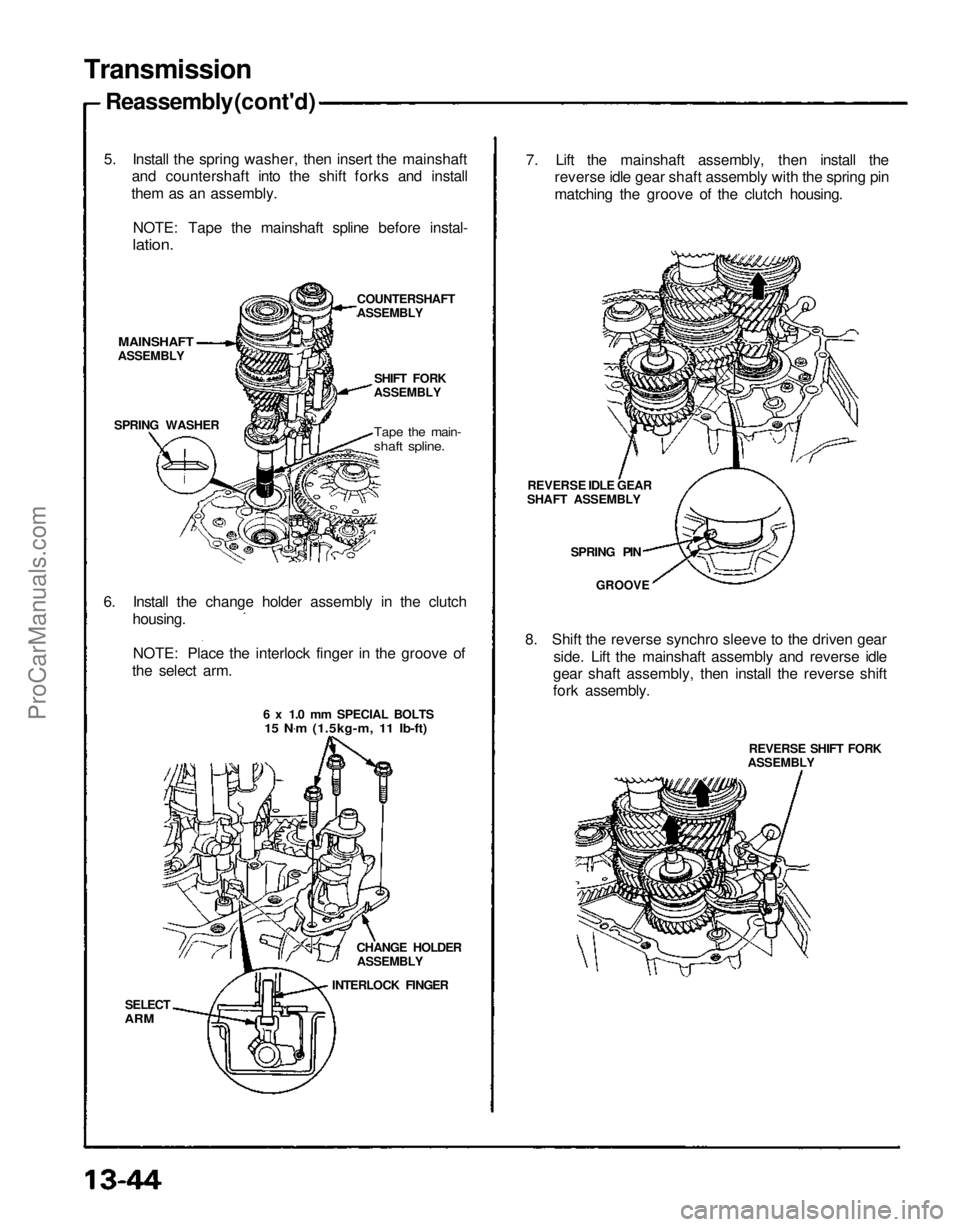

5. Install the spring washer, then insert the mainshaft and countershaft into the shift forks and install
them as an assembly.
NOTE: Tape the mainshaft spline before instal-

lation.

COUNTERSHAFT
ASSEMBLY
SPRING WASHER
6. Install the change holder assembly in the clutch housing.
NOTE: Place the interlock finger in the groove of
the select arm.
SELECT

ARM
CHANGE HOLDER
ASSEMBLY
INTERLOCK FINGER 8. Shift the reverse synchro sleeve to the driven gear
side. Lift the mainshaft assembly and reverse idle
gear shaft assembly, then install the reverse shift
fork assembly.
REVERSE SHIFT FORK
ASSEMBLY
7. Lift the mainshaft assembly, then install the
reverse idle gear shaft assembly with the spring pin
matching the groove of the clutch housing.
REVERSE IDLE GEAR
SHAFT ASSEMBLY
SPRING PIN
GROOVE

MAINSHAFT

ASSEMBLY
6 x 1.0 mm SPECIAL BOLTS
15 N .
m (1.5kg-m, 11 Ib-ft)
SHIFT FORK
ASSEMBLY

Tape the main-

shaft spline.ProCarManuals.com

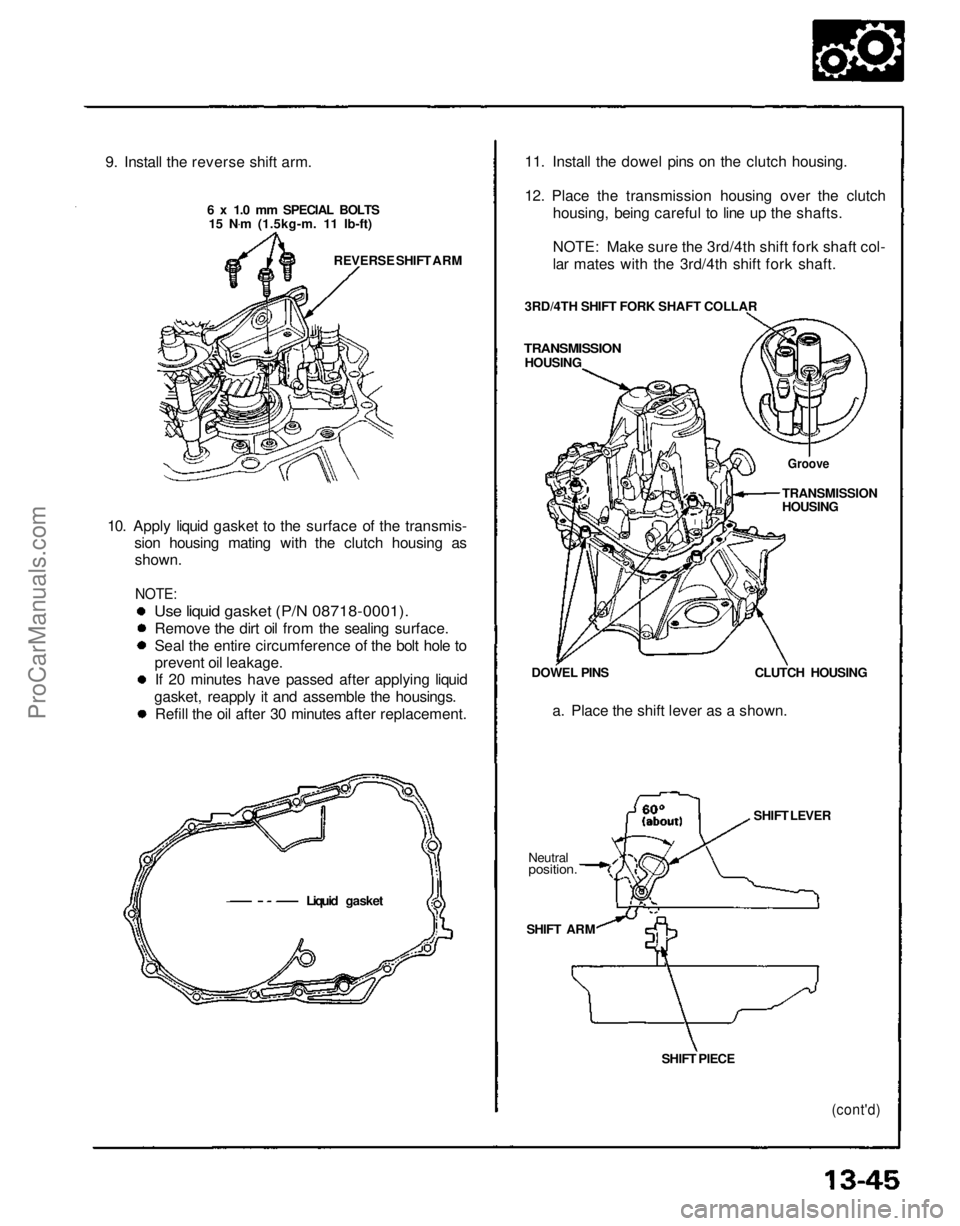

9. Install the reverse shift arm.
6 x 1.0 mm SPECIAL BOLTS15 N .
m (1.5kg-m. 11 Ib-ft)
REVERSE SHIFT ARM
10. Apply liquid gasket to the surface of the transmis- sion housing mating with the clutch housing asshown.

NOTE:
Use liquid gasket (P/N 08718-0001).
Remove the dirt oil from the sealing surface.
Seal the entire circumference of the bolt hole to
prevent oil leakage.If 20 minutes have passed after applying liquid
gasket, reapply it and assemble the housings. Refill the oil after 30 minutes after replacement.
Liquid gasket SHIFT PIECE
SHIFT ARM
Neutral

position.

SHIFT LEVERCLUTCH HOUSING
a. Place the shift lever as a shown.
DOWEL PINS

TRANSMISSION

HOUSING 3RD/4TH SHIFT FORK SHAFT COLLAR 11. Install the dowel pins on the clutch housing.
12. Place the transmission housing over the clutch
housing, being careful to line up the shafts.
NOTE: Make sure the 3rd/4th shift fork shaft col-
lar mates with the 3rd/4th shift fork shaft.

Groove

TRANSMISSION
HOUSING

(cont'd)ProCarManuals.com

Transmission
Reassembly (cont'd)

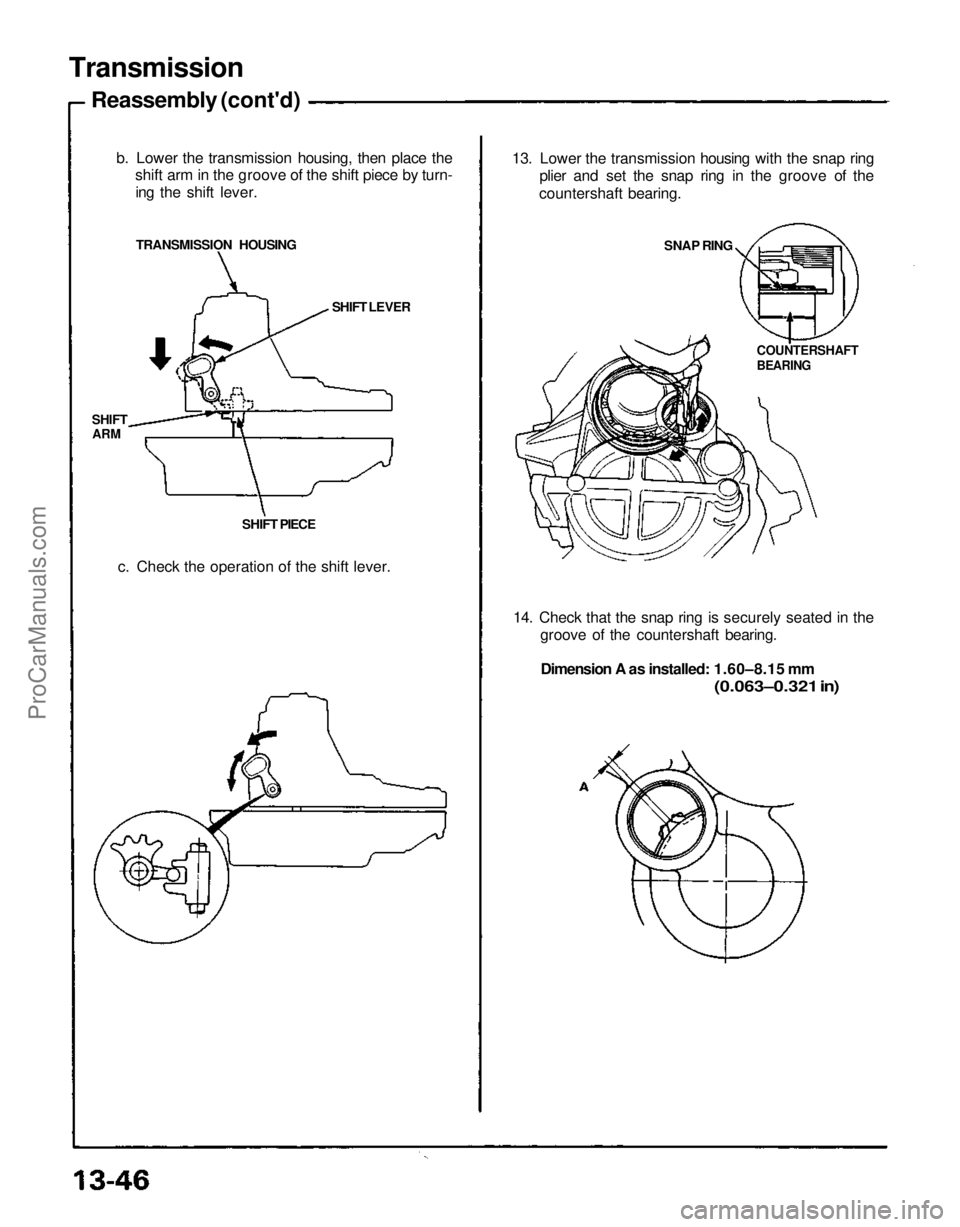

b. Lower the transmission housing, then place theshift arm in the groove of the shift piece by turn-
ing the shift lever.
TRANSMISSION HOUSING

SHIFT
ARM

SHIFT PIECESHIFT LEVER
c. Check the operation of the shift lever. 13. Lower the transmission housing with the snap ring
plier and set the snap ring in the groove of the
countershaft bearing.
SNAP RING

COUNTERSHAFT

BEARING

14. Check that the snap ring is securely seated in the groove of the countershaft bearing.
Dimension A as installed: 1.60–8.15 mm
(0.063–0.321 in)ProCarManuals.com

15. Tighten the transmission housing attaching bolts in
a criss-cross pattern in several steps shown below.

Torque: 45 N .
m (4.5 kg-m, 33 Ib-ft)

16. Install the 36 mm sealing bolt.
NOTE: Apply liquid gasket (P/N 08718–0001) to

the flange.
17. Install the steel balls, springs, and sealing bolts. NOTE: Apply liquid gasket (P/N 08718–0001) to
the threads, but don't plug the hole with liquid
gasket.

14 x 1.0 mm SEALING BOLT

33 N .
m (3.3 kg-m. 24 Ib-ft)

STEEL BALL
(3/8
in)

SPRING (L. 25 mm)

36 mm SEALING BOLT
35 N.
m (3.5 kg-m, 25 Ib-ft)
SPRING
(L.
25.1
mm)

SPRING
(L. 30 mm)

16 x 1.0 mm

SEALING BOLTS

42 N .
m

(4.2 kg-m,

30 Ib-ft)

STEEL BALLS

(5/16
in)

SPRING
(L. 30 mm)
18. Install the back-up light switch and neutral position

switch.

NOTE: Apply liquid gasket (P/N 08718–0001) to
the threads.
19. Install the vehicle speed sensor (VSS).

6 x 1.0 mm
12 N .
m (1.2 kg-m, 9 Ib-ft)

VSS
(O-RING Replace.)
8 x
1.25
mm

24 N .
m (2.4 kg-m, 17 Ib-ft)
NEUTRAL POSITION

SWITCH

25 N.
m
(2.5 kg-m,

18 Ib-ft)
BACK-UP LIGHT SWITCH
25 N .
m (2.5 kg-m,18 Ib-ft)

8x1.25 mm

24 N .
m (2.4 kg-m, 17 Ib-ft)

8 x
1.25
mm

26 N
.
m
(2.6 kg-m,

19 Ib-ft)ProCarManuals.com

Transmission Assembly

Installation

NOTE:
Check that the two dowel pins are installed in the clutch housing.

Use
only Super High Temp
Urea
Grease
(P/N
08798-9002).

1. Place the transmission on the transmission jack, and raise it to the engine level.
2. Set the release fork to the clutch housing.
3. Install the two transmission housing mounting bolts and engine stiffener.

4. Install the three rear transmission mounting bolts.
5. Loosen the front engine mounting bolt, then install the two front engine
mounting bolts to the transmission side.
6. Remove the transmission jack.
7. Install the clutch housing cover.
Corrosion resistant bolt/nut

DOWEL PINS
(P/N
08798-9002)
REAR TRANSMISSION
MOUNTING BOLTS
12 x
1.25
mm
105 N .
m

(10.5 kg-m, 76 Ib-ft)
(P/lN 08798-9002)

TRANSMISSION HOUSING
MOUNTING BOLTS
12 x
1.25
mm

65 N .
m (6.5 kg-m, 47 Ib-ft)

FRONT ENGINE

MOUNTING BOLT
10 x
1.25
mm

60 N .
m (6.5 kg-m, 43 Ib-ft)

8 x
1.25
mm
22 N .
m (2.2 kg-m, 16 Ib-ft)

6 x 1.0 mm
12 N .
m
(1.2
kg-m,

9 Ib-ft)

CLUTCH HOUSING

COVER

10 x
1.25
mm

45 N.m (4.5 kg-m, 33 Ib-ft)

TRANSMISSION HOUSING MOUNTING BOLT
12 x
1.25
mm

65 N .
m (6.5 kg-m, 47 Ib-ft)

TRANSMISSION

JACK
8. Install the release fork in the release hanger, then install the slave cylinder.
9. Connect the shift cable and select cable. CAUTION: Take care not to bend the cables.
10. Install the upper cover, change wire bracket and lower cover.
11. Install the upper control arm mounting bolt.

Corrosion resistant bolt/nut

8 x
1.25
mm

22 N .
m
(2.2
kg-m,

16 Ib-ft)

UPPER COVER
COTTER PIN Replace.

6 x 1.0 mm
12 N .
m
(1.2
kg-m,

9 Ib-ft)

CHANGE

WIRE
BRACKET

8 x
1.25
mm
26 N .
m (2.6 kg-m, 19 Ib-ft)
6 x 1.0 mm

12 N .
m (1.2 kg-m, 9 Ib-ft) LOWER
COVER

UPPER CONTROL ARM MOUNTING BOLT
10 x
1.25
mm

60 N .
m (6.0 kg-m. 43 Ib-ft)

(Silicone Grease)
