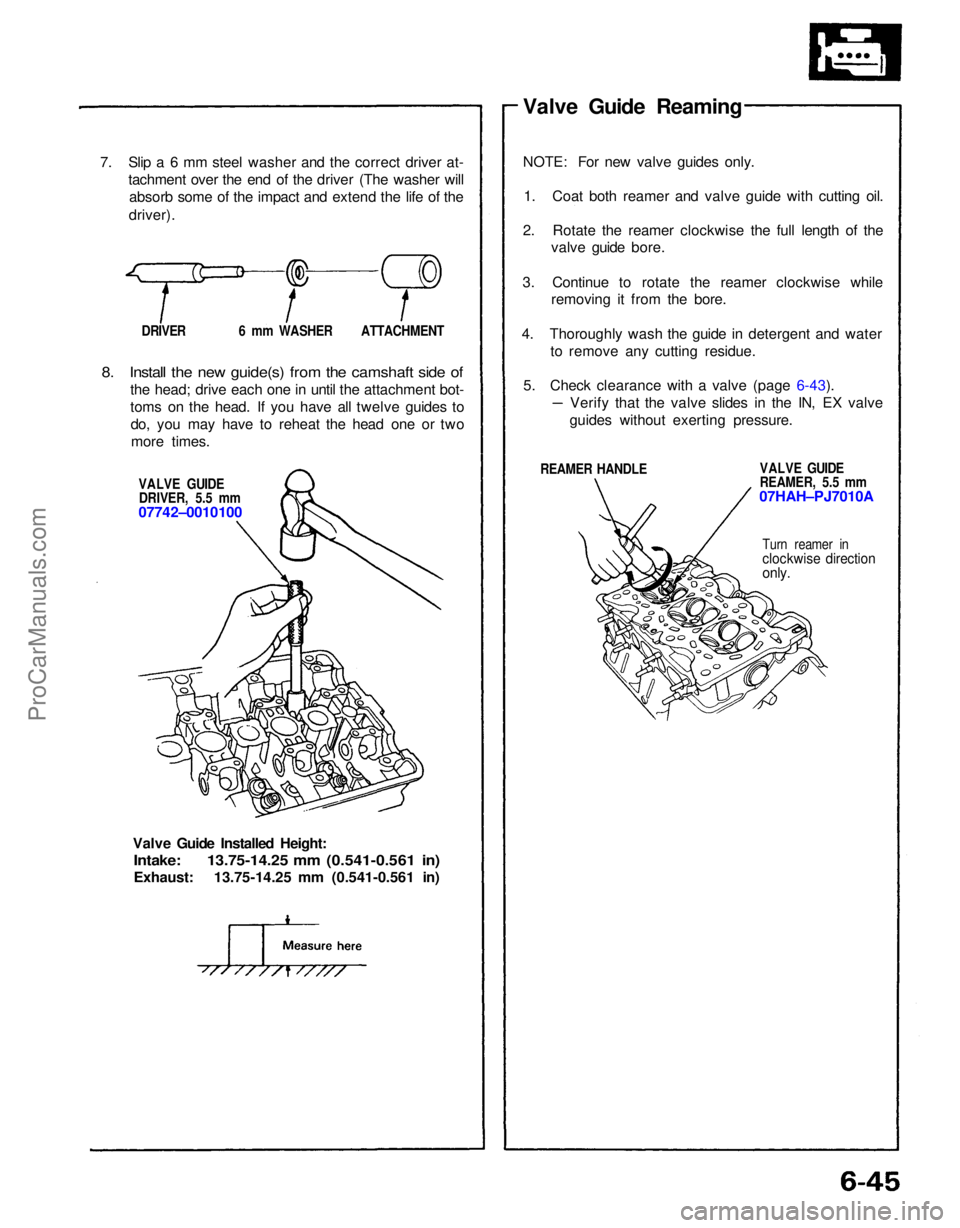

7. Slip a 6 mm steel washer and the correct driver at-
tachment over the end of the driver (The washer willabsorb some of the impact and extend the life of the
driver).

DRIVER 6 mm WASHER ATTACHMENT

8. Install the new guide(s) from the camshaft side of
the head; drive each one in until the attachment bot-
toms on the head. If you have all twelve guides todo, you may have to reheat the head one or twomore times.

VALVE GUIDEDRIVER, 5.5 mm

07742–0010100
Valve Guide Installed Height:
Intake: 13.75-14.25 mm (0.541-0.561 in)

Exhaust: 13.75-14.25 mm (0.541-0.561 in) Valve Guide Reaming
NOTE: For new valve guides only.
1. Coat both reamer and valve guide with cutting oil.
2. Rotate the reamer clockwise the full length of the valve guide bore.
3. Continue to rotate the reamer clockwise while removing it from the bore.
4. Thoroughly wash the guide in detergent and water to remove any cutting residue.
5. Check clearance with a valve (page 6-43).

REAMER HANDLE VALVE GUIDE
REAMER, 5.5 mm

07HAH–PJ7010A

Turn reamer in

clockwise direction

only.

Verify that the valve slides in the IN, EX valve
guides without exerting pressure.ProCarManuals.com

Valves, Valve Springs and Valve Seals

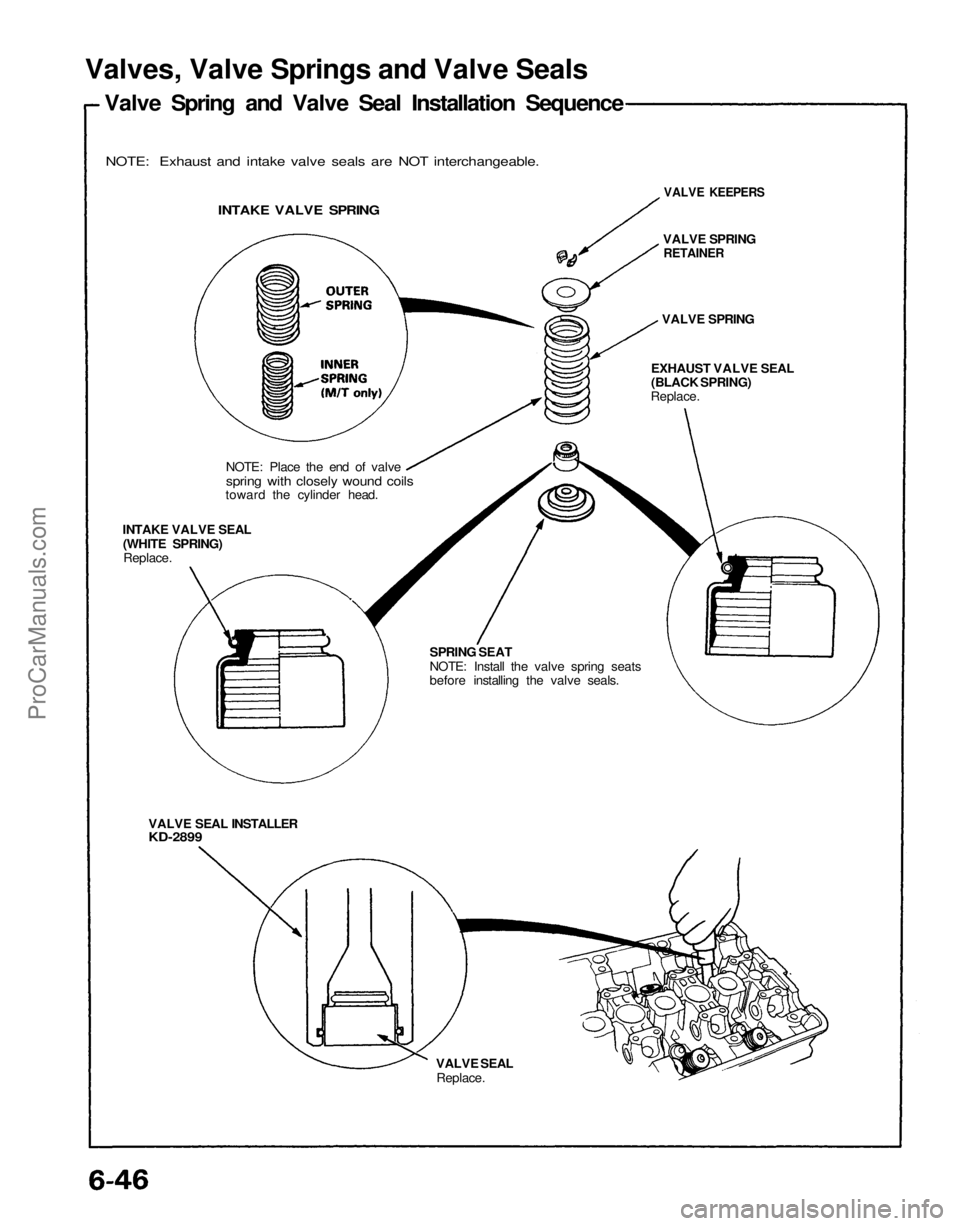

Valve Spring and Valve Seal Installation Sequence

NOTE: Exhaust and intake valve seals are NOT interchangeable.

INTAKE VALVE SPRING

NOTE: Place the end of valve

spring with closely wound coils

toward the cylinder head.

INTAKE VALVE SEAL

(WHITE SPRING)

Replace.

VALVE SEAL INSTALLER

KD-2899

VALVE SEAL

Replace.
VALVE KEEPERS

VALVE SPRING

RETAINER

VALVE SPRING

EXHAUST VALVE SEAL

(BLACK SPRING)

Replace.

SPRING SEAT

NOTE: Install the valve spring seats

before installing the valve seals.ProCarManuals.com

Cylinder Heads
Installation

2. Install the exhaust manifold covers.
Front:

HEATED OXYGEN

SENSOR

45 N .
m (4.5 kg-m, 33 Ib-ft)
Be careful not to damage.

6 x 1.0 mm
12 N .
m
(1.2 kg-m.

9 Ib-ft)

GASKET
Replace.

SELF-LOCKING
NUT

8x
1.25
mm
34 N .
m
(3.4 kg-m,

25 Ib-ft)

Replace.

EXHAUST MANIFOLD

COVER

(cont'd)

8x
1.25
mm

22 N
.
m
(2.2 kg-m.

16 Ib-ft) FRONT EXHAUST

MANIFOLD

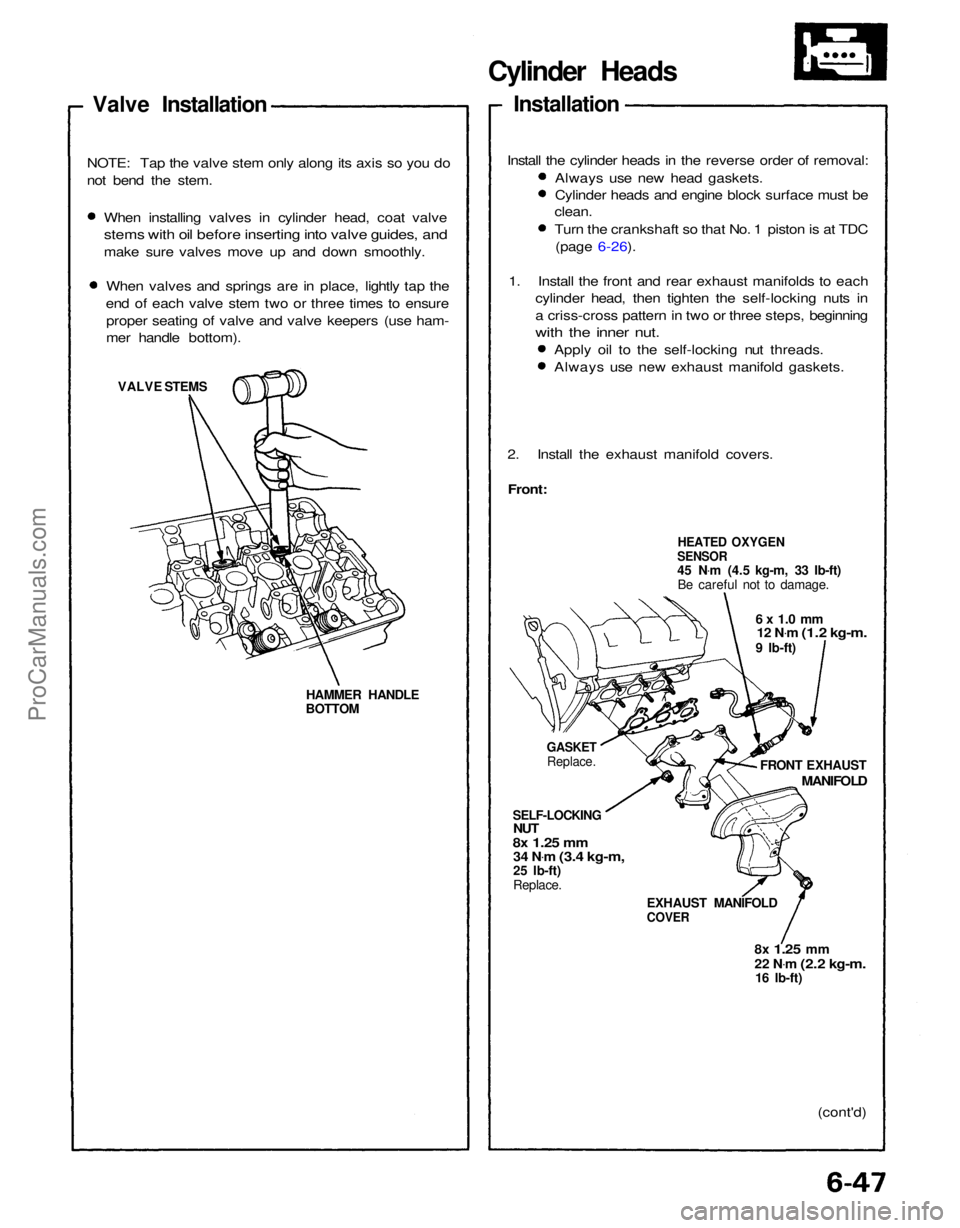

Valve Installation

When installing valves in cylinder head, coat valve

stems with oil before inserting into valve guides, and

make sure valves move up and down smoothly.When valves and springs are in place, lightly tap the
end of each valve stem two or three times to ensure proper seating of valve and valve keepers (use ham-
mer handle bottom).

VALVE STEMS
HAMMER HANDLE
BOTTOM

NOTE: Tap the valve stem only along its axis so you do
not bend the stem.
Apply oil to the self-locking nut threads.
Always use new exhaust manifold gaskets.
1. Install the front and rear exhaust manifolds to each
cylinder head, then tighten the self-locking nuts in
a criss-cross pattern in two or three steps, beginning

with the inner nut.
Always use new head gaskets.
Cylinder heads and engine block surface must be
clean.
Turn the crankshaft so that No. 1 piston is at TDC
(page 6-26).
Install the cylinder heads in the reverse order of removal:ProCarManuals.com

Cylinder Heads
Installation (cont'd)
Rear:
8 x
1.25
mm
22 N .
m
(2.2 kg-m,
16 Ib-ft)

HEATED OXYGEN

SENSOR

45 N .
m
(4.5 kg-m,
33 Ib-ft) Be careful not to damage.

GASKET
Replace.

REAR EXHAUST
MANIFOLD

EXHAUST

MANIFOLD

COVER
SELF LOCKING NUTS
8 x
1.25
mm

34 N .
m
(3.4 kg-m,

25 Ib-ft)

Replace.

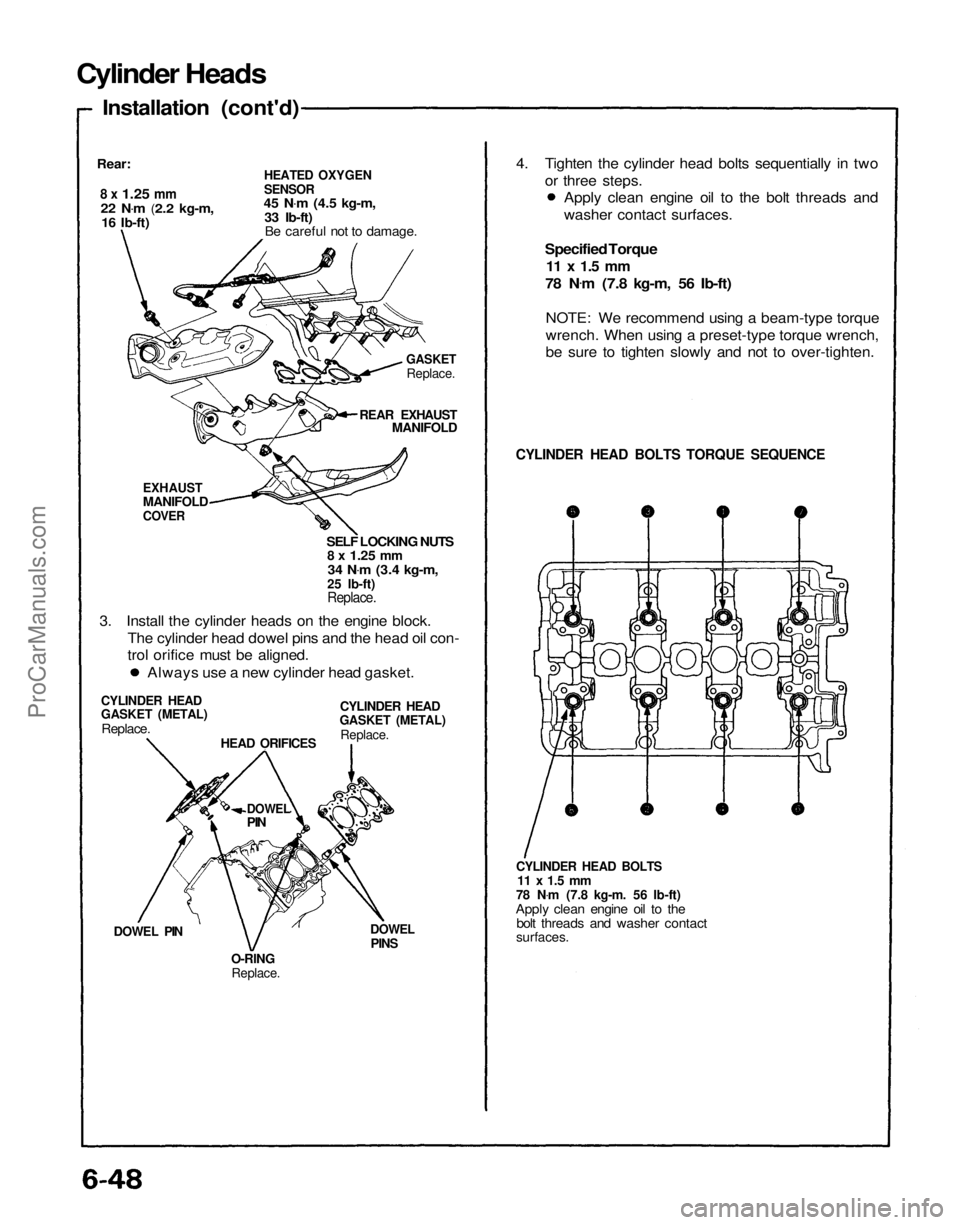

3. Install the cylinder heads on the engine block. The cylinder head dowel pins and the head oil con-
trol orifice must be aligned.

CYLINDER HEAD

GASKET (METAL)
Replace.
CYLINDER HEAD

GASKET (METAL)

Replace.

HEAD ORIFICES

DOWEL

PIN

DOWEL PIN
O-RING
Replace.
DOWEL

PINS
CYLINDER HEAD BOLTS

11 x 1.5 mm

78 N .
m (7.8 kg-m. 56 Ib-ft)

Apply clean engine oil to the bolt threads and washer contact

surfaces.

CYLINDER HEAD BOLTS TORQUE SEQUENCE

Specified Torque

11 x 1.5 mm

78 N .
m (7.8 kg-m, 56 Ib-ft)
NOTE: We recommend using a beam-type torque
wrench. When using a preset-type torque wrench,
be sure to tighten slowly and not to over-tighten.
Always use a new cylinder head gasket. Apply clean engine oil to the bolt threads and
washer contact surfaces.
4. Tighten the cylinder head bolts sequentially in two
or three steps.ProCarManuals.com

Camshafts

Installation

CAUTION: Valve locknuts should be loosened and ad-

justing screws backed off before installation.

1. After wiping down the cam and journals in cylinder

head, lubricate both surfaces and install camshaft.

2. Turn the camshaft until its keyway is facing up. (No.

1 cylinder TDC).

3. Set a new O-ring and a dowel pin in the oil passage

of the No. 1 camshaft holder.

O-RING

(Replace.)

and

DOWEL PIN
Keyways

facing up.

4. Install the camshaft seal with the open side (spring)

facing in.

Lubricate cam lobes after reassembly.

CAMSHAFT SEAL

Seal housing surface should be dry.

Apply a light coat of oil to camshaft

and inner lip of seal. (cont'd)
After installing the rocker shaft orifice, try to

turn the rocker shaft to make sure that the

orifice has been inserted in the hole of rocker

shaft correctly. If the orifice is in place, it should

not turn.

Remove the rubber bands after installing the

rocker arms.
O-RING

Replace.
ROCKER SHAFT

ORIFICES
O-RING

Replace.
3. Install the orifices. If the holes in the rocker arm

shafts and the cylinder head are not in line with

each other, use a 12 x 1.25 mm bolt in the rocker

arm shaft to rotate the shaft.
ROCKER SHAFT

12 x
1.25
mm

BOLT
12 x
1.25
mm

BOLT
ROCKER SHAFT
ROCKER ARMS
RUBBER BAND
1. Install the lost motion assemblies.

2. Install the rocker arms while passing the rocker arm

shaft through the cylinder head.
Rocker Arms

Installation

Valve adjusting lockouts should be loosened and

adjusting screws backed off before installation.

The component parts must be installed in the

original locations.
Install the rocker arms in the reverse order of removal:

CAUTION:ProCarManuals.com

Camshafts

Installation (cont'd)

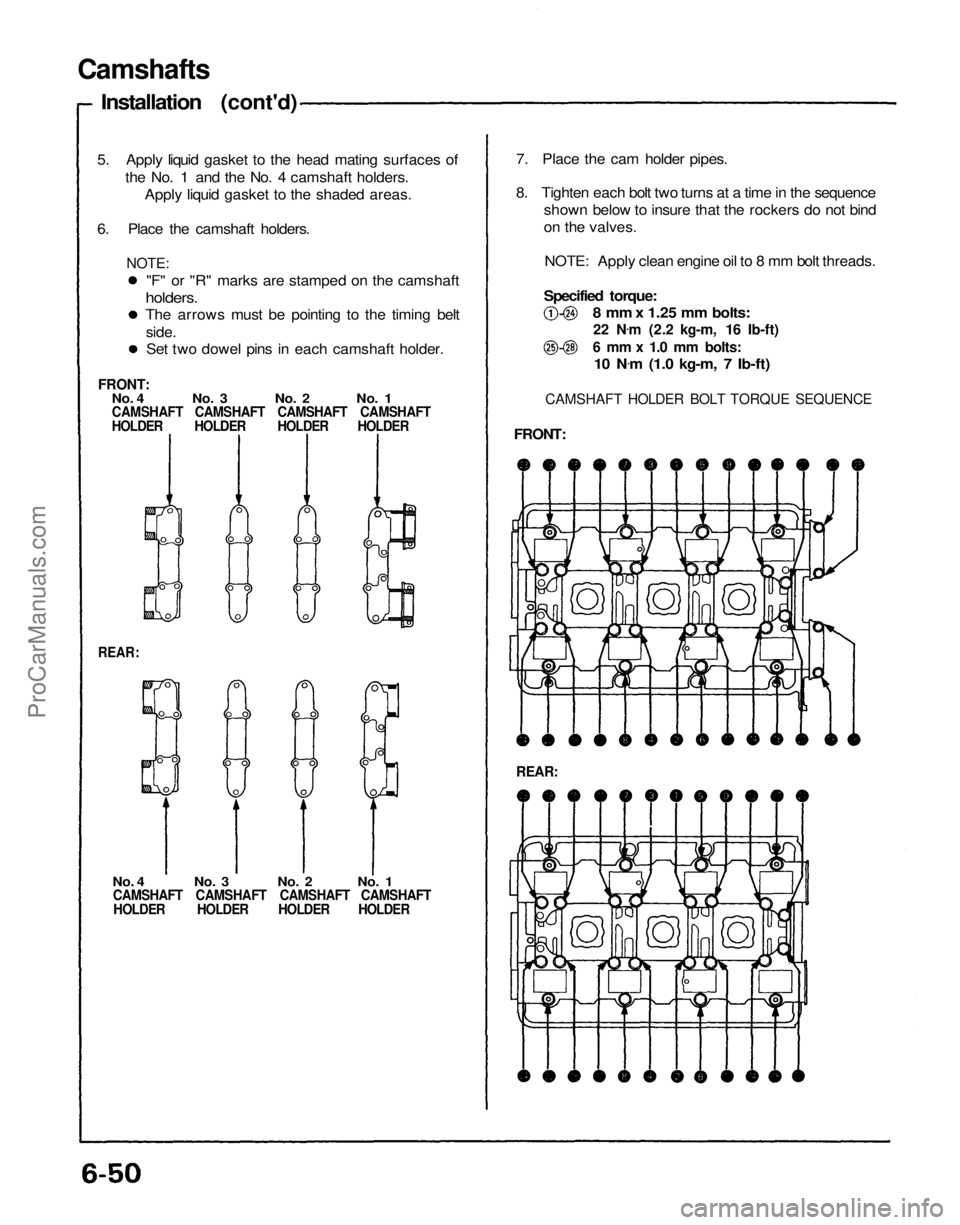

5. Apply liquid gasket to the head mating surfaces of the No. 1 and the No. 4 camshaft holders.Apply liquid gasket to the shaded areas.
6. Place the camshaft holders.

REAR:
No. 4 No. 3 No. 2 No. 1
CAMSHAFT CAMSHAFT CAMSHAFT CAMSHAFT
HOLDER HOLDER HOLDER HOLDER
REAR:
7. Place the cam holder pipes.
8. Tighten each bolt two turns at a time in the sequence
shown below to insure that the rockers do not bind
on the valves.
NOTE: Apply clean engine oil to 8 mm bolt threads.
Specified torque: 8 mm x 1.25 mm bolts:
22 N .
m (2.2 kg-m, 16 Ib-ft)

6 mm x 1.0 mm bolts:
10 N .
m (1.0 kg-m, 7 Ib-ft)

CAMSHAFT HOLDER BOLT TORQUE SEQUENCE

FRONT:

NOTE:

"F" or "R" marks are stamped on the camshaft

holders.

The arrows must be pointing to the timing belt
side.Set two dowel pins in each camshaft holder.

FRONT:
No. 4 No. 3 No. 2 No. 1

CAMSHAFT CAMSHAFT CAMSHAFT CAMSHAFT
HOLDER HOLDER HOLDER HOLDERProCarManuals.com

9. Install the CKP/CYP sensor on the front cylinder

head.

CKP/CYP SENSOR

6 x 1.0 mm
12 N.m (1.2 kg-m, 9 Ib-ft)

10. Install the front and rear timing cover plates.

RUBBER SEALS

REAR COVER

PLATE

6x 1.0 mm
12 N.m
(1.2 kg-m.
9 Ib-ft)

RUBBER SEAL

FRONT COVER

PLATE
RUBBER SEALS
11. Insert the dowel pins in the camshaft pulley.
12. Install the camshaft pulleys then tighten the retain-
ing bolts to the torque specified.
NOTE: To set the camshafts at TDC, align the
camshaft holes with the camshaft holder pipe holes
and insert 5.0 mm pin punches as shown.

CAMSHAFT PULLEYS
5.0 mm

PIN PUNCHES

RETAINING BOLTS
10 x
1.25
mm

70 N.m (7.0 kg-m, 51 Ib-ft)

13. Install the timing belt (page 6-25, 26).

14. Adjust the valve clearance (page 6-54).
15. Inspect the rocker arms (pages 6-52, 53).
16. After installation, check that hoses and connectors
are installed correctly.

Prior to installing the cylinder head cover, apply
a thin layer of liquid gasket to the mating surface of the cylinder head cover and rubber seals to
prevent the rubber seal from falling off.

After installation, fill the engine with oil up to the

specified level, run the engine for more than 3
minutes, then check for oil leakage.

NOTE:ProCarManuals.com

Rocker Arms

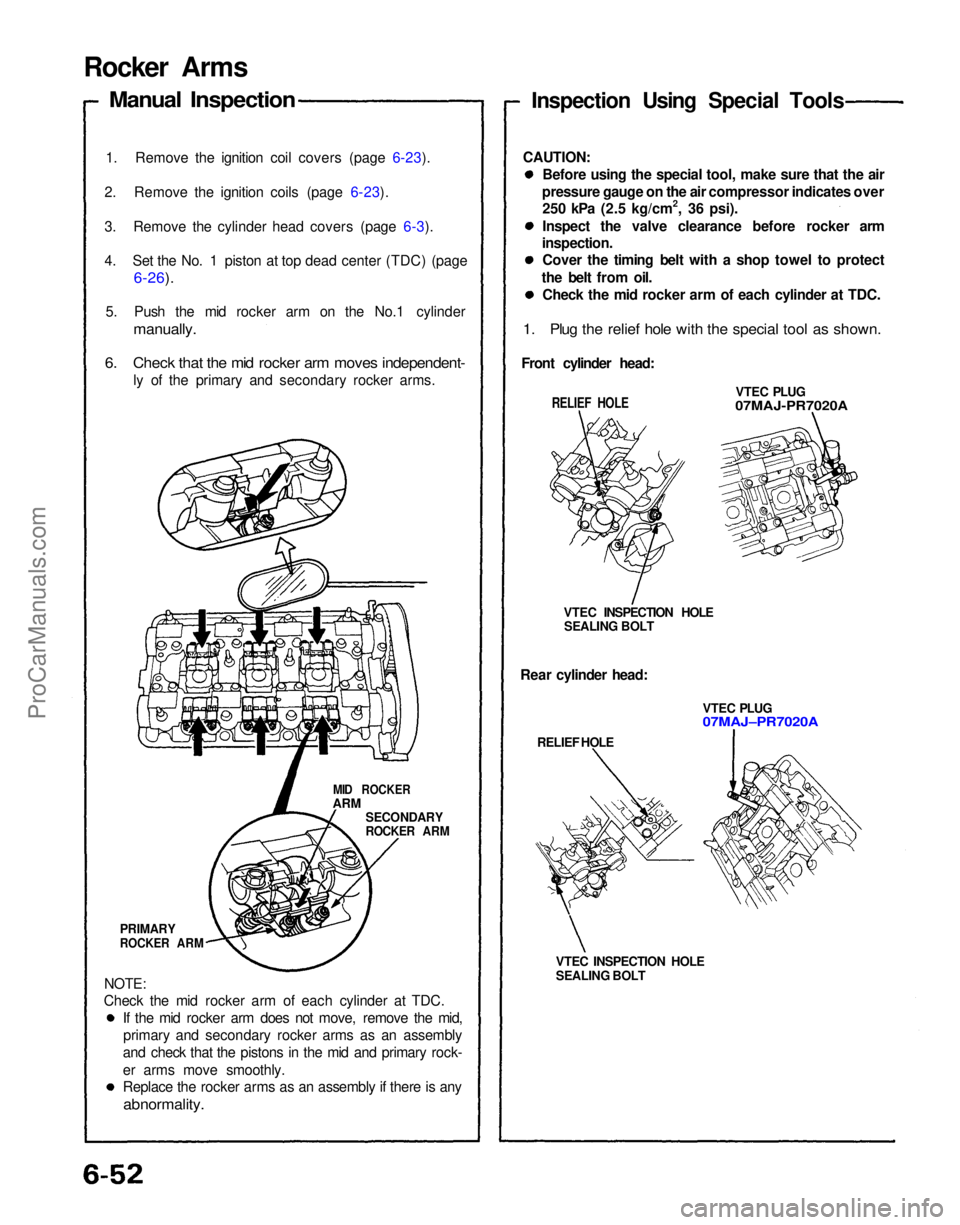

Manual Inspection

1. Remove the ignition coil covers (page 6-23).
2. Remove the ignition coils (page 6-23).
3. Remove the cylinder head covers (page 6-3).
4. Set the No. 1 piston at top dead center (TDC) (page
6-26).

5. Push the mid rocker arm on the No.1 cylinder
manually.

6. Check that the mid rocker arm moves independent-
ly of the primary and secondary rocker arms.

MID ROCKER

ARM
SECONDARY

ROCKER ARM

PRIMARY

ROCKER ARM
If the mid rocker arm does not move, remove the mid,primary and secondary rocker arms as an assembly
and check that the pistons in the mid and primary rock-
er arms move smoothly.
Replace the rocker arms as an assembly if there is any

abnormality.
VTEC INSPECTION HOLE
SEALING BOLT
RELIEF HOLE
VTEC PLUG

07MAJ–PR7020A

Rear cylinder head: VTEC INSPECTION HOLE
SEALING BOLT VTEC PLUG

07MAJ-PR7020A

Front cylinder head:

RELIEF HOLE

Before using the special tool, make sure that the air
pressure gauge on the air compressor indicates over 250 kPa (2.5 kg/cm2, 36 psi).
Inspect the valve clearance before rocker arm
inspection. Cover the timing belt with a shop towel to protect
the belt from oil. Check the mid rocker arm of each cylinder at TDC.
Inspection Using Special Tools
NOTE:
Check the mid rocker arm of each cylinder at TDC.
1. Plug the relief hole with the special tool as shown.
