1991 ACURA NSX Service Repair Manual

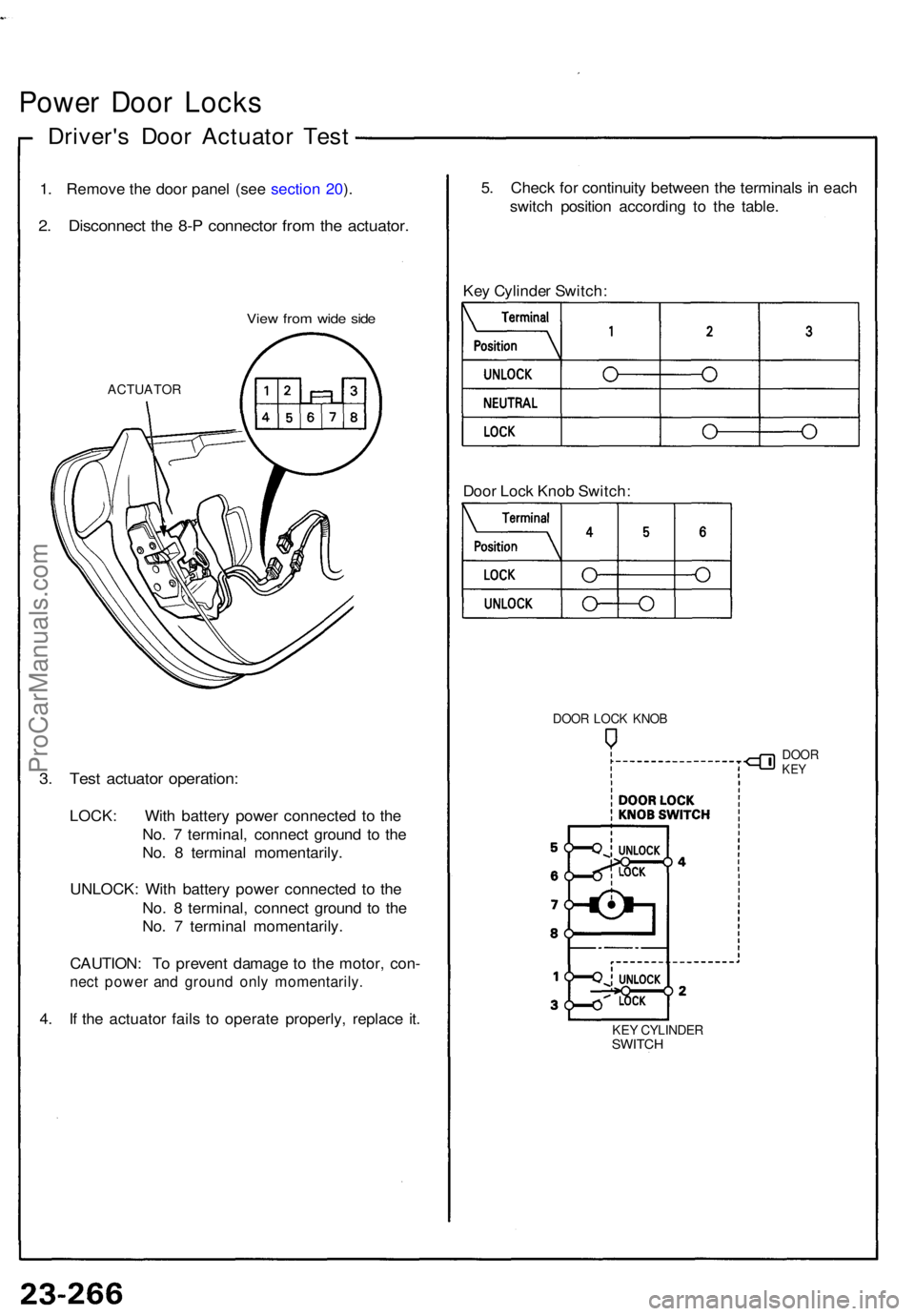

Power Doo r Lock s
Driver' s Doo r Actuato r Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8- P connecto r fro m th e actuator .
ACTUATO R
View fro m wid e sid e
3. Tes t actuato r operation :
LOCK: Wit h batter y powe r connecte d t o th e
No . 7 terminal , connec t groun d t o th e
No . 8 termina l momentarily .
UNLOCK : Wit h batter y powe r connecte d t o th e
No . 8 terminal , connec t groun d t o th e
No . 7 termina l momentarily .
CAUTION : T o preven t damag e t o th e motor , con -
nect powe r an d groun d onl y momentarily .
4. I f th e actuato r fail s t o operat e properly , replac e it . 5
. Chec k fo r continuit y betwee n th e terminal s in eac h
switc h positio n accordin g t o th e table .
Ke y Cylinde r Switch :
Doo r Loc k Kno b Switch :
DOOR LOC K KNO B
KEY CYLINDE RSWITCH
DOORKEY
ProCarManuals.com

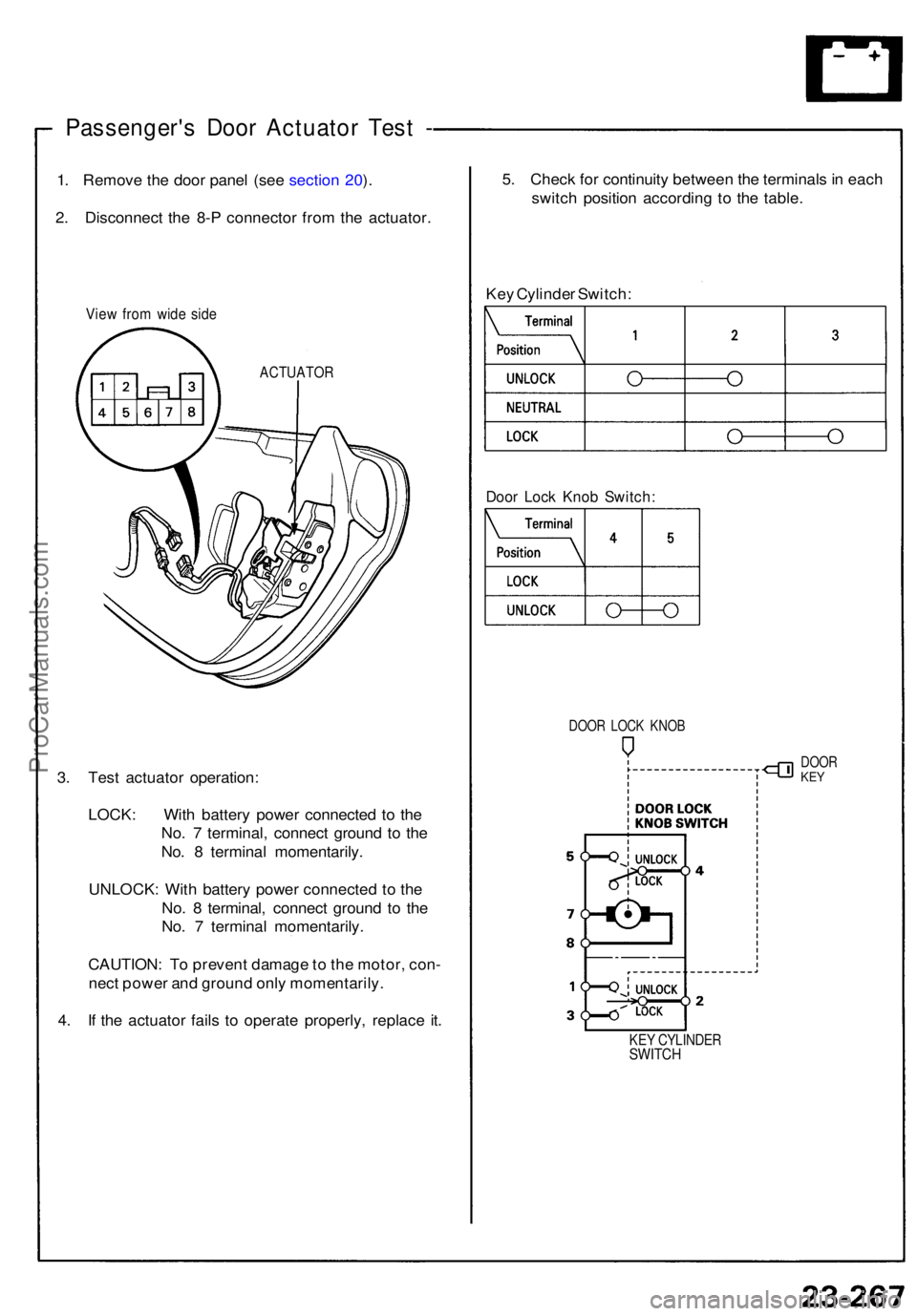

Passenger's Doo r Actuato r Tes t -
1 . Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8- P connecto r fro m th e actuator .
View fro m wid e sid e
ACTUATO R
3. Tes t actuato r operation :
LOCK : Wit h batter y powe r connecte d t o th e
No . 7 terminal , connec t groun d t o th e
No . 8 termina l momentarily .
UNLOCK : Wit h batter y powe r connecte d t o th e
No . 8 terminal , connec t groun d t o th e
No . 7 termina l momentarily .
CAUTION : T o preven t damag e to th e motor , con -
nec t powe r an d groun d onl y momentarily .
4 . I f th e actuato r fail s t o operat e properly , replac e it . 5
. Chec k fo r continuit y betwee n th e terminal s in eac h
switc h positio n accordin g t o th e table .
Ke y Cylinde r Switch :
Door Loc k Kno b Switch :
DOOR LOC K KNO B
KEY CYLINDE RSWITCH
DOORKEY
ProCarManuals.com

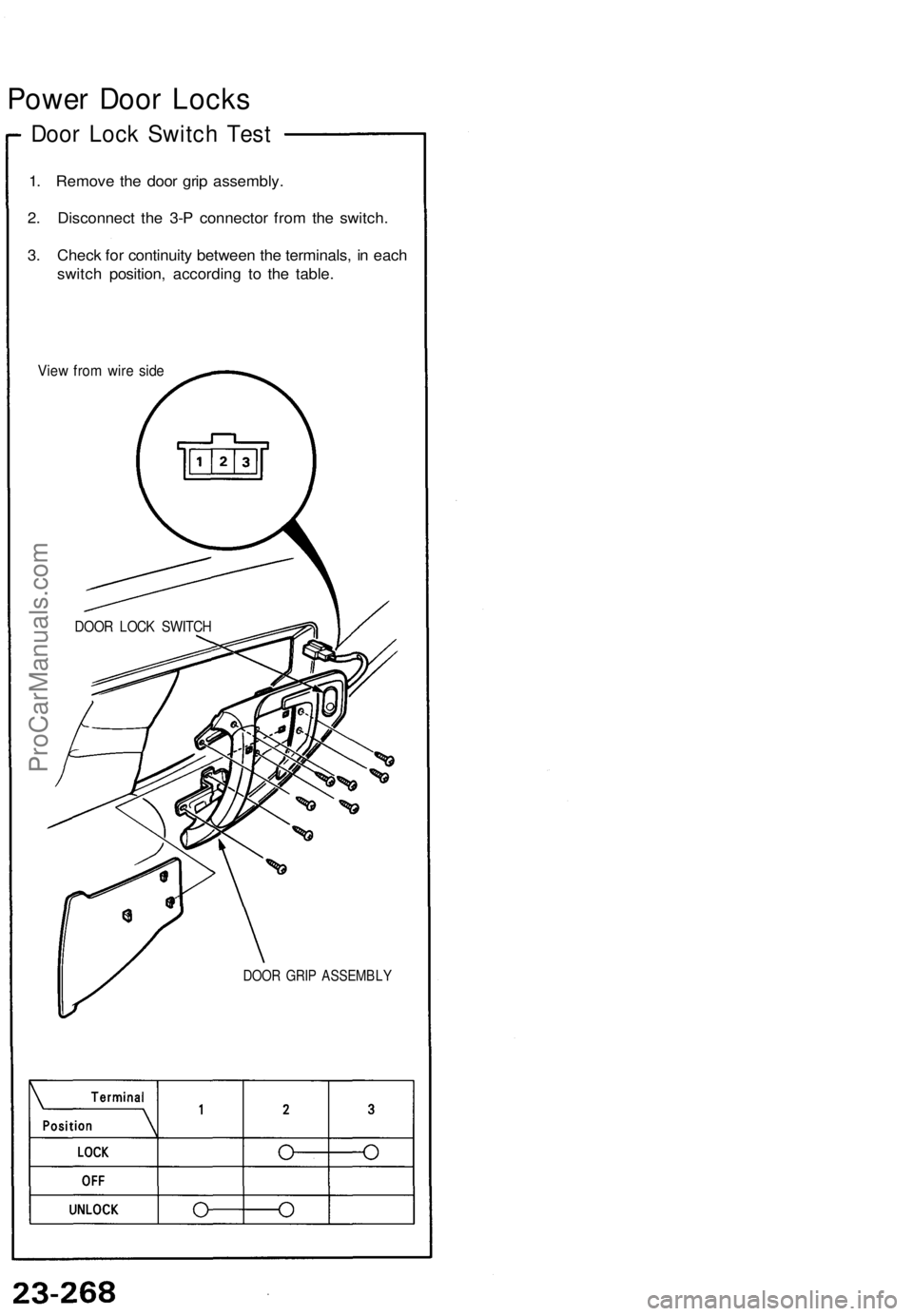

Power Door Locks

Door Lock Switch Test

1. Remove the door grip assembly.

2. Disconnect the 3-P connector from the switch.

3. Check for continuity between the terminals, in each

switch position, according to the table.

View from wire side

DOOR GRIP ASSEMBLY
DOOR LOCK SWITCHProCarManuals.com

Power Windows
Component Location Index
POWER WINDOW

RELAY
Test
,
page 23-277
('94-'96) ('91-'93)
PASSENGER'S SWITCH

Test, page 23-274('94-'96)

Replacement, page
23-275
PASSENGER'S DOOR SWITCH

Test, page 23-204
PASSENGER'S MOTOR

Test, page 23-276('94-'96) ('91-'93)

Replacement, section 20
DRIVER'S DOOR SWITCH
Test, page 23-204
DRIVER'S MOTORTest, page 23-276('94-'96) ('91-'93)
Replacement,
section 20
MASTER SWITCH

Test, page 23-273 ('94-'96) ('91-'93)
Replacement, page 23-274
('94-'96) ('91-'93)

POWER WINDOW
CONTROL UNIT
Input test, page 23-272
('94-'96) ('91-'93)
KEY-OFF TIMER CIRCUIT
(In the integrated control unit)
Input test, page 23-168
('94-'96) ('91-'93)
UNDER-DASH FUSE BOX

UNDER-HOOD FUSE/RELAY

BOX

Description

Power Window Key-off Timer Operation:
The power windows can still be operated for about ten minutes after the ignition switch is turned from the "II" to the "I"
or "O" position as long as neither of the doors has been opened. This provides a convenience to parked occupants while
offering a degree of security against unwanted or accidental window operation.ProCarManuals.com

NOTE: Th e number s i n th e tabl e sho w th e troubleshootin g sequence .
Troubleshootin g
ProCarManuals.com

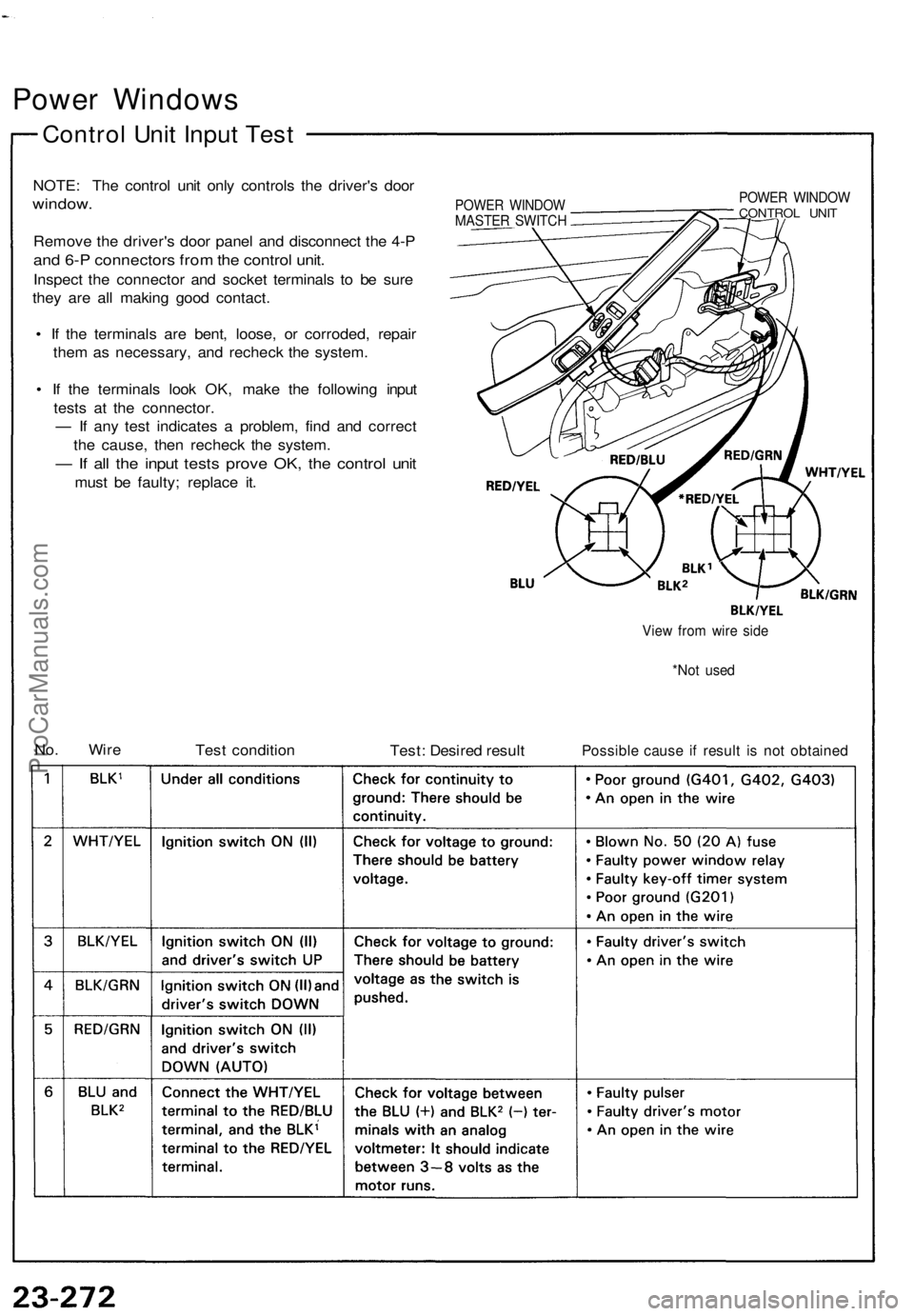

Power Windows

Control Unit Input Test

NOTE: The control unit only controls the driver's door

window.

Remove the driver's door panel and disconnect the 4-P

and 6-P connectors from the control unit.

Inspect the connector and socket terminals to be sure

they are all making good contact.

• If the terminals are bent, loose, or corroded, repair

them as necessary, and recheck the system.

• If the terminals look OK, make the following input

tests at the connector.

— If any test indicates a problem, find and correct

the cause, then recheck the system.

— If all the input tests prove OK, the control unit

must be faulty; replace it.
POWER WINDOW

MASTER SWITCH
POWER WINDOW

CONTROL UNIT

No. Wire

Test condition

Test: Desired result
View from wire side

*Not used

Possible cause if result is not obtainedProCarManuals.com

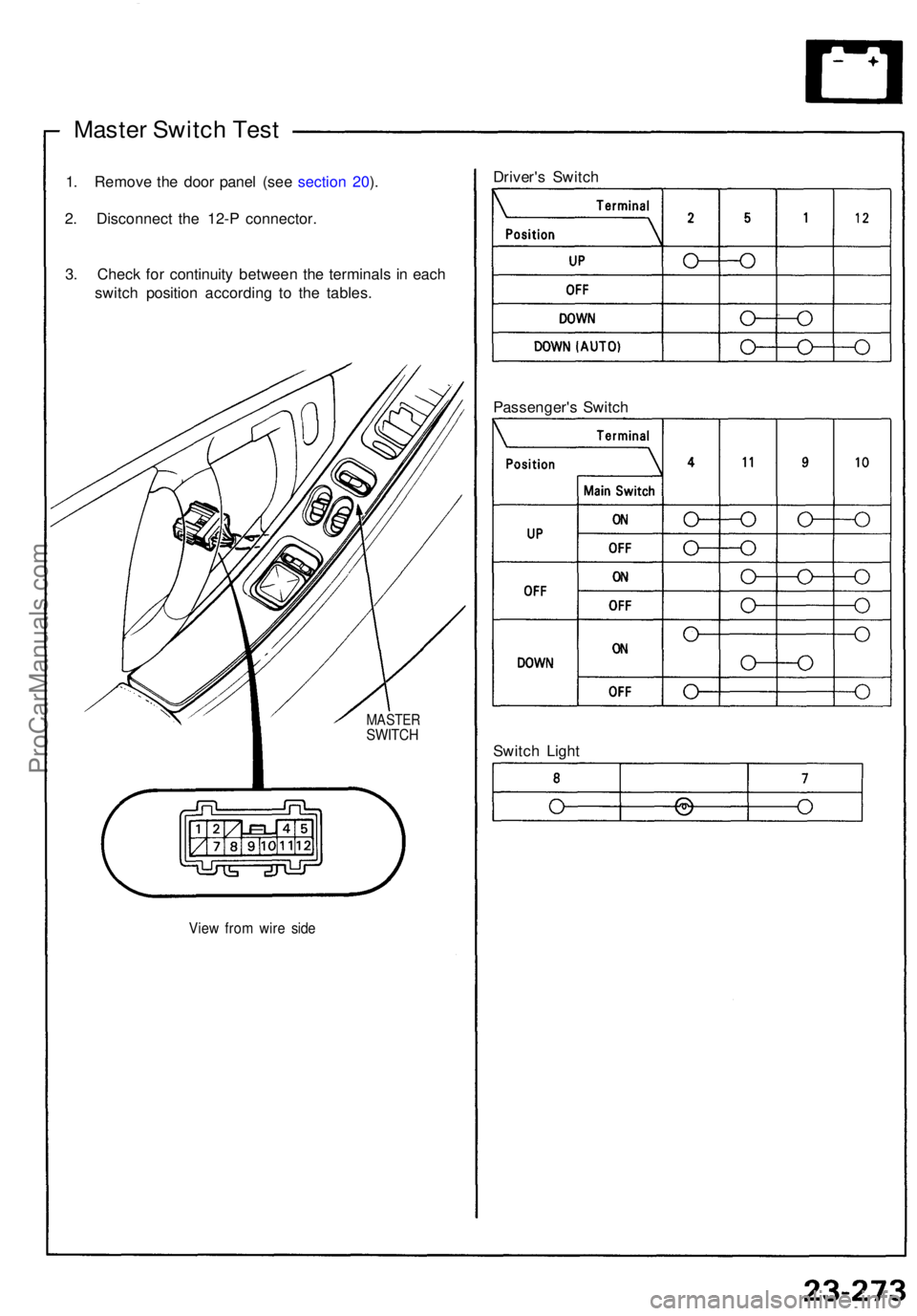

Master Switc h Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 12- P connector .
3 . Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e tables .
View fro m wir e sid e
MASTE RSWITCH
Driver's Switc h
Switc h Ligh t
Passenger'
s Switc h
ProCarManuals.com

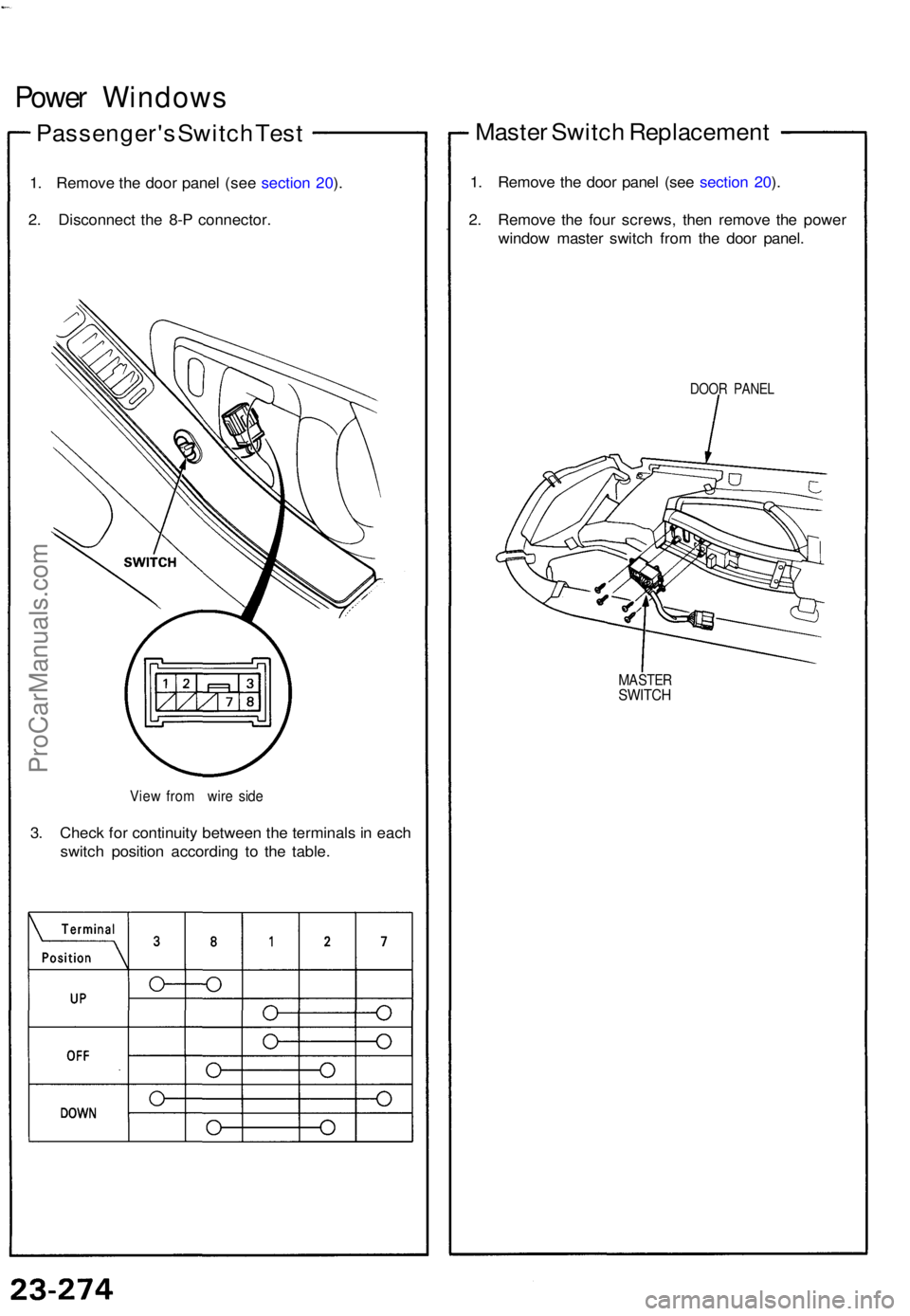

Power Window s
Passenger' s Switc h Tes t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 8- P connector .
View fro m wir e sid e
3. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g t o th e table.
Maste r Switc h Replacemen t
1. Remov e th e doo r pane l (se e sectio n 20 ).
2 . Remov e th e fou r screws , the n remov e th e powe r
windo w maste r switc h fro m th e doo r panel .
DOOR PANE L
MASTE RSWITCH
