1991 ACURA NSX Service Repair Manual

YEL/RED
WHT/BLU2

ORN

BLU/RED
GRN/RED
GRN/BLU2

WHT/GRN

YEL2

BLU/WHT1
WHT/BLK

BLU/YEL

BLU/GRN
ORN/WHT

ORN/BLK
WHT/RED

View from wire side
PNK/BLU

View from terminal side

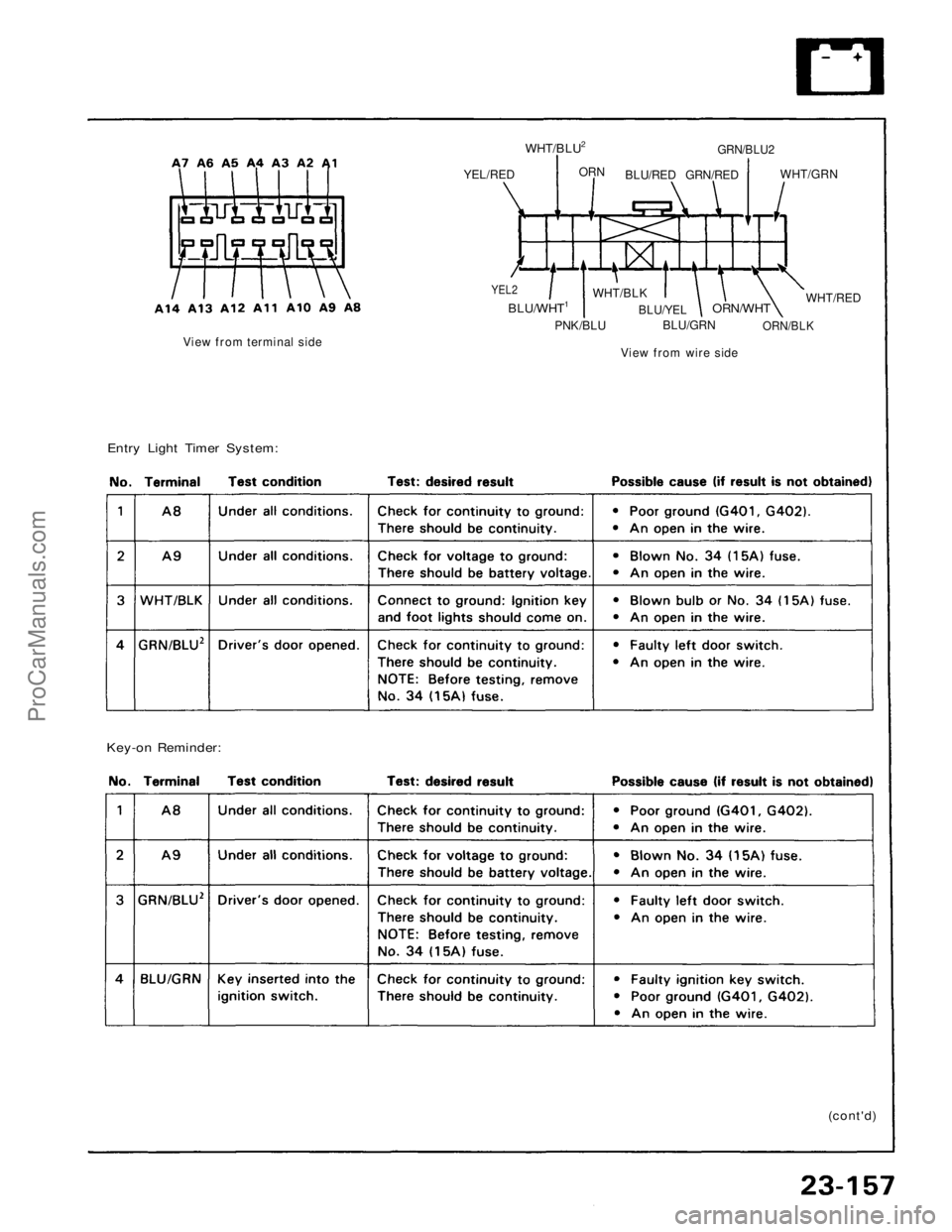

Entry Light Timer System:

Key-on Reminder:

(cont'd)ProCarManuals.com

Integrated Control Unit

Input Test (cont'd)

YEL/RED
WHT/BLU2

ORN

BLU/RED
GRN/RED

GRN/BLU2
WHT/GRN

YEL2

BLU/WHT1

PNK/BLU
WHT/BLK

BLU/YEL

BLU/GRN
ORN/WHT
ORN/BLK
WHT/RED

View from wire side
View from terminal side

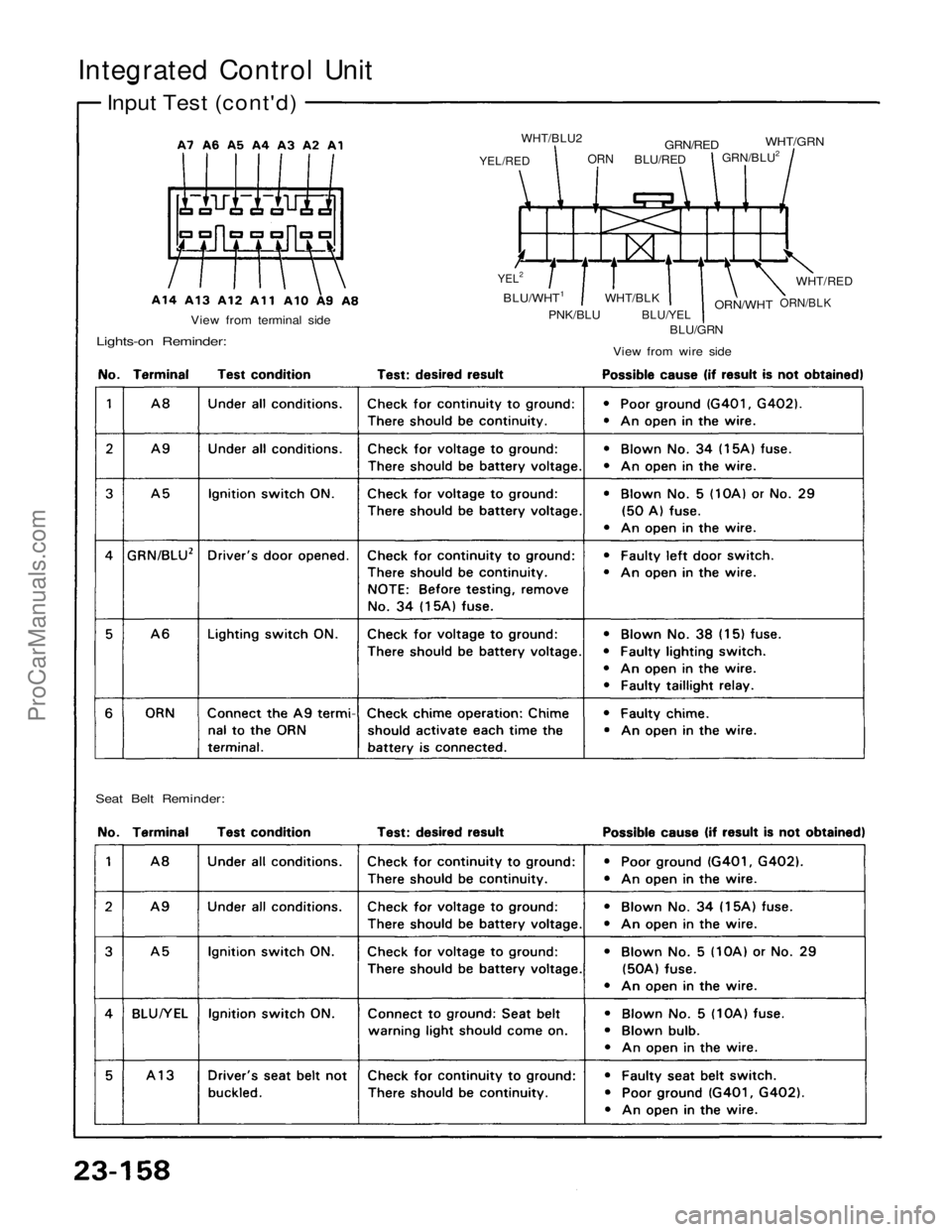

Lights-on Reminder:

Seat Belt Reminder:ProCarManuals.com

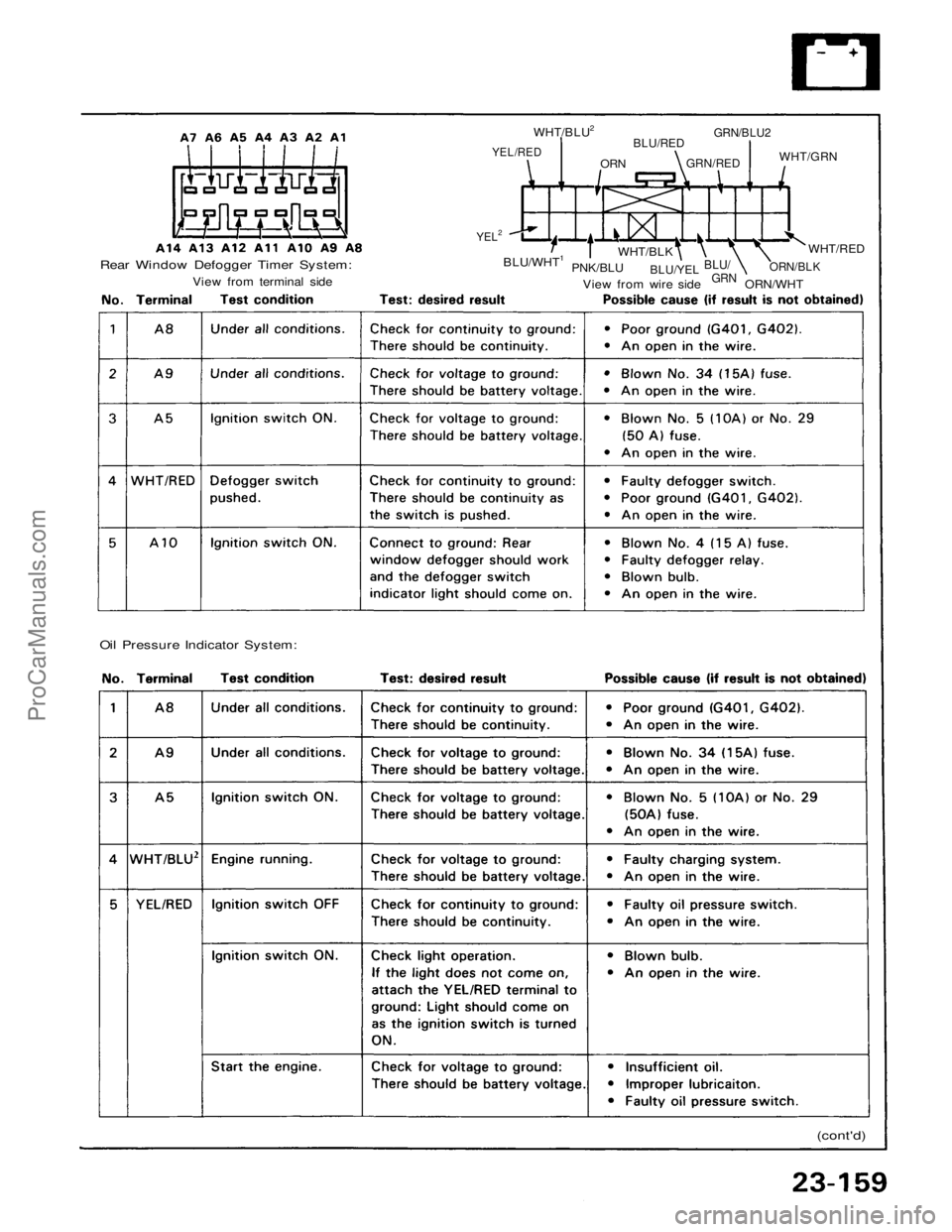

Rear Window Defogger Timer System:

View from terminal side
YEL/RED
WHT/BLU2

ORN
BLU/RED

GRN/RED
GRN/BLU2

WHT/GRN

YEL2

BLU/WHT1

PNK/BLU
WHT/BLK

BLU/YEL
BLU/

GRN

ORN/WHT
ORN/BLK
WHT/RED

View from wire side

Oil Pressure Indicator System:

(cont'd)ProCarManuals.com

Integrated Control Unit

Input Test (cont'd)

View from terminal side

Side Marker Light Flasher System:
YEL/RED
WHT/BLU2

ORN
BLU/RED
GRN/RED
GRN/BLU2

WHT/GRN

YEL2

BLU/WHT1

PNK/BLU
WHT/BLK

BLU/YEL
BLU/GRN

ORN/WHT
ORN/BLK
WHT/RED

View from wire side

Power Window key-off Timer System:ProCarManuals.com

YEL/RED
WHT/BLU2

ORN

BLU/RED
GRN/RED

GRN/BLU2

WHT/GRN

YEL2

BLU/WHT1

PNK/BLU
WHT/BLK

BLU/YEL
BLU/GRN

ORN/WHT
ORN/BLK
WHT/RED

View from wire side
View from terminal side

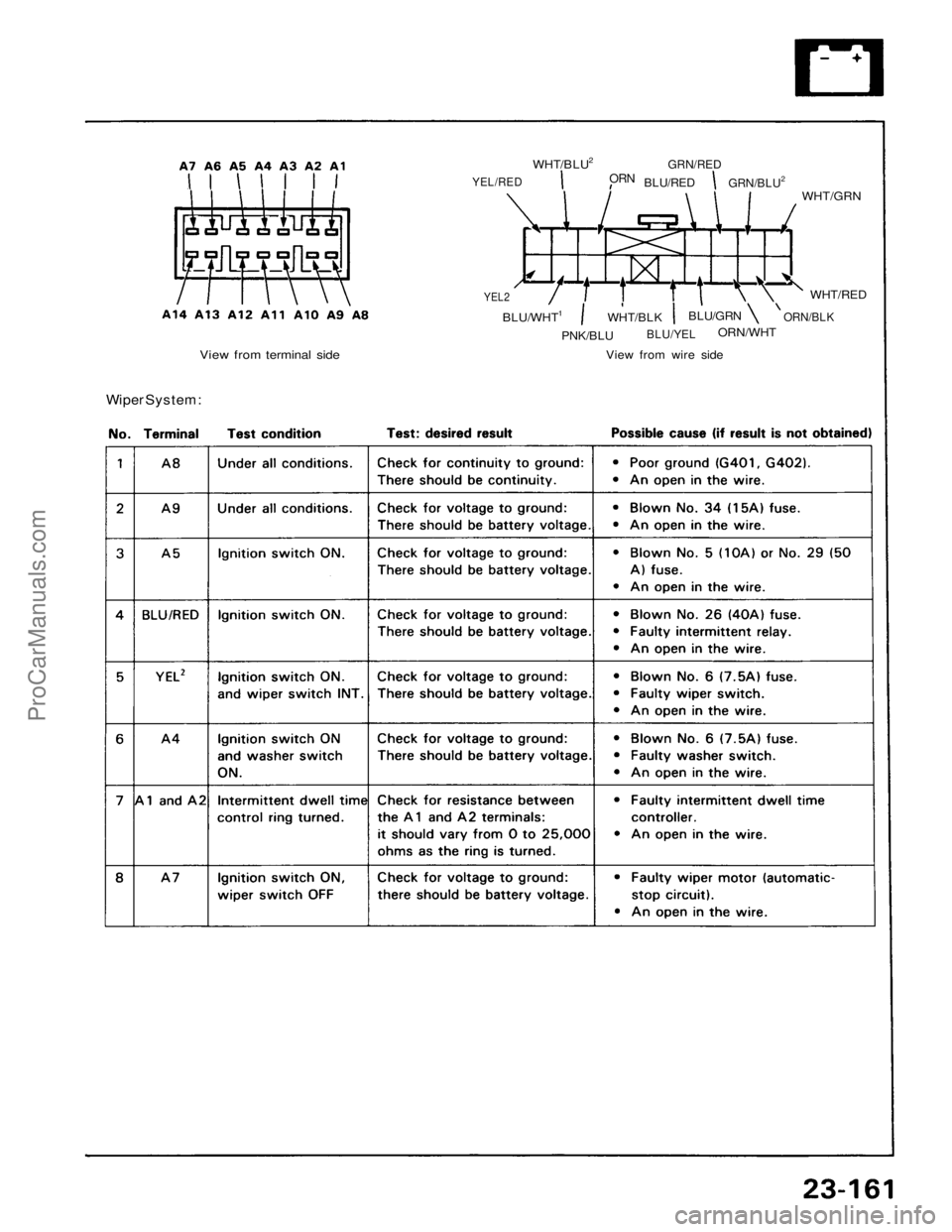

Wiper System:ProCarManuals.com

Lighting System

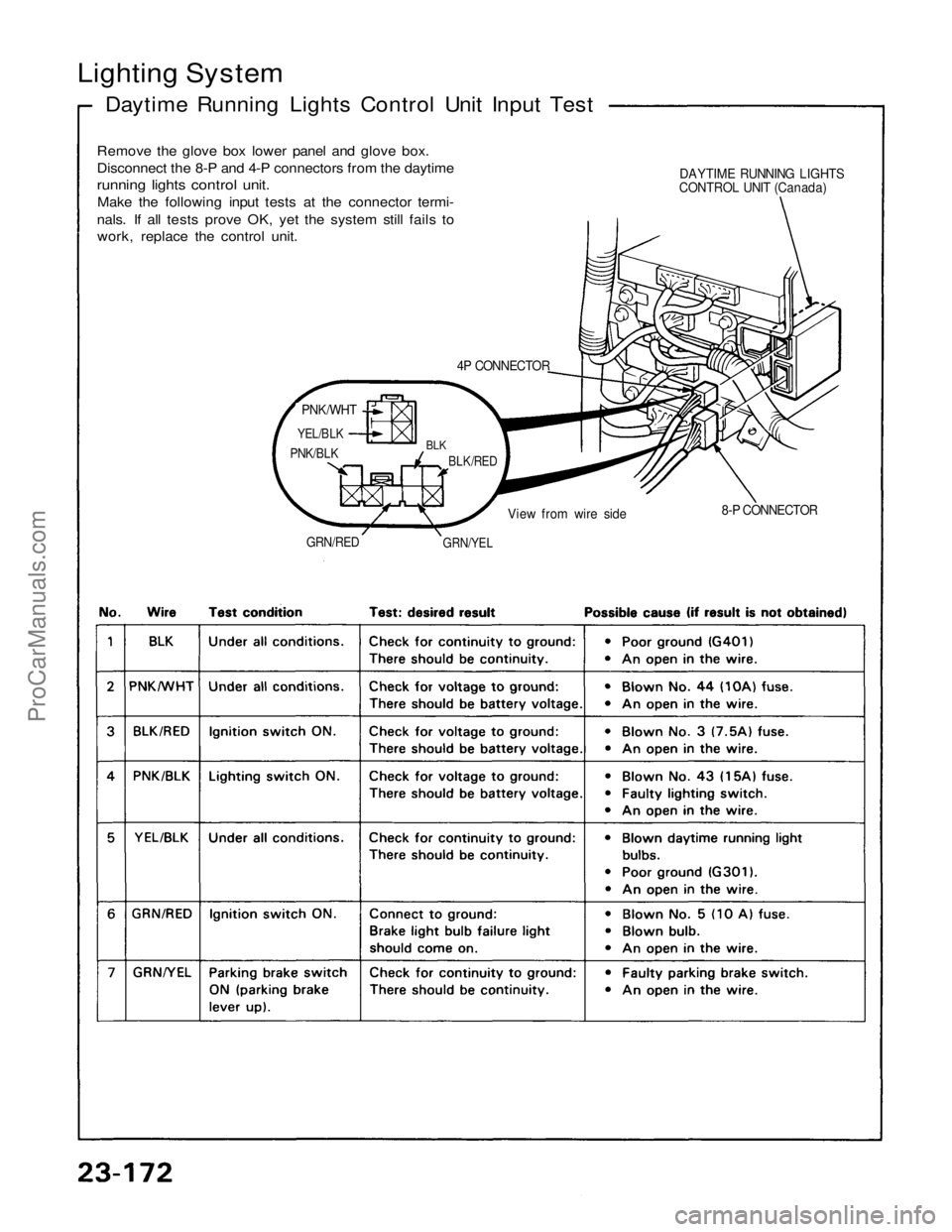

Daytime Running Lights Control Unit Input Test

Remove the glove box lower panel and glove box.

Disconnect the 8-P and 4-P connectors from the daytime

running lights control unit.

Make the following input tests at the connector termi-

nals. If all tests prove OK, yet the system still fails to

work, replace the control unit.

4P CONNECTOR

PNK/WHT

YEL/BLK

PNK/BLK
BLK

BLK/RED

GRN/RED

GRN/YEL
View from wire side
8-P CONNECTOR
DAYTIME RUNNING LIGHTS

CONTROL UNIT (Canada)ProCarManuals.com

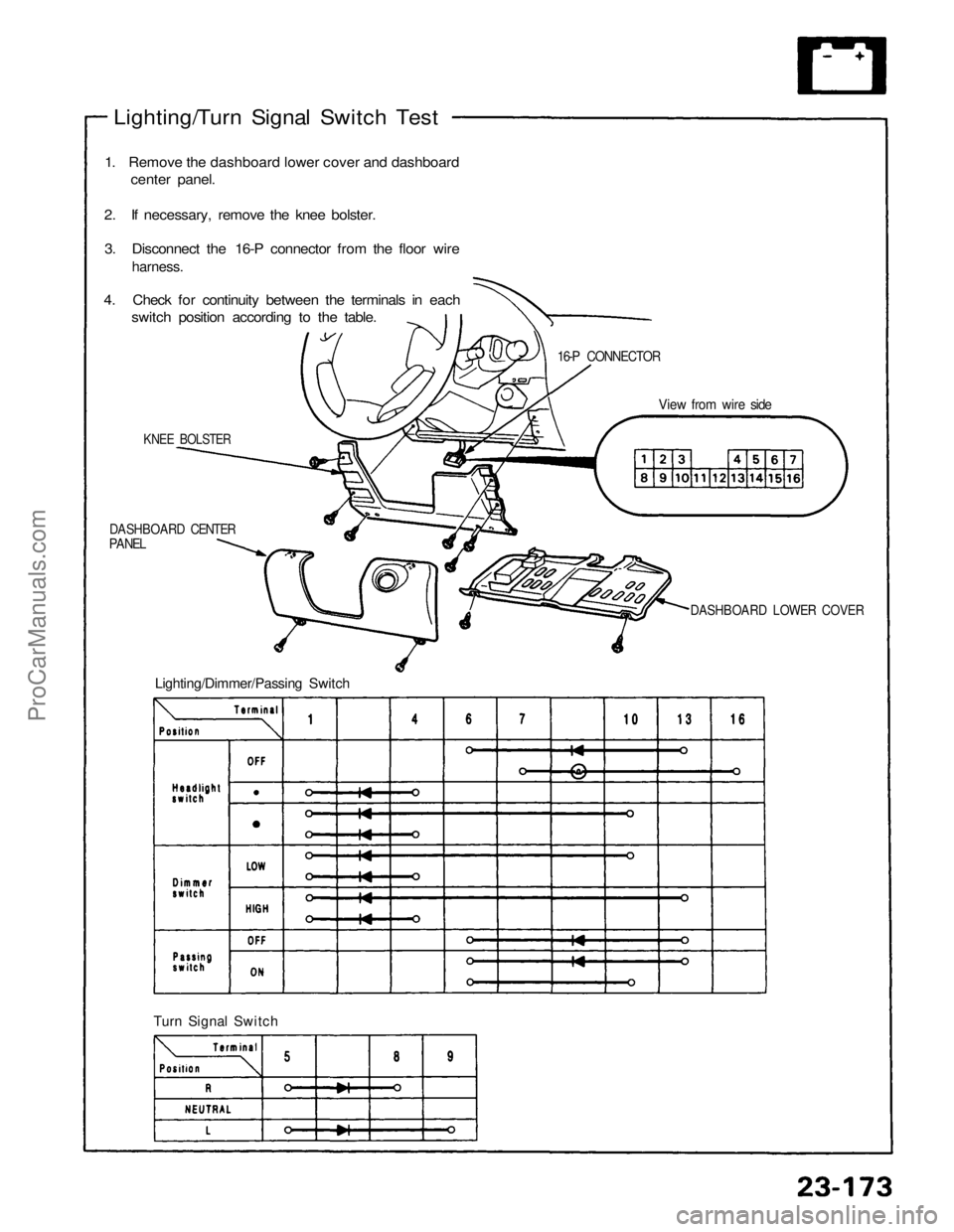

Lighting/Turn Signal Switch Test
1. Remove the dashboard lower cover and dashboard center panel.
2. If necessary, remove the knee bolster. 3. Disconnect the 16-P connector from the floor wire
harness.

4. Check for continuity between the terminals in each switch position according to the table.

KNEE BOLSTER

DASHBOARD CENTER

PANEL

Lighting/Dimmer/Passing Switch

Turn Signal Switch
DASHBOARD LOWER COVER

View from wire side

16-P CONNECTORProCarManuals.com

Lighting System

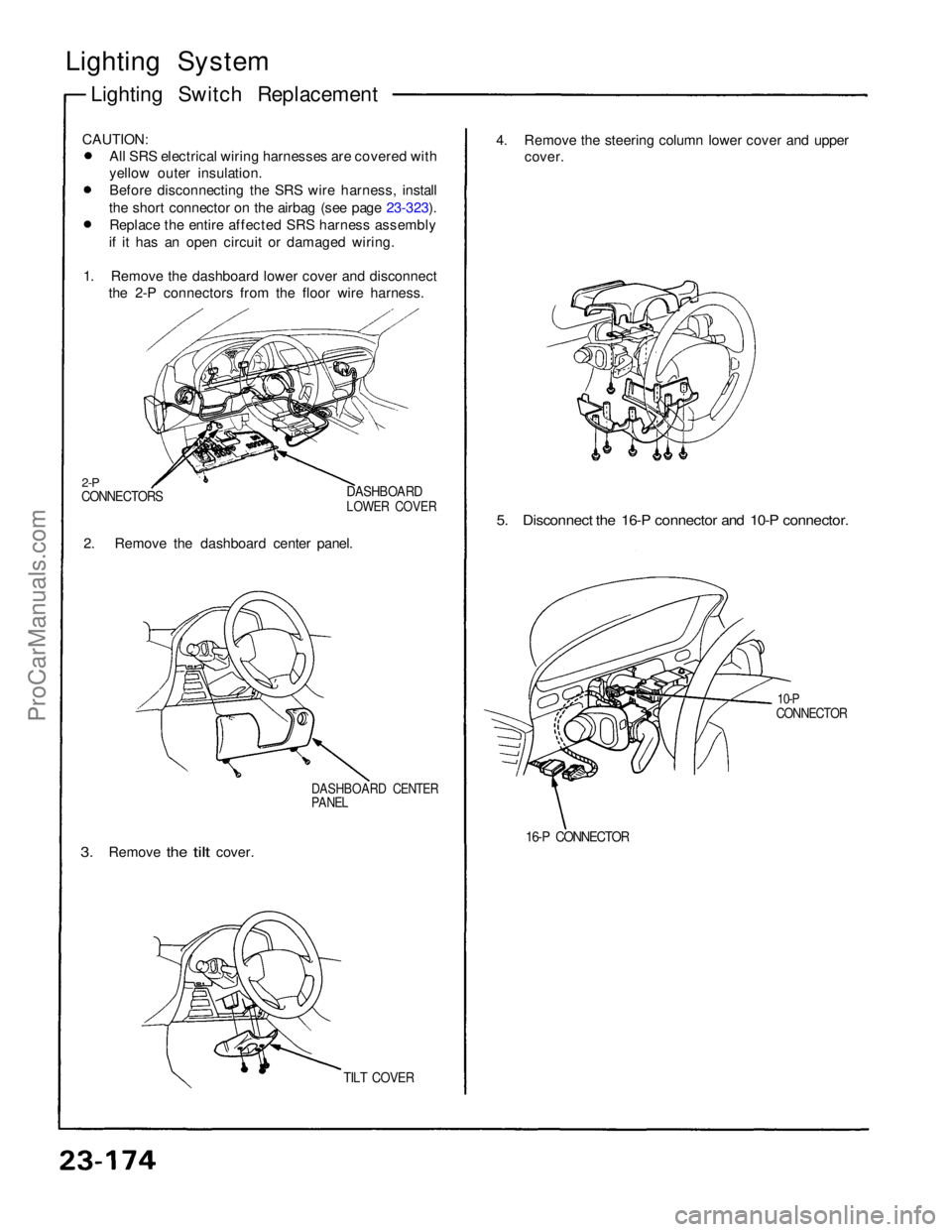

Lighting Switch Replacement
CAUTION: All SRS electrical wiring harnesses are covered with
yellow outer insulation.
Before disconnecting the SRS wire harness, install
the short connector on the airbag (see page 23-323). Replace the entire affected SRS harness assembly
if it has an open circuit or damaged wiring.
1. Remove the dashboard lower cover and disconnect the 2-P connectors from the floor wire harness.

2-P

CONNECTORS
DASHBOARD

LOWER COVER

2. Remove the dashboard center panel.

DASHBOARD CENTER
PANEL

3.
Remove
the
tilt
cover.

TILT COVER
4. Remove the steering column lower cover and upper
cover.

5. Disconnect the 16-P connector and 10-P connector.
10-P
CONNECTOR

16-P CONNECTORProCarManuals.com
