1991 ACURA NSX Service Repair Manual

(cont'd)

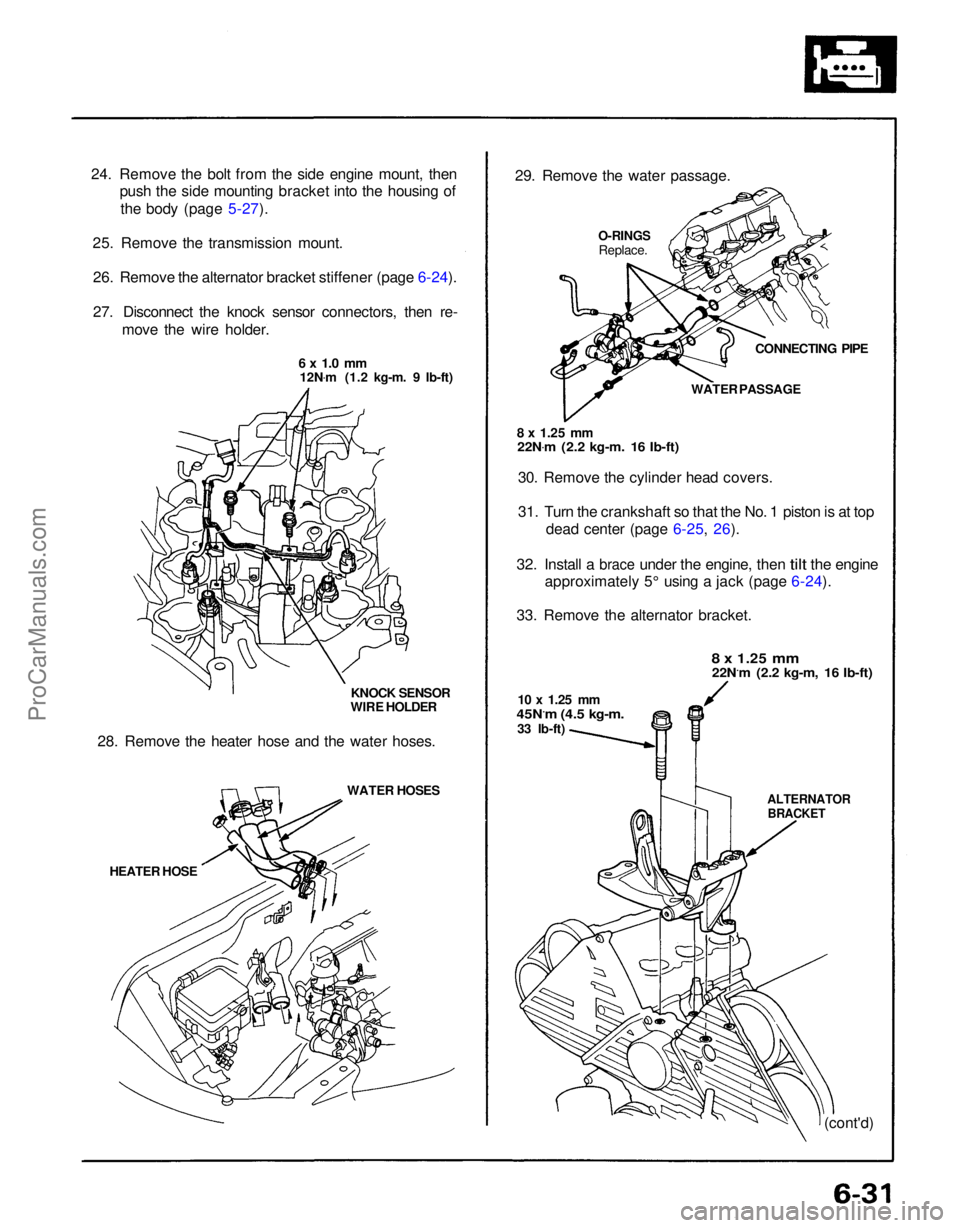

29. Remove the water passage.

O-RINGS
Replace.
CONNECTING PIPE
WATER PASSAGE

8 x
1.25
mm
22N .
m (2.2 kg-m. 16 Ib-ft)

30. Remove the cylinder head covers.
31. Turn the crankshaft so that the No. 1 piston is at top dead center (page 6-25, 26).

32.
Install
a
brace
under
the
engine, then
tilt
the
engine approximately 5° using a jack (page 6-24).
33. Remove the alternator bracket.
8 x
1.25
mm

22N.m (2.2 kg-m, 16 Ib-ft)

10 x
1.25
mm

45N.m (4.5 kg-m.

33 Ib-ft)

ALTERNATOR
BRACKET

24. Remove the bolt from the side engine mount, then
push the side mounting bracket into the housing of
the body (page 5-27).
25. Remove the transmission mount. 26. Remove the alternator bracket stiffener (page 6-24).
27. Disconnect the knock sensor connectors, then re- move the wire holder.

6 x 1.0 mm
12N .
m (1.2 kg-m. 9 Ib-ft)
KNOCK SENSOR
WIRE HOLDER
28. Remove the heater hose and the water hoses.
WATER HOSES
HEATER HOSEProCarManuals.com

Cylinder Head

Removal (cont'd)

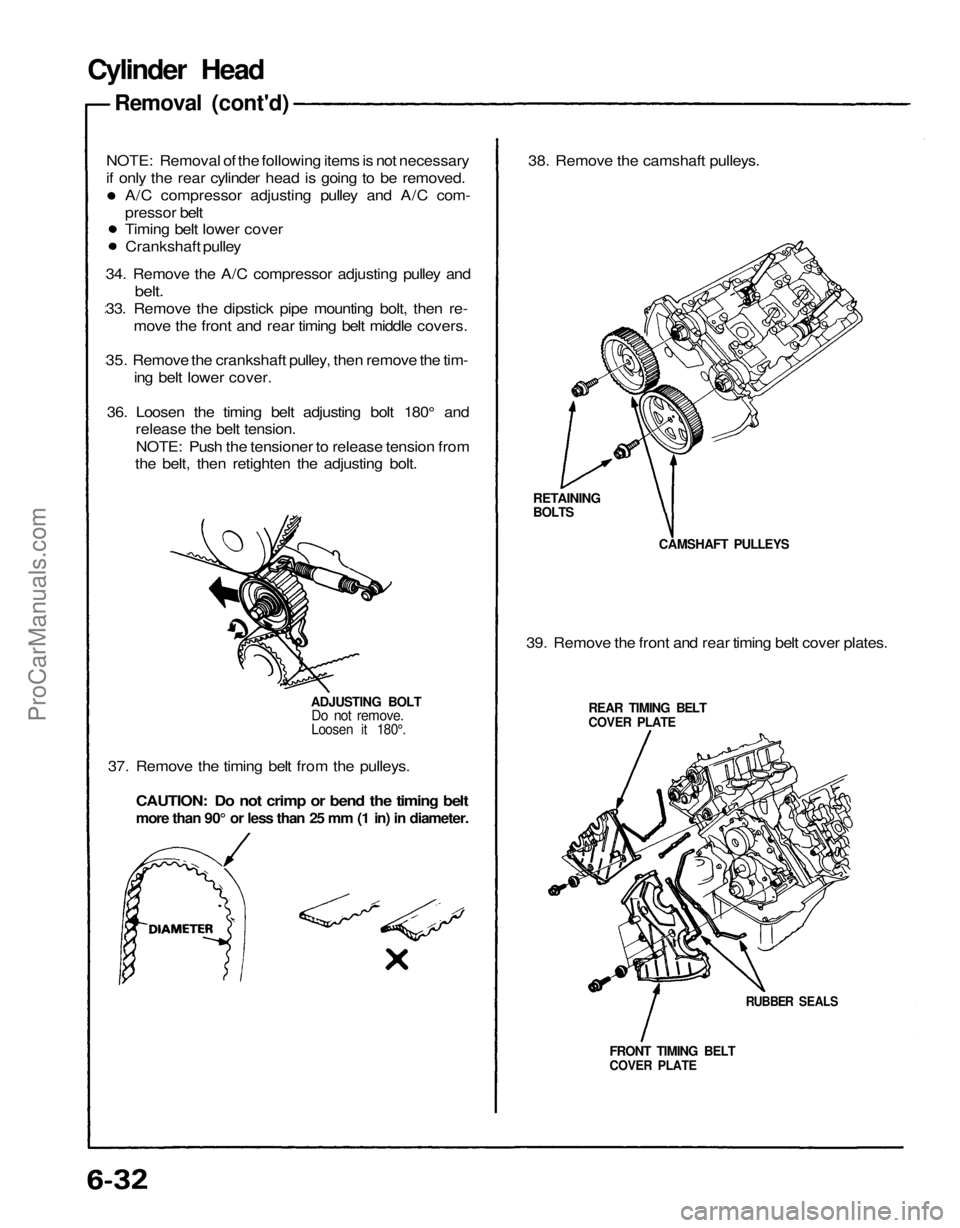

34. Remove the A/C compressor adjusting pulley and

belt.

33. Remove the dipstick pipe mounting bolt, then re-

move the front and rear timing belt middle covers.

35. Remove the crankshaft pulley, then remove the tim-

ing belt lower cover.

36. Loosen the timing belt adjusting bolt 180° and

release the belt tension.

NOTE: Push the tensioner to release tension from

the belt, then retighten the adjusting bolt.

ADJUSTING BOLT

Do not remove.

Loosen it 180°.

37. Remove the timing belt from the pulleys.

CAUTION: Do not crimp or bend the timing belt

more than 90° or less than 25 mm (1 in) in diameter.

FRONT TIMING BELT

COVER PLATE
RUBBER SEALS
39. Remove the front and rear timing belt cover plates.

REAR TIMING BELT

COVER PLATE
RETAINING

BOLTS

CAMSHAFT PULLEYS
38. Remove the camshaft pulleys.

A/C compressor adjusting pulley and A/C com-

pressor belt

Timing belt lower cover

Crankshaft pulley
NOTE: Removal of the following items is not necessary

if only the rear cylinder head is going to be removed.ProCarManuals.com

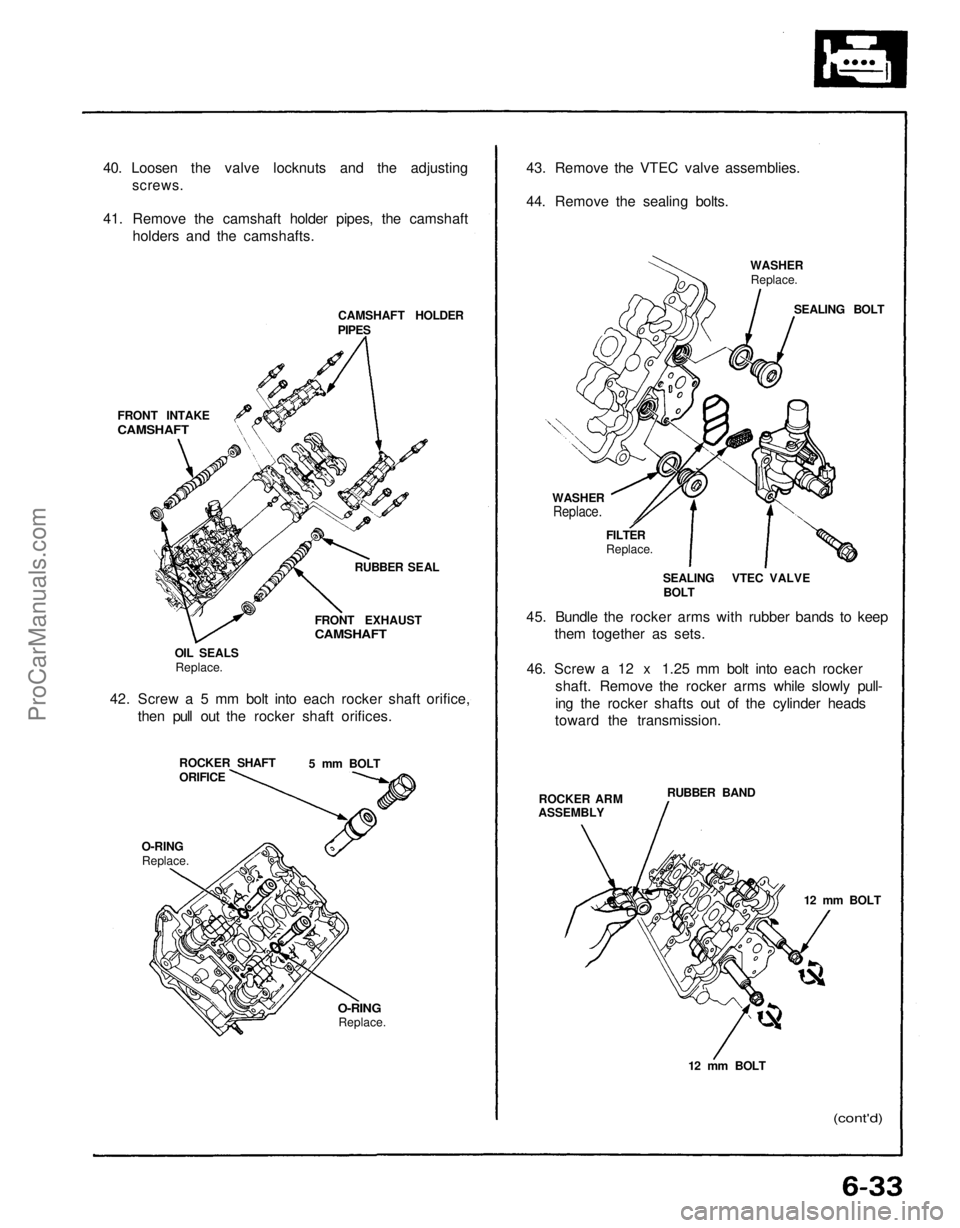

40. Loosen the valve locknuts and the adjusting

screws.

41. Remove the camshaft holder pipes, the camshaft

holders and the camshafts.

CAMSHAFT HOLDER

PIPES

FRONT INTAKE

CAMSHAFT

RUBBER SEAL

FRONT EXHAUST

CAMSHAFT

OIL SEALS

Replace.

42. Screw a 5 mm bolt into each rocker shaft orifice,

then pull out the rocker shaft orifices.

ROCKER SHAFT

ORIFICE

O-RING

Replace.
5 mm BOLT

O-RING

Replace.

(cont'd)
12 mm BOLT
12 mm BOLT
ROCKER ARM

ASSEMBLY
RUBBER BAND
SEALING VTEC VALVE

BOLT

45. Bundle the rocker arms with rubber bands to keep

them together as sets.

46. Screw a 12 x 1.25 mm bolt into each rocker

shaft. Remove the rocker arms while slowly pull-

ing the rocker shafts out of the cylinder heads

toward the transmission.
FILTER

Replace.
WASHER

Replace.
43. Remove the VTEC valve assemblies.

44. Remove the sealing bolts.

WASHER

Replace.

SEALING BOLTProCarManuals.com

Cylinder Heads

Removal (cont'd)

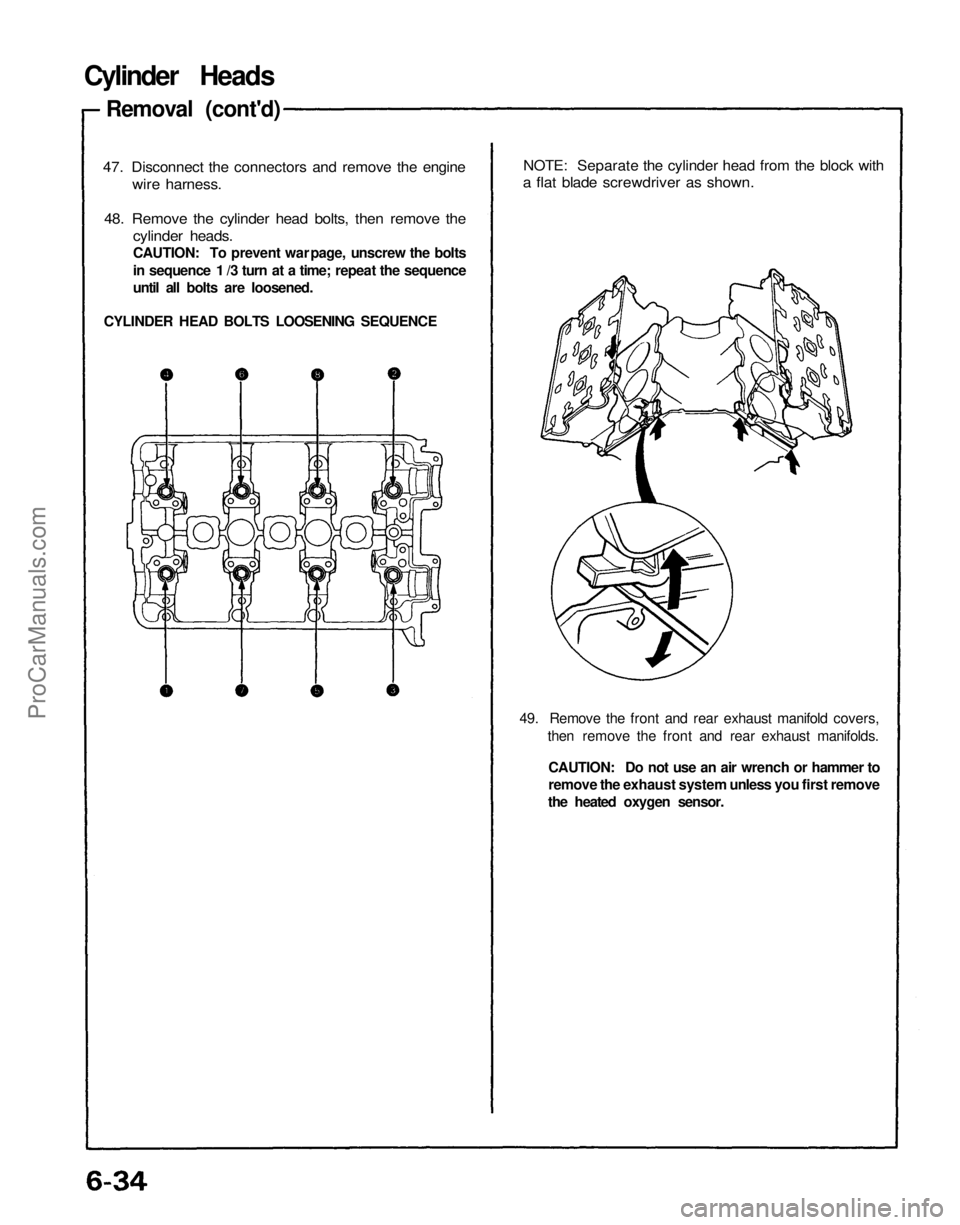

47. Disconnect the connectors and remove the engine

wire harness.

48. Remove the cylinder head bolts, then remove the

cylinder heads.

CAUTION: To prevent war page, unscrew the bolts

in sequence 1 /3 turn at a time; repeat the sequence

until all bolts are loosened.

CYLINDER HEAD BOLTS LOOSENING SEQUENCE

49. Remove the front and rear exhaust manifold covers,

then remove the front and rear exhaust manifolds.

CAUTION: Do not use an air wrench or hammer to

remove the exhaust system unless you first remove

the heated oxygen sensor.
NOTE: Separate the cylinder head from the block with

a flat blade screwdriver as shown.ProCarManuals.com

RUBBER BAND
WASHERS EXHAUST ROCKER
Replace. SHAFT INTAKE ROCKER

SHAFT

Rear Cylinder Head:

SEALING BOLTS 20 mm60N .
m (6.0 kg-m, 43 Ib-ft) INTAKE ROCKER
SHAFT
WASHERS
Replace. EXHAUST ROCKER
SHAFT
Front Cylinder Head:
SEALING BOLTS 20 mm
60N .
m (6.0 kg-m, 43 Ib-ft)
RUBBER BAND
EXHAUST ROCKER ARM ASSEMBLIES

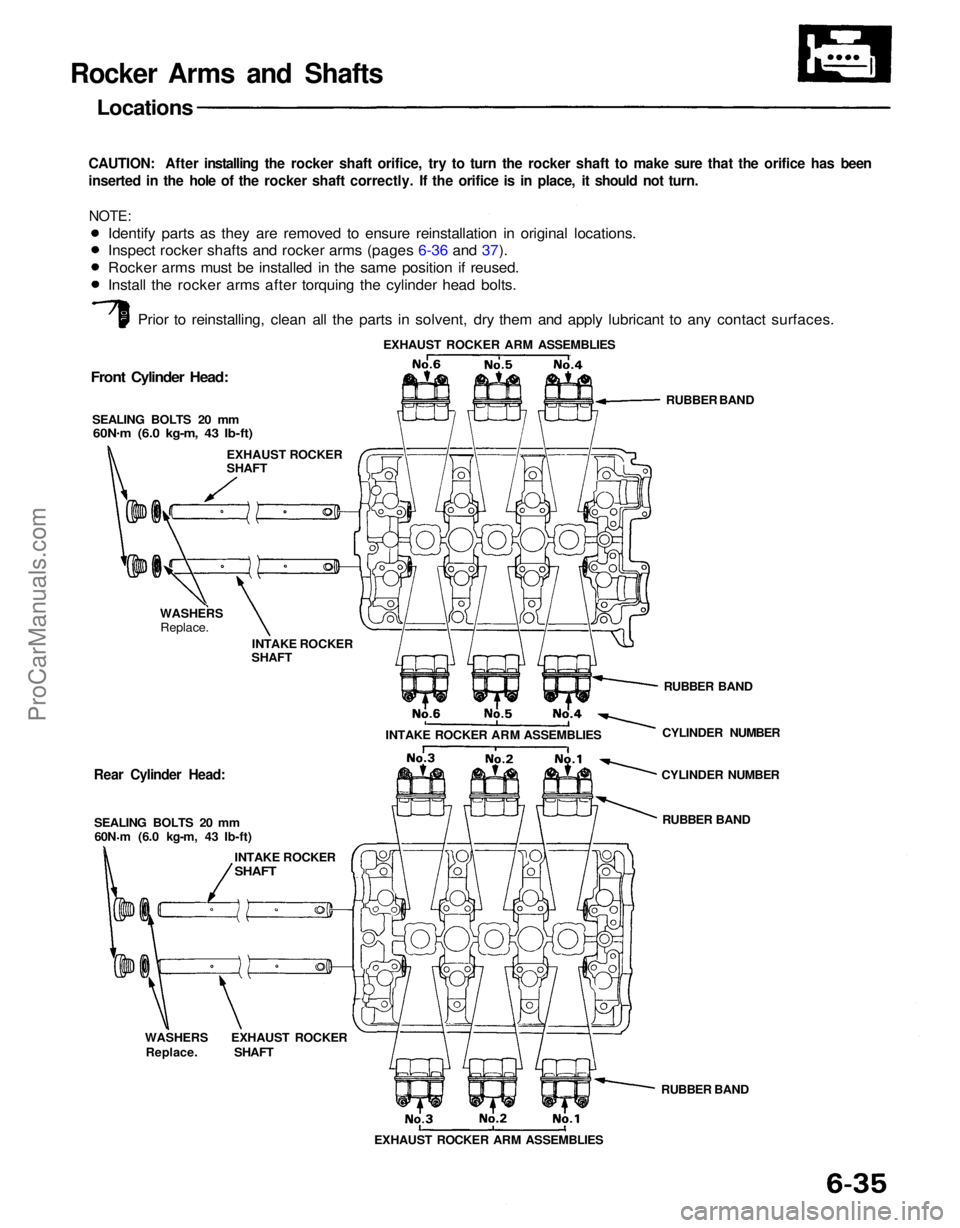

Rocker Arms and Shafts

Locations

Identify parts as they are removed to ensure reinstallation in original locations.
Inspect rocker shafts and rocker arms (pages 6-36 and 37).
Rocker arms must be installed in the same position if reused.
Install the rocker arms after torquing the cylinder head bolts. Prior to reinstalling, clean all the parts in solvent, dry them and apply lubricant to any contact surfaces.
RUBBER BAND
CYLINDER NUMBER
CYLINDER NUMBER
RUBBER BAND

NOTE:

CAUTION: After installing the rocker shaft orifice, try to turn the rocker shaft to make sure that the orifice has been

inserted in the hole of the rocker shaft correctly. If the orifice is in place, it should not turn.

EXHAUST ROCKER ARM ASSEMBLIESINTAKE ROCKER ARM ASSEMBLIESProCarManuals.com

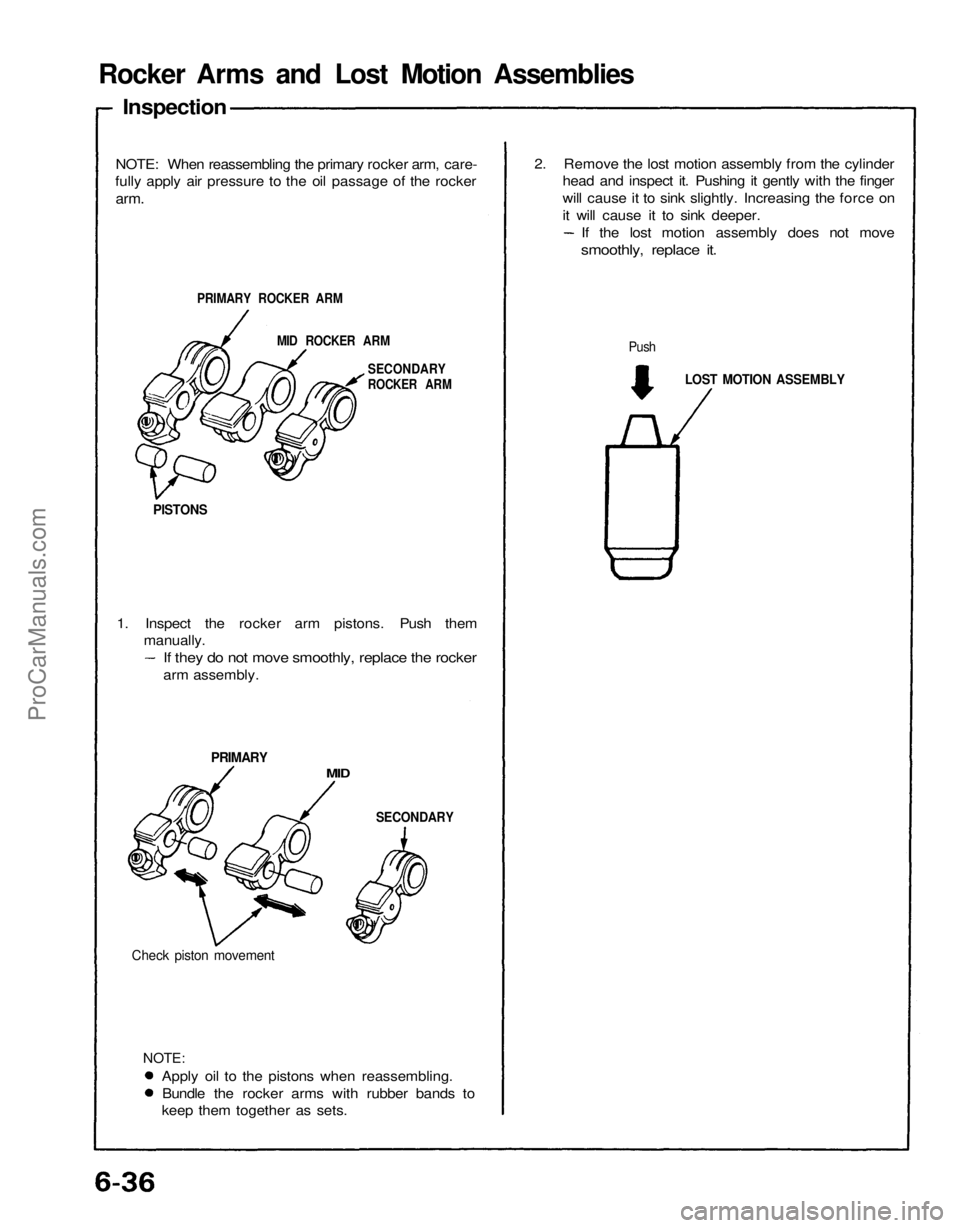

Rocker Arms and Lost Motion Assemblies

Inspection

NOTE: When reassembling the primary rocker arm, care-

fully apply air pressure to the oil passage of the rocker

arm.

PRIMARY ROCKER ARM

MID ROCKER ARM

SECONDARY

ROCKER ARM

PISTONS

1. Inspect the rocker arm pistons. Push them

manually.

PRIMARY

MID

SECONDARY

Apply oil to the pistons when reassembling.

Bundle the rocker arms with rubber bands to

keep them together as sets.
LOST MOTION ASSEMBLY
2. Remove the lost motion assembly from the cylinder

head and inspect it. Pushing it gently with the finger

will cause it to sink slightly. Increasing the force on

it will cause it to sink deeper.

Push

NOTE:
Check piston movement
If they do not move smoothly, replace the rocker

arm assembly.
If the lost motion assembly does not move

smoothly, replace it.ProCarManuals.com

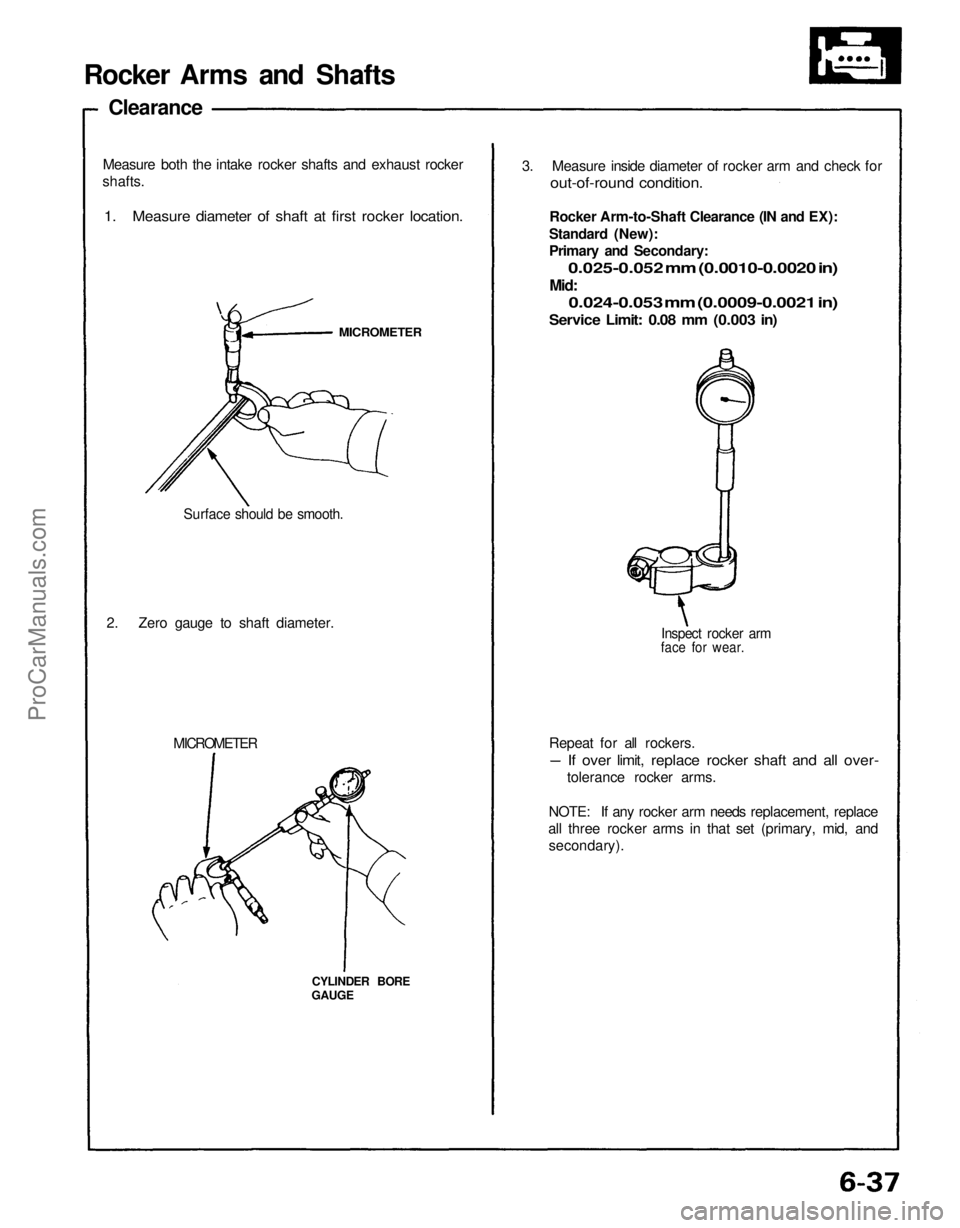

Rocker Arms and Shafts
