1991 ACURA NSX Service Repair Manual

NOTE: Torque bolts to 55 N
.
m (5.5 kg-m, 40 Ib-ft) in order of thru in
two or more steps. NOTE: Align the control
shaft spring pin with the
groove in the transmission housing.

6x 1.0 mm

12 N .
m

(1.2 kg-m. 9 Ib-ft)

Replace.
Replace.

6 x 1.0 mm

14 N .
m

(1.4
kg-m.

10 Ib-ft)
17 Bolts

10 x 1.25mm

55 N .
m

(5.5 kg-m, 40 Ib-ft)

FORK BOLT HOLE

Turn valve stem so large
chamfered hole faces
fork bolt hole.
SHIFT FORK

MAINSHAFT

COUNTERSHAFT

NOTE: Install the three shafts
Transmission
Reassembly (cont'd)

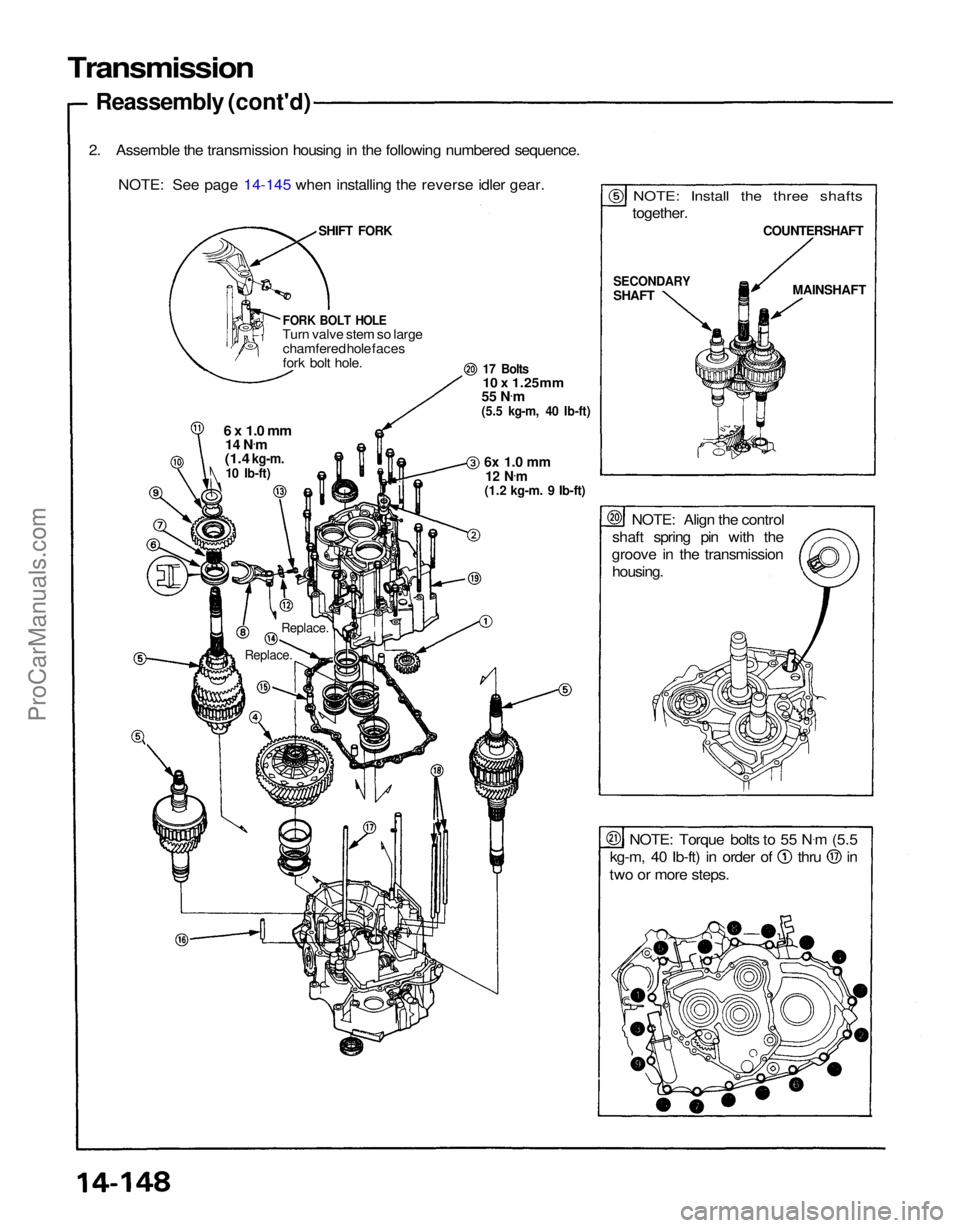

2. Assemble the transmission housing in the following numbered sequence.
NOTE: See page 14-145 when installing the reverse idler gear.

SECONDARY

SHAFT
together.ProCarManuals.com

(cont'd)

MAINSHAFT HOLDER
07924–PJ4010A
1ST GEAR

COLLAR
Replace.

PARKING BRAKE STOPPER
7. Install the special tool as shown, and shift to
position. LOCK BOLT
6 x 1.0 mm 14 N·m
(1.4 kg-m, 10 Ib-ft) ROLLER PIN
PARKING PAWL

PARKING

SHIFT ARM PARKING PAWL SHAFT 4. Set the parking brake lever in the position, then
verify that the parking brake pawl engages theparking gear.
5. If the pawl does not engage fully, check the parking brake pawl stopper clearance as described on page14-146.
6. Tighten the lock bolt and bend over the lock tab.
CAUTION: Before installing the 1st-
hold clutch O-rings, install the 1st gear collar and thrust washer.

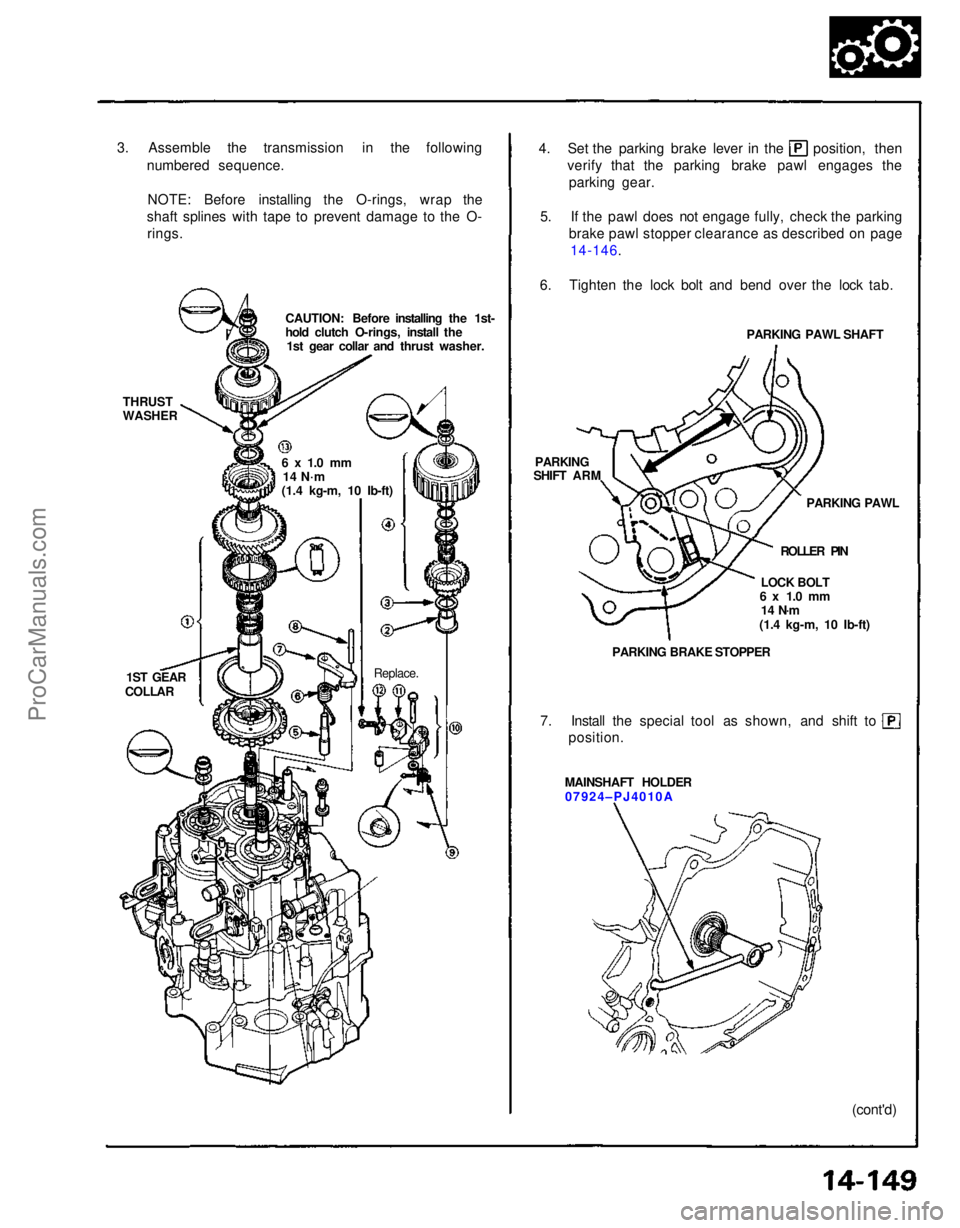

3. Assemble the transmission in the following
numbered sequence.
NOTE: Before installing the O-rings, wrap the
shaft splines with tape to prevent damage to the O- rings.

THRUST
WASHER
6 x 1.0 mm14 N·m
(1.4 kg-m, 10 Ib-ft)ProCarManuals.com

Transmission

Reassembly (cont'd)

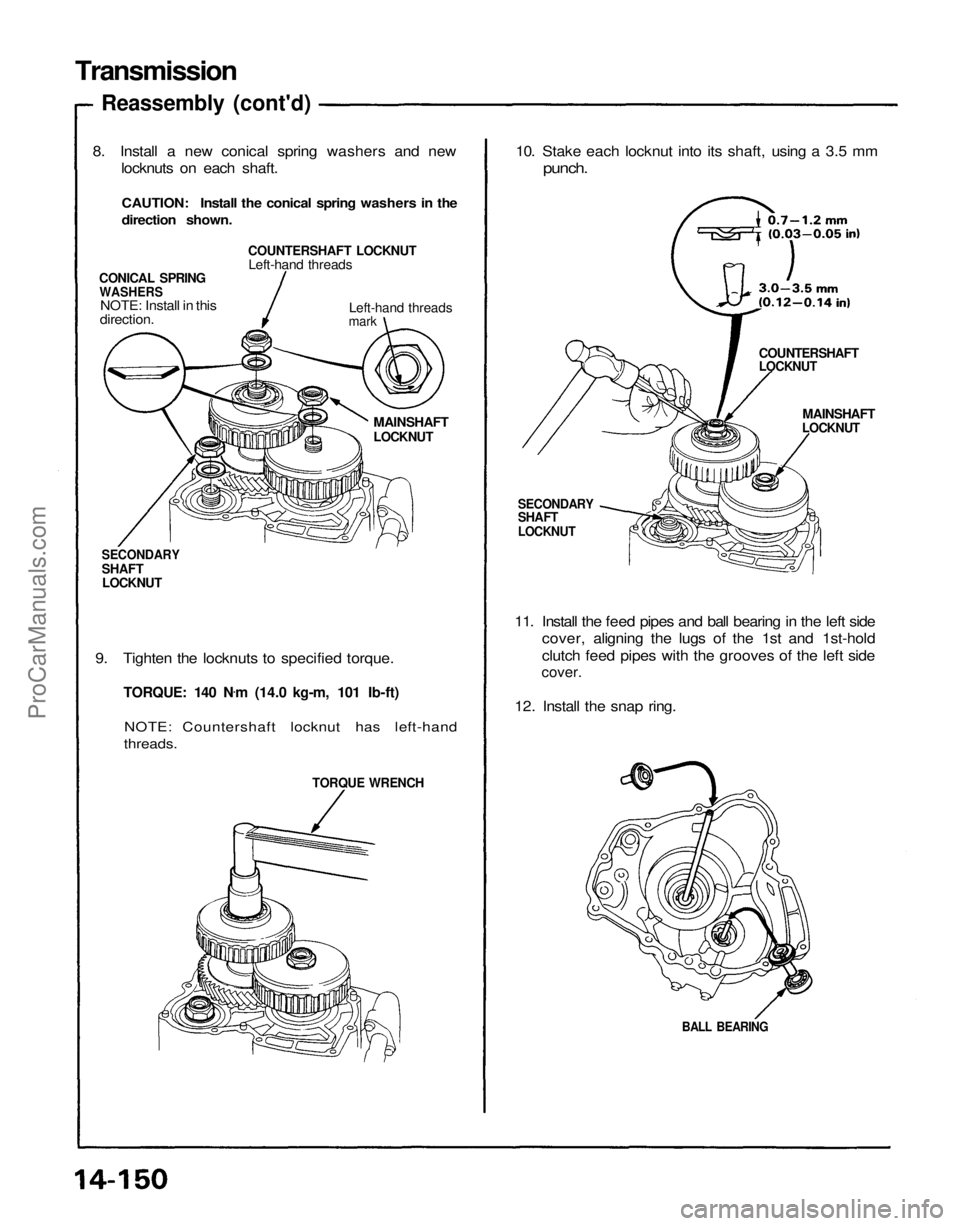

8. Install a new conical spring washers and new locknuts on each shaft.
CAUTION: Install the conical spring washers in the
direction shown.
COUNTERSHAFT LOCKNUT
Left-hand threads

CONICAL SPRING

WASHERS
NOTE: Install in this

direction.
Left-hand threads

MAINSHAFT

LOCKNUT

SECONDARY

SHAFT
LOCKNUT

9. Tighten the locknuts to specified torque.
TORQUE: 140 N .
m (14.0 kg-m, 101 Ib-ft)

NOTE: Countershaft locknut has left-hand

threads.

TORQUE WRENCH
10. Stake each locknut into its shaft, using a 3.5 mm

punch.

COUNTERSHAFT

LOCKNUT
MAINSHAFT

LOCKNUT

SECONDARY

SHAFT

LOCKNUT

11. Install the feed pipes and ball bearing in the left side cover, aligning the lugs of the 1st and 1st-hold
clutch feed pipes with the grooves of the left side

cover.

12. Install the snap ring.

BALL BEARING

markProCarManuals.com

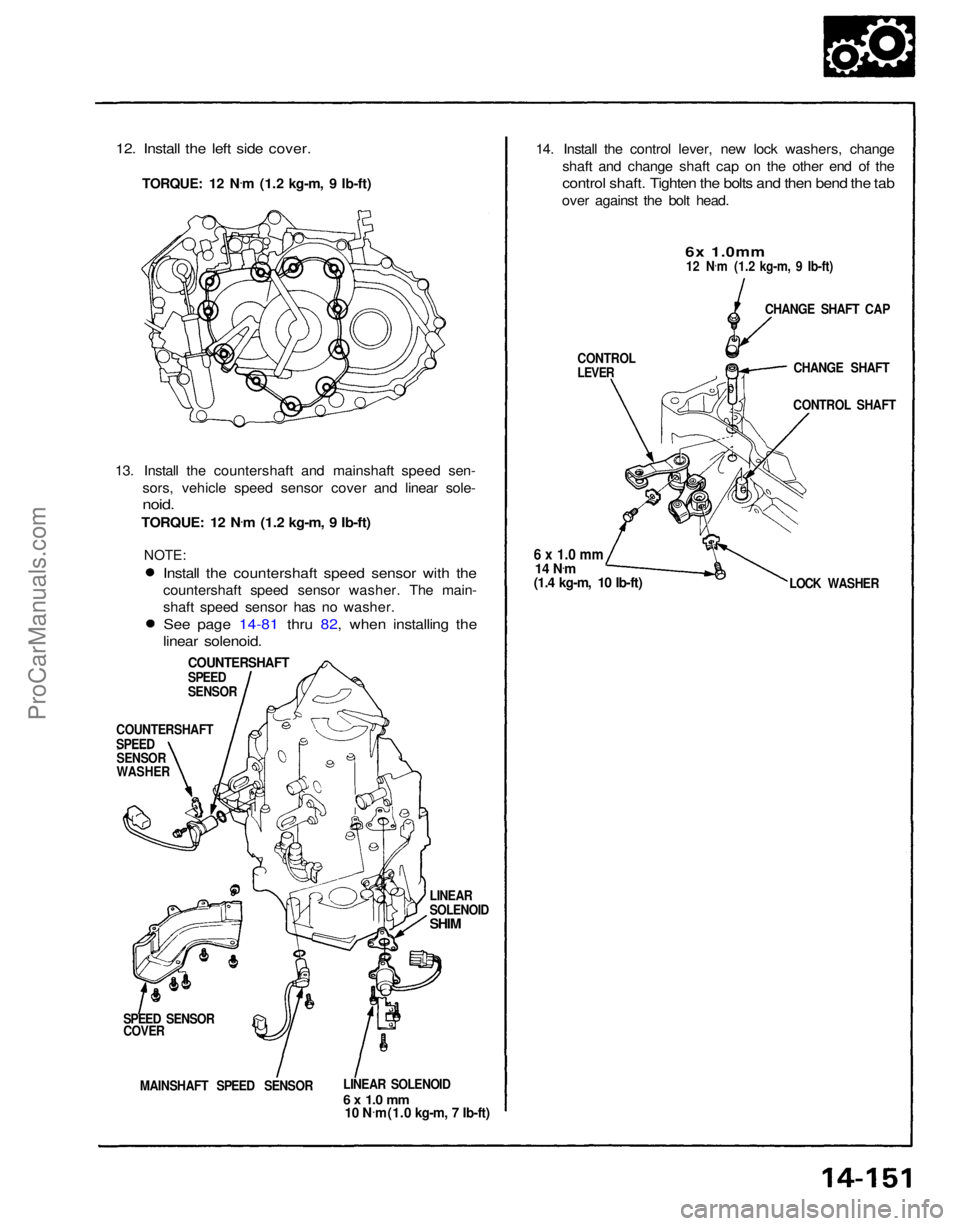

LINEAR SOLENOID

6 x 1.0 mm

10 N .
m(1.0 kg-m, 7 Ib-ft)

MAINSHAFT SPEED SENSOR
SPEED SENSOR

COVER
LINEAR
SOLENOID

SHIM

COUNTERSHAFT
SPEED
LOCK WASHER
6 x 1.0 mm

(1.4 kg-m, 10 Ib-ft)

SPEED
SENSOR
COUNTERSHAFT

Install the countershaft speed sensor with the

countershaft speed sensor washer. The main-
shaft speed sensor has no washer.

See page 14-81 thru 82, when installing the

linear solenoid.

NOTE:

13. Install the countershaft and mainshaft speed sen-
sors, vehicle speed sensor cover and linear sole-

noid.

TORQUE: 12 N .
m (1.2 kg-m, 9 Ib-ft)
CONTROL SHAFT
CHANGE SHAFT
CHANGE SHAFT CAP

6x
1.0mm

12 N
.
m (1.2 kg-m, 9 Ib-ft)

CONTROL

LEVER

14. Install the control lever, new lock washers, change
shaft and change shaft cap on the other end of the

control shaft. Tighten the bolts and then bend the tab

over against the bolt head.

12. Install the left side cover.

TORQUE: 12 N .
m (1.2 kg-m, 9 Ib-ft)

SENSOR
WASHER
14 N
.
mProCarManuals.com

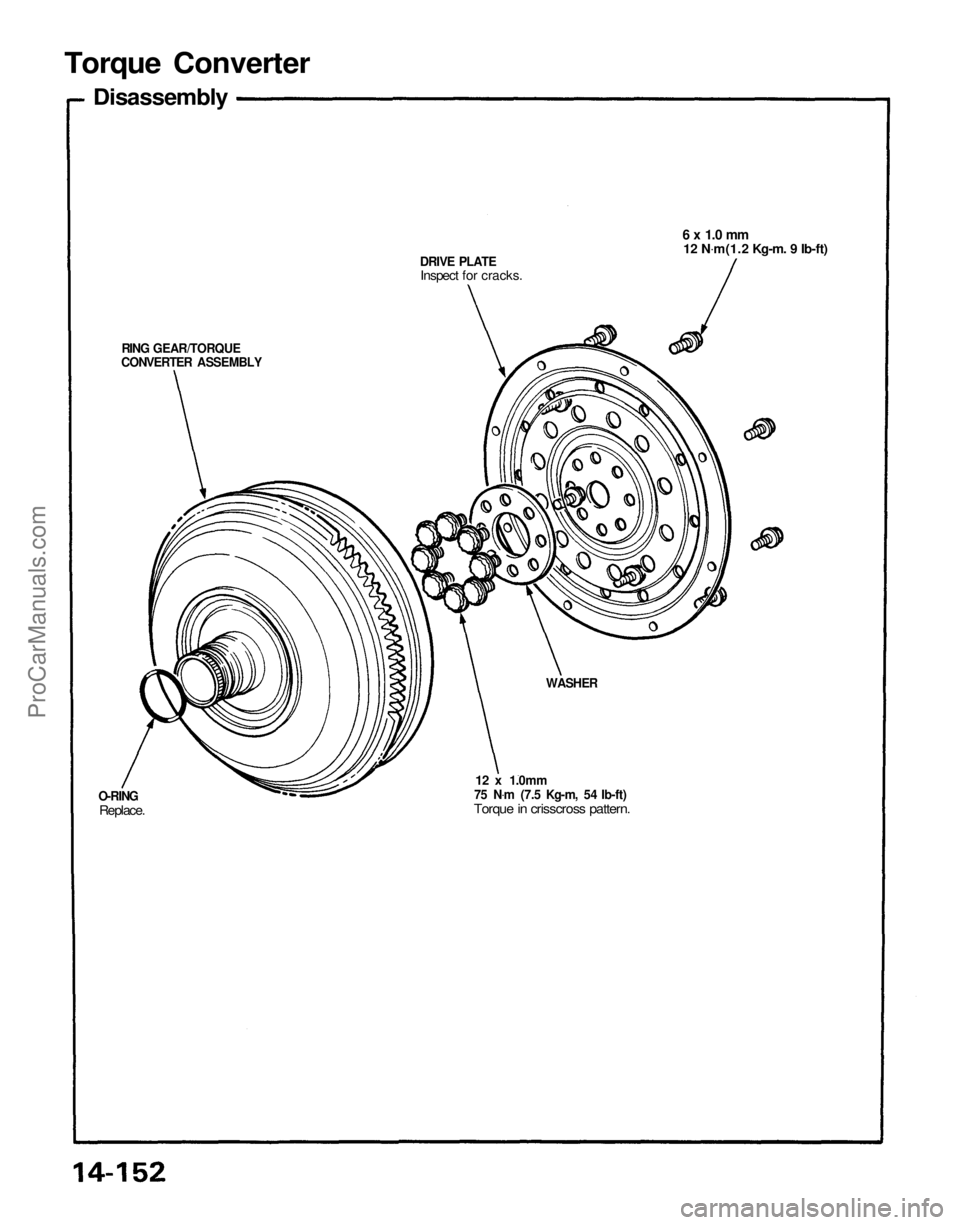

Torque Converter

Disassembly

6 x 1.0 mm
12 N .
m(1.2 Kg-m. 9 Ib-ft)

DRIVE PLATE

Inspect for cracks.

RING GEAR/TORQUE
CONVERTER ASSEMBLY
WASHER

12 x
1.0mm
75 N .
m (7.5 Kg-m, 54 Ib-ft)

Torque in crisscross pattern.

O-RING

Replace.ProCarManuals.com

Transmission

Installation

1. Place the transmission on the transmission jack, and raise to the engine level.
2. Check that the 14 mm and 10 mm dowel pins are installed in the torque converter housing.
3. Install the 3 transmission housing mounting bolts.
4. Install the 3 rear transmission mounting bolts.
5. Loosen the front engine mounting bolt and install the 2 front engine mounting bolts to transmission side, then
tighten the 3 bolts specified torque.

TRANSMISSION HOUSINGMOUNTING BOLT
12 x
1.25
mm

75 N .
m (7.5 kg-m, 54 Ib-ft)
DOWEL PIN

14 x 20 mm

FRONT ENGINE
MOUNTING BOLT
10 x
1.25
mm

60 N .
m

(6.0 kg-m, 43 Ib-ft)
TRANSMISSION HOUSING MOUNTING BOLT
12x1.25 mm

75 N .
m (7.5 kg-m, 54 Ib-ft)
O-RING
Replace.
DOWEL PIN
10 x 20 mm

TORQUE CONVERTER REAR TRANSMISSION
MOUNTING BOLT

10 x
1.25
mm
60 N·m

(6.0 kg-m, 43 Ib-ft)
TRANSMISSION JACK

7. Attach the torque converter to the drive plate with 8 bolts to 12 N.m (1.2 kg-m, 9 Ib-ft). Rotate the crankshaft as necessary to tighten bolts to 1/2 of specified torque, then final torque, in a crisscross pattern. Check for free rotation after tighteningthe last bolt.
8. Install the torque converter cover. 9. Install the shift cable, shift cable holder and shift cable cover.
10. Install the upper control arm mounting bolt.

6x 1.0 mm

12 N
.
m

(1.2 kg-m, 9 Ib-ft)

6 x 1.0 mm

12 N
.
m

(1.2 kg-m, 9 Ib-ft)
CONTROL LEVER
UPPER CONTROL ARM MOUNTING BOLT
10 x
1.25
mm

60 N .
m (6.0 kg-m, 43 Ib-ft)

6 x 1.0 mm

12 N
.
m

(1.2 kg-m, 9 Ib-ft)

(cont'd)

6 x 1.0 mm

8 N
.
m (0.8 kg-m, 6 Ib-ft)

Install in this

direction.
LOCK PIN
CONTROL LEVER

PIN
Corrosion resistant bolt/nut

Corrosion resistant bolt/nut

6. Remove the transmission jack.ProCarManuals.com

Transmission
Installation (cont'd)

11. Install a new set ring on the end of the left driveshaft and intermediate shaft.

12. Install the left driveshaft.
13. Install the lower control arm to the side beam. CAUTION: Line up the reference marks on the adjusting boh, adjusting cam and lower control arm.

14. Install the damper fork bolt.
15. Install the toe control arm to the side beam. CAUTION: Make sure that the reference marks on the toe control arm are aligned.
16. Install the wheel sensor wire clamp and parking brake cable holder.

SELF-LOCKING NUTReplace.
12 x
1.25
mm

95 N .
m (9.5 kg-m, 69 Ib-ft) DAMPER
FORK BOLT
SELF-LOCKING NUT
Replace.

12 x 1.25mm

85 N .
m (8.5 kg-m, 62 Ib-ft)

6x1.0
mm
10 N .
m (1.0 kg-m, 7 Ib-ft)

FLANGE BOLT
12 x
1.25
mm

95 N .
m (9.5 kg-m, 69 Ib-ft)

TOE CONTROL ARM SET RING

6x1.0
mm

Replace. SELF-LOCKING NUT
ADJUSTING NUT
Replace.
14 x 1.5 mm

125 N .
m (12.5 kg-m. 90 Ib-ft)

ADJUSTING CAM

ADJUSTING BOLT

17. Install the intermediate shaft and tighten the intermediate shaft mounting bolts to the intermediate shaft support base.
18. Install the intermediate shaft heat cover.
6x1.0
mm
10 N·m

(1.0 kg-m, 7 Ib-ft)
INTERMEDIATE SHAFT
HEAT COVER

8x1.25 mm
22 N·m
(2.2 kg-m, 16 Ib-ft)
INTERMEDIATE SHAFT
SET RING

Corrosion resistant bolt/nut

10 N .
m (1.0 kg-m, 7 Ib-ft)

14 x 1.5 mm
125 N .
m

(12.5 kg-m, 90 Ib-ft)ProCarManuals.com

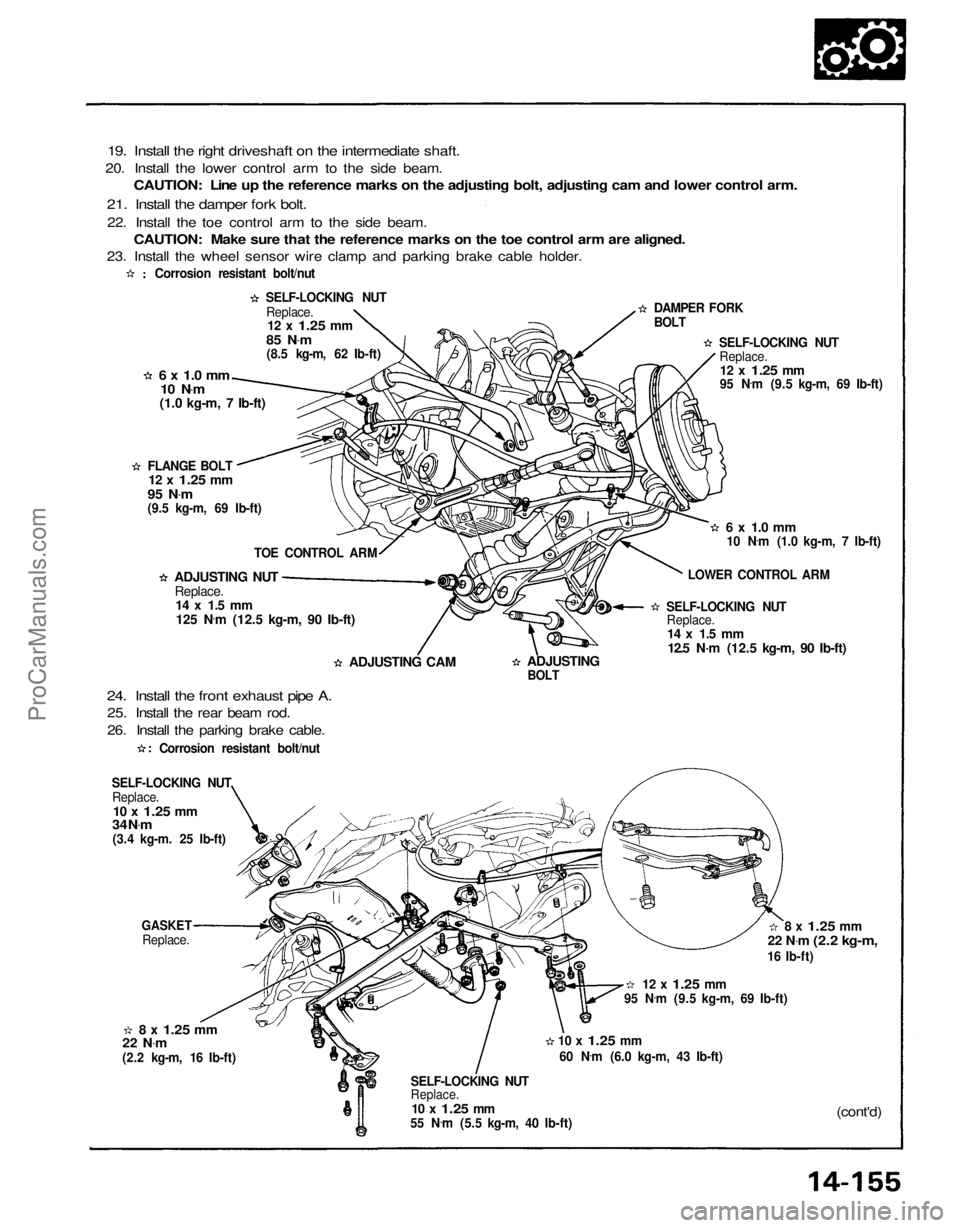

19. Install the right driveshaft on the intermediate shaft.

20. Install the lower control arm to the side beam. CAUTION: Line up the reference marks on the adjusting bolt, adjusting cam and lower control arm.

21. Install the damper fork bolt.
22. Install the toe control arm to the side beam. CAUTION: Make sure that the reference marks on the toe control arm are aligned.
23. Install the wheel sensor wire clamp and parking brake cable holder.
Corrosion resistant bolt/nut
SELF-LOCKING NUT DAMPER FORK
BOLT
SELF-LOCKING NUTReplace.
12 x
1.25
mm

95 N .
m (9.5 kg-m, 69 Ib-ft)

6 x 1.0 mm

FLANGE BOLT

(cont'd)

SELF-LOCKING NUT

Replace.

10 x
1.25
mm

55 N .
m (5.5 kg-m, 40 Ib-ft)
10 x
1.25
mm

60 N .
m (6.0 kg-m, 43 Ib-ft) 95 N
.
m (9.5 kg-m, 69 Ib-ft)

12 x
1.25
mm
22 N
.
m
(2.2 kg-m,

16 Ib-ft)
8 x
1.25
mm

22 N .
m

(2.2 kg-m, 16 Ib-ft)
8 x
1.25
mm
GASKET

Replace.
SELF-LOCKING NUT
Replace.
10 x
1.25
mm

34 N .
m

(3.4 kg-m. 25 Ib-ft)

24. Install the front exhaust pipe A.

25. Install the rear beam rod.
26. Install the parking brake cable.
ADJUSTING CAM

125 N
.
m (12.5 kg-m, 90 Ib-ft)

ADJUSTING NUT

Replace.
14 x 1.5 mm
TOE CONTROL ARM

95 N
.
m

(9.5 kg-m, 69 Ib-ft) Replace.

12 x
1.25
mm

85 N .
m

(8.5 kg-m, 62 Ib-ft)

10 N .
m

(1.0 kg-m, 7 Ib-ft)

12 x
1.25
mm

Corrosion resistant bolt/nut
ADJUSTING

BOLT
SELF-LOCKING NUT
Replace.

14 x 1.5 mm

12.5 N·m (12.5 kg-m, 90 Ib-ft)
LOWER CONTROL ARM

6 x 1.0 mm

10 N .
m (1.0 kg-m, 7 Ib-ft)ProCarManuals.com
