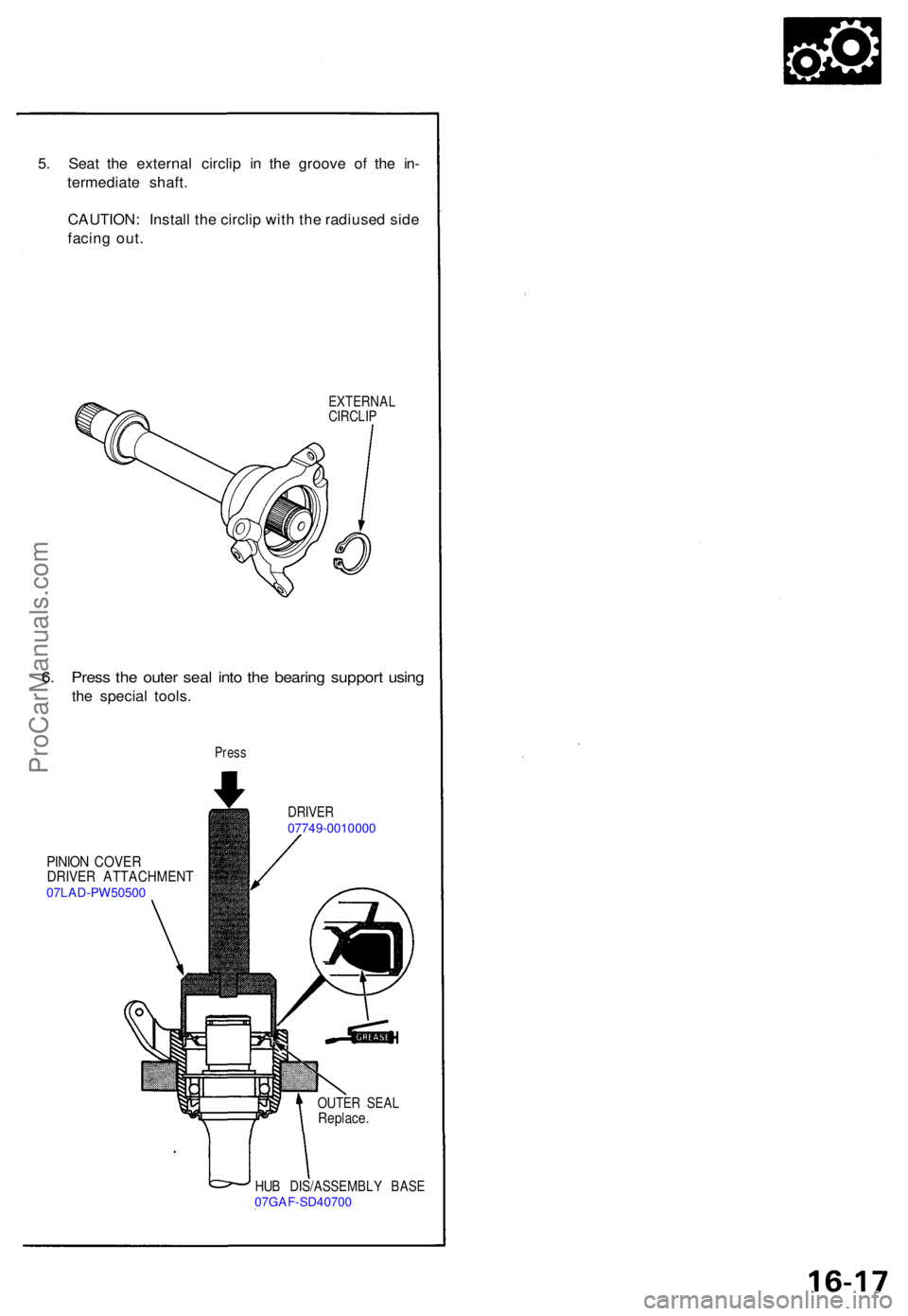

5. Sea t th e externa l circli p i n th e groov e o f th e in -
termediat e shaft .
CAUTION : Instal l th e circli p wit h th e radiuse d sid e
facin g out .
EXTERNA L
CIRCLI P
6. Pres s th e oute r sea l int o th e bearin g suppor t usin g
the specia l tools .
Press
DRIVE R07749-0010000
PINION COVE RDRIVER ATTACHMEN T07LAD-PW50500
OUTE R SEA LReplace .
HUB DIS/ASSEMBL Y BAS E07GAF-SD40700
ProCarManuals.com

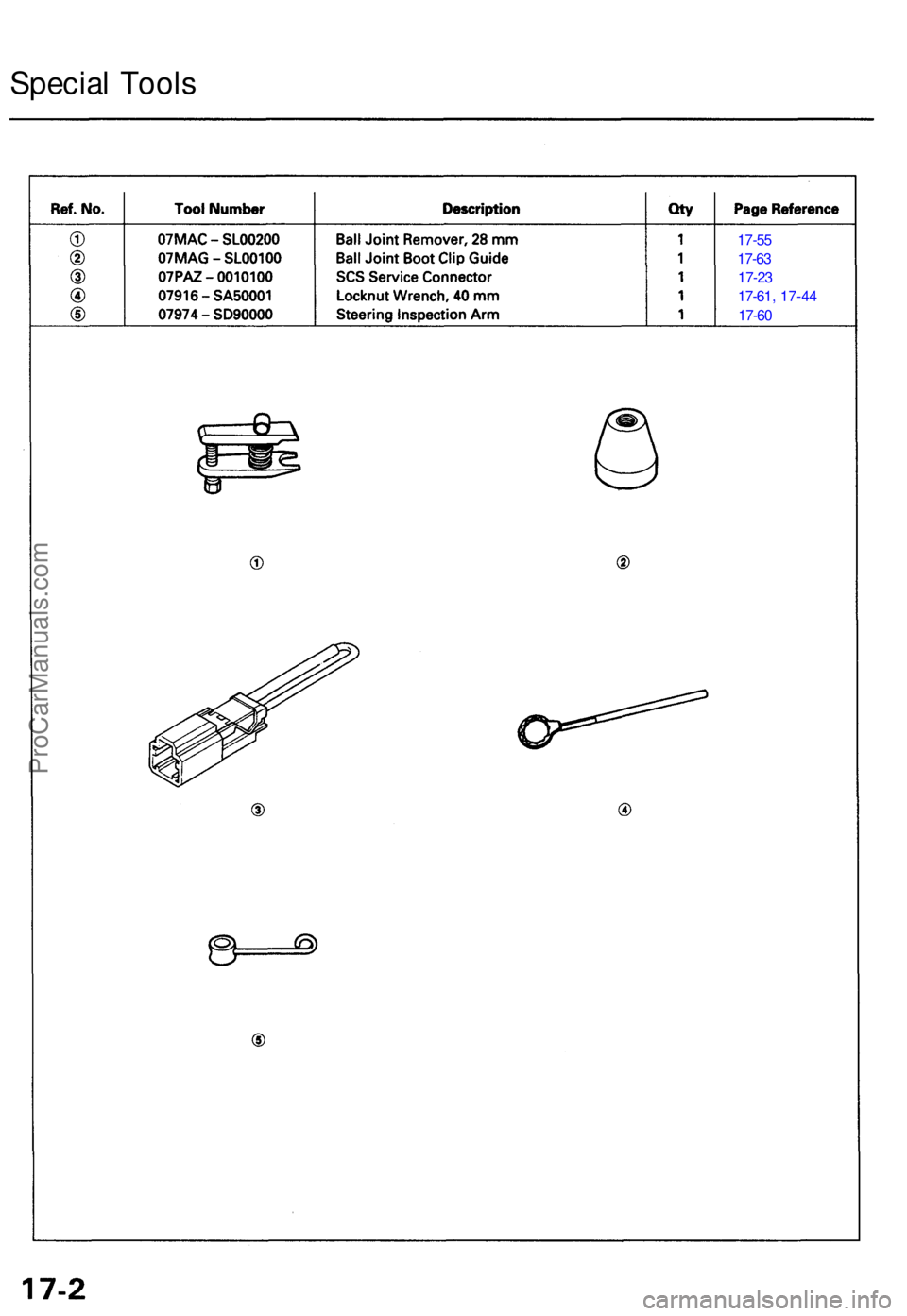

Special Tool s
17-55
17-6 3
17-2 3
17-6 1, 17-44
17-6 0
ProCarManuals.com

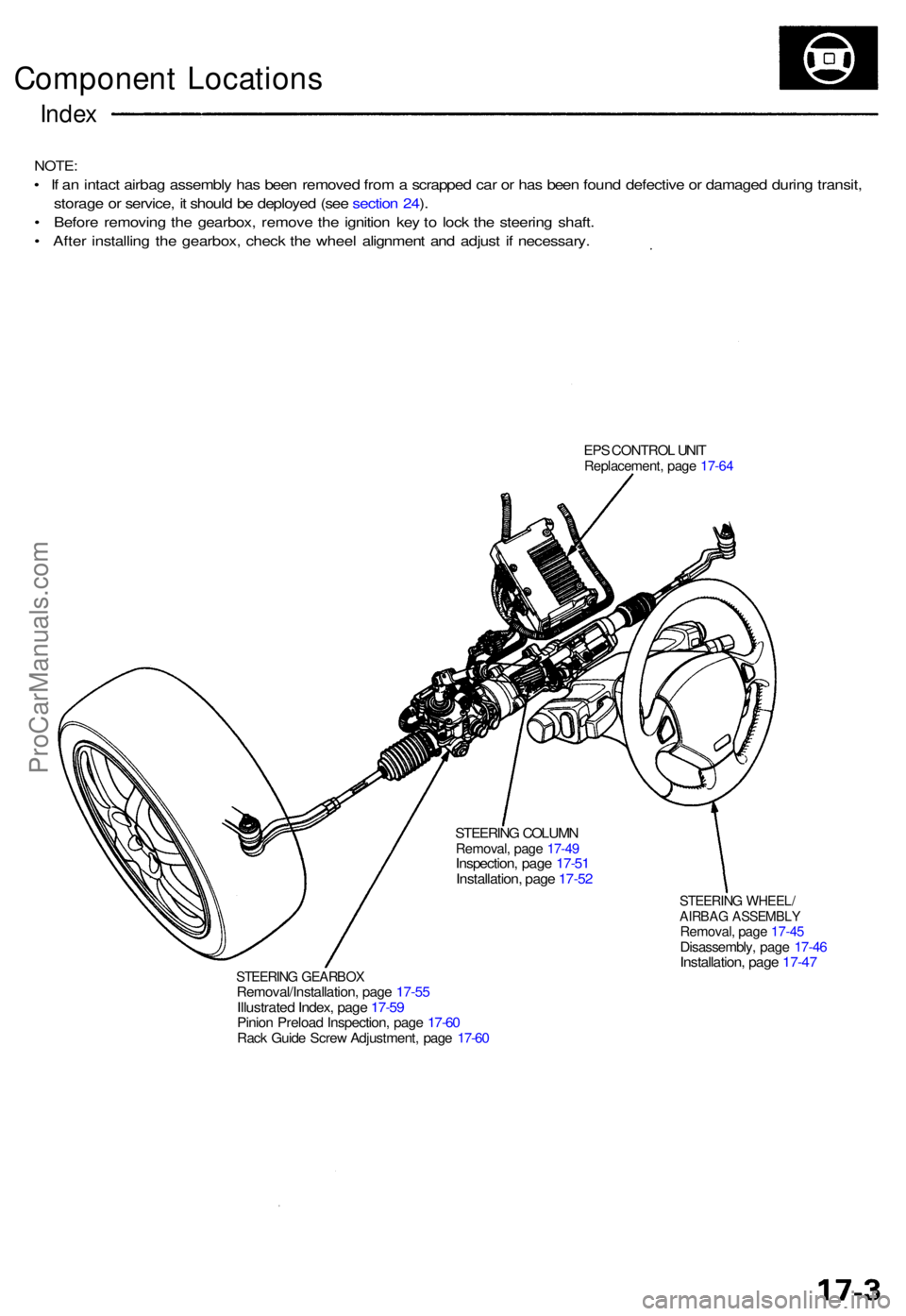

Component Location s
Index
NOTE :
• I f a n intac t airba g assembl y ha s bee n remove d fro m a scrappe d ca r o r ha s bee n foun d defectiv e o r damage d durin g transit ,
storag e o r service , i t shoul d b e deploye d (se e sectio n 24 ).
• Befor e removin g th e gearbox , remov e th e ignitio n ke y t o loc k th e steerin g shaft .
• Afte r installin g th e gearbox , chec k th e whee l alignmen t an d adjus t i f necessary .
EPS CONTRO L UNI TReplacement , pag e 17-6 4
STEERIN G GEARBO XRemoval/Installation , pag e 17-5 5Illustrate d Index , pag e 17-5 9Pinio n Preloa d Inspection , pag e 17-6 0Rack Guid e Scre w Adjustment , pag e 17-6 0
STEERIN G WHEEL /AIRBAG ASSEMBL YRemoval, pag e 17-4 5Disassembly , pag e 17-4 6Installation , pag e 17-4 7
STEERIN G COLUM NRemoval , pag e 17-4 9Inspection , pag e 17-5 1Installation , pag e 17-5 2
ProCarManuals.com

System Description

Steering Column

The NSX/NSX-T has a till/telescopic steering column. The tilt/telescopic mechanism makes it possible to adjust the steer-

ing wheel in fore and aft, and up and down directions.

Tilt Mechanism

In the upper portion of the steering column is a joint on the steering shaft. This joint allows the steering wheel to be

adjusted
up or
down.
When
the
tilt
lever
is
operated,
the
lock
gears
are
detached from
the
column gear
to
release
the
lock.

The column moves upward or downward on two pivot bolts. When the tilt lever is returned to a fixed position after select-

ing the steering wheel height, the lock gear is engaged with the column gear to secure the column.

TILT LEVER

PIVOT

BOLT
COLUMN

GEAR

TILT LEVER

LOCK GEAR
JOINT

PIVOT

BOLTProCarManuals.com

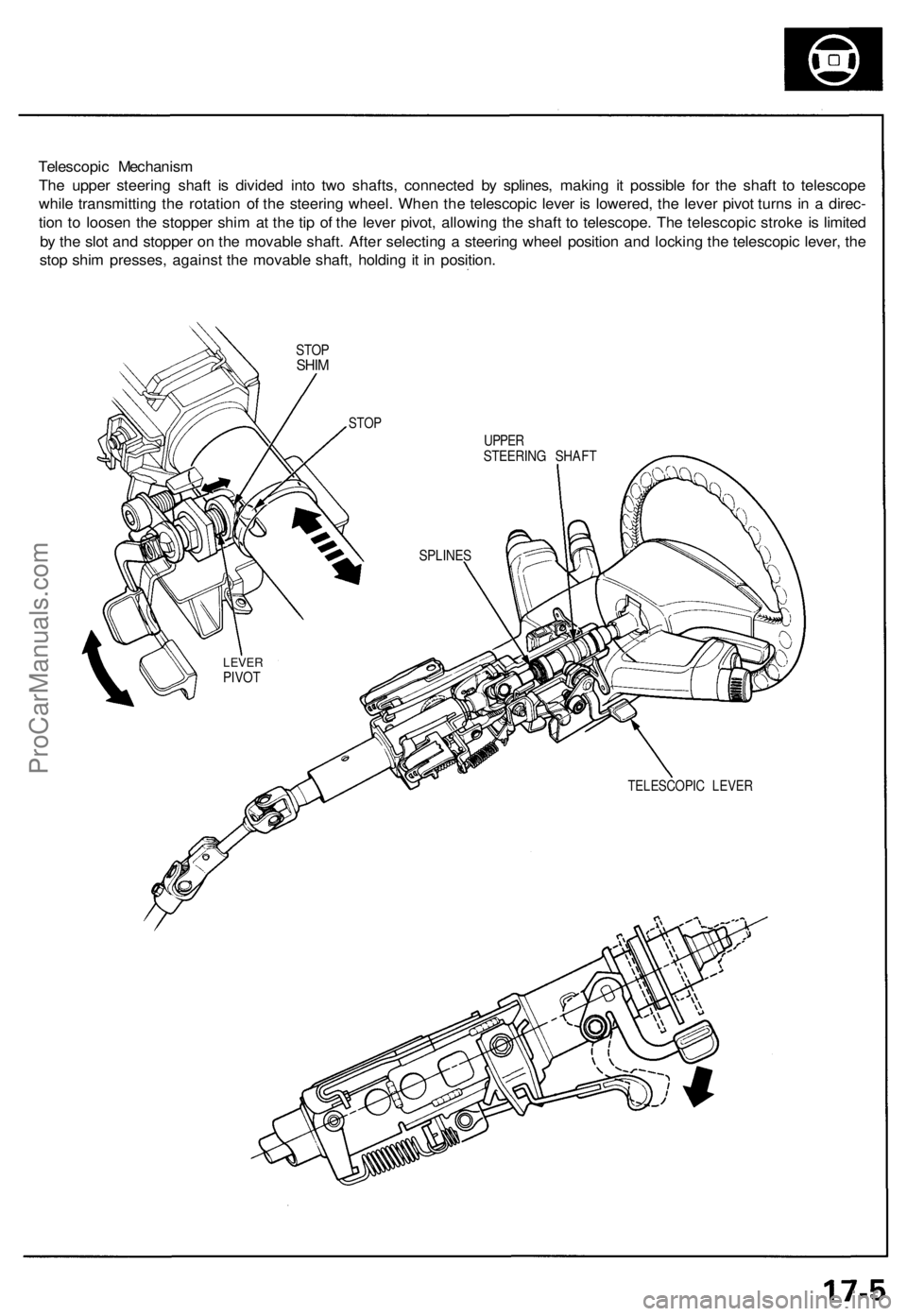

Telescopic Mechanism

The upper steering shaft is divided into two shafts, connected by splines, making it possible for the shaft to telescope

while transmitting the rotation of the steering wheel. When the telescopic lever is lowered, the lever pivot turns in a direc-

tion to loosen the stopper shim at the tip of the lever pivot, allowing the shaft to telescope. The telescopic stroke is limited

by the slot and stopper on the movable shaft. After selecting a steering wheel position and locking the telescopic lever, the

stop shim presses, against the movable shaft, holding it in position.

STOP

SHIM

TELESCOPIC LEVER
STOP

UPPER

STEERING SHAFT

SPLINES

LEVER

PIVOTProCarManuals.com

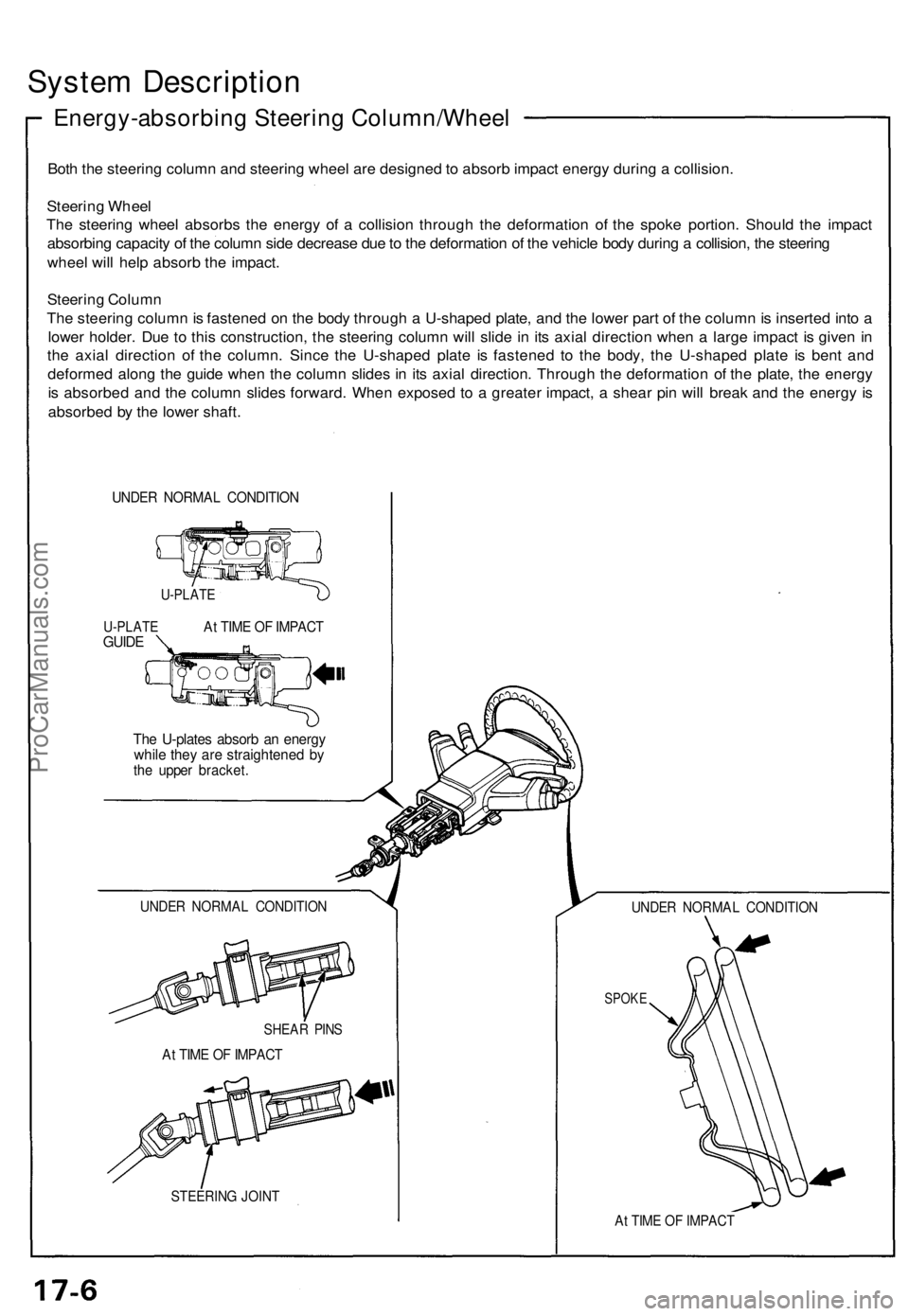

System Descriptio n
Energy-absorbin g Steerin g Column/Whee l
Both th e steerin g colum n an d steerin g whee l ar e designe d to absor b impac t energ y durin g a collision .
Steerin g Whee l
Th e steerin g whee l absorb s th e energ y o f a collisio n throug h th e deformatio n o f th e spok e portion . Shoul d th e impac t
absorbin g capacit y o f th e colum n sid e decreas e du e to th e deformatio n o f th e vehicl e bod y durin g a collision , th e steerin g
whee l wil l hel p absor b th e impact .
Steerin g Colum n
Th e steerin g colum n is fastene d o n th e bod y throug h a U-shape d plate , an d th e lowe r par t o f th e colum n is inserte d int o a
lowe r holder . Du e t o thi s construction , th e steerin g colum n wil l slid e i n it s axia l directio n whe n a larg e impac t i s give n in
th e axia l directio n o f th e column . Sinc e th e U-shape d plat e i s fastene d t o th e body , th e U-shape d plat e i s ben t an d
deforme d alon g th e guid e whe n th e colum n slide s i n it s axia l direction . Throug h th e deformatio n o f th e plate , th e energ y
i s absorbe d an d th e colum n slide s forward . Whe n expose d t o a greate r impact , a shea r pi n wil l brea k an d th e energ y i s
absorbe d b y th e lowe r shaft .
UNDE R NORMA L CONDITIO N
U-PLATE
U-PLAT EGUIDEAt TIM E O F IMPAC T
The U-plate s absor b a n energ ywhile the y ar e straightene d b ythe uppe r bracket .
UNDER NORMA L CONDITIO N
SHEAR PIN S
At TIM E O F IMPAC T
STEERIN G JOIN T
UNDE R NORMA L CONDITIO N
SPOKE
At TIM E O F IMPAC T
ProCarManuals.com

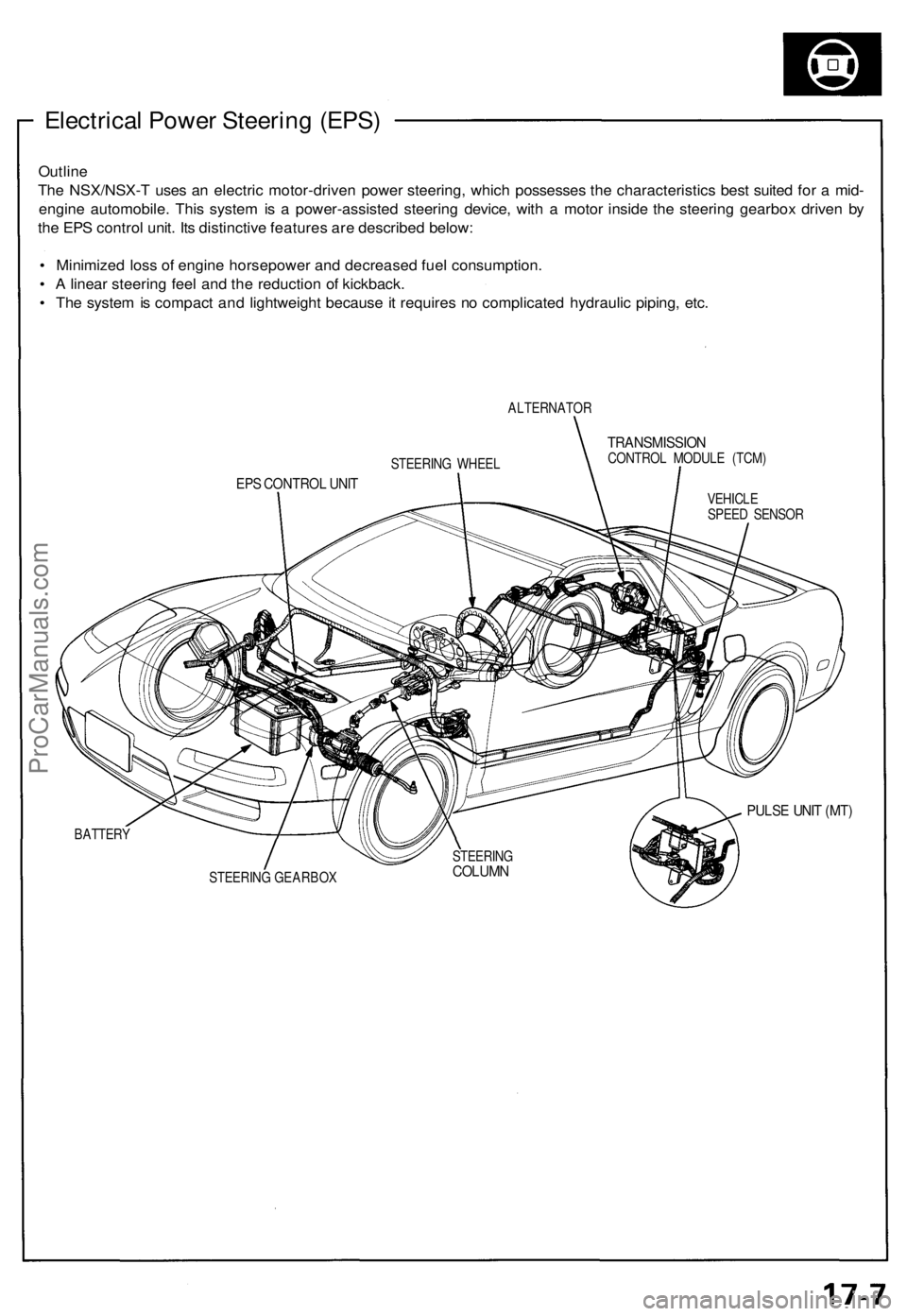

Electrical Power Steering (EPS)

Outline

The NSX/NSX-T uses an electric motor-driven power steering, which possesses the characteristics best suited for a mid-

engine automobile. This system is a power-assisted steering device, with a motor inside the steering gearbox driven by

the EPS control unit. Its distinctive features are described below:

• Minimized loss of engine horsepower and decreased fuel consumption.

• A linear steering feel and the reduction of kickback.

• The system is compact and lightweight because it requires no complicated hydraulic piping, etc.

ALTERNATOR

TRANSMISSION

CONTROL MODULE (TCM)

EPS CONTROL UNIT

VEHICLE

SPEED SENSOR

PULSE UNIT (MT)

BATTERY

STEERING GEARBOX
STEERING WHEEL

STEERING

COLUMNProCarManuals.com

System Description

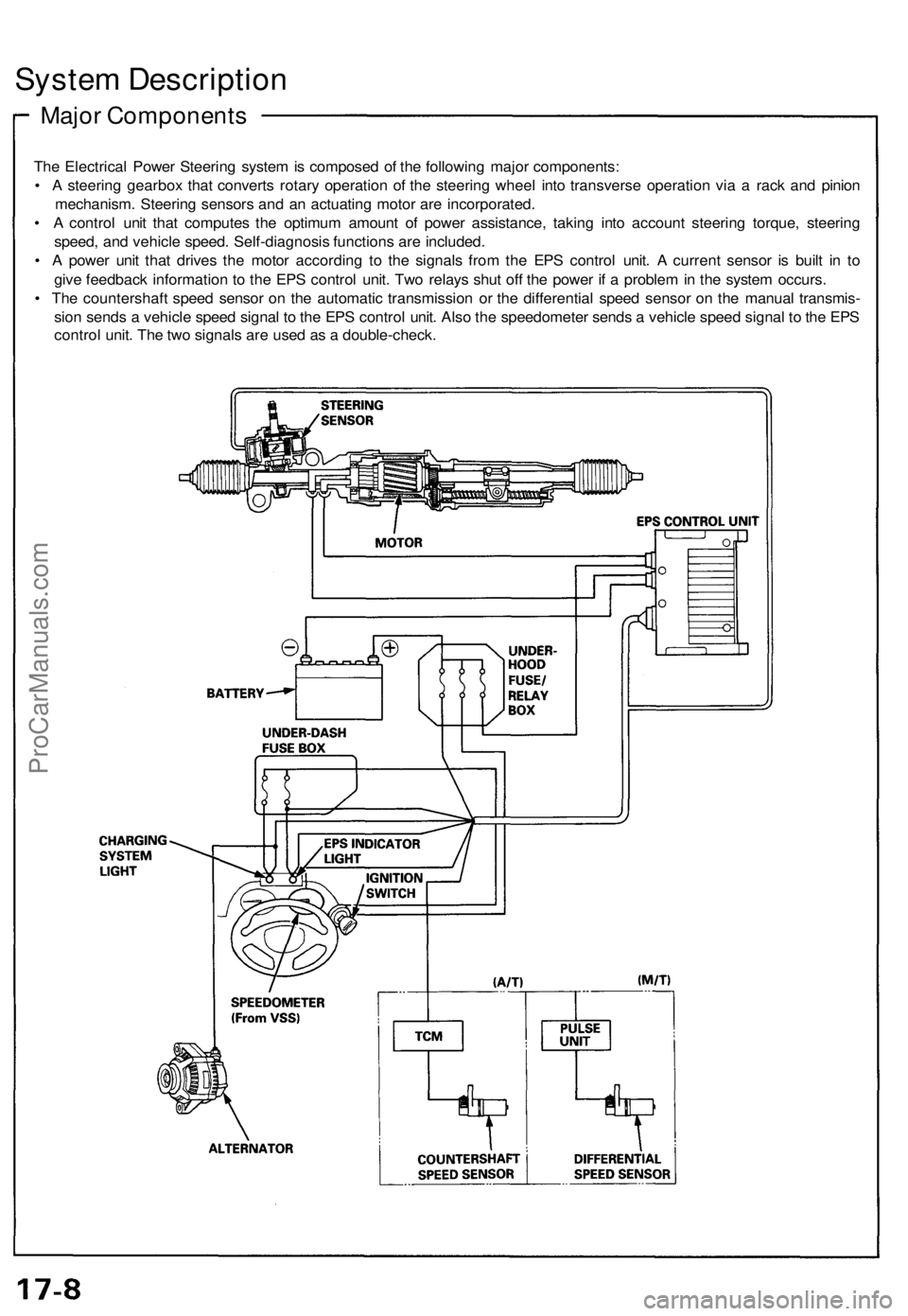

Major Components

The Electrical Power Steering system is composed of the following major components:

• A steering gearbox that converts rotary operation of the steering wheel into transverse operation via a rack and pinion

mechanism. Steering sensors and an actuating motor are incorporated.

• A control unit that computes the optimum amount of power assistance, taking into account steering torque, steering

speed, and vehicle speed. Self-diagnosis functions are included.

• A power unit that drives the motor according to the signals from the EPS control unit. A current sensor is built in to

give feedback information to the EPS control unit. Two relays shut off the power if a problem in the system occurs.

• The countershaft speed sensor on the automatic transmission or the differential speed sensor on the manual transmis-

sion sends a vehicle speed signal to the EPS control unit. Also the speedometer sends a vehicle speed signal to the EPS

control unit. The two signals are used as a double-check.ProCarManuals.com
