1991 ACURA NSX Service Repair Manual

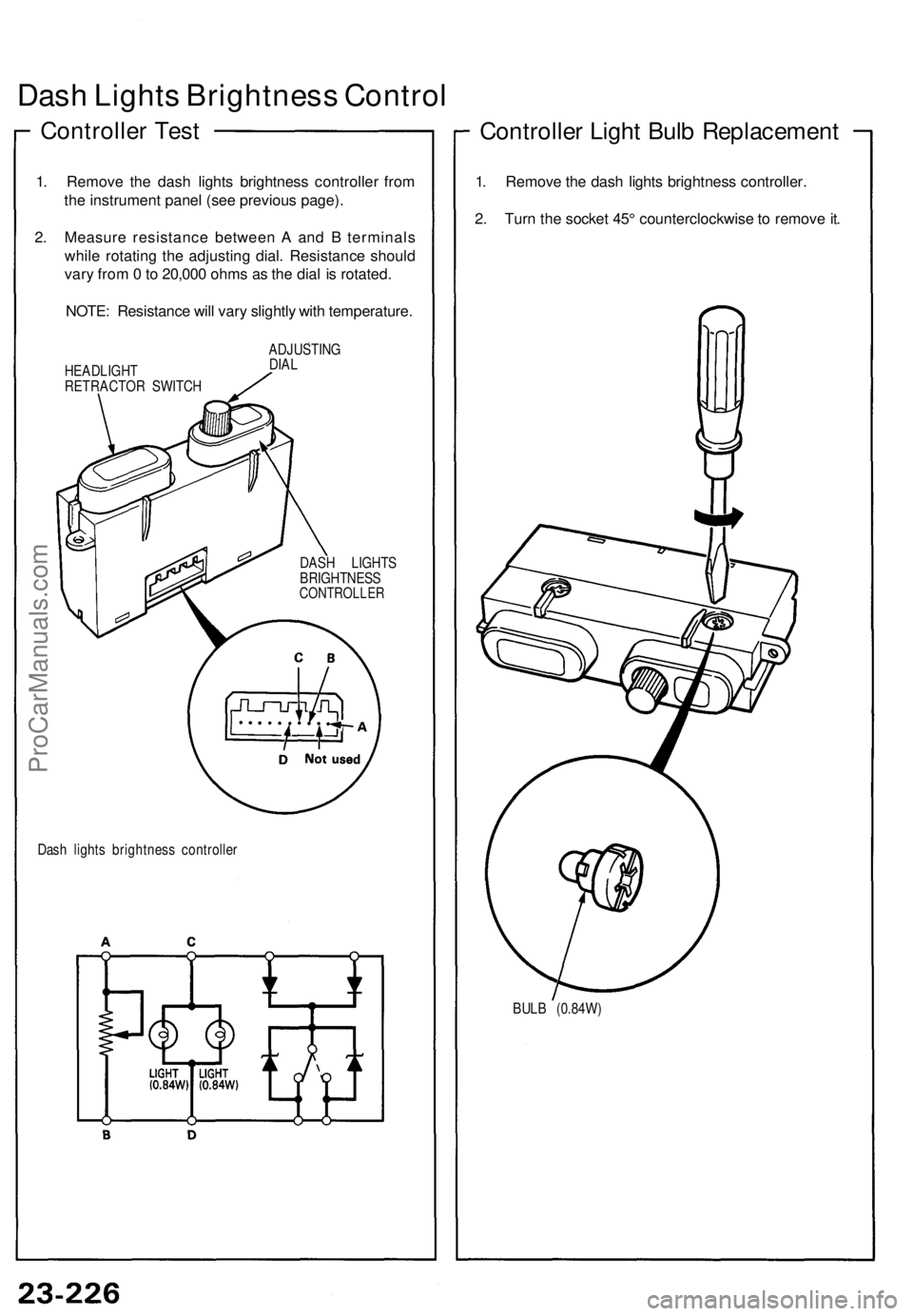

Dash Lights Brightness Control

Controller Test

1. Remove the dash lights brightness controller from

the instrument panel (see previous page).

2. Measure resistance between A and B terminals

while rotating the adjusting dial. Resistance should

vary from 0 to 20,000 ohms as the dial is rotated.

NOTE: Resistance will vary slightly with temperature.

HEADLIGHT

RETRACTOR SWITCH
ADJUSTING

DIAL

DASH LIGHTS

BRIGHTNESS

CONTROLLER

Dash lights brightness controller
Controller Light Bulb Replacement

1. Remove the dash lights brightness controller.

2. Turn the socket 45° counterclockwise to remove it.

BULB (0.84W)ProCarManuals.com

Entry Light Timer System
Component Location Index
SRS components are located in this area. Review the SRS
component locations, precautions, and procedures in the
SRS section (24) before performing repairs or service.
Description: It the driver's door has been opened by the

outer handle, the foot well light and a light at the Ignition

switch go on and stay on for about eight seconds after
the driver's door has been dosed.

IGNITION KEY LIGHT
Replacement, page 23-229
FOOT WELL LIGHT

Replacement, page 23-229

DRIVER'S DOOR SWITCH
(Built into the door lock actuator assembly)

Test, page 23-204

UNDER-DASH FUSE BOX ENTRY LIGHT TIMER CIRCUIT

( Built into the integrated control unit)
Input Test, page 23-161 ('93-'96) ('91-'92)
ProCarManuals.com

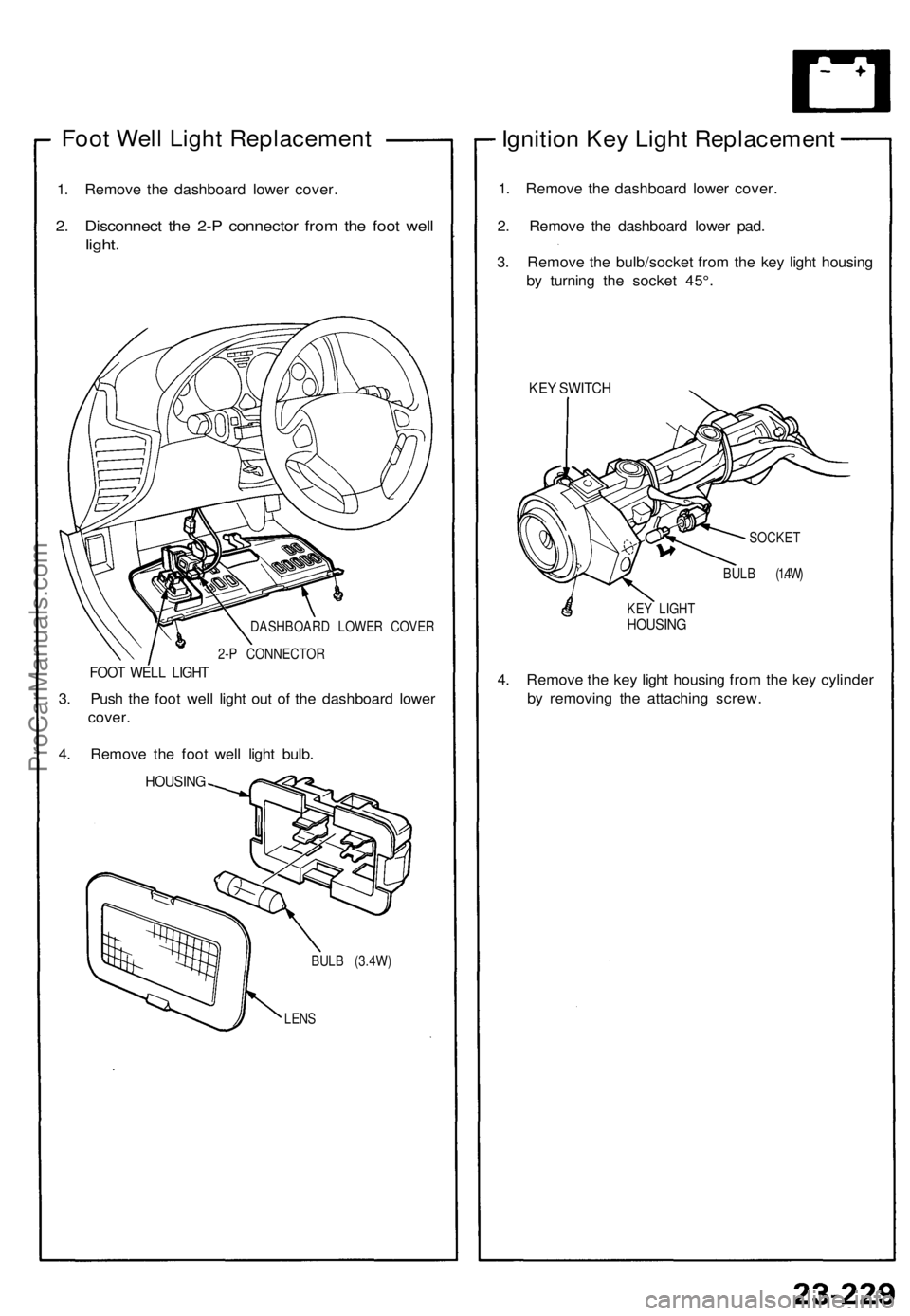

Foot Well Light Replacement

1. Remove the dashboard lower cover.

2. Disconnect the 2-P connector from the foot well

light.

DASHBOARD LOWER COVER

2-P CONNECTOR

FOOT WELL LIGHT

3. Push the foot well light out of the dashboard lower

cover.

4. Remove the foot well light bulb.

HOUSING

BULB (3.4W)

LENS
Ignition Key Light Replacement

1. Remove the dashboard lower cover.

2. Remove the dashboard lower pad.

3. Remove the bulb/socket from the key light housing

by turning the socket 45°.

KEY SWITCH

SOCKET

BULB (1.4W)

KEY LIGHT

HOUSING

4. Remove the key light housing from the key cylinder

by removing the attaching screw.ProCarManuals.com

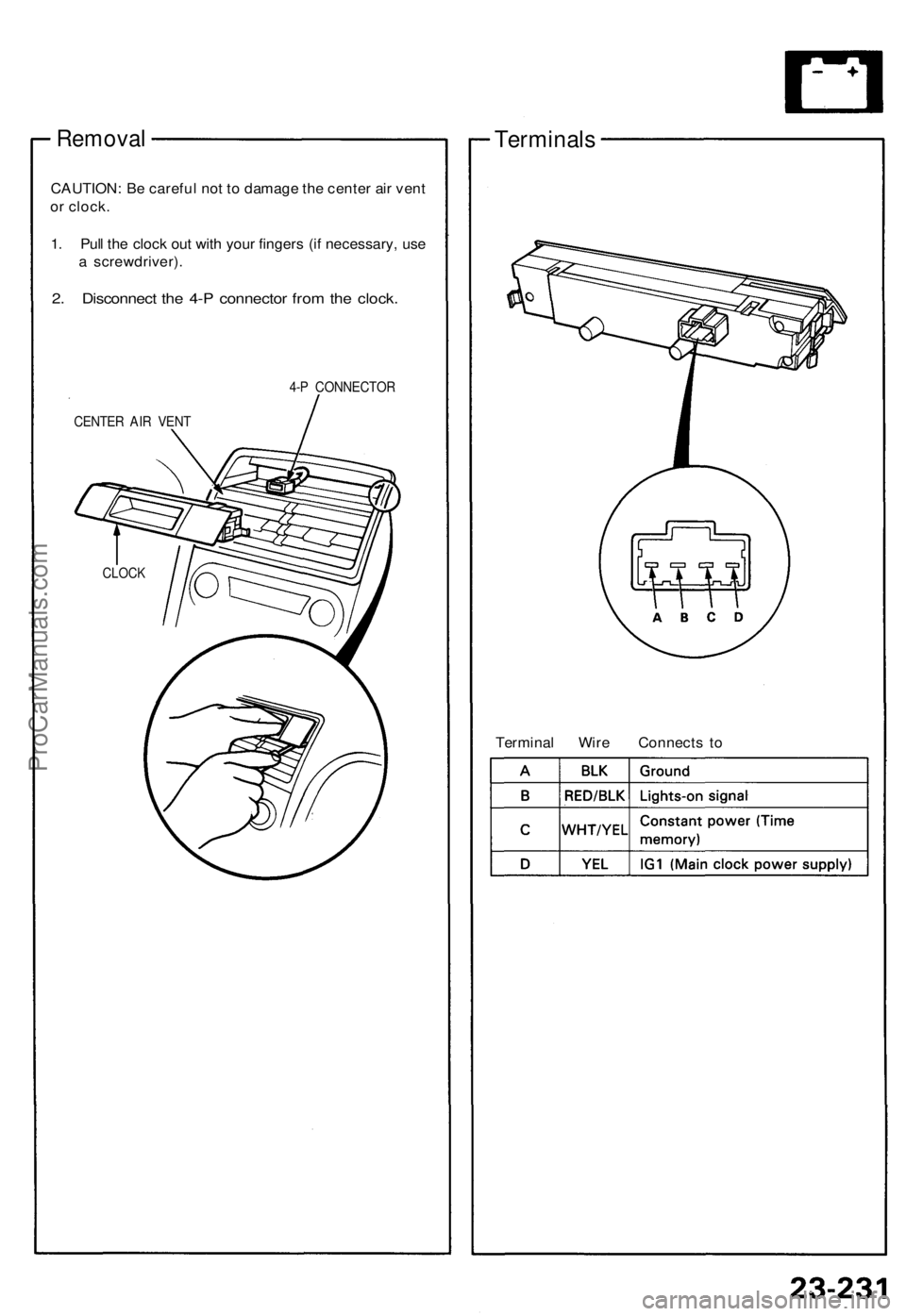

Removal

CAUTION: Be careful not to damage the center air vent

or clock.

1. Pull the clock out with your fingers (if necessary, use

a screwdriver).

2. Disconnect the 4-P connector from the clock.

4-P CONNECTOR

CENTER AIR VENT
Terminals

Terminal Wire Connects to
CLOCKProCarManuals.com

Replacement
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S sectio n 24 befor e performin g repair s o r ser -
vice .
1. Remov e th e cloc k (se e pag e 23-231 ).
2 . Remov e th e tw o screw s behin d th e clock , the n
remov e th e cente r ai r ven t (se e sectio n 20 ).
3 . Remov e th e fou r screws , the n remov e th e cente r
armrest .
4. Tak e ou t th e ashtray .
5 . Remov e th e fiv e screw s an d cente r consol e panel ,
the n disconnec t th e 3- P connecto r an d 4- P connec -
to r fro m th e floo r wir e harness .
ASHTRA Y
CENTERCONSOL EPANEL
CENTE R AI R VEN T
4- P CONNECTO R
3- P CONNECTO R
CENTE R ARMRES T
6. Disconnec t th e therm o fus e cas e fro m th e en d of
th e cigarett e lighte r socket .
7 . Remov e th e rin g nut , an d separat e th e cigarett e
lighte r socke t fro m th e therma l protector .
8 . Whe n installin g th e cigarett e lighter , alig n eac h lu g
o n th e fac e panel , illuminatio n rin g an d cigarett e
lighte r socke t wit h th e groov e in th e hole , the n posi -
tio n th e bul b housin g o n th e therma l protecto r
betwee n th e stop s o n th e cente r consol e panel .
9 . Mak e sur e tha t th e ground , bul b socke t an d therm o
fus e cas e ar e seate d agains t th e cigarett e lighte r
assembly .
CIGARETT ELIGHTERSOCKE T
ILLUMINATIO NRING
FACE PANE L
THERMA L
PROTECTO R
GROUNDWIRE
CENTE R CONSOL EPANELASHTRA Y LIGH T (1. 4 W )
RIN
G NU T
THERM O FUS E CAS E
CIGARETT E LIGHTE R
LIGH T (1. 4 W )
ProCarManuals.com

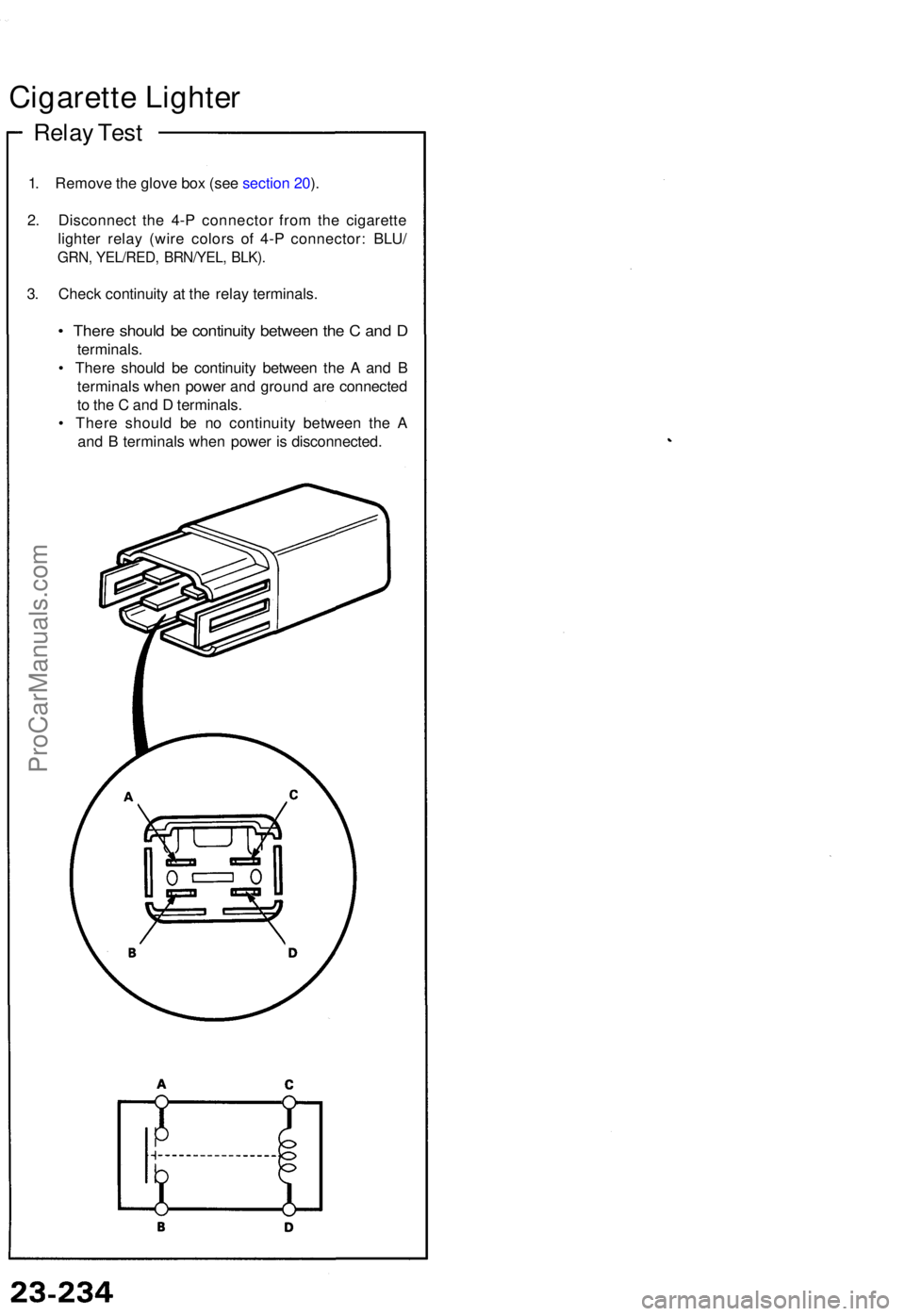

Cigarette Lighte r
Relay Tes t
1. Remov e th e glov e bo x (se e sectio n 20 ).
2 . Disconnec t th e 4- P connecto r fro m th e cigarett e
lighte r rela y (wir e color s o f 4- P connector : BLU /
GRN, YEL/RED , BRN/YEL , BLK) .
3. Chec k continuit y a t th e rela y terminals .
• Ther e shoul d b e continuit y betwee n th e C an d D
terminals .
• Ther e shoul d b e continuit y betwee n th e A an d B
terminal s whe n powe r an d groun d ar e connecte d
t o th e C an d D terminals .
• Ther e shoul d b e n o continuit y betwee n th e A
an d B terminal s whe n powe r i s disconnected .
ProCarManuals.com

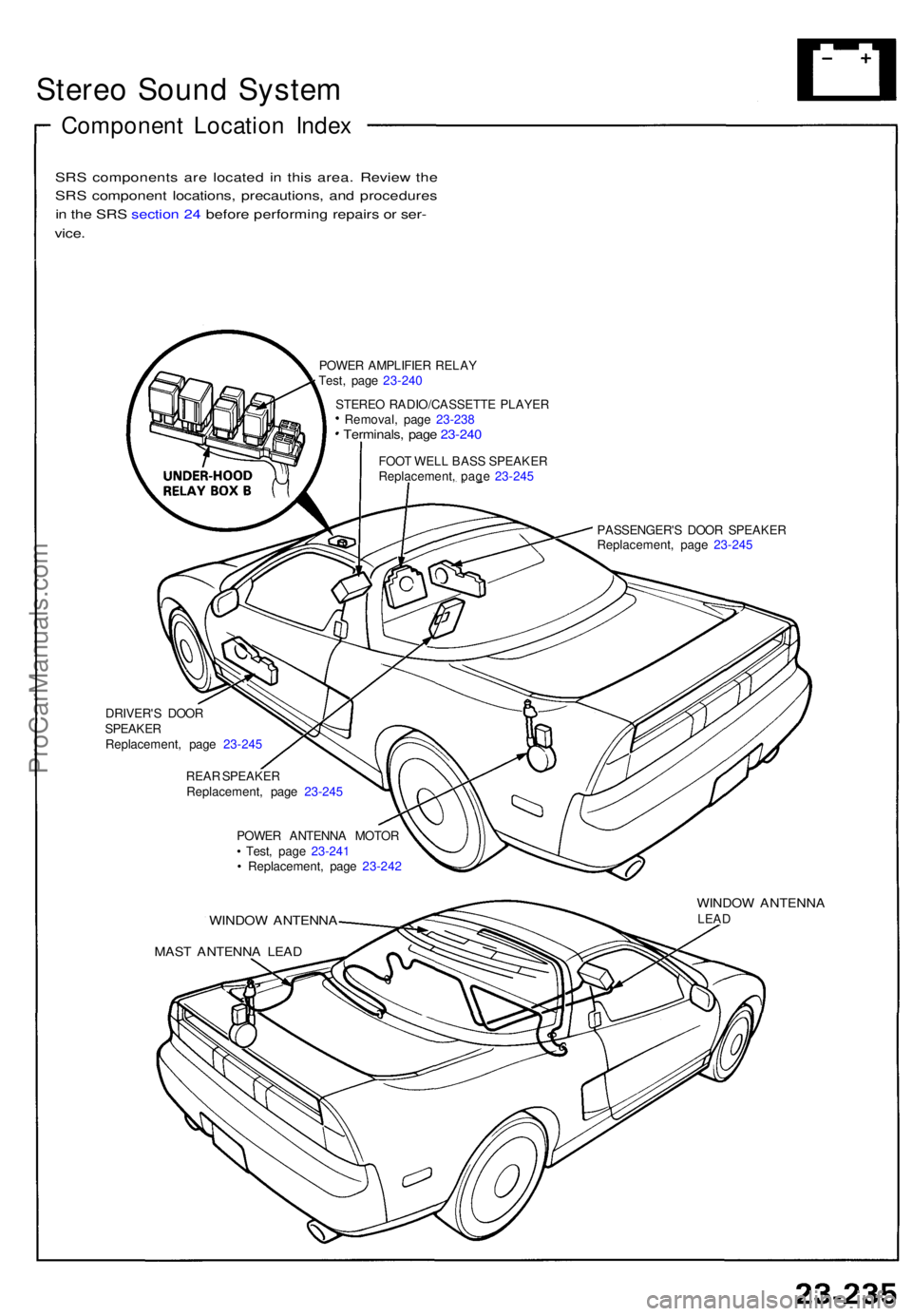

Stereo Soun d Syste m
Componen t Locatio n Inde x
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S sectio n 24 befor e performin g repair s o r ser -
vice .
POWE R AMPLIFIE R RELA Y
Test , pag e 23-24 0
STERE O RADIO/CASSETT E PLAYE R
Removal , pag e 23-23 8
Terminals , pag e 23-24 0
FOOT WEL L BAS S SPEAKE R
Replacement , pag e 23-24 5
PASSENGER' S DOO R SPEAKE R
Replacement , pag e 23-24 5
DRIVER' S DOO R
SPEAKE R
Replacement , pag e 23-24 5
REA R SPEAKE R
Replacement , pag e 23-24 5
POWE R ANTENN A MOTO R
• Test , pag e 23-24 1
• Replacement , pag e 23-24 2
WINDO W ANTENN A
MAST ANTENN A LEA D
WINDO W ANTENN ALEAD
ProCarManuals.com

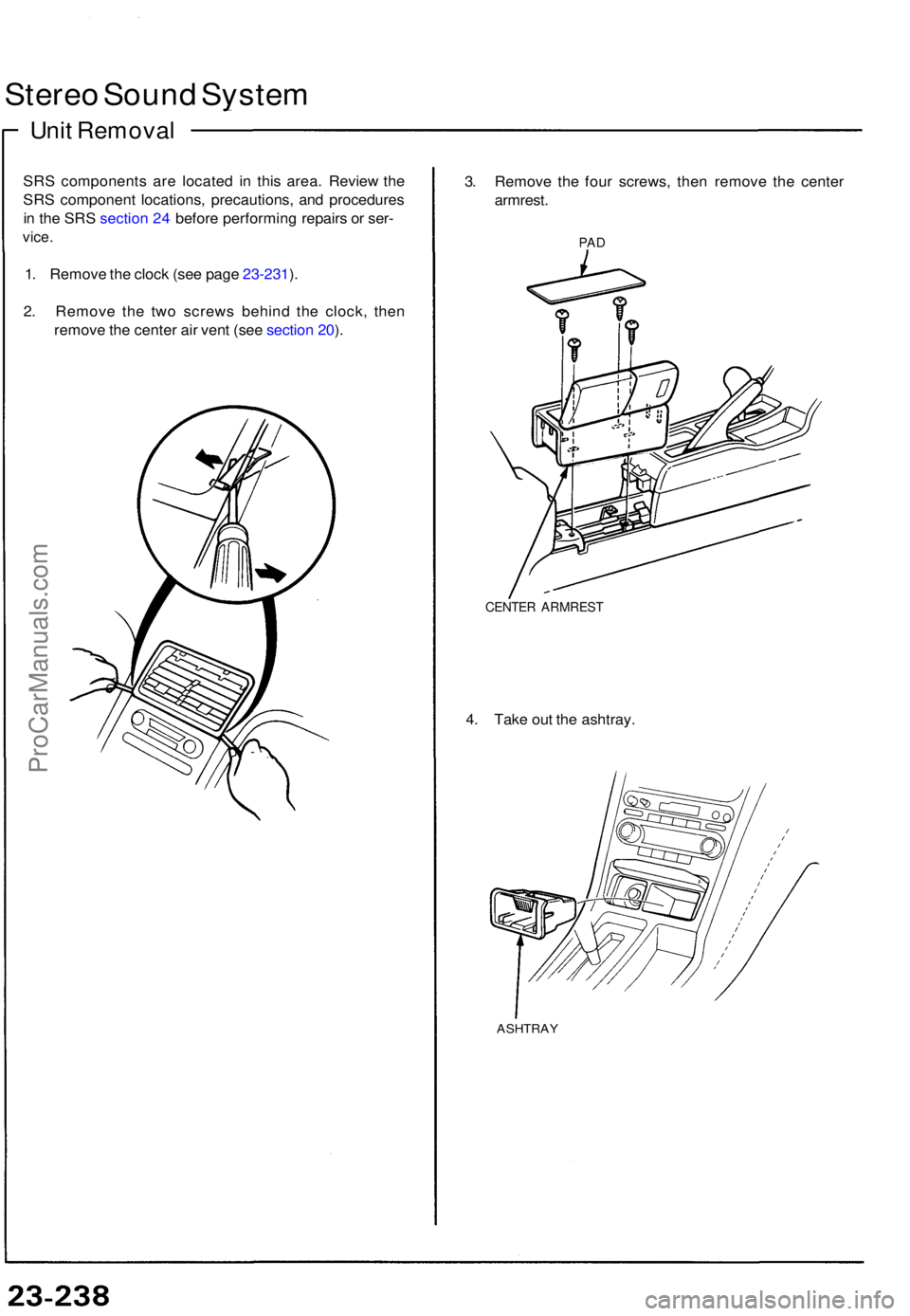

Stereo Soun d Syste m
Unit Remova l
SRS component s ar e locate d i n thi s area . Revie w th e
SR S componen t locations , precautions , an d procedure s
i n th e SR S sectio n 24 befor e performin g repair s o r ser -
vice .
1. Remov e th e cloc k (se e pag e 23-231 ).
2 . Remov e th e tw o screw s behin d th e clock , the n
remov e th e cente r ai r ven t (se e sectio n 20 ). 3
. Remov e th e fou r screws , the n remov e th e cente r
armrest .
PAD
CENTE R ARMRES T
4. Tak e ou t th e ashtray .
ASHTRA Y
