Clutch

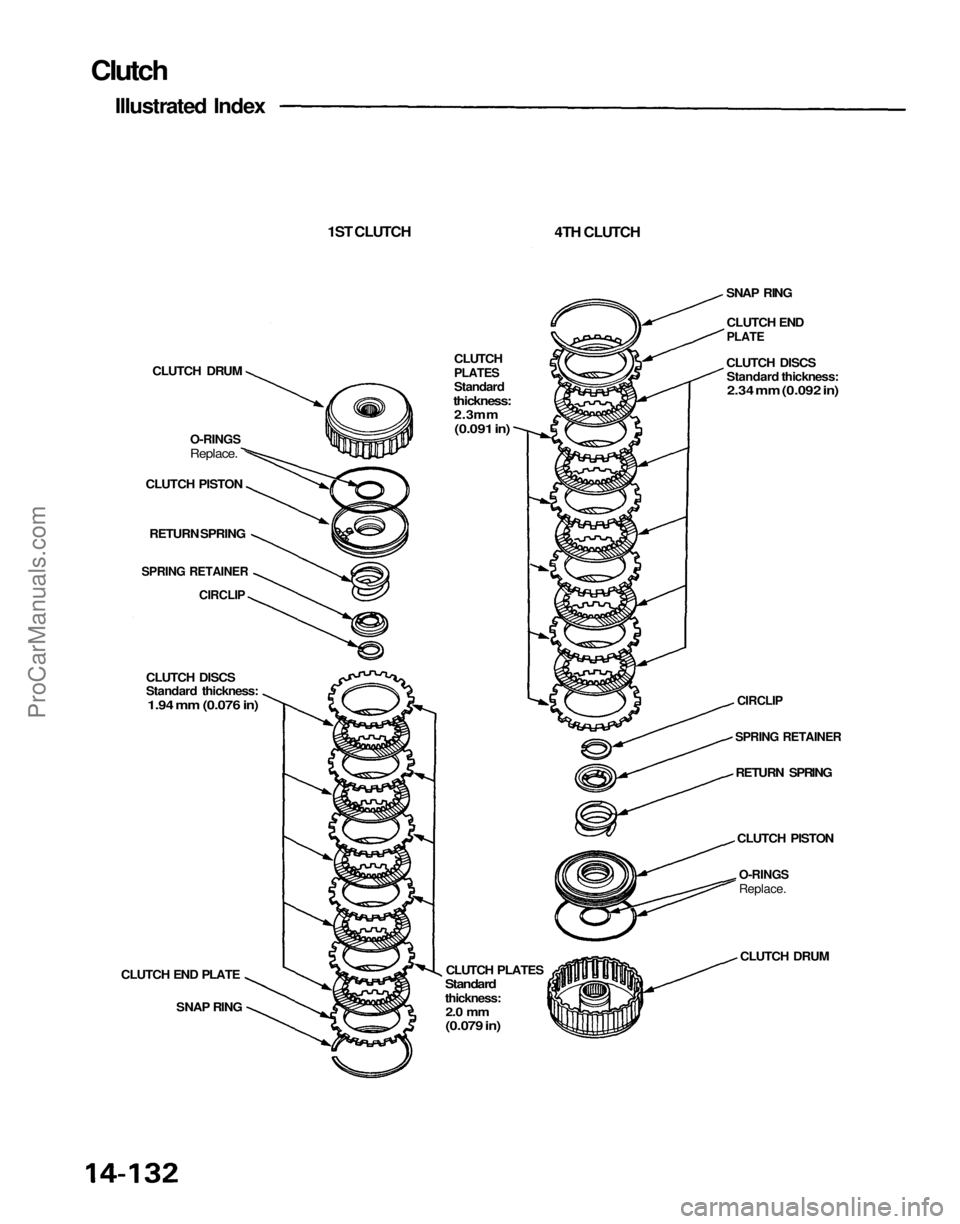

Illustrated Index
1ST CLUTCH
4TH CLUTCH
SNAP RING
CLUTCH END
PLATE
CLUTCH DISCS
Standard thickness:
2.34 mm (0.092 in)
CLUTCH
PLATES
Standard
thickness:
2.3mm
(0.091 in)
CLUTCH DRUM
O-RINGS
Replace.
CLUTCH PISTON
RETURN SPRING
SPRING RETAINER
CIRCLIP
CLUTCH DISCS
Standard thickness:
1.94 mm (0.076 in)
CIRCLIP
SPRING RETAINER
RETURN SPRING
CLUTCH PISTON
O-RINGS
Replace.
CLUTCH DRUM
CLUTCH PLATES
Standard
thickness:
2.0 mm
(0.079 in)
CLUTCH END PLATE
SNAP RINGProCarManuals.com
Page 1266 of 1640
(cont'd)
CLUTCH DRUM
O-RINGS
Replace.
CLUTCH PISTON
RETURN SPRING
SPRING RETAINER
CIRCLIP
CLUTCH PLATES
Standard thickness:
2.0 mm (0.079 in)
SNAP RING
CLUTCH END PLATE
CLUTCH DISCS
Standard thickness:
1.94 mm (0.076 in)
CIRCLIP
SPRING RETAINER
RETURN SPRING
DISC SPRING
CLUTCH PISTON
O-RINGS
Replace.
CLUTCH DISCS
Standard thickness:
1.94 mm (0.076 in)
CLUTCH END PLATE
SNAP RING

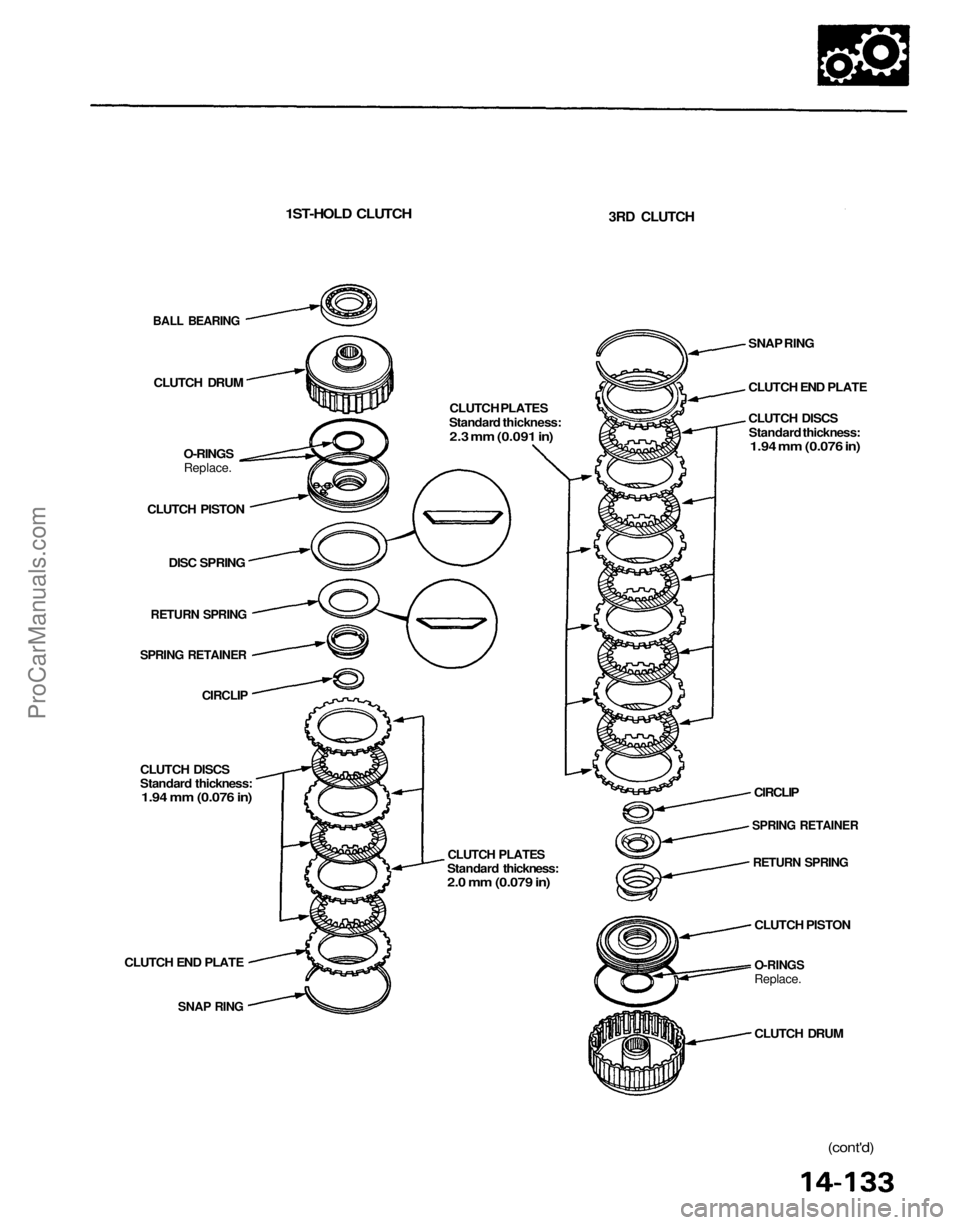

3RD CLUTCH
1ST-HOLD CLUTCH
CLUTCH PLATES
Standard thickness:
2.3 mm (0.091 in)
BALL BEARING
CLUTCH DRUMProCarManuals.com
Page 1267 of 1640
SNAP RING
CLUTCH END PLATE
CLUTCH DISCS
Standard thickness:
1.94 mm (0.076 in)
CLUTCH PLATES
Standard thickness:
2.3 mm (0.091 in)
CIRCLIP
SPRING RETAINER
RETURN SPRING
DISC SPRING
CLUTCH PISTON
O-RINGS
Replace.
CLUTCH DRUM
Clutch
Illustrated Index (cont'd)

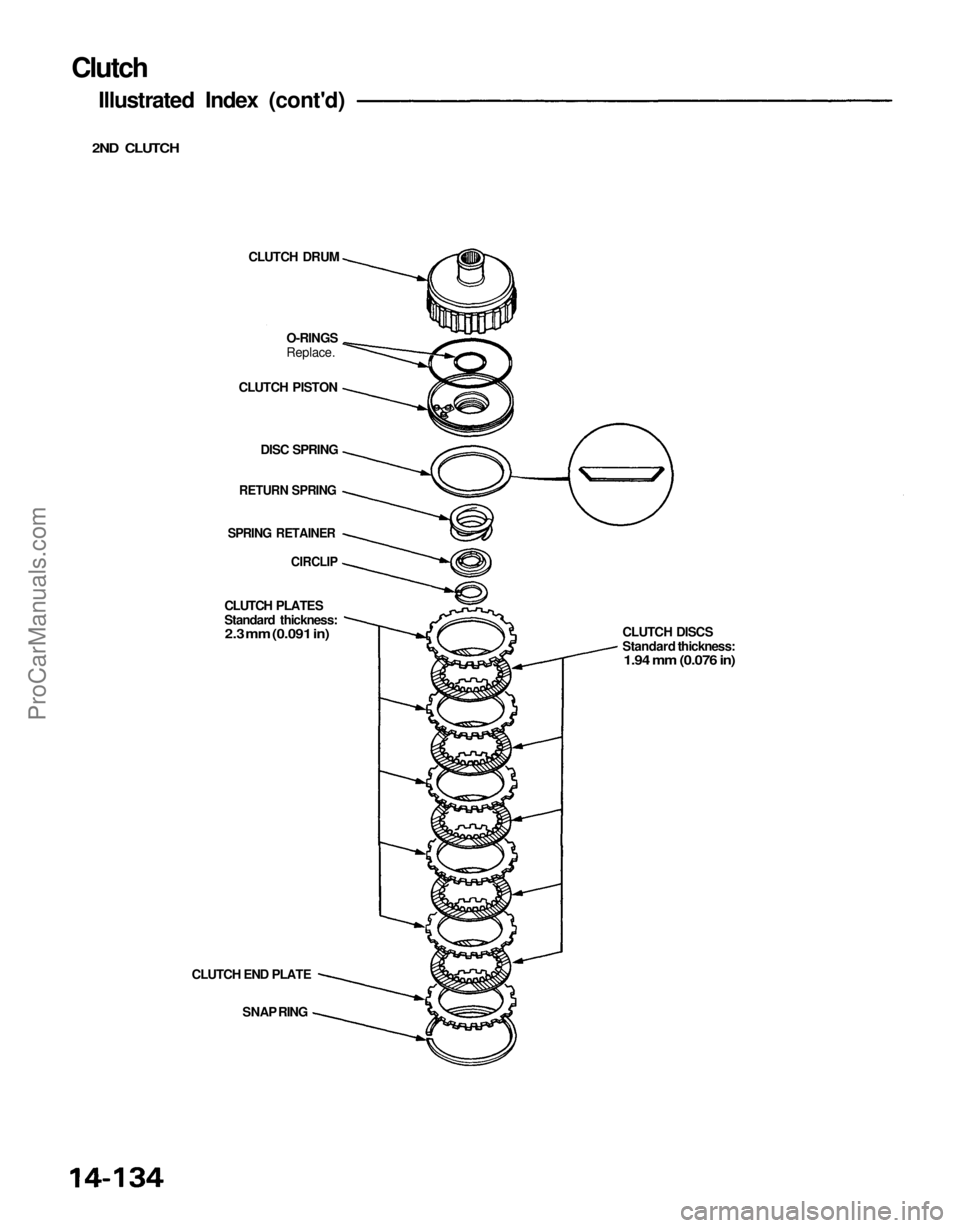

2ND CLUTCHProCarManuals.com
Page 1268 of 1640
(cont'd)
Do not set here.
Set here.
CAUTION: If either end of the compressor attach-
ment is set over an area of the spring retainer which is
unsupported by the return spring, the retainer may be
damaged.
CLUTCH SPRING
COMPRESSOR
BOLT ASSEMBLY
07GAE-PG4O200
DISC SPRING
2. Remove the disc spring.
NOTE: For 1 st-hold and 2nd clutches
SCREWDRIVER
CLUTCH SPRING
COMPRESSOR
ATTACHMENT
07HAE-PL50100
CLUTCH SPRING
COMPRESSOR
ATTACHMENT
07LAE-PX40100
3. Install the special tools as shown.
1. Remove the snap rings, then remove the clutch end
plate, clutch discs and plates.
SNAP RING
DisassemblyProCarManuals.com
Page 1269 of 1640
5. Remove the circlip. Then remove the special tool,
spring retainer and return spring.
Clutch
Disassembly (cont'd)

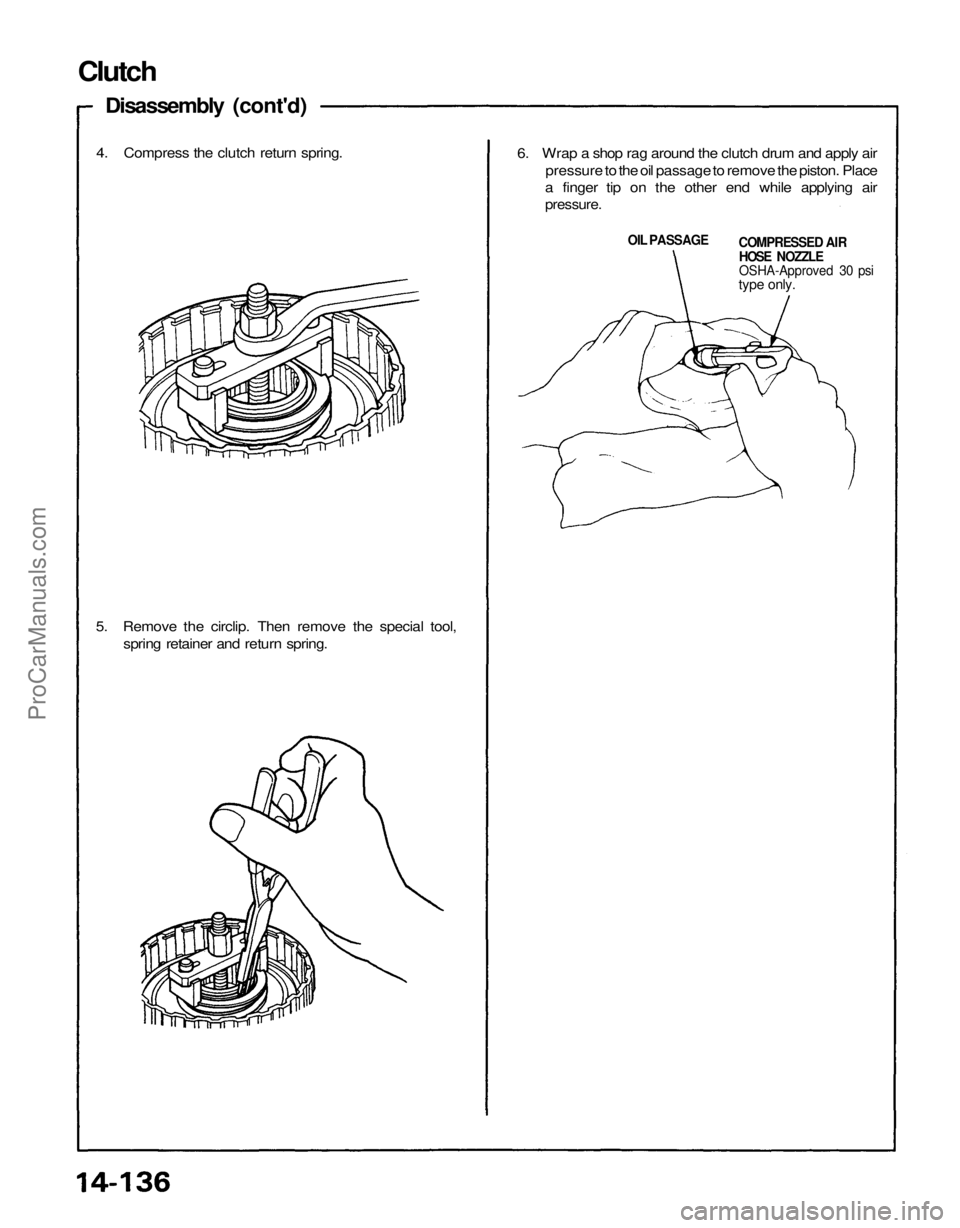

4. Compress the clutch return spring.
6. Wrap a shop rag around the clutch drum and apply air
pressure to the oil passage to remove the piston. Place
a finger tip on the other end while applying air
pressure.
OIL PASSAGE
COMPRESSED AIR
HOSE NOZZLE
OSHA-Approved 30 psi
type only.ProCarManuals.com
Page 1270 of 1640
(cont'd)
RETURN SPRING
O-RING
SPRING RETAINER
CIRCLIP
DISC SPRING
CLUTCH PISTON
5. Install the return spring and spring retainer and position
the circlip on the retainer.
CLUTCH DRUM
O-RINGS
PISTON
2. Install a new O-ring on the clutch piston.
3. Be sure that the disc spring is securely staked.
NOTE: For 1st, 3rd and 4th clutches.
PISTON
CAUTION: Do not pinch O-ring by installing the
piston with force.
4. Install the piston in the clutch drum. Apply pressure
and rotate to ensure proper seating.
NOTE: Lubricate the piston O-ring with ATF before in-
stalling.

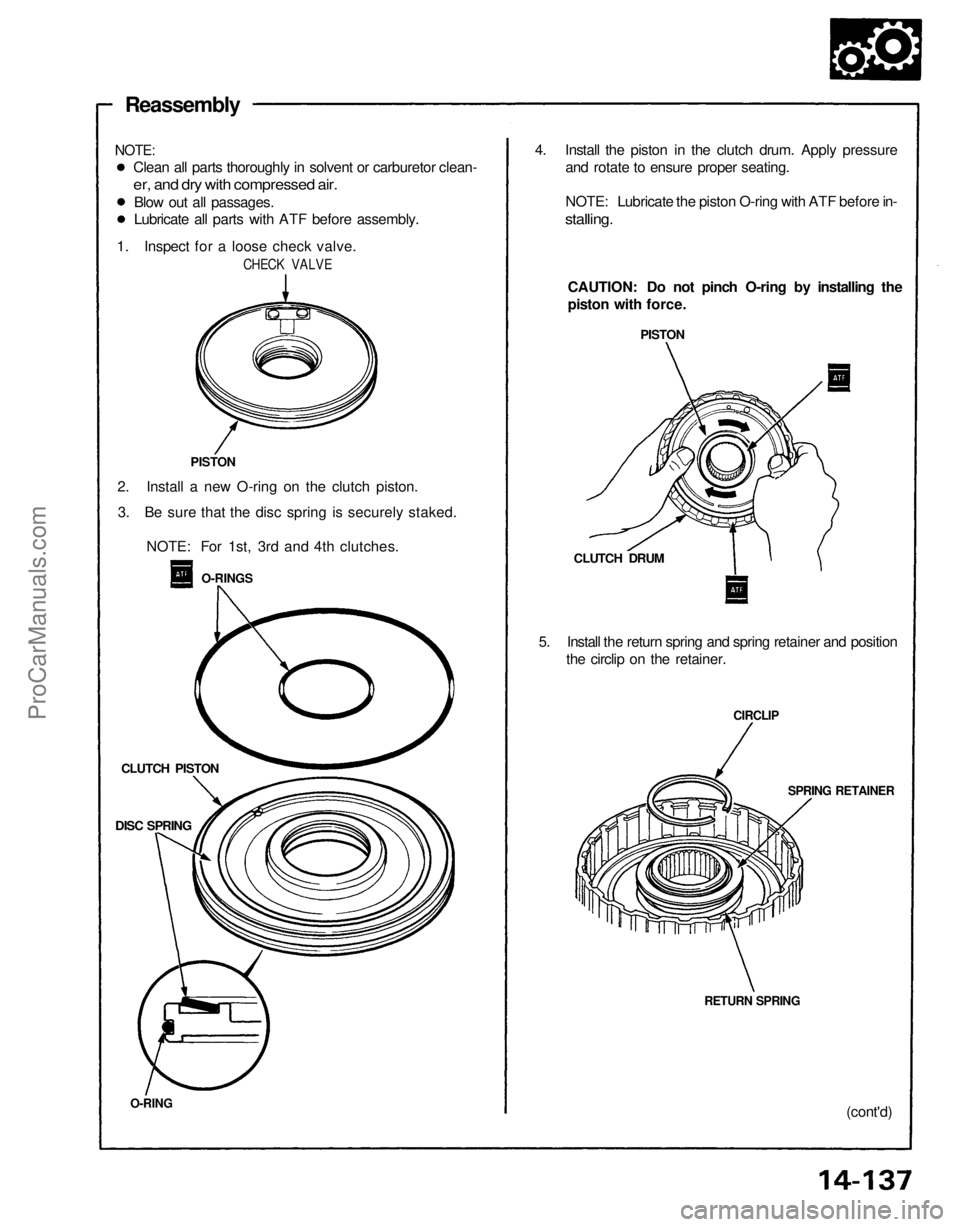

Reassembly
NOTE:
Clean all parts thoroughly in solvent or carburetor clean-
er, and dry with compressed air.
Blow out all passages.
Lubricate all parts with ATF before assembly.
1. Inspect for a loose check valve.
CHECK VALVEProCarManuals.com
Page 1271 of 1640
9. Remove the special tools.
Do not set here.
Set here.
8. Install the circlip.
CAUTION: If either end of the compressor attach-
ment is set over an area of the spring retainer which is unsupported by the retainer spring, the re-
tainer may be damaged.
CLUTCH SPRING
COMPRESSOR
BOLT ASSEMBLY
07GAE–PG40200
CLUTCH SPRING
COMPRESSOR
ATTACHMENT
07HAE–PL501007. Compress the clutch return spring.
CLUTCH SPRING
COMPRESSOR
ATTACHMENT
07LAE–PX40100

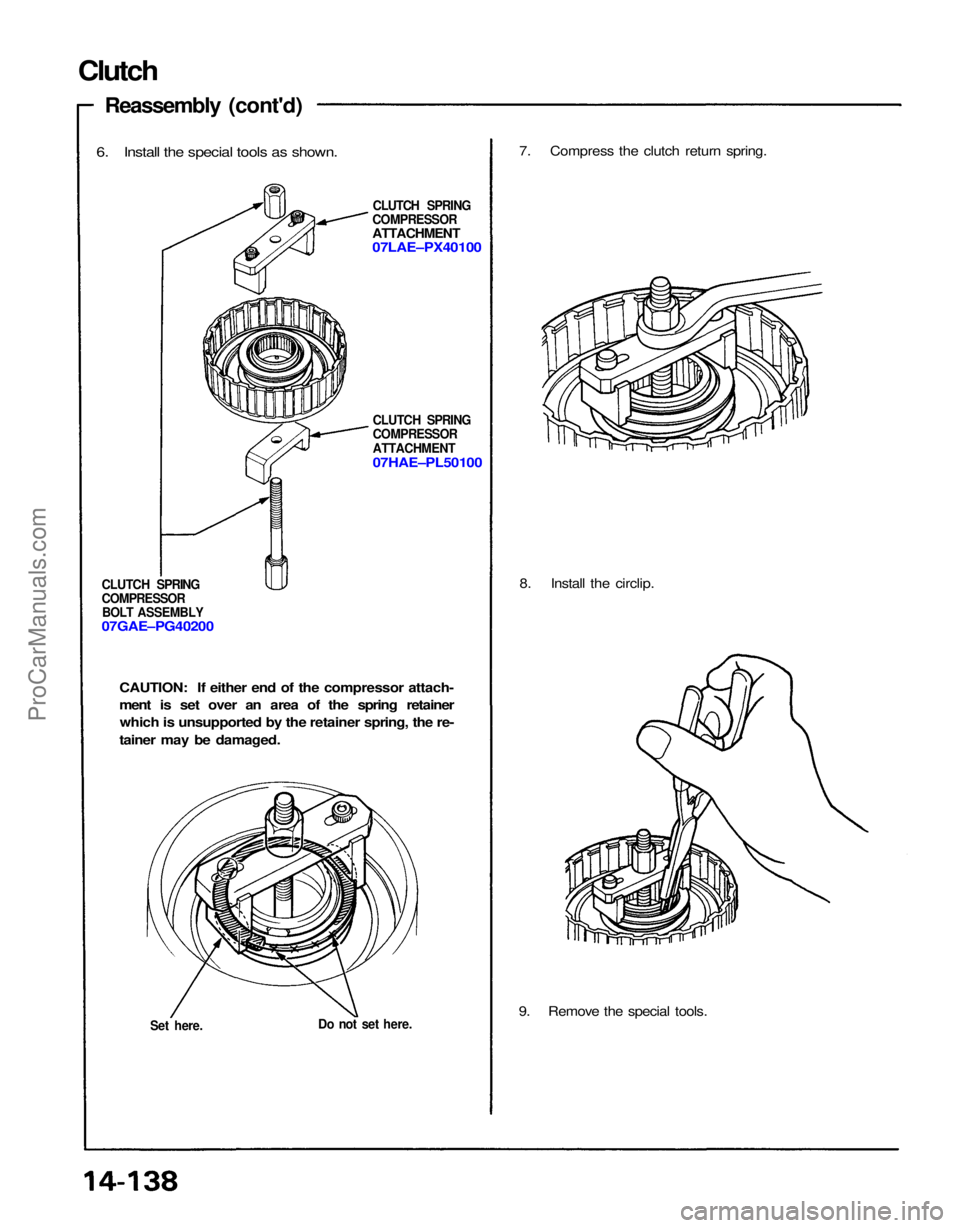

6. Install the special tools as shown.
Reassembly (cont'd)
ClutchProCarManuals.com
Page 1272 of 1640
(cont'd)
CLUTCH DISC
CLUTCH END PLATE
11. Soak the clutch discs thoroughly in ATF for a minimum
of 30 minutes.

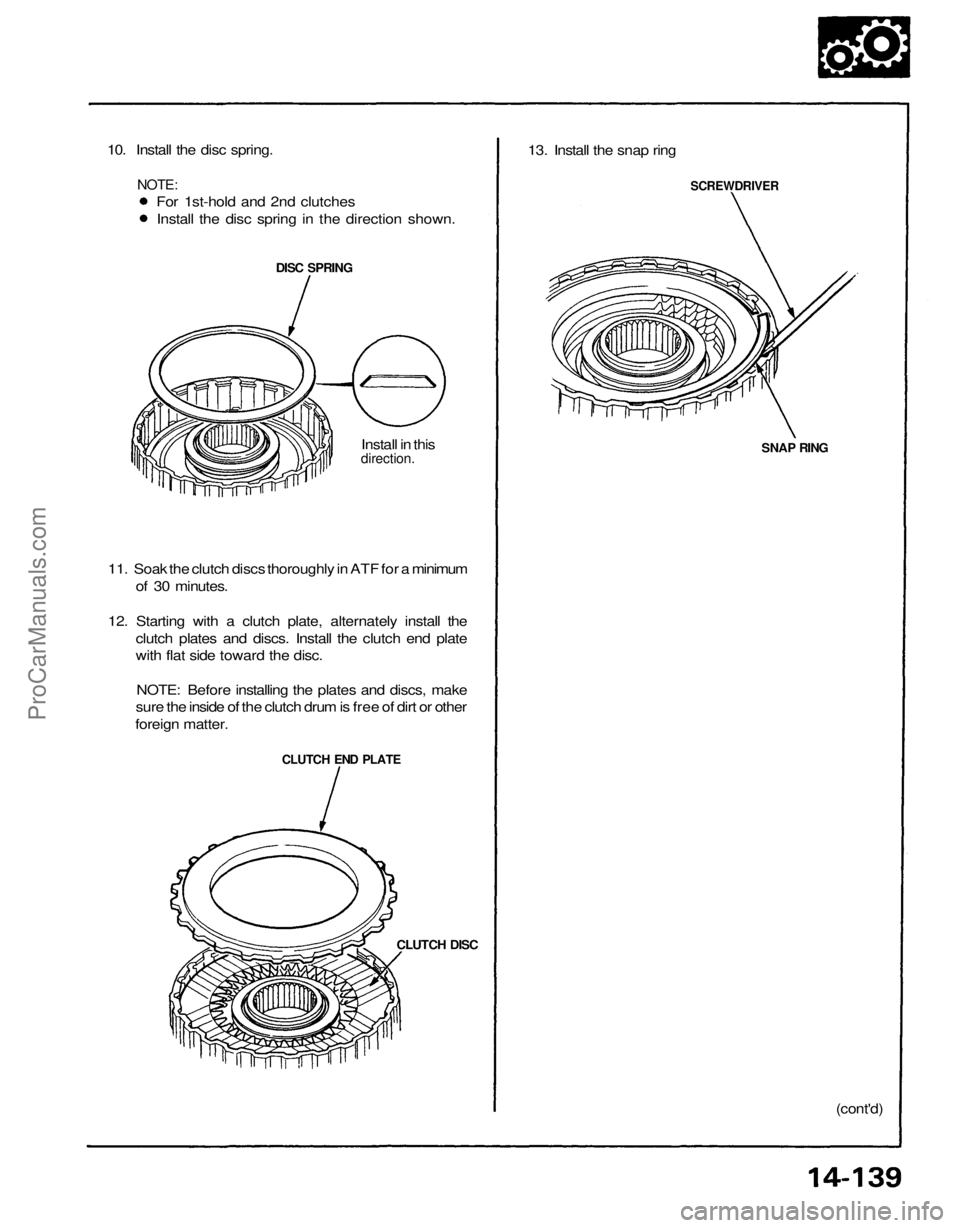

12. Starting with a clutch plate, alternately install the
