1991 ACURA NSX Service Repair Manual

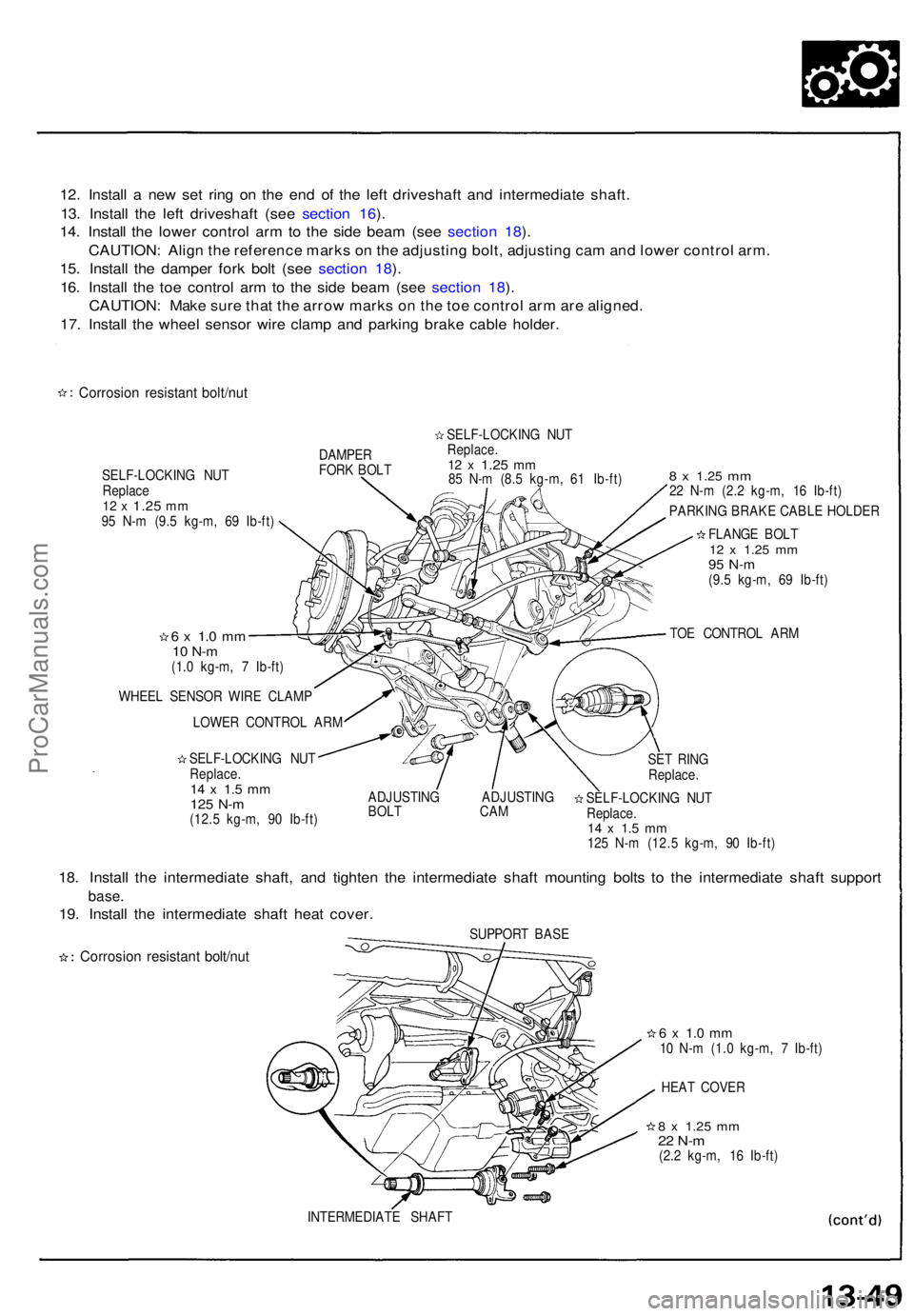

12. Instal l a ne w se t rin g o n th e en d o f th e lef t driveshaf t an d intermediat e shaft .
13 . Instal l th e lef t driveshaf t (se e sectio n 16 ).
14 . Instal l th e lowe r contro l ar m to th e sid e bea m (se e sectio n 18 ).
CAUTION : Alig n th e referenc e mark s o n th e adjustin g bolt , adjustin g ca m an d lowe r contro l arm .
15 . Instal l th e dampe r for k bol t (se e sectio n 18 ).
16 . Instal l th e to e contro l ar m to th e sid e bea m (se e sectio n 18 ).
CAUTION : Mak e sur e tha t th e arro w mark s o n th e to e contro l ar m ar e aligned .
17 . Instal l th e whee l senso r wir e clam p an d parkin g brak e cabl e holder .
Corrosio n resistan t bolt/nu t
SELF-LOCKIN G NU T
Replac e
12 x 1.2 5 mm95 N- m (9. 5 kg-m , 6 9 Ib-ft ) DAMPE
R
FOR K BOL T SELF-LOCKIN
G NU T
Replace .12 x 1.2 5 mm85 N- m (8. 5 kg-m , 6 1 Ib-ft )
6 x 1. 0 m m10 N- m(1.0 kg-m , 7 Ib-ft )
WHEE L SENSO R WIR E CLAM P
LOWE R CONTRO L AR M
SELF-LOCKIN G NU T
Replace .14 x 1. 5 m m125 N- m(12. 5 kg-m , 9 0 Ib-ft )
8 x 1.2 5 mm22 N- m (2. 2 kg-m , 1 6 Ib-ft )
PARKIN G BRAK E CABL E HOLDE R
FLANG E BOL T
12 x 1.2 5 mm95 N- m(9.5 kg-m , 6 9 Ib-ft )
TO E CONTRO L AR M
SE T RIN G
Replace .
SELF-LOCKIN G NU T
Replace .
14 x 1. 5 m m125 N- m (12. 5 kg-m , 9 0 Ib-ft )
6 x 1. 0 m m10 N- m (1. 0 kg-m , 7 Ib-ft )
HEA T COVE R
8 x 1.2 5 mm22 N- m(2.2 kg-m , 1 6 Ib-ft )
INTERMEDIAT E SHAF T
18. Instal l th e intermediat e shaft , an d tighte n th e intermediat e shaf t mountin g bolt s t o th e intermediat e shaf t suppor t
base.
19. Instal l th e intermediat e shaf t hea t cover .
SUPPOR T BAS E
Corrosio n resistan t bolt/nu t
ADJUSTIN G ADJUSTIN G
BOL T CA M
ProCarManuals.com

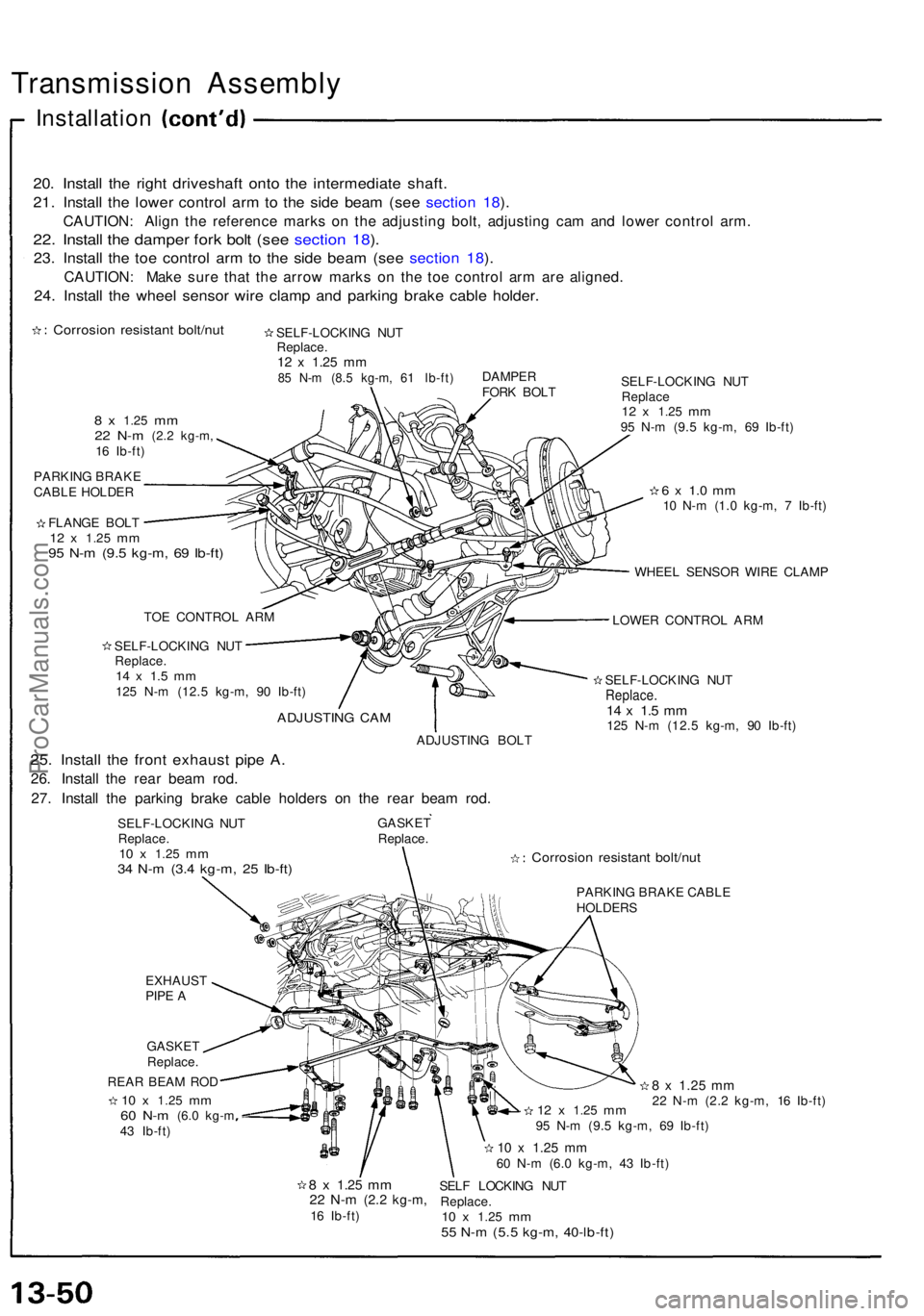

Transmission Assembl y
Installation
20. Instal l th e righ t driveshaf t ont o th e intermediat e shaft .
21. Instal l th e lowe r contro l ar m to th e sid e bea m (se e sectio n 18 ).
CAUTION : Alig n th e referenc e mark s o n th e adjustin g bolt , adjustin g ca m an d lowe r contro l arm .
22. Instal l th e damper fork bol t (se e sectio n 18 ).
23 . Instal l th e to e contro l ar m to th e sid e bea m (se e sectio n 18 ).
CAUTION : Mak e sur e tha t th e arro w mark s o n th e to e contro l ar m ar e aligned .
24. Instal l th e whee l senso r wir e clam p an d parkin g brak e cabl e holder .
Corrosio n resistan t bolt/nu t
8 x 1.2 5 mm22 N- m (2. 2 kg-m ,16 Ib-ft )
PARKIN G BRAK E
CABL E HOLDE R
FLANG E BOL T
12 x 1.2 5 mm95 N- m (9. 5 kg-m , 6 9 Ib-ft )
SELF-LOCKIN G NU T
Replace .
12 x 1.2 5 mm85 N- m (8. 5 kg-m , 6 1 Ib-ft )DAMPE R
FOR K BOL T
TO E CONTRO L AR M
SELF-LOCKIN G NU T
Replace .14 x 1. 5 m m125 N- m (12. 5 kg-m , 9 0 Ib-ft )
ADJUSTIN G CA M
ADJUSTIN G BOL T
25. Instal l th e fron t exhaus t pip e A .
26 . Instal l th e rea r bea m rod .
27 . Instal l th e parkin g brak e cabl e holder s o n th e rea r bea m rod .
SELF-LOCKIN G NU T
Replac e
12 x 1.2 5 mm95 N- m (9. 5 kg-m , 6 9 Ib-ft )
6 x 1. 0 m m10 N- m (1. 0 kg-m , 7 Ib-ft )
WHEE L SENSO R WIR E CLAM P
LOWE R CONTRO L AR M
SELF-LOCKIN G NU T
Replace .14 x 1. 5 m m125 N- m (12. 5 kg-m , 9 0 Ib-ft )
SELF-LOCKIN G NU T
Replace .
10 x 1.2 5 mm34 N- m (3. 4 kg-m , 2 5 Ib-ft )
GASKE TReplace .
Corrosio n resistan t bolt/nu t
PARKIN G BRAK E CABL E
HOLDER S
EXHAUS T
PIP E A
GASKE T
Replace .
REAR BEA M RO D
10 x 1.2 5 mm60 N- m (6. 0 kg- m43 Ib-ft )
8 x 1.2 5 mm22 N- m (2. 2 kg-m ,16 Ib-ft )
12 x 1.2 5 mm95 N- m (9. 5 kg-m , 6 9 Ib-ft )
10 x 1.2 5 mm60 N- m (6. 0 kg-m , 4 3 Ib-ft )
SEL F LOCKIN G NU T
Replace .
10 x 1.2 5 mm55 N- m (5. 5 kg-m , 40-lb-ft )
8 x 1.2 5 mm22 N- m (2. 2 kg-m , 1 6 Ib-ft )
ProCarManuals.com

28. Instal l th e transmissio n moun t an d tw o transmissio n
housin g mountin g bolts .
29 . Instal l th e starte r motor , an d connec t th e starte r
motor cables .
NOTE: Whe n installin g th e starte r moto r cable ,
mak e sur e tha t th e crimpe d sid e o f th e rin g termi -
nal s facin g ou t (se e sectio n 23 ).
30 . Instal l th e transmissio n groun d cabl e an d jumpe r con -
nector , an d connec t th e back-u p ligh t switch , neu -
tra l positio n switch , differentia l spee d sensor , an d
vehicl e spee d senso r (VSS ) connector . 31
. Instal l th e contro l box , an d connec t th e contro l bo x
connectors .
32. Instal l th e ai r cleane r assembly .
33. Instal l th e stru t bar .
34 . Refil l th e transmissio n wit h oi l (se e pag e 13-3 ).
35 . Connec t th e batter y positiv e ( + ) an d negativ e (- )
cable s t o th e battery .
36 . Inspec t th e rea r cambe r (se e sectio n 18 ).
37 . Chec k th e clutc h operation .
38 . Shif t th e transmission , an d chec k fo r smoot h opera -
tion.
Corrosio n resistan t bolt/nu tTRANSMISSIO N HOUSIN GMOUNTING BOLT S12 x 1.2 5 mm65 N- m (6. 5 kg-m , 4 7 Ib-ft )
CONTROL BO X
BACK-U P LIGH TSWITC HCONNECTO R
WIR E
HARNES S
HOLDE R
NEUTRA L
POSITIONSWITCHCONNECTO R
STARTE R
MOTORCABLE S DIFFERENTIA
L
SPEE D SENSO R
VSSCONNECTO R
JUMPE R
CONNECTO R
TRANSMISSIO N MOUNTIN GBOLT
TRANSMISSIO N MOUNTIN GBOLTS10 x 1.2 5 mm60 N- m (6. 0 kg-m , 4 3 Ib-ft )
12 x 1.2 5 mm95 N- m (9. 5 kg-m . 6 9 Ib-ft )
12 x 1.2 5 mm75 N- m (7. 5 kg-m , 5 4 Ib-ft )
12 x 1.2 5 mm75 N- m (7. 5 kg-m , 5 4 Ib-ft )
TRANSMISSIO NGROUND CABL E
ProCarManuals.com

Special Tools

Ref.
No

Tool Number


Description

Qty


Page Reference

07GAD—SD40101

07MAD—PR90100

07MAD—PR90200

07MAJ—PR90100

07746—0010500
07746—0010600

07749—0010000

07947—S090100 or

07947—SD90101
07965—SA00600 Bearing Driver Attachment
Attachment, 45 x 55 mm I.D.

Pilot, 32 x 50 mm

Differential Inspection Tools
Attachment, 62 x 68 mm
Attachment, 72 x 75 mm

Driver

Seal Driver Attachment
Bearing Driver Attachment
1

1

1
1
1

1

1
1

1
15-12

15-5

15-14

15-4 , 6, 9, 11, 13


15-12

15-13

15-12,13,
14

15-14

15-14
ProCarManuals.com

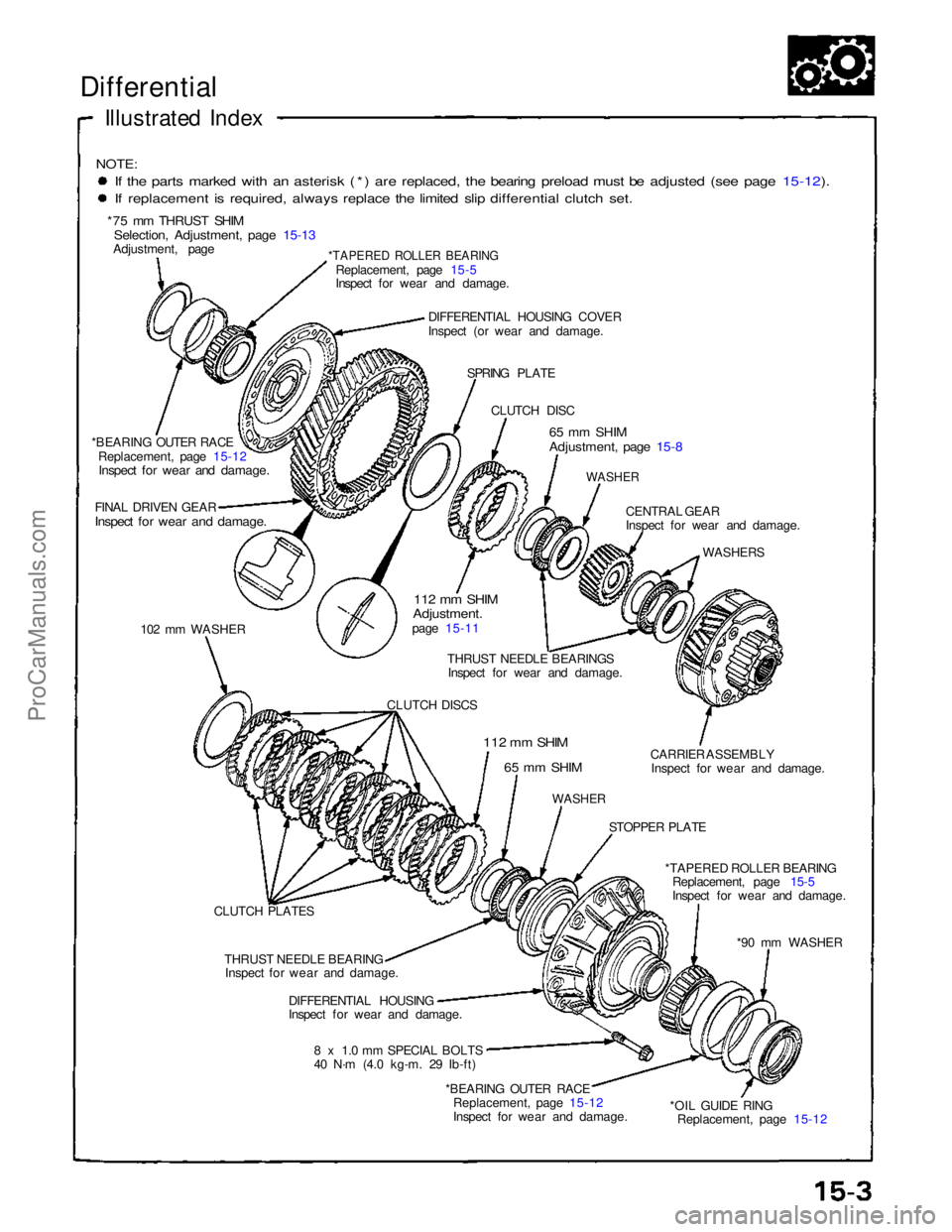

Differential

Illustrated Index

NOTE:
If the parts marked with an asterisk (*) are replaced, the bearing preload must be adjusted (see page 15-12).
If replacement is required, always replace the limited slip differential clutch set.

*75 mm THRUST SHIM
Selection, Adjustment, page 15-13

Adjustment, page
*TAPERED ROLLER BEARING

Replacement, page 15-5
Inspect for wear and damage.
DIFFERENTIAL HOUSING COVER
Inspect (or wear and damage.
SPRING PLATECLUTCH DISC
65 mm SHIM

Adjustment, page 15-8

*BEARING OUTER RACE
Replacement, page 15-12
Inspect for wear and damage.

FINAL DRIVEN GEAR

Inspect for wear and damage.
WASHER

112 mm SHIM

Adjustment.

page 15-11 CENTRAL GEAR
Inspect for wear and damage.
WASHERS
102 mm WASHER THRUST NEEDLE BEARINGSInspect for wear and damage.
CLUTCH DISCS

112 mm SHIM
65 mm SHIM

WASHER
CARRIER ASSEMBLY
Inspect for wear and damage.
STOPPER PLATE *TAPERED ROLLER BEARINGReplacement, page 15-5
Inspect for wear and damage.
*90 mm WASHER
CLUTCH PLATES
THRUST NEEDLE BEARINGInspect for wear and damage.
DIFFERENTIAL HOUSING
Inspect for wear and damage.
8 x 1.0 mm SPECIAL BOLTS
40 N·m (4.0 kg-m. 29 Ib-ft) *BEARING OUTER RACEReplacement, page 15-12
Inspect for wear and damage. *OIL GUIDE RING
Replacement, page 15-12ProCarManuals.com

Preset Torqu e
Inspectio n
On-Car:
1 . Bloc k th e fron t wheels .
2 . Shif t t o low gear .
3 . Lif t u p rea r wheels , an d plac e th e safet y stan d (Lif t
an d Suppor t Points , se e sectio n 1 ).
4 . Measur e prese t torqu e clockwis e usin g a torqu e
wrenc h a s shown .
Standard: 120-280 N-m (12-28 kg-m,
87-20 3 Ib-ft )
Servic e Limit : 6 0 N- m (6 kg-m , 4 3 Ib-ft )
TORQU E WRENC H
RIGH T REA R WHEE L
SAFETY STAN D
5. I f prese t torqu e is les s tha n th e servic e limit , replac e
th e limite d sli p differentia l clutc h set .
NOTE : Adjus t th e 6 5 m m (differentia l housin g cove r
side ) an d 11 2 m m (differentia l housin g cove r side )
shim s wheneve r th e clutc h se t i s replaced . Assembly
:
Plac e on e specia l too l i n a vise . Plac e th e lef t sid e
o f th e differentia l assembl y o n th e specia l tool , the n
prese t th e differentia l wit h 3- 5 rotations , counter -
clockwise .
DIFFERENTIA L
INSPECTIO N TOOL S
07MAJ-PR90100
2. Measur e prese t torqu e counterclockwis e usin g a tor -
qu e wrenc h a s shown.
Standard :
60-140 N- m (6-1 4 kg-m ,
43-10 1 Ib-ft )
Servic e Limit : 3 0 N- m (3 kg-m , 2 2 Ib-ft )
TORQU E WRENC H
DIFFERENTIA L
INSPECTIO N TOOL S
07MAJ-PR90100
3 . I f prese t torqu e is les s tha n th e servic e limit , replac e
th e limite d sli p differentia l clutc h set .
NOTE : Adjus t th e 6 5 m m an d 11 2 m m shim s
wheneve r th e clutc h se t i s replaced .
ProCarManuals.com

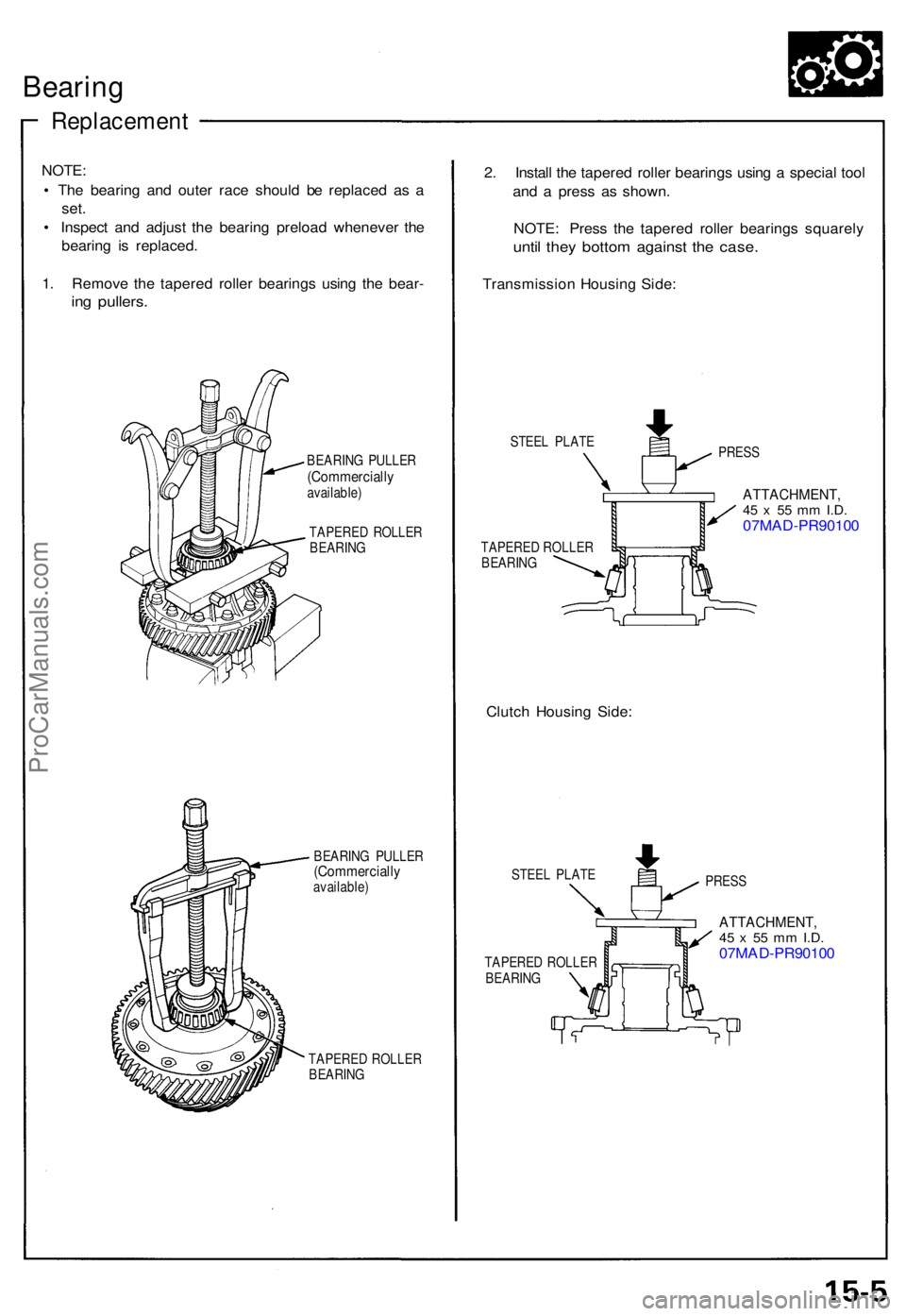

Bearing
Replacemen t
NOTE:
• Th e bearin g an d oute r rac e shoul d b e replace d a s a
set .
• Inspec t an d adjus t th e bearin g preloa d wheneve r th e
bearin g i s replaced .
1 . Remov e th e tapere d rolle r bearing s usin g th e bear -
ing pullers .
BEARIN G PULLE R(Commerciall yavailable)
TAPERE D ROLLE R
BEARIN G
BEARIN G PULLE R
(Commerciall yavailable)
TAPERE D ROLLE R
BEARIN G
2. Instal l th e tapere d rolle r bearing s usin g a specia l too l
an d a pres s a s shown .
NOTE : Pres s th e tapere d rolle r bearing s squarel y
until the y botto m agains t th e case .
Transmissio n Housin g Side :
STEE L PLAT E
PRESS
TAPERE D ROLLE R
BEARIN G
Clutch Housin g Side :
STEE L PLAT E
TAPERE D ROLLE R
BEARIN G
ATTACHMENT ,45 x 5 5 m m I.D .07MA D-PR9010 0
PRESS
ATTACHMENT ,45 x 5 5 m m I.D .07MA D-PR9010 0
ProCarManuals.com

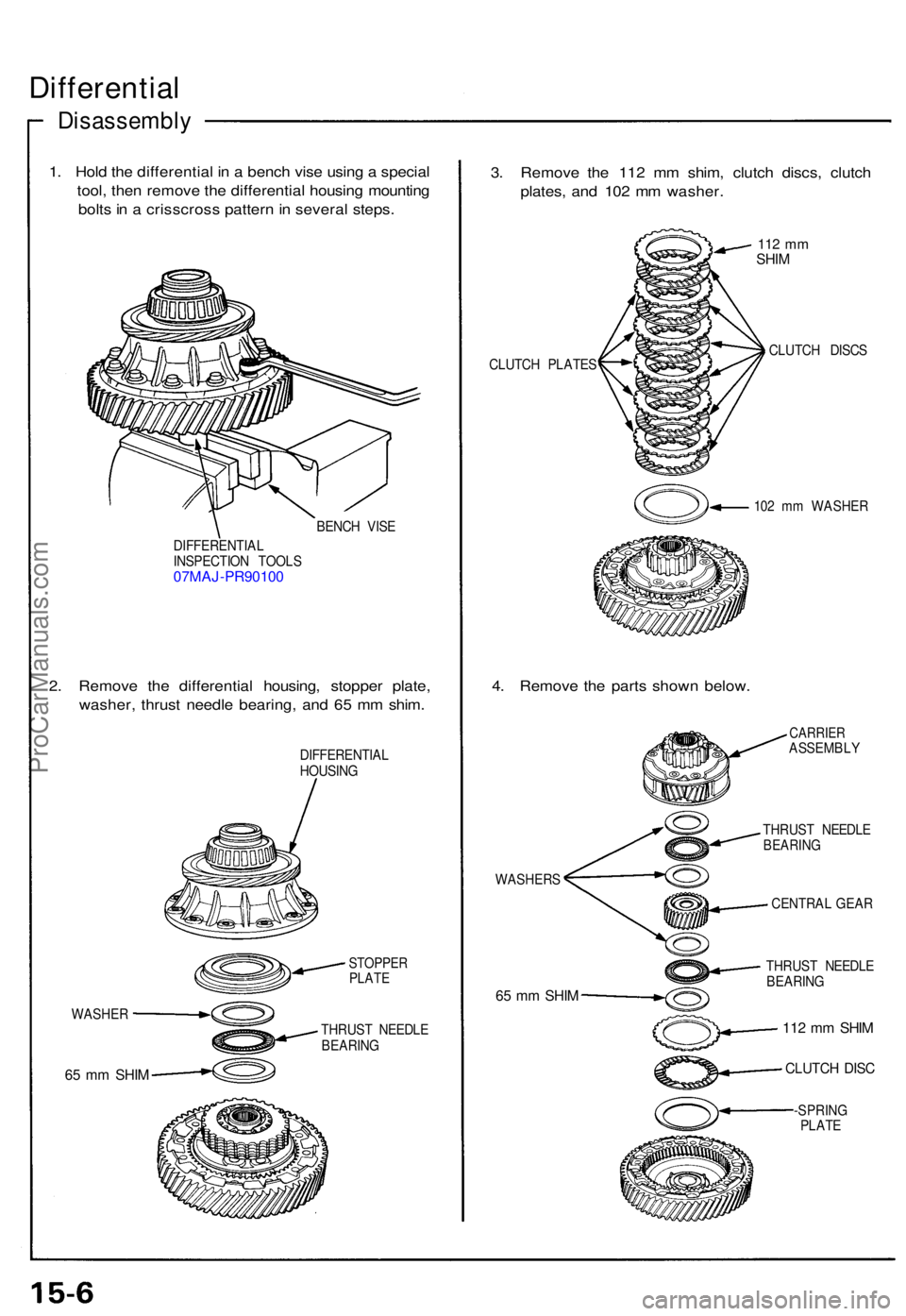

Differential
Disassembl y
1. Hol d th e differentia l i n a benc h vis e usin g a specia l
tool , the n remov e th e differentia l housin g mountin g
bolt s in a crisscros s patter n in severa l steps .
BENCH VIS E
DIFFERENTIA L
INSPECTIO N TOOL S
07MAJ-PR9010 0
2. Remov e th e differentia l housing , stoppe r plate ,
washer , thrus t needl e bearing , an d 6 5 m m shim .
DIFFERENTIA L
HOUSIN G
WASHE R
65 m m SHI M
STOPPE RPLATE
THRUS T NEEDL E
BEARIN G
3. Remov e th e 11 2 m m shim , clutc h discs , clutc h
plates , an d 10 2 m m washer .
112 m mSHI M
CLUTC H PLATE S CLUTC
H DISC S
10 2 m m WASHE R
4. Remov e th e part s show n below .
WASHER S
65 m m SHI M
CARRIE RASSEMBL Y
THRUS T NEEDL E
BEARIN G
CENTRA L GEA R
THRUS T NEEDL E
BEARIN G
112 m m SHI M
CLUTC H DIS C
-SPRIN GPLATE
