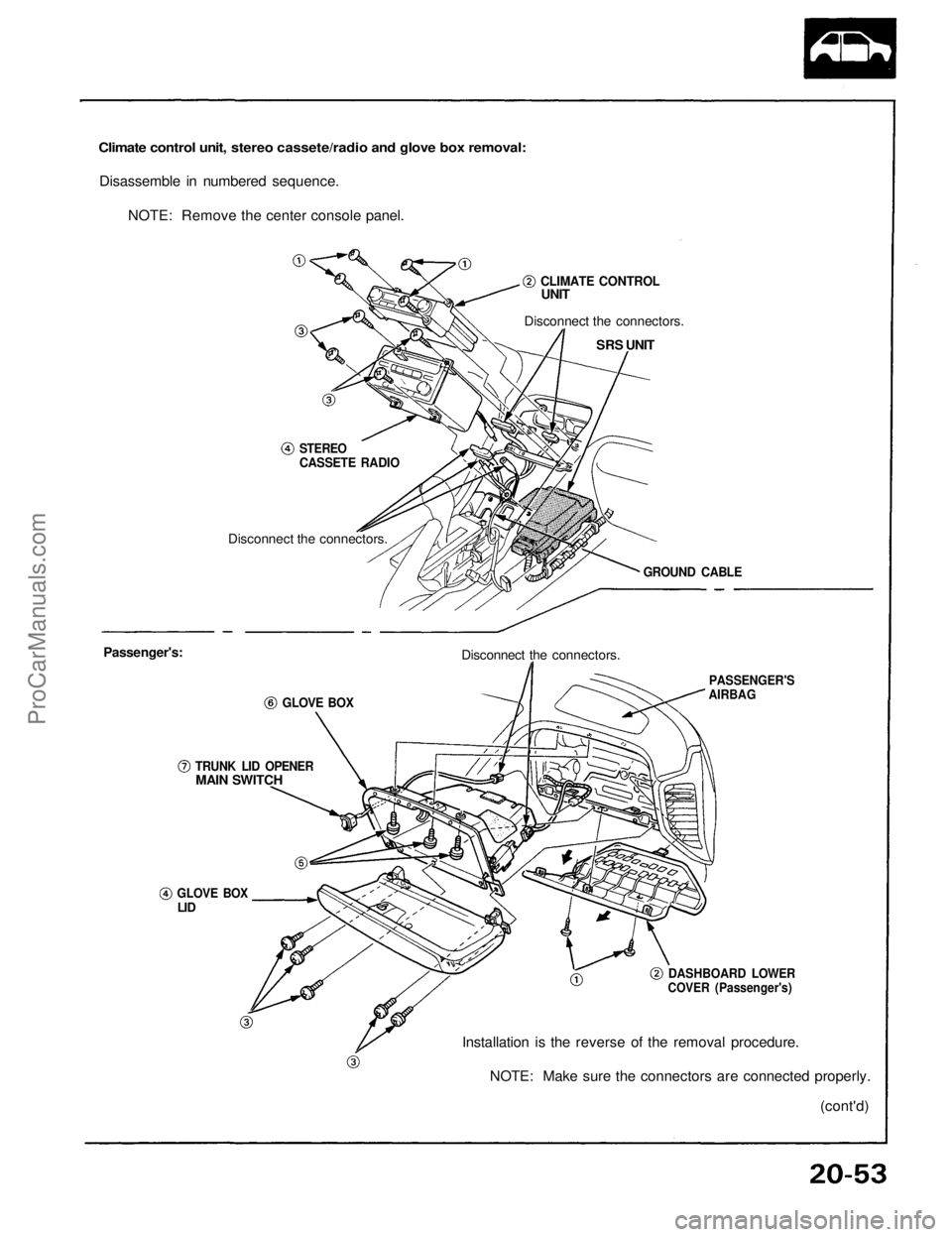

Page 1377 of 1640
Climate control unit, stereo cassete/radio and glove box removal:
Disassemble in numbered sequence.
NOTE: Remove the center console panel.
CLIMATE CONTROL
UNIT
Disconnect the connectors.
SRS UNIT
STEREO
CASSETE RADIO
Disconnect the connectors.
GROUND CABLE
Passenger's:
GLOVE BOX
Disconnect the connectors.
PASSENGER'S
AIRBAG
DASHBOARD LOWER
COVER (Passenger's)
TRUNK LID OPENER
MAIN SWITCH
GLOVE BOX
LID
Installation is the reverse of the removal procedure.
NOTE: Make sure the connectors are connected properly.
(cont'd)ProCarManuals.com

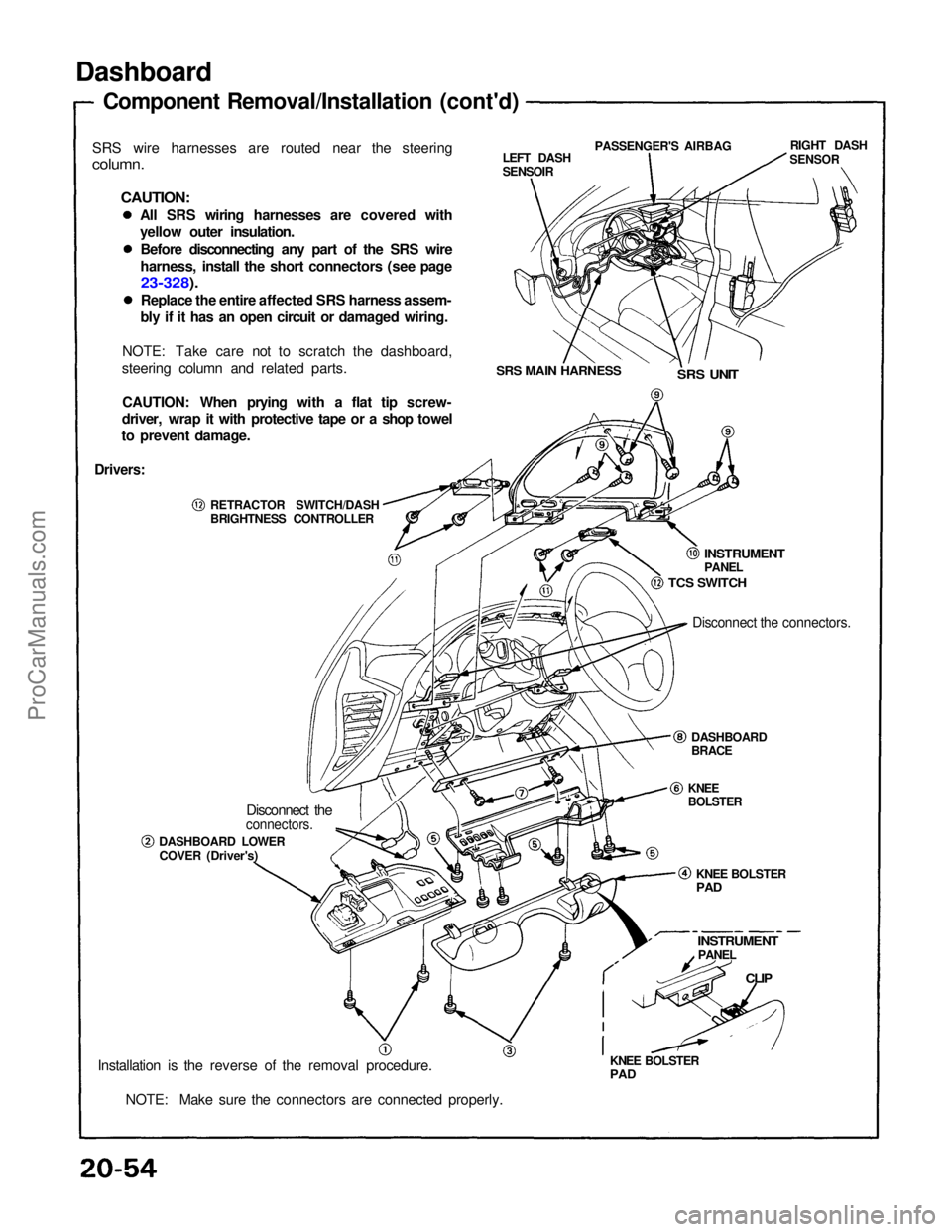

Page 1378 of 1640

Dashboard
Component Removal/Installation (cont'd)
SRS wire harnesses are routed near the steering
column.
CAUTION:
All SRS wiring harnesses are covered with
yellow outer insulation.Before disconnecting any part of the SRS wire
harness, install the short connectors (see page
23-328).
Replace the entire affected SRS harness assem-
bly if it has an open circuit or damaged wiring.
NOTE: Take care not to scratch the dashboard,
steering column and related parts.
CAUTION: When prying with a flat tip screw-
driver, wrap it with protective tape or a shop towel
to prevent damage. LEFT DASH
SENSOIR
PASSENGER'S AIRBAG
RIGHT DASH
SENSOR
SRS MAIN HARNESS
SRS UNIT
Drivers:
RETRACTOR SWITCH/DASH
BRIGHTNESS CONTROLLER
INSTRUMENT
PANEL
TCS SWITCH
Disconnect the connectors.
DASHBOARD
BRACE
KNEE
BOLSTER
KNEE BOLSTER
PAD
INSTRUMENT
PANEL
CLIP
KNEE BOLSTER
PAD
Disconnect the
connectors.
DASHBOARD LOWER COVER (Driver's)
Installation is the reverse of the removal procedure. NOTE: Make sure the connectors are connected properly.ProCarManuals.com
Page 1379 of 1640

Replacement
SRS wire harnesses are routed near the dashboard and
steering column.
CAUTION:All SRS wiring harnesses are covered with
yellow outer insulation.Before disconnecting any part of the SRS wire
harness, install the short connectors (see page
23-328).
Replace the entire affected SRS harness assem-
bly if it has an open circuit or damaged wiring.
LEFT DASH
SENSOR
PASSENGER'S
AIRBAG
RIGHT DASH
SENSOR
SRS MAIN
HARNESS
SRS UNIT
1. To remove the dashboard, first remove the: Seats (See page 20-39('93-'96))
Dashboard lower cover (Driver's) (See page
20-54))
Knee bolster and pad (See page 20-54)
Dashboard brace (See page 20-54)
Center armrest (See page 20-49)
Clock, center air vent and console panel (See
pages 20-50, 51, 52)
Climate control unit and stereo cassette/radio
(See page 20-53)Dashboard lower cover (Passenger's) (See page
20-53)
Glove box lid and glove box (See page 20-53)
2. Lower the steering column (see section 17).
To avoid accidental deployment and NOTE:
Remove the access panel, then remove the
short connector (RED). Disconnect the connec-
tor between the airbag and cable reel, then con- nect the short connector (RED) to the airbag
connector.
AIRBAG
CONNECTOR
CABLE REEL
CONNECTOR
ACCESS PANEL SHORT CONNECTOR
(RED)
Connect the special tool to the cable reel
connector.
CABLE REEL
CONNECTOR
SHORT
CONNECTOR
(RED)
SRS
SHORT CONNECTOR
07MAZ–SP00200
(cont'd)
possible injury always install the short connector
on the airbag connector when the SRS wire
harness is disconnected.ProCarManuals.com

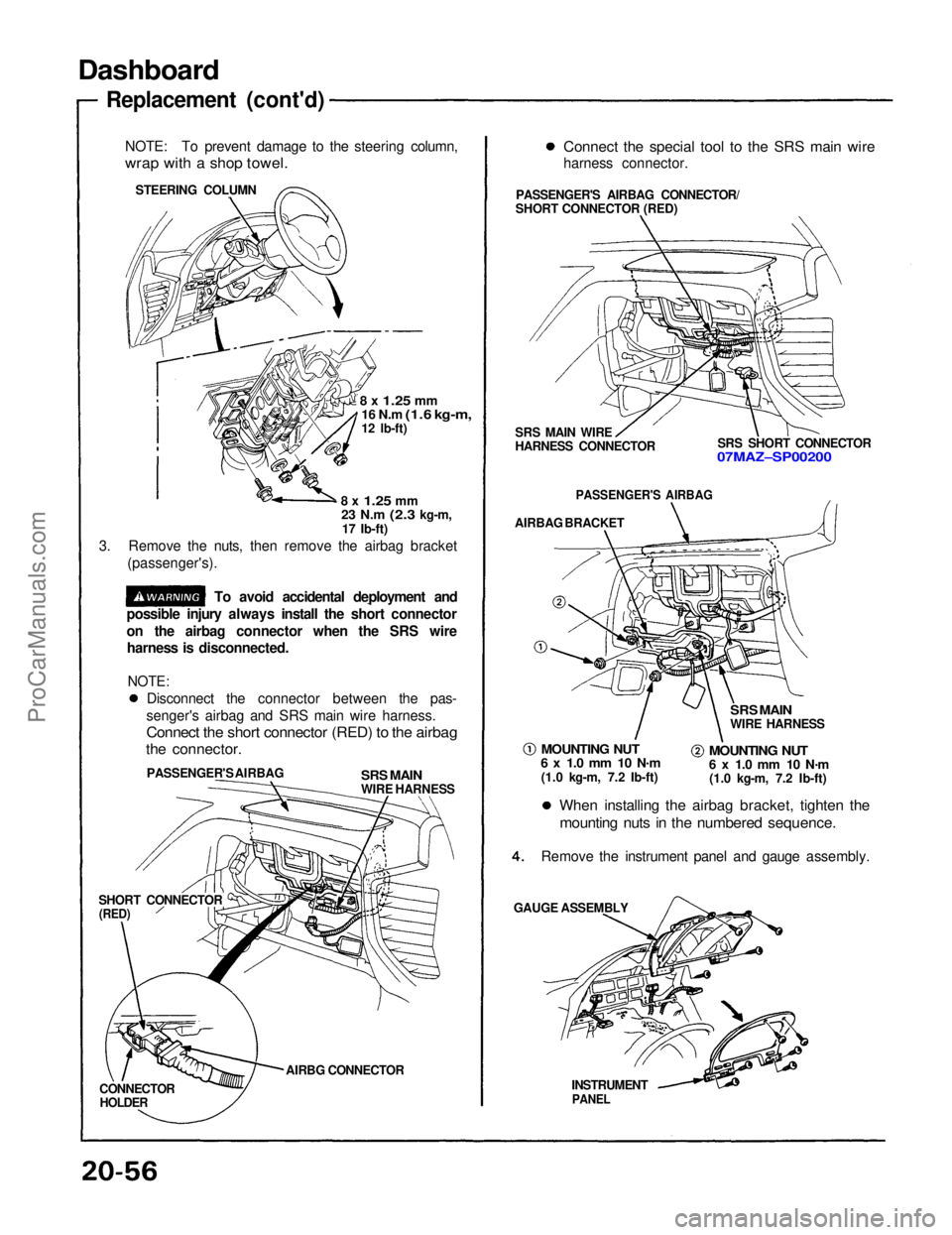

Page 1380 of 1640

Dashboard
Replacement (cont'd)
NOTE: To prevent damage to the steering column,
wrap with a shop towel.
STEERING COLUMN
8 x
1.25
mm
16 N.m
(1.6 kg-m,
12 lb-ft)
8 x
1.25
mm
23 N.m
(2.3
kg-m,
17 Ib-ft)
3. Remove the nuts, then remove the airbag bracket (passenger's).
To avoid accidental deployment and
NOTE:
Disconnect the connector between the pas-
senger's airbag and SRS main wire harness.
Connect the short connector (RED) to the airbag
the connector.
PASSENGER'S AIRBAG
SRS MAIN
WIRE HARNESS
SHORT CONNECTOR
(RED)
AIRBG CONNECTOR
Connect the special tool to the SRS main wire
harness connector.
PASSENGER'S AIRBAG CONNECTOR/
SHORT CONNECTOR (RED)
SRS MAIN WIRE
HARNESS CONNECTOR
SRS SHORT CONNECTOR
07MAZ–SP00200
PASSENGER'S AIRBAG
AIRBAG BRACKET
SRS MAIN
WIRE HARNESS
MOUNTING NUT
6 x 1.0 mm 10 N .
m
(1.0 kg-m, 7.2 Ib-ft)
MOUNTING NUT
6 x 1.0 mm 10 N
.
m
(1.0 kg-m, 7.2 Ib-ft)
When installing the airbag bracket, tighten the
mounting nuts in the numbered sequence.
Remove the instrument panel and gauge assembly.
GAUGE ASSEMBLY
INSTRUMENT
PANEL
possible injury always install the short connector
on the airbag connector when the SRS wire
harness is disconnected.
CONNECTOR
HOLDERProCarManuals.com

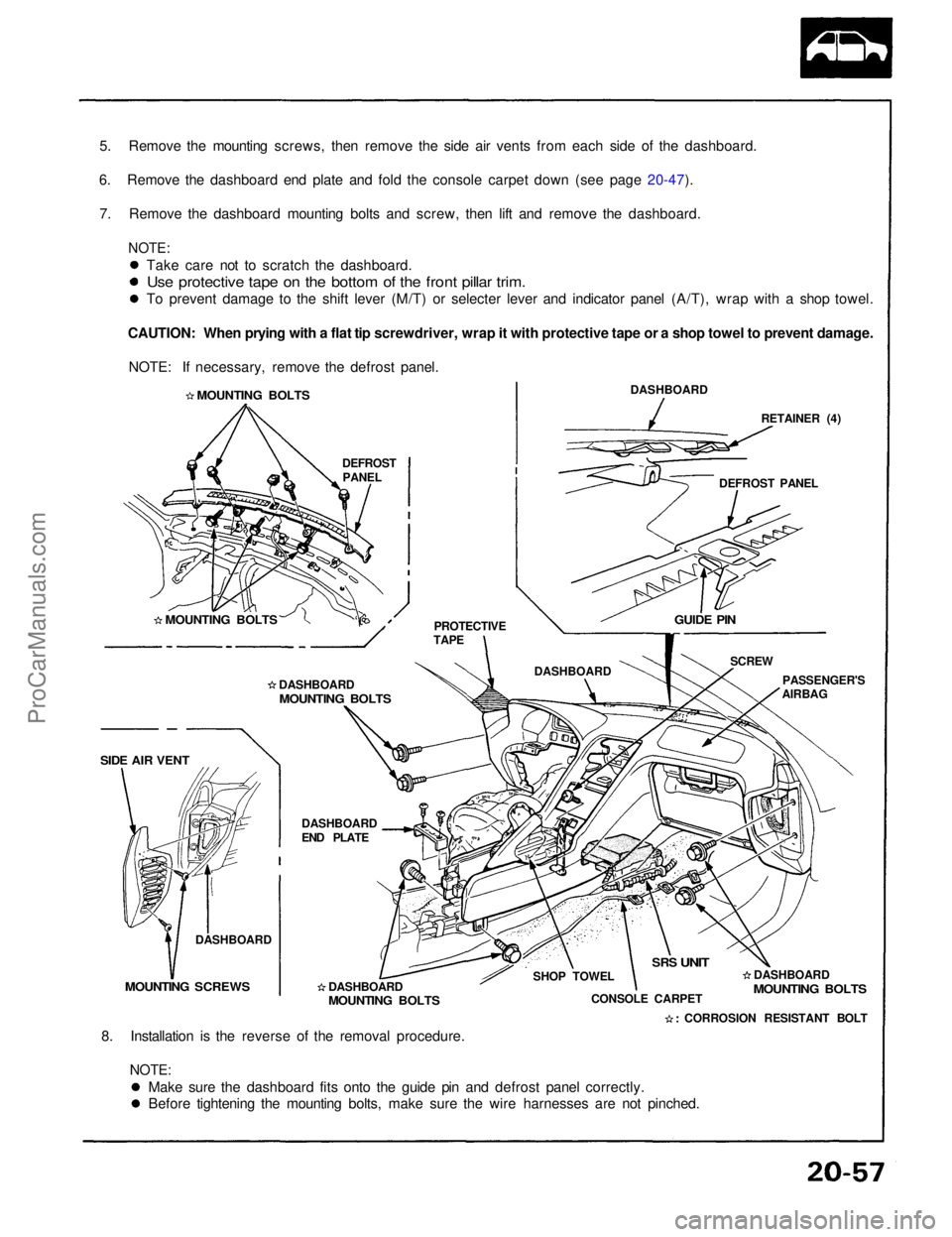

Page 1381 of 1640

5. Remove the mounting screws, then remove the side air vents from each side of the dashboard.
6. Remove the dashboard end plate and fold the console carpet down (see page 20-47). 7. Remove the dashboard mounting bolts and screw, then lift and remove the dashboard.
NOTE:
Take care not to scratch the dashboard.
Use protective tape on the bottom of the front pillar trim.
To prevent damage to the shift lever (M/T) or selecter lever and indicator panel (A/T), wrap with a shop towel.
CAUTION: When prying with a flat tip screwdriver, wrap it with protective tape or a shop towel to prevent damage. NOTE: If necessary, remove the defrost panel.
MOUNTING BOLTS
DEFROSTPANEL
MOUNTING BOLTS
DASHBOARD
RETAINER (4)
DEFROST PANEL
GUIDE PIN
PROTECTIVE
TAPE
DASHBOARD SCREW
PASSENGER'S
AIRBAG
DASHBOARD
MOUNTING BOLTS
SRS
UNIT
SHOP TOWEL
CONSOLE CARPET CORROSION RESISTANT BOLT
DASHBOARD
MOUNTING BOLTS
DASHBOARD
END PLATE
DASHBOARD
MOUNTING BOLTS
SIDE AIR VENT
DASHBOARD
MOUNTING SCREWS
8. Installation is the reverse of the removal procedure.
NOTE:
Make sure the dashboard fits onto the guide pin and defrost panel correctly.
Before tightening the mounting bolts, make sure the wire harnesses are not pinched.ProCarManuals.com

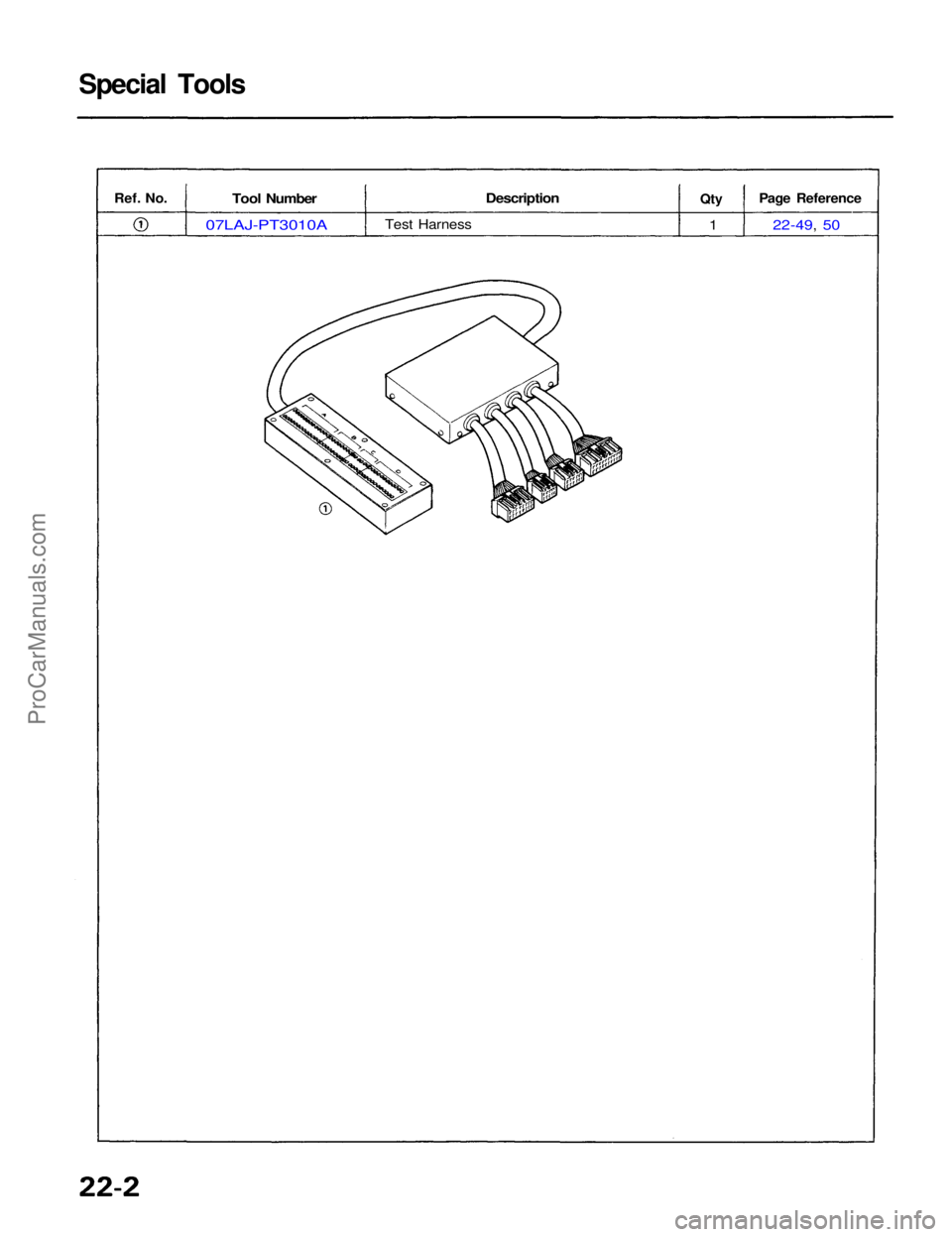

Page 1382 of 1640
Special Tools
Ref. No.
Tool Number
Description
Qty
Page Reference
07LAJ-PT3010A
Test Harness
1
22-49, 50ProCarManuals.com

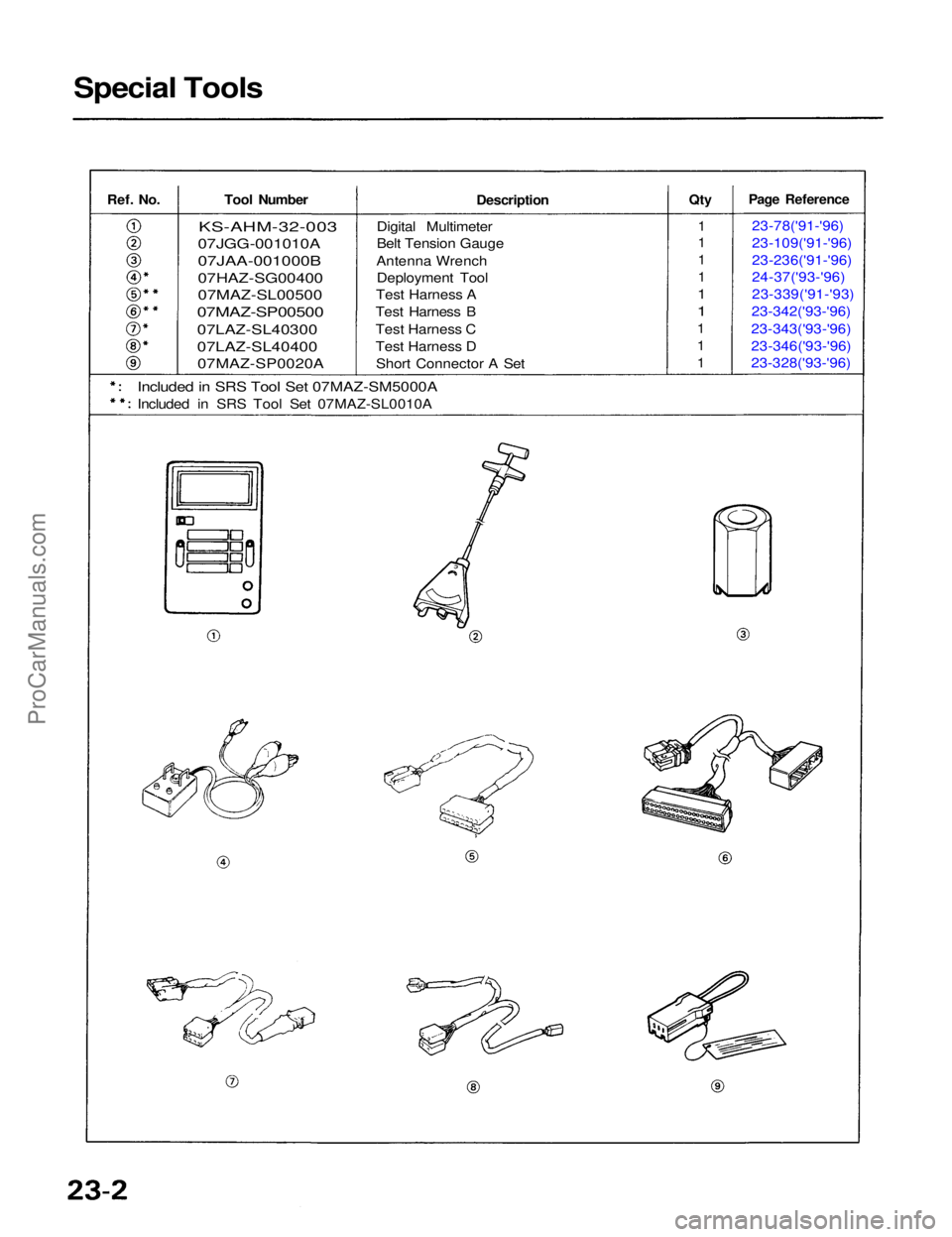

Page 1383 of 1640
Special Tools
Ref. No.
Tool Number
Description
KS-AHM-32-003
07JGG-001010A
07JAA-001000B
07HAZ-SG00400
07MAZ-SL00500
07MAZ-SP00500
07LAZ-SL40300
07LAZ-SL40400
07MAZ-SP0020A
Digital Multimeter
Belt Tension Gauge
Antenna Wrench Deployment Tool
Test Harness A
Test Harness B
Test Harness C
Test Harness D Short Connector A Set
Included in SRS Tool Set 07MAZ-SM5000A
Included in SRS Tool Set 07MAZ-SL0010A
1
1
1
1
1
1
1
1
1
23-78('91-'96)
23-109('91-'96)
23-236('91-'96)
24-37('93-'96)
23-339('91-'93)
23-342('93-'96)
23-343('93-'96)
23-346('93-'96)
23-328('93-'96)
Qty
Page ReferenceProCarManuals.com
Page 1384 of 1640
Relay and Control Unit Locations
Dashboard
CLIMATE CONTROL UNIT
TURN SIGNAL/HAZARD
RELAY
UNDER-DASH FUSE BOX
INTEGRATED
CONTROL UNIT
DASHBOARD
LOWER COVER
STARTER CUT RELAY
Wire colors: BLK/WHT
BLK/WHT, BLU/GRN,
and BLK/BLUProCarManuals.com
