1991 ACURA NSX automatic transmission

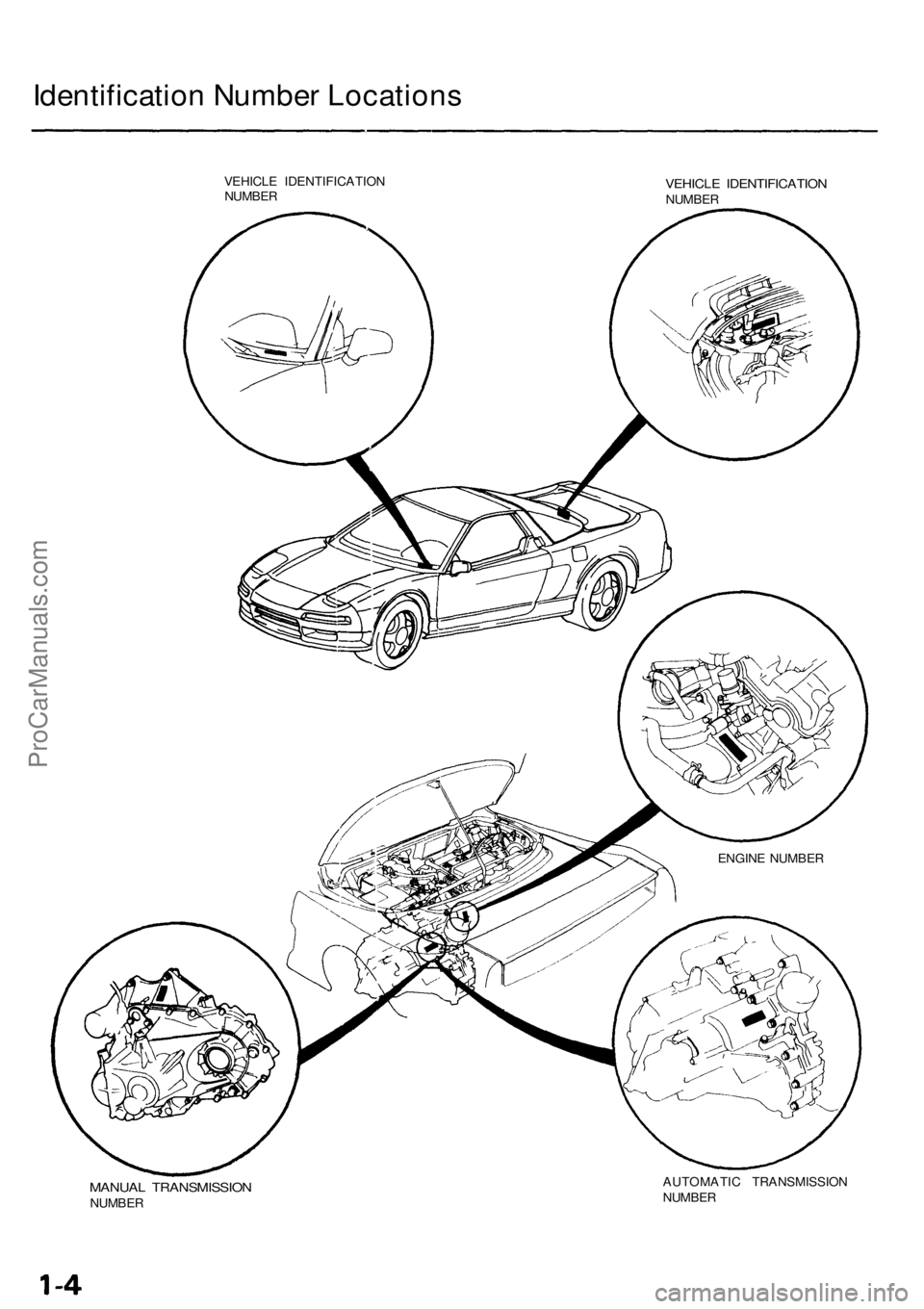

Identification Number Locations

VEHICLE IDENTIFICATION

NUMBER
VEHICLE IDENTIFICATION

NUMBER

MANUAL TRANSMISSION

NUMBER
AUTOMATIC TRANSMISSION

NUMBER
ENGINE NUMBERProCarManuals.com

System Description

Major Components

The Electrical Power Steering system is composed of the following major components:

• A steering gearbox that converts rotary operation of the steering wheel into transverse operation via a rack and pinion

mechanism. Steering sensors and an actuating motor are incorporated.

• A control unit that computes the optimum amount of power assistance, taking into account steering torque, steering

speed, and vehicle speed. Self-diagnosis functions are included.

• A power unit that drives the motor according to the signals from the EPS control unit. A current sensor is built in to

give feedback information to the EPS control unit. Two relays shut off the power if a problem in the system occurs.

• The countershaft speed sensor on the automatic transmission or the differential speed sensor on the manual transmis-

sion sends a vehicle speed signal to the EPS control unit. Also the speedometer sends a vehicle speed signal to the EPS

control unit. The two signals are used as a double-check.ProCarManuals.com

Steering angle sensor system check

1. Start the engine,
2. Push the TCS switch three times within three seconds.
NOTE: Always maintain the same number of rota-
tions.
3. Turn the steering wheel slowly from left to right more than 1.5 turns.

NOTE:
Start checking after the steering wheel moves at
least 1.5 turns from right to left.
Turn the steering wheel slowly, no faster than
one turn in four seconds.
4. Push the TCS switch twice within three seconds. NOTE: Always maintain the same number of rota-
tions.
5. Return the steering wheel to the left side slowly, and check the number of times the TCS indicator light
flashes after the wheel has moved approximately
one turn.

NOTE:

Start the check from the beginning when the steer-ing wheel moves at least one turn from left to
right, Turn the steering wheel slowly, no faster than one
turn in four seconds.
Standard number of times the TCS indicator light

flashes:
Manual Transmission: 5 times
Automatic Transmission: 2 times
6. If there is an abnormality, check the troubleshooting flowchart (see page 19-98('91-'93)('94-'96)
Selection of the adjusting shims for the steering angle

sensor air gap adjustment

NOTE:

The adjustment of the air gap between the steeringshaft and the steering angle sensor should be carried
out in order to obtain adequate sensor output.
The adjusting shim reference number is stamped on
the steering column. Select the adjusting shims that match the reference number using the table below.
Reference Number Locations

REFERENCE

NUMBER

STEERING

COLUMN
Selection of The Adjusting Shim
Adjusting Shim Parts Number

A:53395–SL0–A01
B: 53396–SL0–A01

C: 53397–SL0–A01
D: 53398–SL0–A01
Thickness

0.1 mm

0.2 mm

0.4 mm

0.7 mm
Color

Yellow
Black

Green

White

Reference Number

1

2

3

4

5

6

7

8
Shim (P/N): (Thickness)
Not used: (0 mm)

A:
(0,1
mm)
B:
(0.2
mm)

A + B:
(0.3
mm)
C:
(0.4
mm)

A + C:
(0.5
mm)

B + C:
(0.6
mm)
D:
(0.7
mm)ProCarManuals.com

G551 '93-'96 Models )
G551 '93-'96 Models)
Back-up Lights

Test

Manual Transmission:

1
.
If only one back-up right does not go on, check that
bul
b
in the taillight.
2
.
If neither back-up light goes on, check the No. 5 (15

A) fuse in the under-dash fuse box.

3
.
If the fuse and bulbs are OK, disconnect the connec- to

r
from the back-up light switch on the transmis-
sio
n
housing.

BACK-UP
LJGHT SWITCH
25 N·m (2.5 kg-m, 18 Ib-ft)
This washer must
always be replaced
for the switch to
function properly and to prevent oil

leaks.

B(GRN/BLK)
A(YEL)
TRANSMISSION HOUSING

4. Check for continuity between the A (YEL) and B (GRN/BLK) wires with the switch installed. There
should be continuity with the shift lever in reverse.

If there is no continuity, replace the switch.

If there is continuity, but the back-up lights do not
go on, check for:
— Poor ground (G501 '91-'92 Models or
— An open in the YEL or GRN/BLK wire. 4. Check for continuity between the No. 9 and No. 10 terminals. Move the lever back and forth at the

position without touching the push button, and

check for continuity within the range of free play.
If there is no continuity within the range of freeplay, adjust the position of the A/T gear position
switch (see page 23-160) ('93-'96) ('91-'92).
ff there is continuity, but the back-up tights do not go on, check for:
— Poor ground (G501 '91-'92 Models or
— An open in the YEL or GRN/BLK wire.
A/T GEAR POSITION

SWITCH

View from

wire side

Automatic Transmission:

1
.
If only one back-up light does not go on, check that
bul
b
in the taillight.
2
.
If neither back-up light goes on. check the No. 5 (15

A) fuse in the under-dash fuse box.

3
.
If the fuse and bulbs are OK, disconnect the 12-P
connector from the A/T gear position switch (back-
u
p
light switch).
ProCarManuals.com

Cruise Control

Description

The cruise control system uses mechanically and electri-

cally operated devices to maintain vehicle speed at a

setting selected by the driver.

The ECM receives command signals from the cruise con-

trol main switch and the cruise control set/resume switch.

It receives information about operating conditions from

the brake switch, vehicle speed sensor (VSS), the clutch

switch (with manual transmission), or the A/T gear posi-

tion switch (with automatic transmission). The ECM

sends operational signals to the devices that regulate the

throttle position. The throttle position maintains the

selected vehicle speed. Essentially, the ECM compares

the actual speed of the vehicle to the selected speed.

Then, it uses the result of that comparison to open or

close the throttle.

The brake switch releases the system's control of the

throttle at the instant the driver depresses the brake

pedal. The switch sends an electronic signal to the ECM

when the brake pedal is depressed; the ECM responds

by allowing the throttle to close. The clutch switch (man-

ual transmission) or the A/T gear position switch (auto-

matic transmission) sends a disengage signal to the

ECM that also allows the throttle to close.
Operation:

The cruise control system will set and automatically

maintain any speed above 25 mph (45 km/h). To set,

make sure that the main switch is in the "ON" position.

After reaching the desired speed, press the set switch.

The ECM will receive a set signal and, in turn, will actu-

ate the throttle valve control motor. When the set switch

is depressed and the cruise control system is on, the

"cruise control" ON indicator in the gauge assembly will

light up. You can cancel the cruise control system by

pushing the main switch to "OFF". This erases the set

speed from memory. If the system is disengaged tem-

porarily by the brake switch, clutch switch, or A/T gear

position switch and vehicle speed is still above 25 mph,

press the resume switch. With the resume switch

depressed and the set memory retained, the vehicle

automatically returns to the previous set speed.

For gradual acceleration without depressing the acceler-

ator pedal, push the resume switch down and hold it

there until the desired speed is reached. This will send

an acceleration signal to the ECM. When the switch is

released, the system will be reprogrammed for the new

speed. To slow down, depress the set switch. This will

send a deceleration signal to the ECM causing the car to

coast until the desired speed is reached. When the

desired speed is reached, release the set switch. This

will reprogram the system for the new speed.ProCarManuals.com

CANADA Model

Vehicle Identification Number
JH4NA115*PT800001

Engine Number
C30A1-3700001
Transmission Number
Transmission Type J4A4: 5-speed Manual TransmissionMR9A: 4-speed Automatic Transmission
Serial Number
J4A4: 2000001
MR9A: 2000001

Paint Code
Paint Code
NH-547
NH-552M

NH-565
R-77
Color
Berlina Black
Sebring Silver Metallic
Grand Prix White
Formula Red
Vehicle Identification Number and Federal Motor Vehicle
Safety Standard Certification
Paint Code
COLOR
R-77
J4A4-2000001ProCarManuals.com

Lubrication Points

For the details of lubrication points and types of lubricants to be applied, refer to the Illustrated Index and various workprocedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.

No.

LUBRICATION POINTS

LUBRICANT

Engine
Transmission

Manual

Automatic

Brake Line (including anti-lock brake system)
Clutch Line Shift lever pivots (M/T)Release fork (M/T)Steering gearbox (Manual)
Steering boots Steering column bushings
Steering ball jointsSelect lever (A/T)
Pedal linkage Intermediate shaft
Brake master power pushrod
Trunk hinges Door hinges upper and lower
Door opening detents
Fuel filler lid
Front hood hinges and latch
Clutch master cylinder pushrod
Tilt lever

Parking brake cable end
Throttle cable end Rear hatch latchRetractable headlight pin contact area
Shift cable end and select cable end
Caliper Piston seal, Dust seal, Caliper pin, Piston
Recommended Engine Oil
API Service Grade: SG Fuel Efficient Oil:
Identified by the words, "Energy Conserving II" API Service Grade: SG
SAE viscosity: 10 W—30 recommended
Fuel Efficient Oil:
Identified by the words, "Energy Conserving II"
SAE Viscosity: See chart below.
API Service Grade: SF or SG SAE Viscosity: See chart below.
Honda Premium Formula Automatic Transmission
Fluid or an equivalent DEXRON® II type automatic

transmission fluid

Brake fluid DOT3 or DOT4
Brake fluid DOT3 or DOT4
Silicone grease with molybdenum disulfide
Multi-purpose grease
Silicone grease Recommended Manual Transmission Oil
API Service Grade: SF or SG
transmission oil viscosity forambient temperature ranges
Engine oil viscosity for
ambient temperature rangesProCarManuals.com

Cylinder Head

Camshaft

The camshaft is a cast piece. By improving dimensional accuracy, it became possible to achieve minimum space be-

tween cams, thus allowing a more compact cylinder head. Each camshaft is supported on four bearing journals with forc-

ed lubrication. On the right end of each camshaft is a driven pulley. The exhaust and intake cycles require a total of 36

cam lobes to open and close the valves.

FRONT BANK

No. 6 No. 5 No. 4

S M P S M P S M P

P M S P M S P M S
EXHAUST INTAKE

S M P S M P S M P

P M S P M S P M S
REAR BANK

No. 3 No. 2 No. 1

No. 3 No. 2 No. 1
No. 6 No. 5 No. 4
INTAKE EXHAUST

P: PRIMARY

M:MID

S: SECONDARY

: Intake valve open

: Exhaust valve open
Manual Transmission

Automatic Transmission

Low-speed valve timing
