2013 TOYOTA HILUX Owners Manual (in English)

289 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Playback
• To play an MP3 file with steady sound quality, we recommend a fixed
bit rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for
MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trade-
marks of Microsoft Corporation in the U.S.A. and other countries.
NOTICE
CDs and adapters that cannot be used
P. 280
CD player precautions
P. 281

290
3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Operating an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers.
Connecting an iPod
Open the cover and connect
an iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
Press the “USB•AUX” button.
STEP1
STEP2

291 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Control panel
Vol u m e Power
Selecting
a song,
fast-forwarding
or reversing
iPod menu mode Shuffle playback
PlaybackDisplaying text message
iPod menu/Song
selection or
displays listsRepeat play
Displays lists
Back button
Playback

292 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)

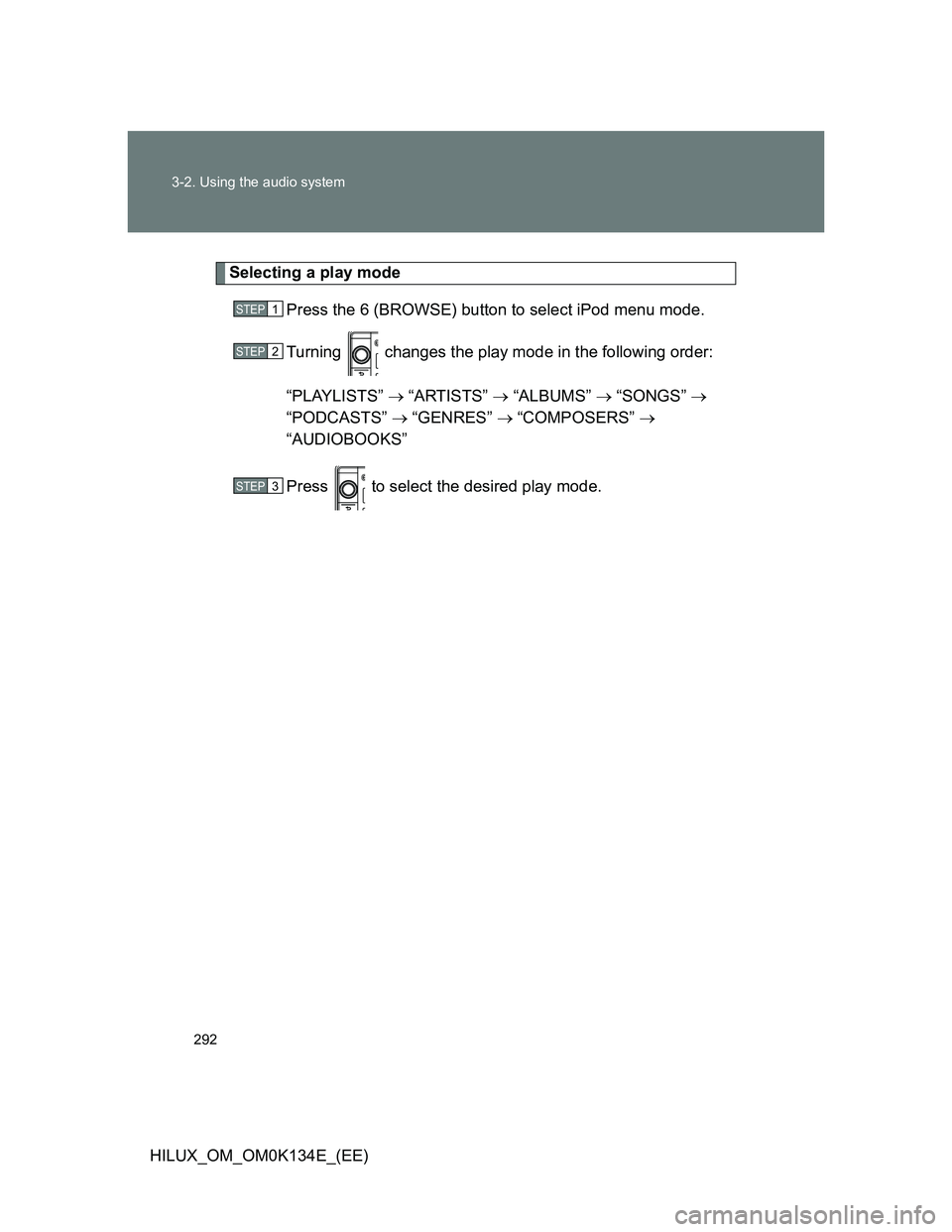

Selecting a play mode
Press the 6 (BROWSE) button to select iPod menu mode.
Turning changes the play mode in the following order:
“PLAYLISTS”  “ARTISTS”  “ALBUMS”  “SONGS” 
“PODCASTS”  “GENRES”  “COMPOSERS” 
“AUDIOBOOKS”
Press to select the desired play mode.
STEP1
STEP2
STEP3

293 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)Play mode list
Selecting a list
Turn to display the first selection list.
Press to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired song name.
To return to the previous selection list, press .
Play modeFirst
selectionSecond
selectionThird
selectionFourth
selection
“PLAYLISTS”Playlists
selectSongs select--
“ARTISTS”Artists selectAlbums selectSongs select-
“ALBUMS”Albums selectSongs select--
“SONGS”Songs select---
“PODCASTS”Podcasts
selectEpisodes
select--
“GENRES”Genre selectArtists selectAlbums selectSongs select
“COMPOSERS”Composers
selectAlbums selectSongs select-
“AUDIOBOOKS”Audiobooks
selectChapters
select--
STEP1
STEP2
STEP3

294 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Selecting songs
Turn , or press “” or “” on the “SEEK/TRACK” button to select
the desired song.
Selecting a song from the song list
Press the “LIST” button.
The song list will be displayed.
Turn to select a song.
Press to play the song.
To return to the previous display, press .
Playing songs
To play a song, press the 3 (PLAY) button.
Fast-forwarding and rewinding songs
To fast-forward or rewind, press and hold “” or “” on the “SEEK/
TRACK” button.
STEP1
STEP2
STEP3

295 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Shuffle playback
Pressing the 2 (RDM) button changes modes in the following order:
Track shuffle  Album shuffle  Off.
Repeat play
Press the 1 (RPT) button.
To cancel, press the 1 (RPT) button again.
Switching the display
Press the “TEXT” button.
Each time the button is pressed, the display changes in the following
order: Track no./Elapsed time  Album title  Track title  Artist name
Adjusting sound quality and volume balance
Press the “SETUP” button to enter iPod menu mode.
Turning changes sound modes. (P. 309)
STEP1
STEP2

296 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)

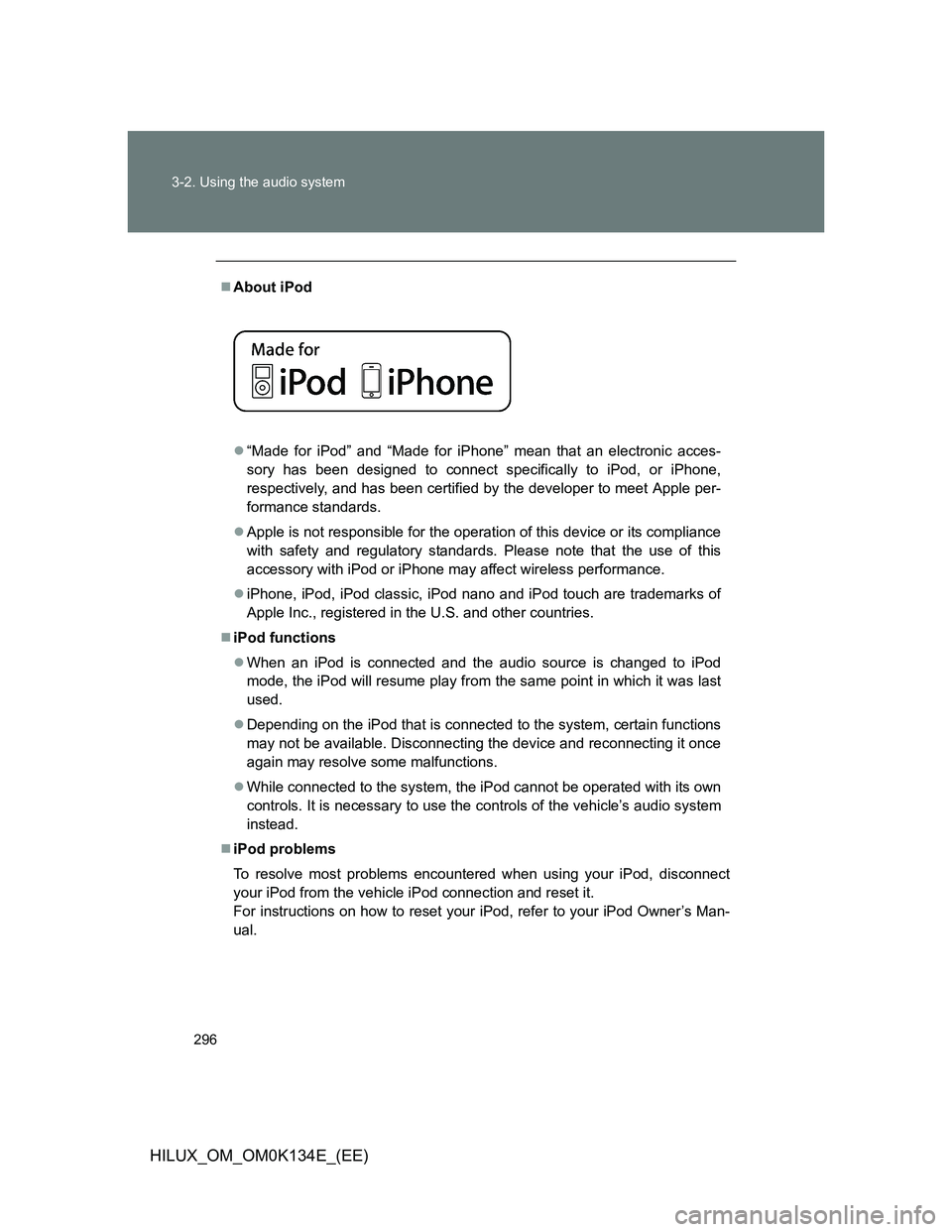

About iPod
“Made for iPod” and “Made for iPhone” mean that an electronic acces-
sory has been designed to connect specifically to iPod, or iPhone,
respectively, and has been certified by the developer to meet Apple per-
formance standards.
Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this
accessory with iPod or iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
iPod functions
When an iPod is connected and the audio source is changed to iPod
mode, the iPod will resume play from the same point in which it was last
used.
Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
