2013 TOYOTA HILUX Owners Manual (in English)

201
2-3. Operating the lights and wipers
2
When driving
HILUX_OM_OM0K134E_(EE)
Headlight cleaner switch
: If equipped
The headlight cleaners can be operated when
The engine switch is in the “ON” position and the headlight switch is turned
on.
Windshield washer linked operation
When the windshield washer is operated with the engine switch in the “ON”
position and the headlights on, the headlight cleaners will operate once.
(P. 199)
NOTICE
When the washer fluid tank is empty
Do not press the switch continually as the washer fluid pump may overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

202
HILUX_OM_OM0K134E_(EE)
2-4. Using other driving systems
Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicator
Cruise control switch
Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
The vehicle speed at the
moment the lever is released
becomes the set speed.
STEP1
STEP2

203 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)

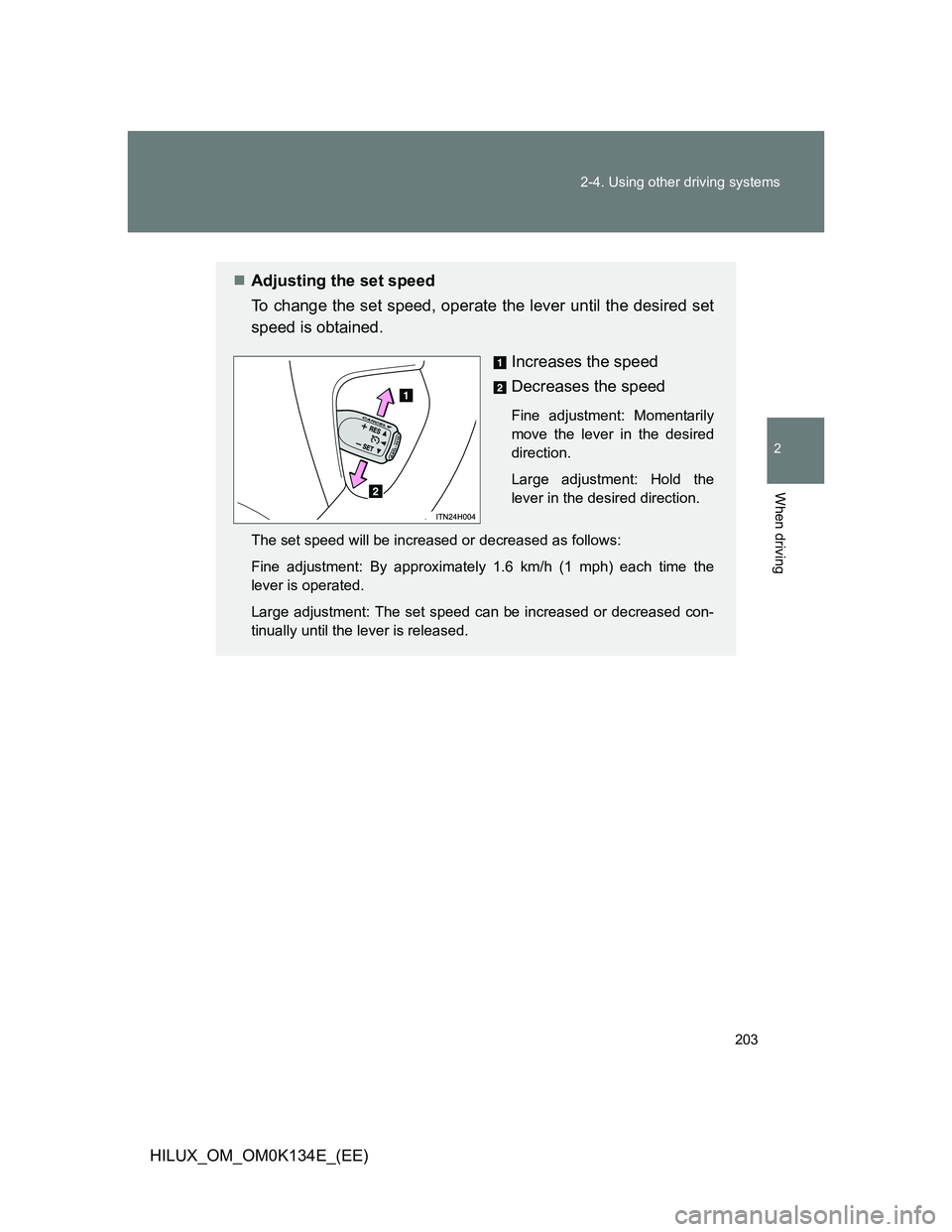

Adjusting the set speed
To change the set speed, operate the lever until the desired set
speed is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1.6 km/h (1 mph) each time the
lever is operated.
Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.

204 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)

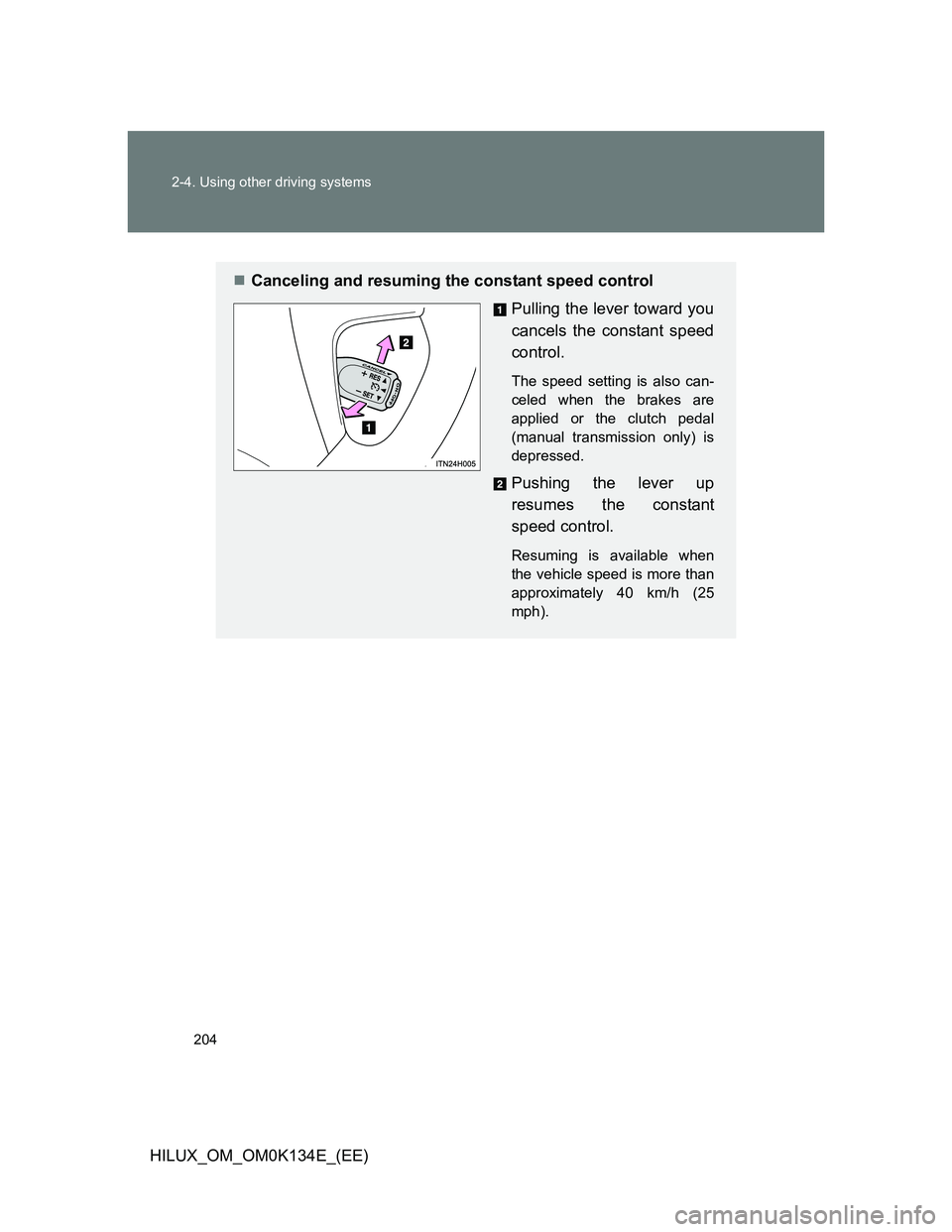

Canceling and resuming the constant speed control
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied or the clutch pedal
(manual transmission only) is
depressed.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when
the vehicle speed is more than
approximately 40 km/h (25
mph).

205 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)

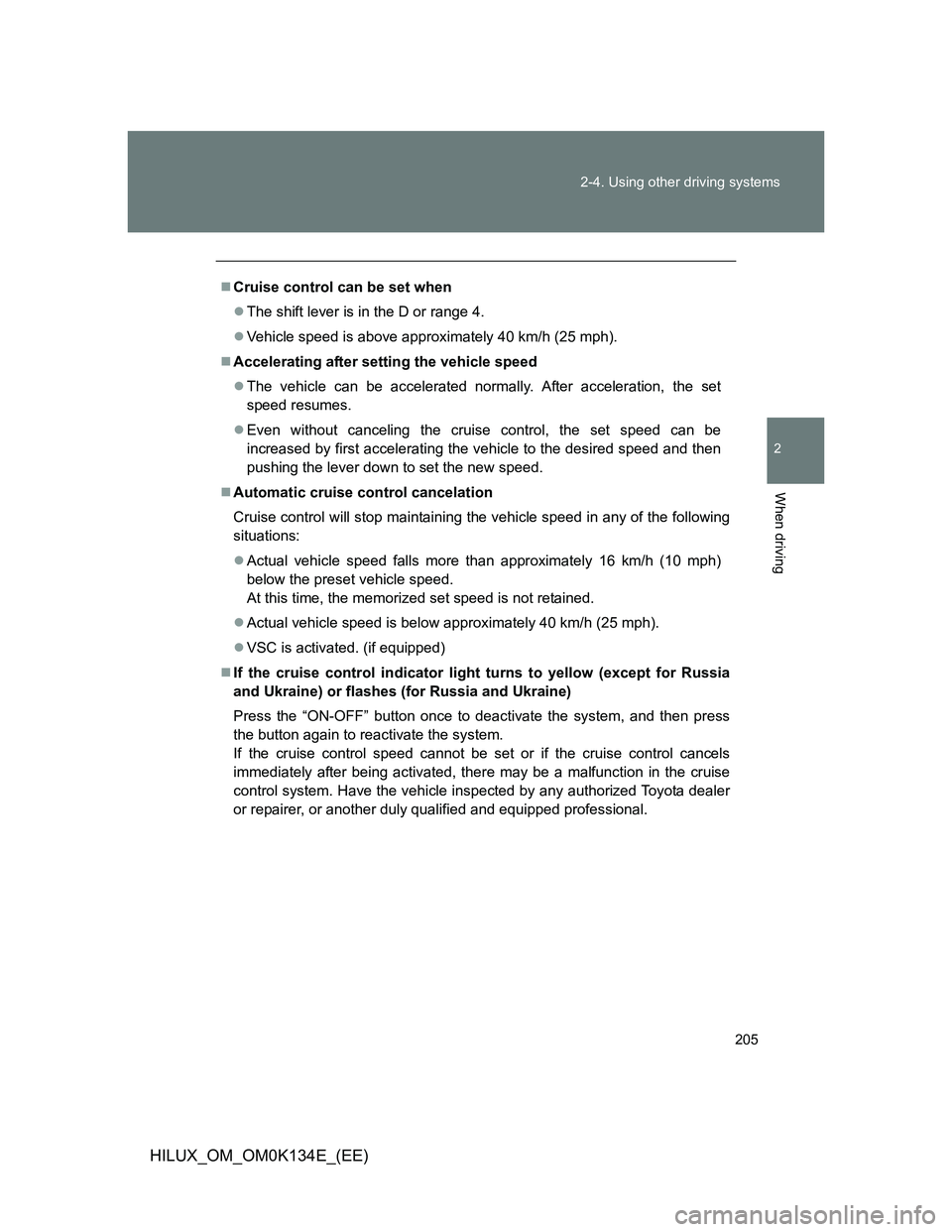

Cruise control can be set when
The shift lever is in the D or range 4.
Vehicle speed is above approximately 40 km/h (25 mph).
Accelerating after setting the vehicle speed
The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations:
Actual vehicle speed falls more than approximately 16 km/h (10 mph)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
Actual vehicle speed is below approximately 40 km/h (25 mph).
VSC is activated. (if equipped)
If the cruise control indicator light turns to yellow (except for Russia
and Ukraine) or flashes (for Russia and Ukraine)
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.

206 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)

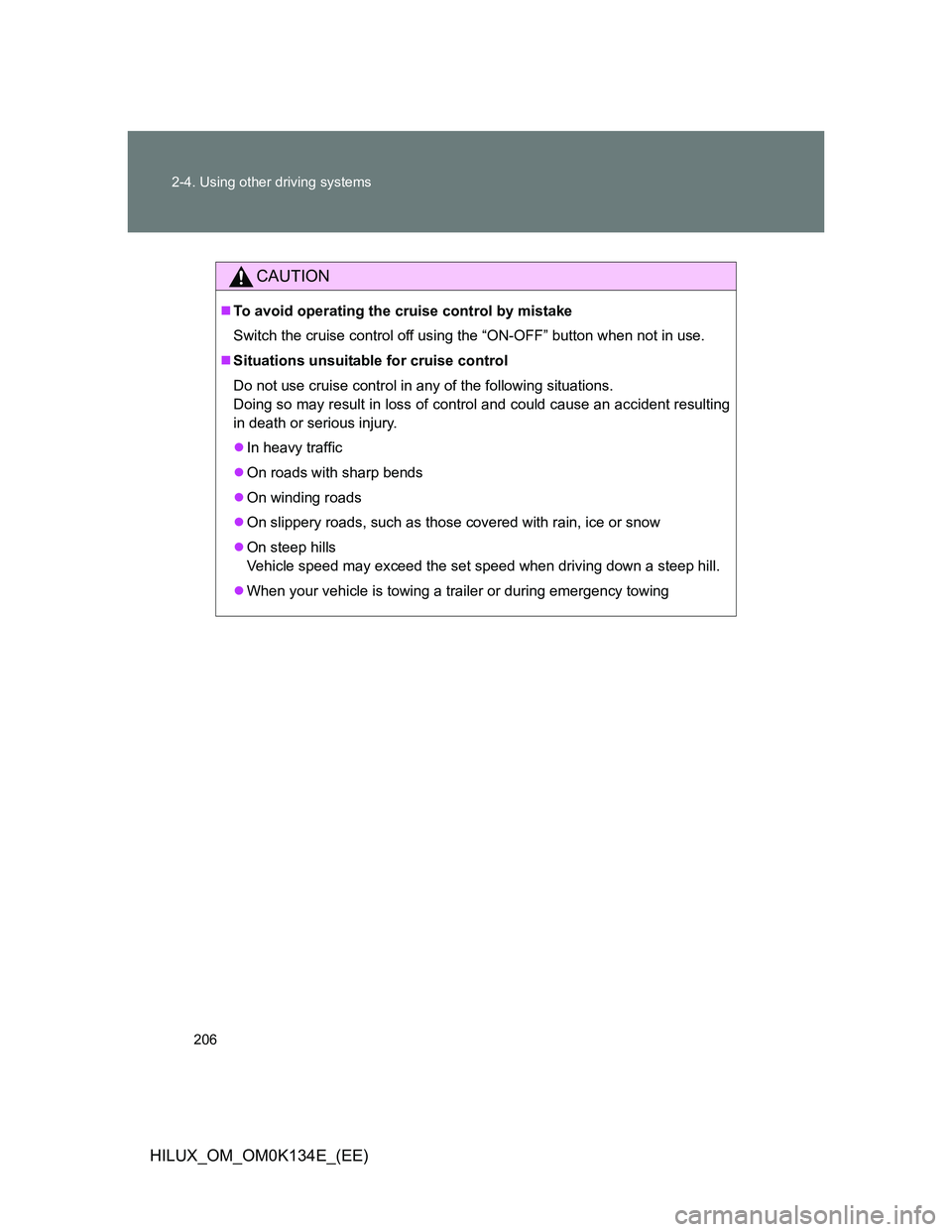

CAUTION
To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
In heavy traffic
On roads with sharp bends
On winding roads
On slippery roads, such as those covered with rain, ice or snow
On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
When your vehicle is towing a trailer or during emergency towing

207
2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)

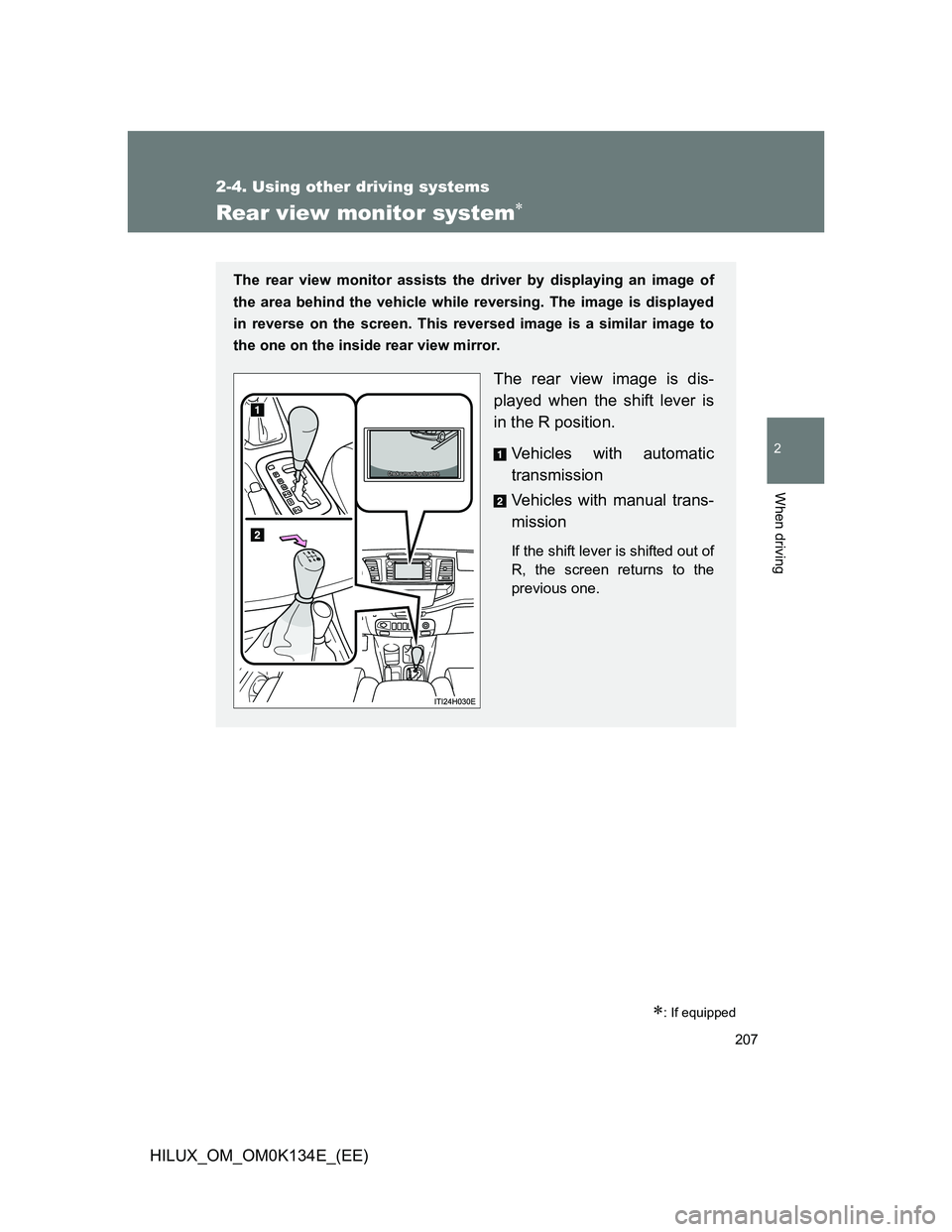

Rear view monitor system
: If equipped
The rear view monitor assists the driver by displaying an image of
the area behind the vehicle while reversing. The image is displayed
in reverse on the screen. This reversed image is a similar image to
the one on the inside rear view mirror.
The rear view image is dis-
played when the shift lever is
in the R position.
Vehicles with automatic
transmission
Vehicles with manual trans-
mission
If the shift lever is shifted out of
R, the screen returns to the
previous one.

208 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)

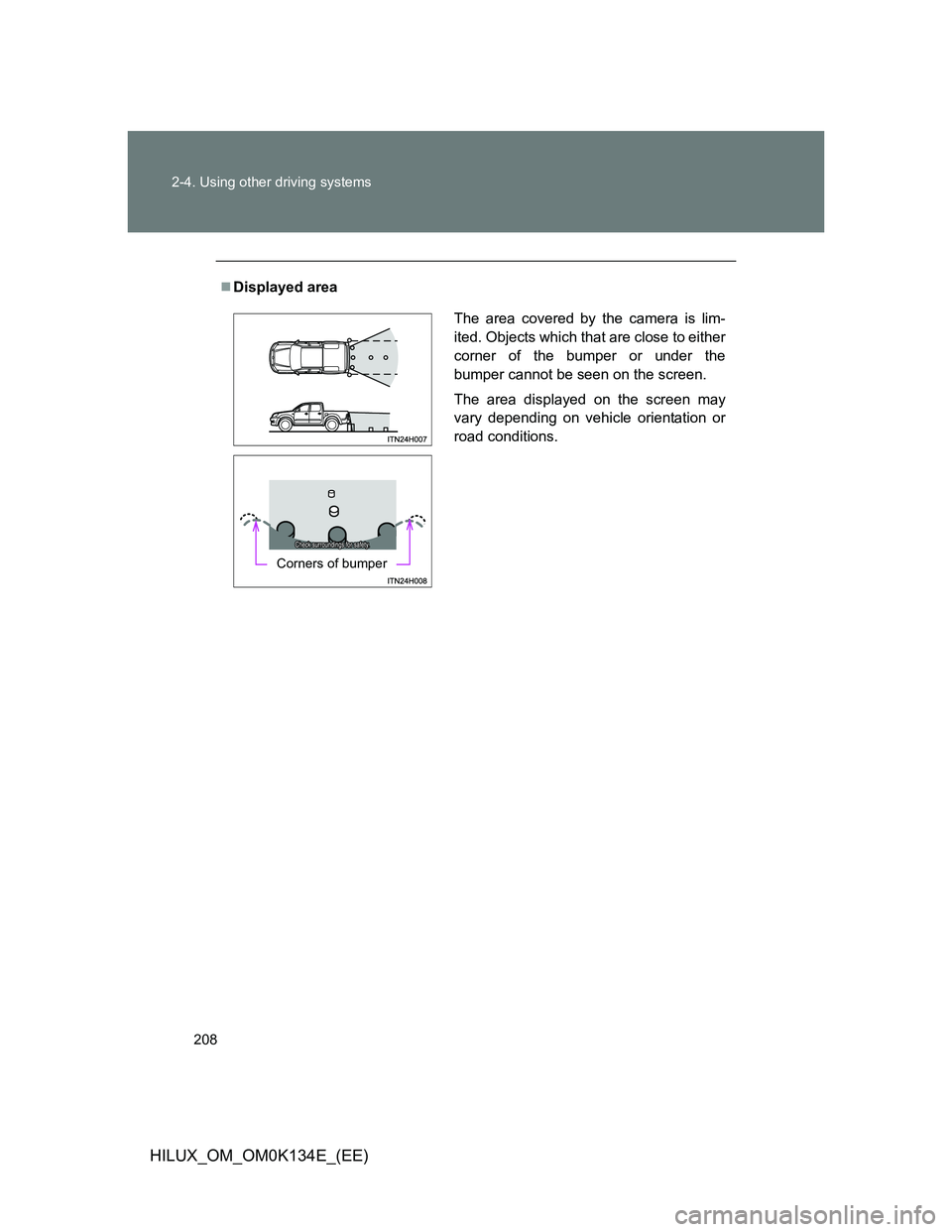

Displayed area
The area covered by the camera is lim-
ited. Objects which that are close to either
corner of the bumper or under the
bumper cannot be seen on the screen.
The area displayed on the screen may
vary depending on vehicle orientation or
road conditions.
Corners of bumper
