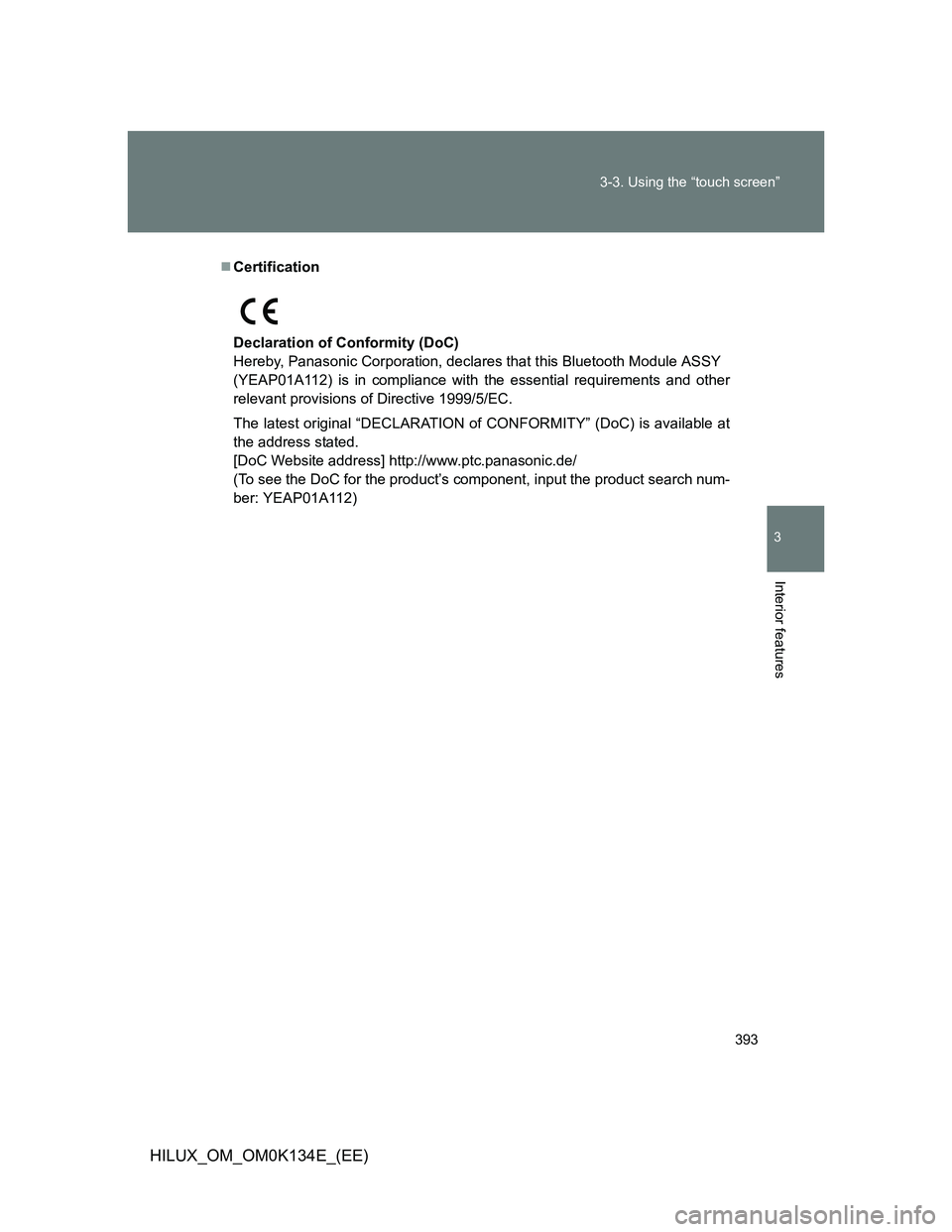

Page 393 of 644
393 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)
Certification
Declaration of Conformity (DoC)
Hereby, Panasonic Corporation, declares that this Bluetooth Module ASSY
(YEAP01A112) is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
The latest original “DECLARATION of CONFORMITY” (DoC) is available at
the address stated.
[DoC Website address] http://www.ptc.panasonic.de/
(To see the DoC for the product’s component, input the product search num-
ber: YEAP01A112)
Page 394 of 644
394 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
CAUTION
While driving
Do not use the cellular phone or connect the Bluetooth
® system.
NOTICE
When leaving the vehicle
Do not leave your cellular phone in the vehicle. The inside of the vehicle may
become hot, causing damage to the phone.
Page 395 of 644
395
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)
Using the Bluetooth® phone
Device name
Bluetooth
® connection status
Make a call
To display the screen shown above, press on the steering
wheel or .
Page 396 of 644
396 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Registering a Bluetooth® phone
To use the hands-free system, you must register a Bluetooth
® phone
in the system. You can register up to 5 phones in the system.
Display the “Telephone” screen. (P. 395)
Touch “Yes”.
Input the passcode displayed on
the screen into your phone.
For the operation of the phone,
see the manual that comes with
your cellular phone.
Passcodes are not required for
SSP (Secure Simple Pairing)
compatible Bluetooth
® devices.
Depending on the phone, you
may need to select “Yes” to regis-
ter, or “No” to cancel on your cel-
lular phone.
If you want to cancel it, select
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
STEP1
STEP2
STEP3
Page 397 of 644
397 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)
Selecting the Bluetooth® phone
If multiple Bluetooth
® devices are registered, follow the procedure
below to select the Bluetooth® device to be used. You may only use
one device at a time.
Display the “Telephone” screen. (P. 395)
Touch “Connect telephone”.
Touch the device to connect.
“Add new”: Registering a
Bluetooth® device. (P. 429)
The selection indicator is
displayed on left side of the
selected device name.
The Bluetooth
® mark is displayed
when you connected the device.
STEP1
STEP2
STEP3
Page 398 of 644
398 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Connecting a Bluetooth® phone
There are two connecting methods available-automatic and manual.
Automatic
When you register your phone, auto connection will be activated.
Always set it to this mode and leave the Bluetooth
® phone in a place
where connection can be established.
When the engine switch is turned to the “ACC” or “ON” position, the
system will search for a nearby cellular phone you have registered.
Next, the system automatically connects with the most recent of the
phones connected to in the past. Then, the connection result is dis-
played.
Page 399 of 644
399 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)Manual
When the auto connection has failed or “Bluetooth
* power” is turned
off, you must connect Bluetooth® manually.
Display the “Telephone” screen
. (P. 395)
Touch “Connect telephone”.
Touch the device to connect.
A message is shown if connection
has been successful.
If connection fails, a message will
be displayed and connection will
be re-attempted.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
Page 400 of 644

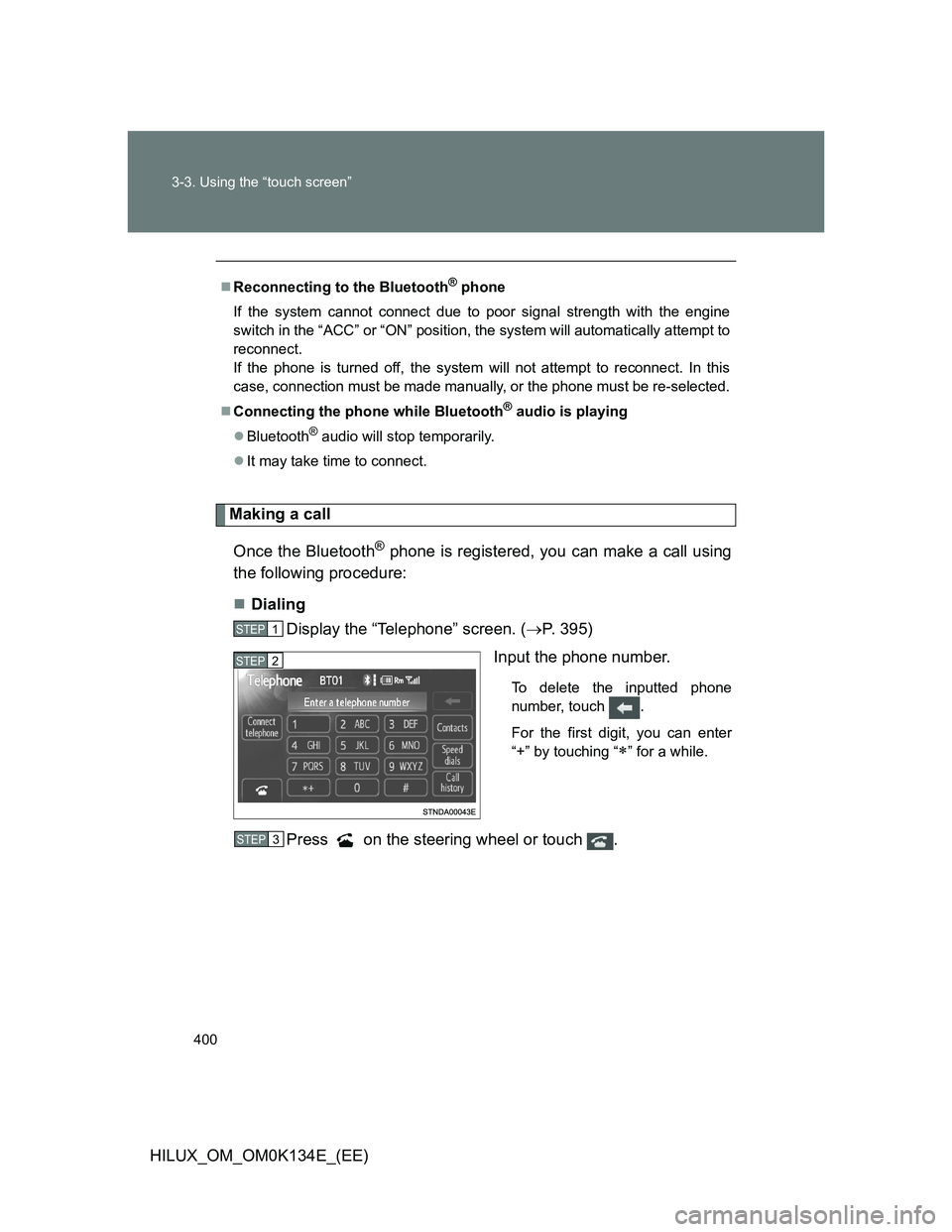

400 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Making a call
Once the Bluetooth
® phone is registered, you can make a call using
the following procedure:
Dialing
Display the “Telephone” screen. (P. 395)
Input the phone number.
To delete the inputted phone
number, touch
.
For the first digit, you can enter
“+” by touching “
” for a while.
Press on the steering wheel or touch .
Reconnecting to the Bluetooth® phone
If the system cannot connect due to poor signal strength with the engine
switch in the “ACC” or “ON” position, the system will automatically attempt to
reconnect.
If the phone is turned off, the system will not attempt to reconnect. In this
case, connection must be made manually, or the phone must be re-selected.
Connecting the phone while Bluetooth
® audio is playing
Bluetooth
® audio will stop temporarily.
It may take time to connect.
STEP1
STEP2
STEP3
