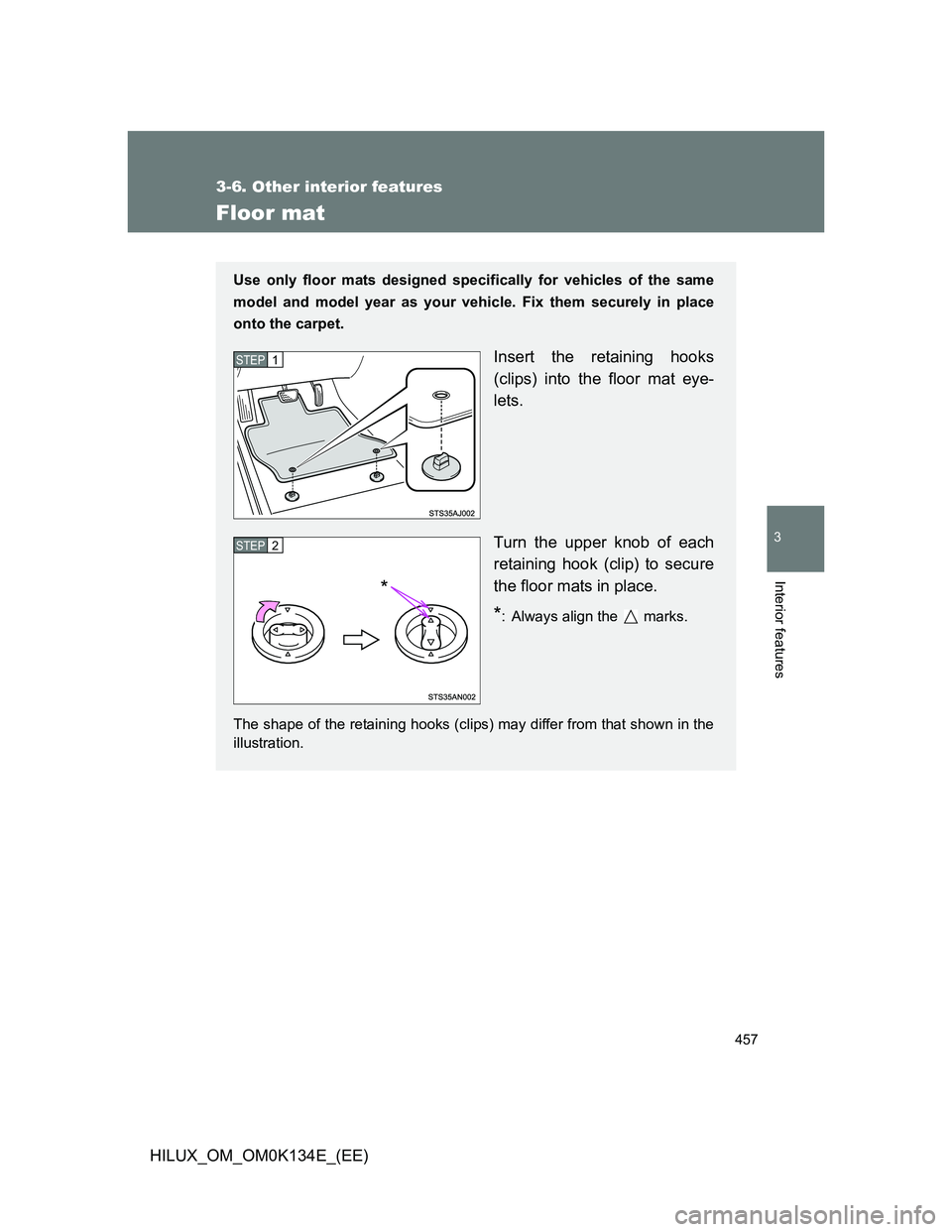

Page 457 of 644
457
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K134E_(EE)
Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP1
STEP2
*

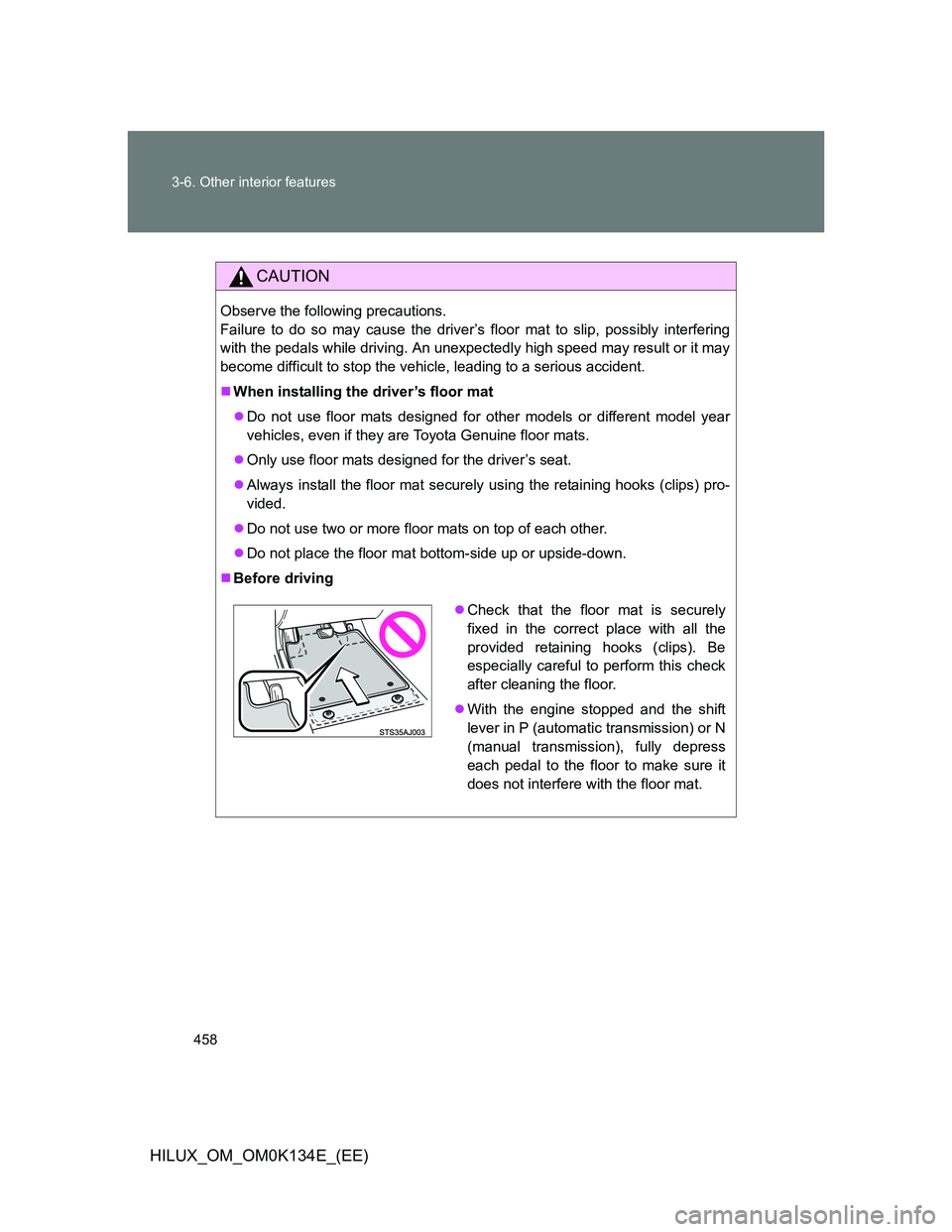

Page 458 of 644

458 3-6. Other interior features
HILUX_OM_OM0K134E_(EE)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.
Page 459 of 644
459
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K134E_(EE)
Compass
: If equipped
The compass on the multi-information display indicates the direction
in which the vehicle is heading.
Operation
To turn the compass on, press
the “INFO.” or “DISP” button
until the compass appears.
(P. 185)
“INFO.” button
Direction display
“H” button
“M” button
“RESET” button
“DISP” button (if equipped)
Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest
Page 460 of 644
460 3-6. Other interior features
HILUX_OM_OM0K134E_(EE)
Calibrating the compass
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies depending
on the geographic position of the vehicle.
If you cross over one of the map boundaries shown in illustration, the
compass will deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibra-
tion”.
Page 461 of 644
461 3-6. Other interior features
3
Interior features
HILUX_OM_OM0K134E_(EE)Deviation calibration
Stop the vehicle.
Press and hold the “INFO.” or
“DISP” button until a number (1
to 15) appears on the clock.
Then press the “H” or “M” button,
and referring to the map above,
select the number of the zone
where you are.
Press the “INFO.” or “DISP” button.
If the direction is displayed for several seconds after adjustment, the
calibration is complete.
STEP1
STEP2
STEP3
Page 462 of 644
462 3-6. Other interior features
HILUX_OM_OM0K134E_(EE)Circling calibration
If the direction display on the
compass flashes, circling calibra-
tion needs to be performed.
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold the “INFO.” or
“DISP” button until a number (1
to 15) appears on the clock, and
press the “RESET” button.
“- N -” appears on the direction
display.
Drive the vehicle at 8 km/h (5
mph) or less in a circle until a
direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until a direction is dis-
played.
STEP1
STEP2
STEP3
Page 463 of 644
463 3-6. Other interior features
3
Interior features
HILUX_OM_OM0K134E_(EE)
Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
The vehicle is stopped immediately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the earth’s magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
The vehicle has become magnetized.
(There is a magnet or metal object near the multi-information display.)
The battery has been disconnected.
A door is open.
Page 464 of 644
464 3-6. Other interior features
HILUX_OM_OM0K134E_(EE)
CAUTION
While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.
When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity.
Do not violate any local traffic rules while performing circling calibration.
NOTICE
To avoid compass malfunctions
Do not place magnets or any metal objects near the multi-information dis-
play.
Doing this may cause the compass sensor to malfunction.
To ensure normal operation of the compass
Do not perform a circling calibration of the compass in a place where the
earth’s magnetic field is subject to interference by artificial magnetic fields.
During calibration, do not operate electric systems (power windows etc.)
as they may interfere with the calibration.
