2013 TOYOTA HILUX Owners Manual (in English)

297 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Display
P. 278
Error messages
“ERROR 1”: This indicates that the data in the iPod cannot be read.
“ERROR 3”: This indicates that the iPod may be malfunctioning.
“ERROR 4”: This indicates that an over current error has occurred.
“ERROR 5”: This indicates that an iPod communication error has
occurred.
“ERROR 6”: This indicates that an authentication error has occurred.
“NO SONGS”: This indicates that there is no music data in the iPod.
“NO PLAYLISTS”: This indicates that some available songs are not found in
a selected playlist.
“UPDATE”: This indicates that the version of the iPod is not compati-
ble. Upgrade your iPod software to the latest version.

298 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Compatible models
The following iPod
®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
Maximum number of lists in device: 9999
Maximum number of songs in device: 65535
Maximum number of songs per list: 65535

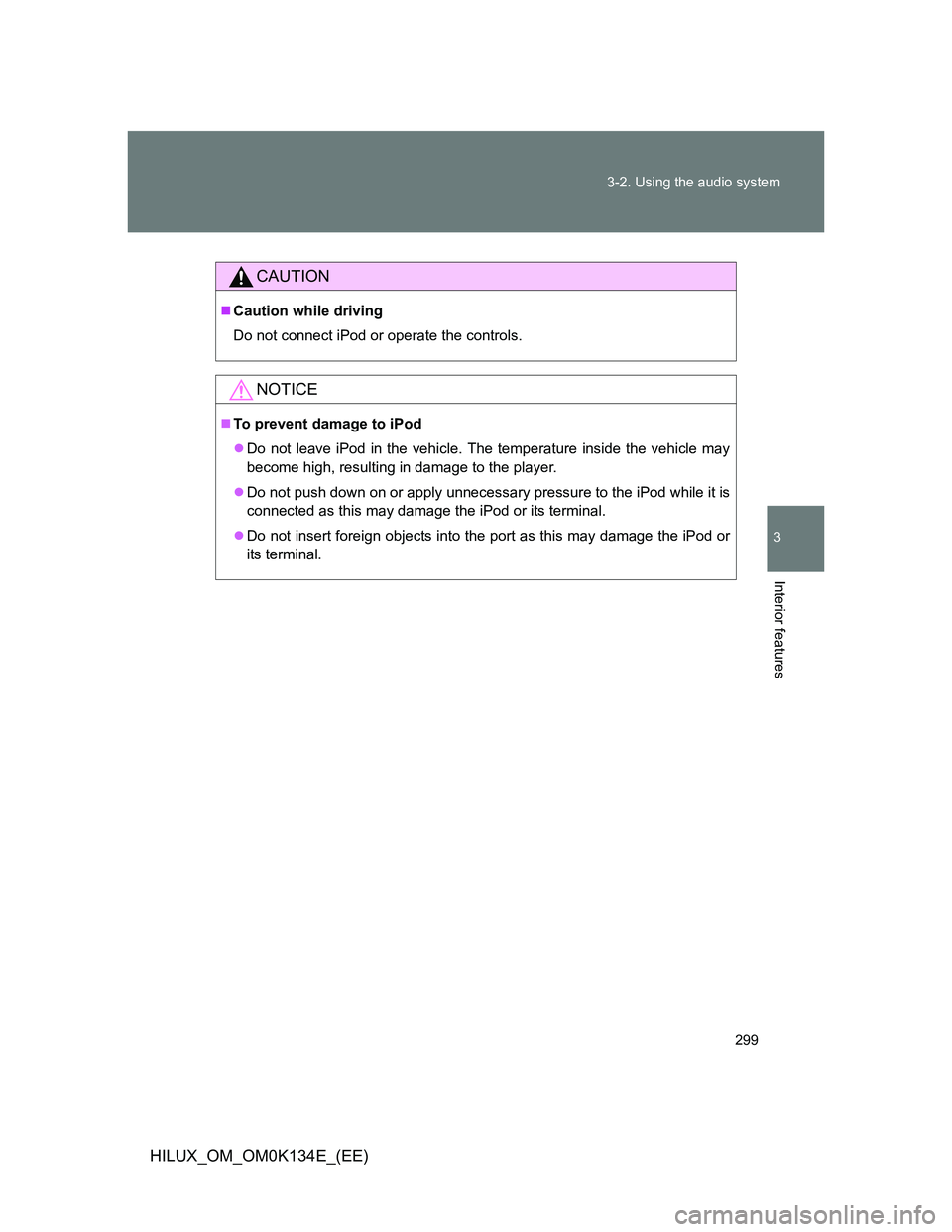

299 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
CAUTION
Caution while driving
Do not connect iPod or operate the controls.
NOTICE
To prevent damage to iPod
Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
Do not push down on or apply unnecessary pressure to the iPod while it is
connected as this may damage the iPod or its terminal.
Do not insert foreign objects into the port as this may damage the iPod or
its terminal.

300
3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Operating a USB memor y
Connecting a USB memory enables you to enjoy music from the
vehicle speakers.
Connecting a USB memory
Open the cover and connect a
USB memory.
Turn on the power of the USB
memory if it is not turned on.
Press the “USB•AUX” button.
STEP1
STEP2

301 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Control panel
Vo lu m e Power
Displaying
folder lists
Playback
Displaying text message
Back button Selecting a file
Repeat play Random playback
Selecting a file,
fast-forwarding
or reversing
Selecting a folder

302 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Selecting a folder
Selecting folders one at a time
Press the 3 ( ) or 4 ( ) button to select the desired folder.
Selecting a folder and a file from folder lists
Press the “LIST” button.
The folder list will be displayed.
Turn and press to select a folder and a file.
To return to the previous display, press the .
Returning to the first folder
Press and hold the 3 ( ) button until you hear a beep.
STEP1
STEP2

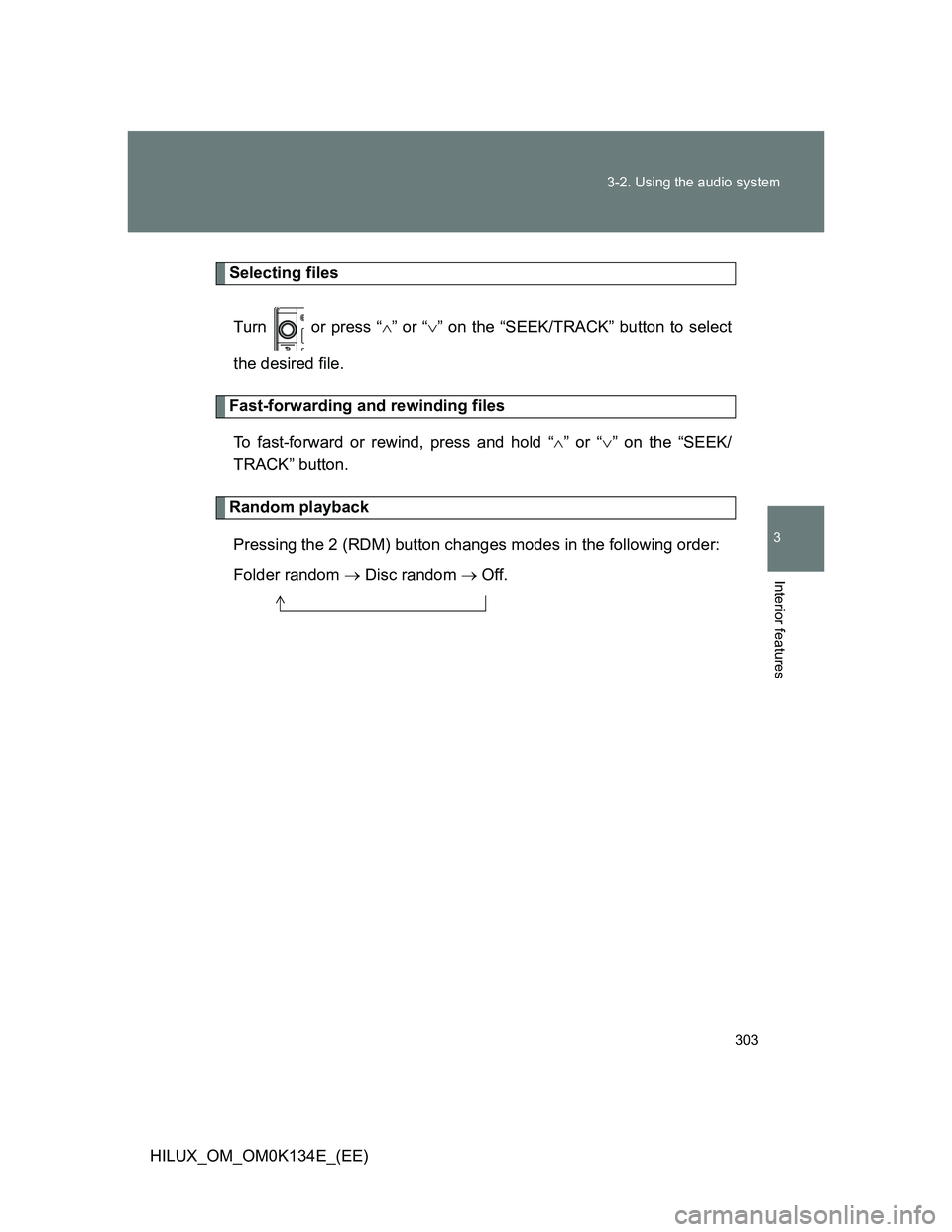

303 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Selecting files
Turn or press “” or “” on the “SEEK/TRACK” button to select
the desired file.
Fast-forwarding and rewinding files
To fast-forward or rewind, press and hold “” or “” on the “SEEK/
TRACK” button.
Random playback
Pressing the 2 (RDM) button changes modes in the following order:
Folder random  Disc random  Off.

304 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Repeat play
Pressing the 1 (RPT) button changes modes in the following order:
File repeat
 Folder repeat*  Off.
*: Available except when RDM (random playback) is selected
Switching the display
Press the “TEXT” button.
Each time the button is pressed, the display changes in the following
order: Track no./Elapsed time  Folder name  File name 
Album title (MP3 only)  Track title  Artist name
USB memory functions
Depending on the USB memory that is connected to the system, the
device itself may not be operable and certain functions may not be avail-
able. If the device is inoperable or a function is unavailable due to a mal-
function (as opposed to a system specification), disconnecting the device
and reconnecting it once again may resolve the problem.
If the USB memory still does not begin operation after being discon-
nected and reconnected, format the memory.
Display
P. 278
