97 1-5. Refueling
1
Before driving
HILUX_OM_OM0K134E_(EE)

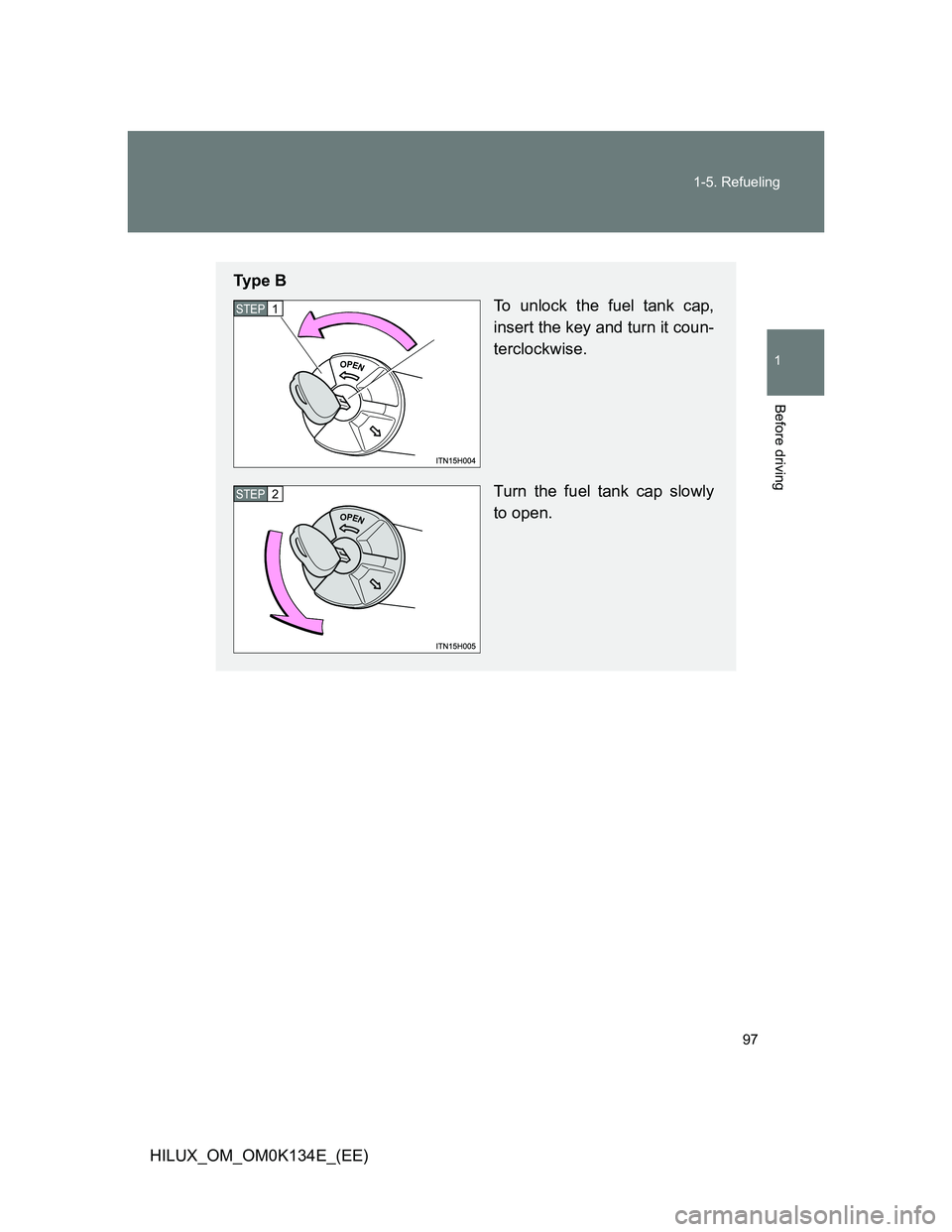

Ty p e B
To unlock the fuel tank cap,
insert the key and turn it coun-
terclockwise.
Turn the fuel tank cap slowly
to open.
STEP1
STEP2

98 1-5. Refueling
HILUX_OM_OM0K134E_(EE)

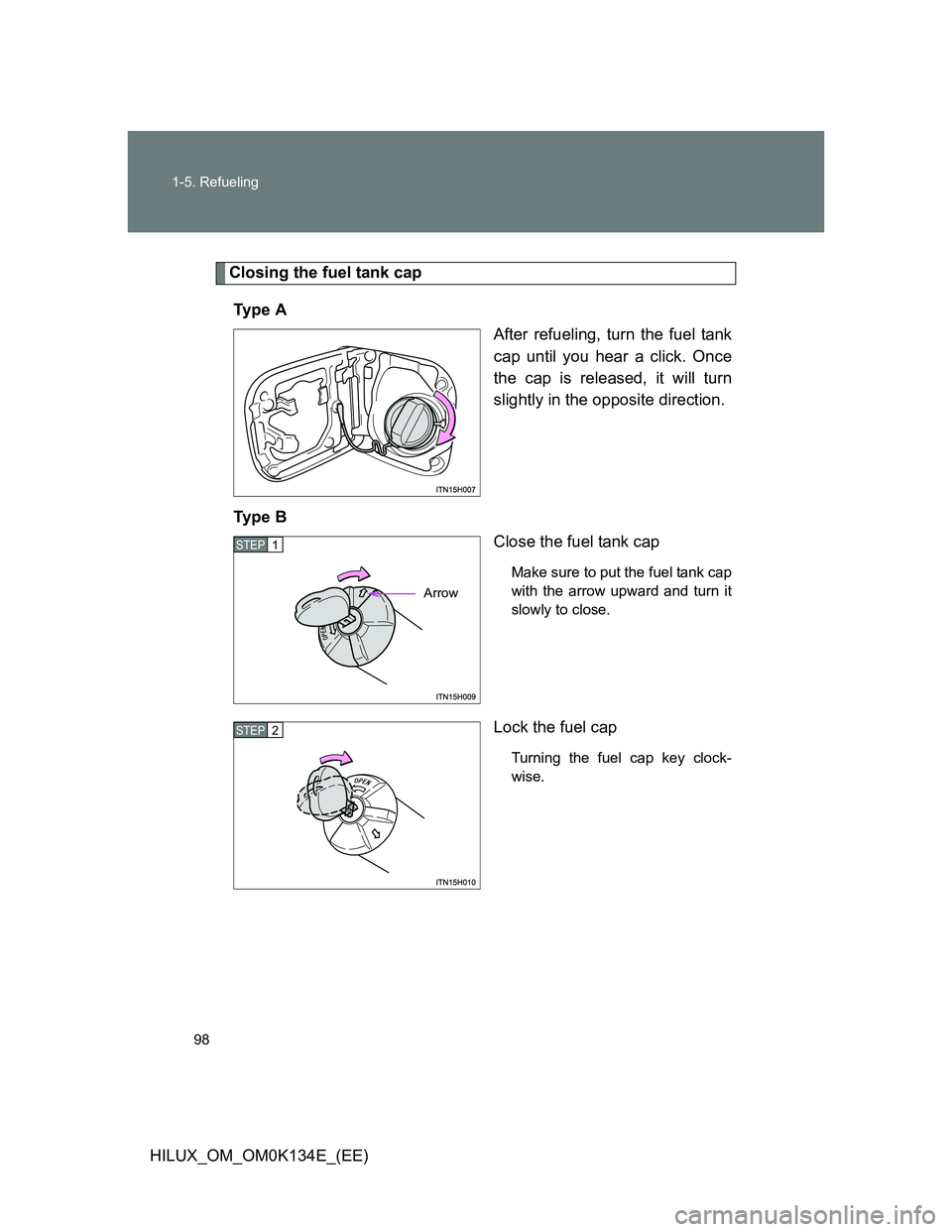

Closing the fuel tank cap
Ty p e A
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Ty p e B
Close the fuel tank cap
Make sure to put the fuel tank cap
with the arrow upward and turn it
slowly to close.
Lock the fuel cap
Turning the fuel cap key clock-
wise.
STEP1
Arrow
STEP2

99 1-5. Refueling
1
Before driving
HILUX_OM_OM0K134E_(EE)

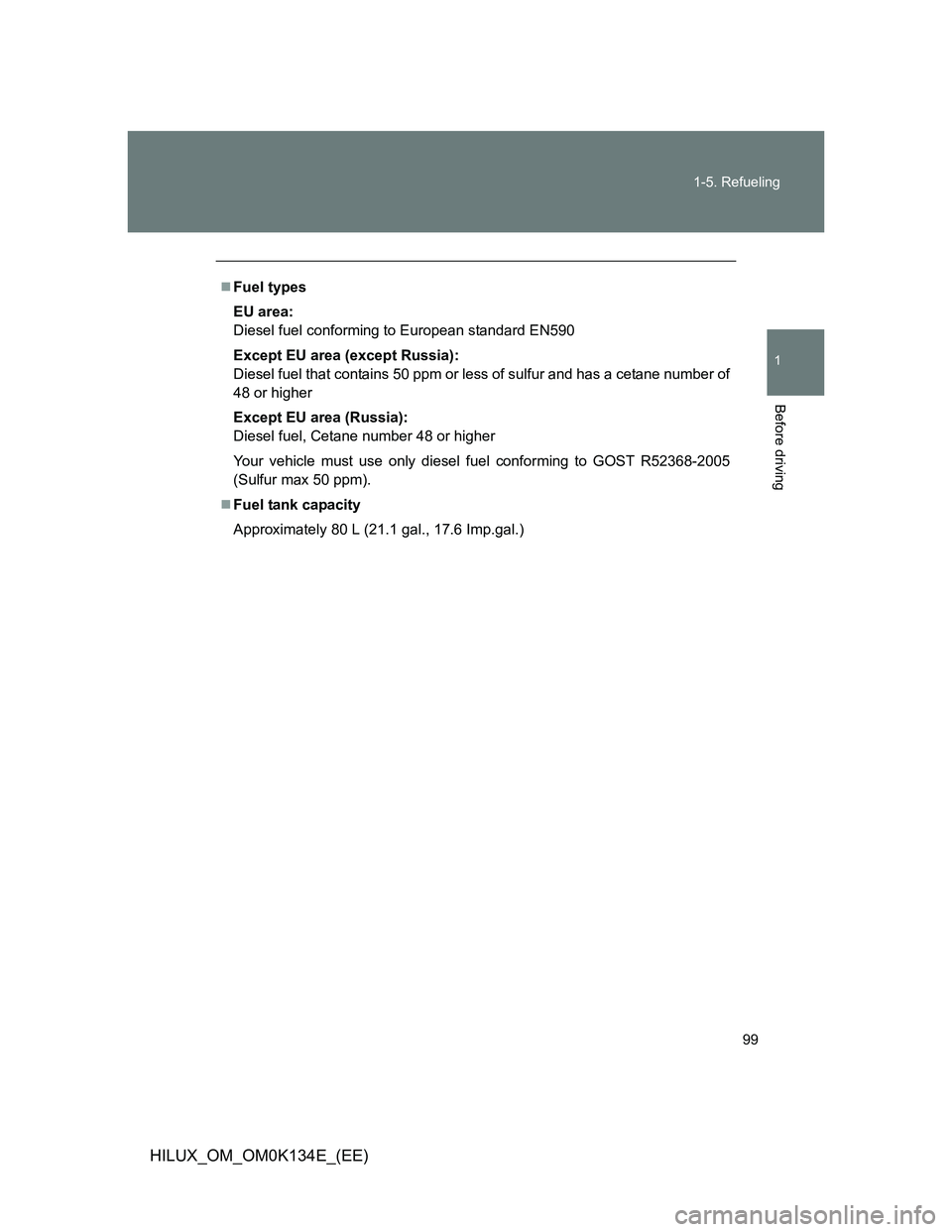

Fuel types
EU area:
Diesel fuel conforming to European standard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or less of sulfur and has a cetane number of
48 or higher
Except EU area (Russia):
Diesel fuel, Cetane number 48 or higher
Your vehicle must use only diesel fuel conforming to GOST R52368-2005
(Sulfur max 50 ppm).
Fuel tank capacity
Approximately 80 L (21.1 gal., 17.6 Imp.gal.)

100 1-5. Refueling
HILUX_OM_OM0K134E_(EE)

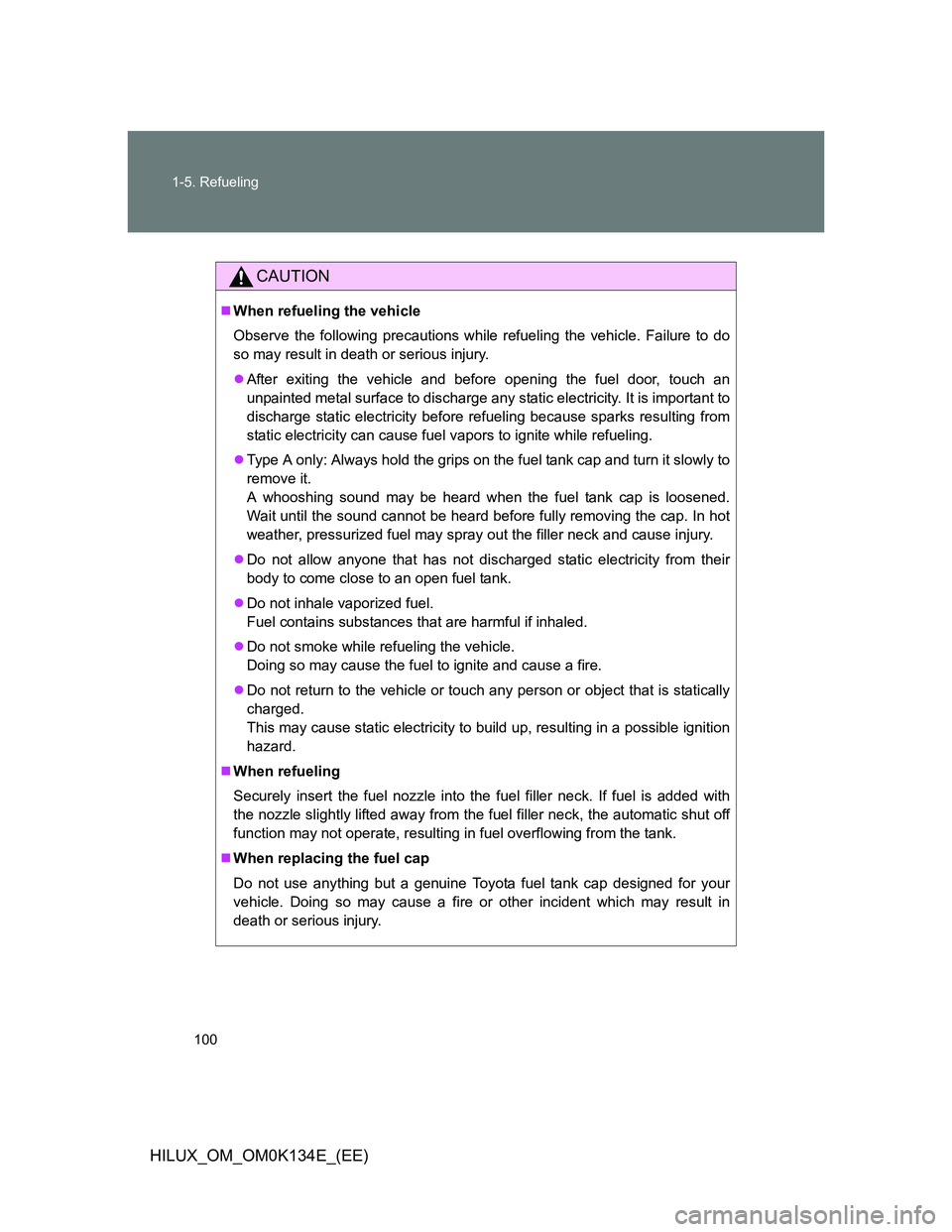

CAUTION
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
Type A only: Always hold the grips on the fuel tank cap and turn it slowly to
remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
When refueling
Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with
the nozzle slightly lifted away from the fuel filler neck, the automatic shut off
function may not operate, resulting in fuel overflowing from the tank.
When replacing the fuel cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

101 1-5. Refueling
1
Before driving
HILUX_OM_OM0K134E_(EE)
NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

102
HILUX_OM_OM0K134E_(EE)
1-6. Theft deterrent system
Engine immobilizer system
System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not been previously registered in
the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the key has been removed
from the engine switch to indi-
cate that the system is operat-
ing.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.

103 1-6. Theft deterrent system
1
Before driving
HILUX_OM_OM0K134E_(EE)

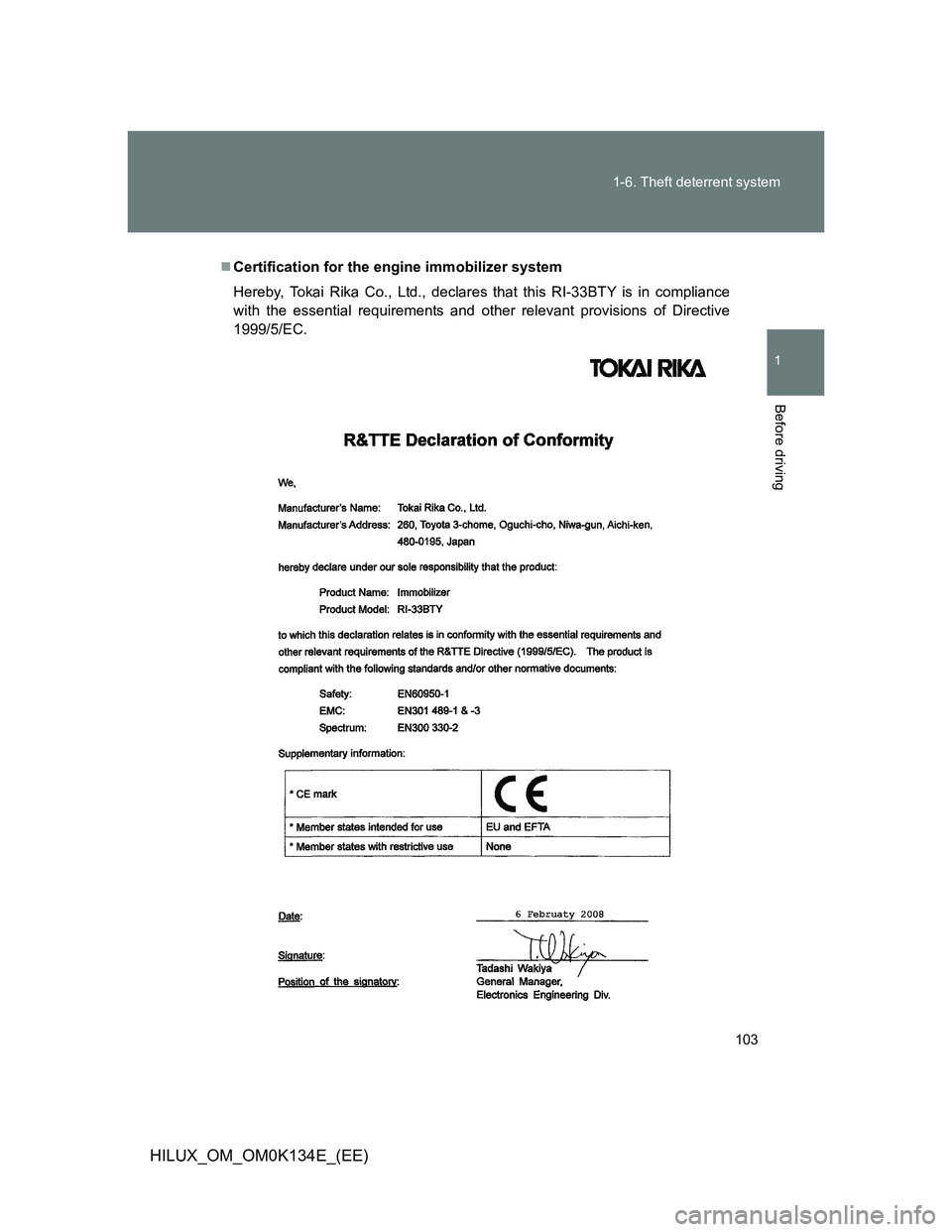

Certification for the engine immobilizer system
Hereby, Tokai Rika Co., Ltd., declares that this RI-33BTY is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.
