HILUX_OM_OM0K134E_(EE)Front position lights
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
STEP1

538 4-3. Do-it-yourself maintenance

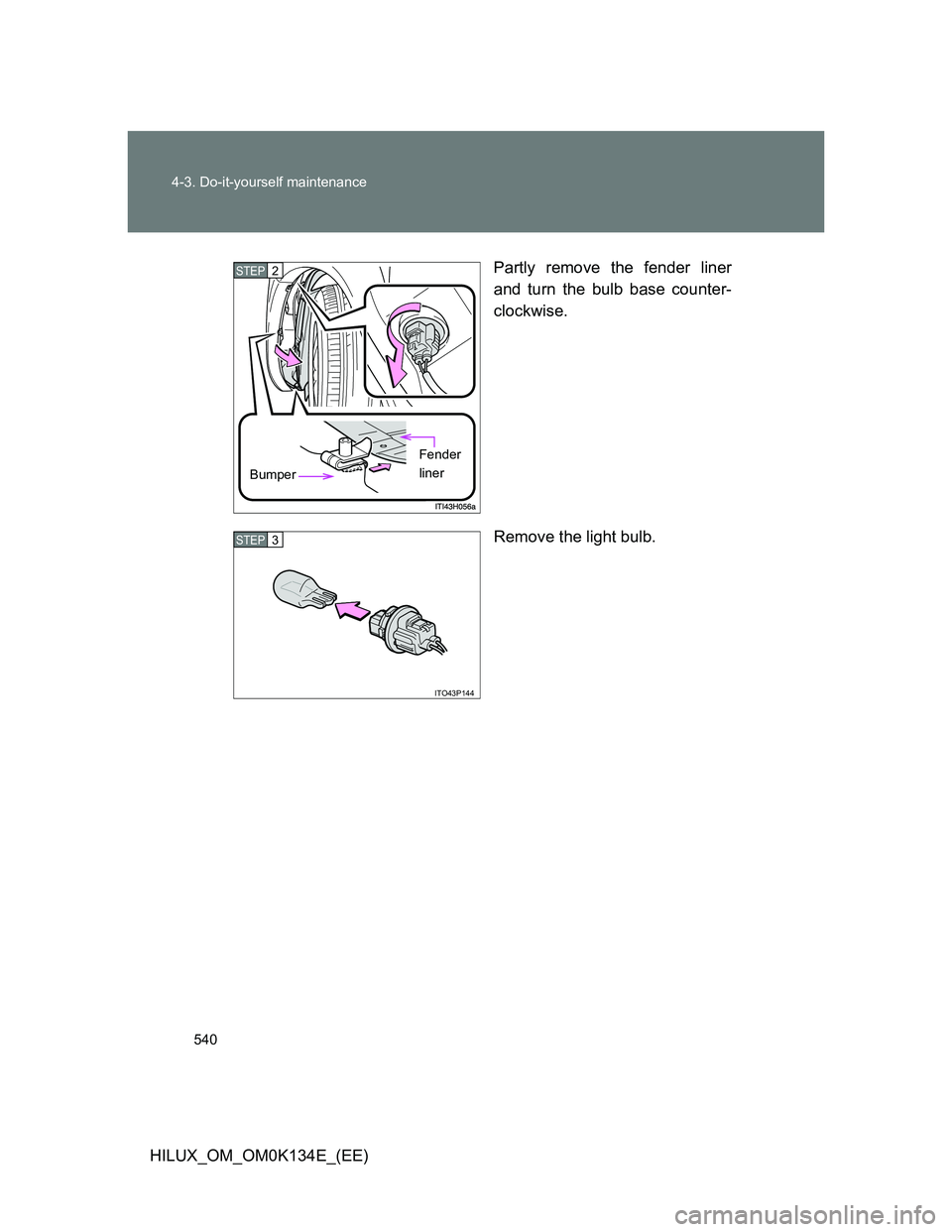

HILUX_OM_OM0K134E_(EE)Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP2
Bumper
Fender
liner
STEP3

539 4-3. Do-it-yourself maintenance
4
Maintenance and care

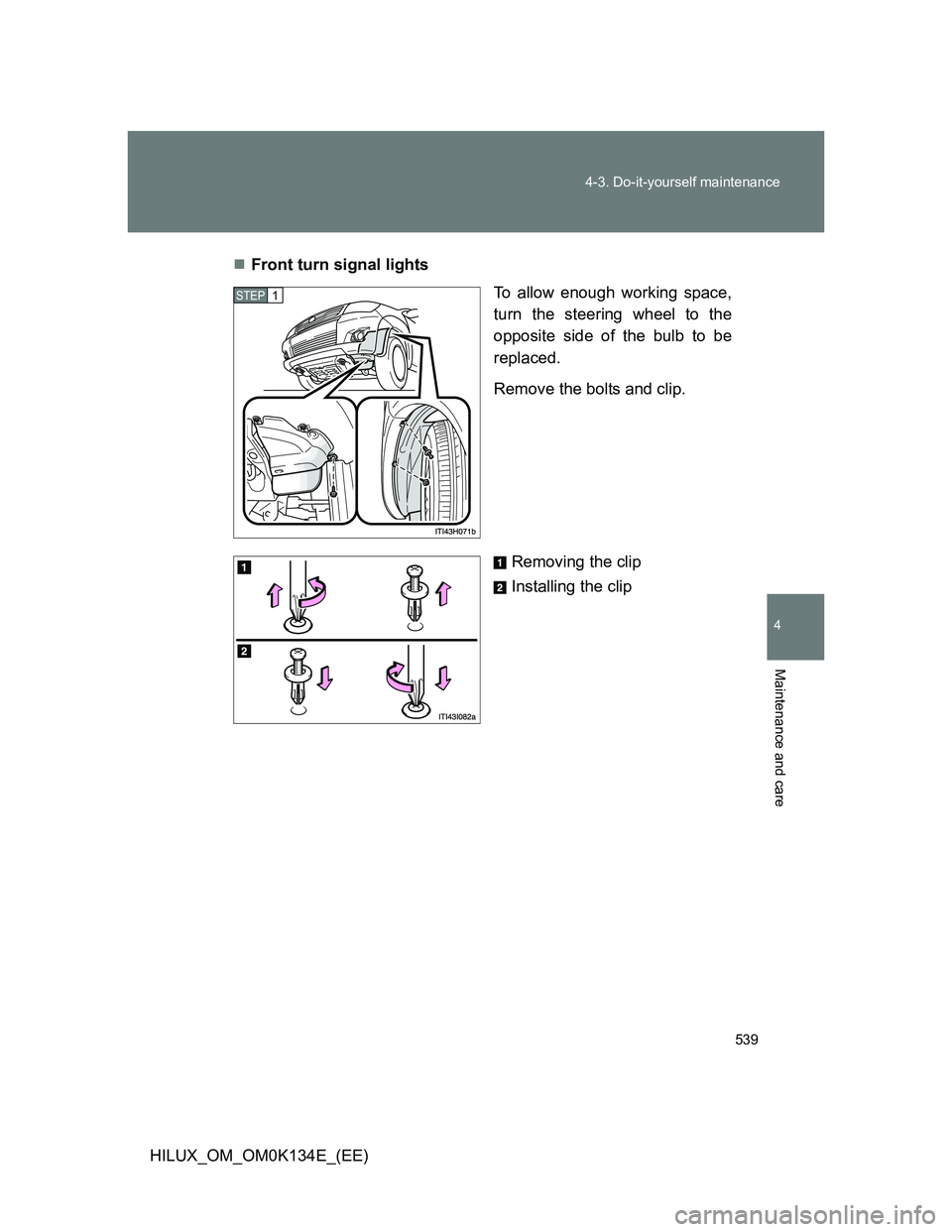

HILUX_OM_OM0K134E_(EE)Front turn signal lights
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
STEP1

540 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)Partly remove the fender liner
and turn the bulb base counter-
clockwise.
Remove the light bulb.
STEP2
Bumper
Fender
liner
ITO43P144
STEP3

541 4-3. Do-it-yourself maintenance
4
Maintenance and care

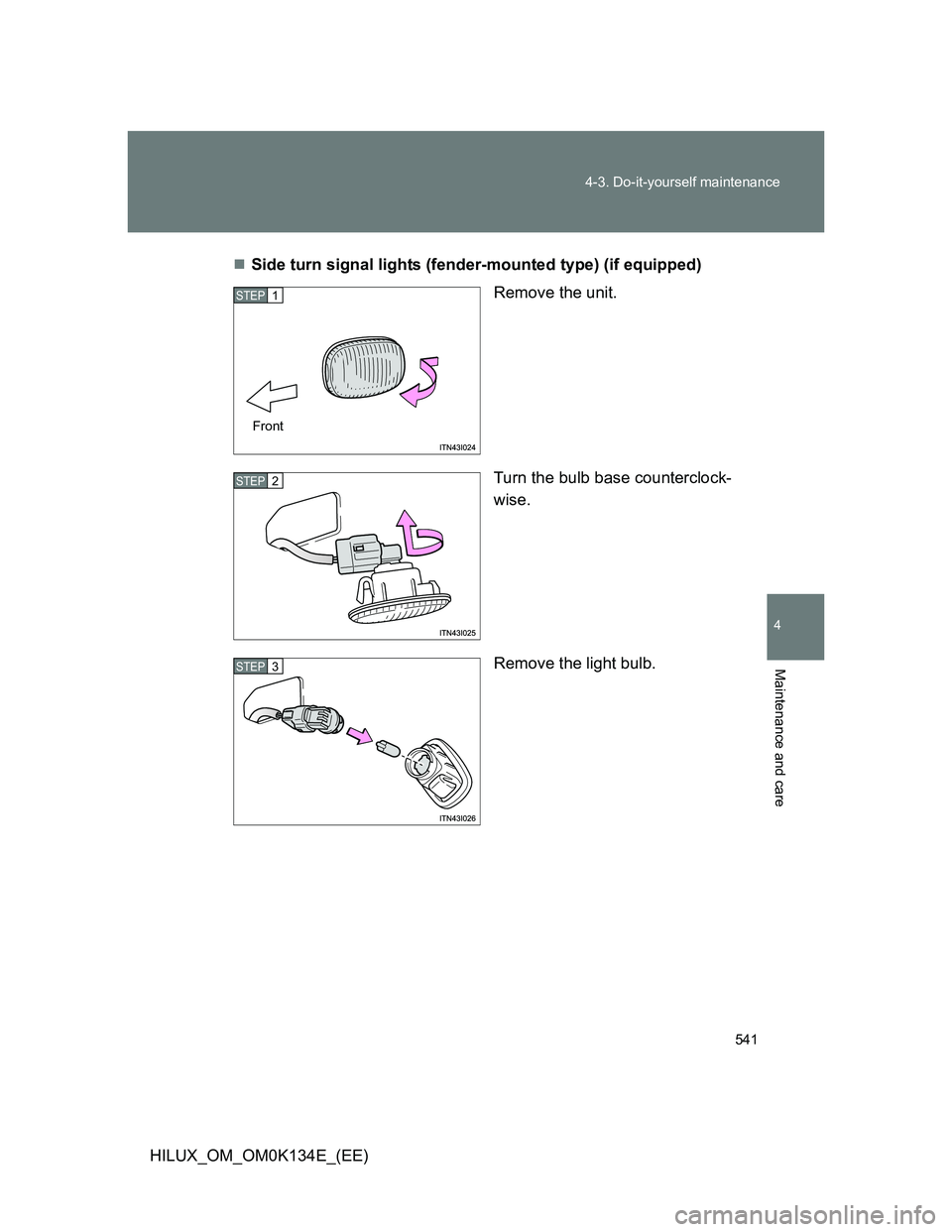

HILUX_OM_OM0K134E_(EE)Side turn signal lights (fender-mounted type) (if equipped)
Remove the unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
Front
STEP2
STEP3

542 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)Stop/tail lights, rear turn signal lights, back-up lights and rear
fog light
Remove the securing bolts and
remove the unit.
Turn the bulb base counterclock-
wise.
Stop/tail light
Rear turn signal light
Back-up light or rear fog light
Remove the light bulb.
Stop/tail light
Rear turn signal light
Back-up light or rear fog light
STEP1
STEP2
STEP3

543 4-3. Do-it-yourself maintenance
4
Maintenance and care

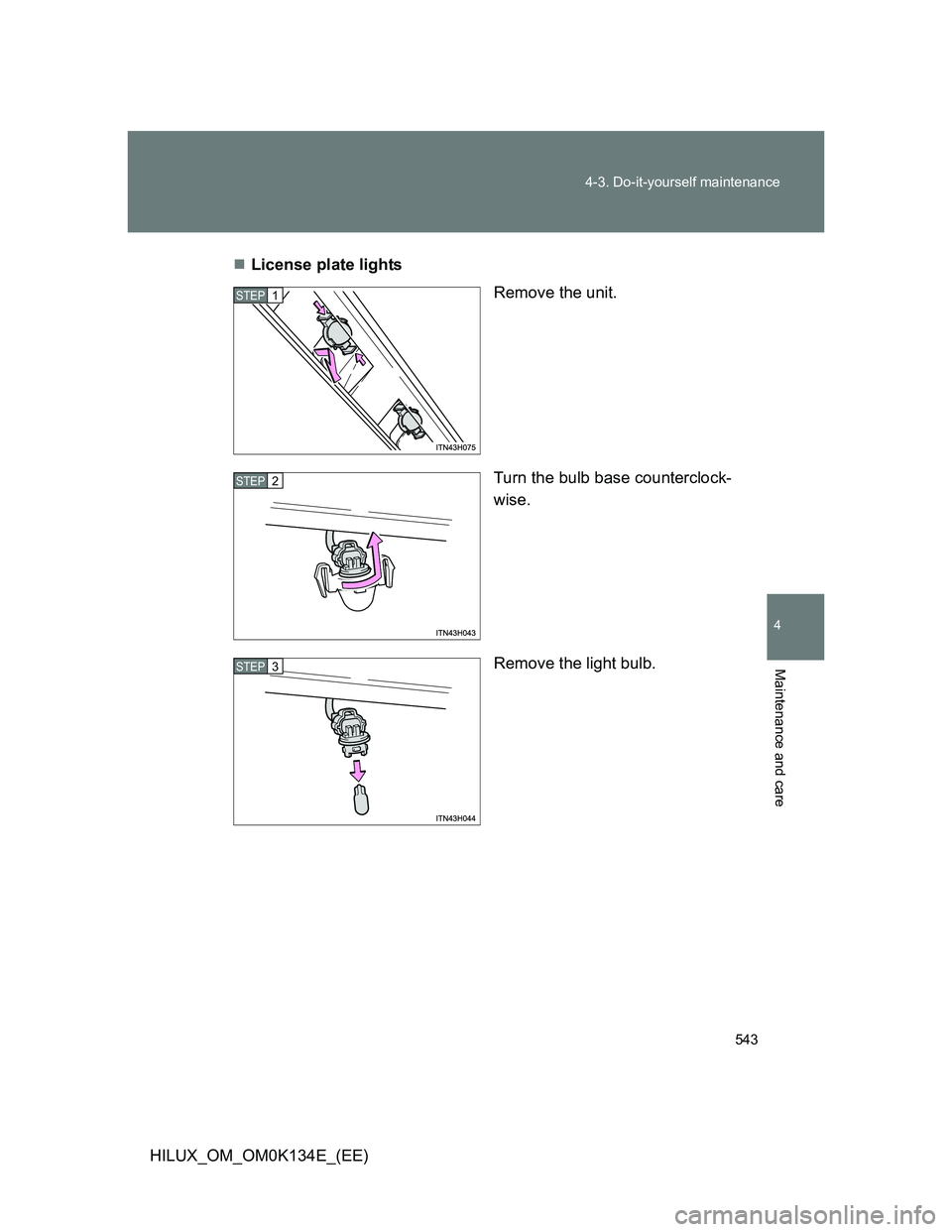

HILUX_OM_OM0K134E_(EE)License plate lights
Remove the unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

544 4-3. Do-it-yourself maintenance

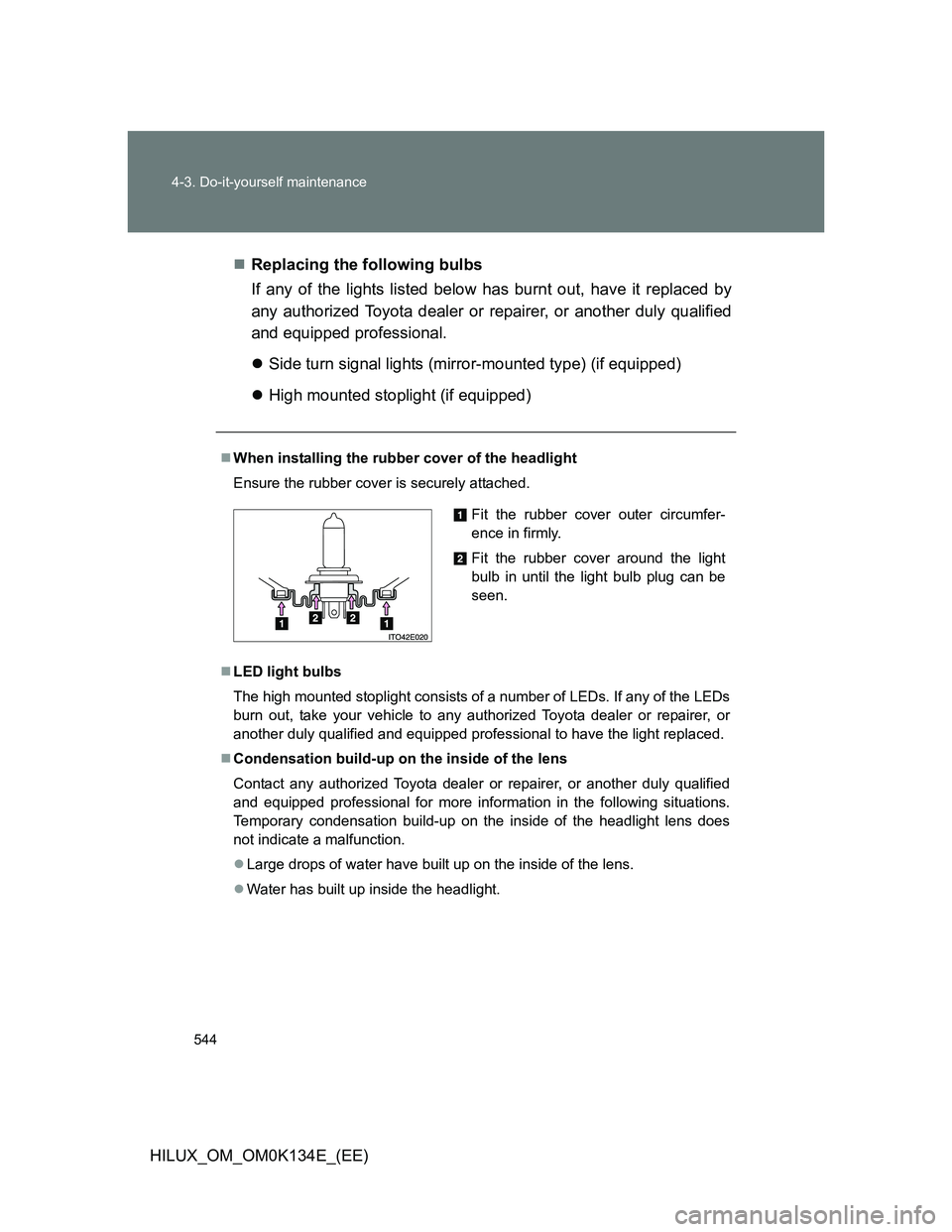

HILUX_OM_OM0K134E_(EE)Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Side turn signal lights (mirror-mounted type) (if equipped)
High mounted stoplight (if equipped)
When installing the rubber cover of the headlight
Ensure the rubber cover is securely attached.
LED light bulbs
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water have built up on the inside of the lens.
Water has built up inside the headlight.
Fit the rubber cover outer circumfer-
ence in firmly.
Fit the rubber cover around the light
bulb in until the light bulb plug can be
seen.
